FMX MCB1-4D-2P-C1.6, Circuit Protector, UL 1077, 2-Pole, 1.6A 480Y/277V WARRANTY
Web Information
MCB1-4D-2P-C1.6, Circuit Protector, UL 1077, 2-Pole, 1.6A
FMX Supplementary Protector, UL 1077, 480 VAC, 5 kA, 2-Pole, C Curve, 1.6A
Specifications
FMX Supplementary Protector, UL 1077, 480 VAC, 5 kA, 2-Pole, C Curve, 1.6A
- UL1077 Supplementary Protectors
- DIN rail mount chassis
- Current ratings up to 63A
- B, C and D curve models to suit a wide range of applications
- Reverse feed capable
- Easy to use, finger safe, captive screws, box lugs
- UL1077, IEC 60947-2
- UL File # E482436
GENERAL SPECIFICATIONS
| Number of Poles | 2 |
| Rated Operational Voltage | 480Y / 277VAC ; 125VDC ±10% |
| Rated Frequency | 50/60Hz |
| Rated Current | 1.6A |
| Instantaneous Tripping Type | C (5-10 x In) |
| Interrupting Rating | 240VAC : 10kA 480Y / 277VAC : 5kA 110VDC : 10kA 125VDC : 10kA |
| Release Type | Thermal-Magnetic |
| Service Life | Electrical : 6,000 operations Mechanical : 20,000 operations |
| Degree of Protection | IP20 |
| Wire Size | 14 - 4 AWG |
| Tightening Torque | 31 in-lbs |
| Dimensions | 3.52"H x 1.40"W x 3.11"D |
| Operating Temperature | -22°F to 167°F |
| Rated Insulation Voltage | 500V |
| Rated Impulse With-stand | 6kV |
| Pollution Degree | Class III |
| Over Voltage Category | Class III |
| Mounting | 35mm DIN Rail |
| Altitude | Less than 6,561ft. |
| Atmospheric Conditions | At 68°F, relative humidity does not exceed 90% At 104°F, relative humidity does not exceed 50% |
| Agency Approvals | UL1077, UL486, IEC 60947-2 |
Condition
Excellent condition.
Includes

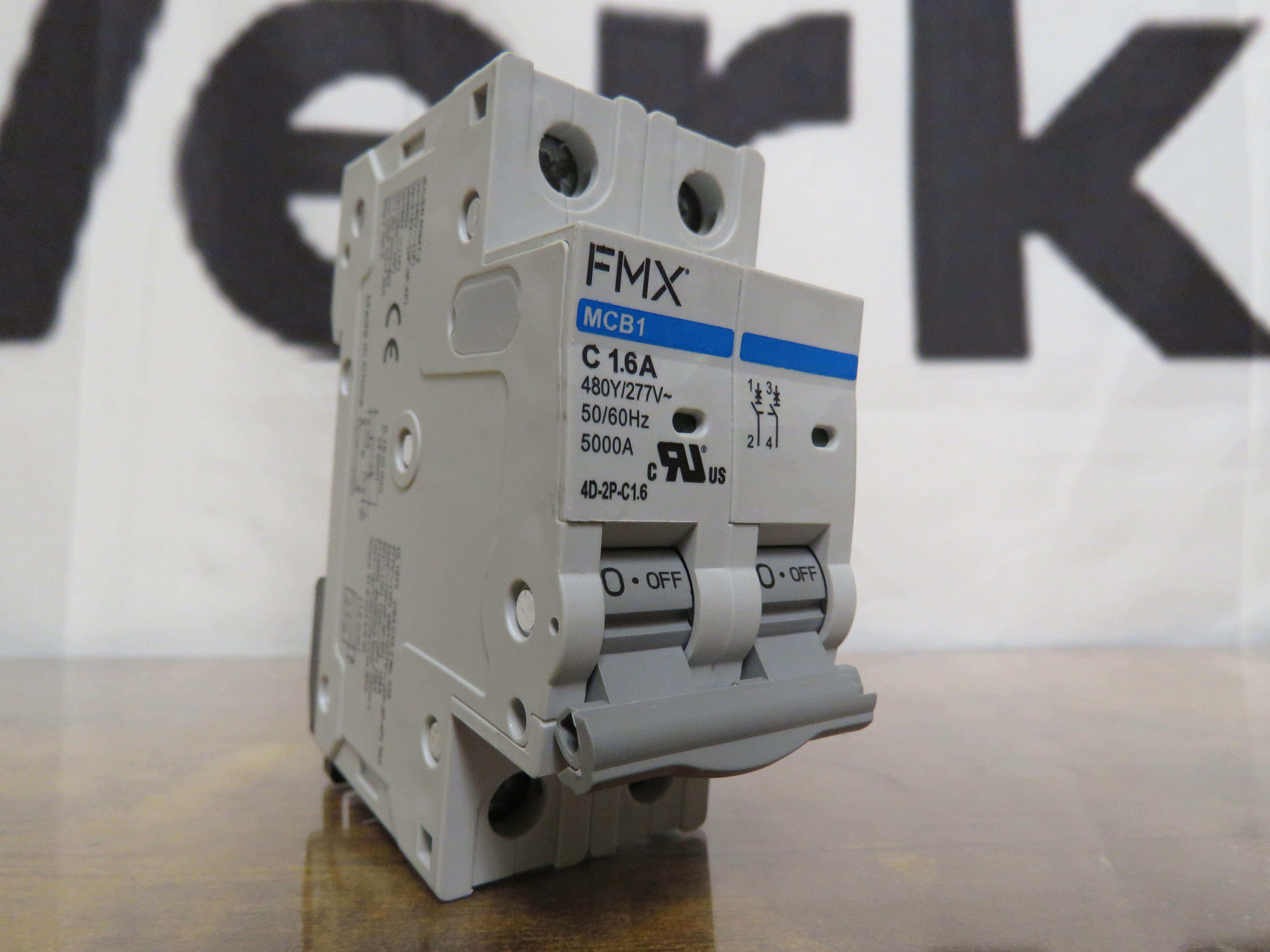

- FMX MCB1-4D-2P-C1.6, Circuit Protector, UL 1077, 2-Pole, 1.6A 480Y/277V
BBR3
Warranty
30 Day warranty. We pledge to offer the best service and warranty to all of our customers! We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.
Certification
This is a genuine product from this manufacturer.
Disclaimer
The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping of the item."
Regardless of the origin of the equipment, documentation provided or identification appearing upon the equipment, the equipment described and offered here is in no way certified for, recommended for, or offered for any specific use. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. The purchaser, by bidding on this equipment, indicates their acknowledgment of, and agreement to the terms of this disclaimer. it is the purchaser's responsibility to have the item inspected and certified by a qualified professional before use!
