24 Volt 20 Amp 480 Watt Industrial DIN Rail Power Supply
24 Volts @ 20 Amps
Features
- Universal AC input / Full range (90-264 VAC)
- Built-in active PFC function
- Protections: Short circuit / Overload / Over voltage / Over temperature

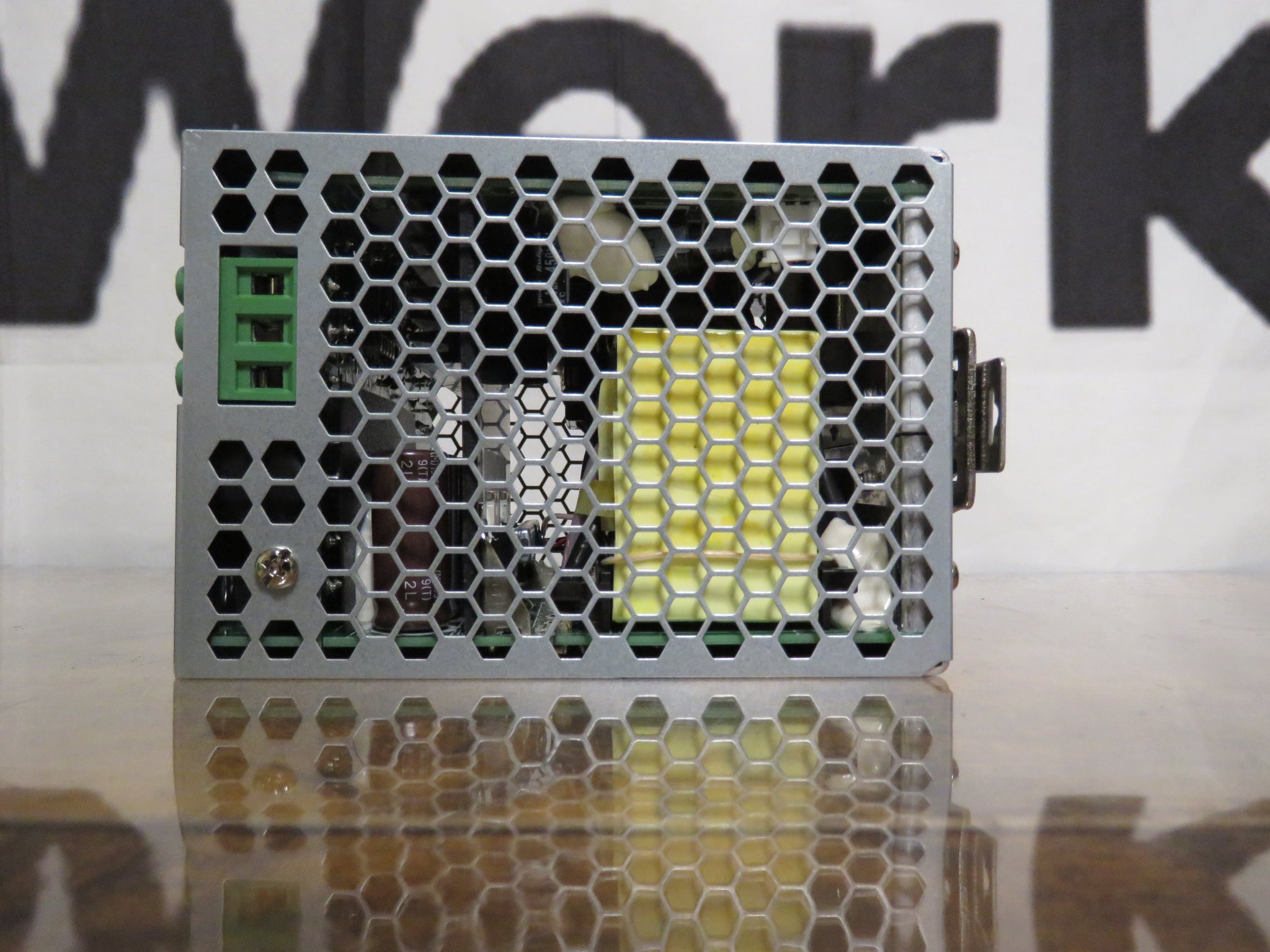

- Cooling by free air convection

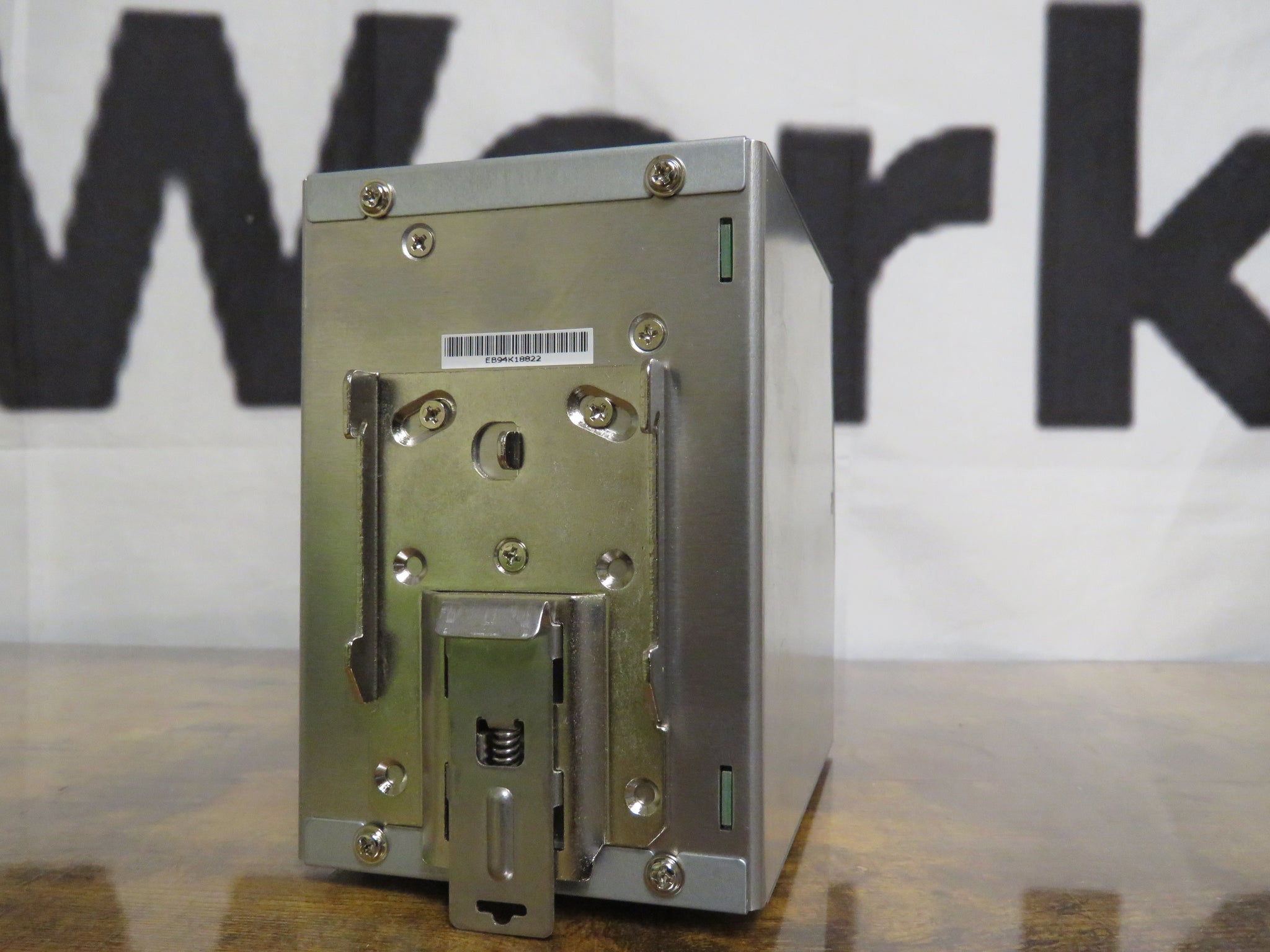

- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508 (industrial control equipment) approved
- EN61000-6-2(EN50082-2) industrial immunity level
- 100% full load burn-in test
| Specification | Value |
|---|---|
| Output Voltage | 24 VDC |
| Output Current | 20 A |
| Power Rating | 480 W |
| Input Voltage | 90 VAC to 264 VAC |
| Input Frequency | 47 Hz to 63 Hz |
| Output Connector Type | Screw Terminal Block |
| Agency Approvals | UL, CUL, TUV, CB, CE, EN, EAC |
| Low Power Source (LPS) | No |
| PFC Function | Yes |
| Additional Output Voltages (VDC) | N/A |
| Maximum Input Current | 4.8 A |
| Manufacturer Series | NDR-480 |
| Efficiency | 92.5% |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | 70°C |
| Color | Silver |
| Width | 4.93 in. |
| Height | 5.06 in. |
| Depth | 3.37 in. |
| Number of Outputs | 1 |
| Product Type | DIN Rail Power Supply SMPS |
Condition
Excellent condition.
Includes

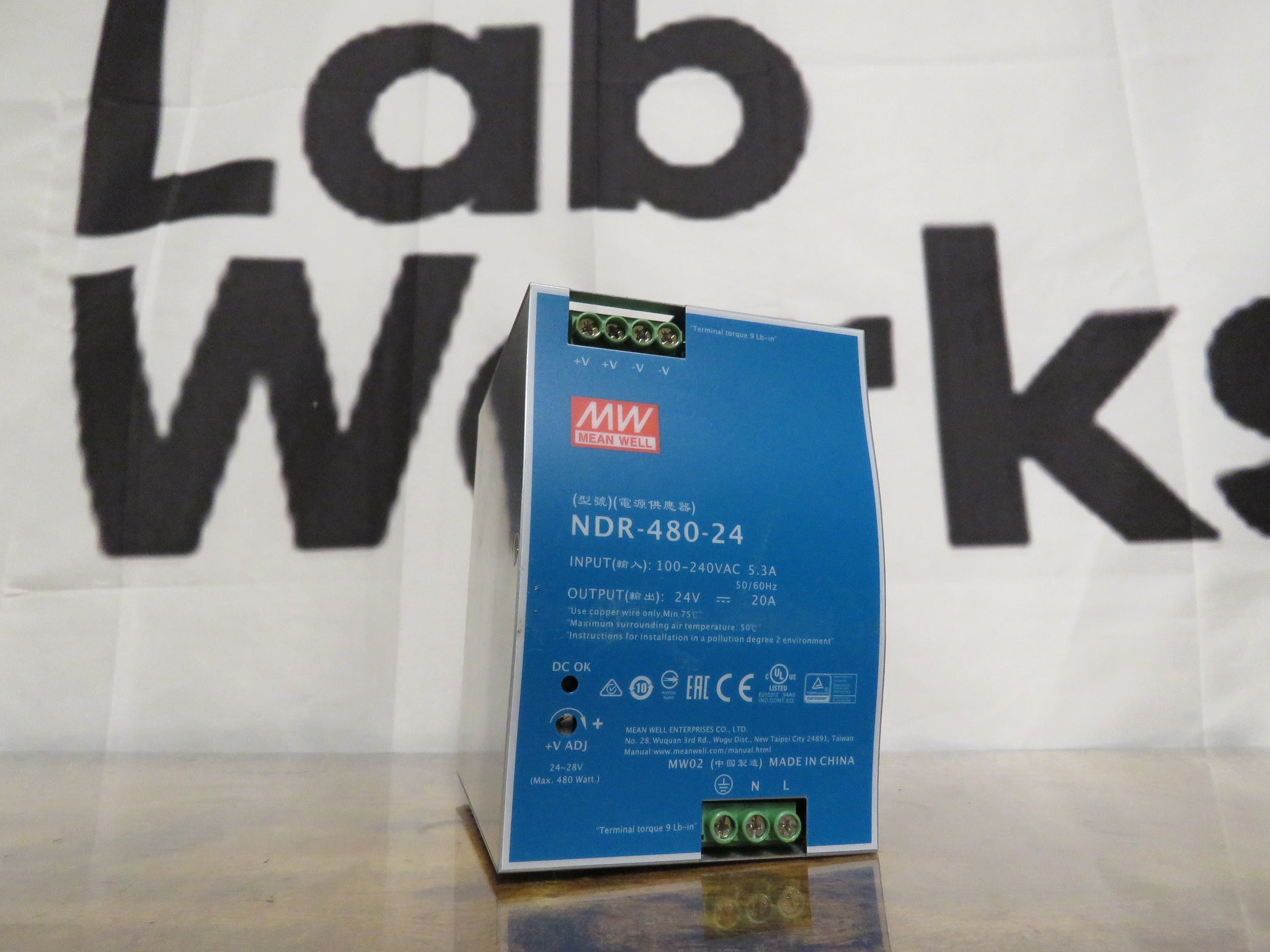

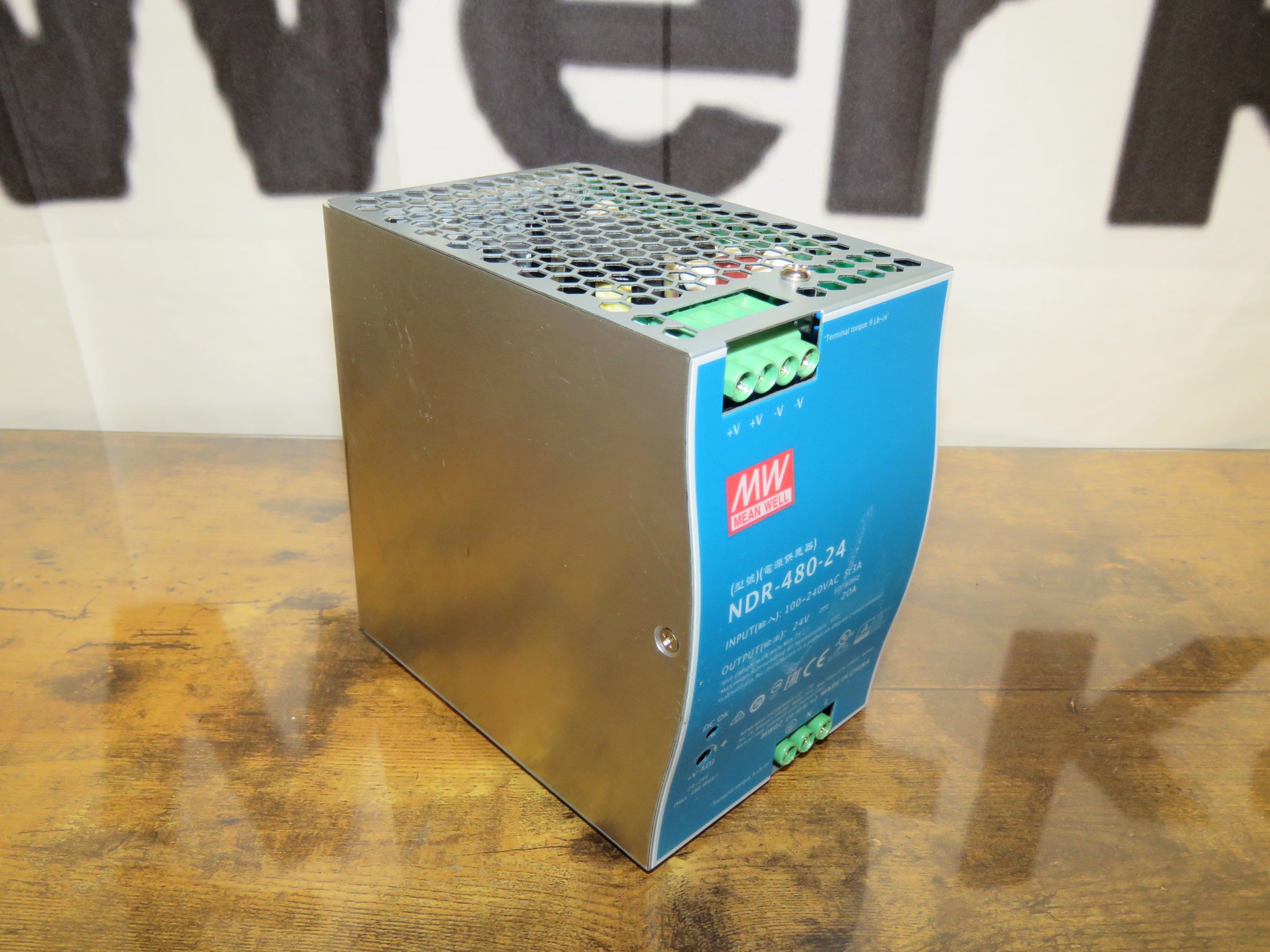

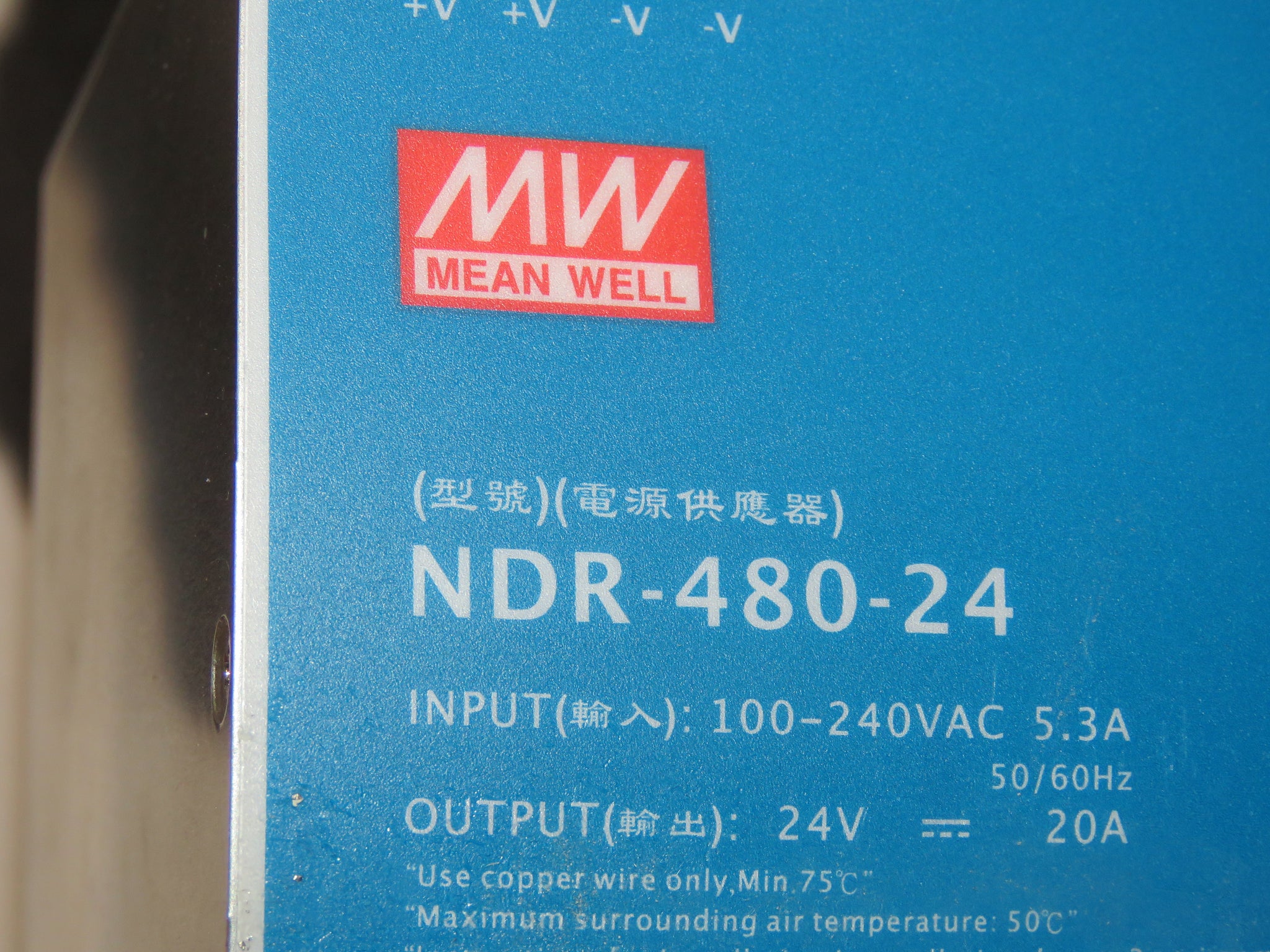

- Meanwell NDR-480-24 24V 20A AC to DC Track DIN Rail Switching Power Supply
BBR3
Warranty
90 Day warranty. We pledge to offer the best service and warranty to all of our customers! We are extending a 90 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.
Certification
This is a genuine product from this manufacturer.
