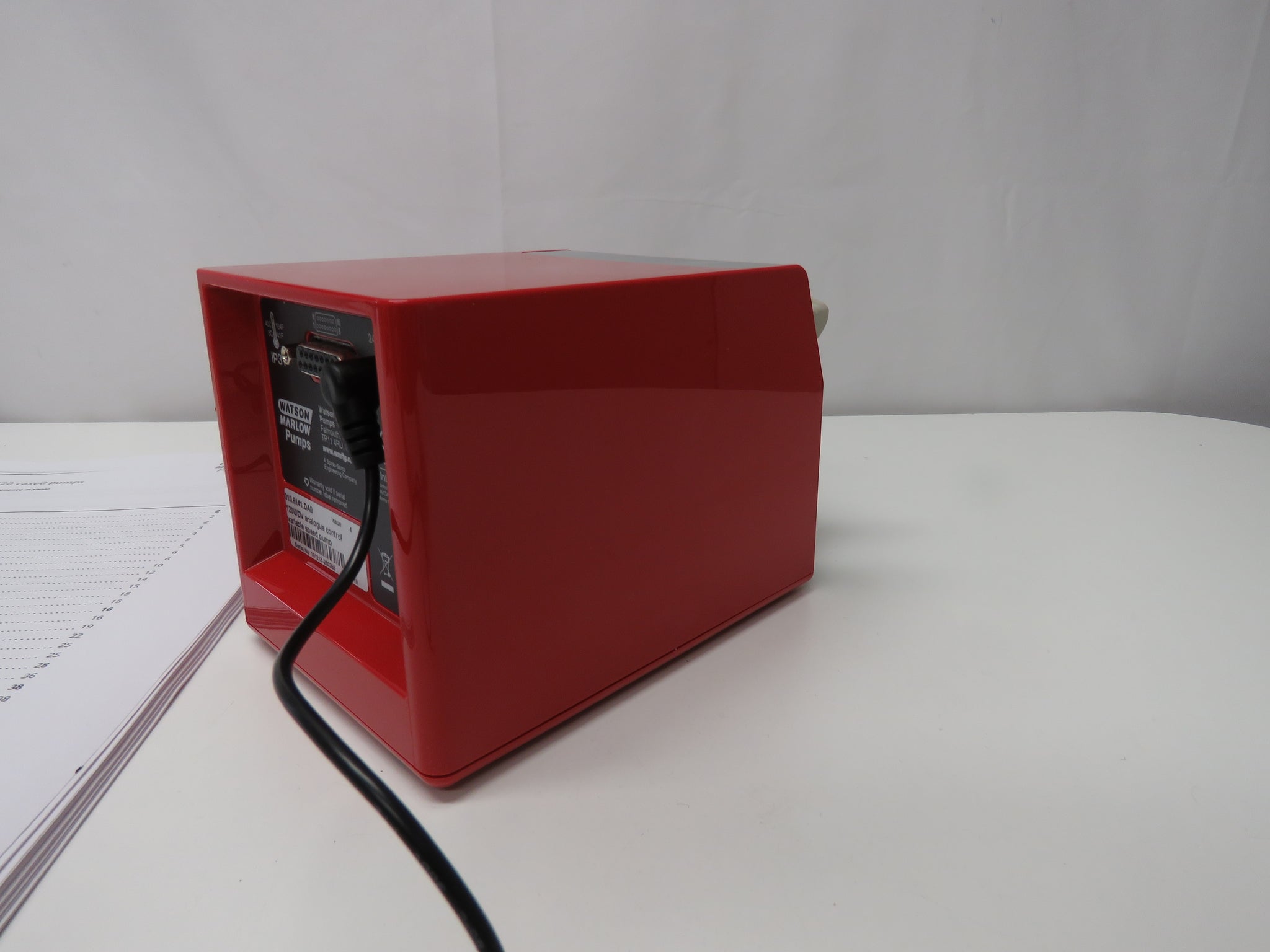

Watson Marlow 120U/DV Peristaltic Pump, Power Supply - Excellent Condition! Video
Web Information
Watson-Marlow 120U/DV Variable-Speed Pump System, Manual/Analog Control, 0.1 to 200 rpm, Flip-Top Head, Single-Channel, 4-Roller
- Remotely control start/stop, speed, and pump direction
- Small, stackable pumps require minimal benchtop space
- Includes a single-channel pump head that delivers flow rate from 0.001 to 170 mL/min—flow rate depends on drive rpm, pump head, and tubing size
- Control and view speed on digital LCD
- Keypad lock prevents setting accidental changes
Specifications & Description
- Control Type Manual/Analog
- Min RPM 0.1
- Max RPM 200
- Number of Channels 1
- Max Flow Rate (mL/min) 170
- Min Flow Rate (mL/min) 0.002
- Drive 120U

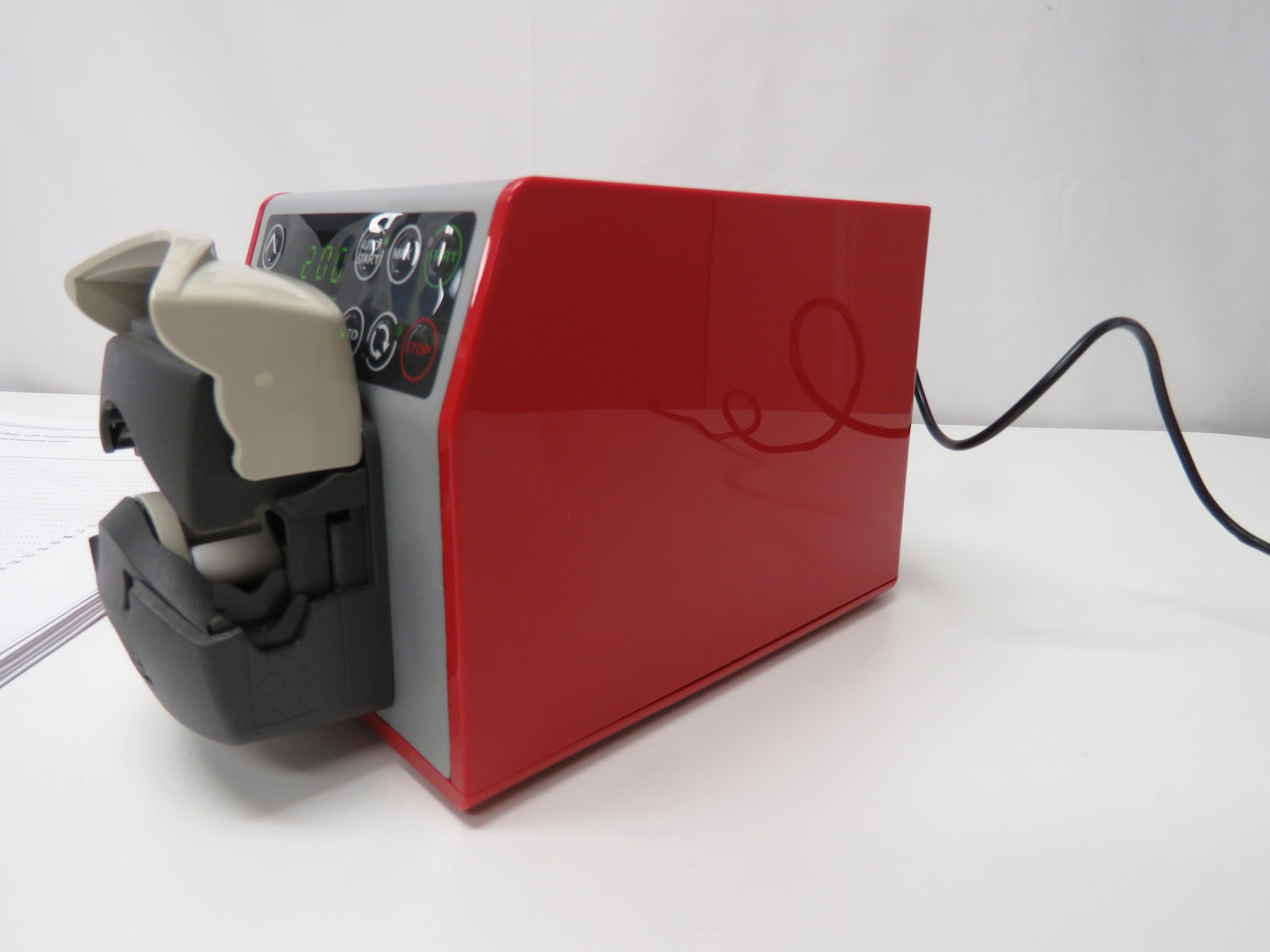

- Pump Head Single-channel, four-roller, flip-top pump head
- Tubing sizes accepted 0.5 to 4.8 mm bore and 1.6 mm wall
- Drive IP rating IP 31
- Accuracy ±1% speed accuracy
- Max Pressure (bar) 2
- Number of Rollers 4
- Max Pressure (PSI) 30
- Power (VAC) 90 to 264
- Power (Hz) 47 to 63 Hz
- Width (in) 4.375
- Height (in) 4.4375
- Length (in) 7.625
- Width (cm) 11
- Height (cm) 11.2
- Length (cm) 19.3
- Housing Material ABS plastic pump housing
- Reversible Motor Yes
-

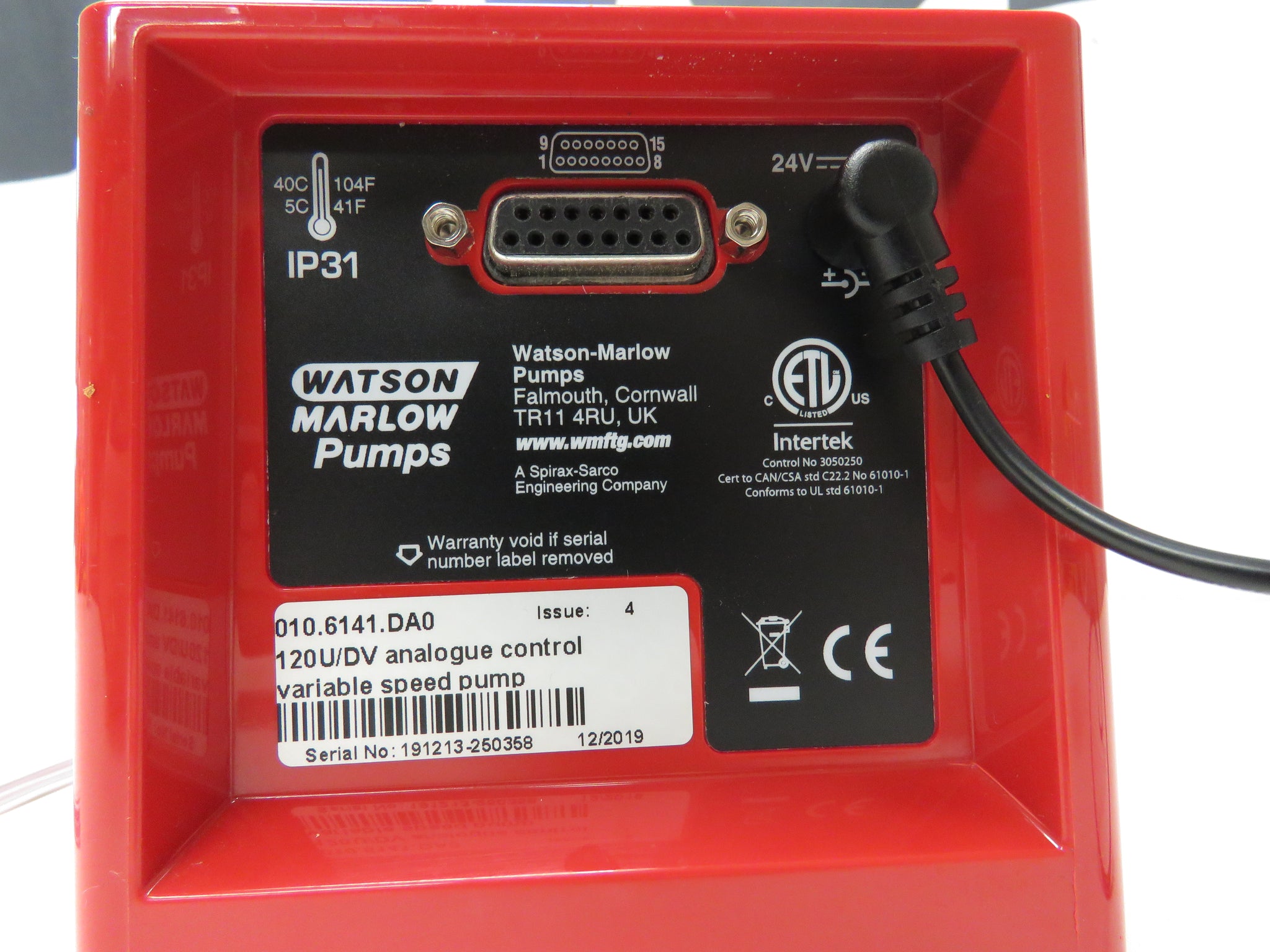

Remote I/O Speed input: 4 to 20 mA, 0 to 10 VDC
Tacho speed output: 0 to 5 VDC - Description Variable-Speed Pump System, Manual/Analog Control, 0.1 to 200 rpm, Flip-Top Head, Single-Channel, 4-Roller; 90 to 264 VAC
Includes

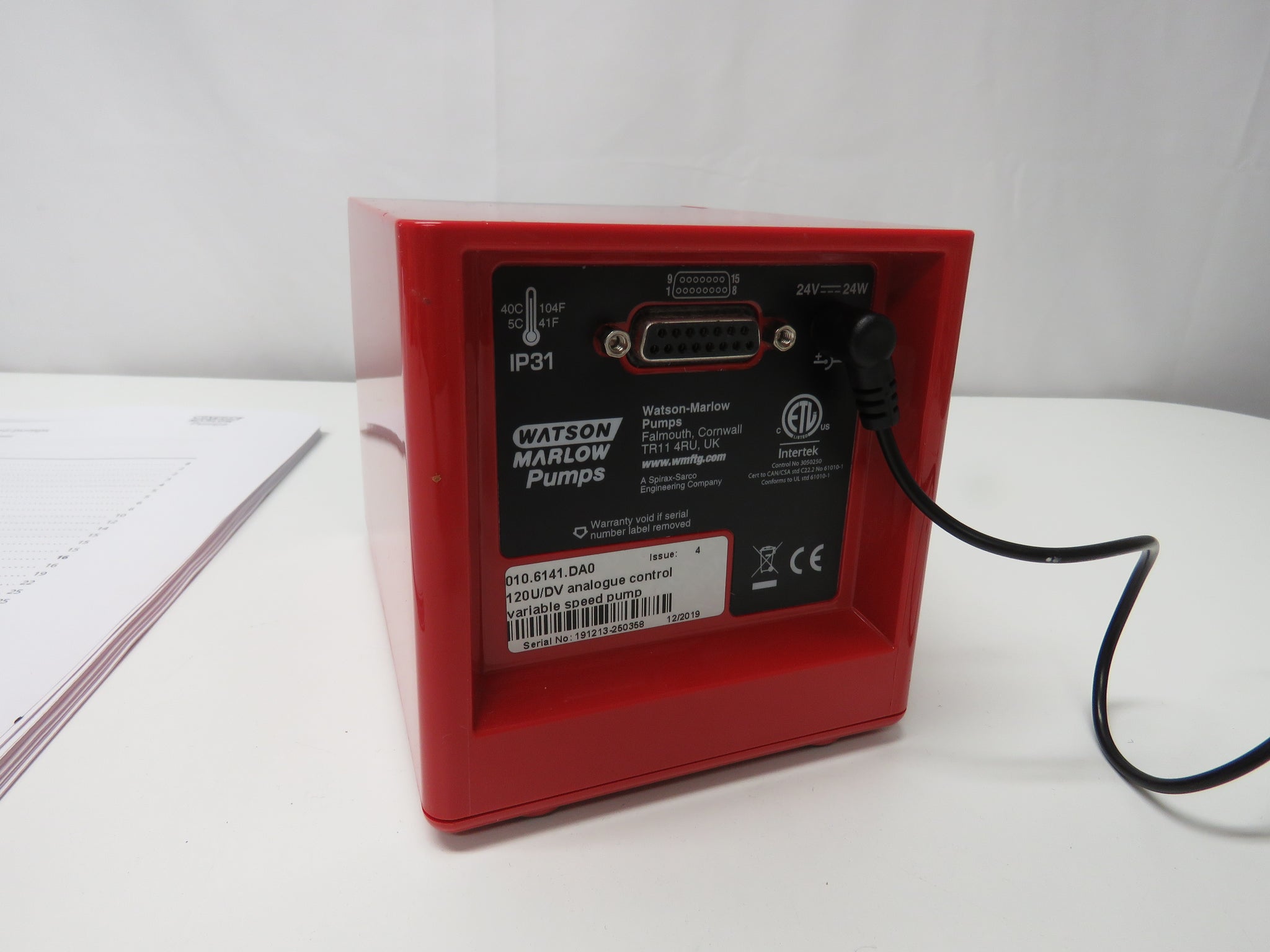

Single-channel, four-roller, flip-top head pump head and 24 VDC power supply .
Key Features
- Remotely control start/stop, speed, and pump direction
- Small, stackable pumps require minimal benchtop space
- Includes a single-channel pump head that delivers flow rate from 0.001 to 170 mL/min—flow rate depends on drive rpm, pump head, and tubing size

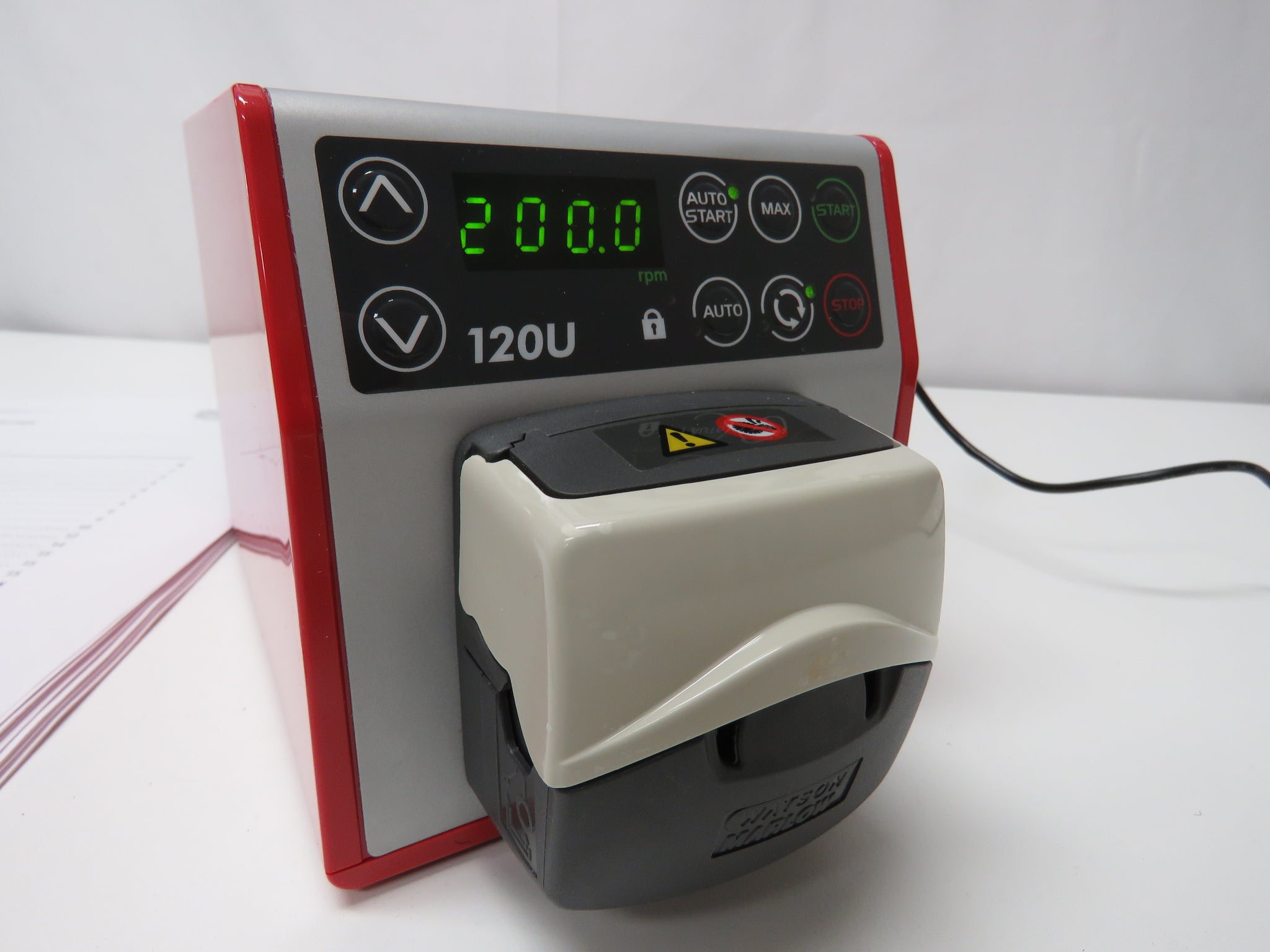

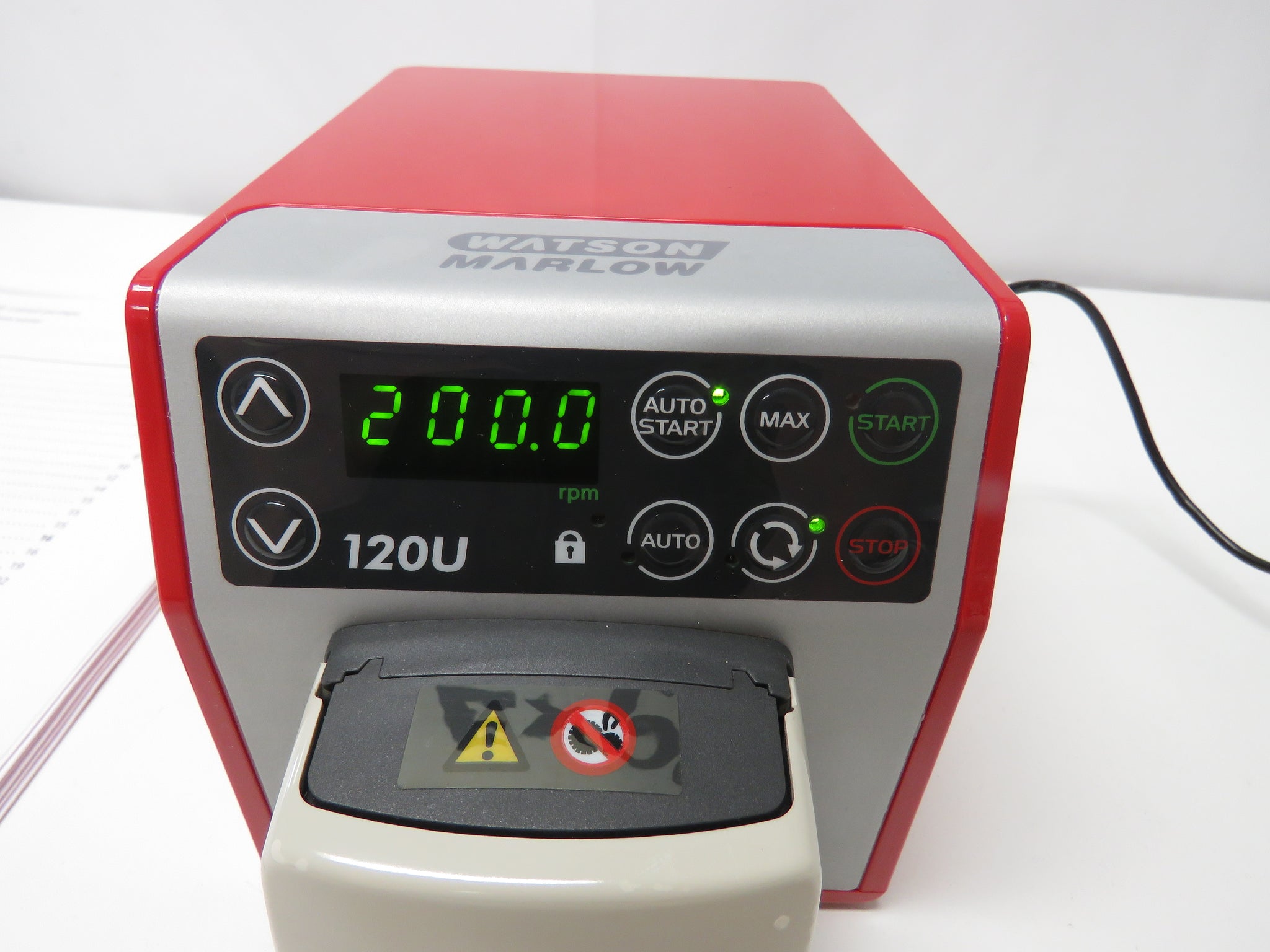

- Control and view speed on digital LCD
- Keypad lock prevents setting accidental changes
- Smooth IP31-rated housing for easy wipedown
- Brushless, maintenance-free motor offers ±1% speed control accuracy with a 2000:1 speed control ratio
More About this Item
Easily maintain fluid integrity using peristaltic pumps. Only the bore of the tubing contacts the fluid, eliminating the risk of the pump contaminating the fluid or the fluid contaminating the pump. Peristaltic pumps are great for use with most liquids, including viscous, shear-sensitive, corrosive, and abrasive fluids.
Manually or remotely control these compact pumps for accurate and repeatable fluid transfer. Each pump system includes a single-channel pump head to deliver flow rates from 0.001 to 170 mL/min*—select from 2-roller, 4-roller, or 4-roller flip-top models. Simple manual control allows start/stop, direction change, and speed adjustment from the keypad; adjust speed in 0.1 rpm increments. Press the MAX key for rapid priming; AUTO START for automatic power recovery. Remotely control start/stop, pump direction, and speed using analog signals (4 to 20 mA, 0 to 10 V); 0 to 5 V output allows remote speed display.
Use the keypad lock feature to prevent any unwanted changes to pump settings. A smooth, IP31-rated housing encases a maintenance-free, brushless motor for quick and easy cleaning. Contact us for free technical application support on pump & tubing selection.

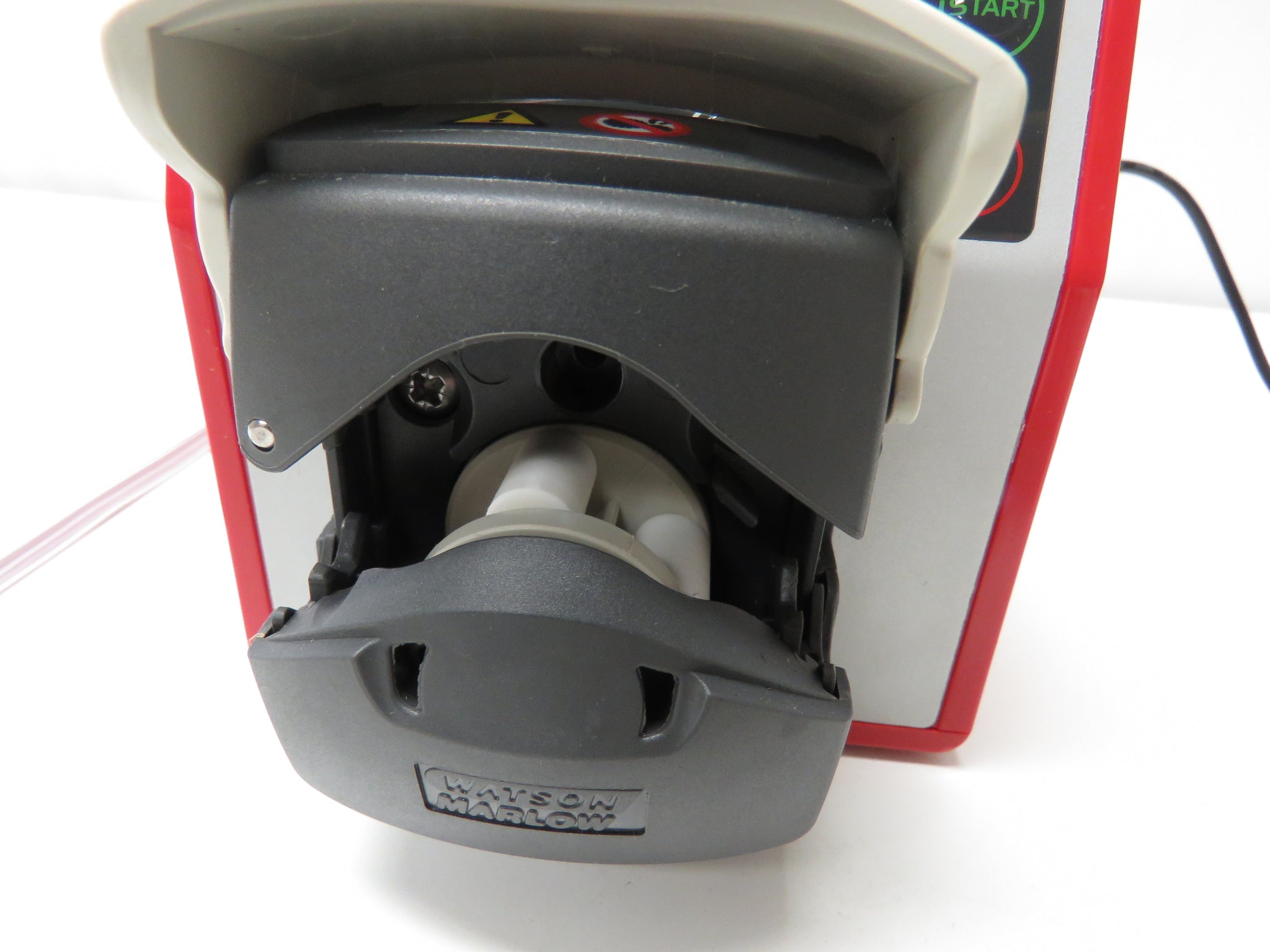

Operate the pump from 0.1 to 200 rpm with in 0.1 rpm increment to achieve flow rates from 0.002 to 170 mL/min. The pump system includes a four-roller, flip-top pump head that accepts 0.5 to 4.8 mm bore tubing with 1.6 mm wall. Pump head is constructed of grilamid PA12, IXEF PARA body, PTFE filled PBT roller assembly, IXEF PARA rotor assembly, and stainless steel hardware.
*Flow rate depends on drive rpm, pump head, and tubing size.
Warning: This product is not approved or intended for, and should not be used for, medical, clinical, surgical or other patient-oriented applications.
Condition
Excellent functional and cosmetic condition.
Watch a video of this pump in operation below:
ExpressLabWerks.com Watson Marlow 120U/D1 Peristaltic Pump W/ Power Supply
Video will open in a new window
Using the eBay App? Paste link into a browser window:
Includes:

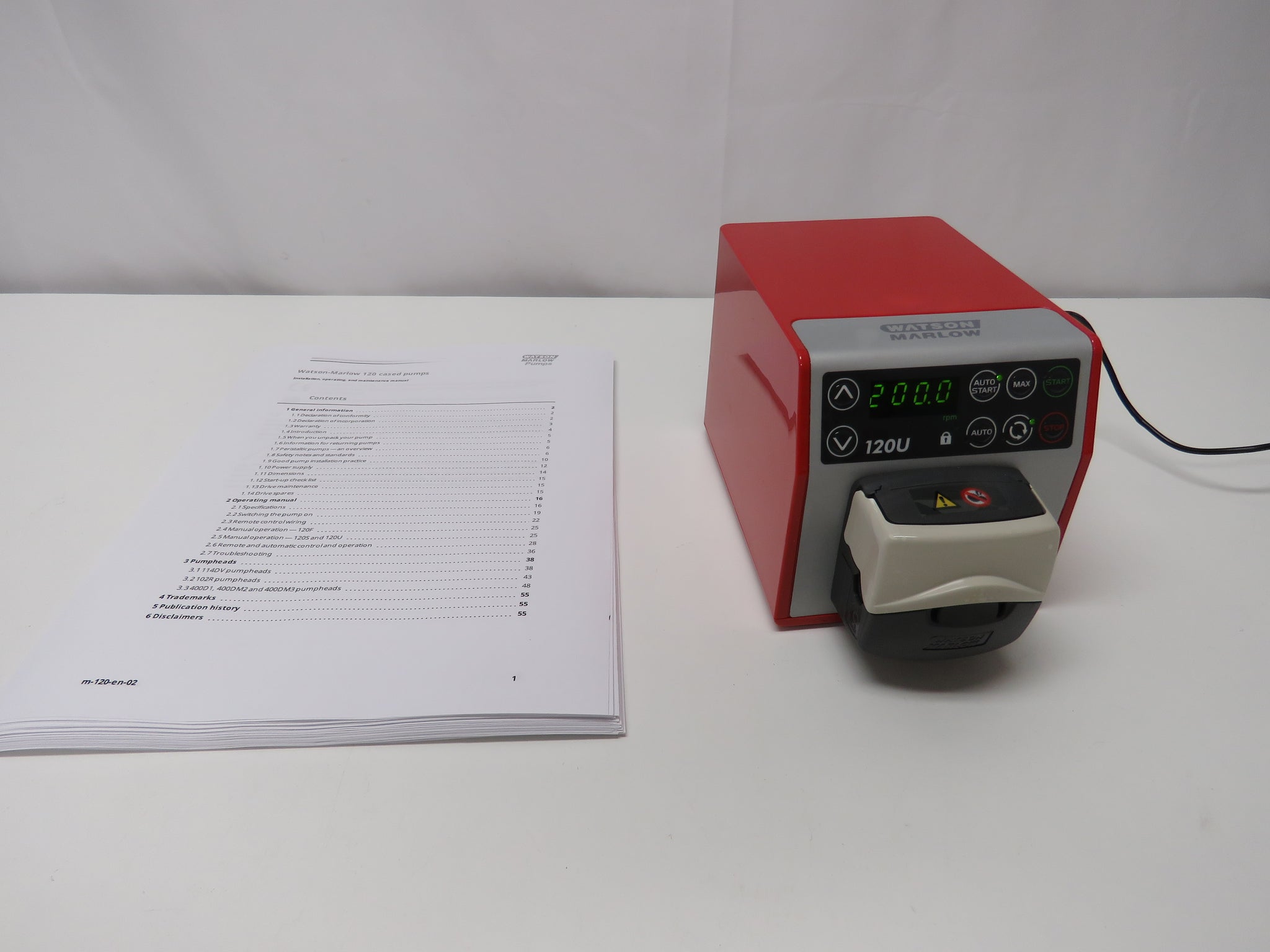

- Watson Marlow 120U/DV Peristaltic Pump
- Power supply

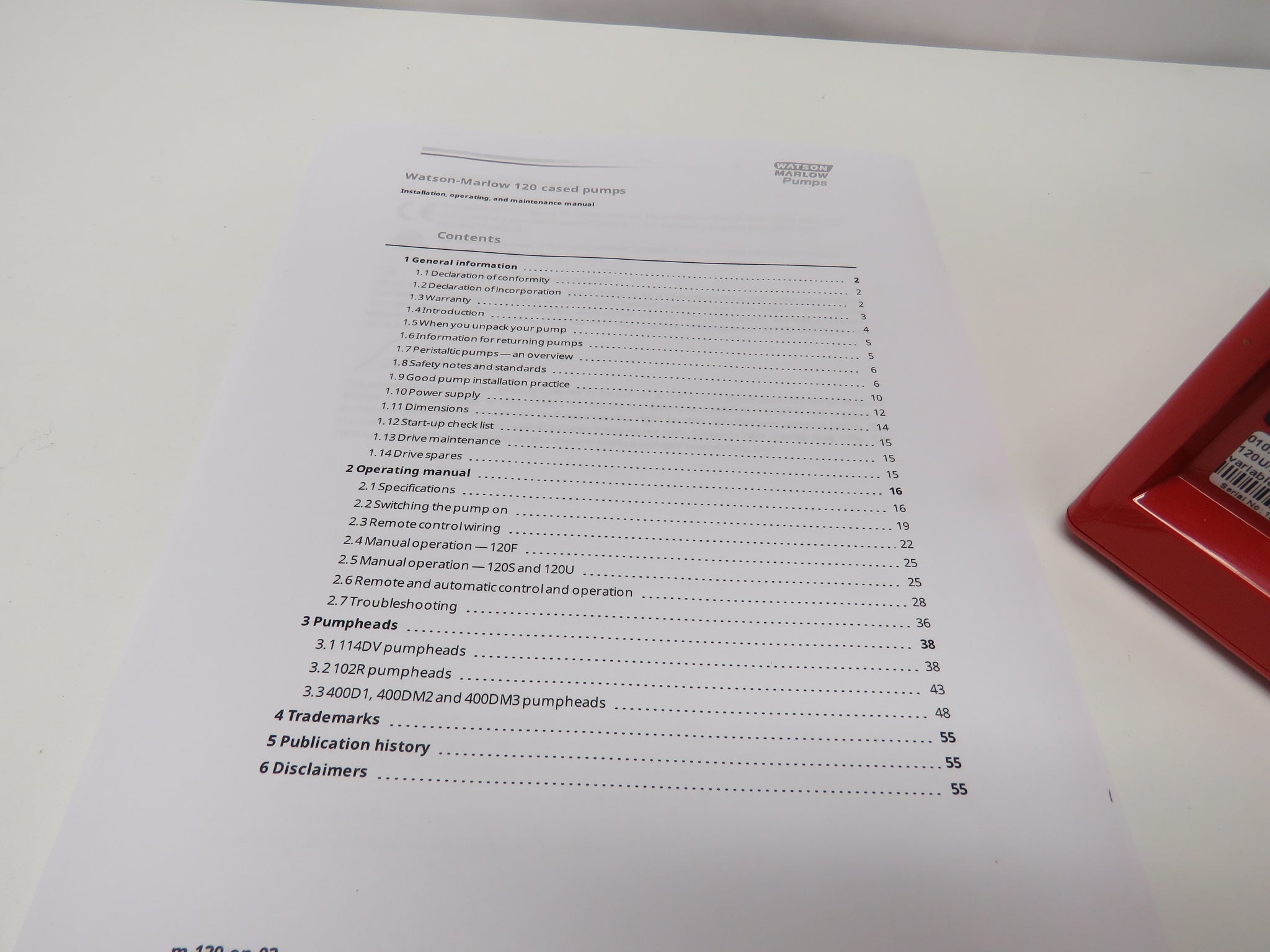

- Operator manual
BBR3
Warranty
30 Day warranty. We pledge to offer the best service and warranty to all of our customers! We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.
Certification
This is a genuine product from this manufacturer.
Disclaimer
The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping of the item."
Regardless of the origin of the equipment, documentation provided or identification appearing upon the equipment, the equipment described and offered here is in no way certified for, recommended for, or offered for any specific use. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. The purchaser, by bidding on this equipment, indicates their acknowledgment of, and agreement to the terms of this disclaimer. it is the purchaser's responsibility to have the item inspected and certified by a qualified professional before use!
