2 GEL Electrode INSERT for BIO RAD MINI PROTEAN Tetra Cell System 552BR2

Bio-Rad

$150.00
SKU: MINI PROTEAN insert
Available for pre-order

Web Information

Bio-Rad’s Mini-PROTEAN Tetra cell is a mini-format, vertical polyacrylamide gel electrophoresis system that provides rapid, high-resolution separation of protein (or DNA) mixtures by SDS-PAGE or native PAGE. An indispensable piece of equipment in research laboratories, the durable and easy-to-assemble Mini PROTEAN Tetra cell is also well-suited for use in classroom laboratories.

Use the Mini-PROTEAN Tetra cell to teach protein fingerprinting, sample purity analysis, and downstream western blotting techniques in independent projects

Specifications

Number of gels
1–4
Precast gels
Mini-PROTEAN TGX Precast Gels
Handcast gels
Cast using Mini-PROTEAN spacer plates
Gel size (W x L)
Precast: 8.6 x 6.8 cm Handcast: 8.3 x 7.3 cm
Glass plate size (W x L)

   Short plate
10.1 x 7.3 cm
   Spacer plate
10.1 x 8.2 cm
Total buffer volume for 2 gels
700 ml
Total buffer volume for 4 gels
1,000 ml
Typical run times for SDS-PAGE
35–45 min (at 200 V constant)
Recommended power supply
PowerPac Basic or PowerPac HC (High Current)
Dimensions (W x L x H)
12 x 16 x 18 cm
Weight
1.0 kg (2.2 lb)

Condition

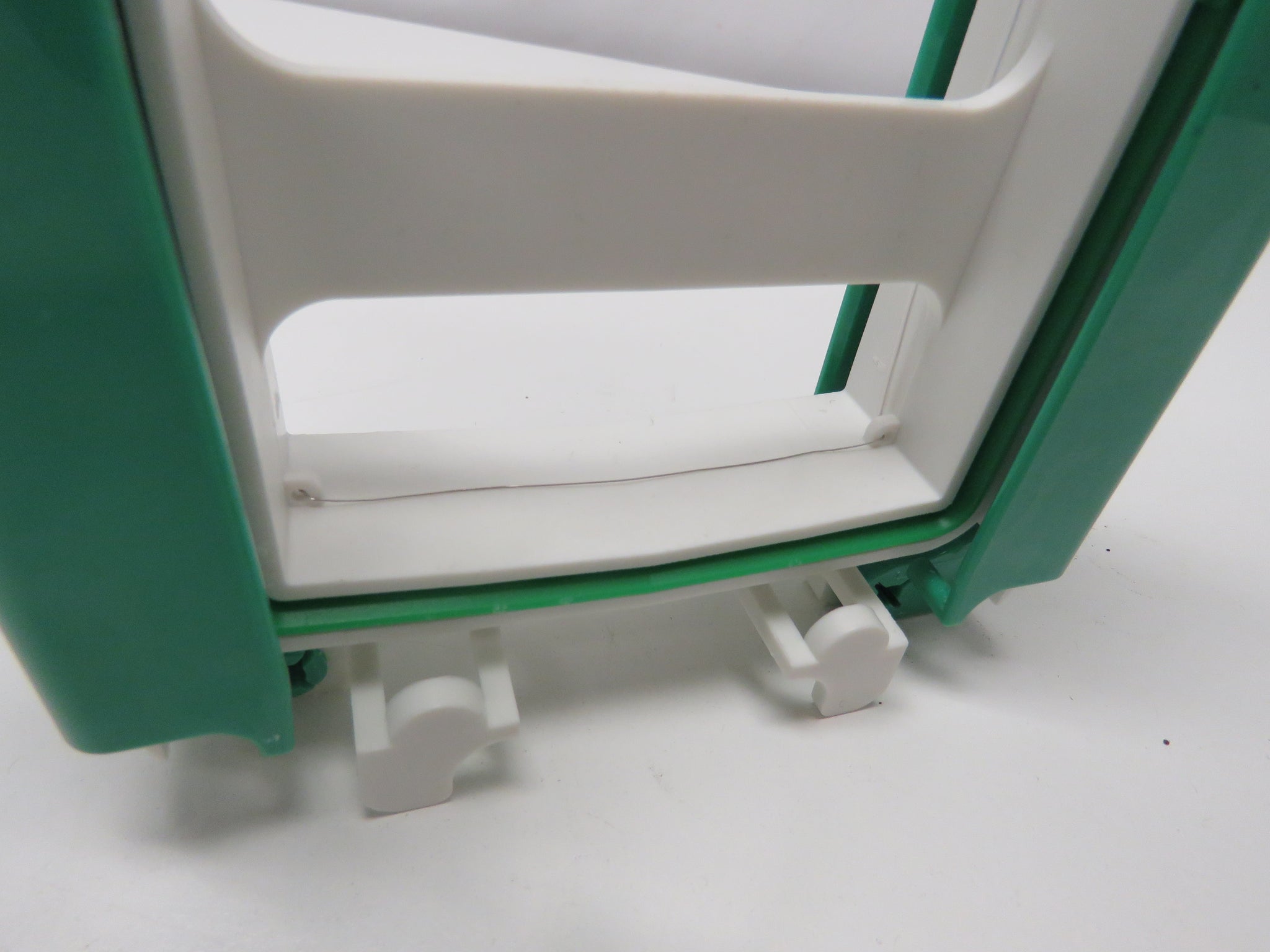

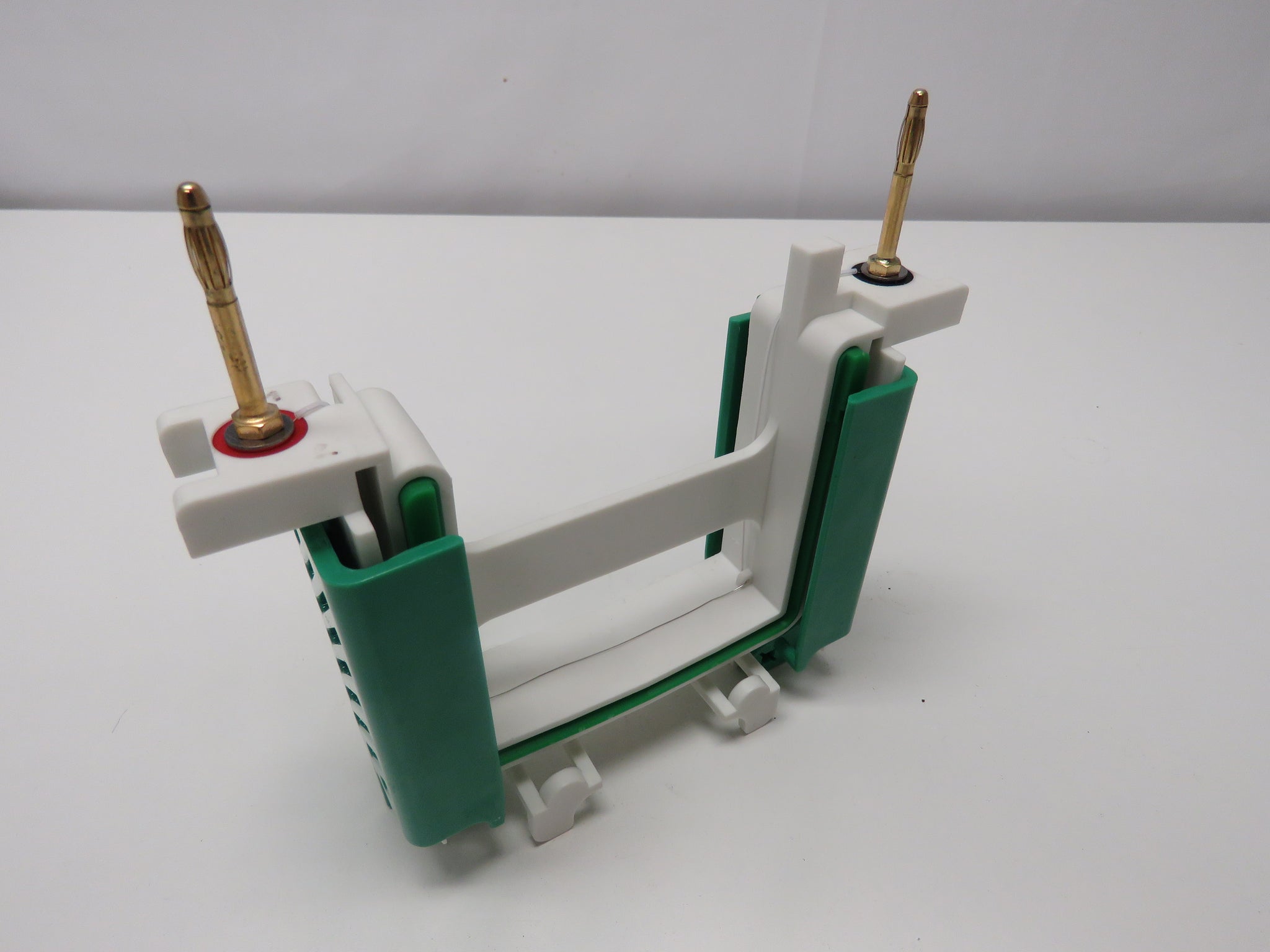

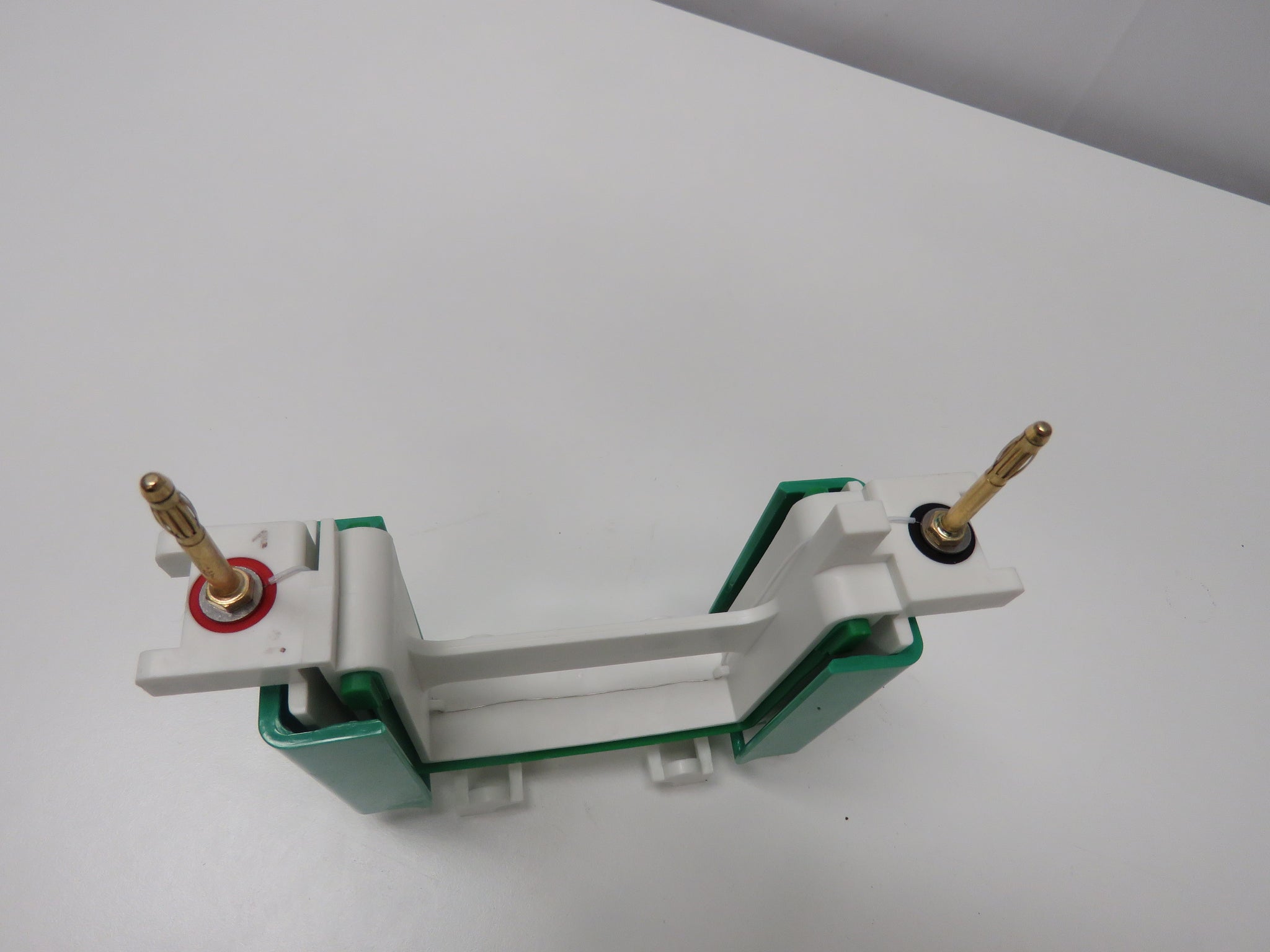

Excellent functional condition.  Please note:  This sale is for just the insert for the Mini Protean system, as shown.

Includes

  • 2 GEL Electrode Insert for BIO RAD MINI PROTEAN Tetra Cell System

BBOR

        Warranty

        30 Day warranty. We pledge to offer the best service and warranty to all of our customers!  We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.

        Certification

        This is a genuine product from this manufacturer.
