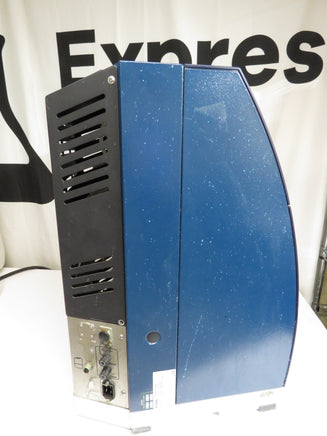

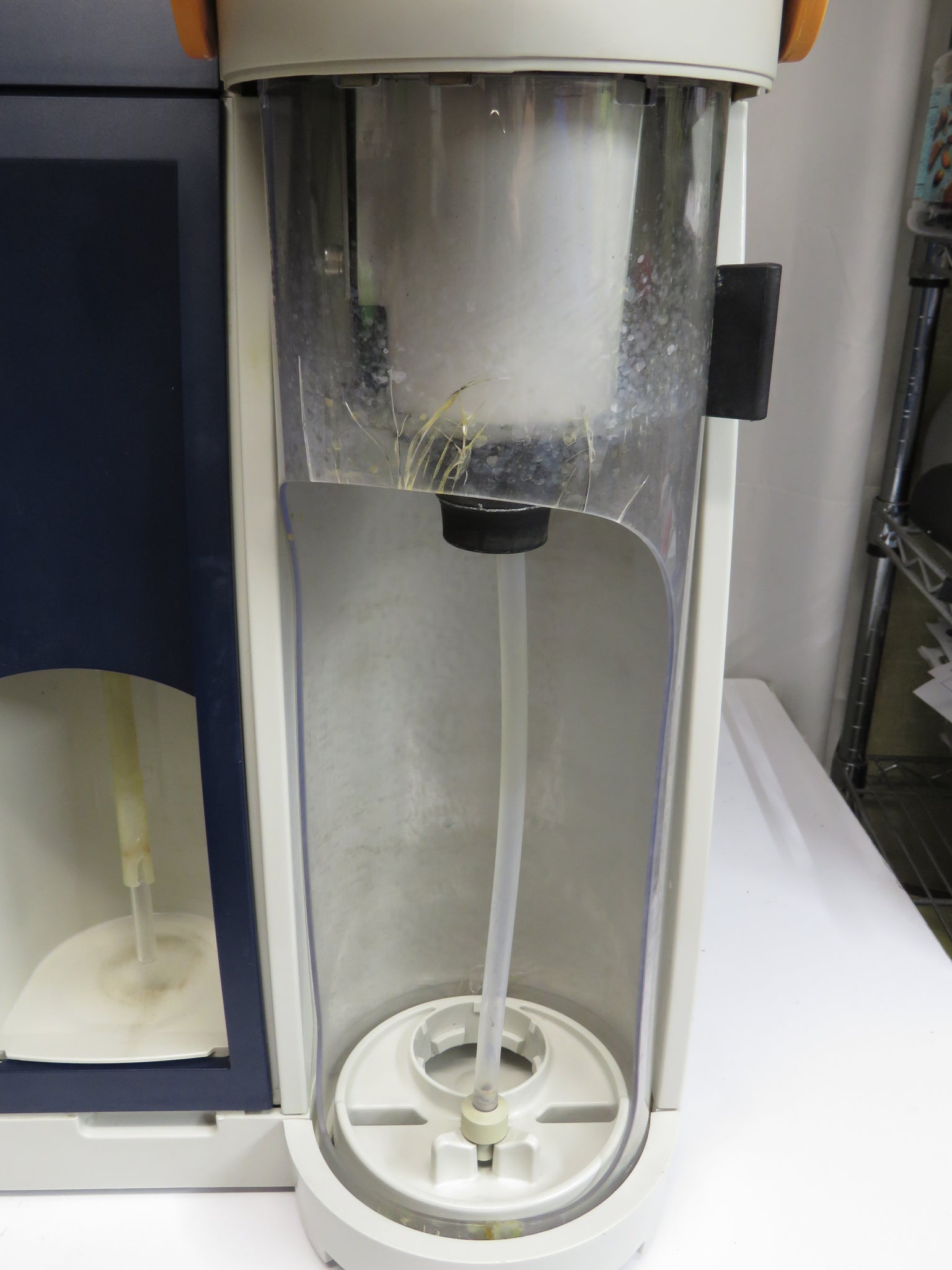

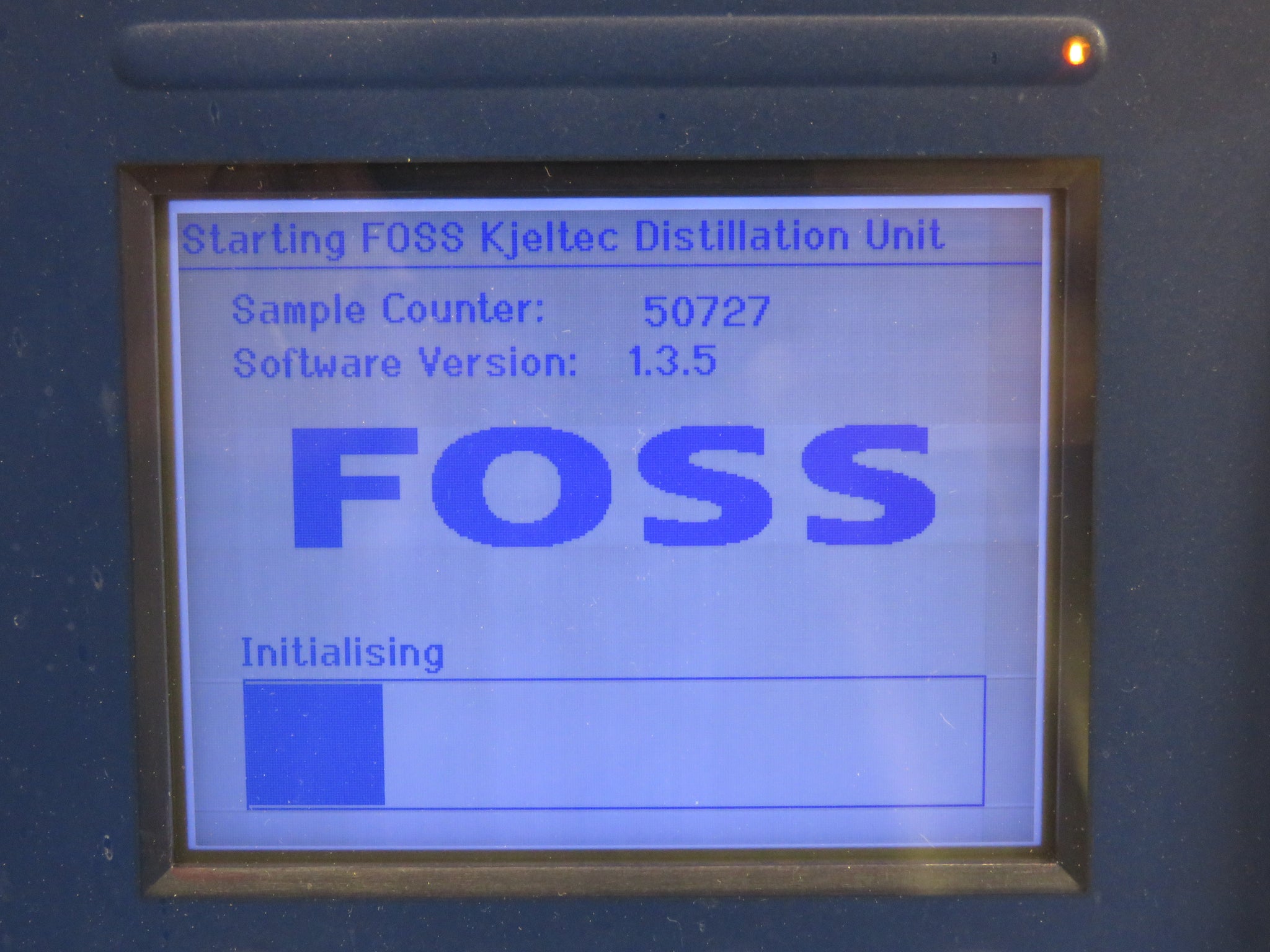

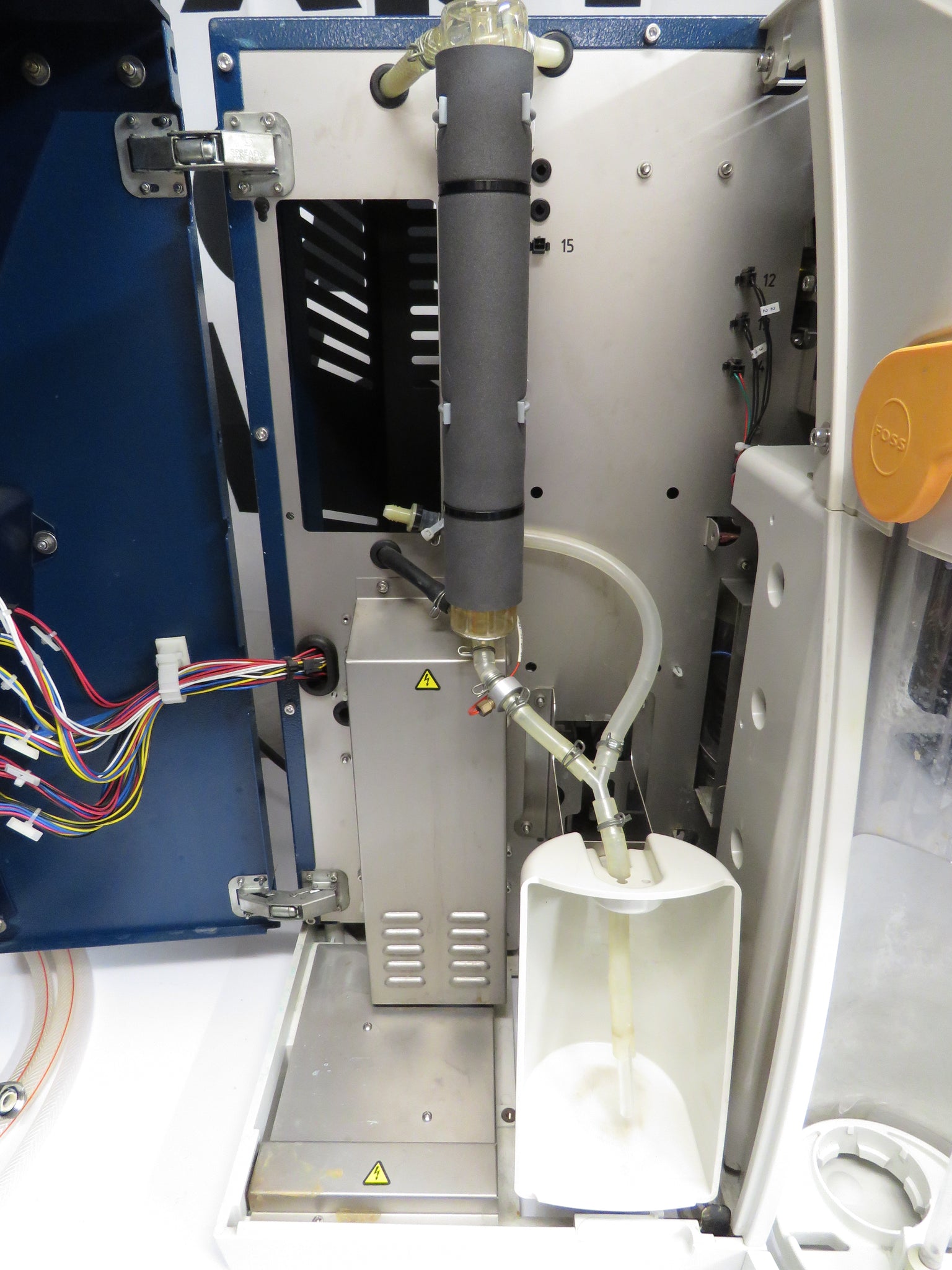

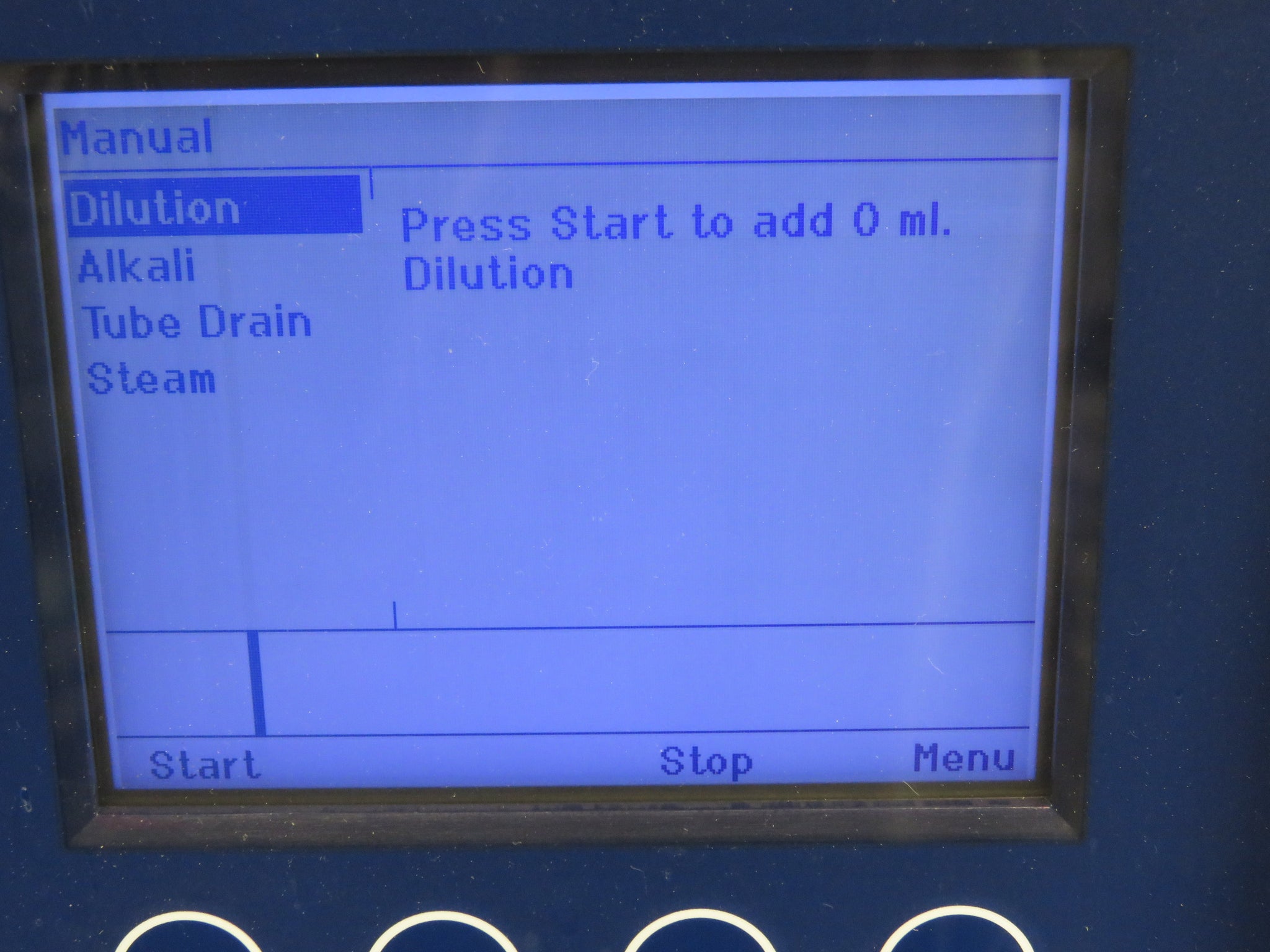

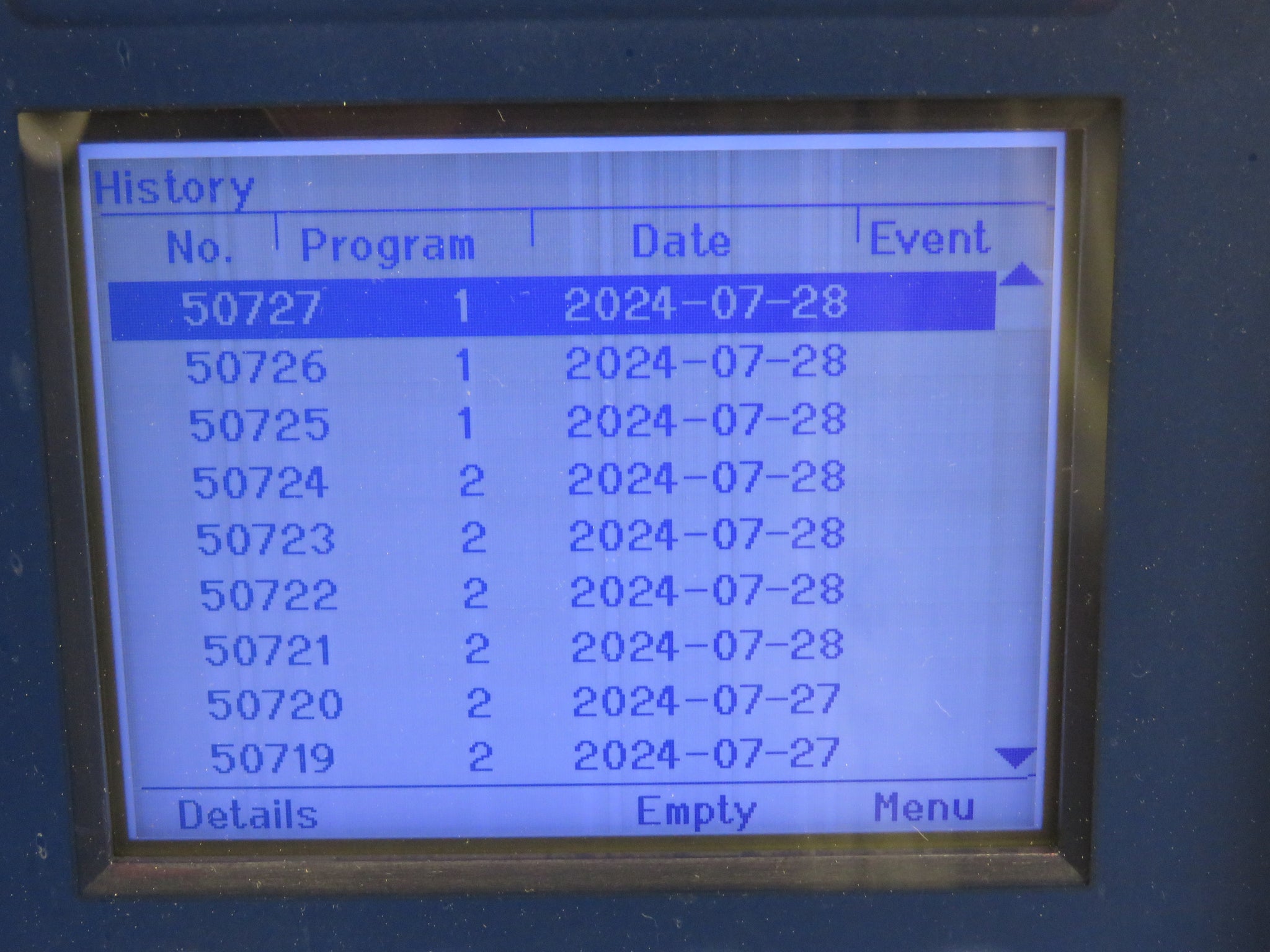

2016 Foss Kjeltec 8100 Semi-automated Distillation Unit - 50k Samples
Web Information
This Kjeldahl distillation unit provides a simple and reliable solution for safe, semi-automated distillations according to the global reference method.
Value
Free-up lab resources and improve test throughput with semi-automated distillation that is safe, simple and reliable and according to official standards.
Sample type
Food, feed, feed ingredients, forage, pet food, grain, cereal, oil seeds, meat, meat products, milk, dairy products, beer and beer ingredients
Parameters
Nitrogen, protein, Non Protein Nitrogen (NPN) and volatiles (SO2, TVBN and more).
Safety features
A fast tube draining system removes the need for handling hot reagents after distillation. Interlocked safety door which must be closed with a tube in place before the unit will operate. Cooling water flow is controlled automatically and a temperature sensor stops the unit if the distillate is too hot. Sensors monitor tube in place, safety doors, reagent levels, water level and over-pressure in the steam generator providing safe use.
Technical specification
Performance data Analysis time 3.5 minutes at 30 mg N (6.5 minutes at 200 mg N)
Distillation capacity ~ 40 ml/min
Measurement range 0.1 – 200 mg N
Reproducibility 1% RSD (including the digestion step)
Recovery > 99.5% at nitrogen levels between 1 – 200 mg N
Installation Requirements

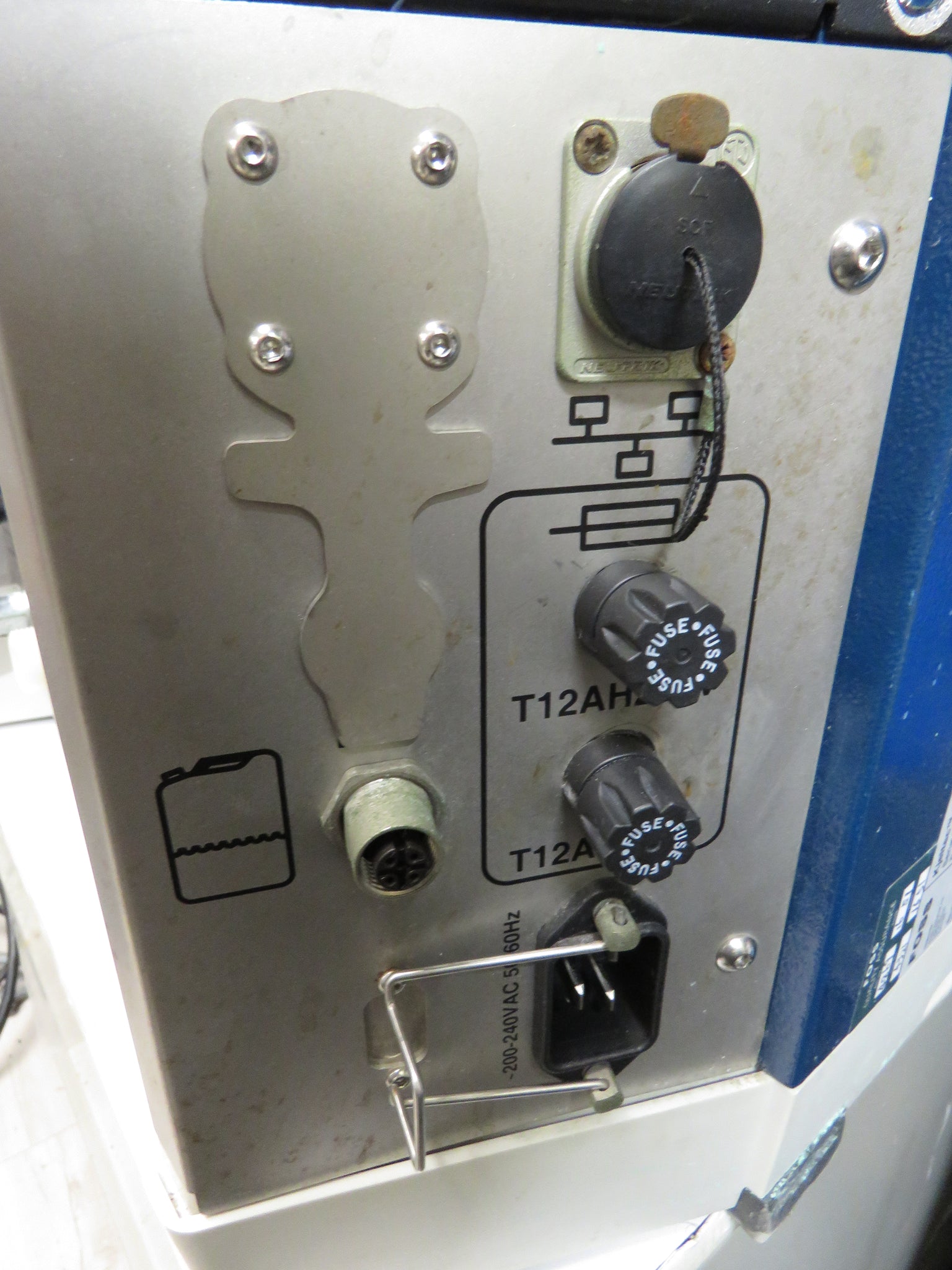

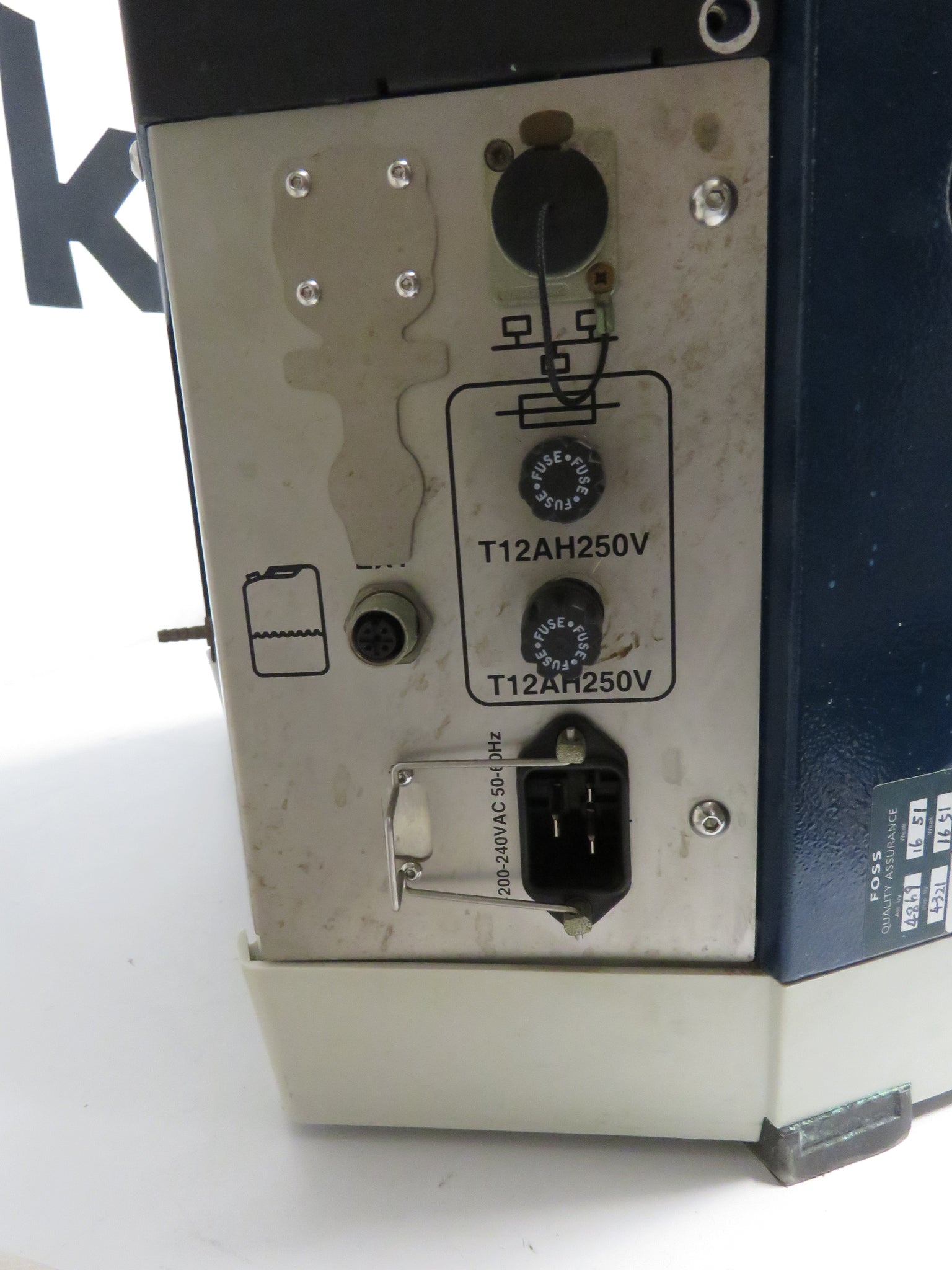

Power supply
200 – 240 V 50 – 60 Hz
Tolerable voltage variation
± 10 %
Power consumption
2 200 W
Water consumption
(during distillation only) 3 l/min at water temp of 25°C *1 l/min at water temp of 15°C
* Circulating Cooler recommended at >25°C
Weight
35 kg
Dimensions (W x D x H)
480 × 580 × 690 mm
Condition

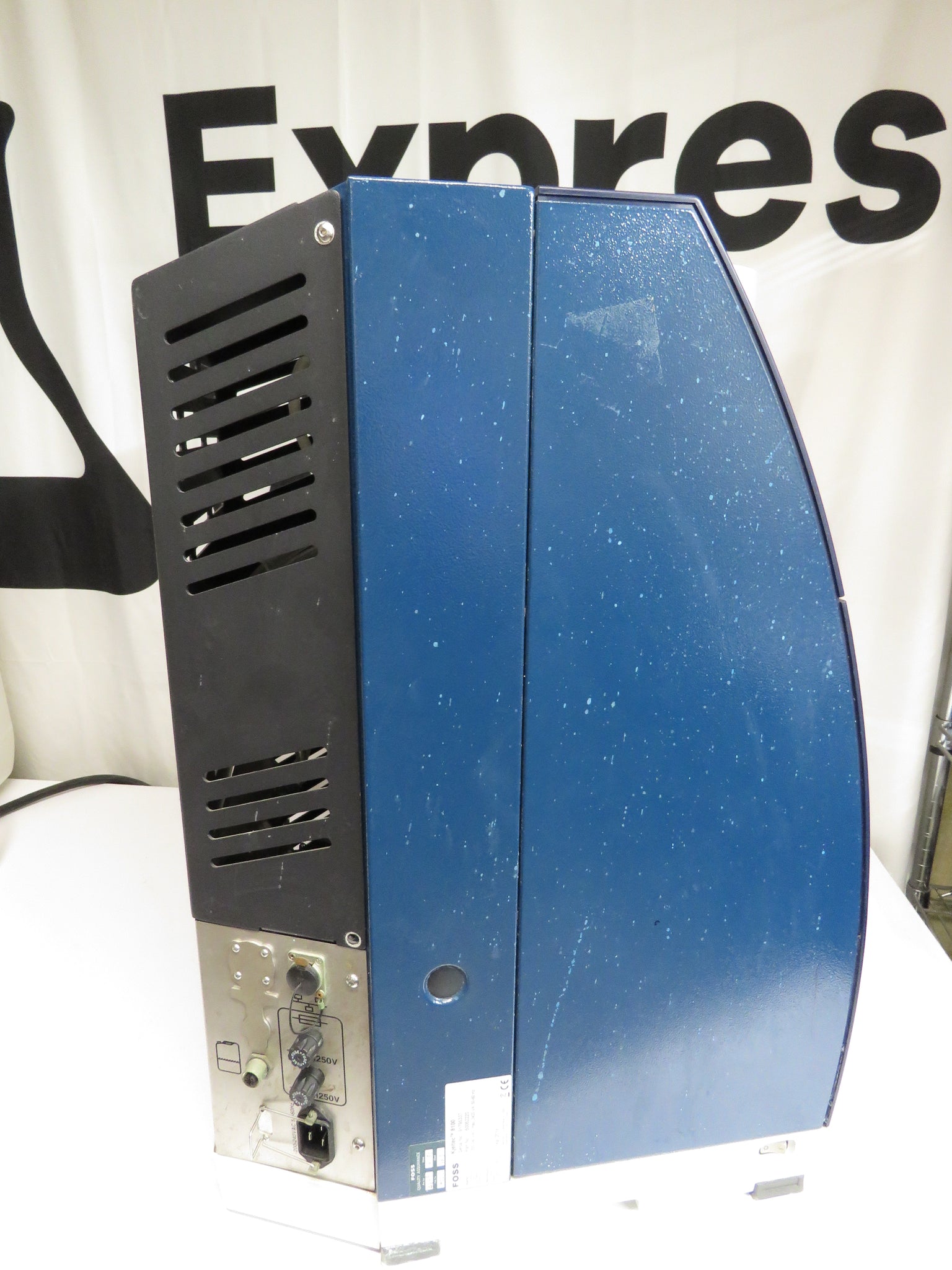

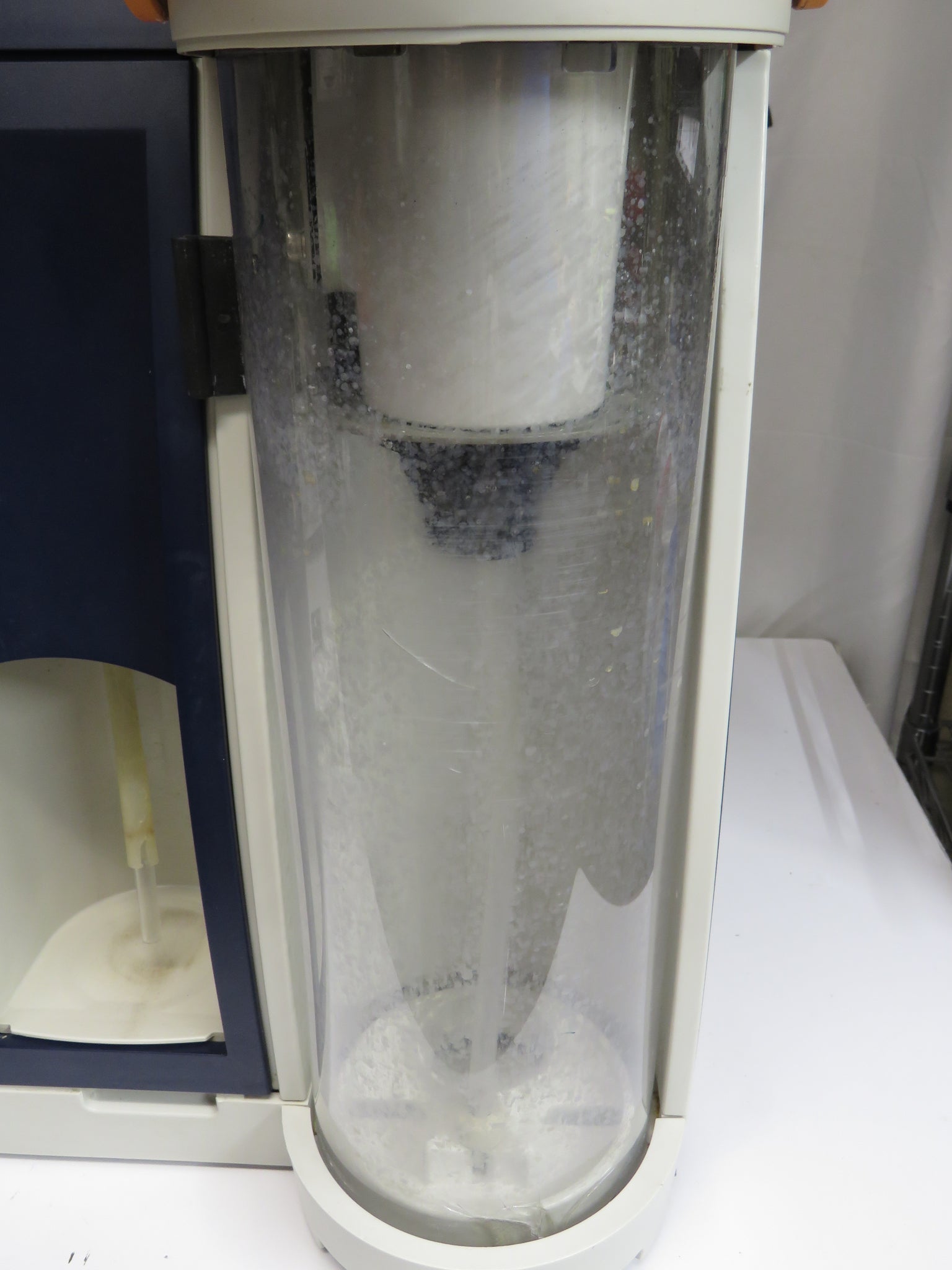

Used, good condition. We received this unit as shown from a recent laboratory closure. Please review photos, as there may be more accessories needed depending on your laboratory production environment.

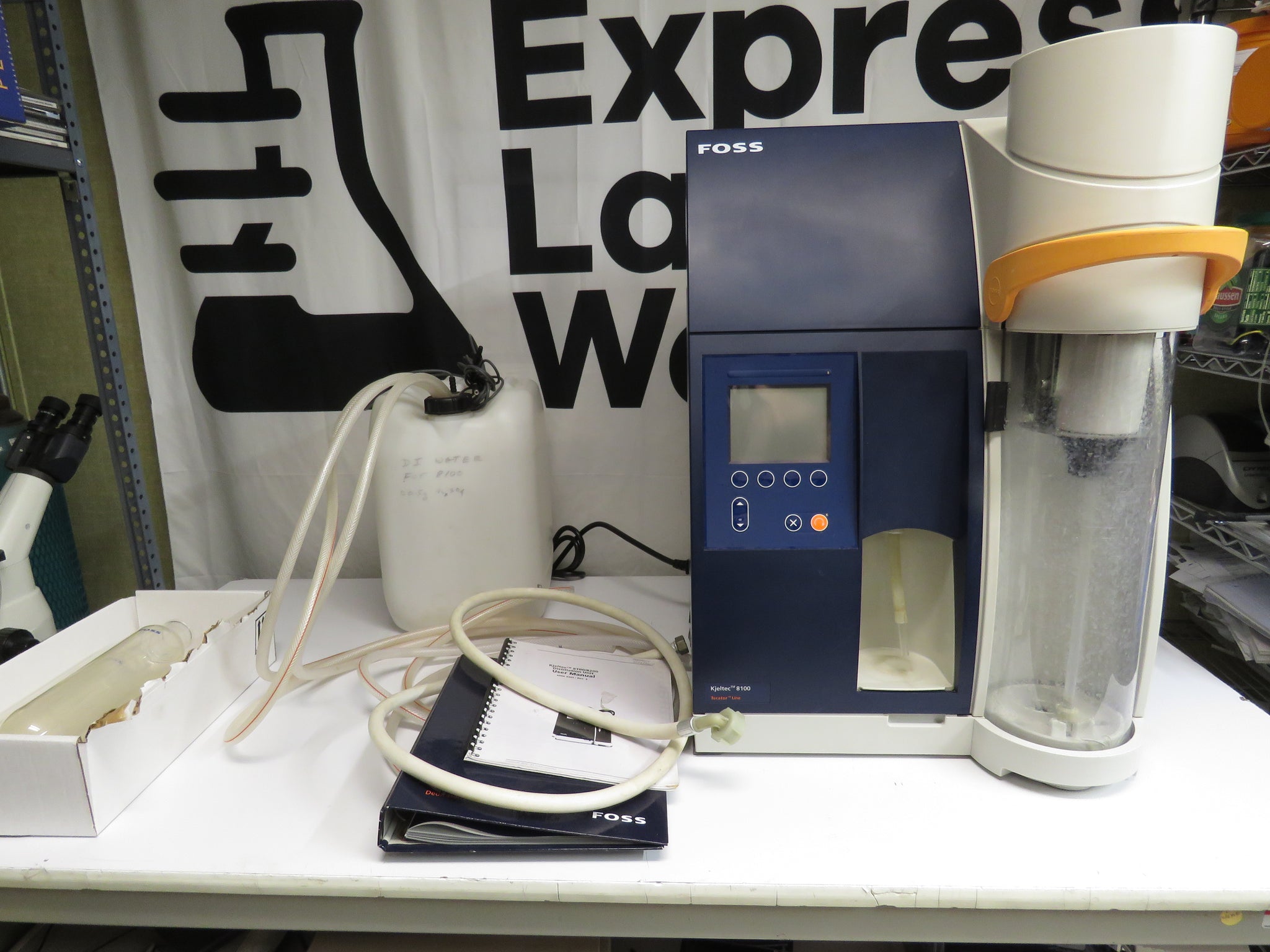

Includes

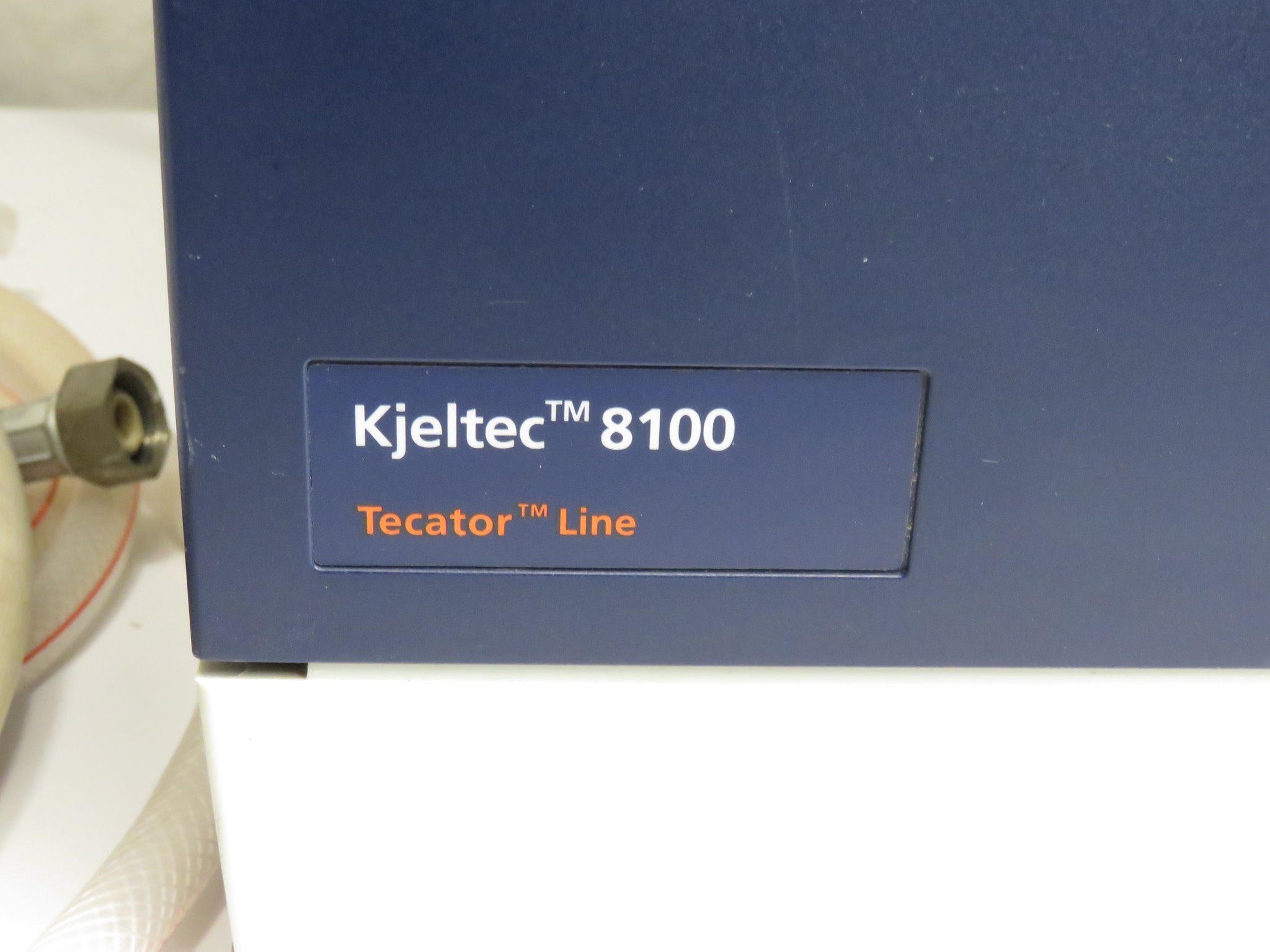

- 2016 Foss Kjeltec 8100 Semi-automated Distillation Unit

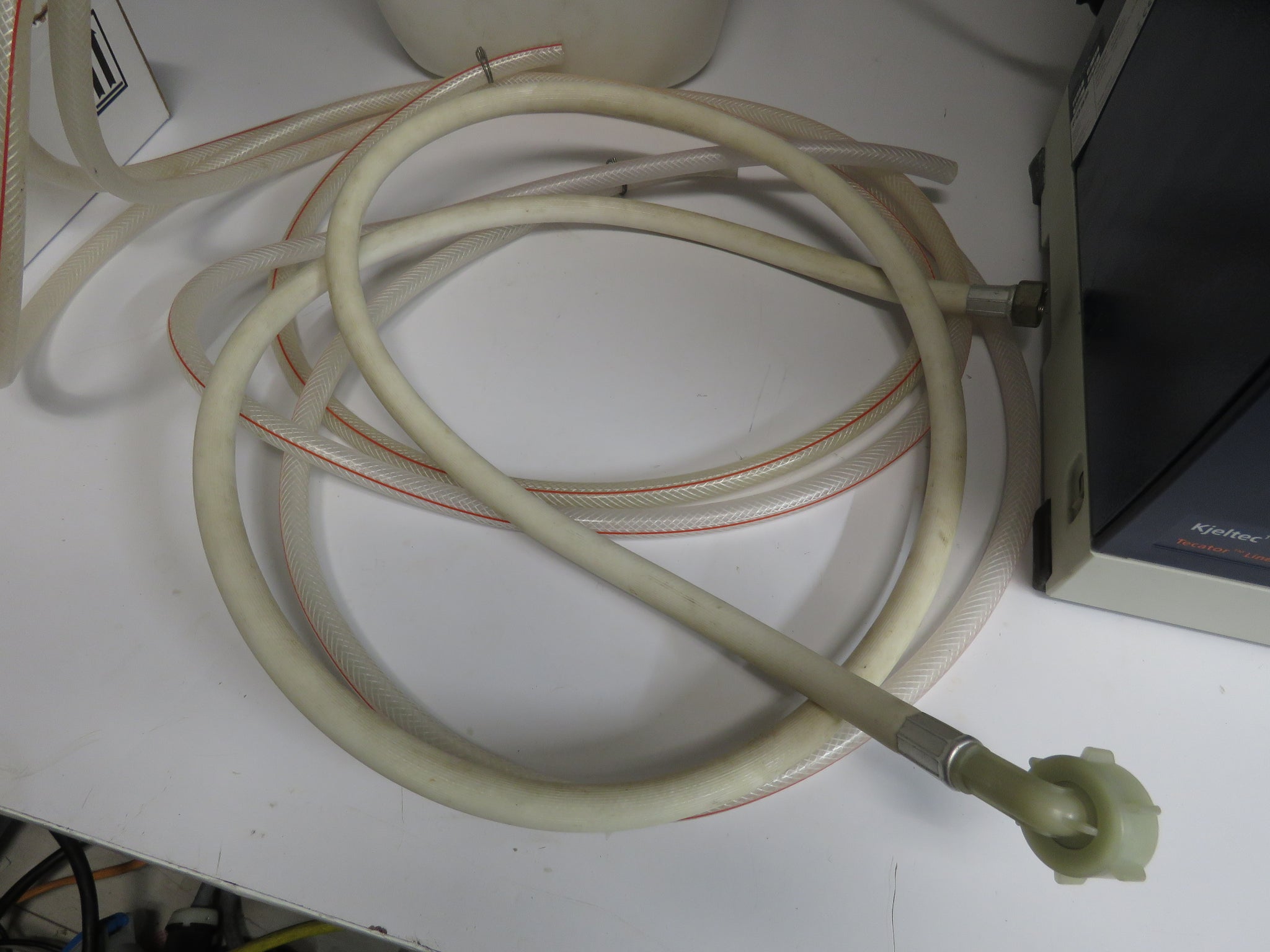

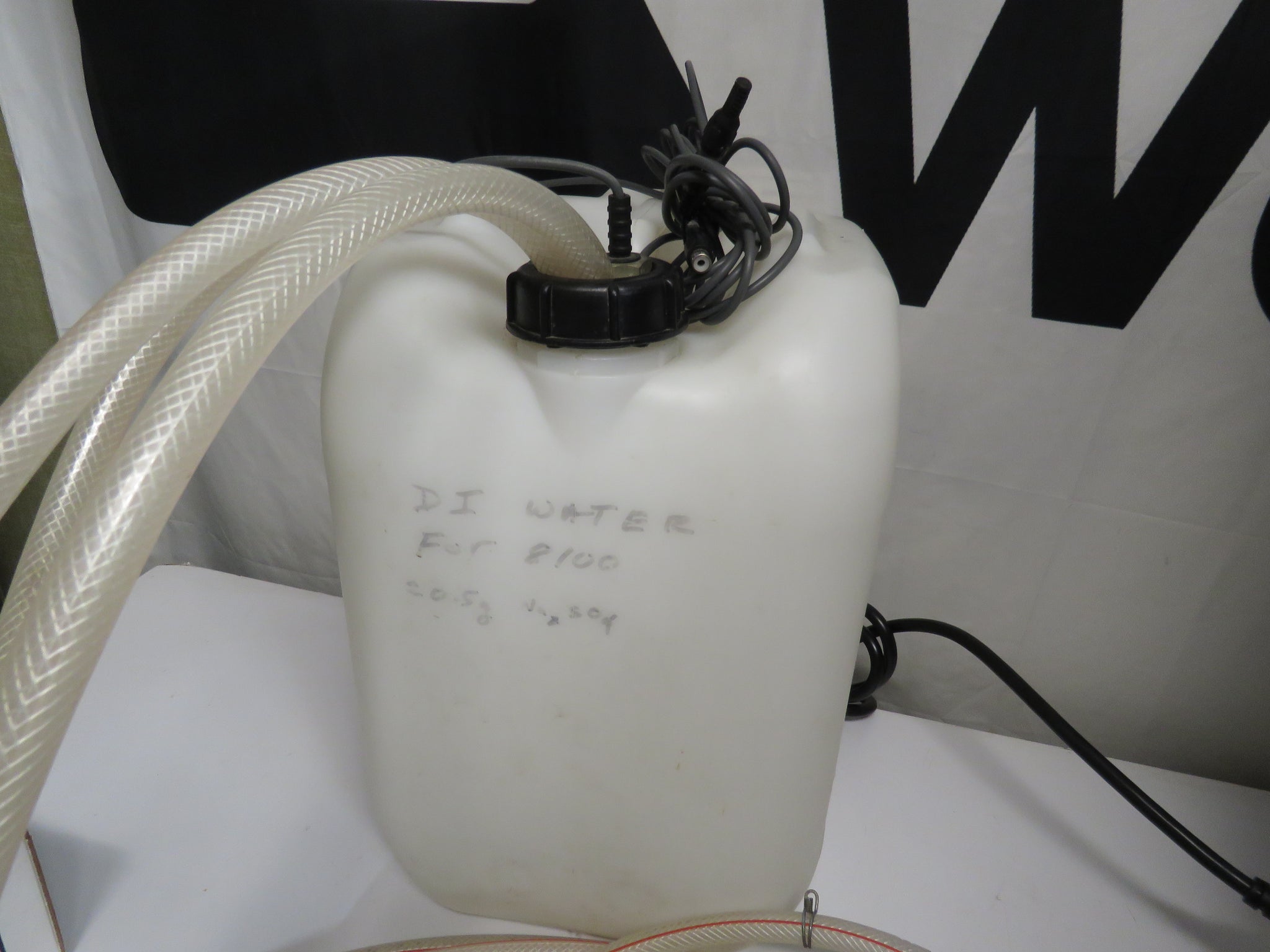

- DI Water bottle with hoses

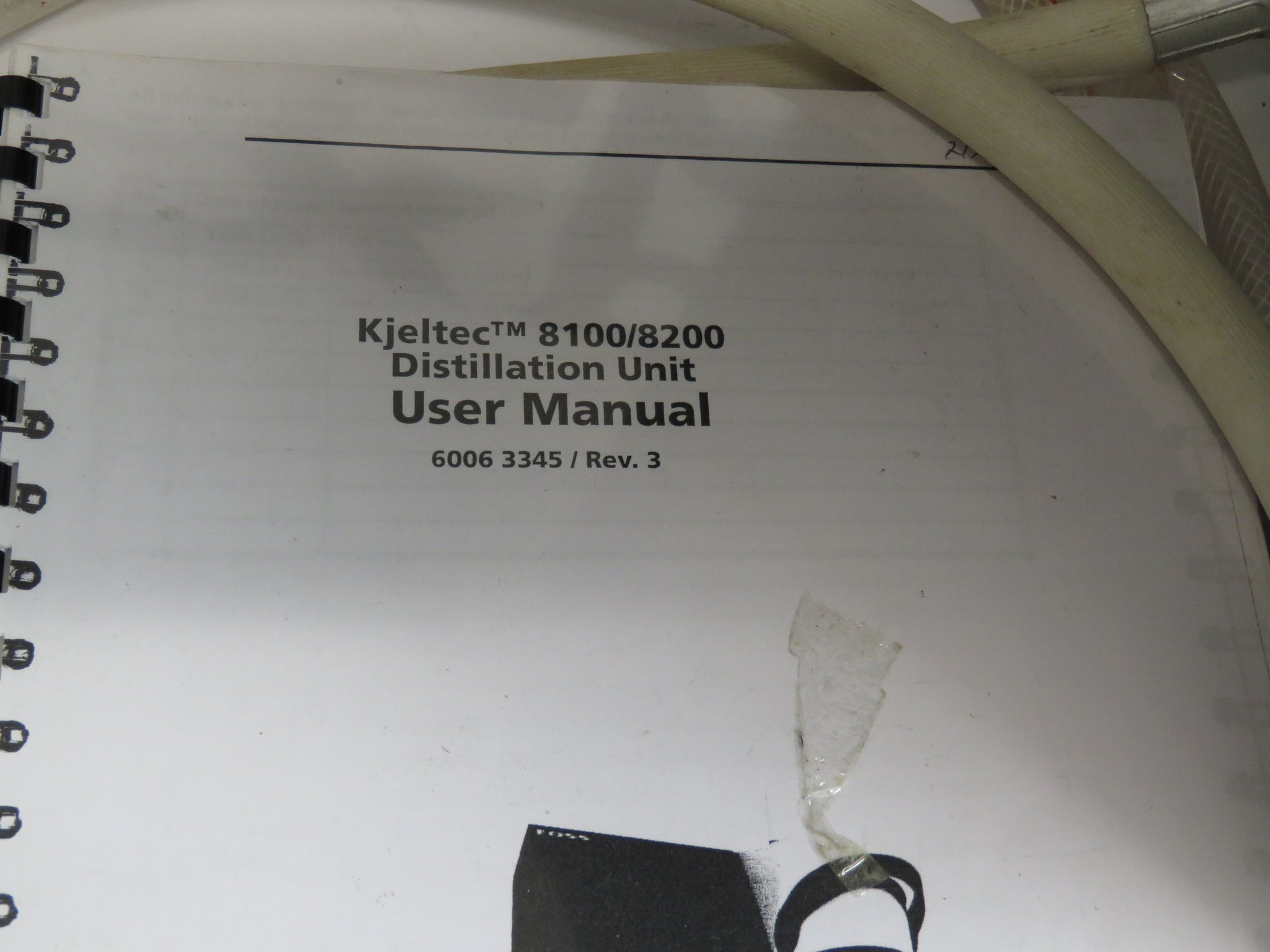

- Manual
- Power cable

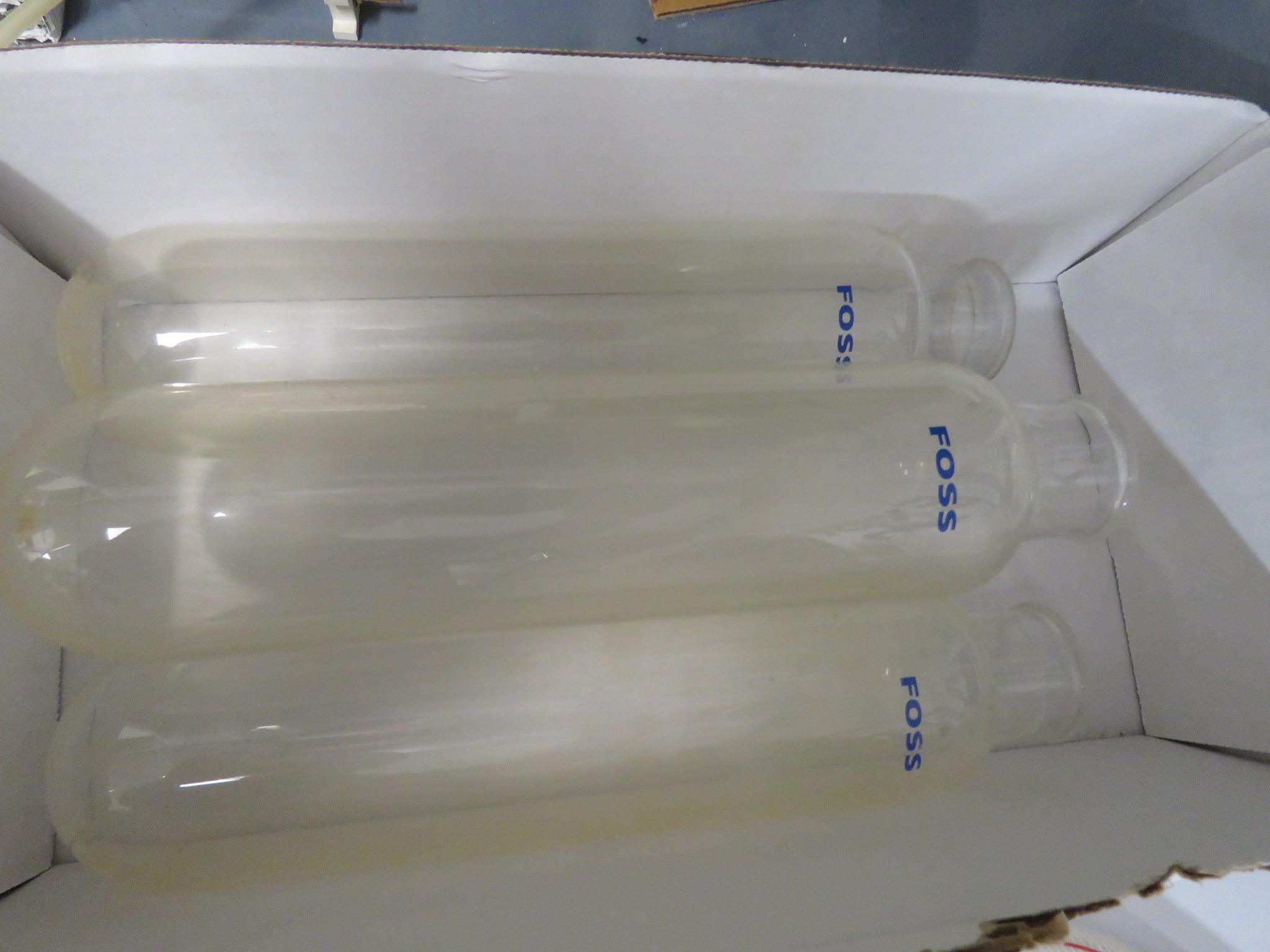

- (3) Foss glass vessels
BBR5
Warranty
30 Day warranty. We pledge to offer the best service and warranty to all of our customers! We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.
Certification
This is a genuine product from this manufacturer.
Disclaimer
The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping of the item."
Regardless of the origin of the equipment, documentation provided or identification appearing upon the equipment, the equipment described and offered here is in no way certified for, recommended for, or offered for any specific use. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. The purchaser, by bidding on this equipment, indicates their acknowledgment of, and agreement to the terms of this disclaimer. it is the purchaser's responsibility to have the item inspected and certified by a qualified professional before use!
