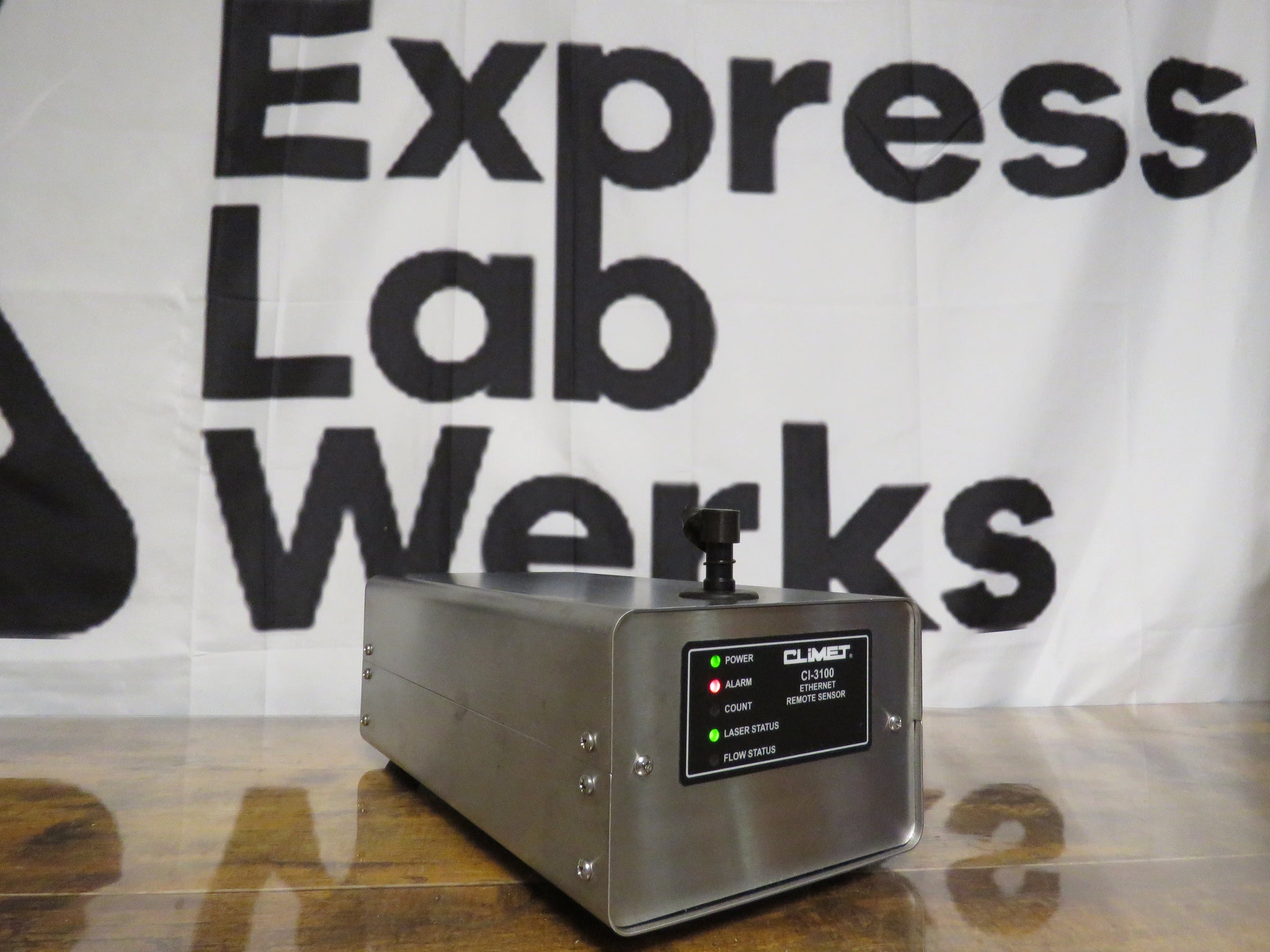

2020 Climet CI-3100 Particle Counter Ethernet Remote Sensor Model CI-3100-21-1-4-6

Web Information

Biopharmaceutical grade, a 2-channel (0.5 µm and 5.0 µm standard) particle counter with built-in vacuum pump. Users have the option of either 4-20 mA output, Ethernet Modbus, and other configurations. Comes standard with 1 CFM flow rate. Other particle sizes, flow rates, and custom configurations may be available.

 In business since 1962, Climet literally invented and pioneered the first continuous monitoring particle counter with an integrated vacuum pump in 1988. Climet has dozens of multi-jurisdictional patents in the field of particle counting.  The CI-3100 OPT Series is fully compliant with ISO 21501-4; PIC/S; FDA CGMP; EU GMP, Annex 1; ISO 14644-1/2:2015; 21 CFR Part 11, and others.

General information

The CI-3100 OPT Series is a 2-channel particle counter used in continuous monitoring applications in a variety of industries - generally Grade A or B (ISO 5) clean zones.

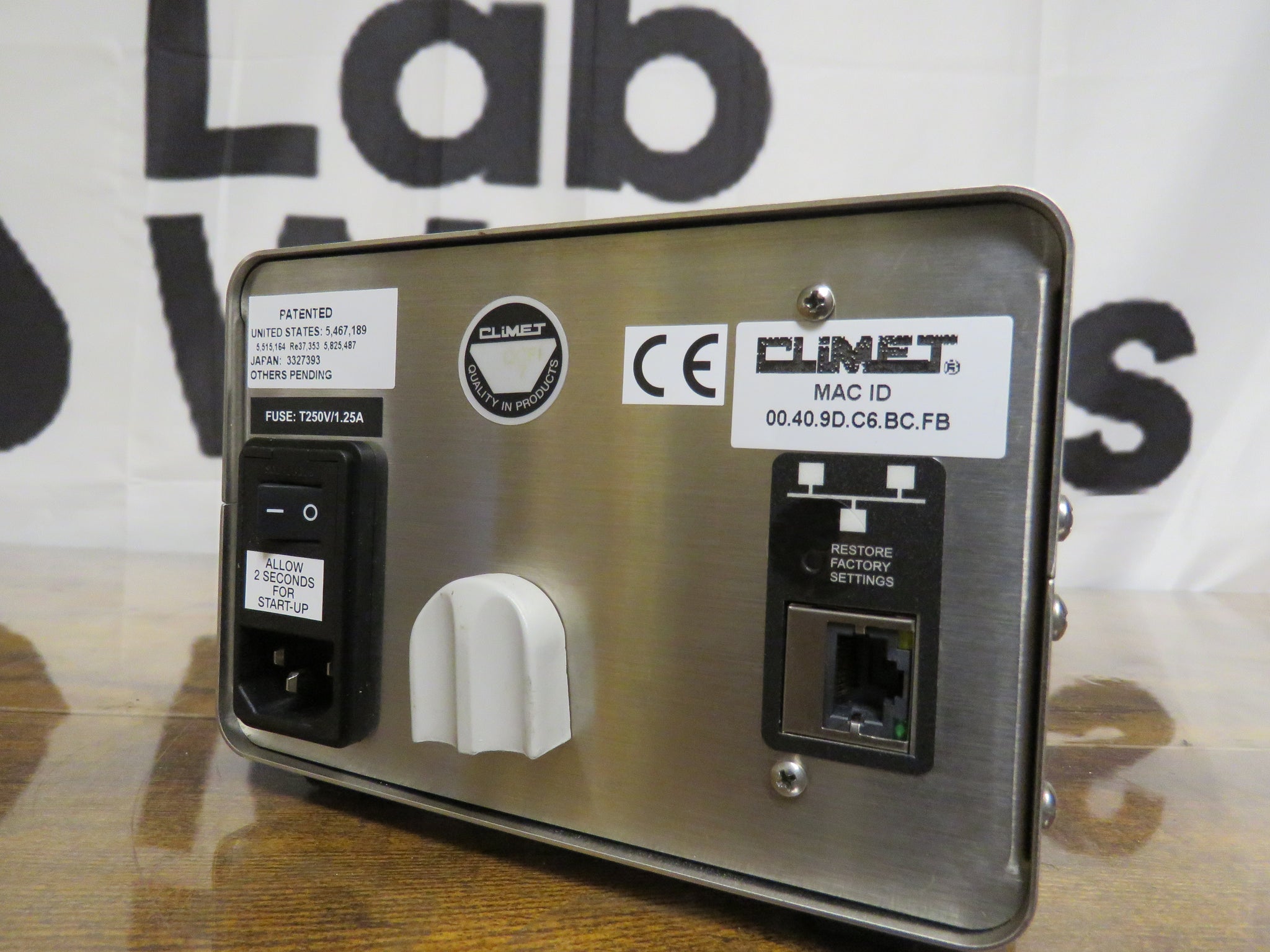

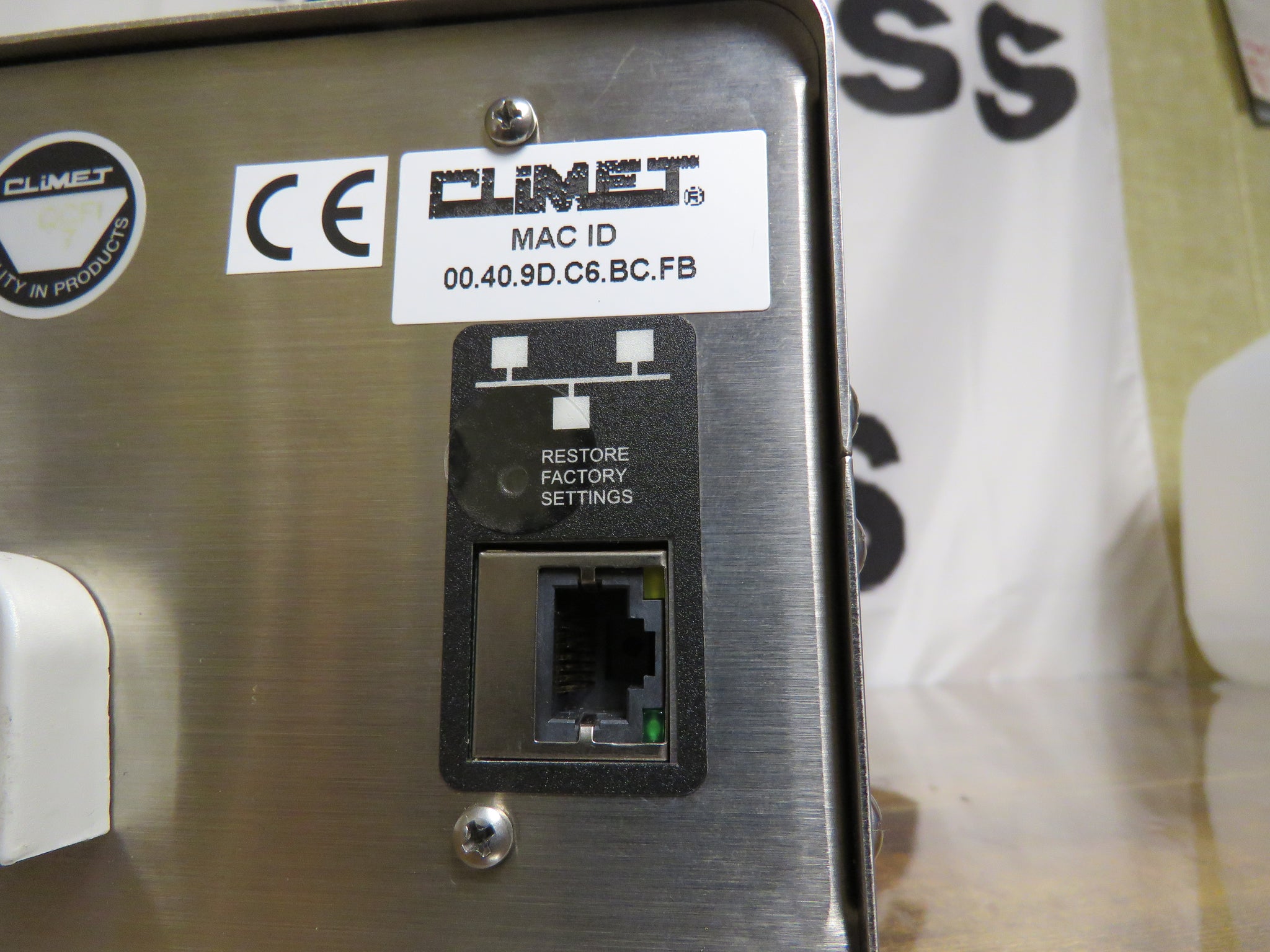

The CI-3100 OPT has a choice of standard data interface options including RS-485 Modbus, 4-20 mA outputs, or Ethernet (TCP/IP); and contains an internal power supply and vacuum pump eliminating the need for an external air source. For biopharmaceutical applications with Ethernet connectivity, we recommend the CI-3100 TRIDENT OPT, which is a newer ETHERNET version that includes AC, DC or Power over Ethernet options, critical data integrity features such as onboard sample data memory buffer, patented laser diagnostics, and more!

Standard particle sizes are 0.5 µm and 5.0 µm, but custom sizes are also available.  Designed for fixed continuous monitoring deployment,  the CI-3100 OPT offers a standard flow rate of 1 CFM, and some models are offered in an alternatively lower 0.1 CFM flow rate (Call for details).

On/Off functionality is remotely controlled via software. Additionally, the CI-3100 OPT is VHP compatible ensuring easy cleaning and sanitation.  Climet recommends sanitizing the instrument with VHP at least quarterly while the CI-3100 OPT is engaged. This will allow the instrument to draw the gas into its interior to disinfect potential viable microorganisms.

An expert in manufacturing industrial instrumentation, every new instrument design is drop and vibration tested ensuring end-users can expect up to a decade (and beyond) of reliable operation. This level of ruggedized testing is unique among other manufacturers, and ensures accidents don't turn into capital appropriation requests or expensive repair bills.

Accuracy and Stability of Measurement

A long-earned reputation in the industry for manufacturing the most accurate particle counters, studies confirm that Climet particle counters offer unparalleled repeatability (in metrological terms: stability or precision) of measurement.  Over 50 years of manufacturing experience and use of the highest quality materials provides users unparalleled performance.

High quality materials, an expert level of engineering acumen, and a mature DFM (Design For Manufacturability) virtually eliminate short-term and long-term calibration drift. This also enhances product life cycle, offering users a decade or more of reliable use.  This is but one factor that greatly enhances Climet's reputation for providing the lowest TCO (Total Cost of Ownership). End users in regulated industries, and others of discerning taste for high precision instrumentation, exclusively sole source Climet as their preferred solution provider.

Interval Calibration Out-of-Tolerance Rates

Customers in regulated industries are generally required to re-calibrate their particle counter annually.  Depending on the process or risk assessment, the CI-3100 is typically calibrated at six month intervals, or even more frequently. When a particle counter is out-of-tolerance (OOT) during the interval calibration, a deviation report and investigation is required in regulated industries.  Among pharmaceutical and biotechnology producers a simple failure investigation (assuming no batch rejection) costs between $8,000 to $12,000 on average.  This cost is difficult to calculate as it's almost all labor and  usually involves multiple departments.  It is a hidden Cost of Poor Quality (CoPQ) associated with the instrument, which few end users track. As the cost of one simple failure investigation well exceeds the initial purchase price of a particle counter, we can conclude that CoPQ is the #1 cost driver.

Internal studies and customer Total Cost of Ownership (TCO) feedback confirms that on average when a Climet particle counter is equal to or less than 7 years old, the instrument passes its interval calibration 99.6% of the time. In a separate internal study of 2,000+ Climet particle counters, it was confirm an in-tolerance rate of 98.3%, with approximately 25% of the particle counters included in this study being 10 or more years old.  These statistics are absolutely unparalleled in the industry, and Climet uniquely provides value well beyond the simple use of the instrumentation.

Condition

2020 model - excellent functional condition.  Always under factory service.

Includes

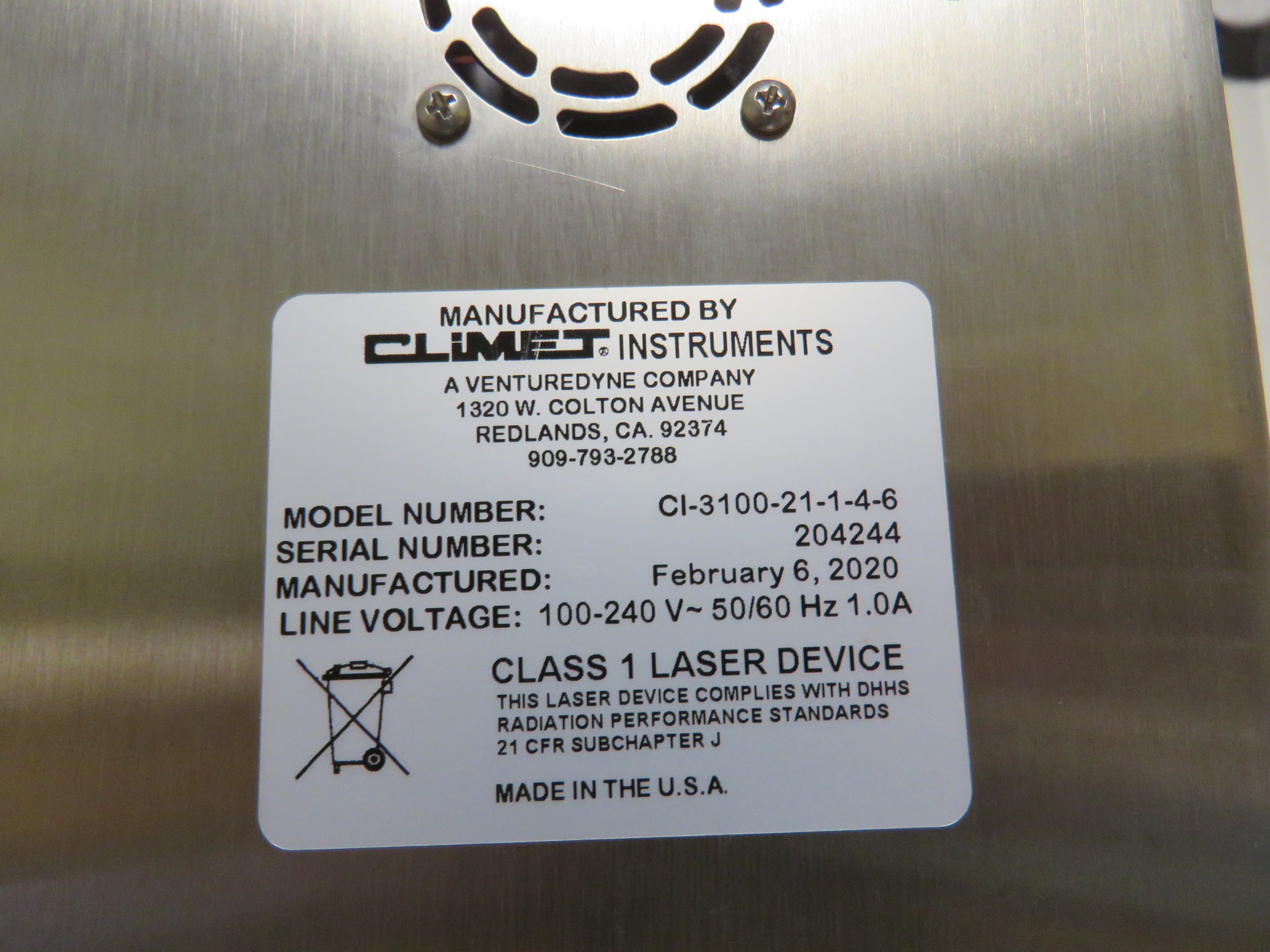

• 2020 Climet CI-3100 Particle Counter Ethernet Remote Sensor Model CI-3100-21-1-4-6
• Power cord

MBCA

Warranty

30 Day warranty. We pledge to offer the best service and warranty to all of our customers!  We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.

Certification

This is a genuine product from this manufacturer.

Disclaimer

The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping of the item."

Regardless of the origin of the equipment, documentation provided or identification appearing upon the equipment, the equipment described and offered here is in no way certified for, recommended for, or offered for any specific use. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. The purchaser, by bidding on this equipment, indicates their acknowledgment of, and agreement to the terms of this disclaimer. it is the purchaser's responsibility to have the item inspected and certified by a qualified professional before use!
