Keysight / Agilent N3300A Electronic Load Mainframe, 1800 W, 6 Slot
The N3300A is a full-rack width mainframe with 6-slots that accepts combinations of N330x user-installable load modules (150 W to 600 W) for easy system configuration and future reconfiguration. The N3300A holds up to six N3302A, N3303A, N3304A, and N3307A load modules, or up to three N3305A and N3306A load modules, allowing up to 1,800 watts of total maximum power.

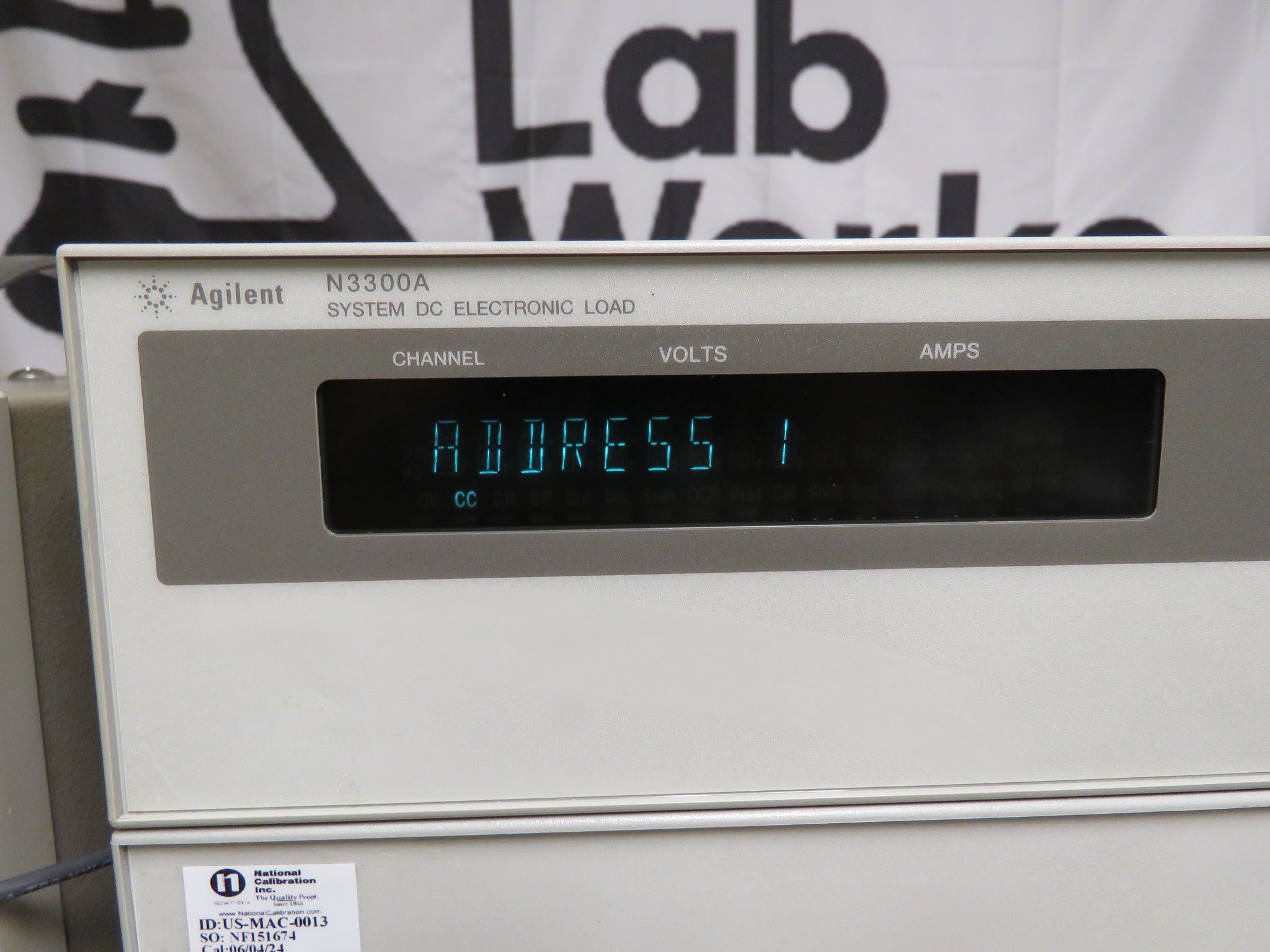

A single GPIB address is all you need for complete control and read-back of all load modules within a single N3300A mainframe. The N330xA Series of DC electronic loads provides fast operation and the accurate programming and read-back needed for high-volume DC power supply test systems.
Features:
- Wattage: 0 to 1800 W
- Slots: 6
- Stable operation down to zero volts
- Built-in pulse waveform generation with programmable amplitude, frequency, duty cycle and slew rate
- Full protection from over-current, over-voltage, over-power, over-temperature, and reverse polarity
- Trigger for external synchronization
- Parallel units in constant current mode for higher power
- Electronic calibration
- GPIB and RS-232 control of current, voltage and resistance and read-back of current, voltage, and power
- VXI plug&play drivers
- 100-250 Vac; 48-63 Hz operation
- Weight: 38 lb; Size: 177.8 mm (7.0 in)H x 426 mm (16.75 in)W x 625 mm (24.6 in)D
Condition

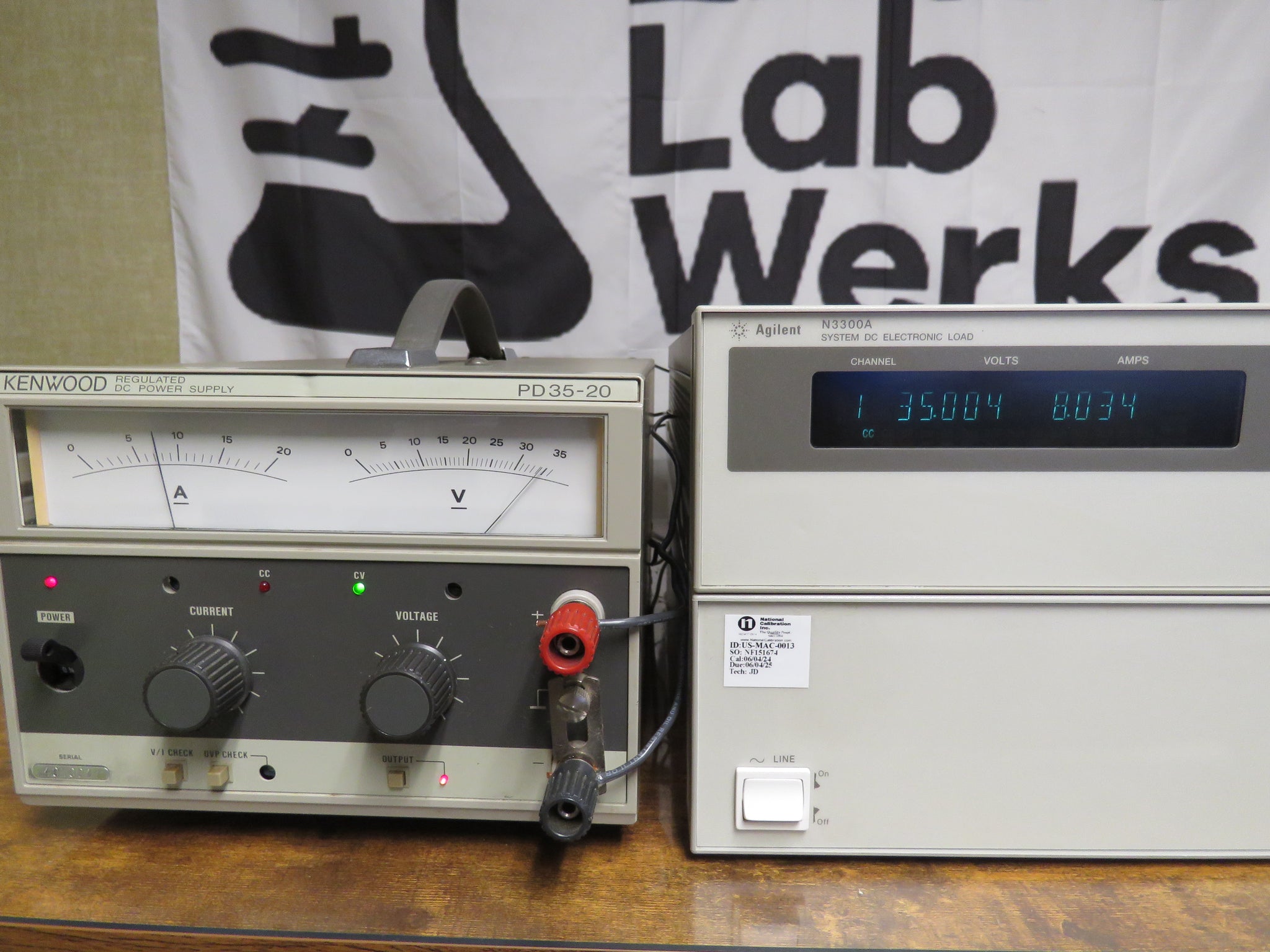

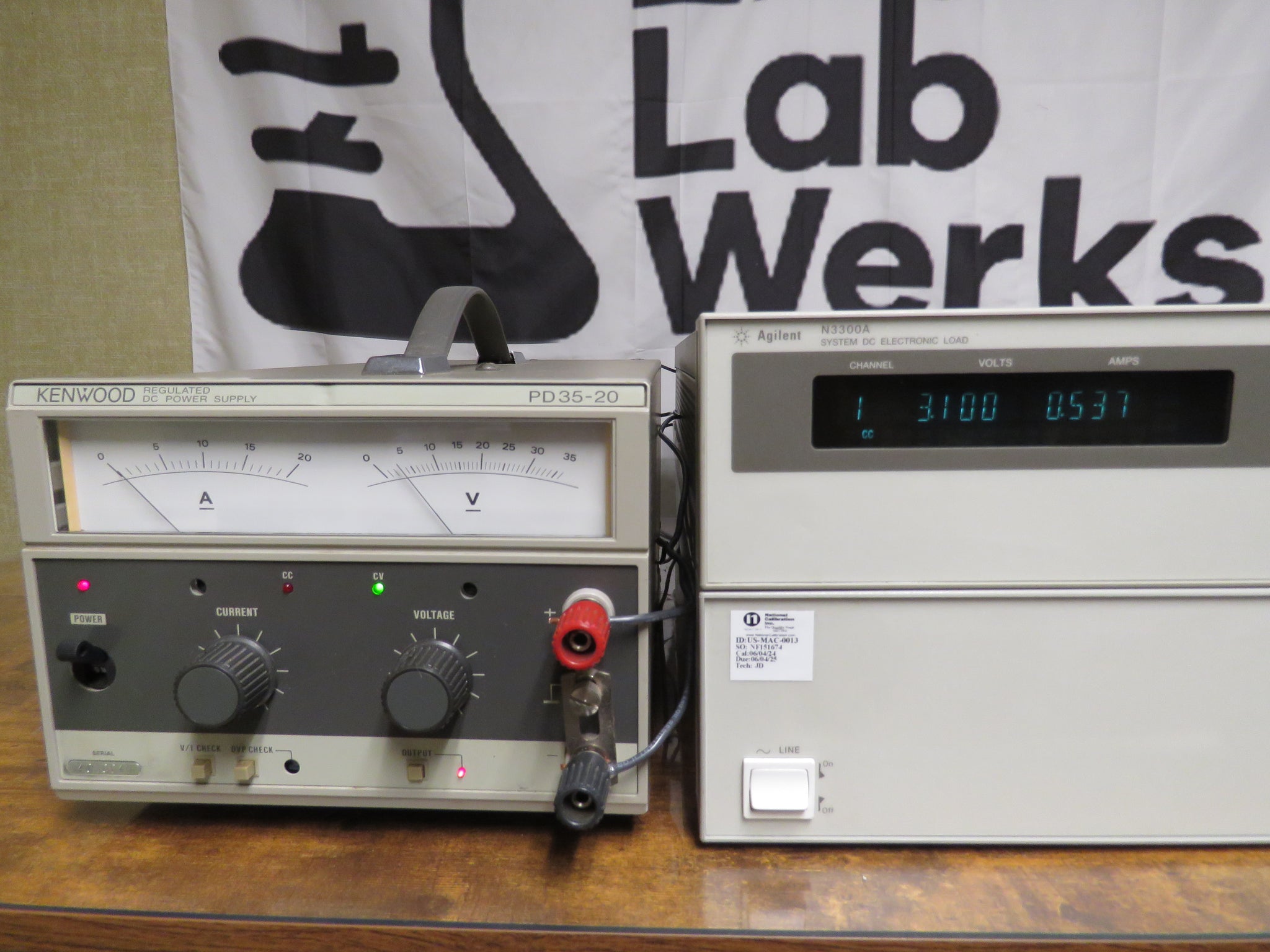

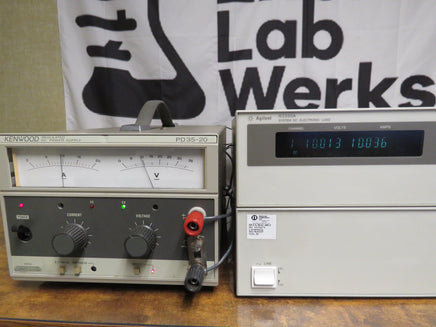

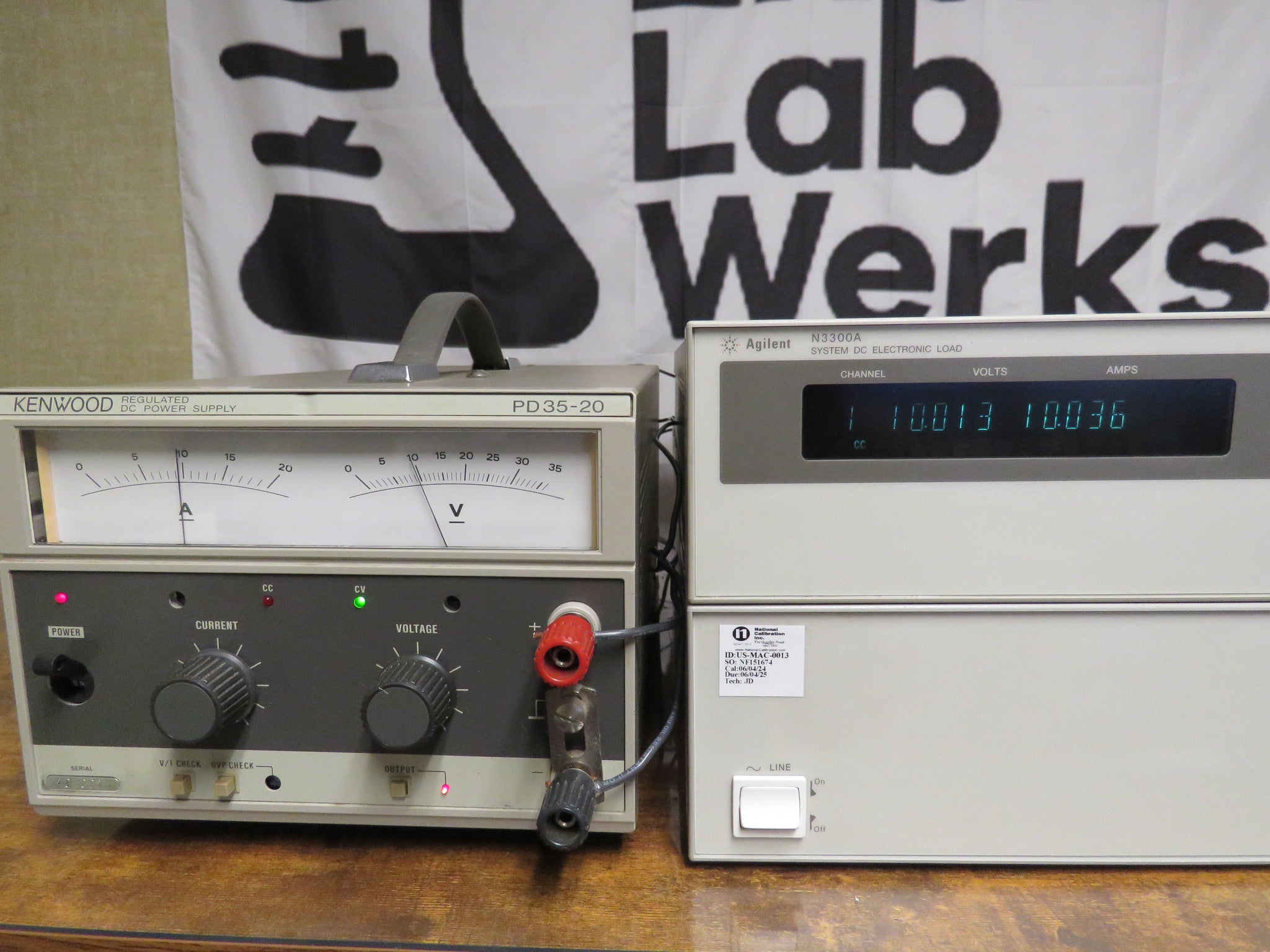

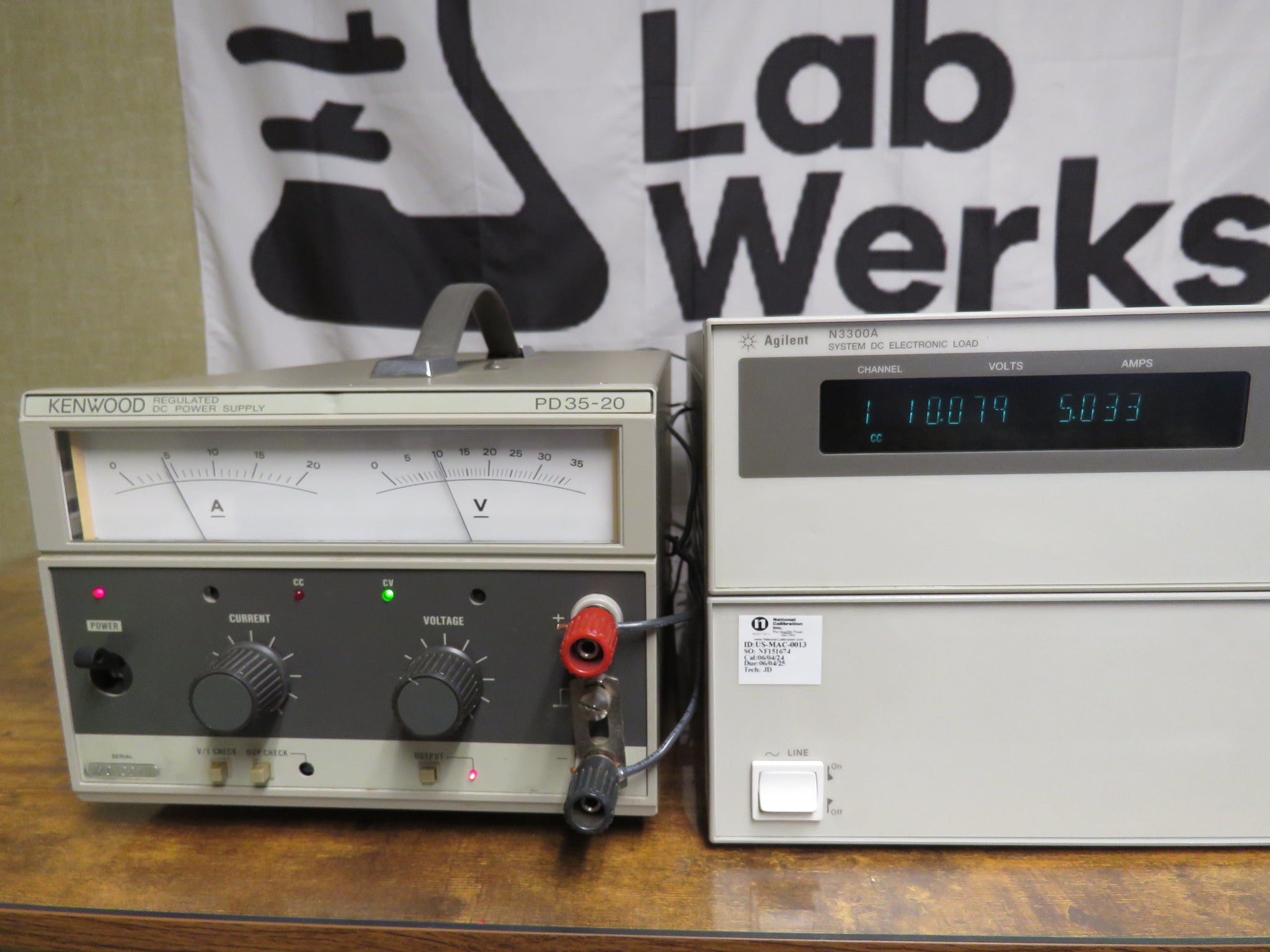

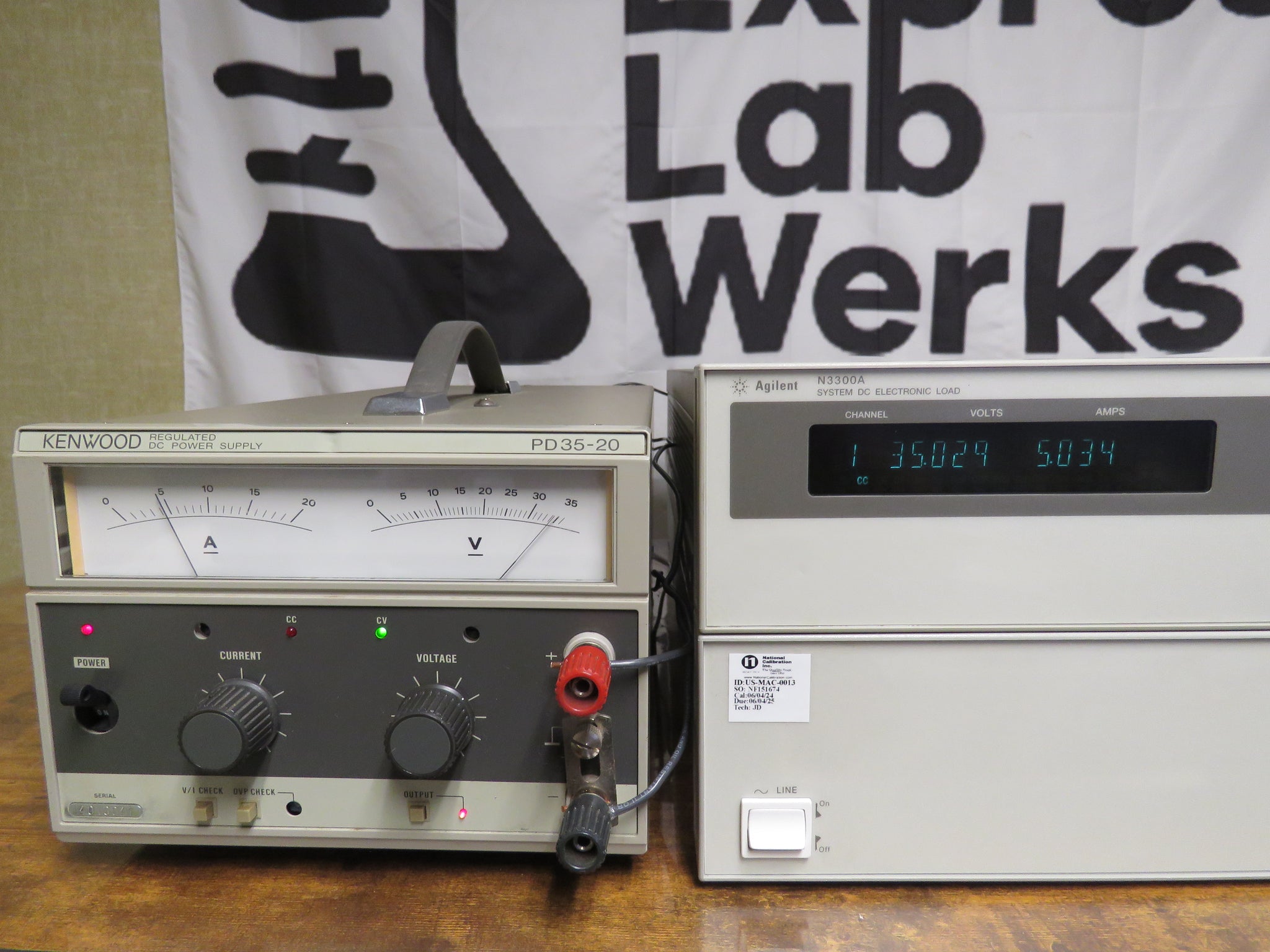

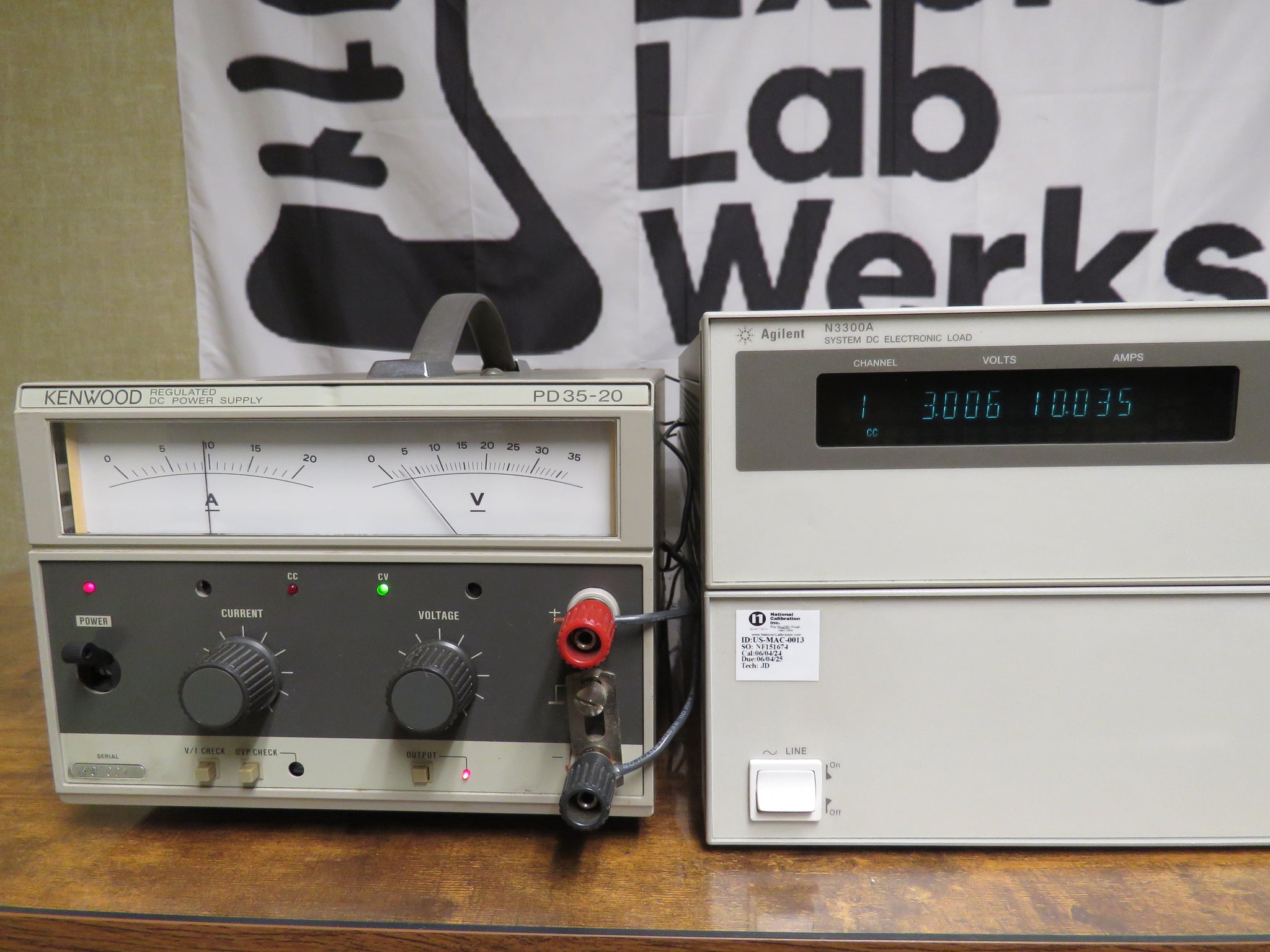

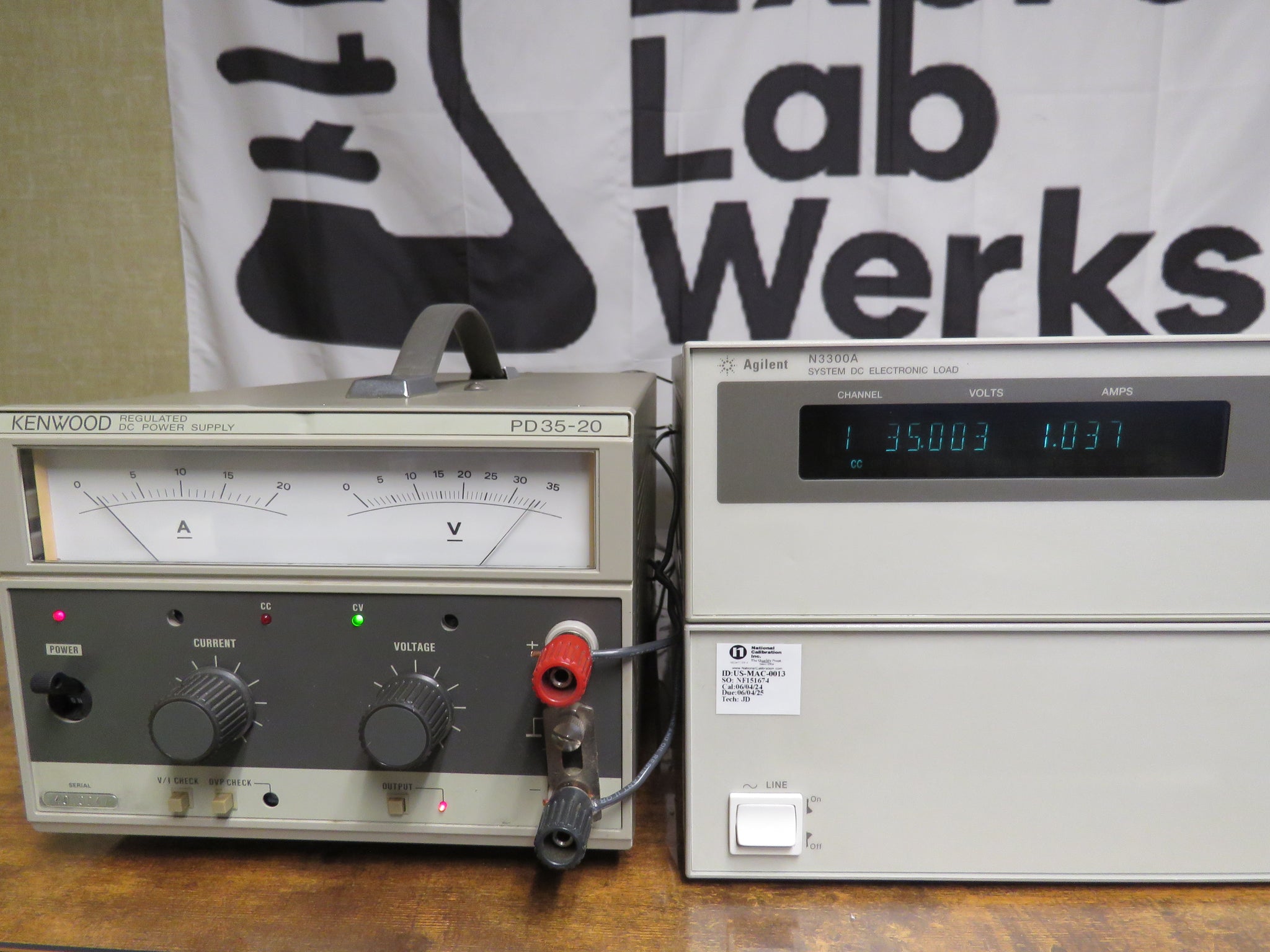

Excellent functional condition, sold with warranty.
Includes

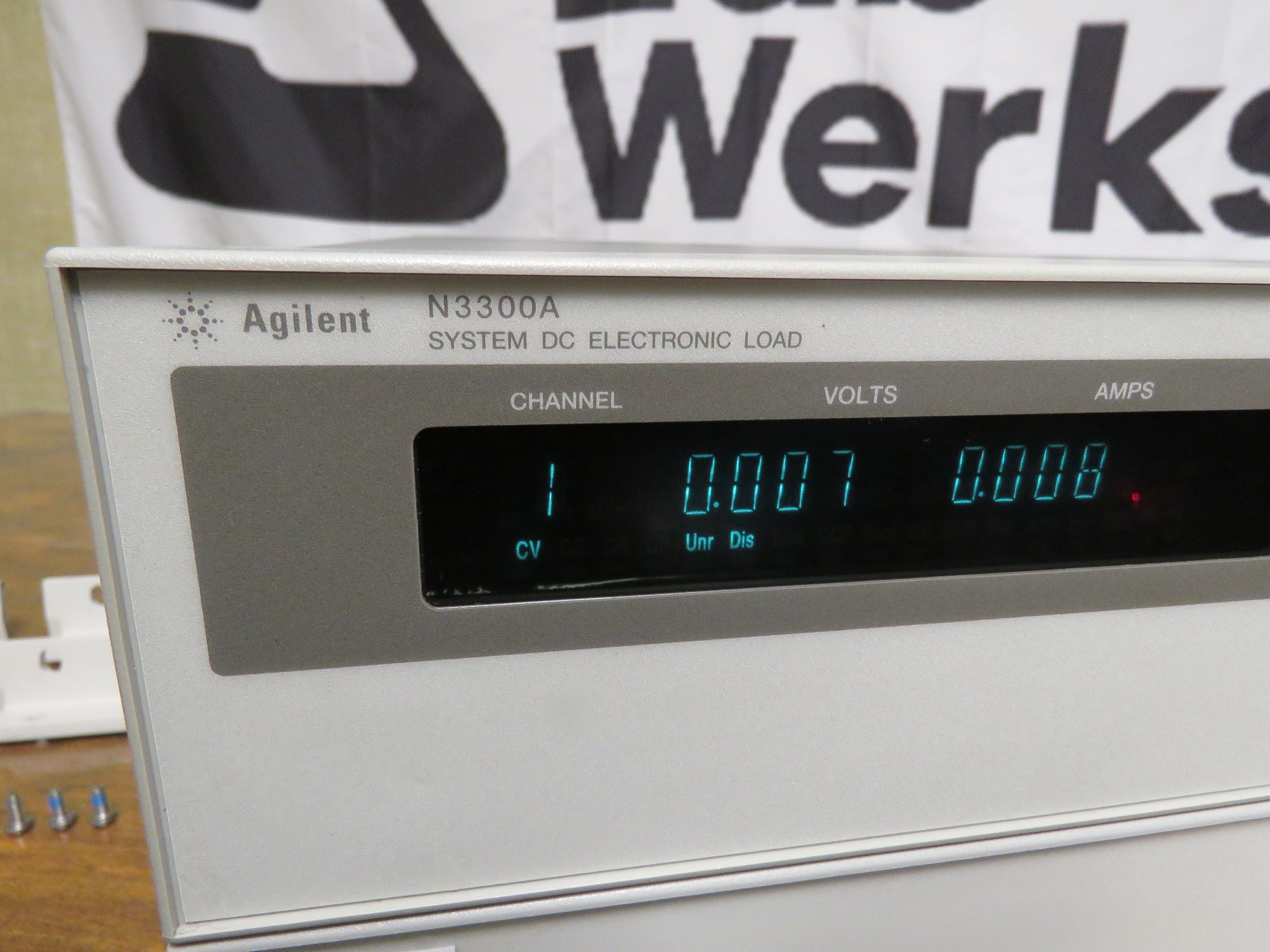

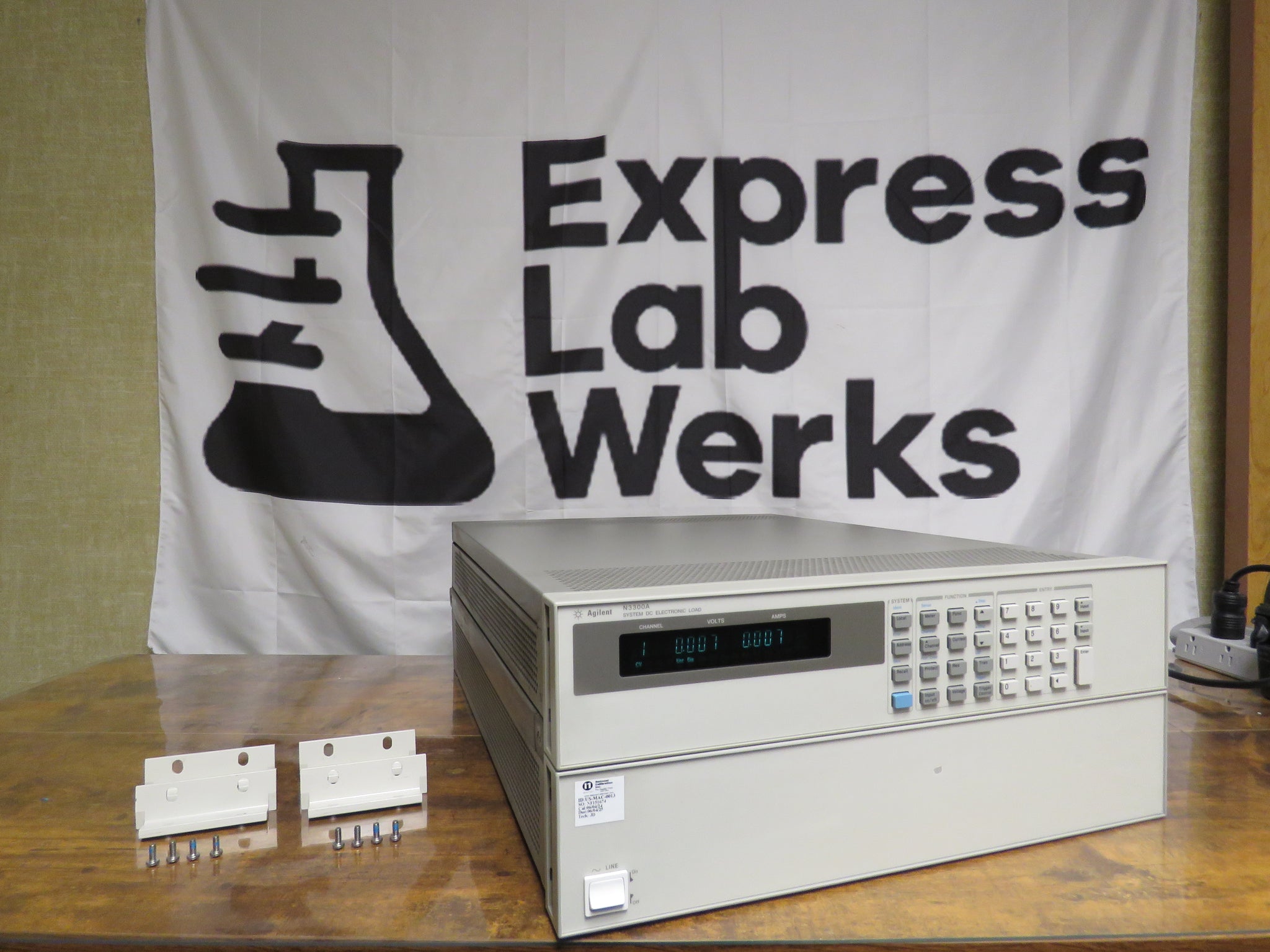

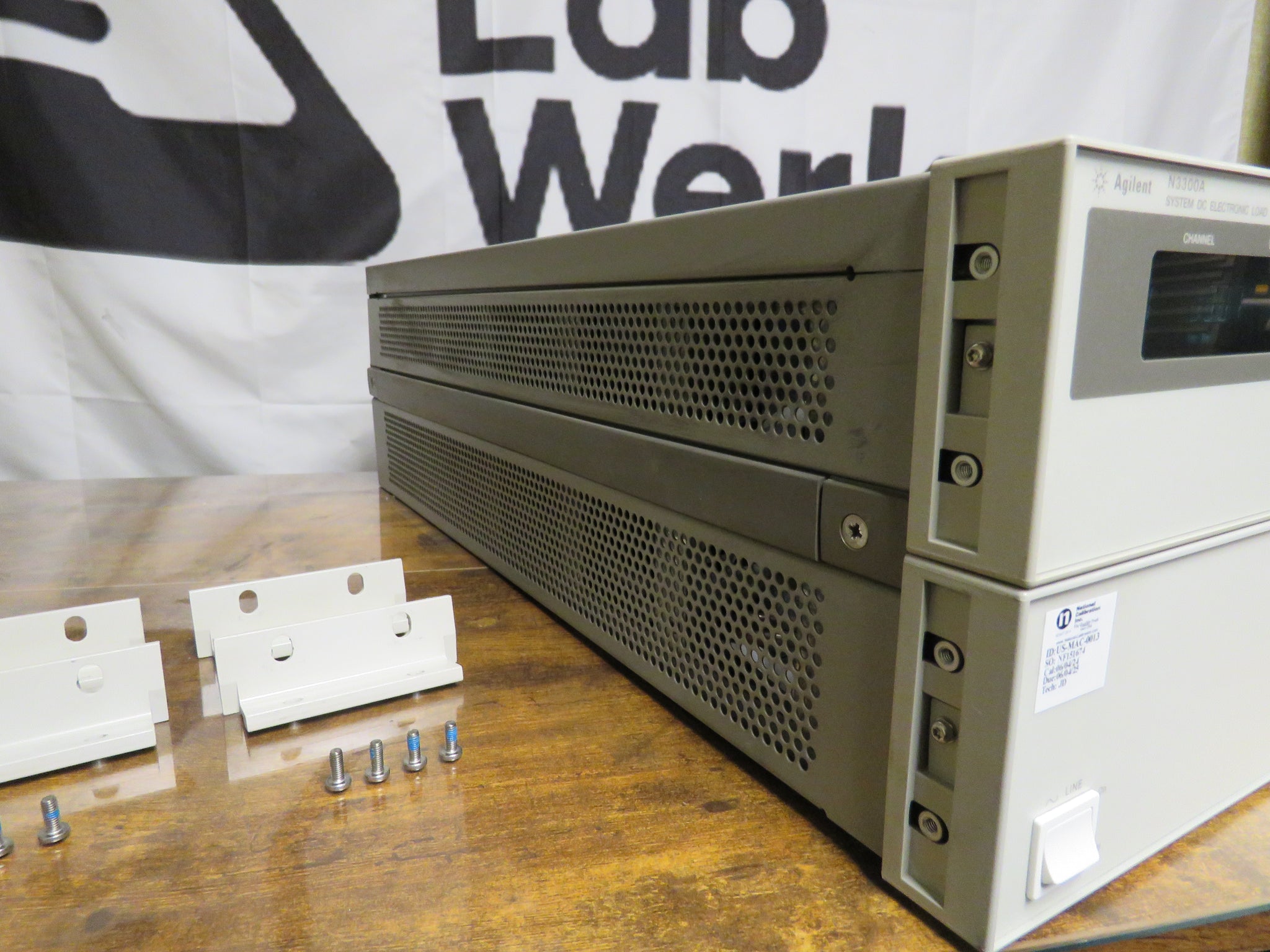

- Agilent N3300A DC Electronic Load Mainframe

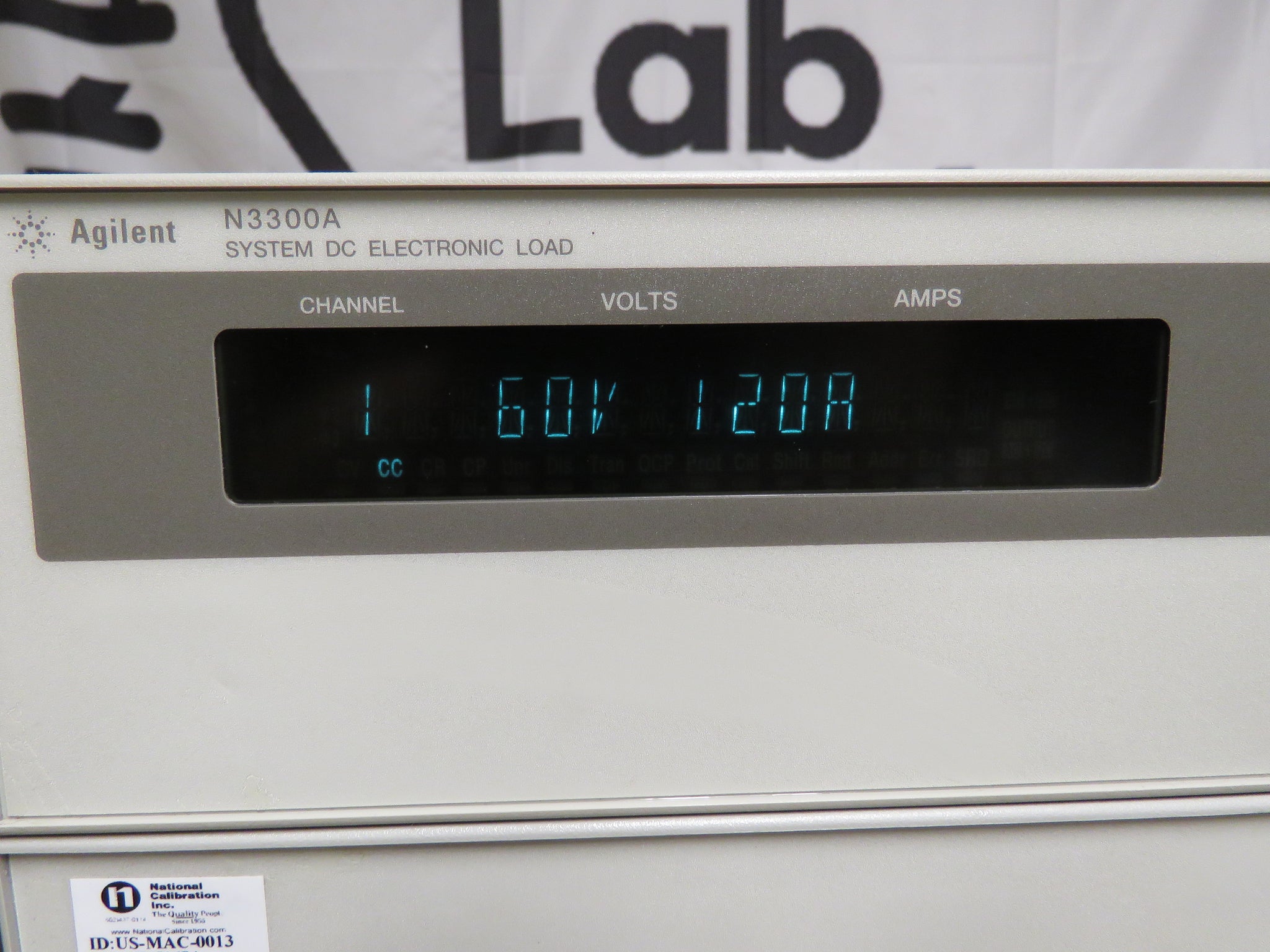

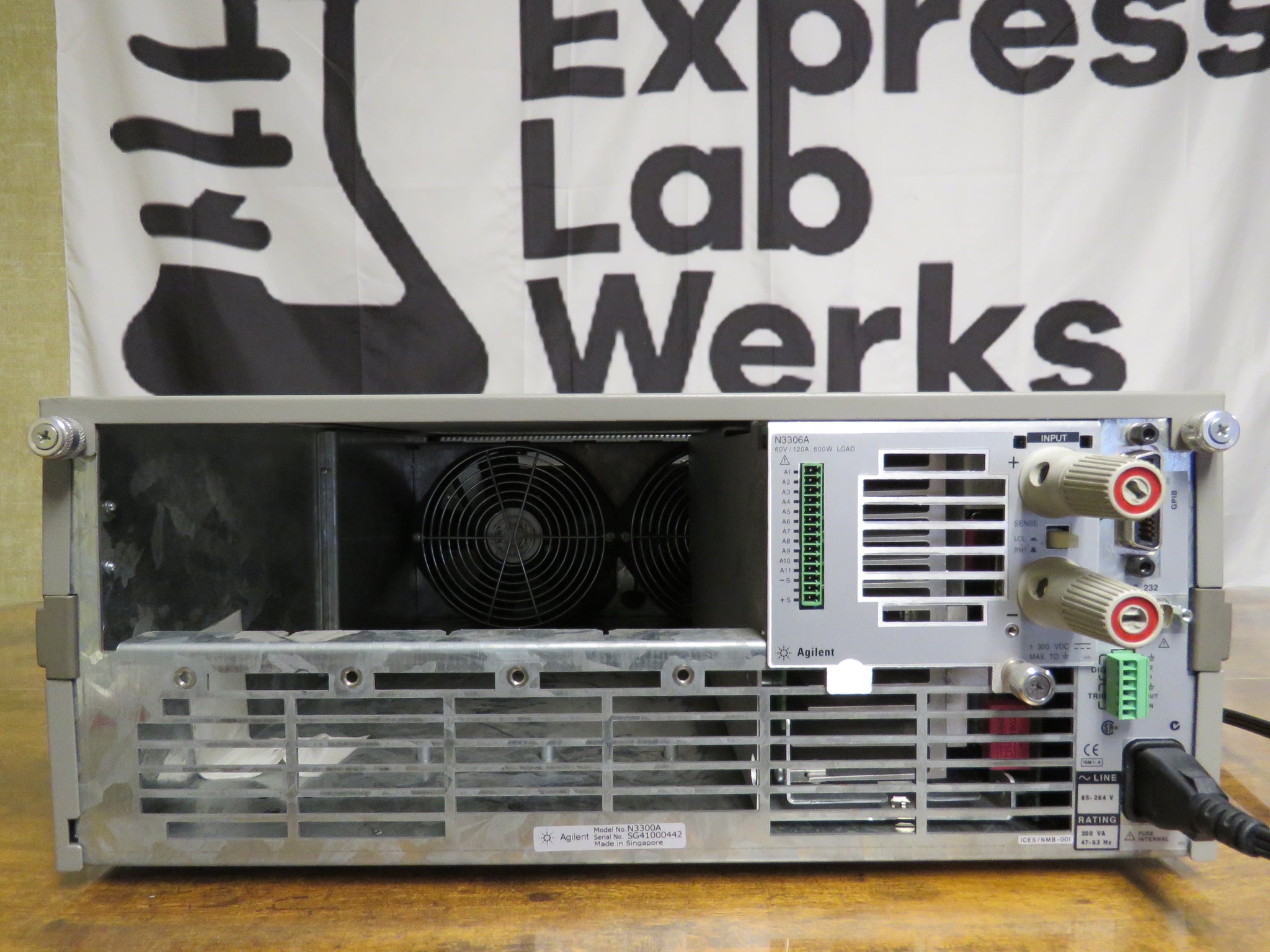

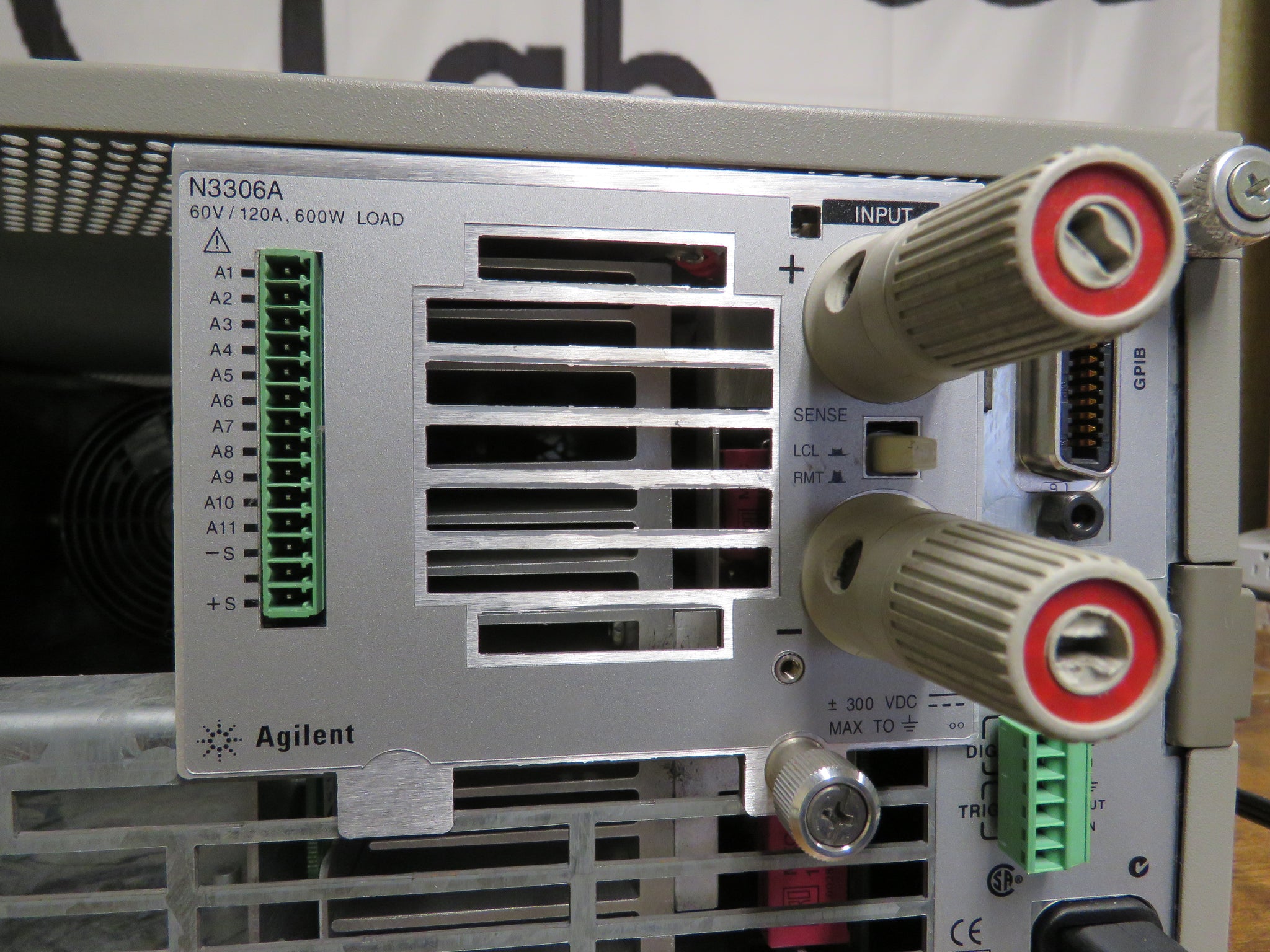

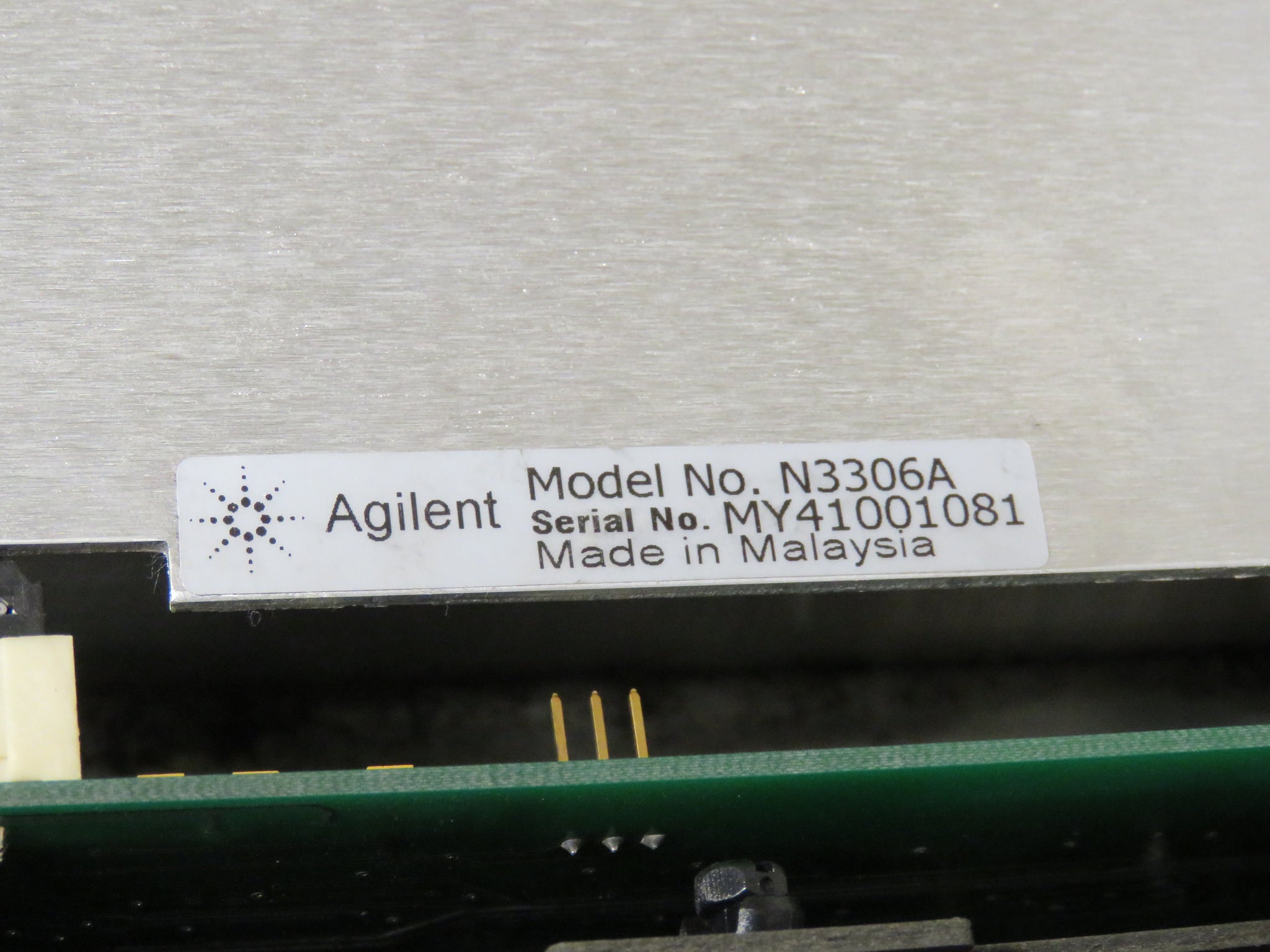

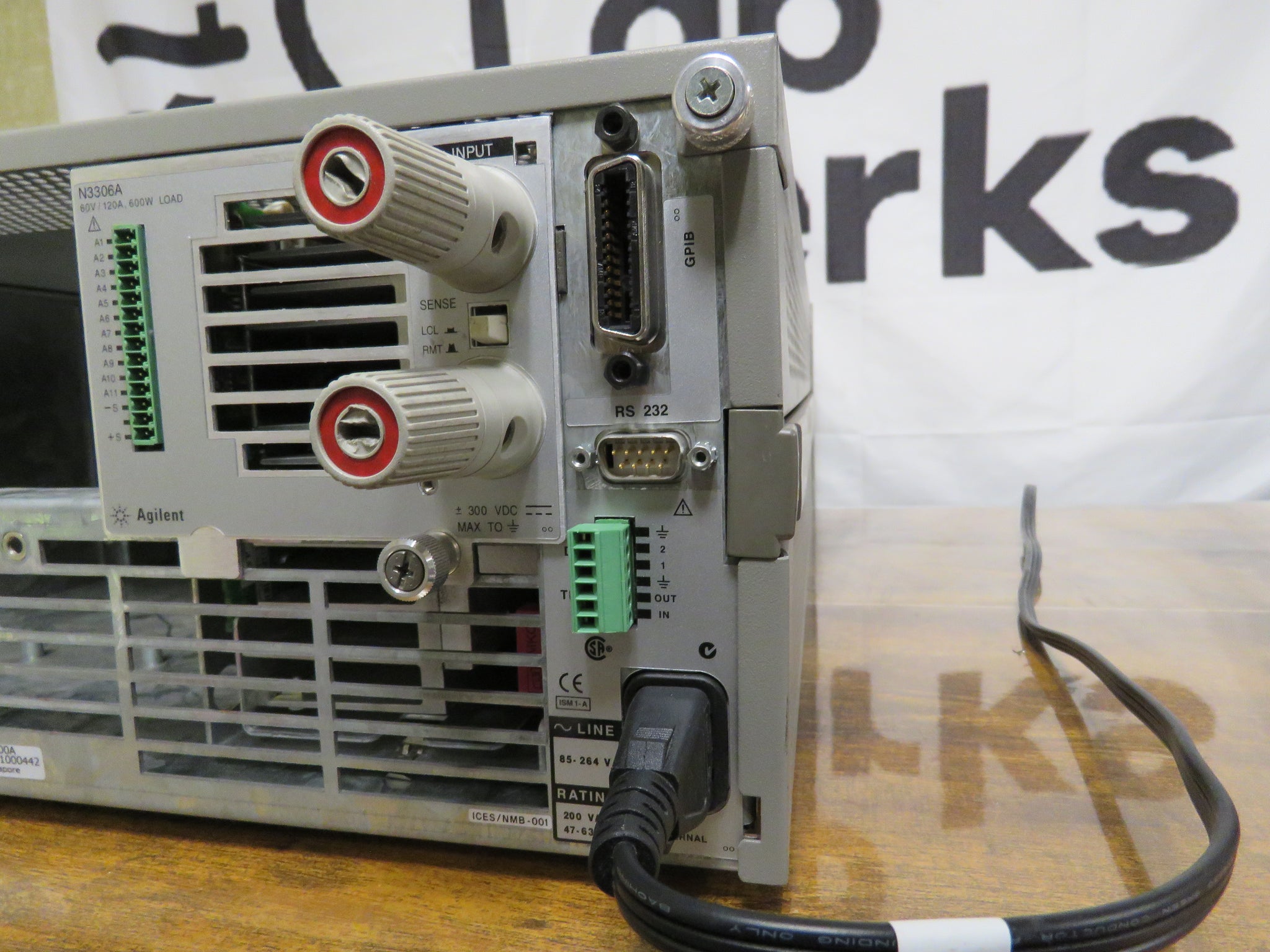

- (1) N3306A 60V/120A Module 600W Load

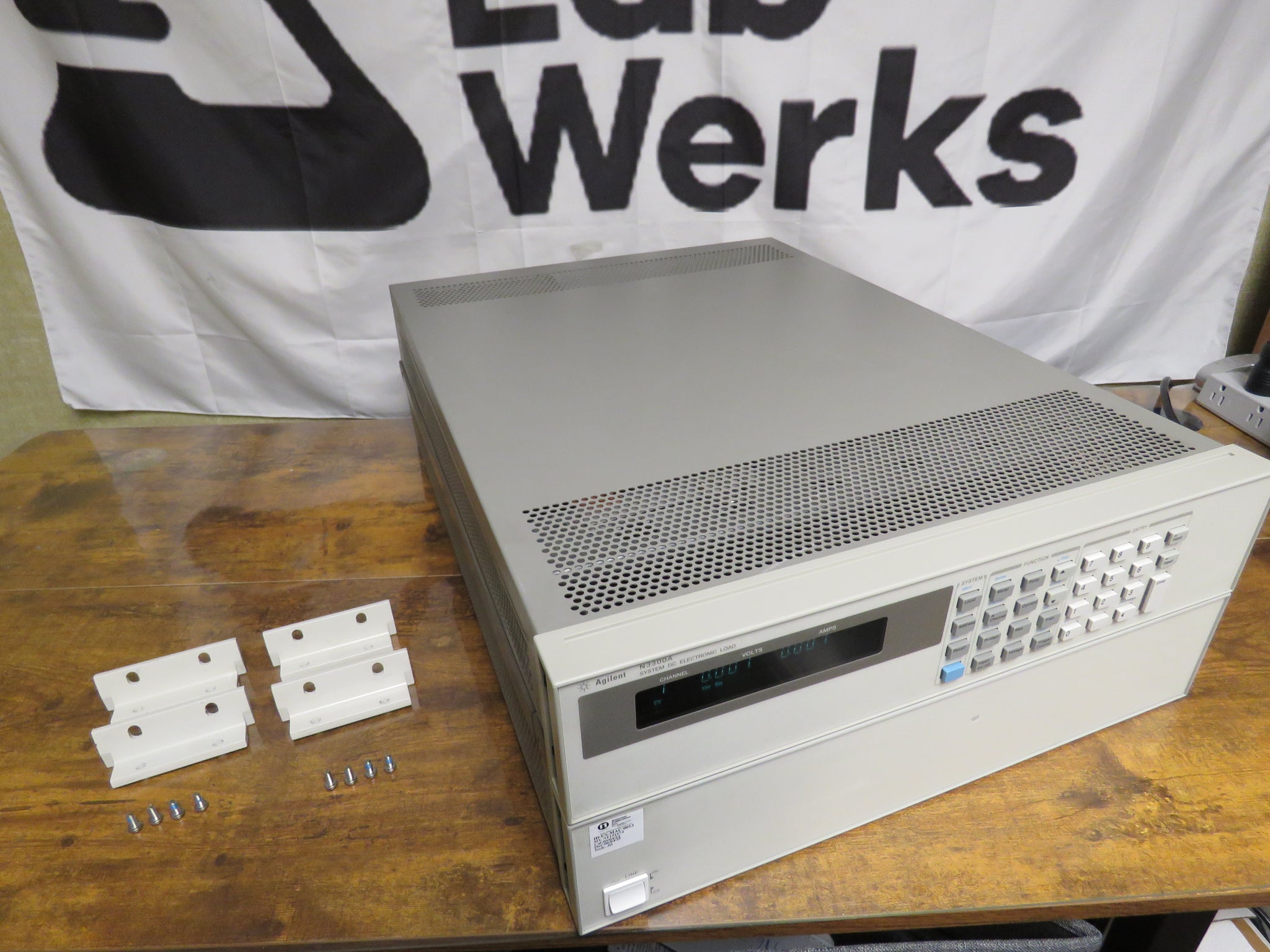

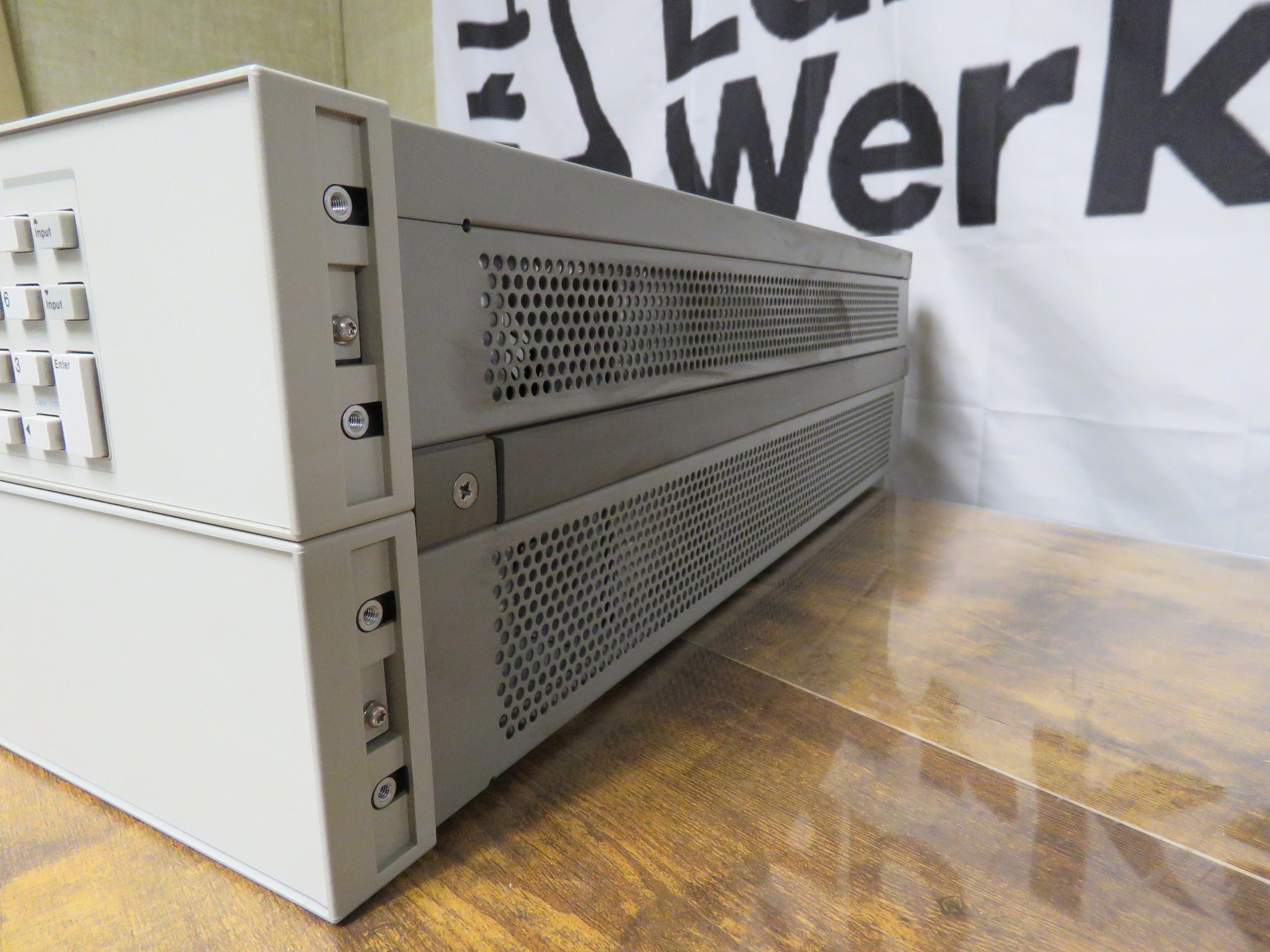

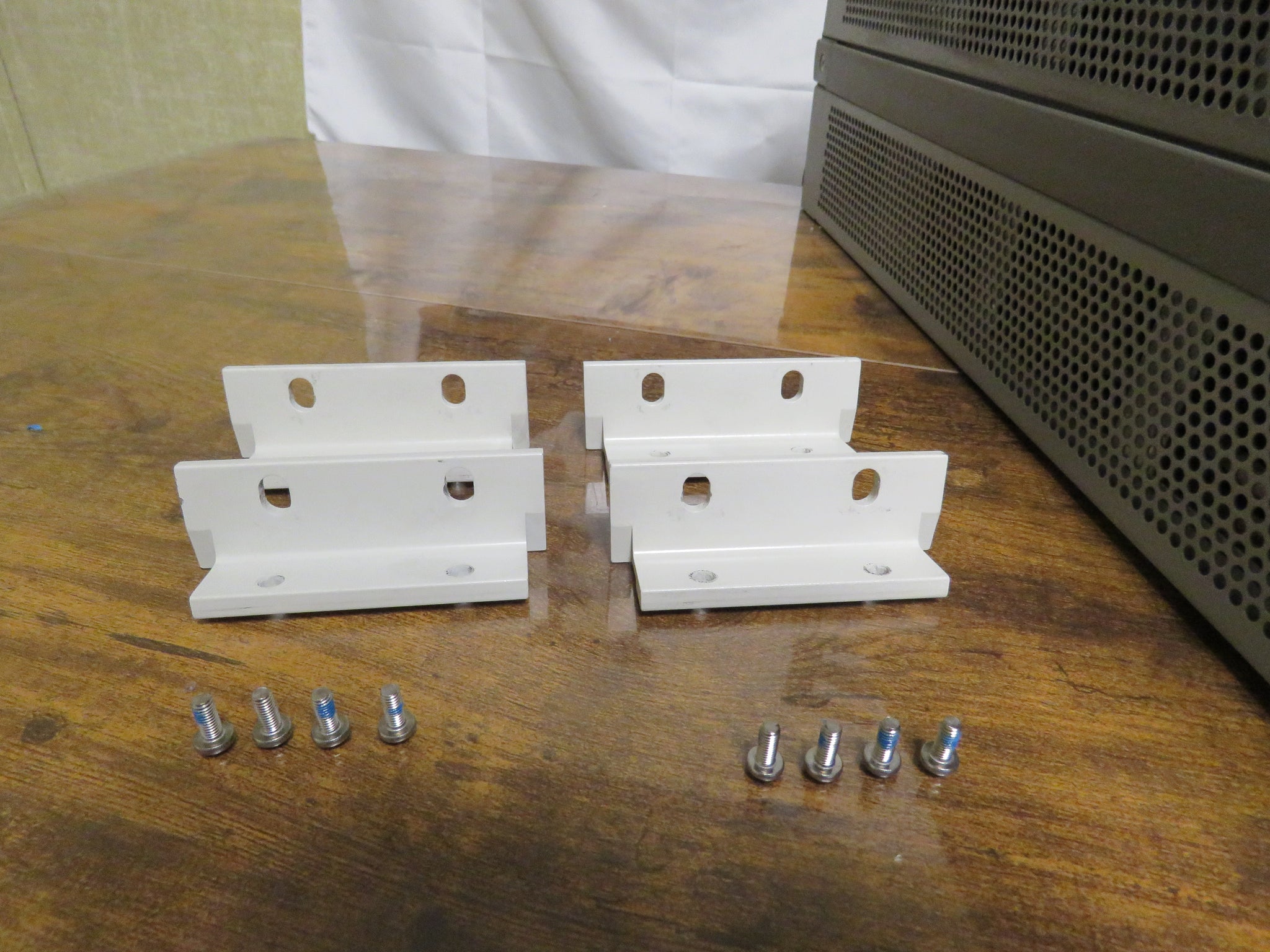

- Rack mount ear kit with screws
BBR3
Warranty
30 Day warranty. We pledge to offer the best service and warranty to all of our customers! We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.
Certification
This is a genuine product from this manufacturer.
Disclaimer
Regardless of the origin of the equipment, documentation provided or identification appearing upon the equipment, the equipment described and offered here is in no way certified for, recommended for, or offered for any specific use. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. The purchaser, by bidding on this equipment, indicates their acknowledgment of, and agreement to the terms of this disclaimer. it is the purchaser's responsibility to have the item inspected and certified by a qualified professional before use!
