A&D SV-10 VIBRO Tuning Fork Viscometer 0.3 to 10,000 mPa Stand, Accessories



Web Information

  • High Measurement Accuracy
    Tuning-fork Vibration Method turns into reality for excellent repeatability of 1% of reading for viscosity measurement by Sine-wave Vibro Viscometer SV-10 / SV-100.
  • Selectable Wide Measurement Range
    Sample with Low viscosity to high viscosity can be measured without changing the sensor plates, so a wide range of measurements can be made continuously. SV-10: 0.3 - 10,000 mPa・s ( cP) SV-100: 1000 - 100,000 mPa・s ( cP)
  • Real-Time Measurement
    The sensor plate for the SV series is of a thin and small size, in area and in mass, making it is less influenced by the temperature change of the sample fluid and as a result the viscosity measurement tracks the change of viscosity of sample fluid.
  • Temperature Measurement
    It is very important to measure the temperature of the fluid correctly because the viscosity is very much dependent upon the temperature of the fluid. SV series can detect accurate temperature immediately because the fluid and the detection unit (sensor plates) with small surface area/thermal capacity reach the thermal equilibrium in only a few seconds.
  • Continuous measurement
    SV series, Tuning-fork Vibration Method does not cause damage to the sample fluid and allows measurement of cloud point of samples such as surface active agents and of surface/interface changes such as wettability because of its excellent feature for wide measurement range without the need to replace the sensor plates.
  • Viscosity Calibration
    With Viscosity Standard, viscosity calibration can be easily done. 1 point calibration or 2 points calibration is selectable in the calibration mode.
  • Non-Newtonian Sample Viscosity Measurement
    Thin sensor plates allow little deformation of sample texture and thus enable measurement of stable viscosity values.
  • Foaming Sample Measurement
    Low drive frequency of 30Hz allows measurement of foaming samples without breaking minute foams and with less influence scattering larger foams.
  • Flowing Sample Measurement
    Even the viscosity of flowing samples can be measured, including liquid in turbulent flow, which enables field management with identical data used at the laboratories.
  • Separated type model
    SV series is composed of the Display Unit and Main Unit offering excellent placement flexibility.

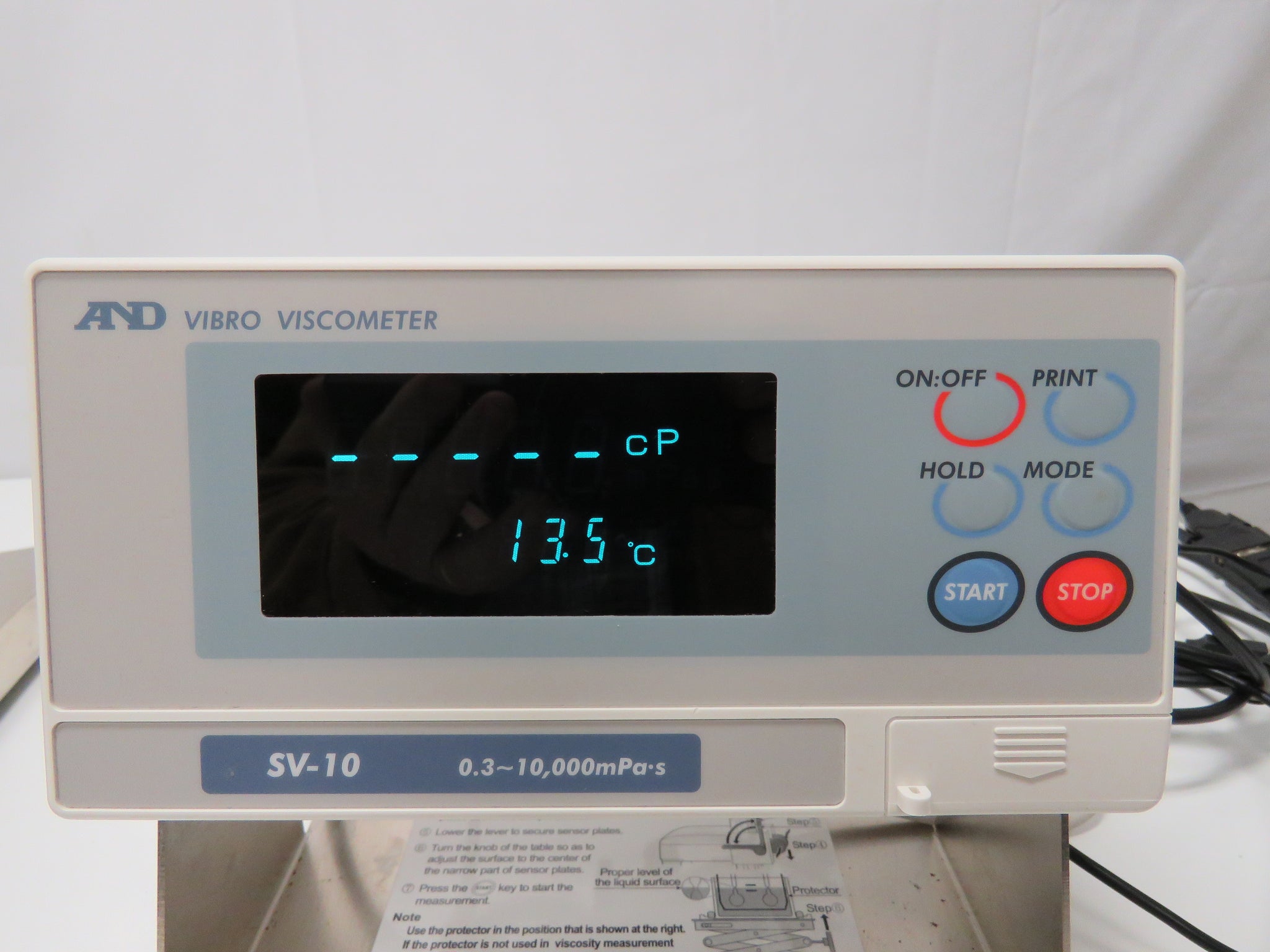

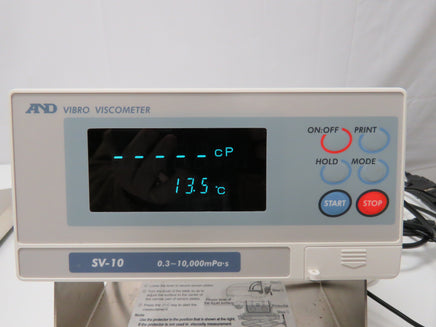

  • Vacuum Fluorescent Display
    You can avoid unnecessary reading errors with easy-to-read, large, clear display: 13mm height for viscosity measurement and 11mm height for temperature measurement.
  • Small Sample Size
    Standard sample cup requires the sample fluid of just more than 35 ml so you do not need to waste too much sample fluid.
  • Easy Cleaning

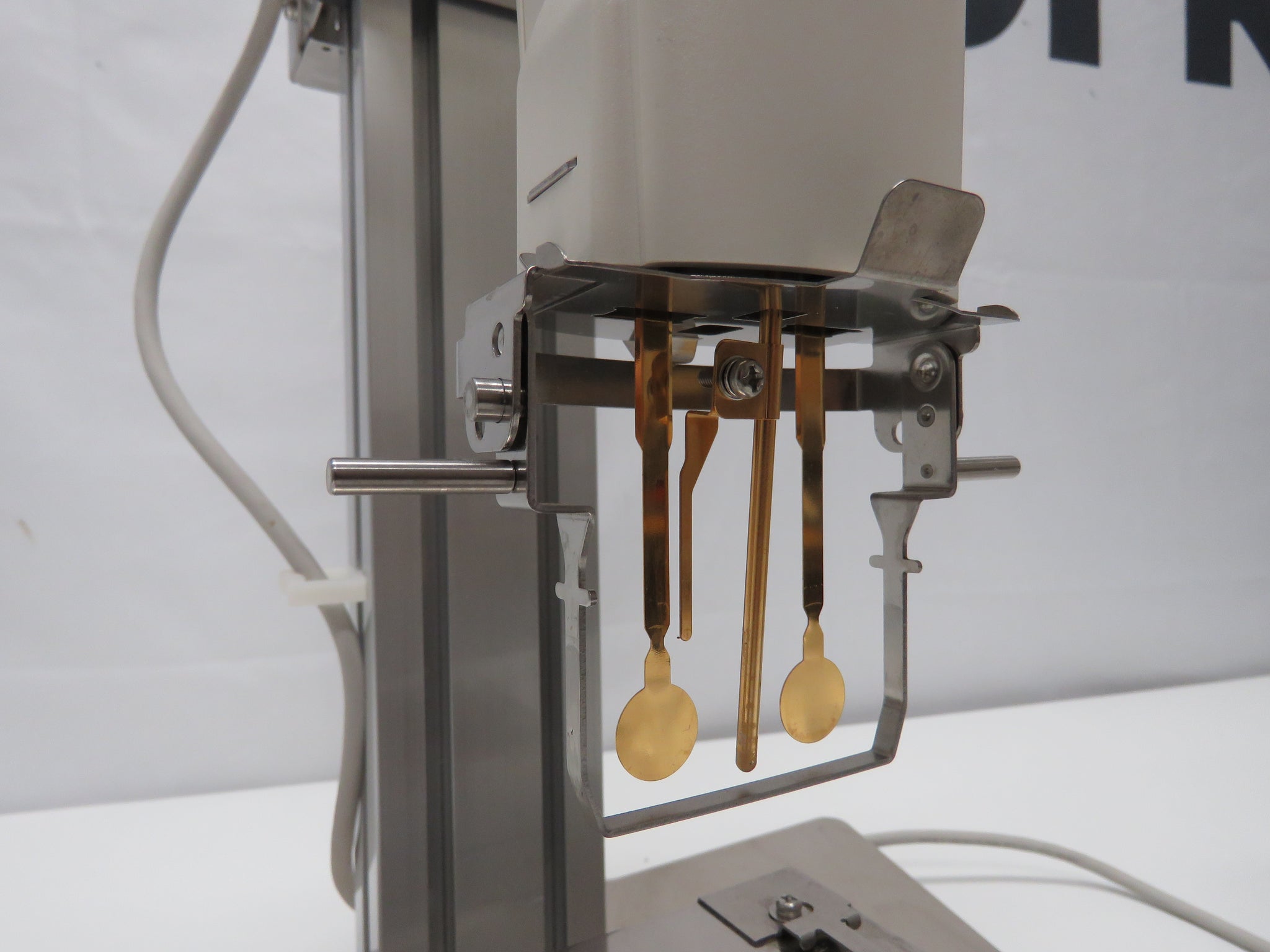

    Due to the simple structure, the SUS 304 Stainless steel sensor plates and temperature sensor (all gold plated) and SUS 304 stainless steel protector can be easily and quickly cleaned.
  • Sol and Gel Measurement
    Sol and Gel sample fluid like a starch can be measured during the change of material characteristic.

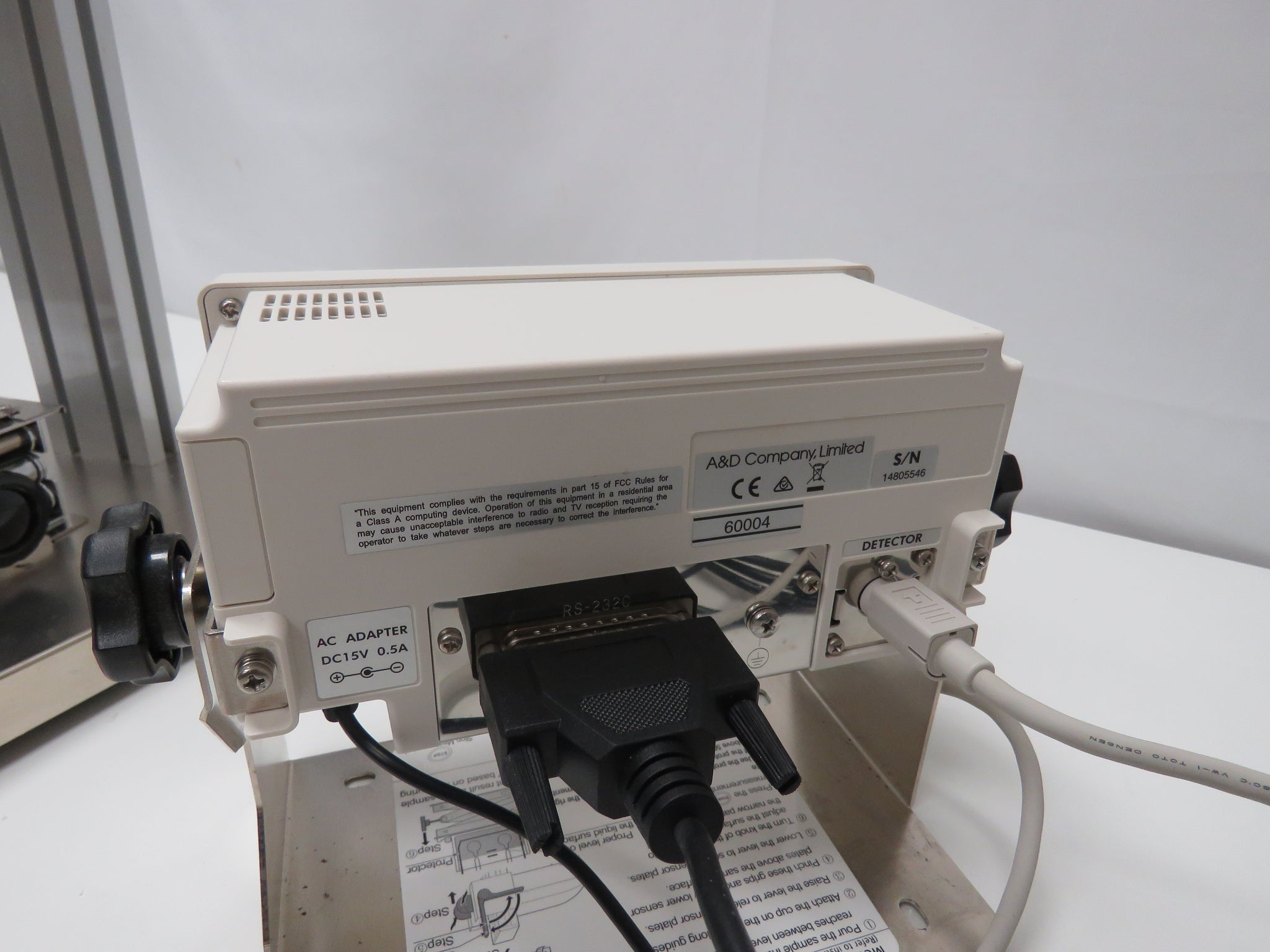

  • Standard RS-232C Interface
    The RS-232C comes standard for your PC or Printer connectivity and the connection cable (25 pin - 9 pin) is also standard accessory for your convenience

Measurement Method Tuning Fork Vibration Method
Vibration Frequency 30Hz
Viscosity Measurement Unit SV-10: mPs・s , Pa・s , cP , P SV-100: Pa・s , P

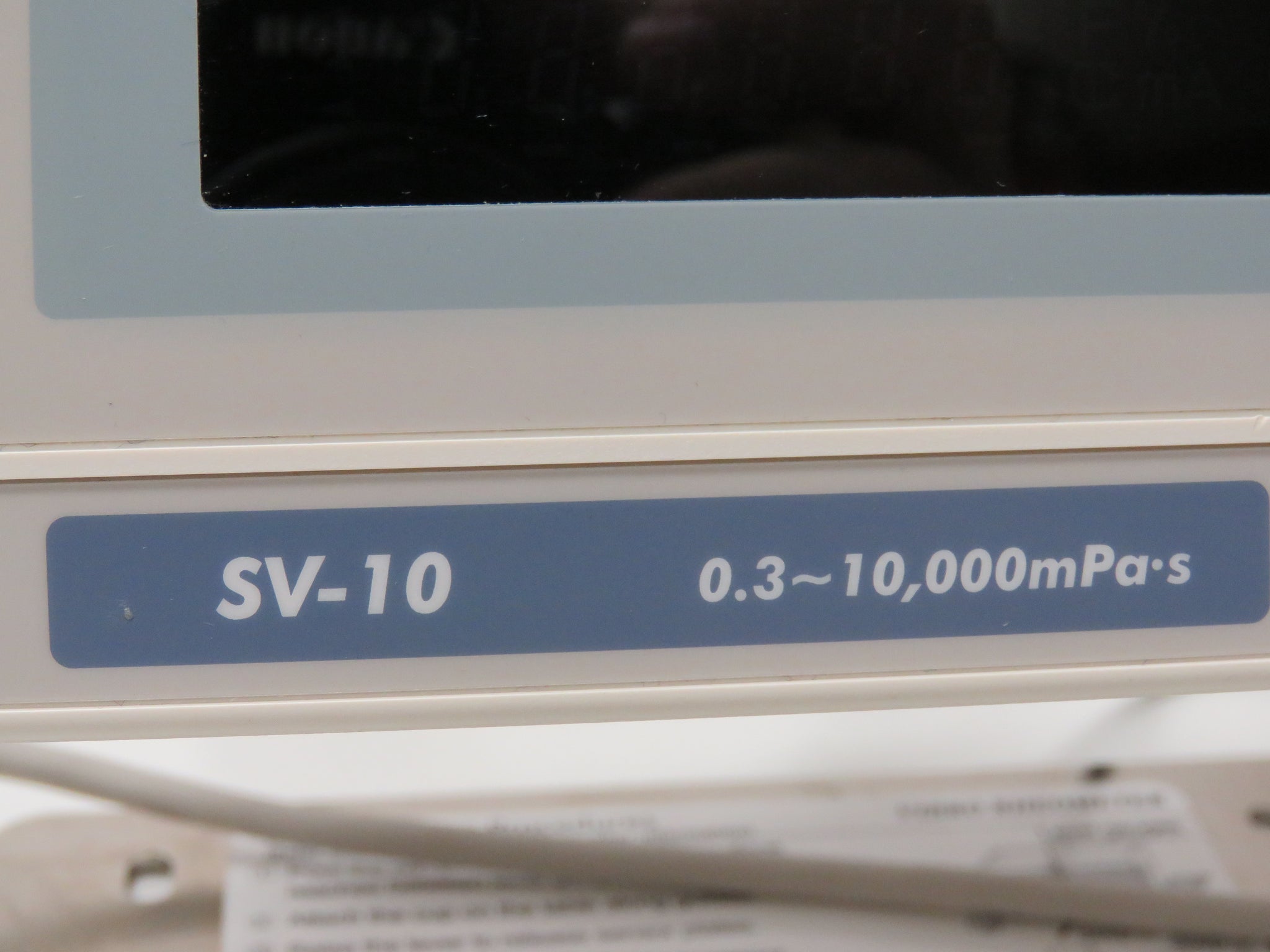

Viscosity Measurement Range SV-10: 0.3 - 10,000 mPa・s ( cP) SV-100: 1-100 Pa・s
Accuracy (Repeatability) 1% of Reading (Full Range) (S.D. , 20 - 30°C, No-condensation )
Operating Temperature 10 - 40°C ( 50 - 104 F°)
Minimum Sample Amount Standard Sample Cup 35 ml, Optinal Small Sample Cup 10ml,
Optinal Glass Sample Cup 13ml
Temperature Measurement 0 - 160°C / 0.1 °C( 32 - 212 F / 0.1 F°)
Display Vacuum Fluorescent Display (VFD)
Interface RS-232C
Power Supply AC Adaptor
Power Consumption Approx. 14VA
Physical Dimensions Main Unit: 332 (W) x 314 (D) x 536 (H) mm / Approx. 5.0 kg
Display Unit: 238 (W) x 132 (D) x 170 (H) mm / Approx. 1.3 kg
Connection Cable Length 1.5m ( Between the Main Unit and the Display Unit )
Standard Accessories Manual, AC Adaptor, CD-ROM (WinCT-Viscosity), Sample Cups,
RS-232C Cable (25 pins - 9 pins)


Excellent functional condition.  Suggested to have annual calibration performed prior to entering service.

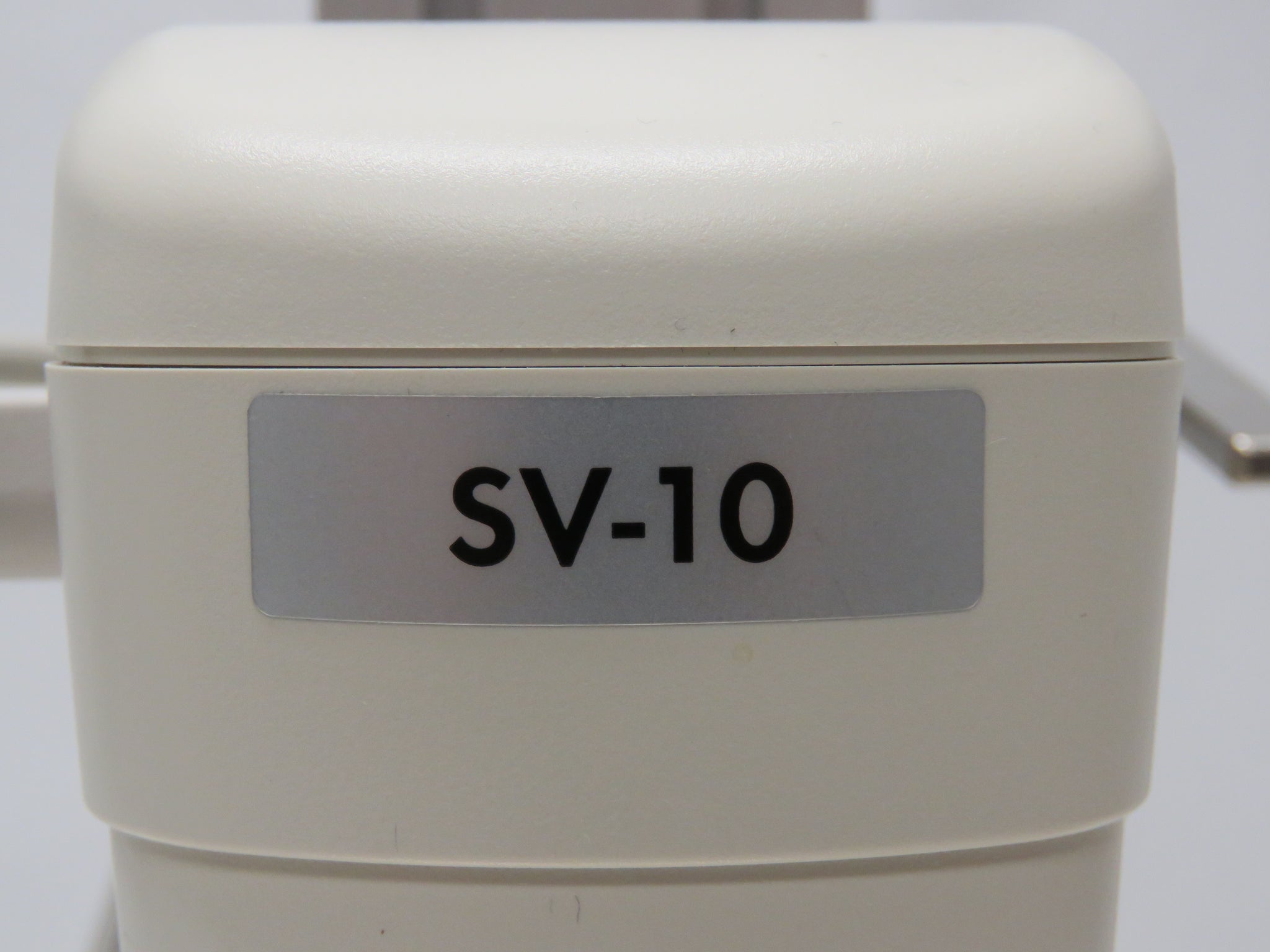

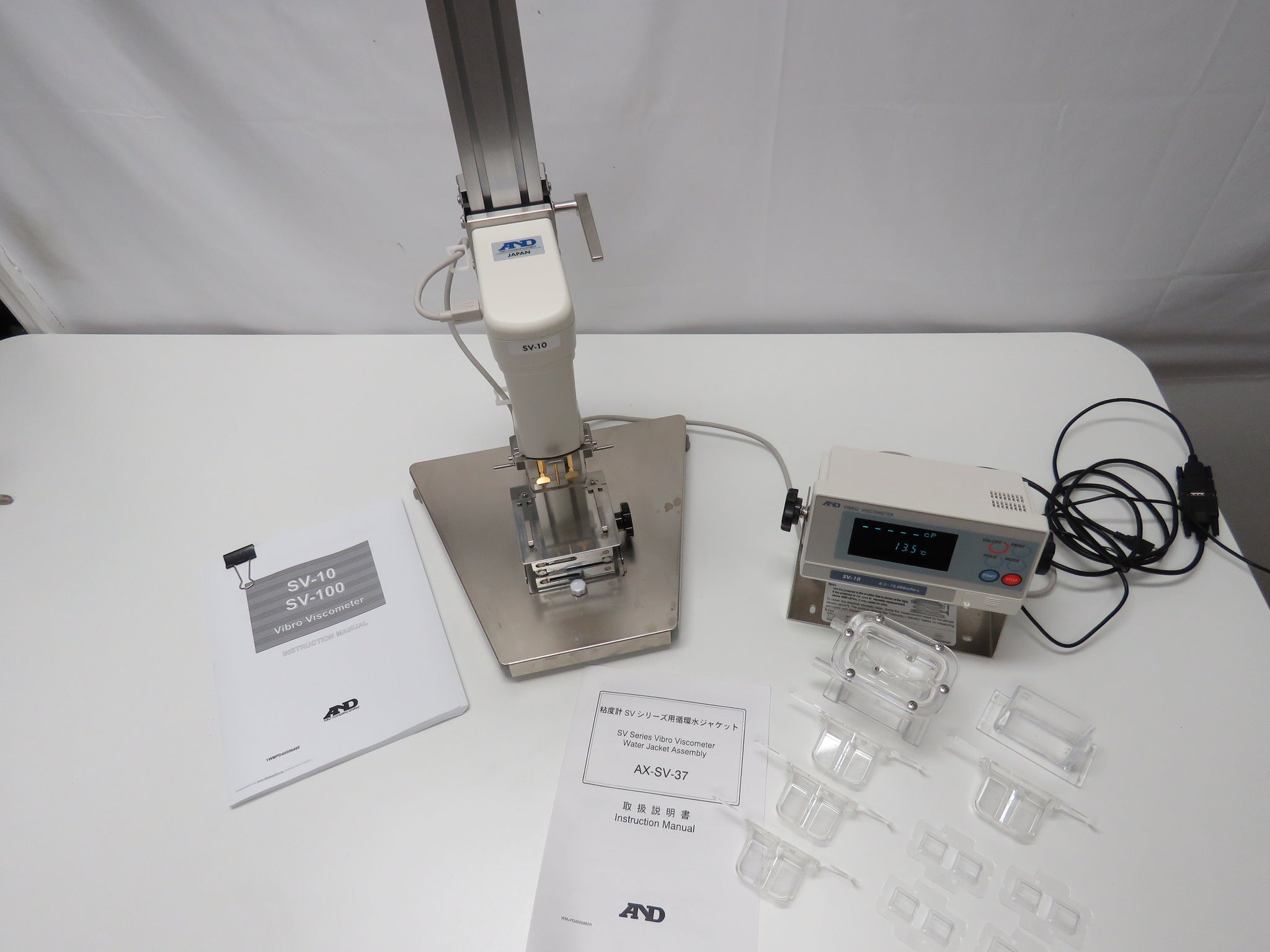

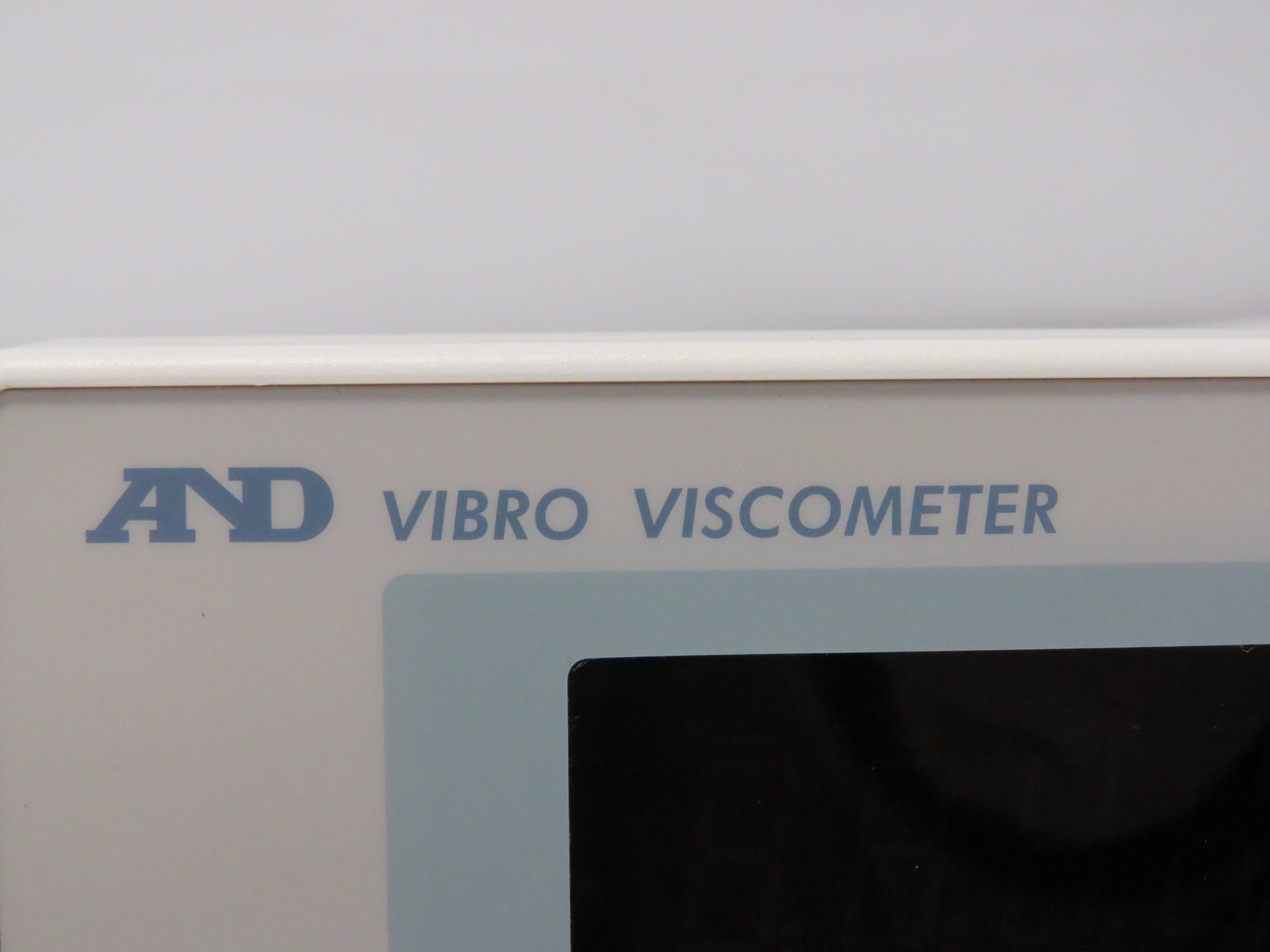

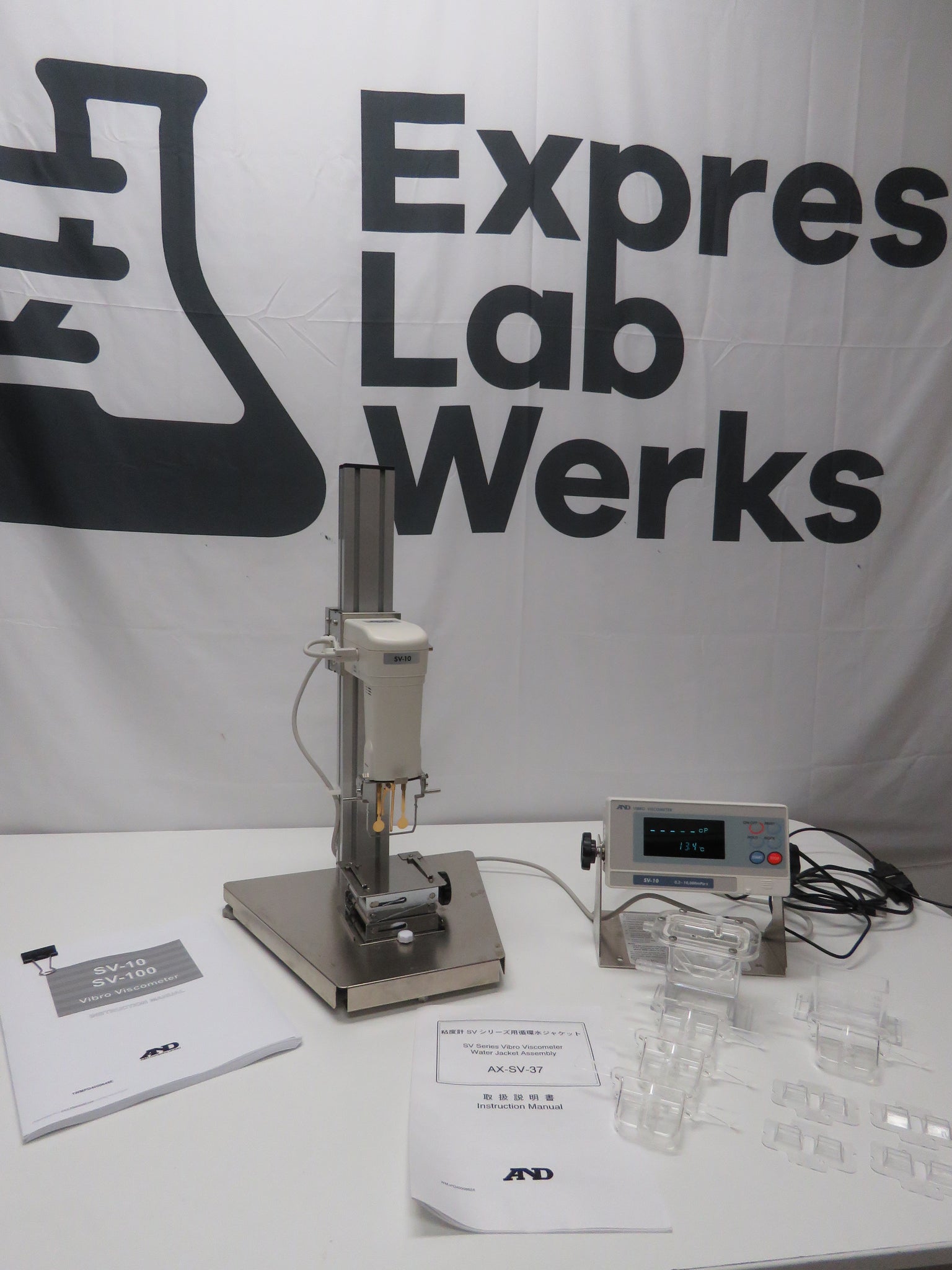

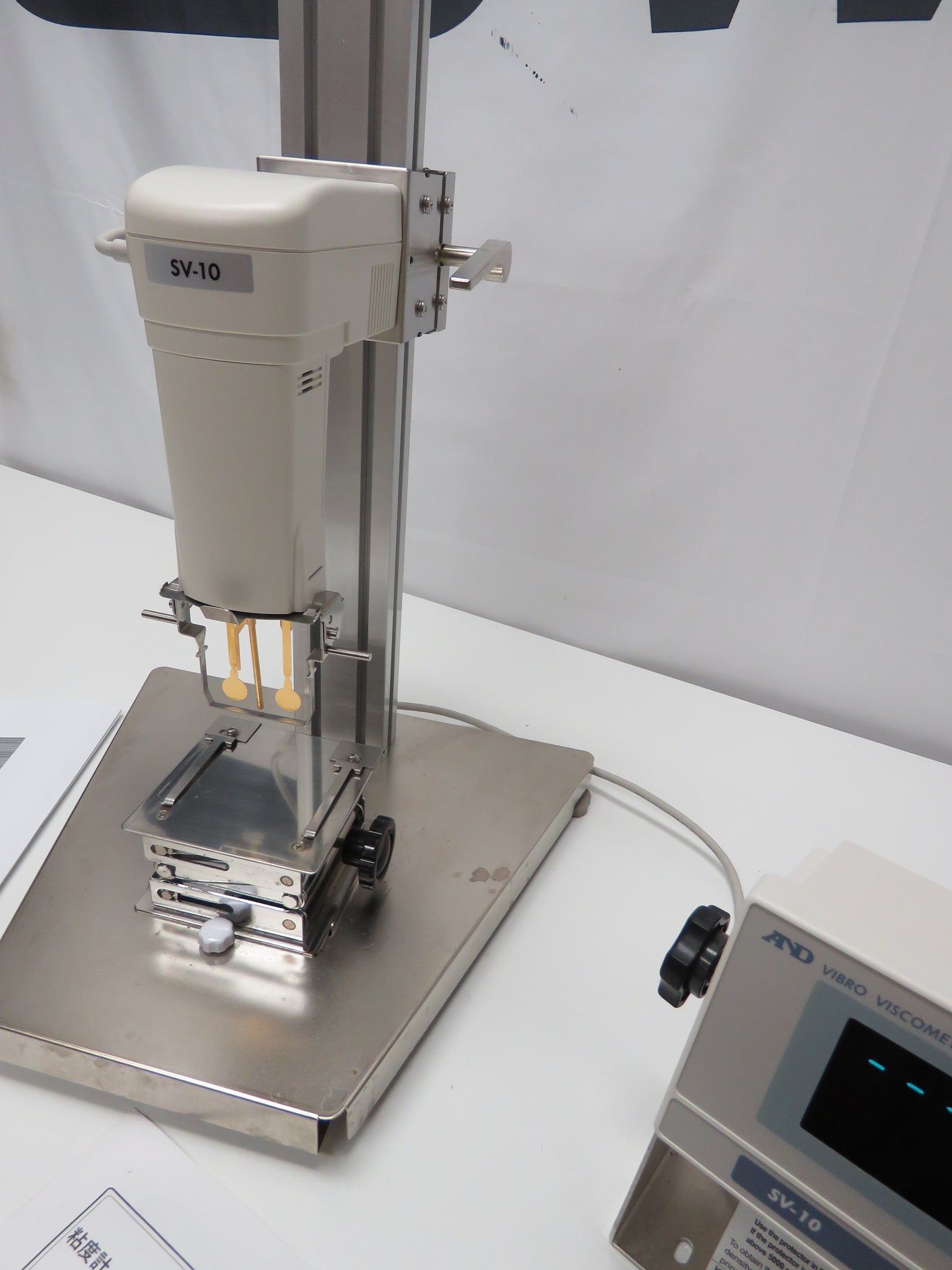

  • A&D SV-10 VIBRO Tuning Fork Viscometer

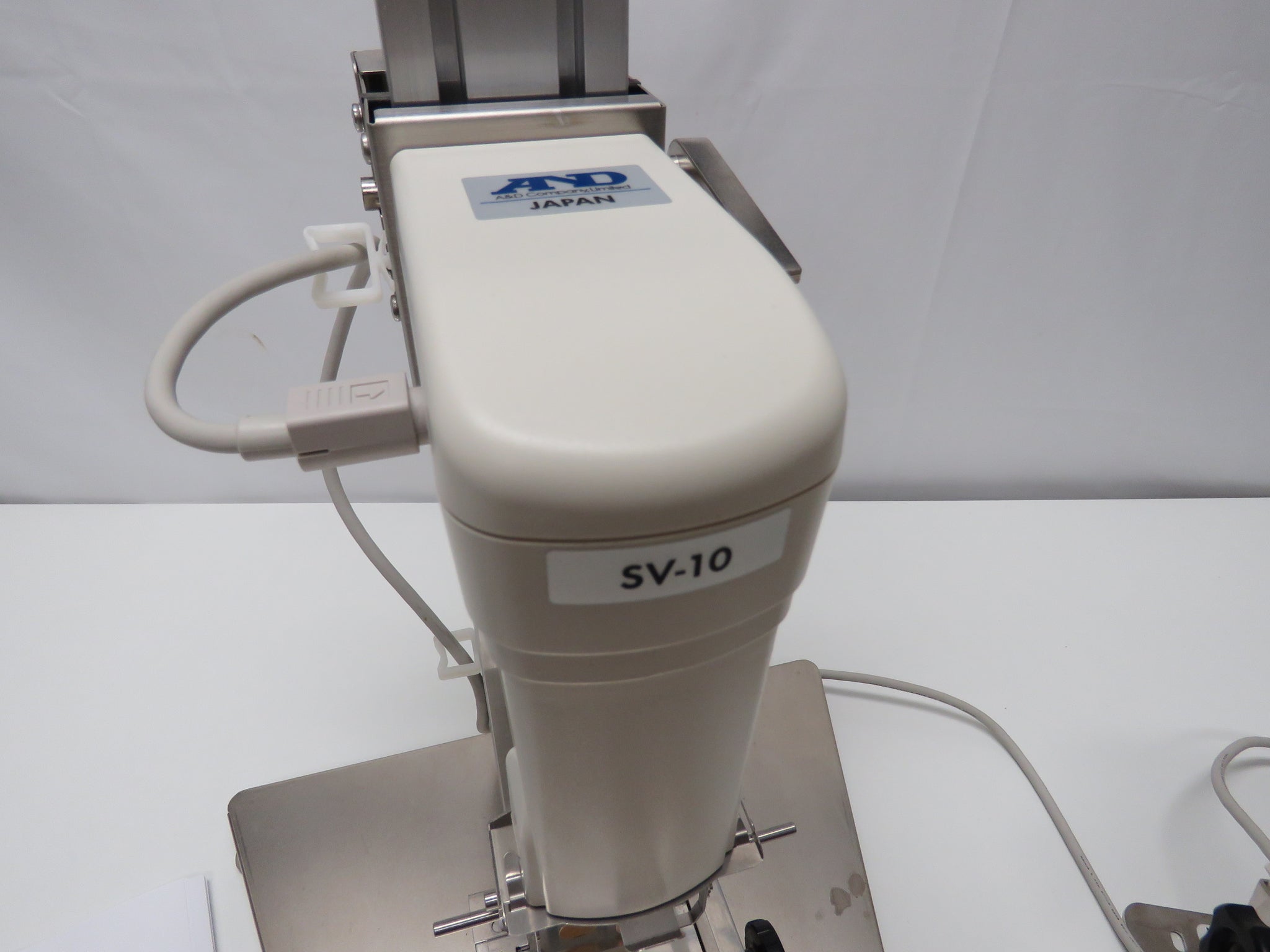

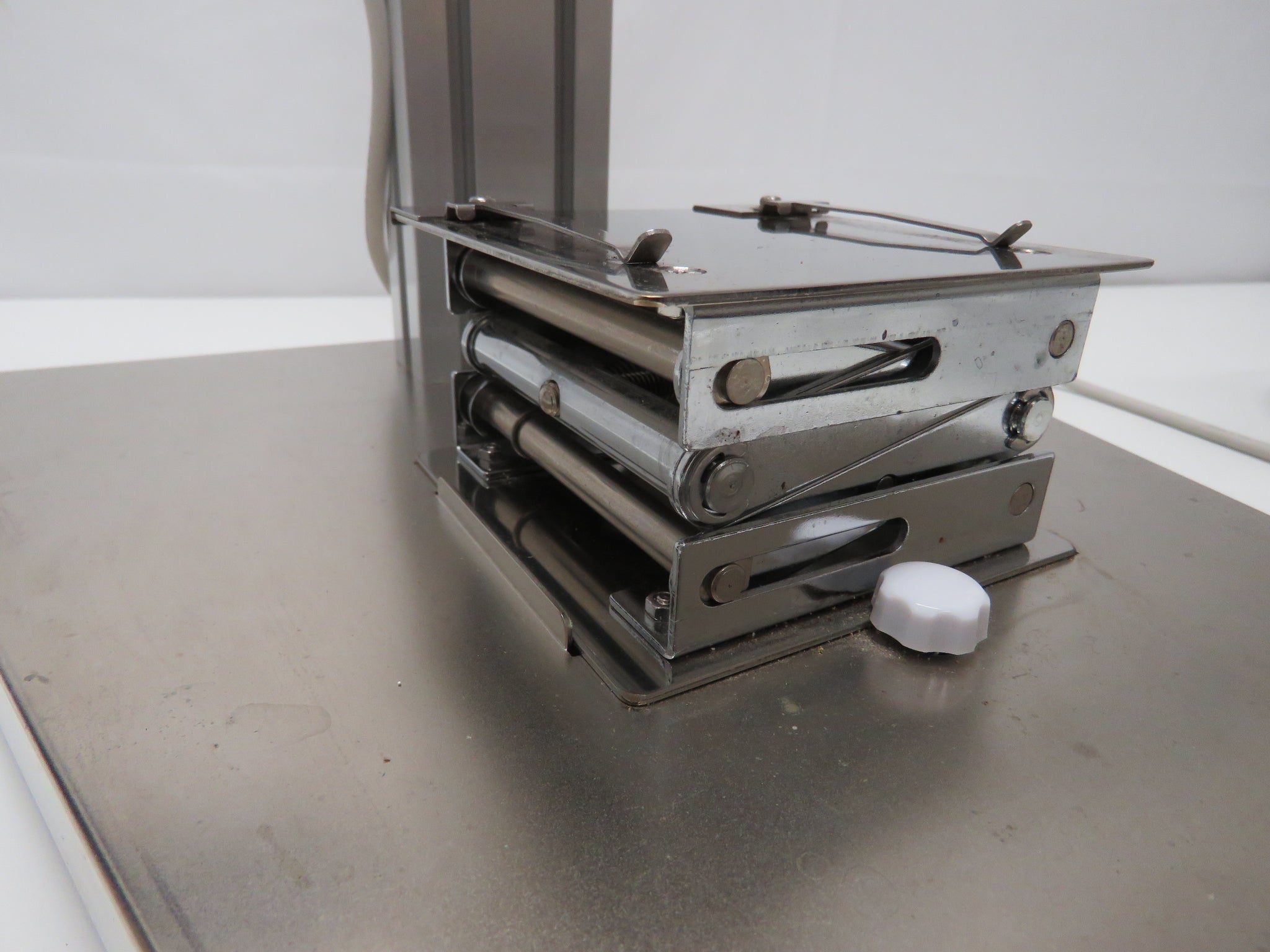

  • Instrument stand
  • Serial communications cable and Serial to USB adapter

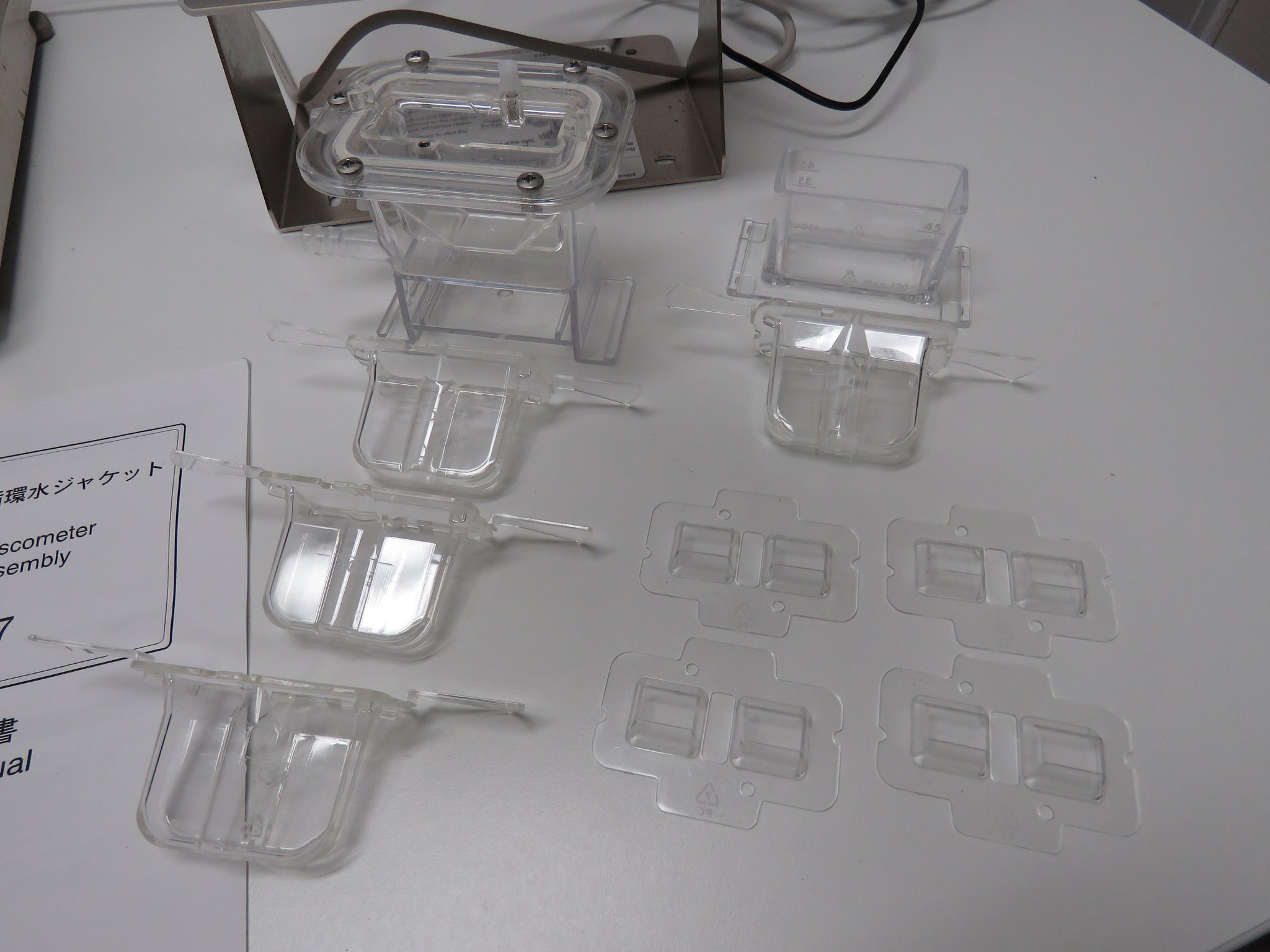

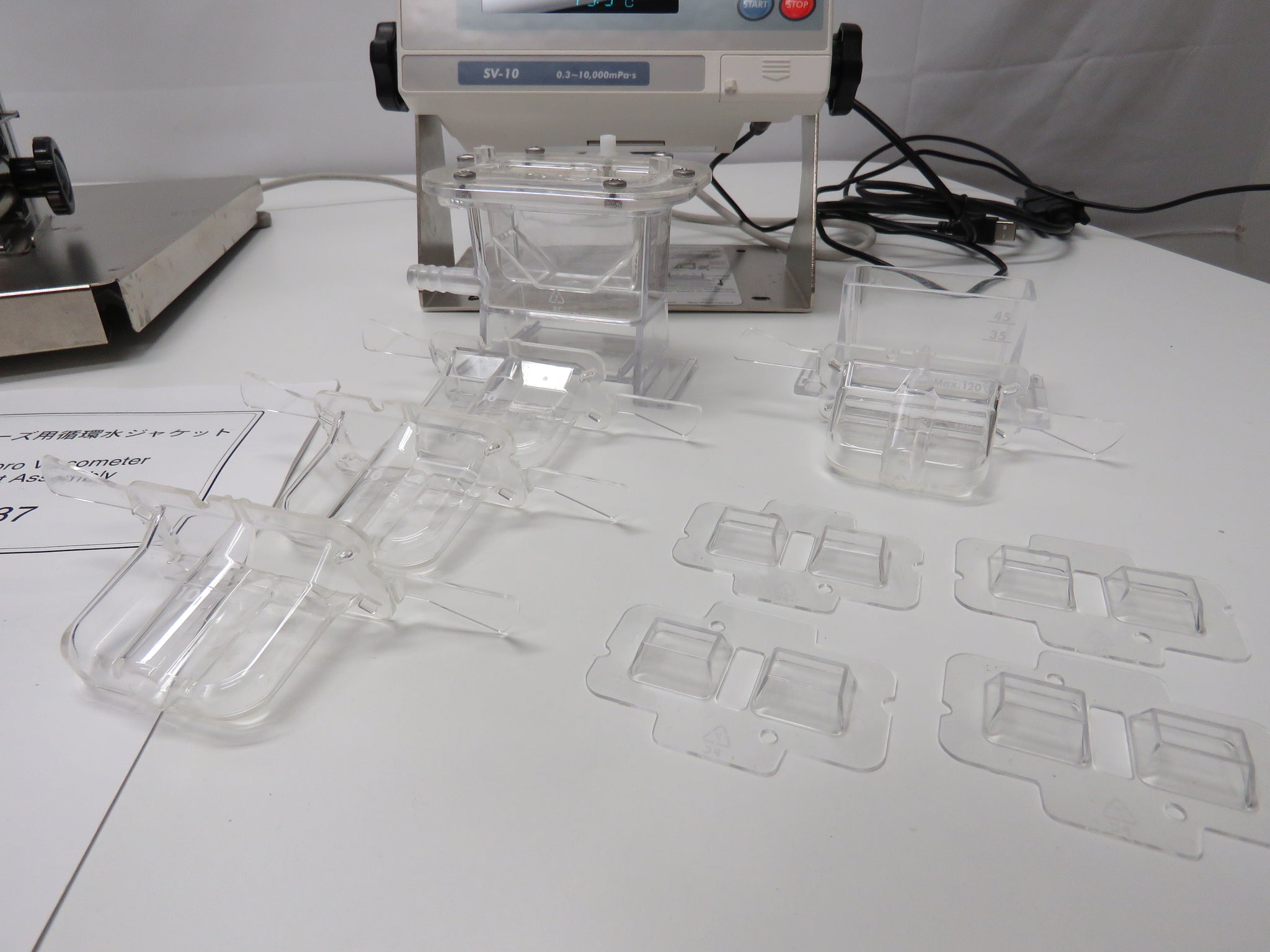

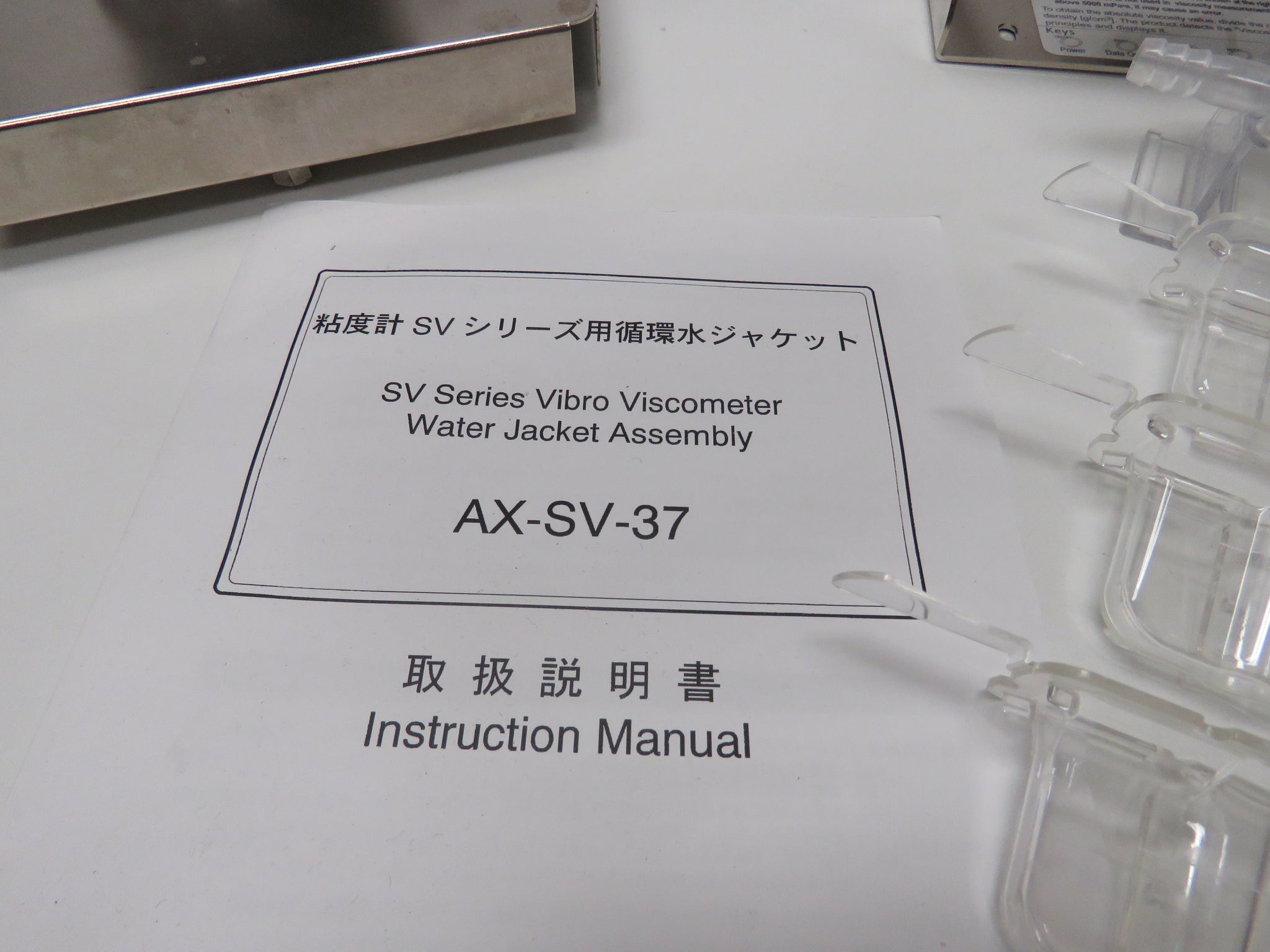

  • Water jacket and sample containers as shown



30 Day warranty. We pledge to offer the best service and warranty to all of our customers!  We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.


This is a genuine product from this manufacturer.


The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping of the item."

Regardless of the origin of the equipment, documentation provided or identification appearing upon the equipment, the equipment described and offered here is in no way certified for, recommended for, or offered for any specific use. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. The purchaser, by bidding on this equipment, indicates their acknowledgment of, and agreement to the terms of this disclaimer. it is the purchaser's responsibility to have the item inspected and certified by a qualified professional before use!
