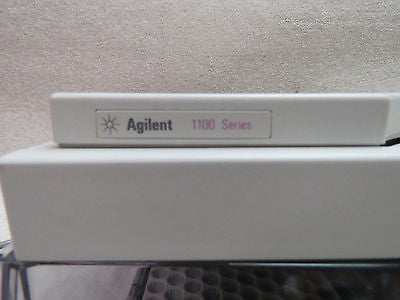

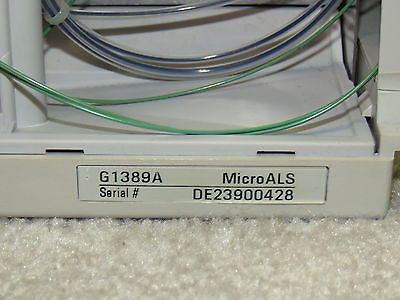

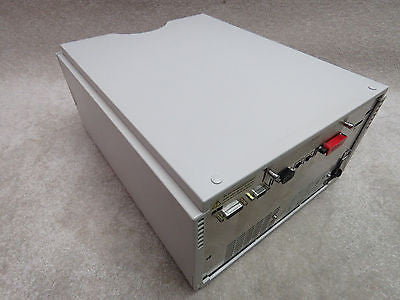

HP Agilent 1100 G1389A Micro ALS HPLC Autosampler



Web Information

HP Agilent 1100 G1389A Micro ALS HPLC autosampler specifications:

GLP Features

Early maintenance feedback (EMF), electronic records of maintenance and errors

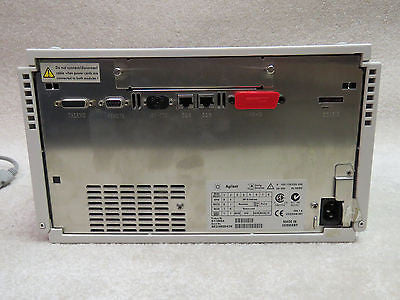

Controller-area network (CAN). GPIB (IEEE-448), RS232C, APG-remote standard, optional four external contact closures and BCD vial number output

Safety Features

Leak detection and safe leak handling, low voltages in maintenance areas, error detection and display

Sample Capacity

100 × 2-ml vials in 1 tray

Microvials (100 or 300 µl) with sleeves (reduced cooling performance with microvials)

Settable Injection Volume

to 8 µl with small loop capillary

to 40 µl with extended loop capillary


Typically < 0.5 % RSD of peak areas from 5 – 40 µl

Typically < 1 % RSD of peak areas from 1 – 5 µl

Typically < 3 % RSD of peak areas from 0.2 – 1 µl

Minimum Sample Volume

1 µl from 5 µl sample in 100 µl microvial, or 1 µl from 10 µl sample in 300 µl microvial


Typically < 0.1 %, < 0.05 % with external needle cleaning and 1 µl injection volume

Sample Viscosity Range

0.2 – 5 cp

Recommended pH-range - 8.5 solvent with pH < 2.3 should not contain acids which attack stainless steel. Upper pH range is limited by fused silica capillaries
Material in contact with solvent Stainless steel, sapphire, PTFE, PEEK, fused silica
Housing All material recyclable


Seller refurbished. Instrument is in excellent functional condition. Passed all built in self tests. Unit was removed in current configuration from a working environment.

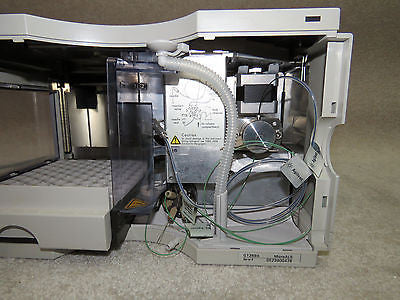

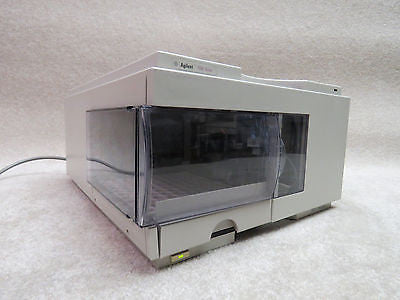

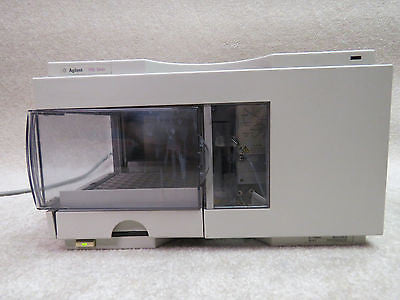

  • Agilent 1100 G1389A Micro ALS HPLC Autosampler unit
  • (1) 100x2ml vial tray
  • Power cable


30 Day warranty. We pledge to offer the best service and warranty to all of our customers!  We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.


This is a genuine product from this manufacturer.
