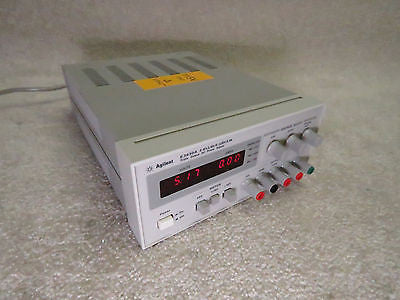

Agilent E3630A 35 W Triple Output, 6V, 2.5A & ±20V, 0.5A Bench Power Supply
Web Information
The E3630A low-cost bench top power supply give you the performance of system power supplies at a decent price. Provides clean power with excellent regulation and a fast transient response.
Features:
- Linear power supply
-
Triple output
-
10-turn voltage and current control
-
Low noise and excellent regulation
- Auto tracking feature
Applications:
Test & Measurement; Power Management
Specifications:
| Power Supply Output Type | Fixed |
| No. of Outputs | 3 |
| Output Voltage Min | -20V |
| Output Voltage Max | 20V |
| Output Current Min | 500mA |
| Output Current Max | 2.5A |
| Power Rating | 35W |
| Supply Voltage Min | 103.5VAC |
| Supply Voltage Max | 253VAC |
| Product Range | E3600 Series |
| Plug Type | US |
| Load Regulation | 0.01 % |
| Physical Dimensions (mm) | 212.3 (W) x 318.4 (L) x 88.1 (H) |
Condition
Seller refurbished. Item removed from a working environment and is fully functional.
Includes
-
(1) Agilent E3630A power supply unit
- Power cable

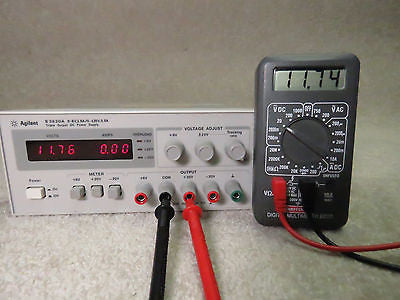

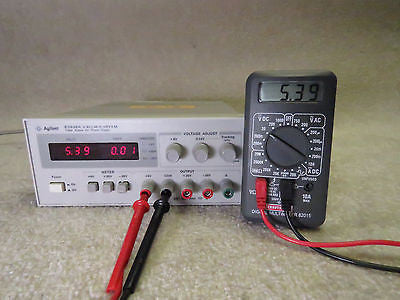

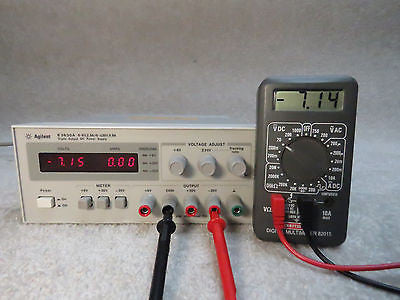

- NOTE: multi-meter featured in the pictures is NOT included in the sale
Warranty
30 Day warranty. We pledge to offer the best service and warranty to all of our customers! We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.
Certification
This is a genuine product from this manufacturer.
