Agilent / Inficon 3000A micro GC 4ch with 3 detectors, control laptop PC with EZIQ

Agilent / Inficon

$9,999.00
SKU: 3000AGC

Sorry, this item is out of stock

Web Information

The 3000 Micro GC Gas Analyzer is a powerful GC solution that provides fast, accurate, reliable analysis of your gas sample on-line, right at the sampling point. It is ideal for the rapid analysis of gas streams in alternative energy, coal mine safety, and the hydrocarbon processing industry, which includes refineries, natural gas production and distribution, chemical operations, and oil and gas exploration. Its rugged construction ensures long-term, trouble-free operation. And with its modular design, reconfiguration and repair can be easily and quickly accomplished by interchanging Micro GC modules, keeping you in control of your gas analysis and your process.

The Portable 3000 Micro GC truly mobilizes gas chromatograph analysis. Simply carry this portable GC to your sampling point, run the analysis and collect the desired measurement data. Our EZ IQ™ software is both feature rich and user friendly, allowing even a non-chromatographer to control the instrument and accomplish GC operation with ease.

Condition

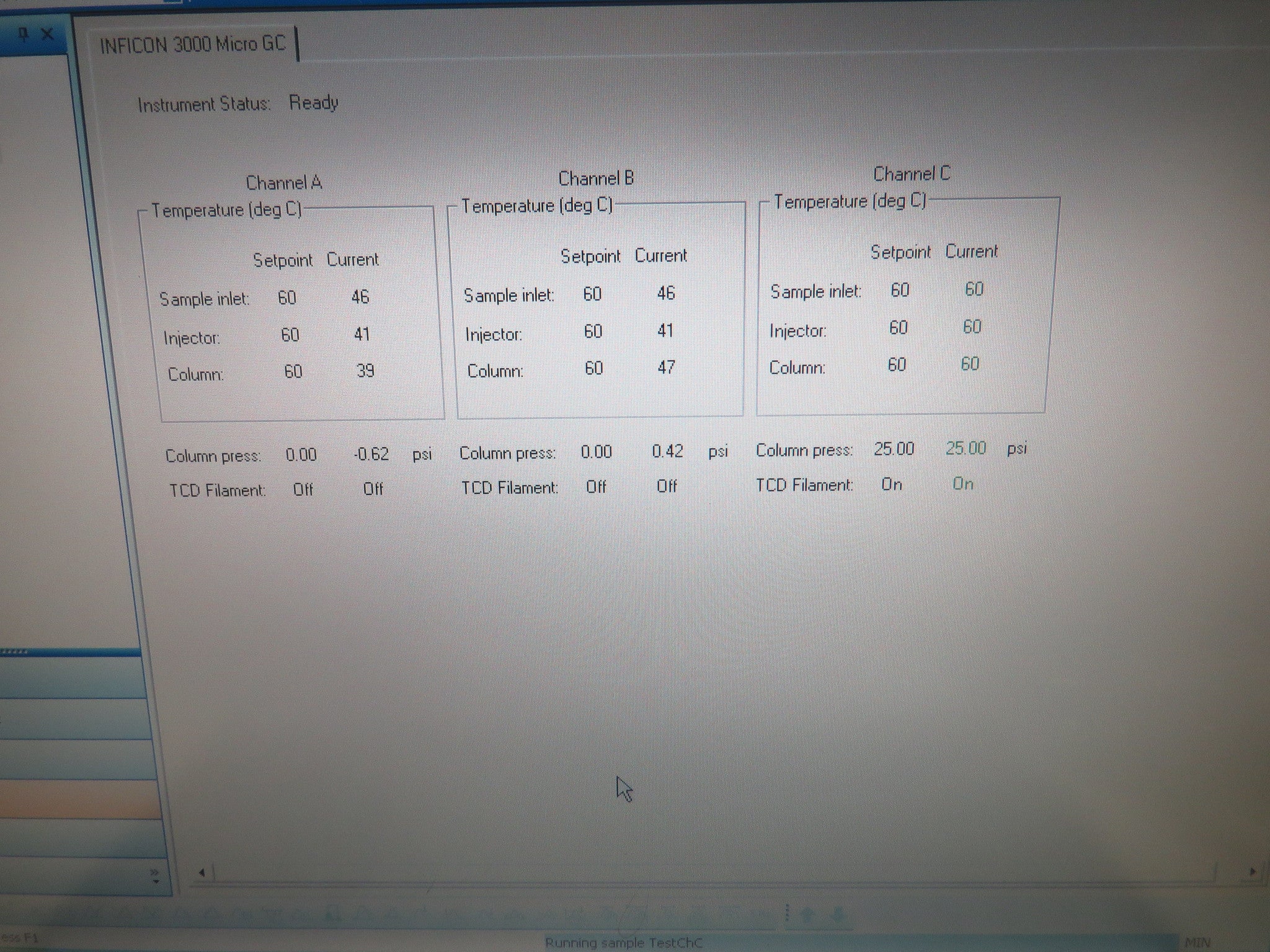

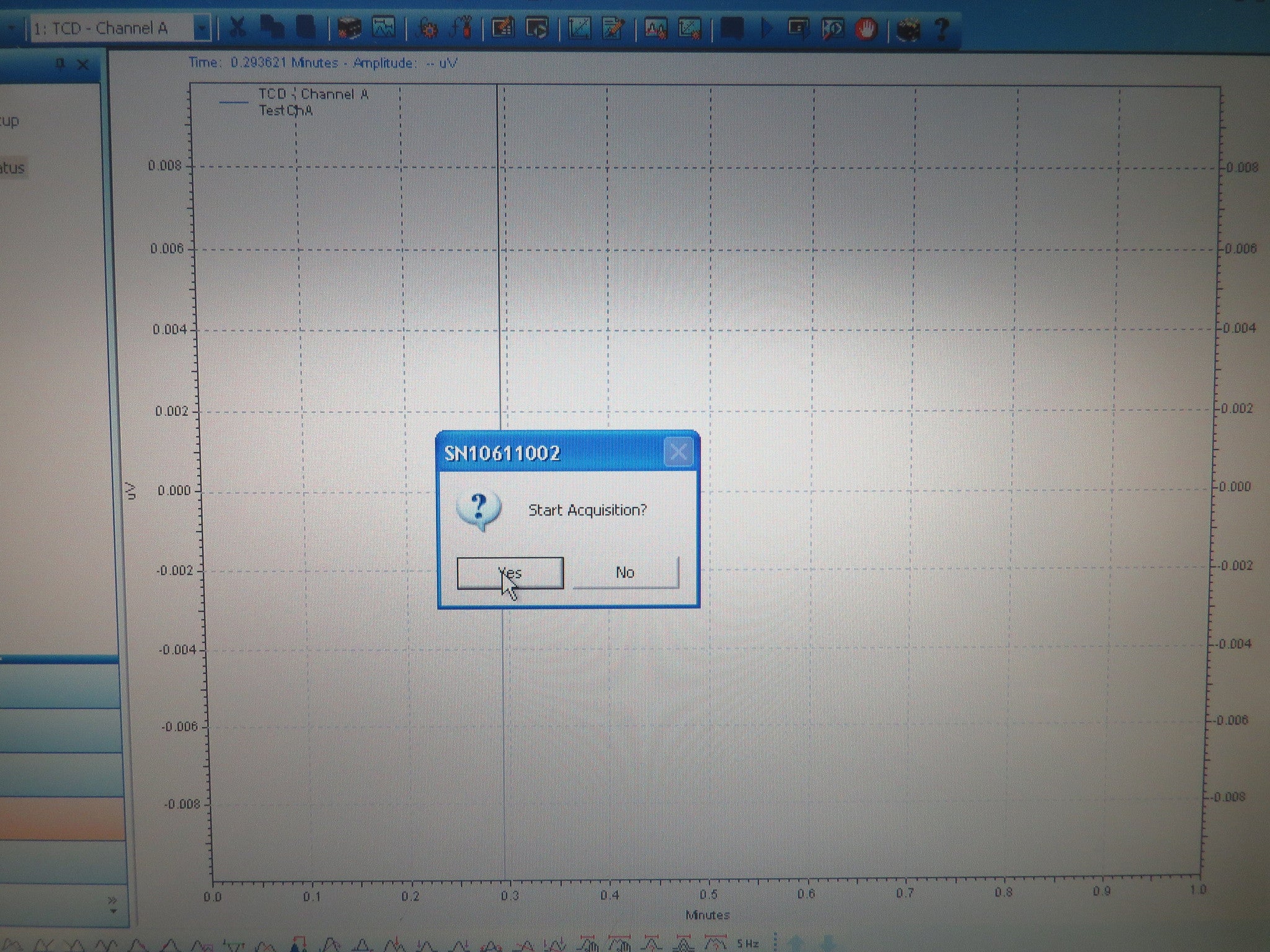

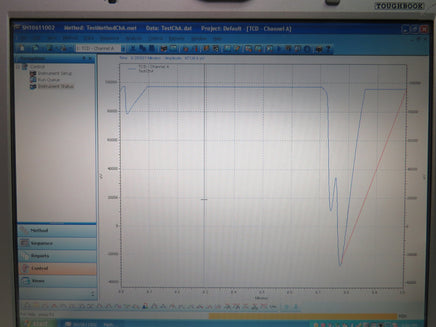

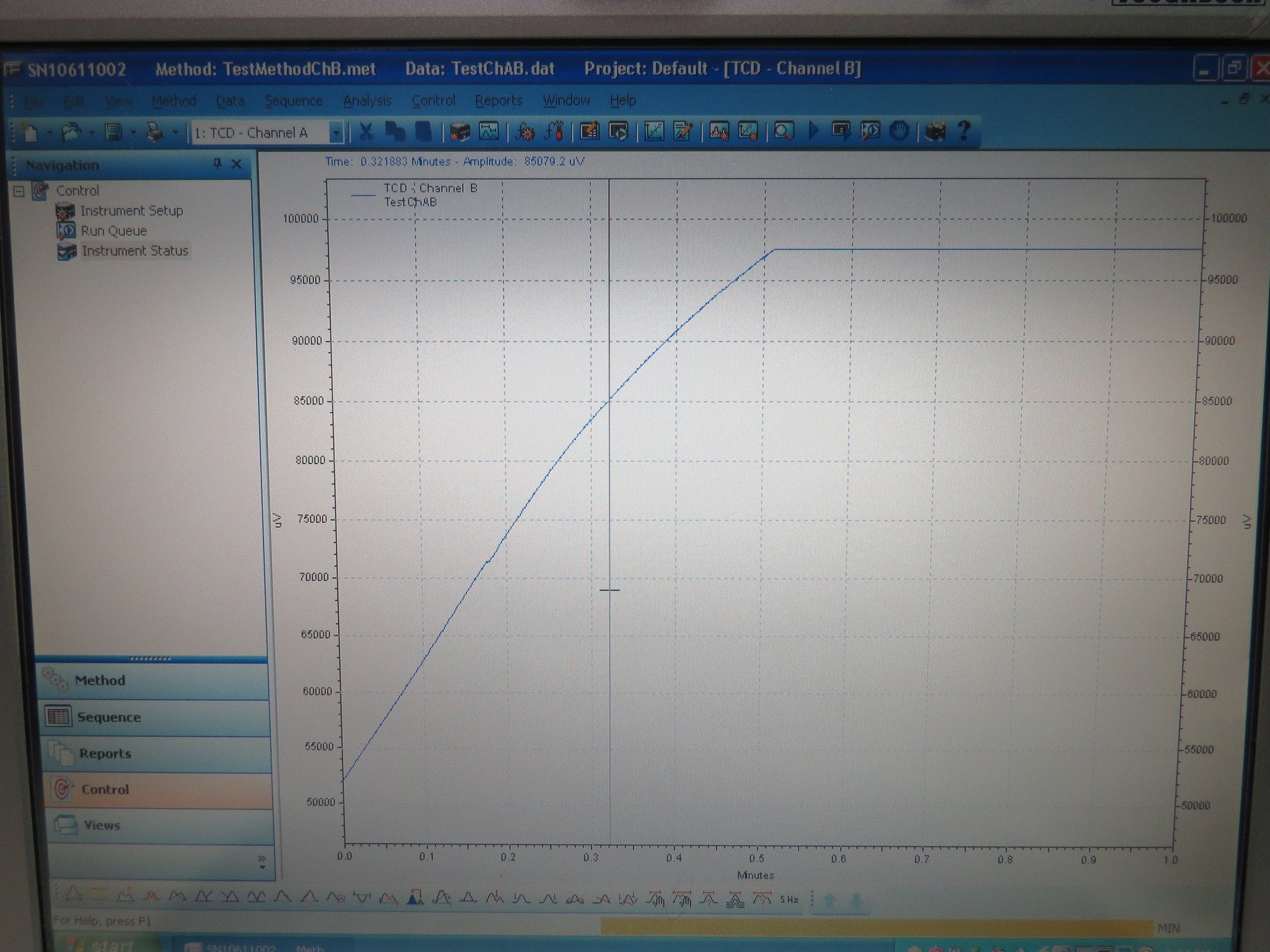

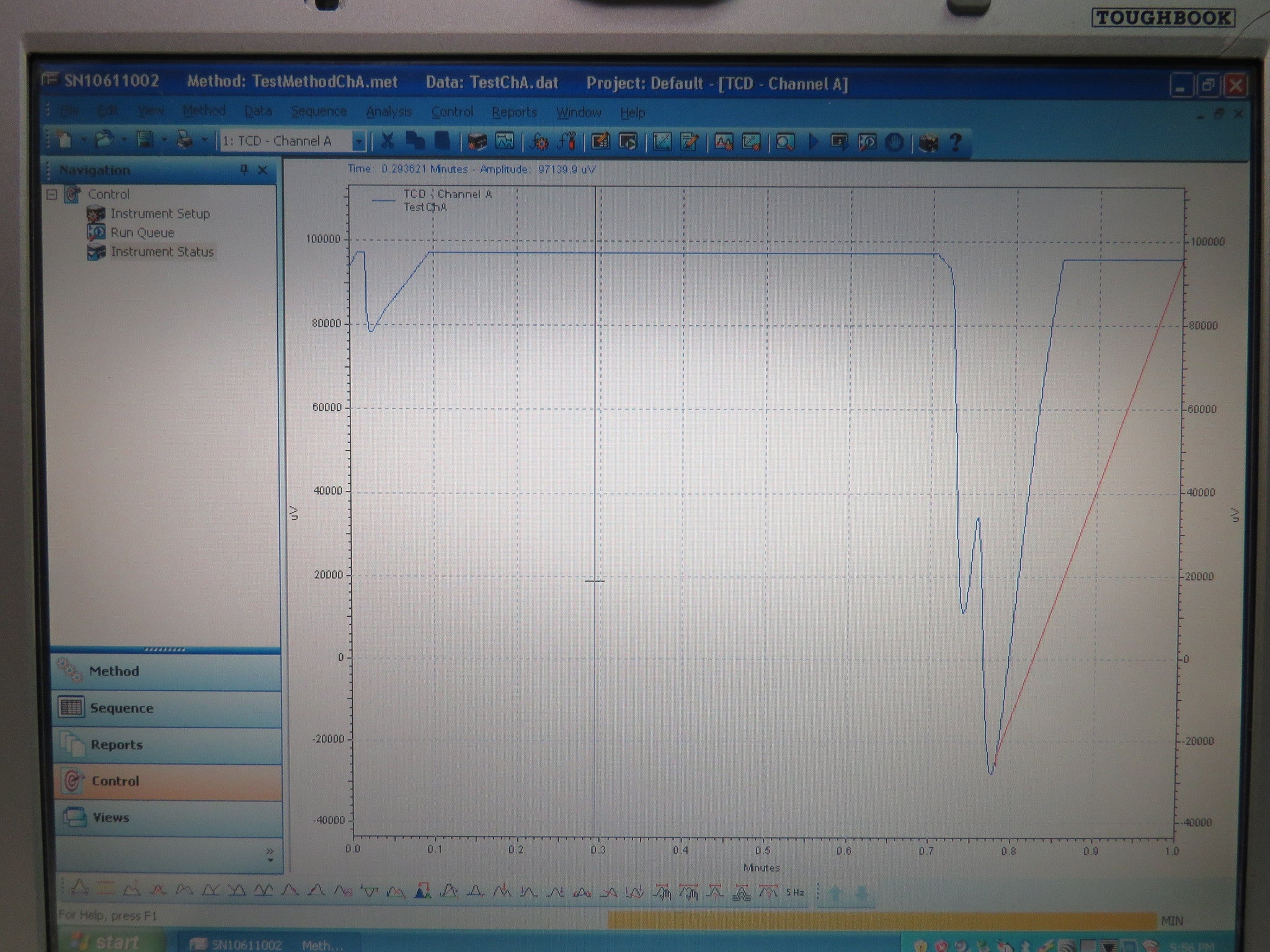

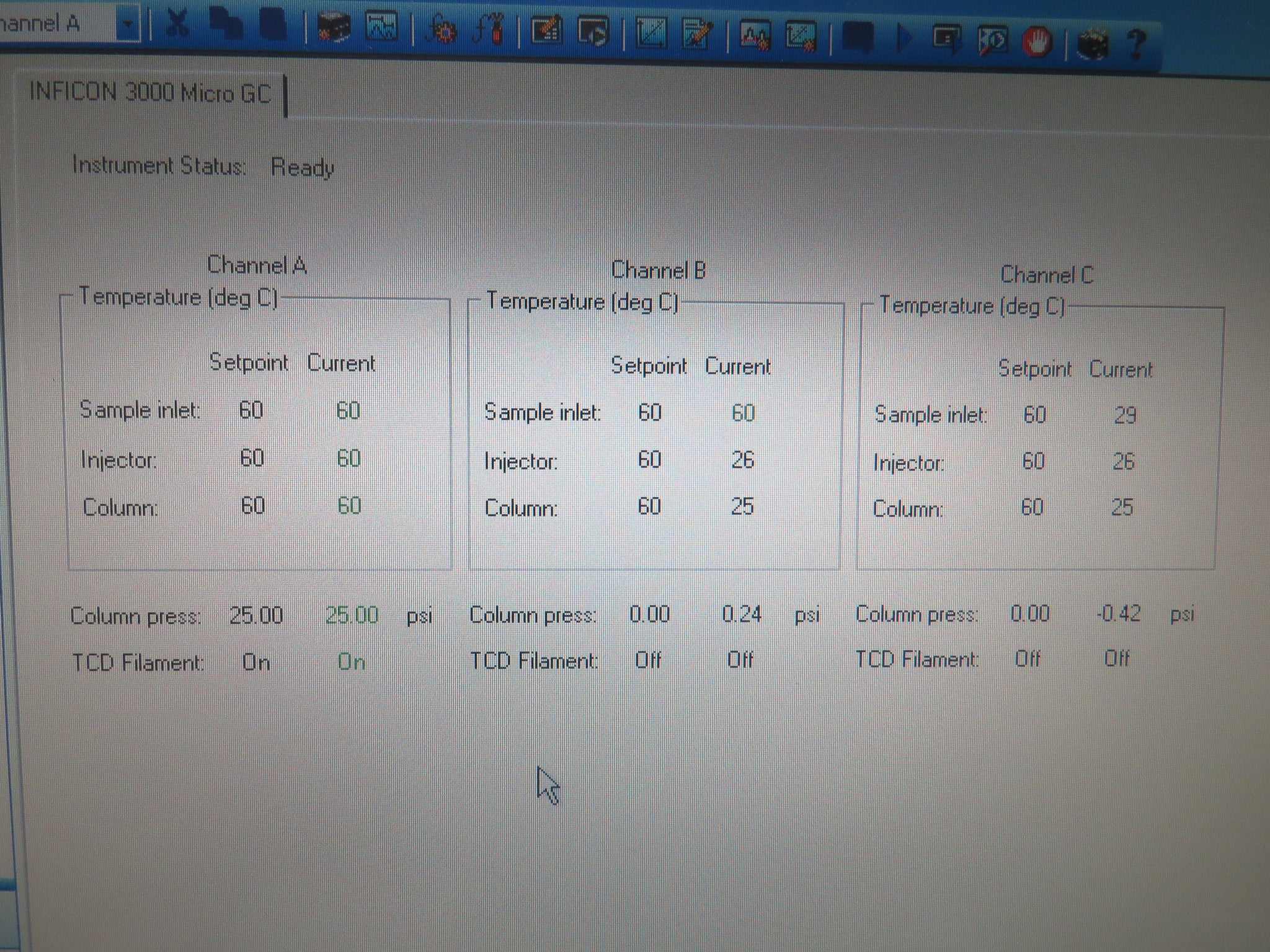

Seller refurbished. Unit is fully functional. This is a 4 channel unit with 3 detectors installed. Detectors where checked for gas leaks and single run test methods executed to check for detector functionality. New CMOS battery installed.

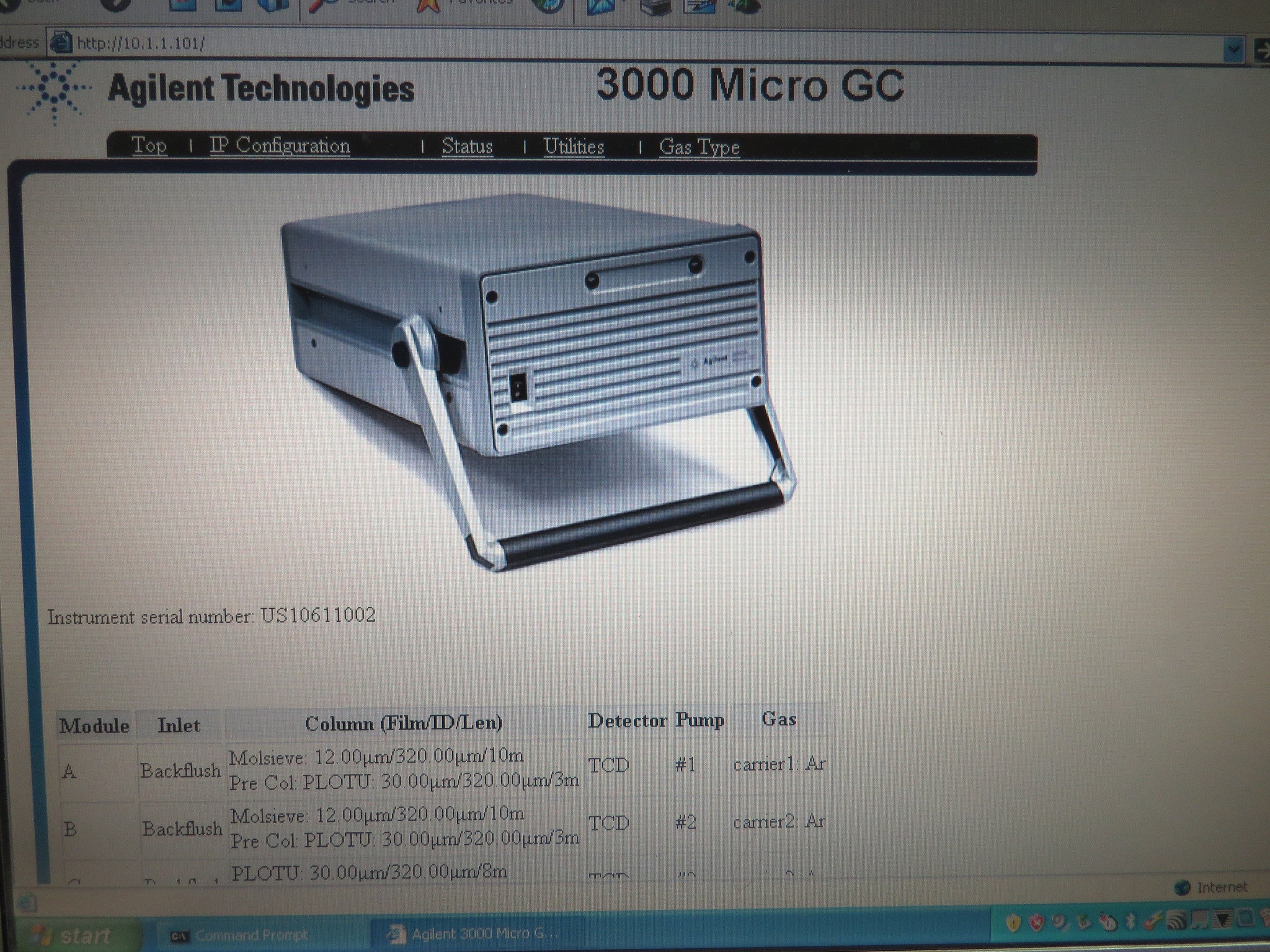

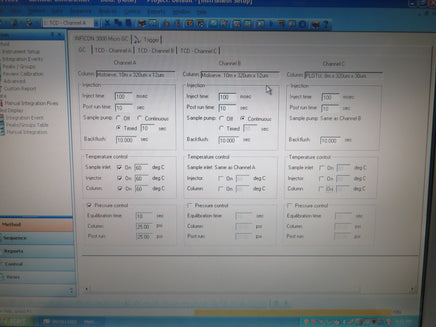

System Configuration:

GC Type: 2801

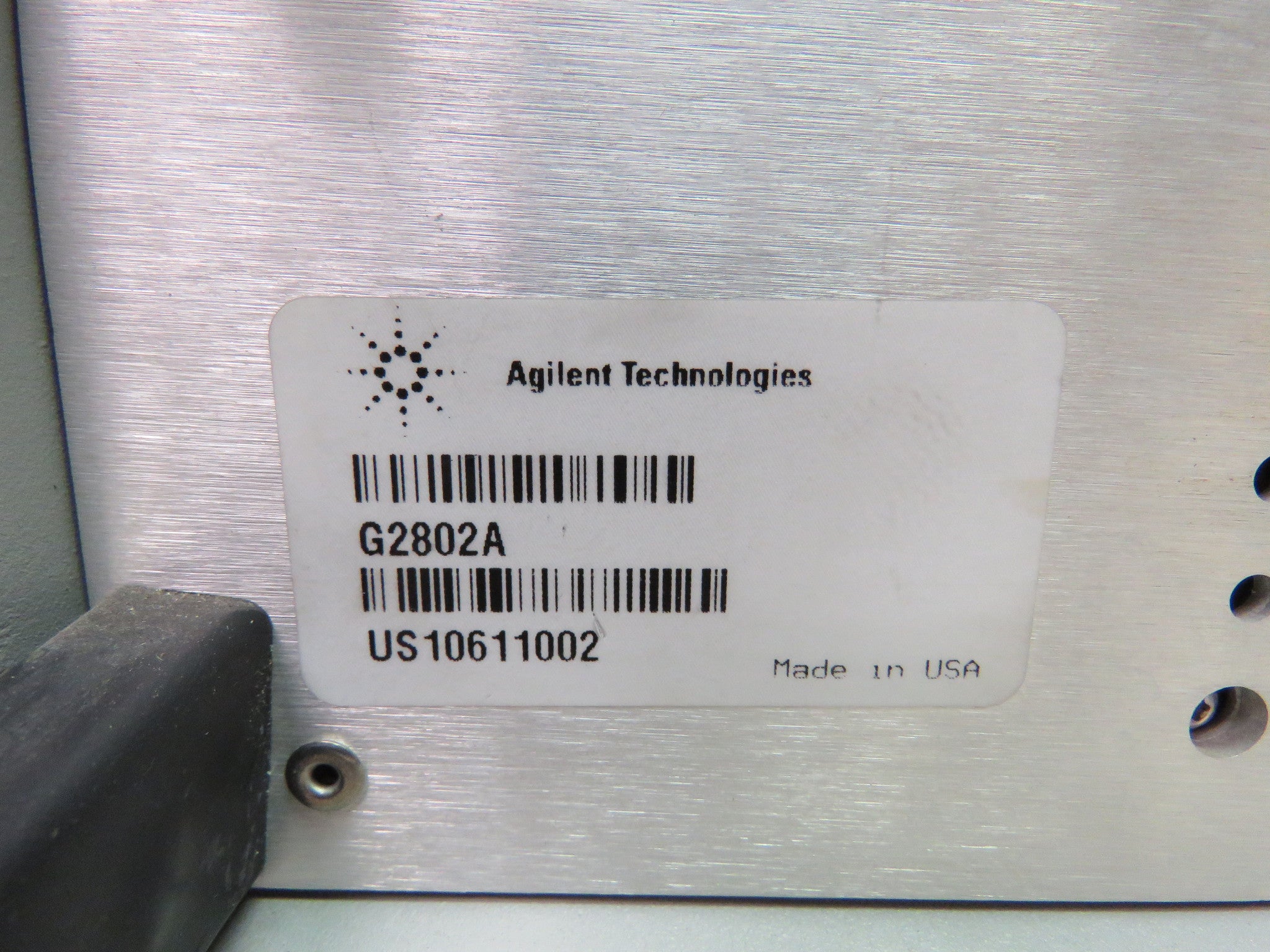

Instrument serial number: US10611002

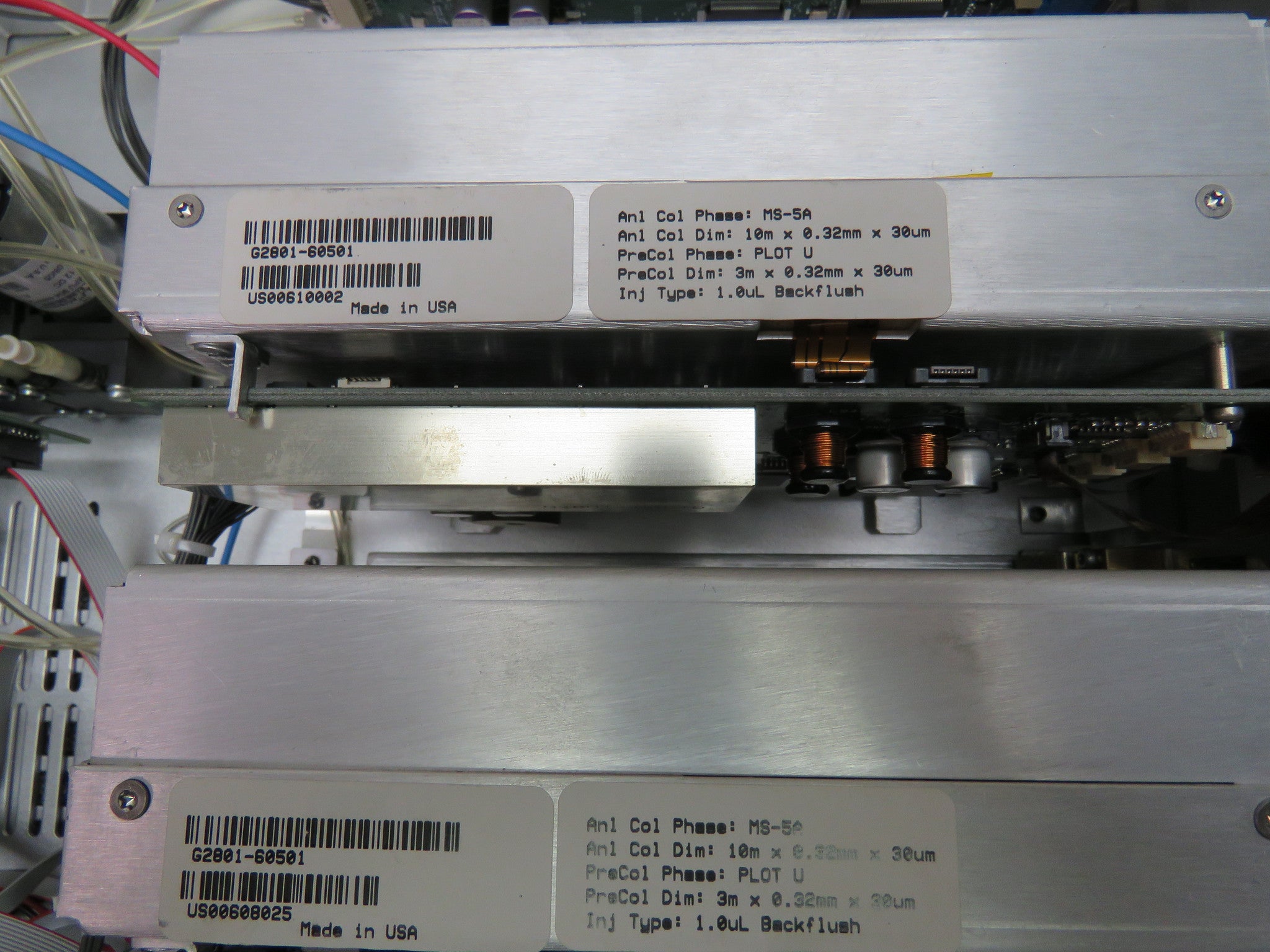

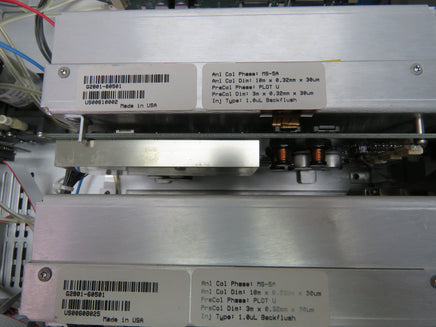

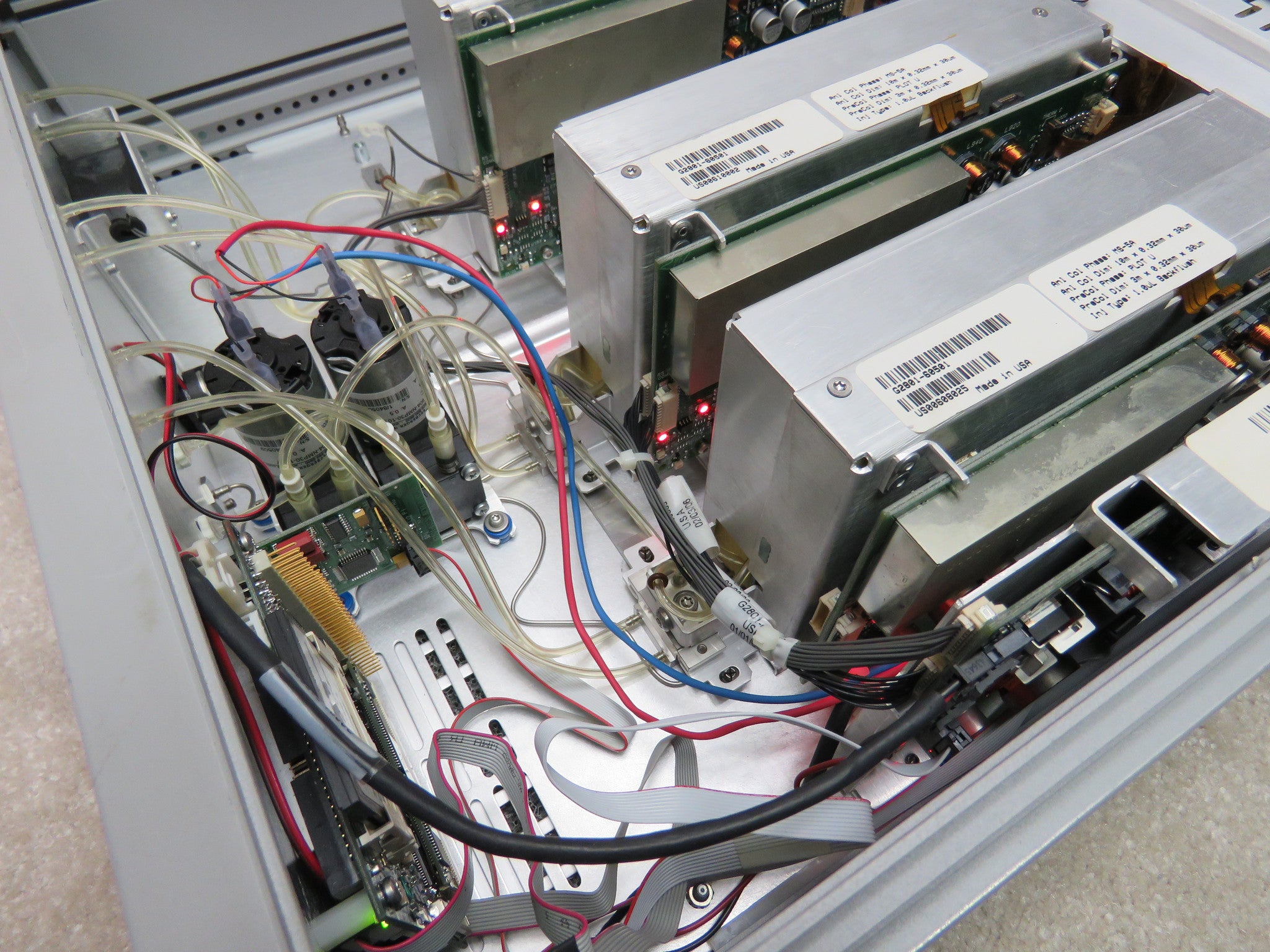

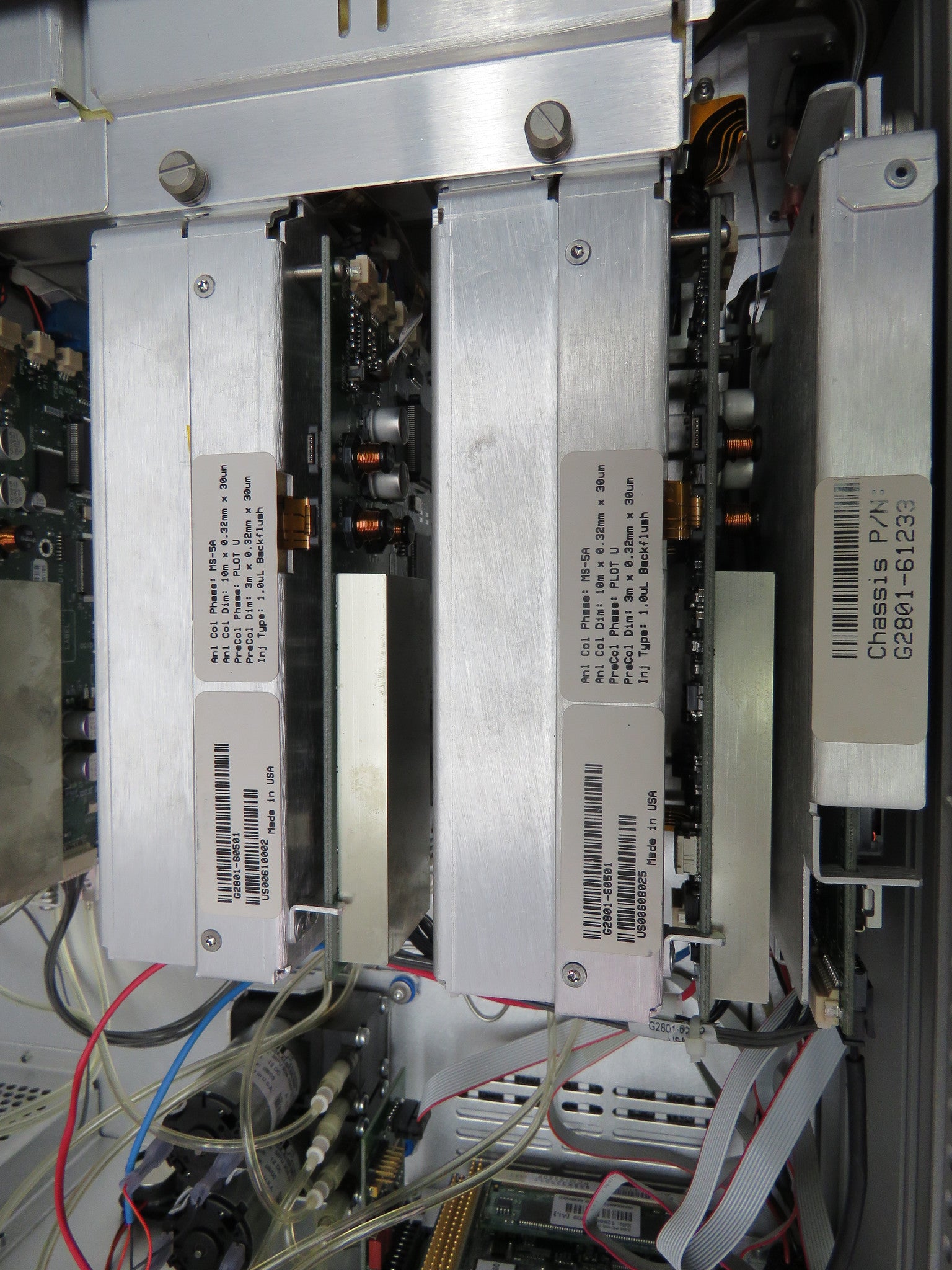

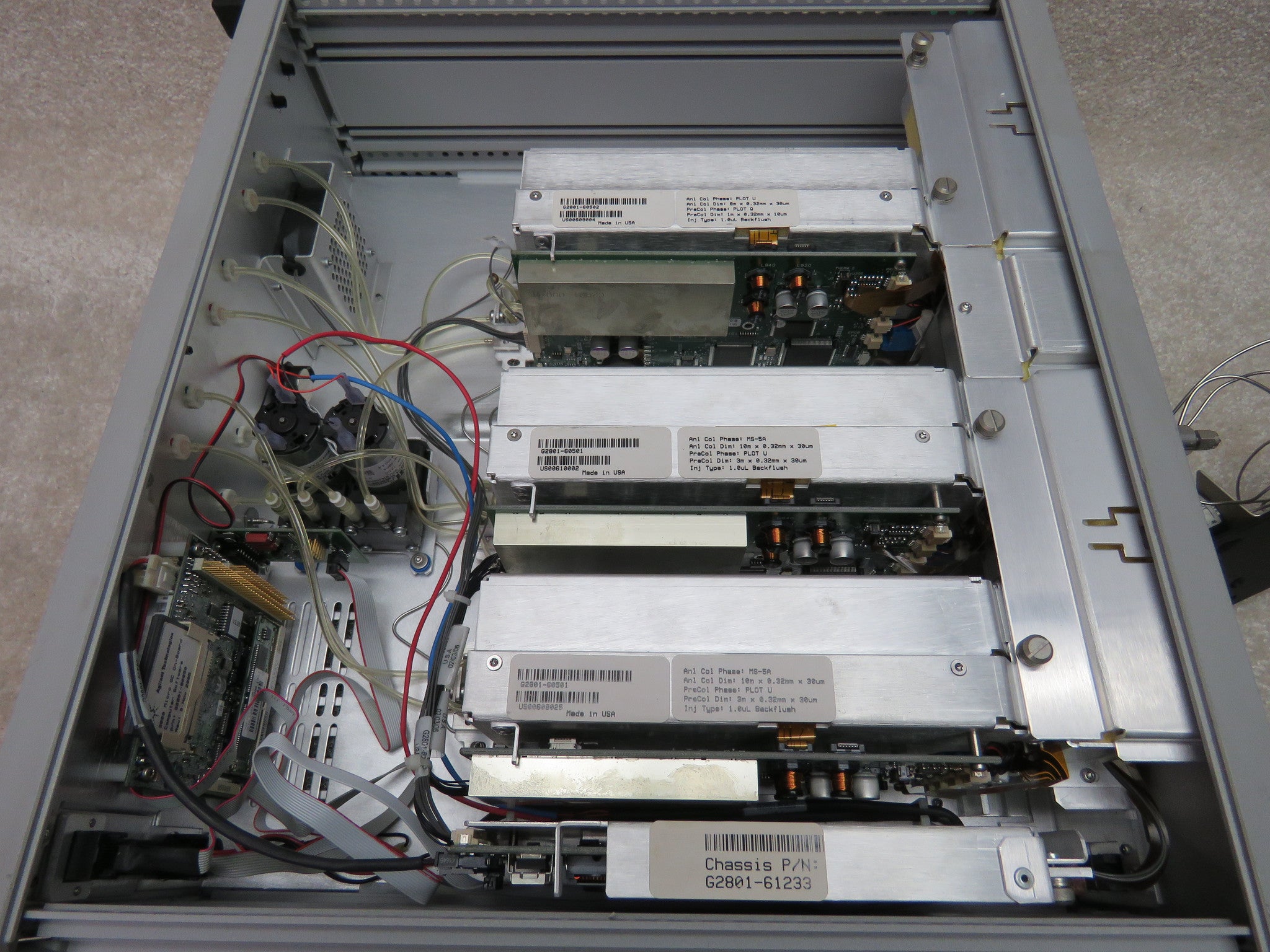

Module 1:
   Channel Assignment: A
   Part Number: G2801-60501
   Serial Number: US00608025
   Board Serial Number: STI060661180
   Sample Inlet:
     Heater ID: m0:ThermA
     Pressure Sensor ID: NONE
   Injector:
     Type: Backflush
     Part Number: G2801-60760
     Serial Number: 0022-25C
     Description: ID Backflush 1.0ul
     Heater ID: m1:ThermC
   Column:
     Type: Molsieve
     Part Number: G2801-61104
     Serial Number: US5412426H-2
     Description: 10m MS-5A 12um
     Film Thickness: 12.00 µm
     Inside Diameter: 320.00 µm
     Length: 10 m
     Temperature Limits:
       Lower: 30 °C
       Upper: 180 °C
   Detector:
     Type: TCD
     Part Number: G2801-60630
     Serial Number: 0012-09-P06
     Description: Assy Detector (TCD)
     Signal Description: TCD2 A
   Pre-Column:
     Type: PLOTU
     Part Number:
     Serial Number:
     Description: 3m PPU 30um
     Film Thickness: 30.00 µm
     Inside Diameter: 320.00 µm
     Length: 3 m
     Temperature Limits:
       Lower: 30 °C
       Upper: 180 °C
   Sample Pump ID: m0:Pump0
   Gas Supply:
     Type: Ar
     Location: carrier1
Module 2:
Channel Assignment: B
Part Number: G2801-60501
Serial Number: US00610002
Board Serial Number: STI060661179
Sample Inlet:
Heater ID: m0:ThermA
Pressure Sensor ID: NONE
Injector:
Type: Backflush
Part Number: G2801-60760
Serial Number: 0027-24D
Description: ID Backflush 1.0ul
Heater ID: m2:ThermC
Column:
Type: Molsieve
Part Number: G2801-61104
Serial Number: US6459314H-3
Description: 10m MS-5A 12um
Film Thickness: 12.00 µm
Inside Diameter: 320.00 µm
Length: 10 m
Temperature Limits:
Lower: 30 °C
Upper: 180 °C
Detector:
Type: TCD
Part Number: G2801-60630
Serial Number: 0012-09-Q13
Description: Assy Detector (TCD)
Signal Description: TCD2 A
Pre-Column:
Type: PLOTU
Part Number:
Serial Number:
Description: 3m PPU 30um
Film Thickness: 30.00 µm
Inside Diameter: 320.00 µm
Length: 3 m
Temperature Limits:
Lower: 30 °C
Upper: 180 °C
Sample Pump ID: m0:Pump1
Gas Supply:
Type: Ar
Location: carrier2

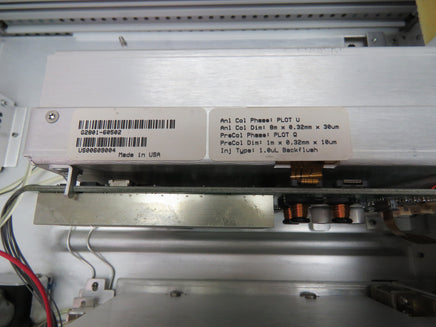

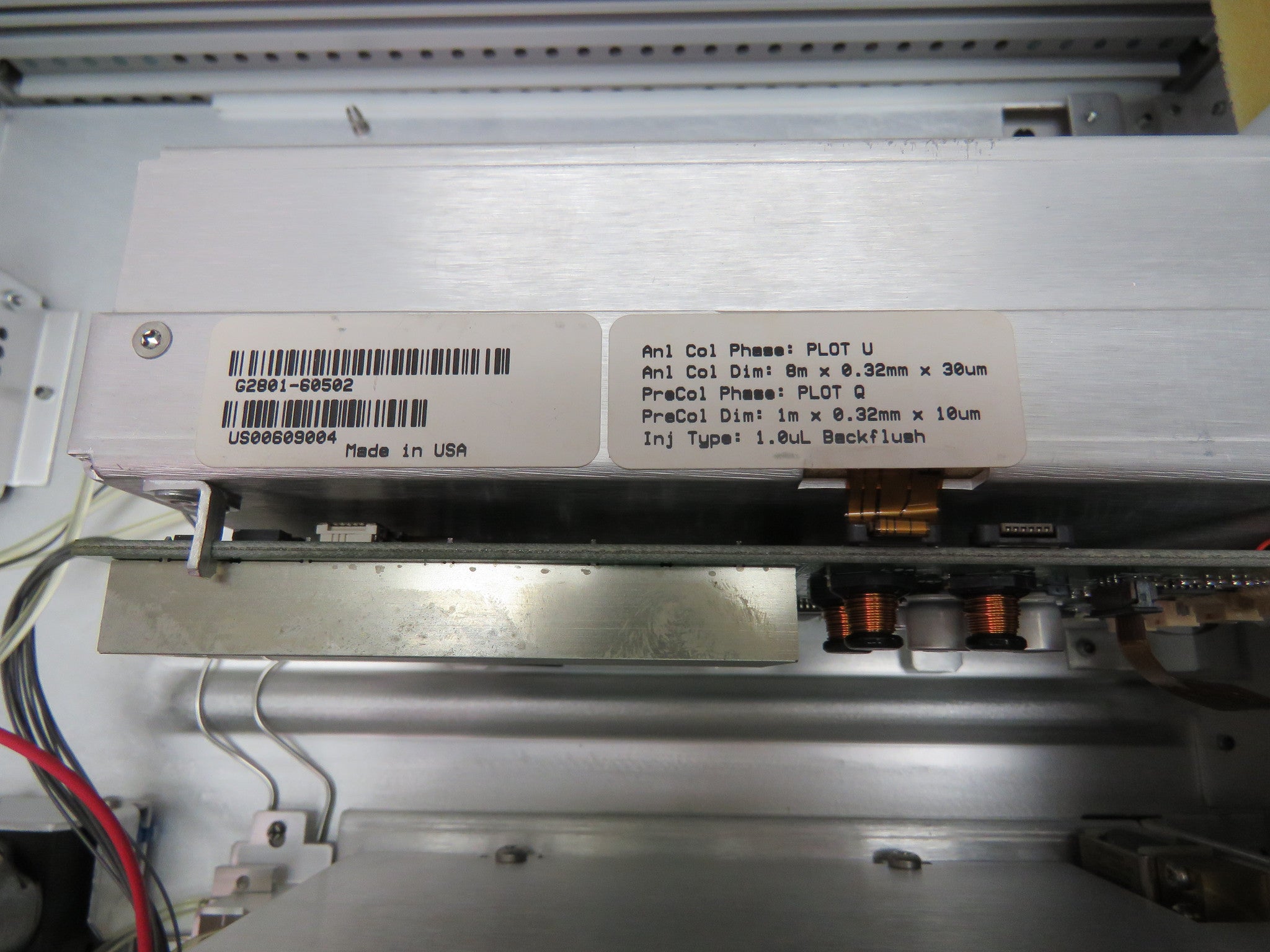

Module 3:
Channel Assignment: C
Part Number: G2801-60502
Serial Number: US00609004
Board Serial Number: STI060661185
Sample Inlet:
Heater ID: m0:ThermC
Pressure Sensor ID: NONE
Injector:
Type: Backflush
Part Number: G2801-60760
Serial Number: 0035-17E
Description: ID Backflush 1.0ul
Heater ID: m3:ThermC
Column:
Type: PLOTU
Part Number: G2801-61105
Serial Number: US5454626H-1
Description: 8m PPU 30um
Film Thickness: 30.00 µm
Inside Diameter: 320.00 µm
Length: 8 m
Temperature Limits:
Lower: 30 °C
Upper: 160 °C
Detector:
Type: TCD
Part Number: G2801-60630
Serial Number: 0012-06-L13
Description: Assy Detector (TCD)
Signal Description: TCD2 A
Pre-Column:
Type: PLOTQ
Part Number:
Serial Number:
Description: 1m PPQ 10um
Film Thickness: 10.00 µm
Inside Diameter: 320.00 µm
Length: 1 m
Temperature Limits:
Lower: 30 °C
Upper: 160 °C
Sample Pump ID: m0:Pump1
Gas Supply:
Type: Ar
Location: carrier2

Includes

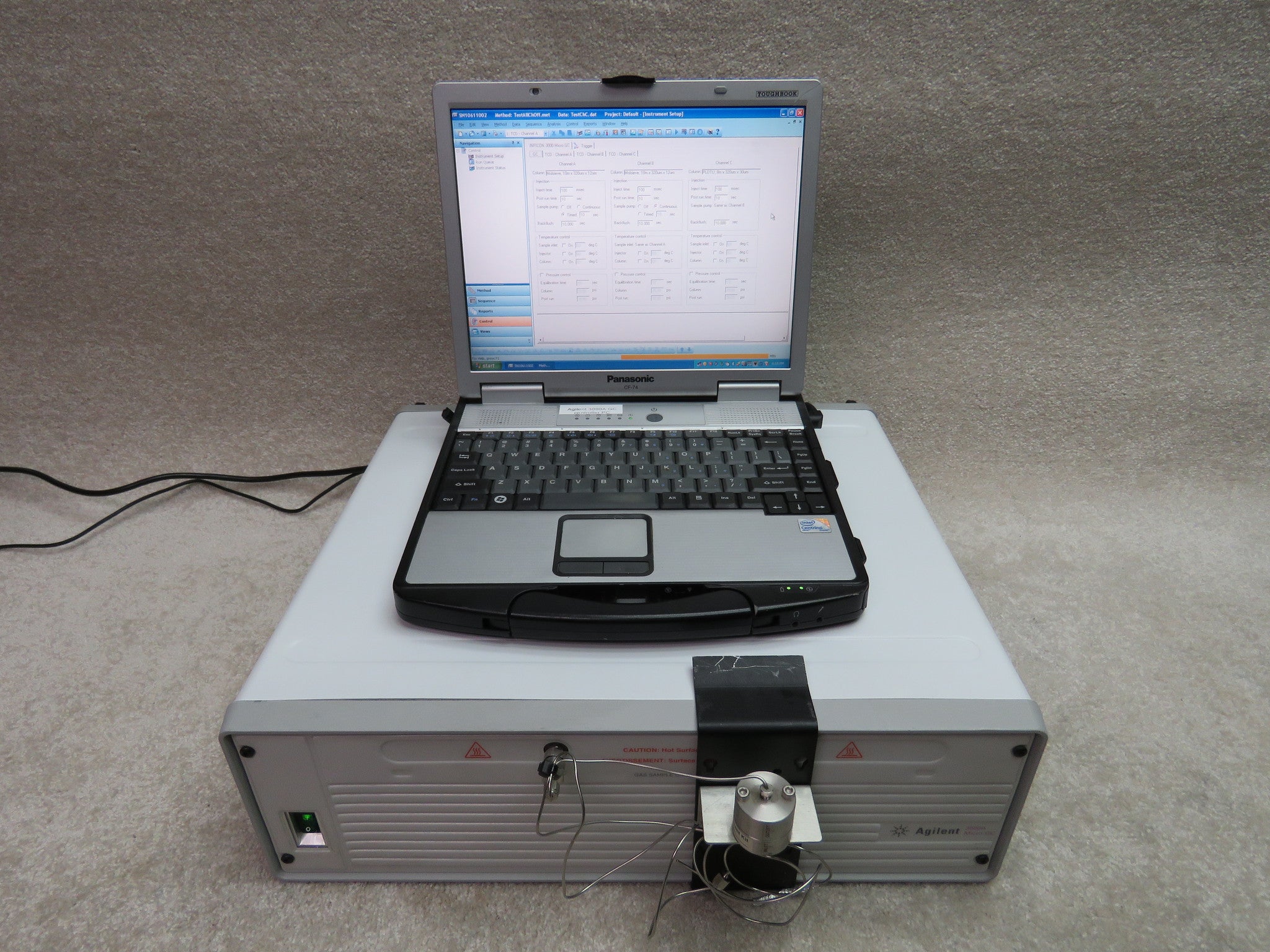

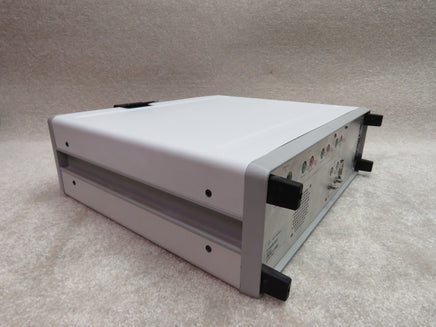

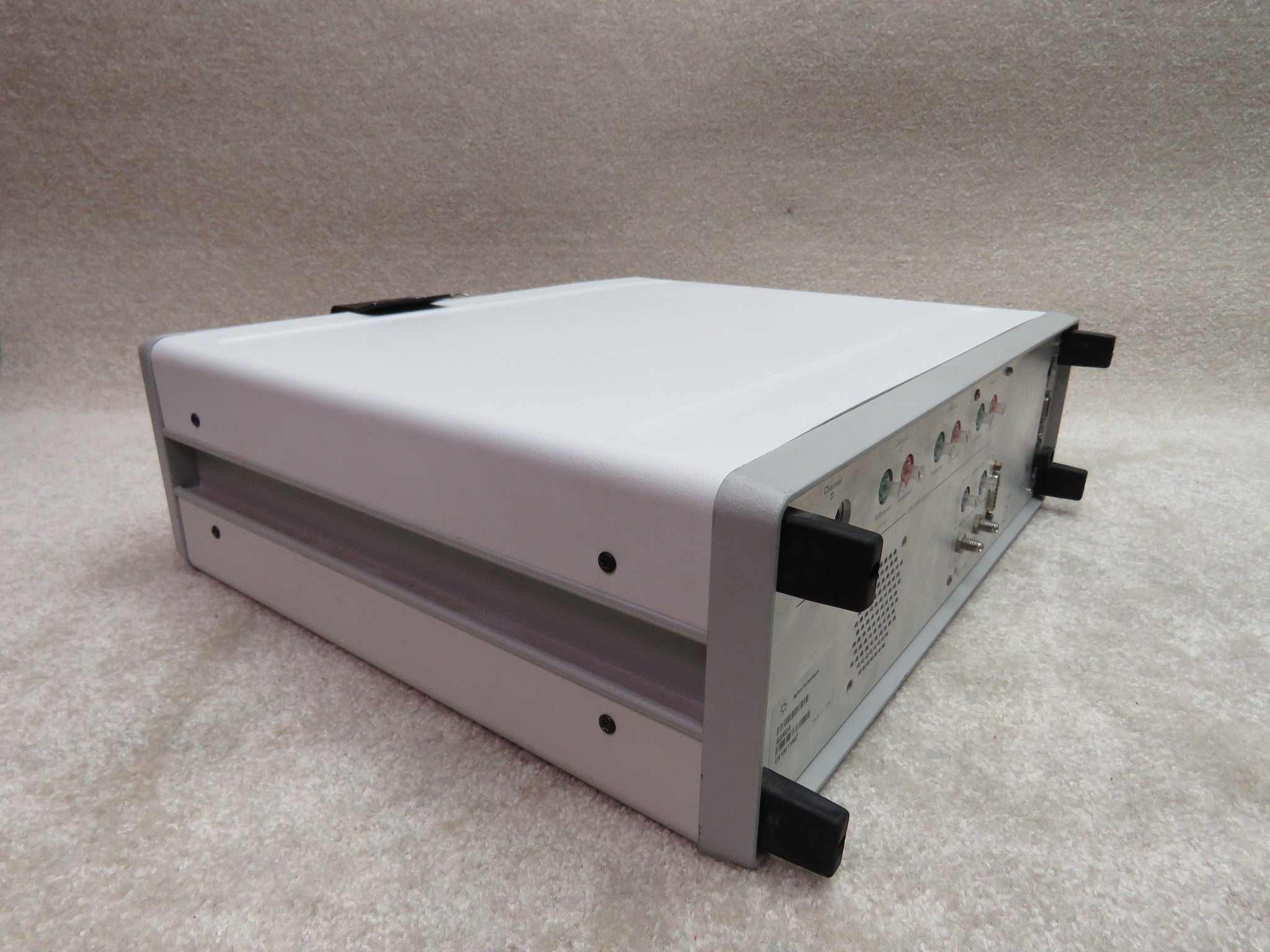

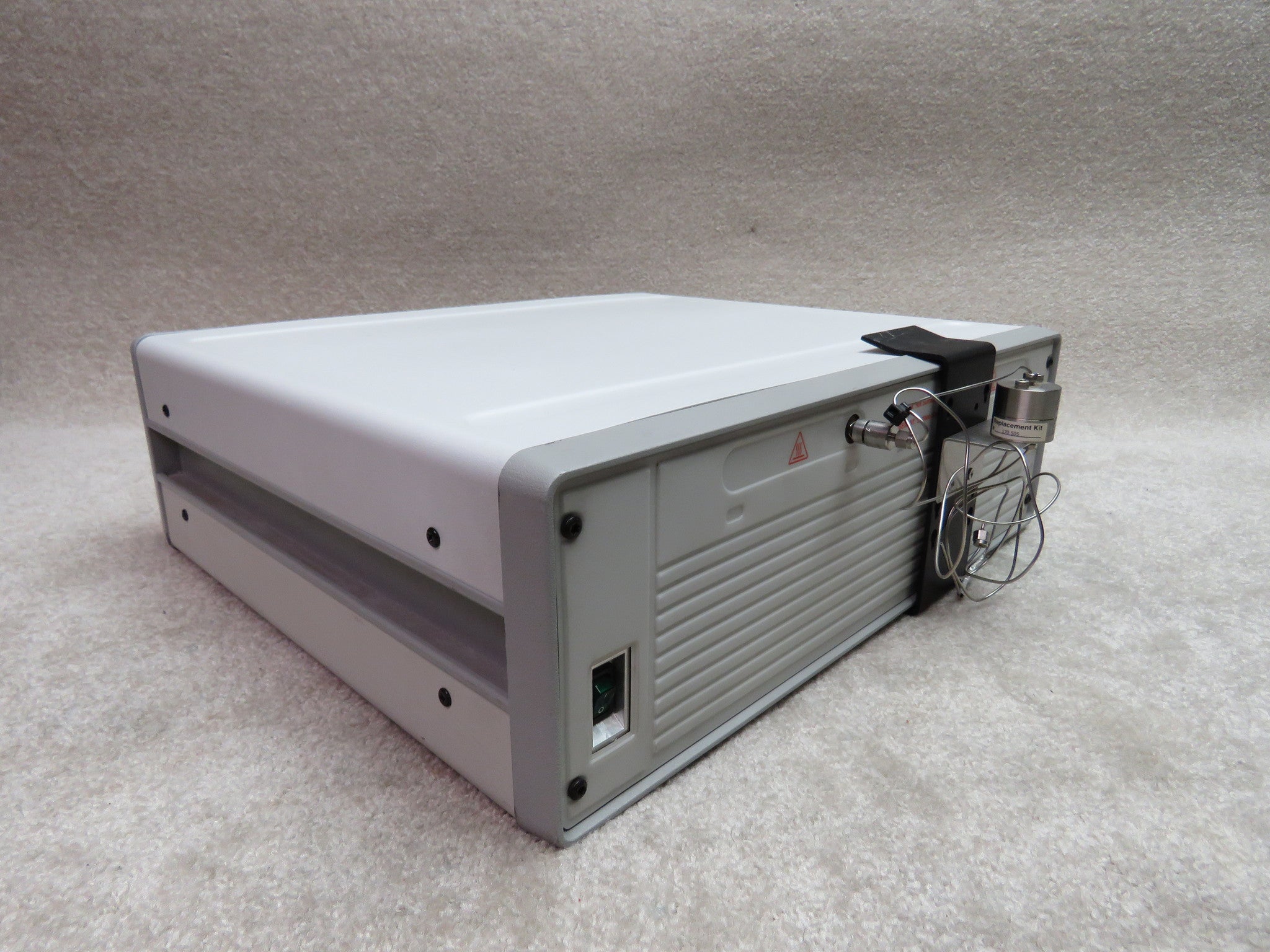

  • Agilent / Inficon 3000A micro GC unit with 3 detectors installed

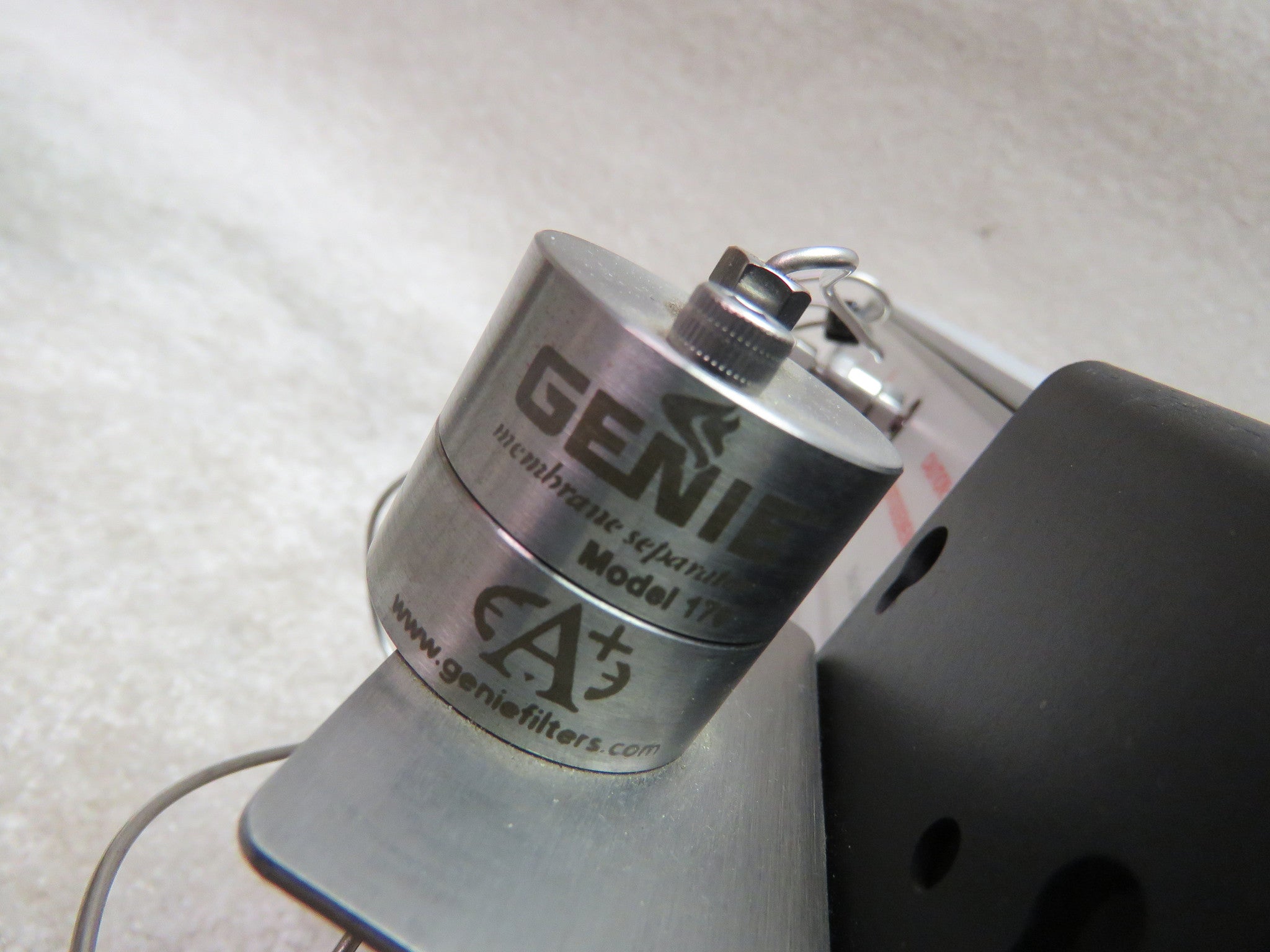

  • Genie gas sample filter model 170

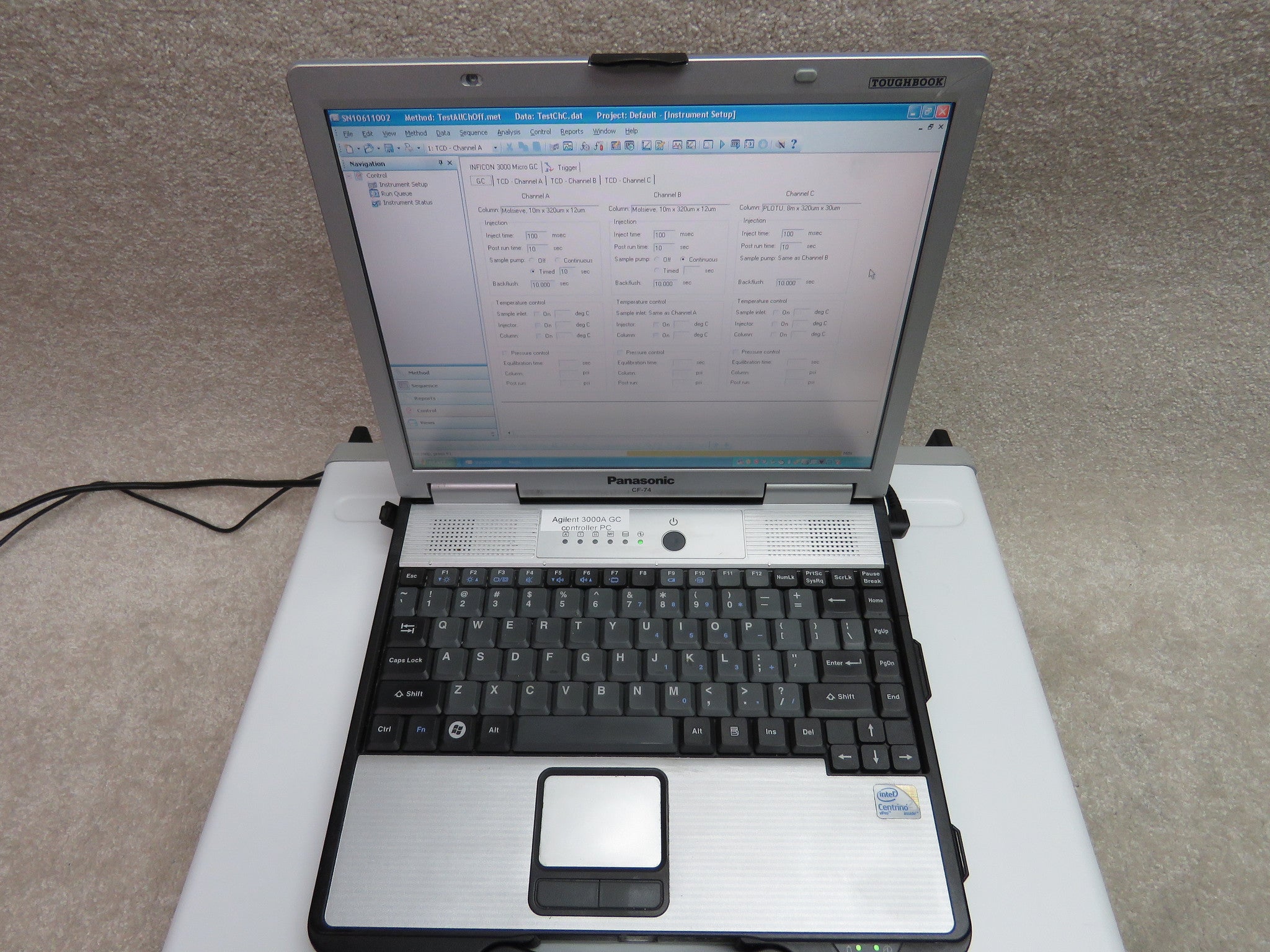

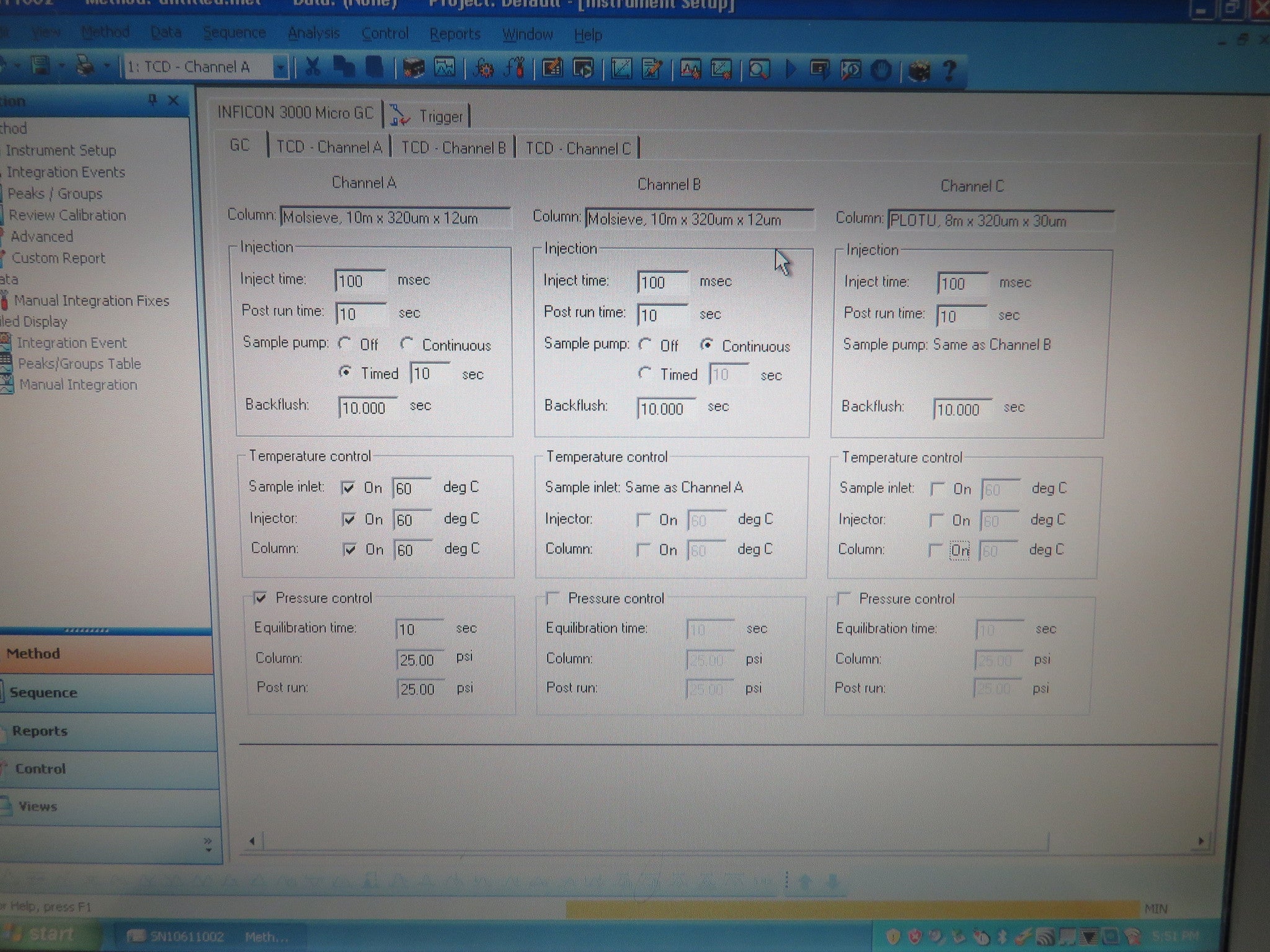

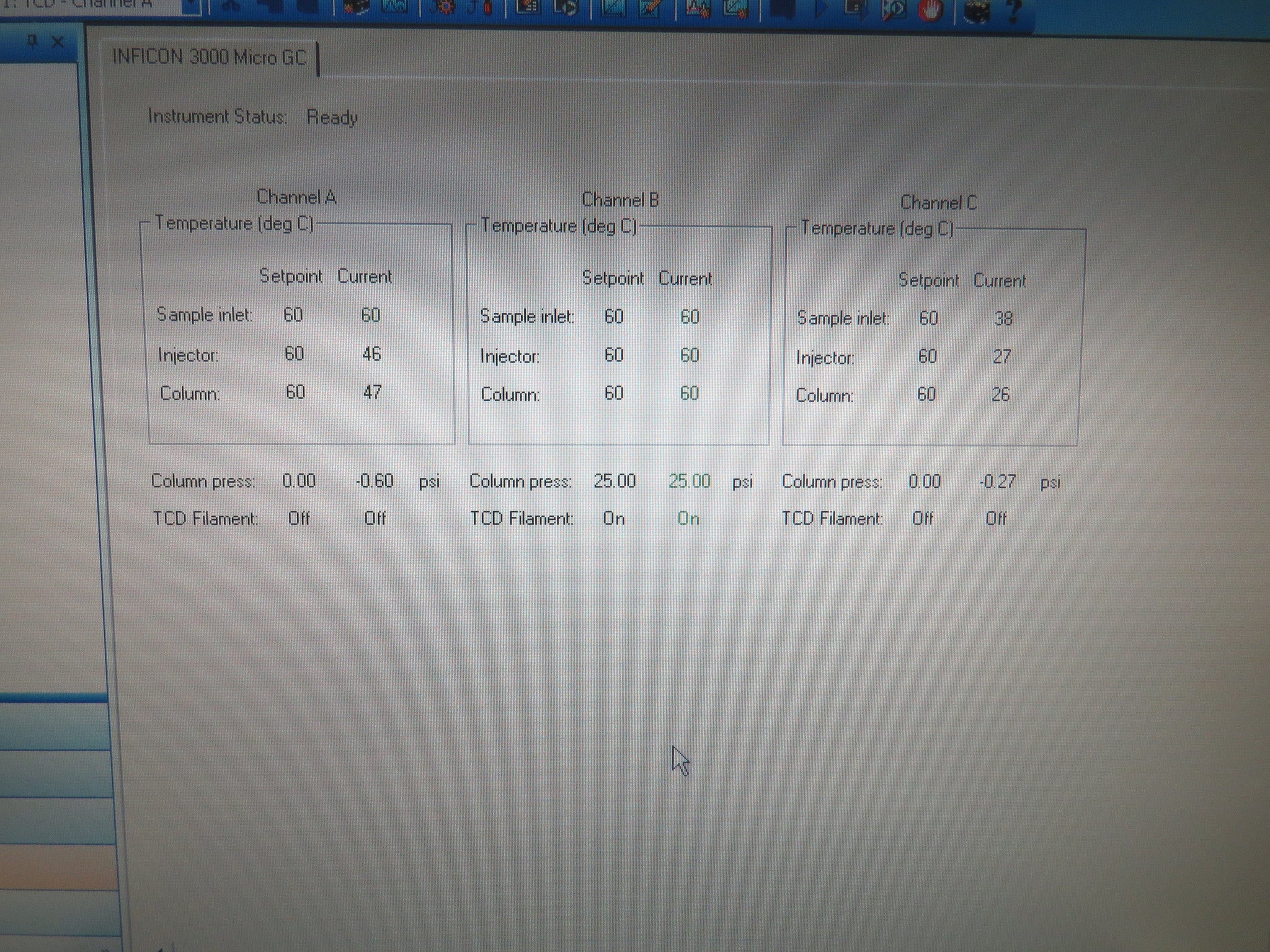

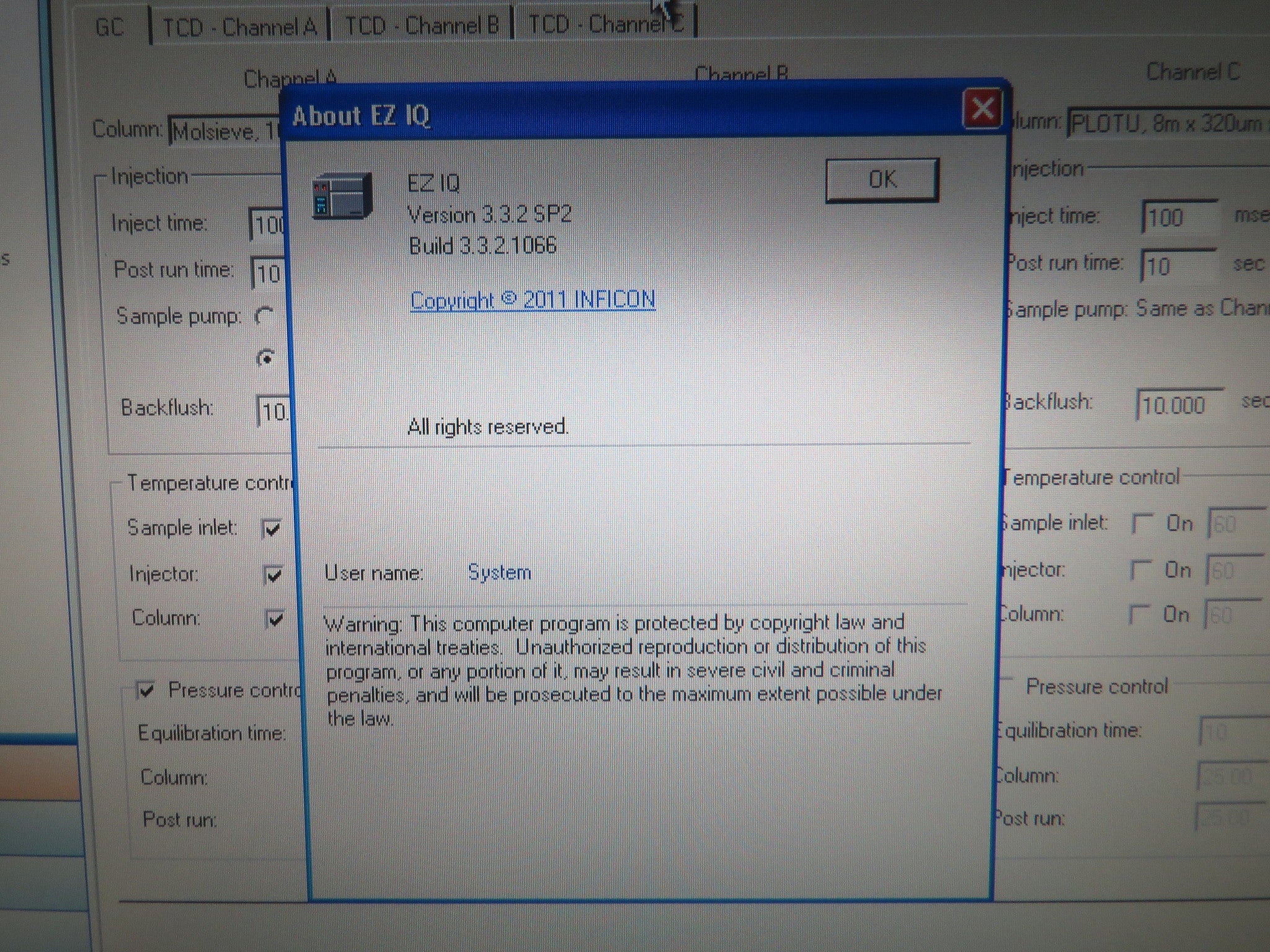

  • Panasonic Toughbook CF-74 with EZIQ software installed
  • Power cables

Warranty

30 Day warranty. We pledge to offer the best service and warranty to all of our customers! We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.

Certification

This is a genuine product from this manufacturer.
