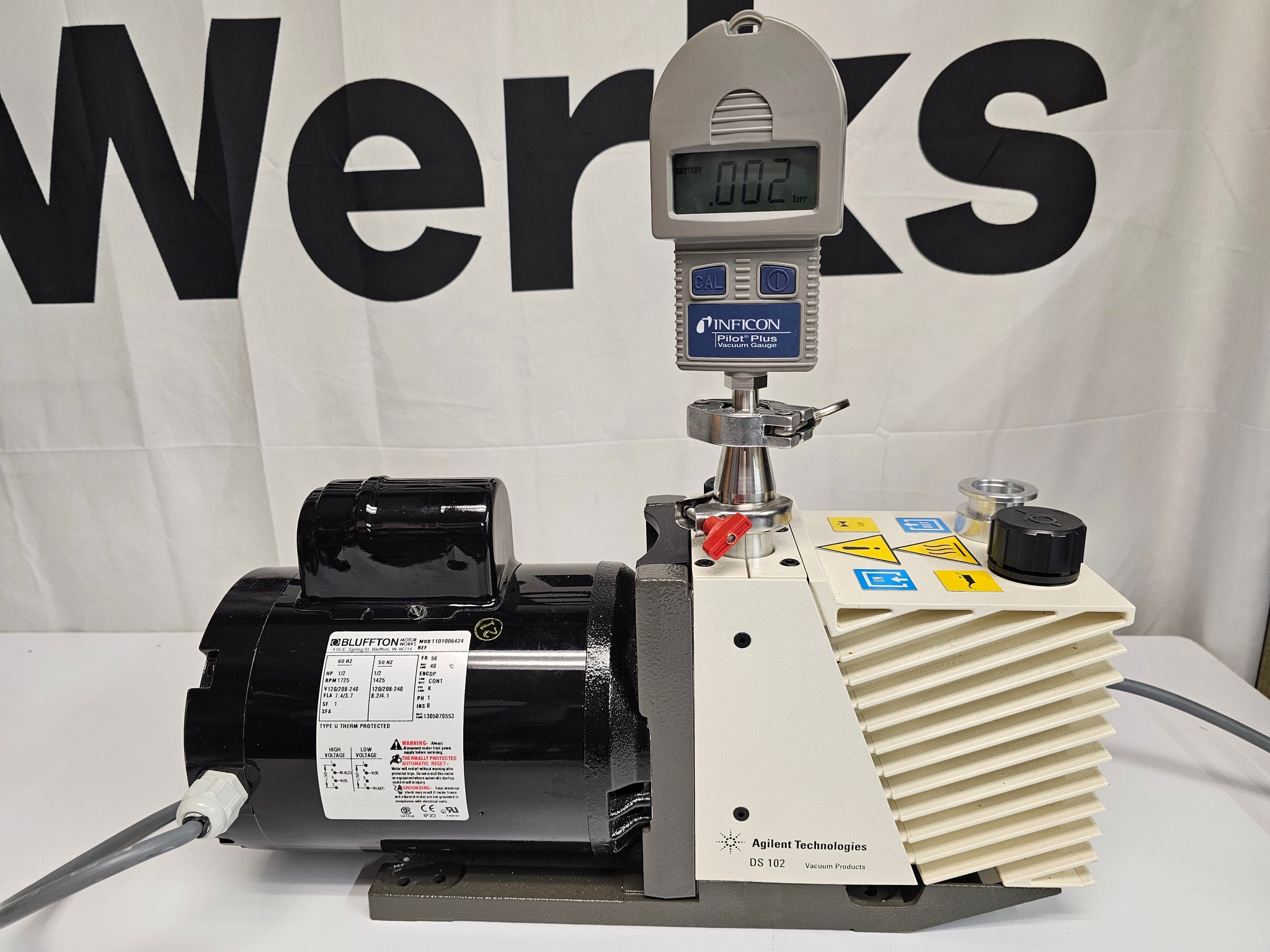

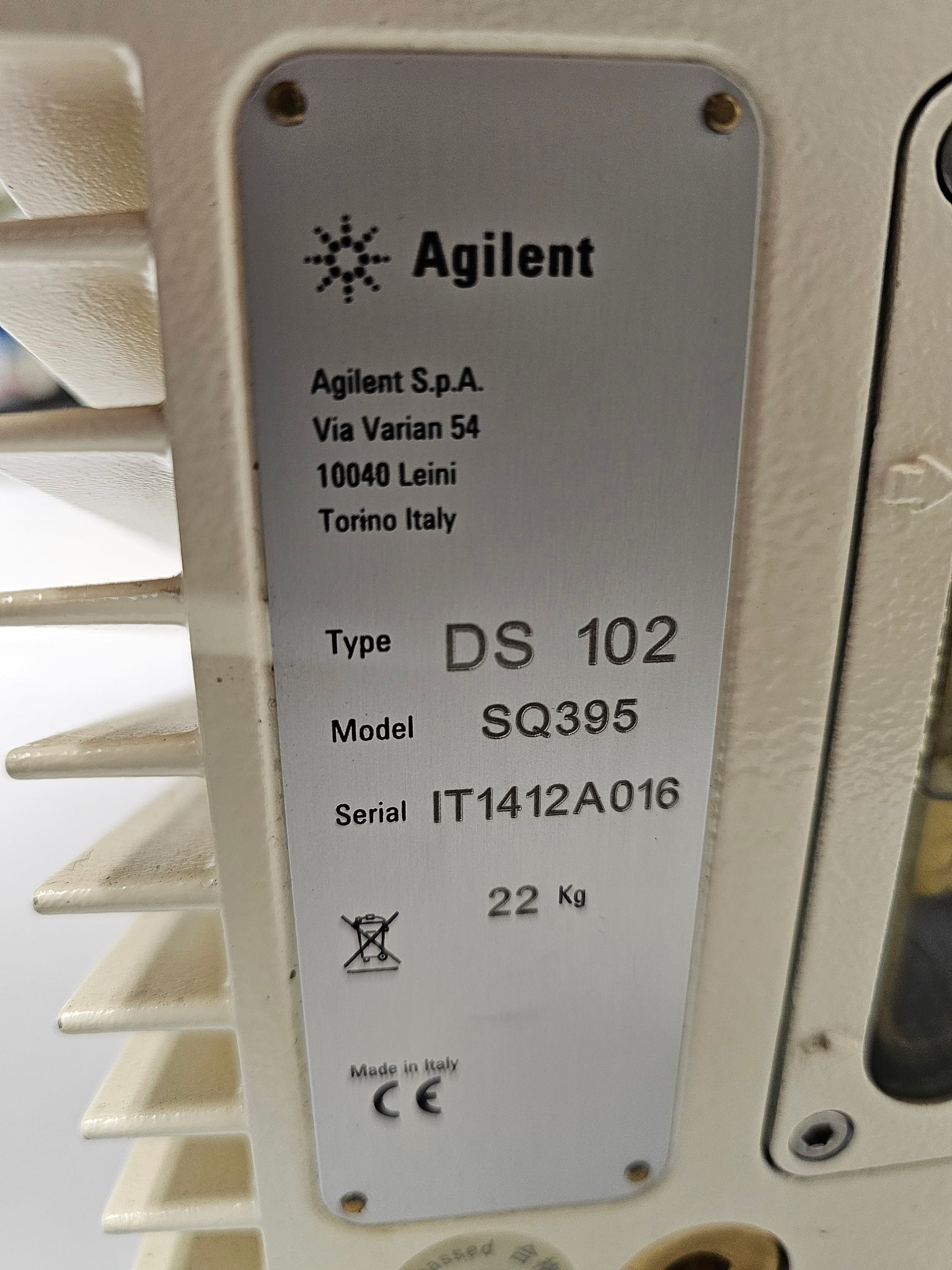

Agilent Varian DS102 Vacuum Pump, Model SQ395, 120V, 1 phase, tested, warranty

Agilent Varian

SKU: DS102

Web Information

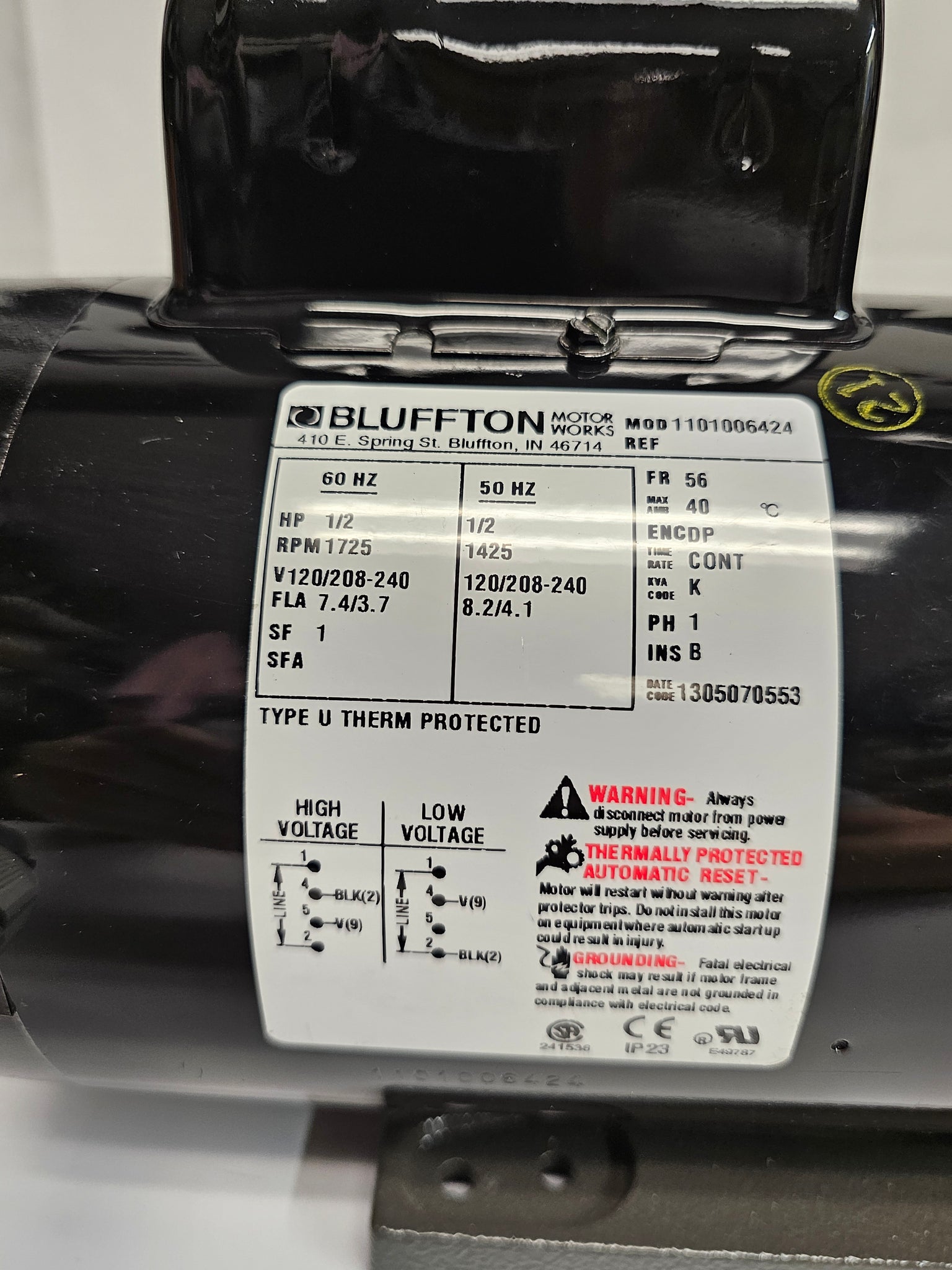

The DS 102 is a dual-stage oil-sealed rotary vane pump that delivers a pumping speed of 5.0 m3/hr at 50 Hz, or 3.5 CFM at 60 Hz, with a base pressure of < 2 x 10-3 mbar. The DS 102 has a universal-voltage single-phase electric motor with integral power switch.

An inlet isolation valve is integrated into the pump to close off the inlet port whenever power to the pump is interrupted. This antibackstream valve retains vacuum in the roughing, or foreline, and prevents pump oil from contaminating the vacuum chamber. The DS 102 has a manual gas ballast valve, which when opened, allows the pump to achieve its rated water vapor handling specification.


Used. Item removed from a working environment and is in good functional condition.


  • Agilent Varian DS102 Vacuum pump, 120V



      30 Day warranty. We pledge to offer the best service and warranty to all of our customers!  We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.


      This is a genuine product from this manufacturer.
