C0-02DR-D
CLICK Analog PLC, 24 VDC required, serial ports, battery backup, Discrete Input: 4-point, DC, Analog Input: 2-channel, current/voltage, Discrete Output: 4-point, relay, Analog Output: 2-channel, current/voltage.
Product Attribute Table
 |
Technical Attributes | |
|---|---|---|
| Brand | CLICK | |
| Item | PLC | |
| Series | Analog | |
| Ladder Memory | 8k steps | |
| User Data Memory | 16 KB | |
| Programming Language | Ladder | |
| Programming Software | CLICK programming software v1.12 or later and CLICK CPU firmware v1.10 or later | |
| Communication Port and Connection Type(s) |
|
|
| Port Protocol(s) |
|
|
| Port Speed(s) |
|
|
| Real Time Clock/Calendar | Yes | |
| Retentive Memory | Yes | |
| Battery Backup | Yes | |
| Maximum Expansion Modules Allowed | 8 | |
| External Power Requirement | 24 VDC | |
| Number of Discrete Input Points | 4 | |
| Nominal Input Voltage | 24 VDC | |
| Voltage Type | DC | |
| Discrete Input Type | Sinking/sourcing | |
| Number of Isolated Discrete Input Commons | 1 | |
| Number of Points per Discrete Input Common | 4 | |
| Number of Discrete Output Points | 4 | |
| Nominal Output Voltage | 6-240 VAC/6-27 VDC | |
| Discrete Output Type | Relay | |
| Relay Configuration | (4) Form A (SPST) relays | |
| Load Current | 1A/point | |
| Number of Isolated Discrete Output Commons | 1 | |
| Number of Points per Discrete Output Common | 4 | |
| Number of Analog Input Channels | 2 | |
| Analog Input Signal Type | Current/voltage | |
| Number of Non-Isolated Analog Input Commons | 1 | |
| Number of Points per Analog Input Common | 2 | |
| Input Resolution | 12-bit | |
| Input Current Signal Range | 4-20 mA | |
| Input Voltage Signal Range | 0-5 VDC | |
| Number of Analog Output Channels | 2 | |
| Analog Output Signal Type | Current/voltage | |
| Number of Non-Isolated Analog Output Commons | 1 | |
| Number of Points per Analog Output Common | 2 | |
| Output Resolution | 12-bit | |
| Output Current Signal Range | 4-20 mA | |
| Output Voltage Signal Range | 0-5 VDC | |

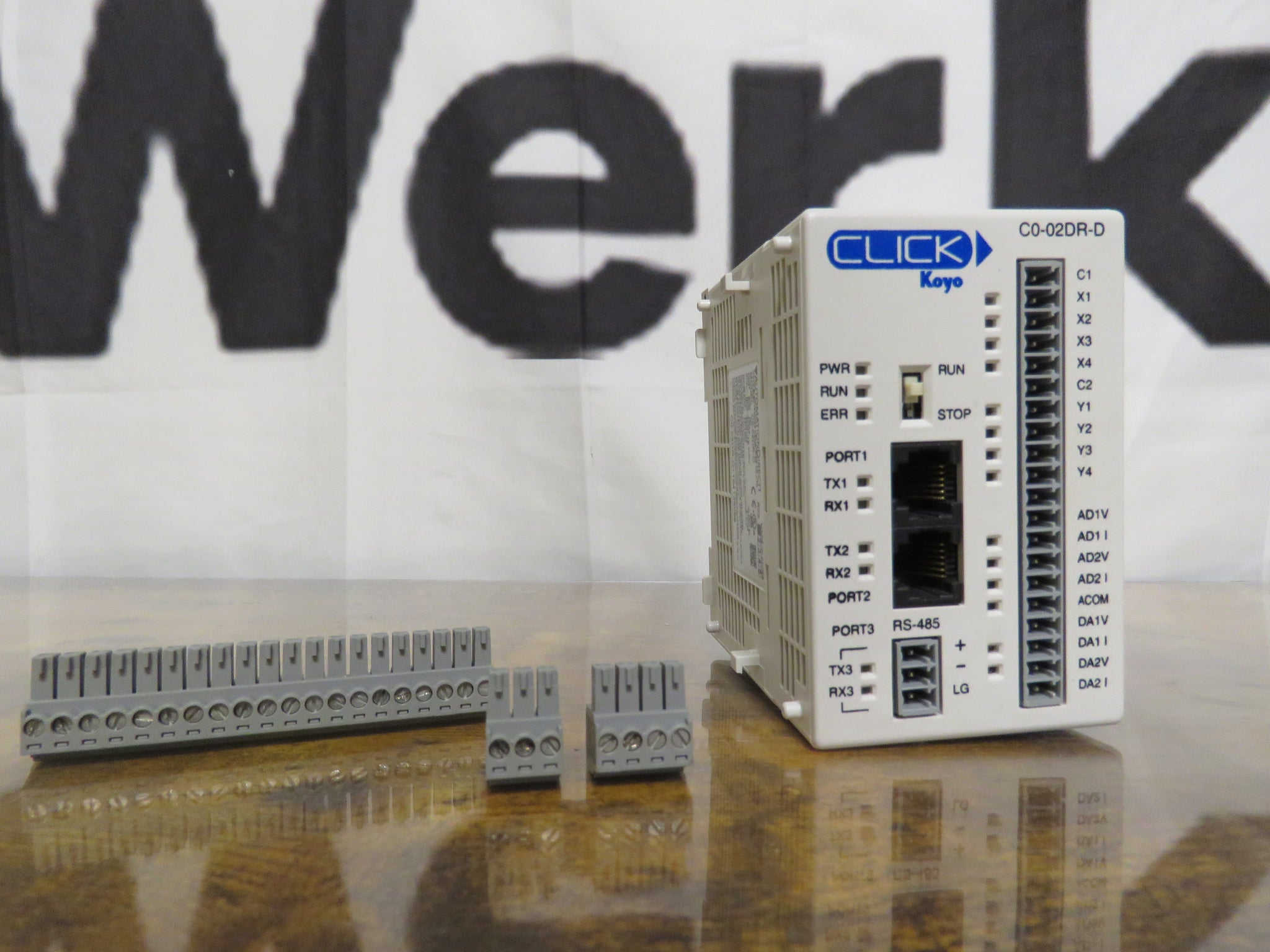

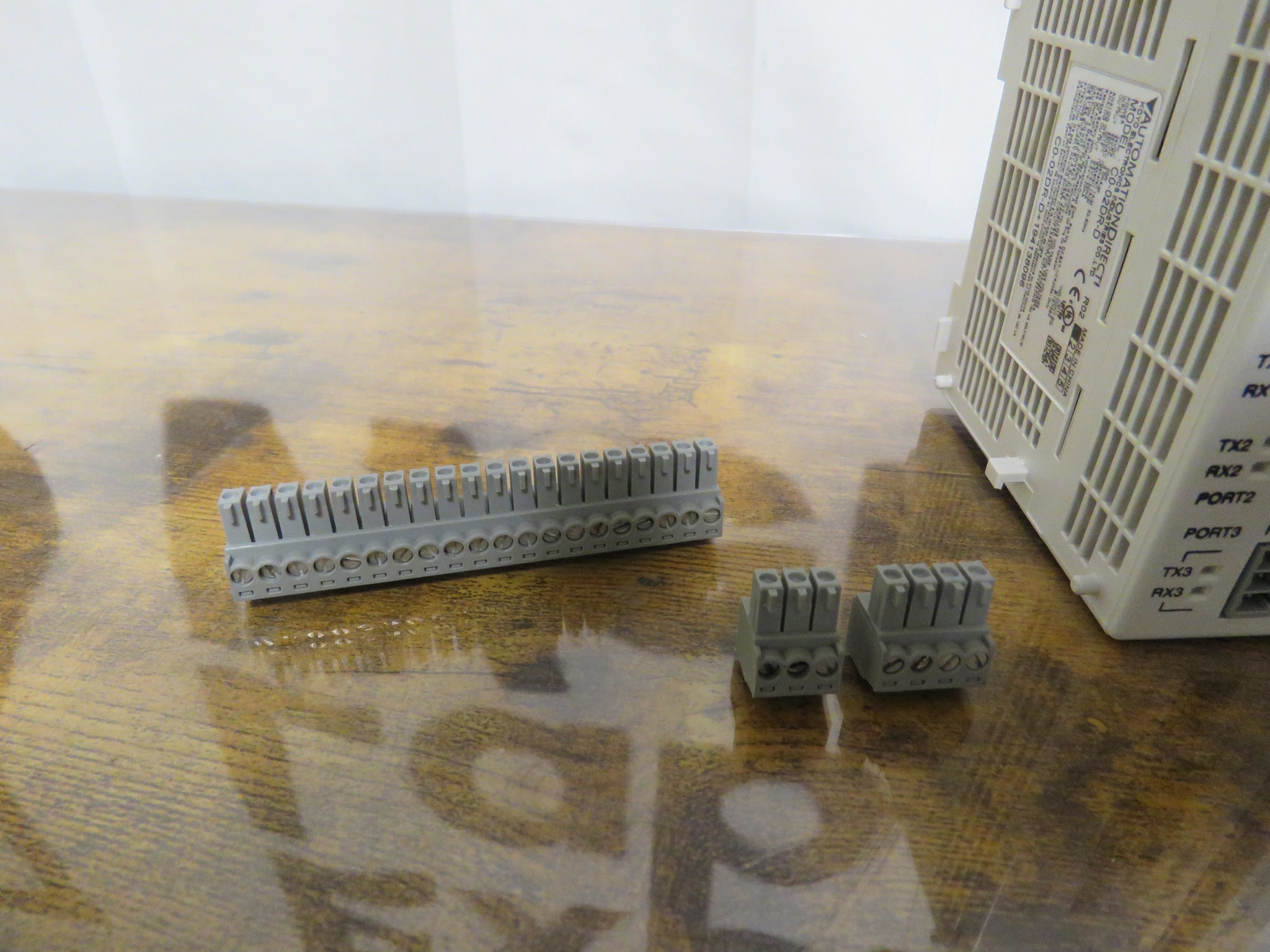

| Includes | Removable terminal block | |
| Additional Information | Purchase D2-BAT-1 backup battery separately | |
Condition
Excellent condition.
Includes

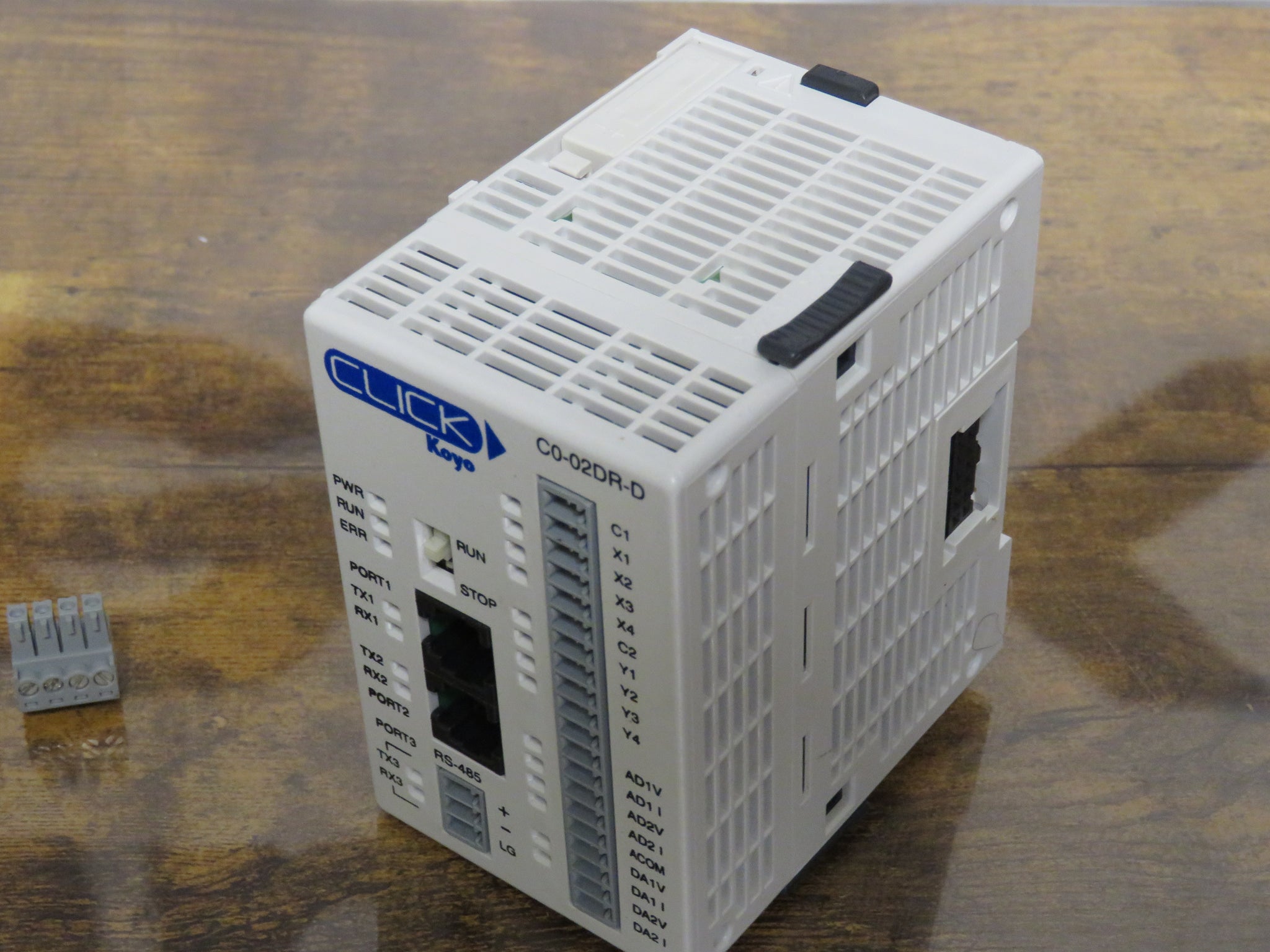

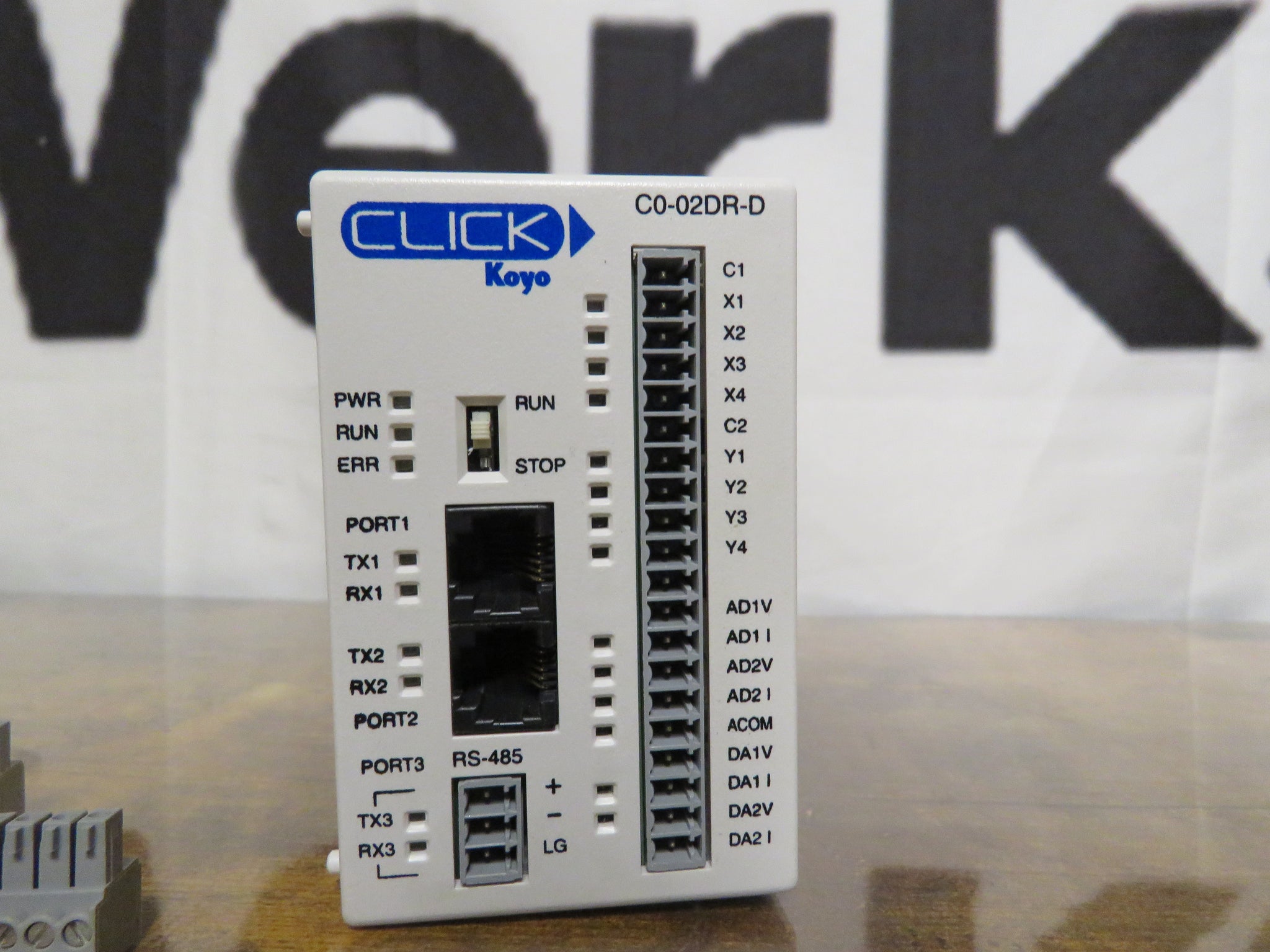

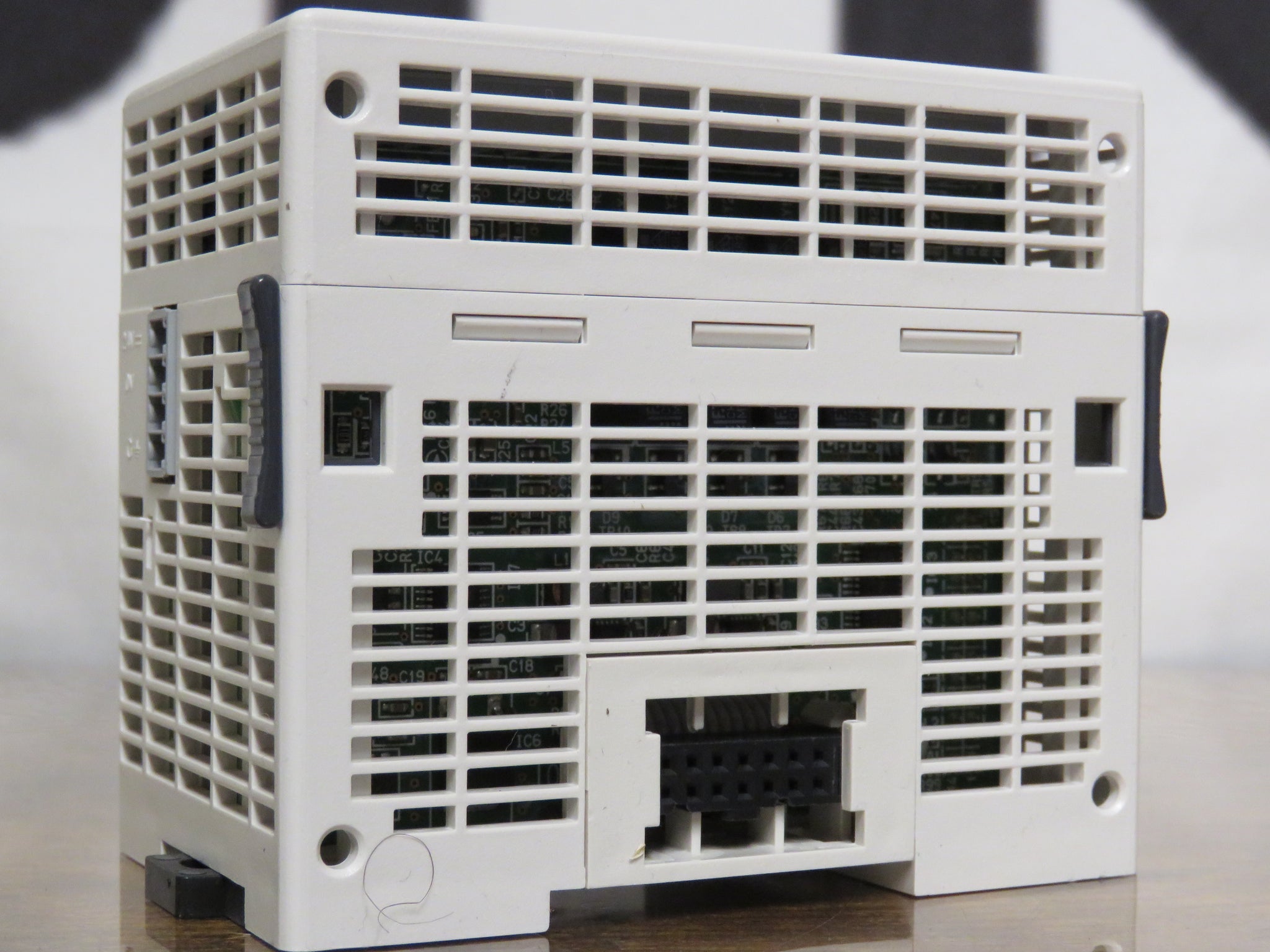

- AUTOMATION DIRECT Koyo Click C0-02DR-D
BBR3
Warranty
30 Day warranty. We pledge to offer the best service and warranty to all of our customers! We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.
Certification
This is a genuine product from this manufacturer.
