This series of rotary evaporators provides a complete solution for laboratory solvent evaporation processes by integrating a vacuum controller, vacuum pump, and recirculating chiller into one, compact, safe, reliable, easy-to-use, and maintenance-free system.
Evaporator units are available in basic, advanced, or professional styles, based upon the incorporation of vacuum controllers
Evaporators with diagonal condensers can be used in areas of limited space or height. They are designed for standard distillations and feature a stopcock feed to the evaporating flask. Evaporators with vertical condensers can be used in areas of unobstructed space and height. Designed for standard distillations, they feature a stopcock feed to the evaporating flask, and they provide a connection for vapor temperature sensors. Vertical condensers permit auto distillation with the use of a stage probe and V-855 vacuum controller. Evaporators with dry ice condensers permit the distillation of solvents with low boiling points. They feature a stopcock feed to the evaporating flask and do not require cooling water. Maximum condensation will result due to low temperatures.
Standard features on any Rotavapor® system include continuous vapor ducting to prevent cross-contamination, the option of P+G plastic coating on all glass components to protect against mechanical damage, and a 4L water or oil heating bath with a temperature range of 20 to 180°C (68 to 356°F). A large display continuously shows actual and setpoint temperature. A cordless power supply eliminates the need to unplug connections when filling or emptying the bath, and the small volume, stainless steel bath ensures quick heating capabilities. A quick-action jack, easily operated by the touch of a button automatically raises the flask from the heating bath to prevent thermal loading in the event of a power failure.

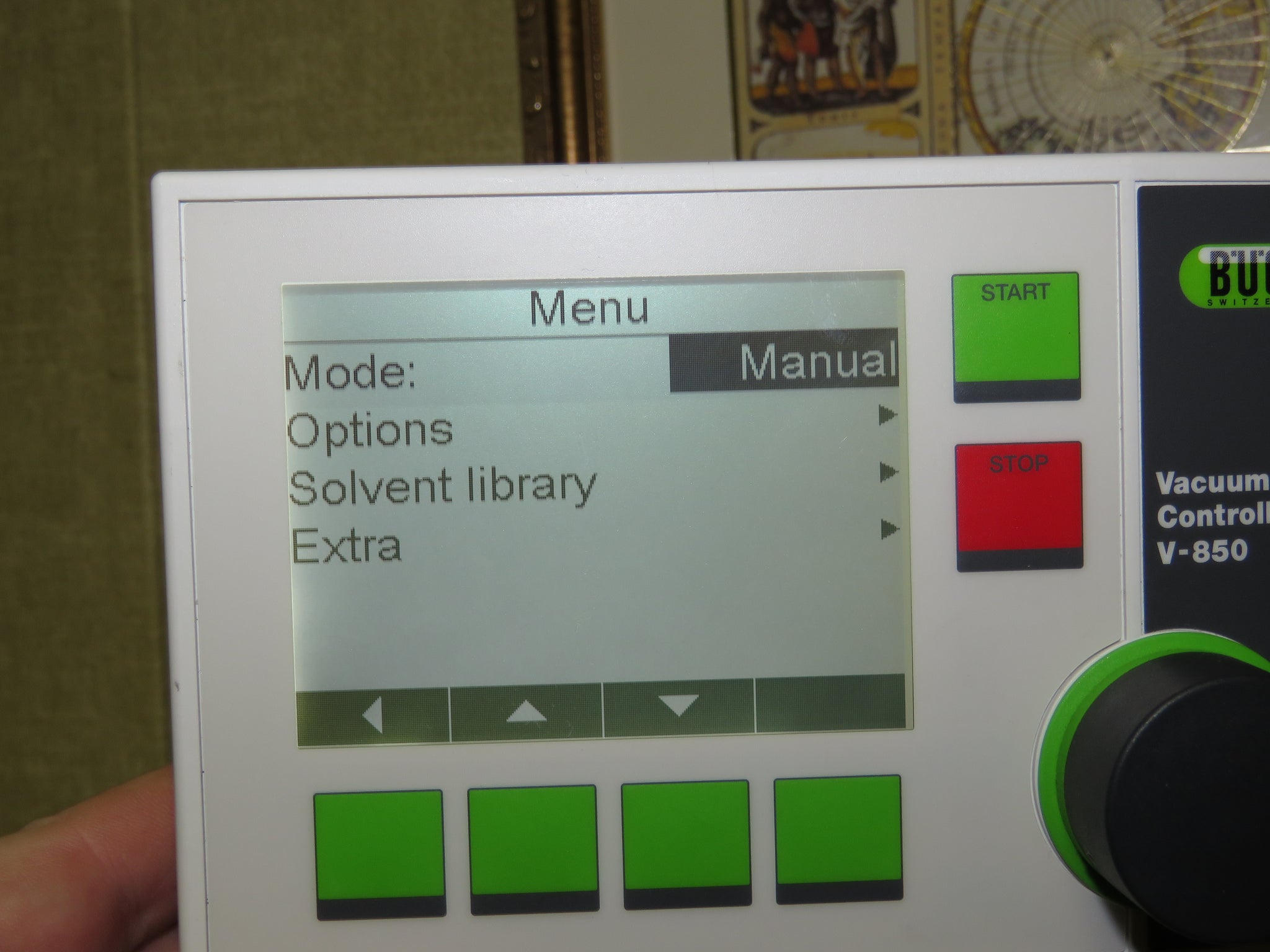

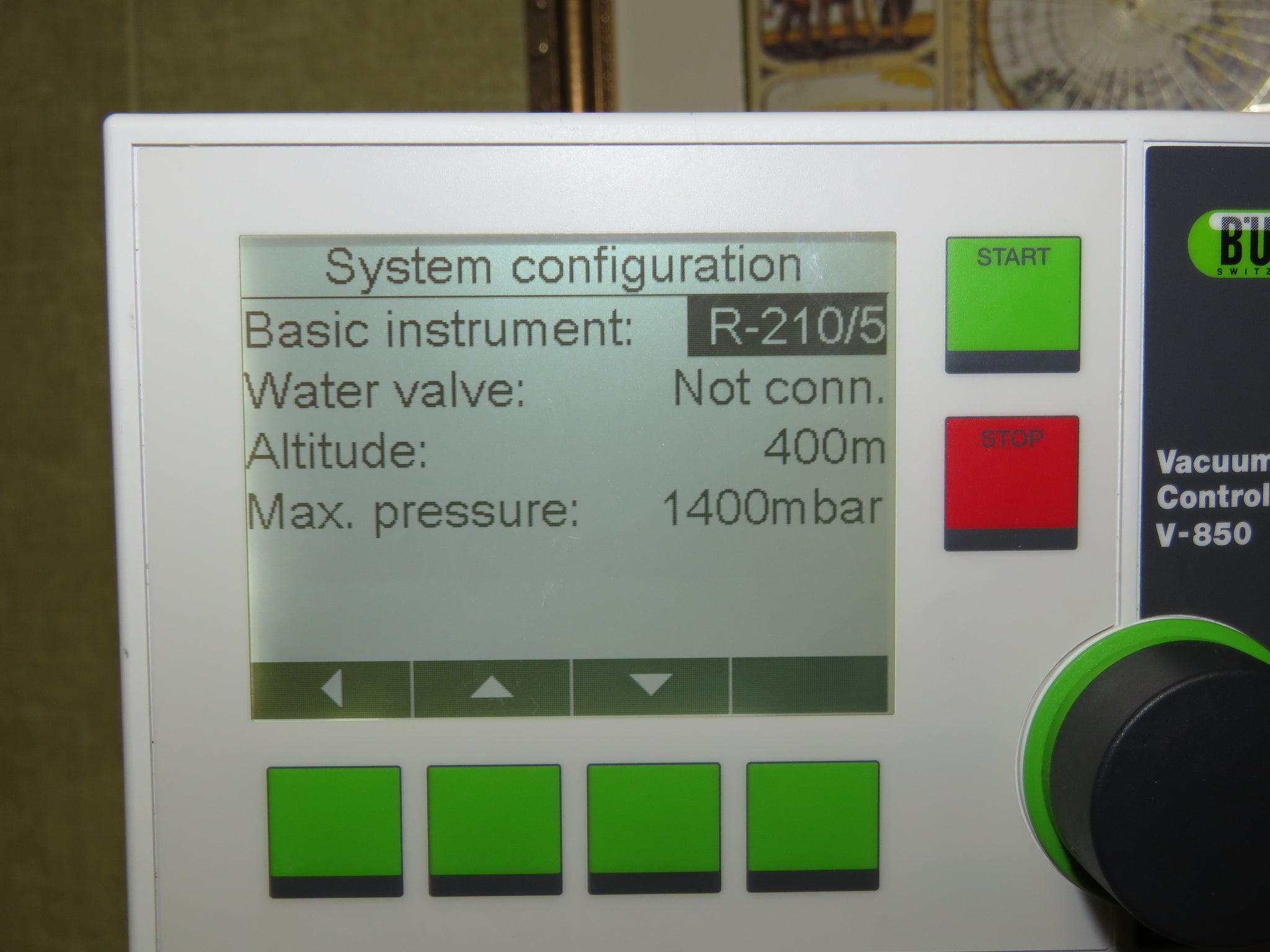

Basic evaporators operate without a vacuum controller. Advanced units are supplied with V-850 vacuum controllers, which offer pressure regulation to a setpoint, a library containing 43 commonly-used solvents (with the ability to add your own), a timer function, USB interface for data transfer, and control of quick-action jack and Rotavapor® rotation. The more versatile professional units feature the V-855 vacuum controller, which offers EasyVac functions, automatic distillation, pressure gradient programming, and repeatable distillation functions in addition to the features of the V-850. The V-855 vacuum controller is designed to work optimally in conjunction with V-700 and V-710 vacuum pumps. Process parameters are always visible at a glance due to the direct fastening of all vacuum controllers to the evaporator. The intuitive operating concept makes all unit styles suitable for a wide range of applications.
Condition
Used, good working condition.

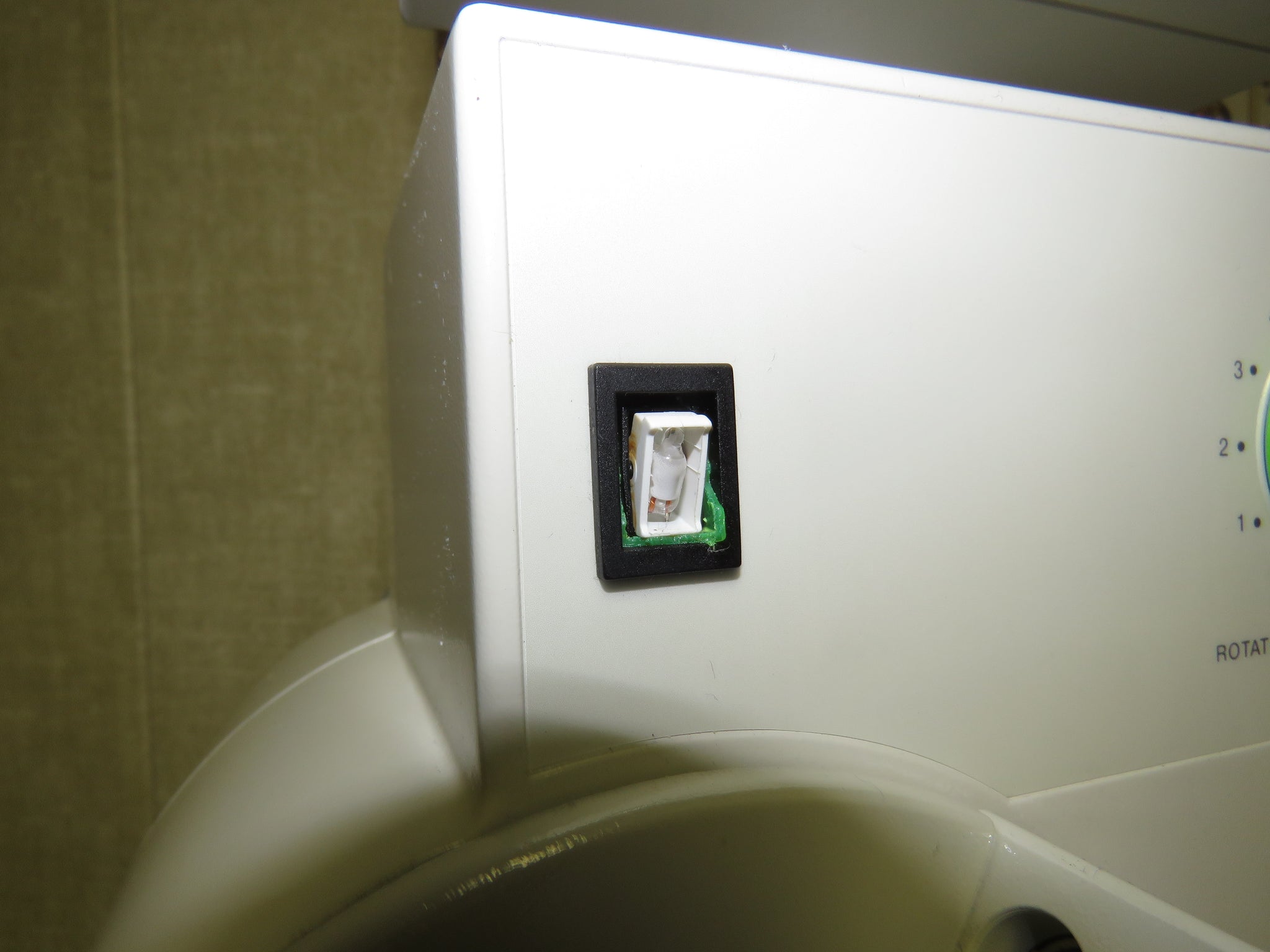

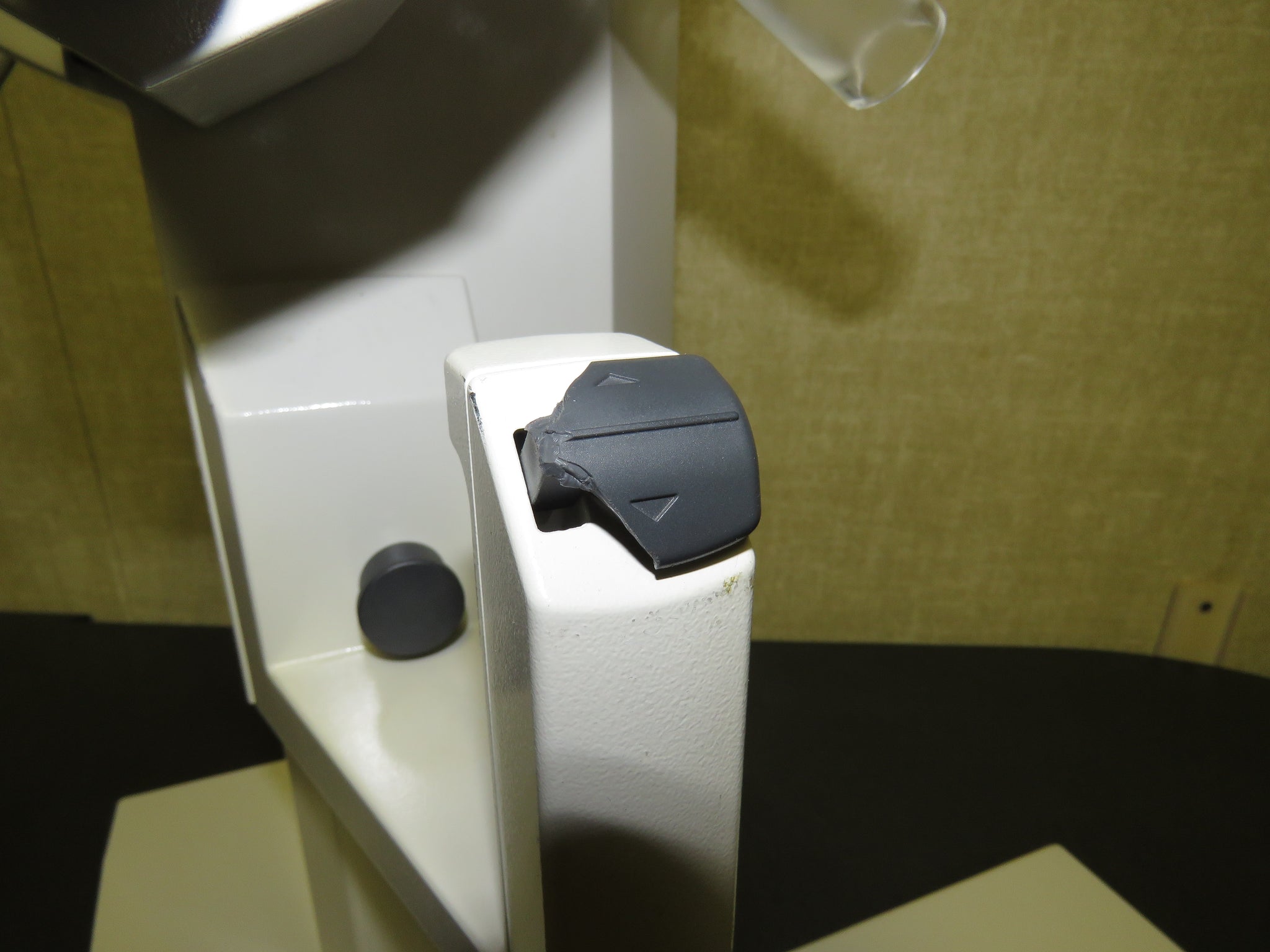

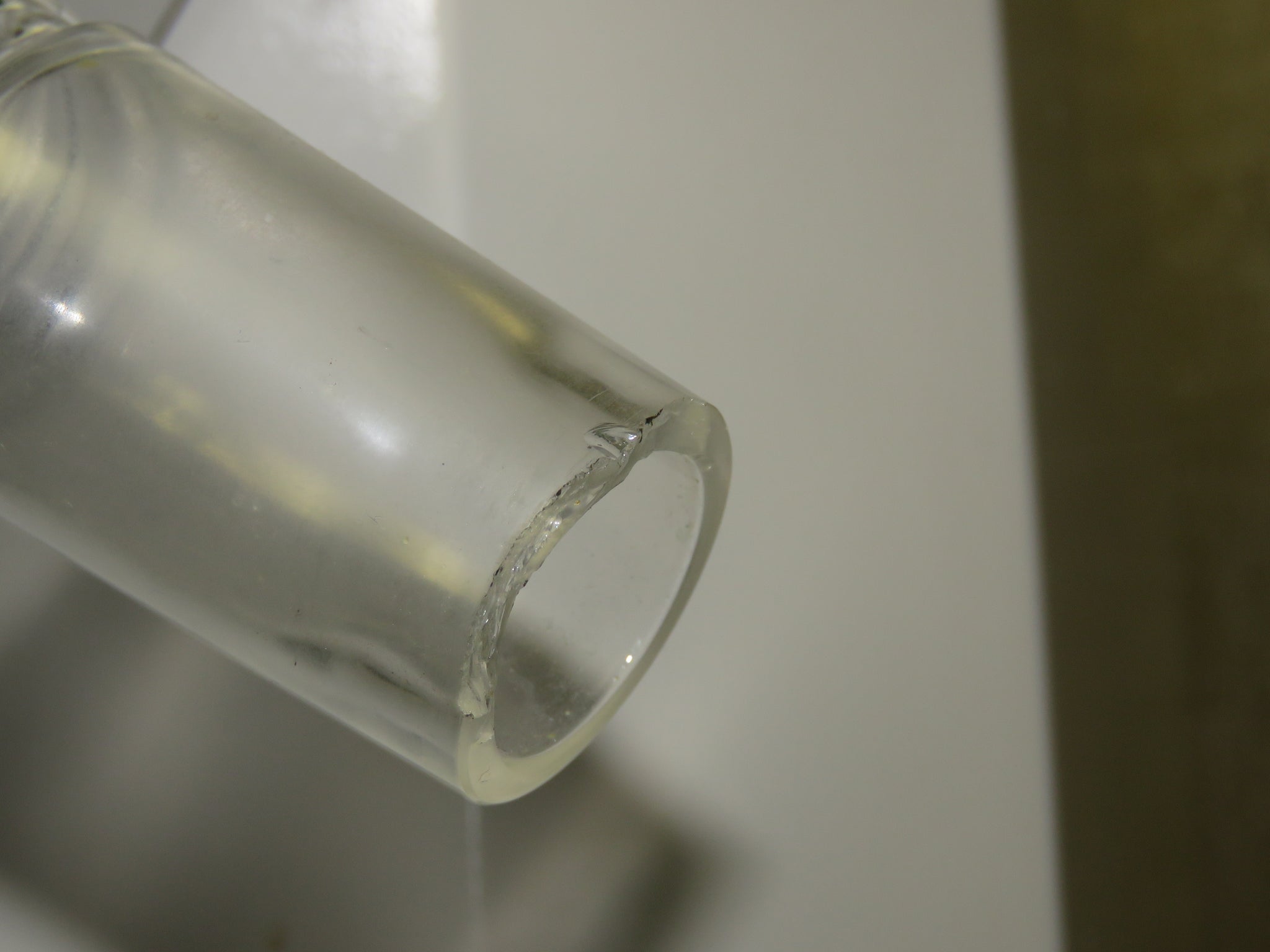

Please note: There are some cosmetic issues -- plastic surrounding the power on switch is missing, but switch works fine. Left plastic ears on the up down elevation switch are not there, but switch functions good. Right side of glass tube has slight chipping on rim.
Includes

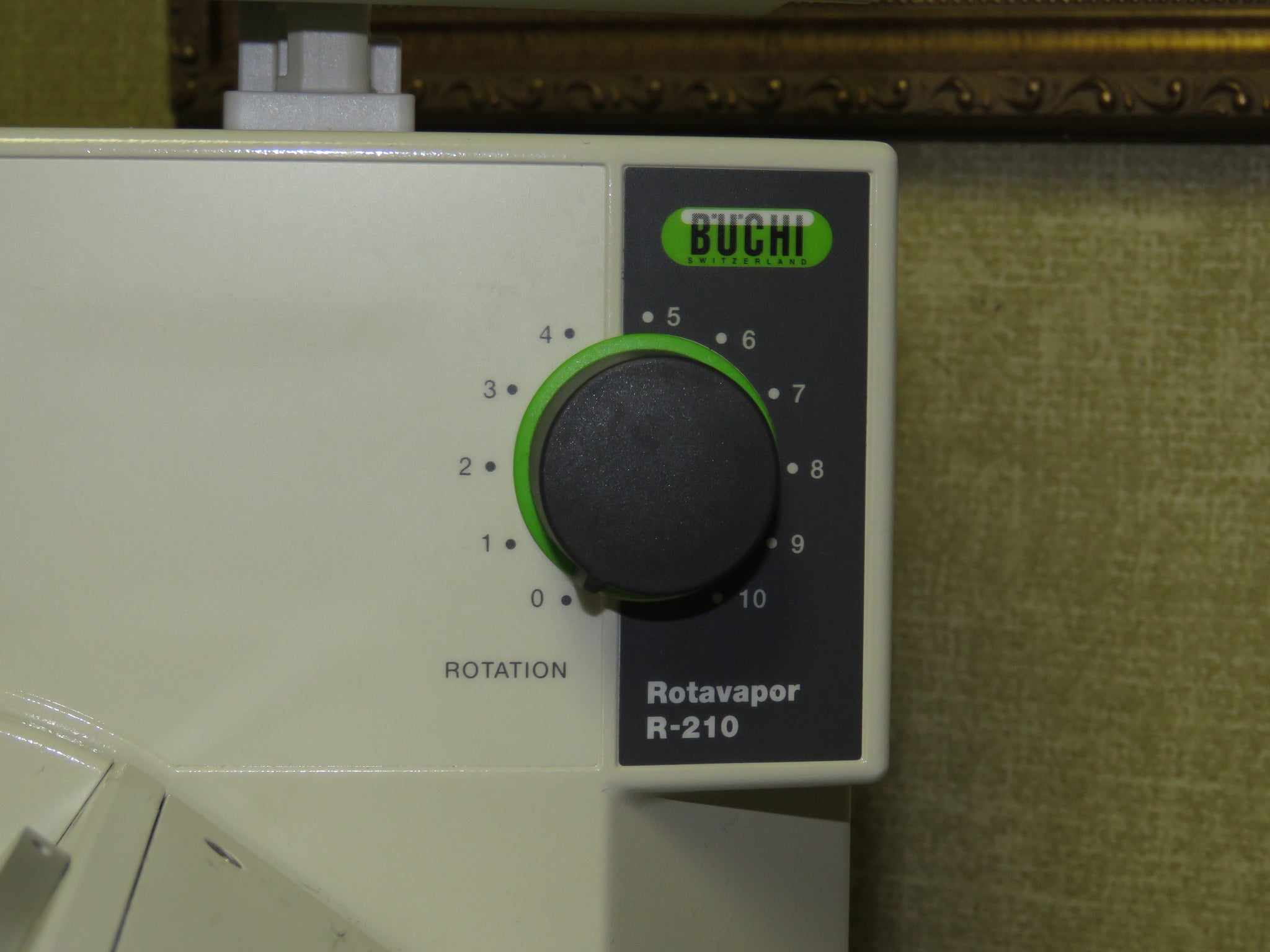

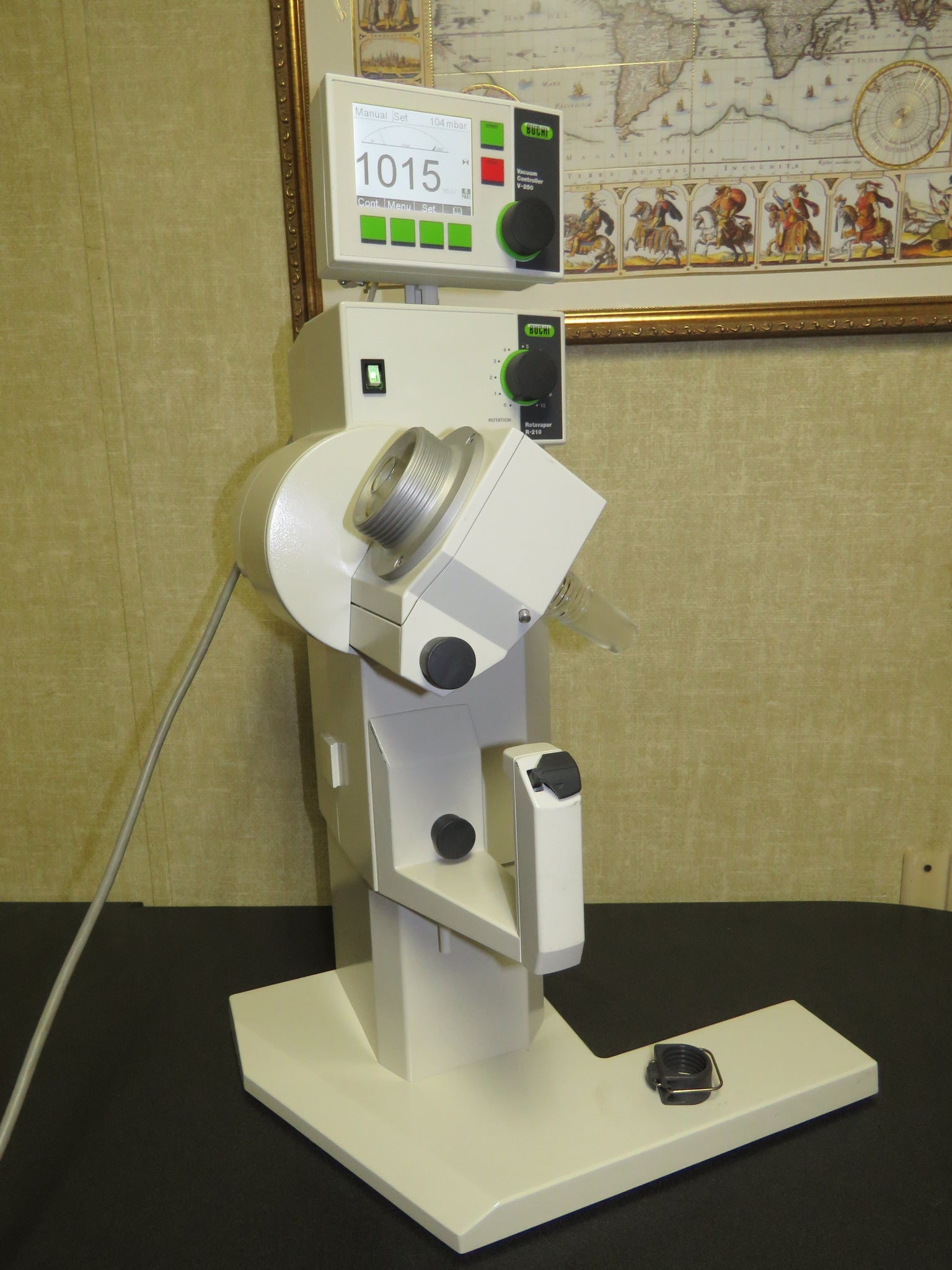

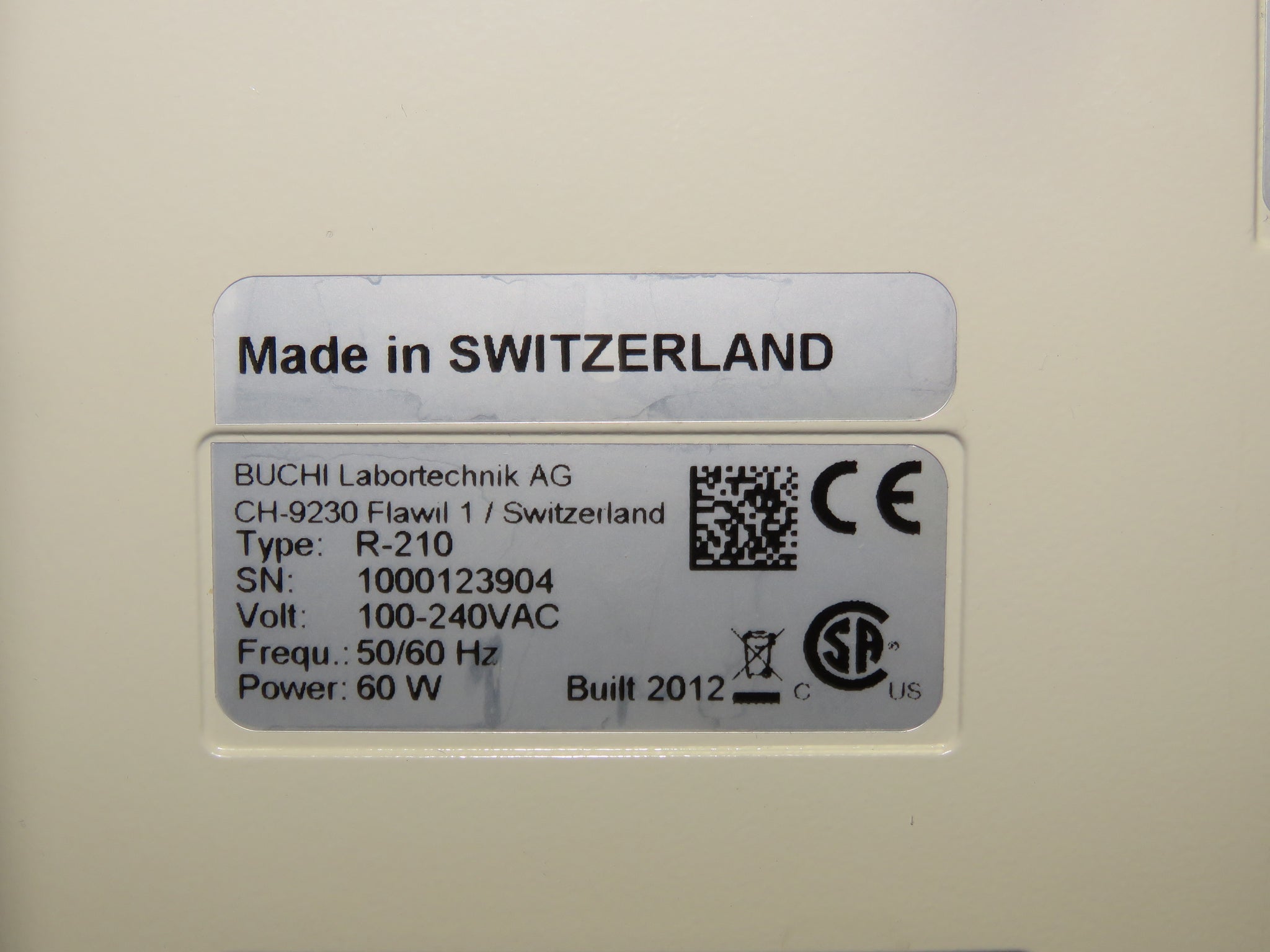

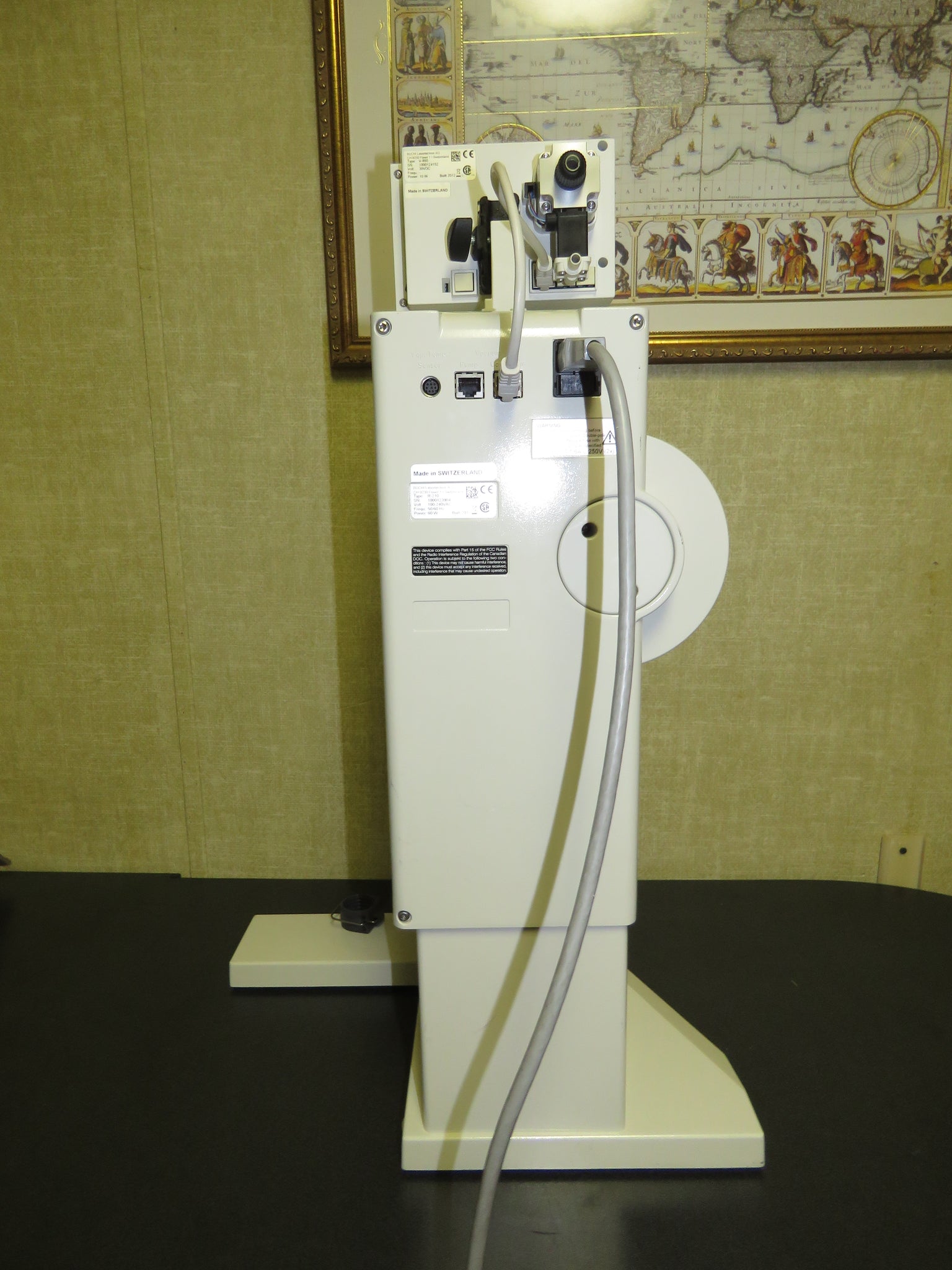

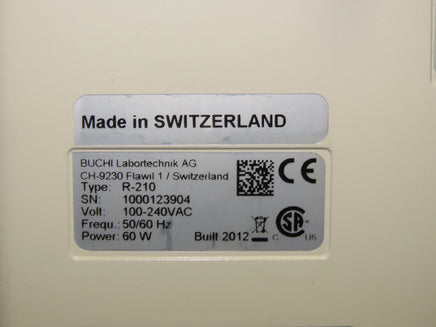

- Buchi R-210 Rotavapor System

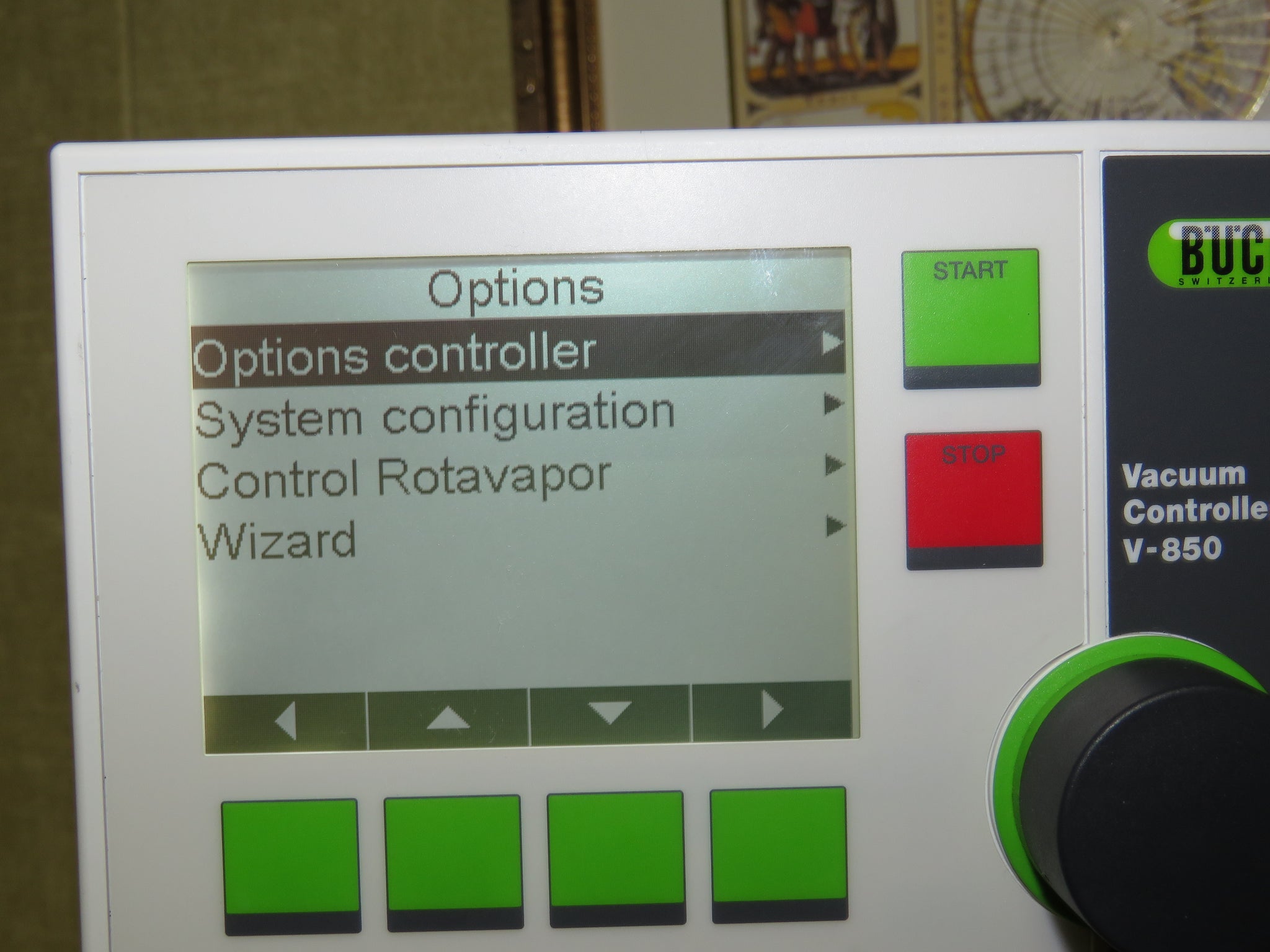

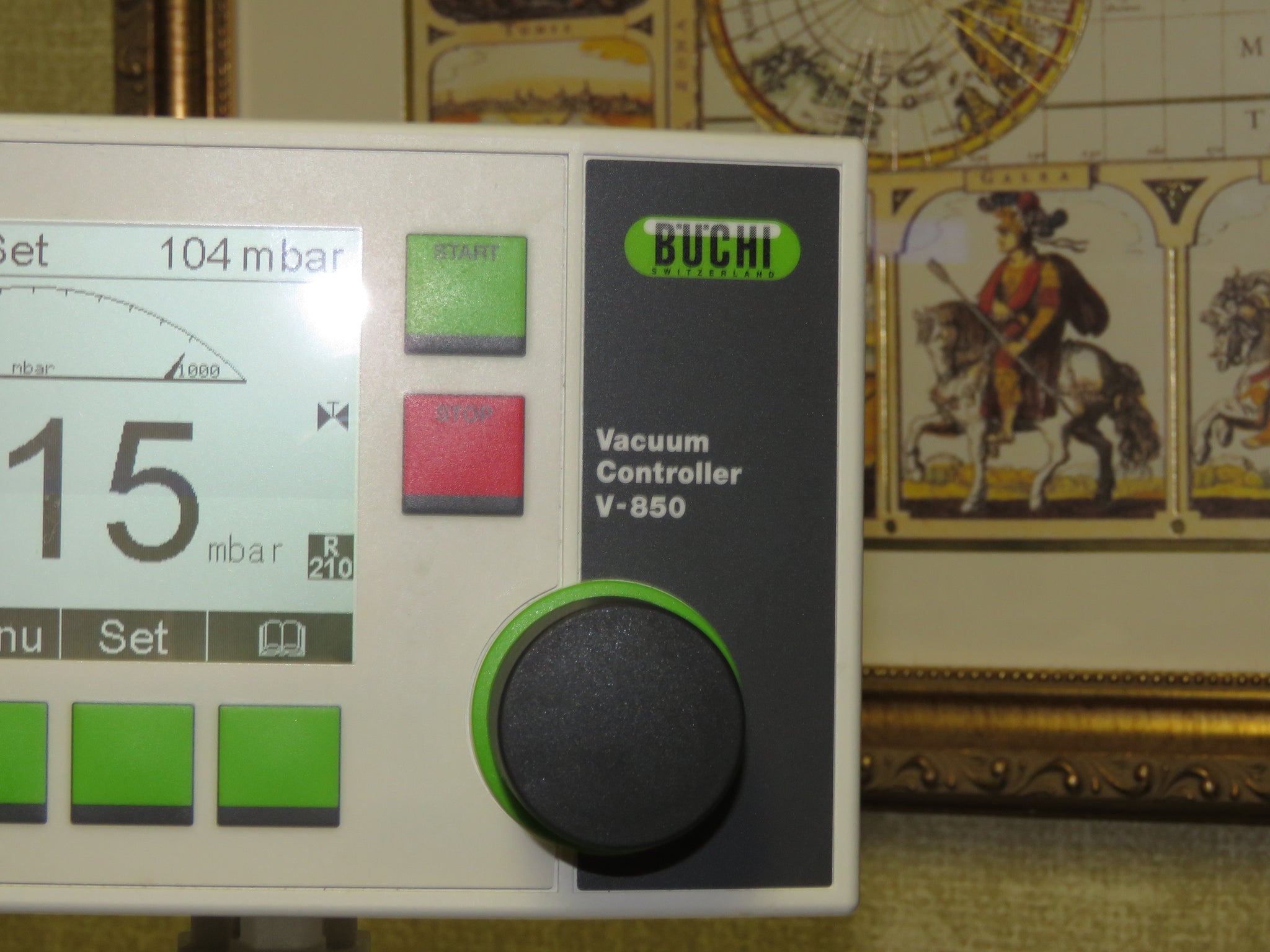

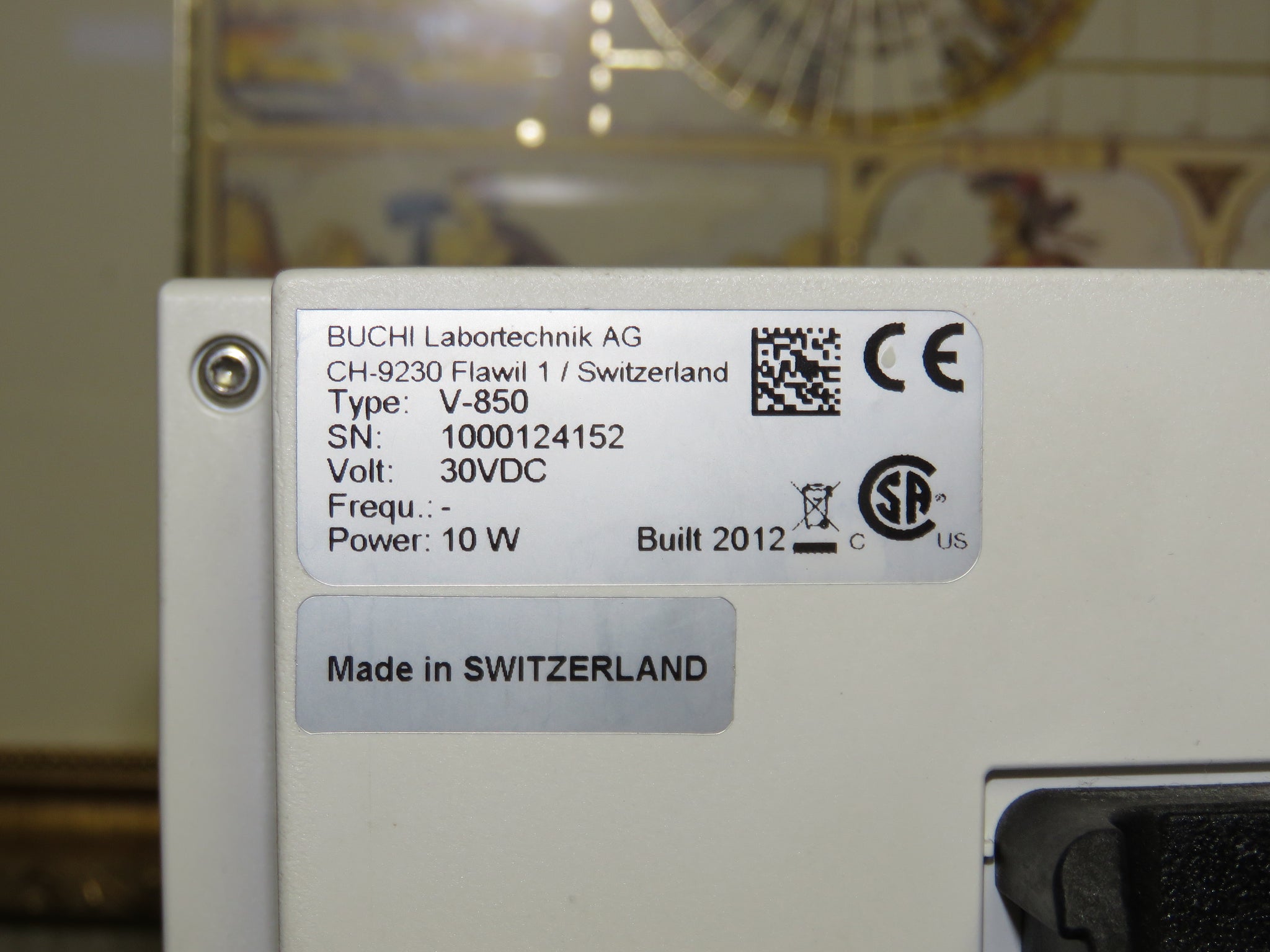

- Buchi V-850 Vacuum controller
- Power cord
EV17
Warranty
30 Day warranty. We pledge to offer the best service and warranty to all of our customers! We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.
Certification
This is a genuine product from this manufacturer.
Disclaimer
The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping of the item."
Regardless of the origin of the equipment, documentation provided or identification appearing upon the equipment, the equipment described and offered here is in no way certified for, recommended for, or offered for any specific use. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. The purchaser, by bidding on this equipment, indicates their acknowledgment of, and agreement to the terms of this disclaimer. it is the purchaser's responsibility to have the item inspected and certified by a qualified professional before use!
