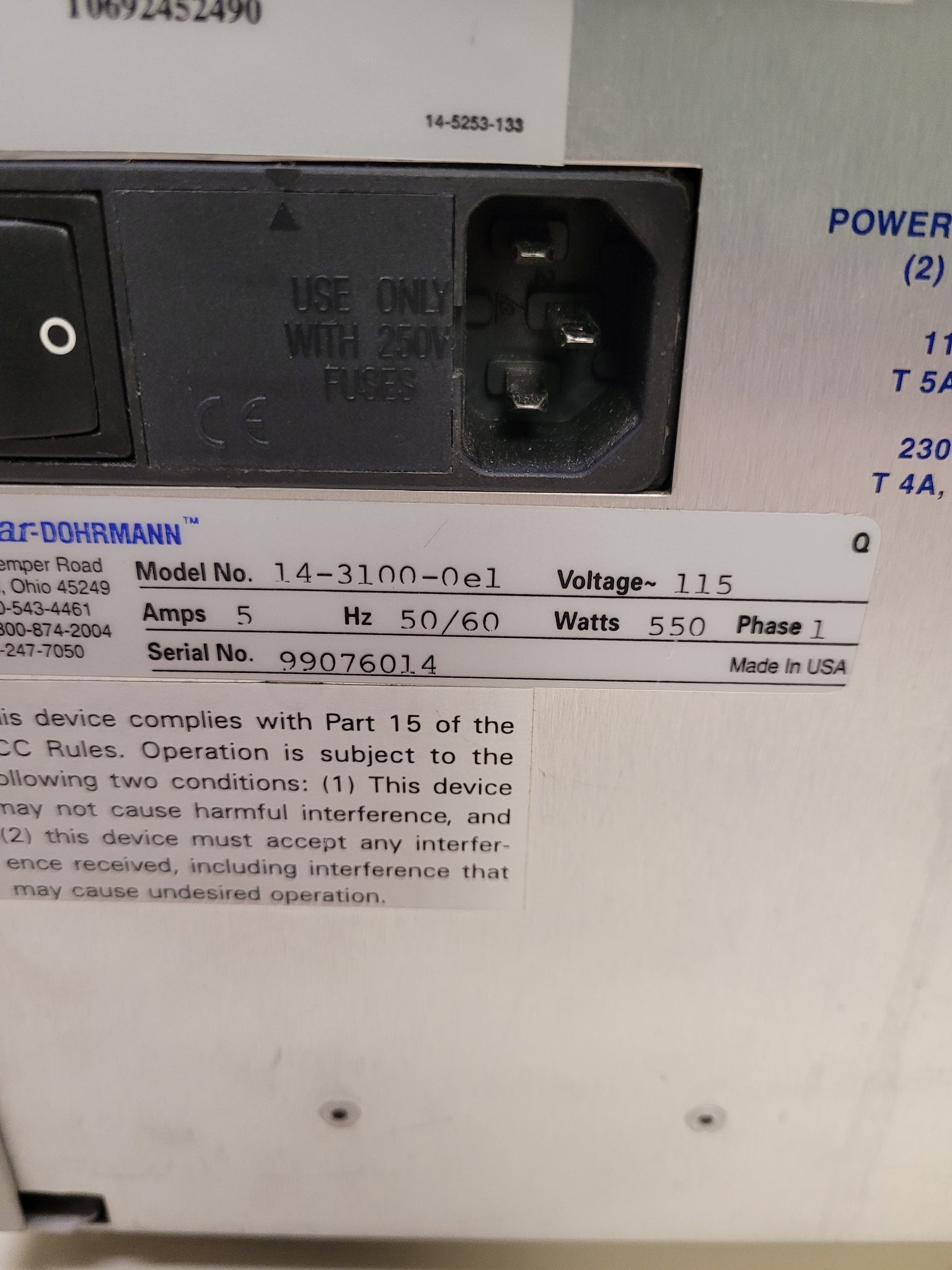

Tekmar Dohrmann 14-3100-0E1 3100 Purge & Trap Concentrator

Tekmar Dohrmann

SKU: Tekmar3000PT

Sorry, this item is out of stock

Web Information

About The Technique

The 3100 Sample Concentrator purges volatiles from a solid or liquid matrix onto a sorbent trap. This trap is then rapidly heated and the analytes swept with GC carrier gas onto the GC column for separation and detection.

Automation and Versatility

The Tekmar 3100 can be interfaced to virtually any GC or GC/MS system. It can be used as a base instrument for controlling a complete selection of automatic samplers to meet the demands of a variety of laboratories. Integrating Into Your Lab Data System Environment Tekmar's TekLink™ software permits total method control of the 3100 through the Windows. It provides an effective and efficient way to transform the instruments in your laboratory into an integrated analytical system.

Trap Pressure Control

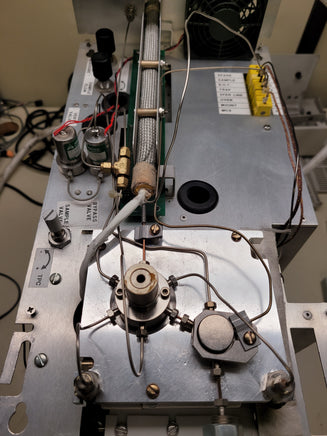

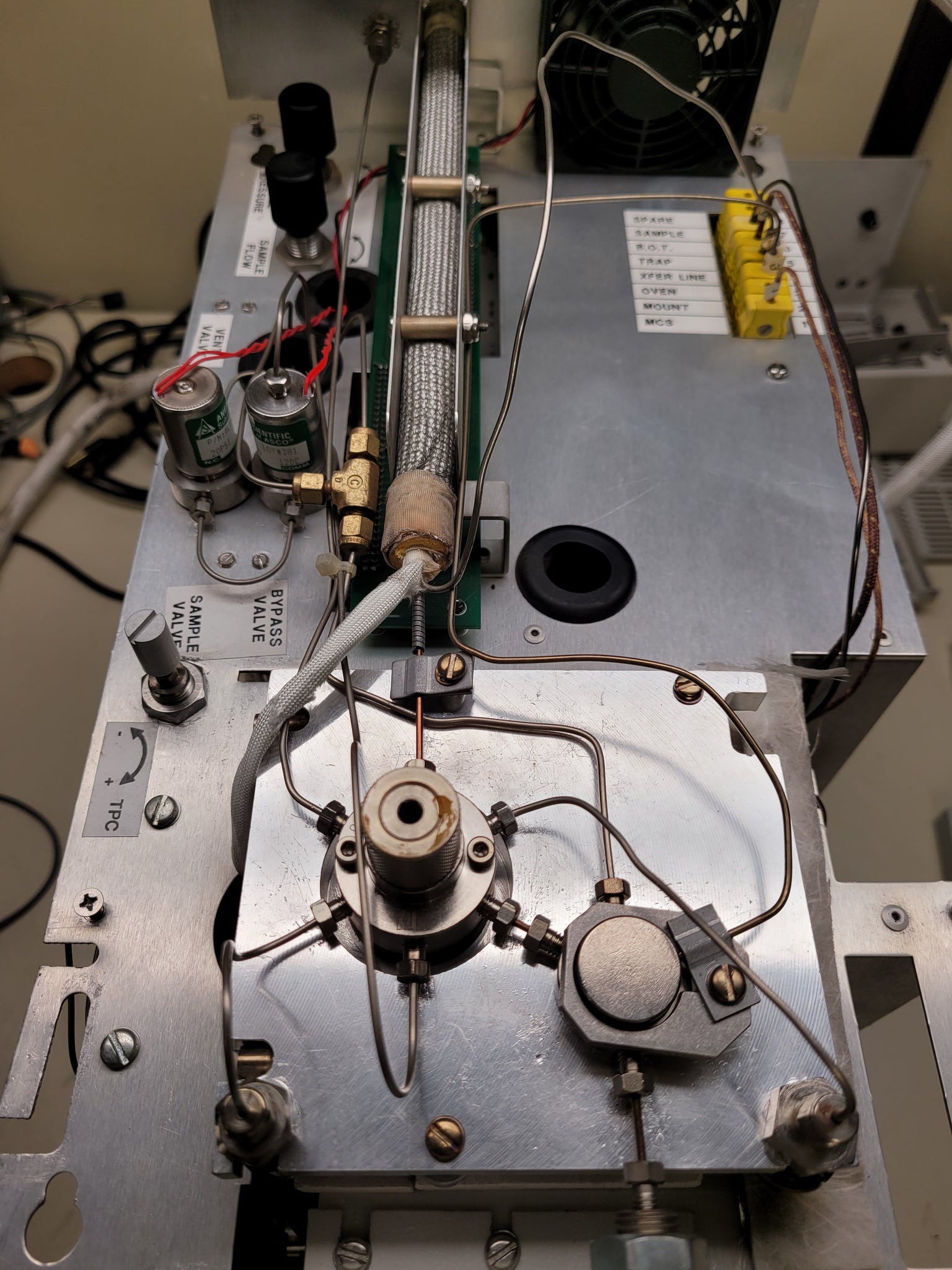

Trap Pressure Control (TPC) exerts an adjustable pressure on the trap during the purge cycle, which results in the light gases condensing more readily on the adsorbent. The analytes do not travel as far into the adsorbent and are adsorbed in a tight band. This smaller band of analytes is transferred to the GC column resulting in sharper peaks. Performance benefits include an improved signal-to-noise ratio, increased sensitivity and outstanding resolution. TPC allows the user to monitor pressures during each mode and to quickly check for obvious leaks in the system.​

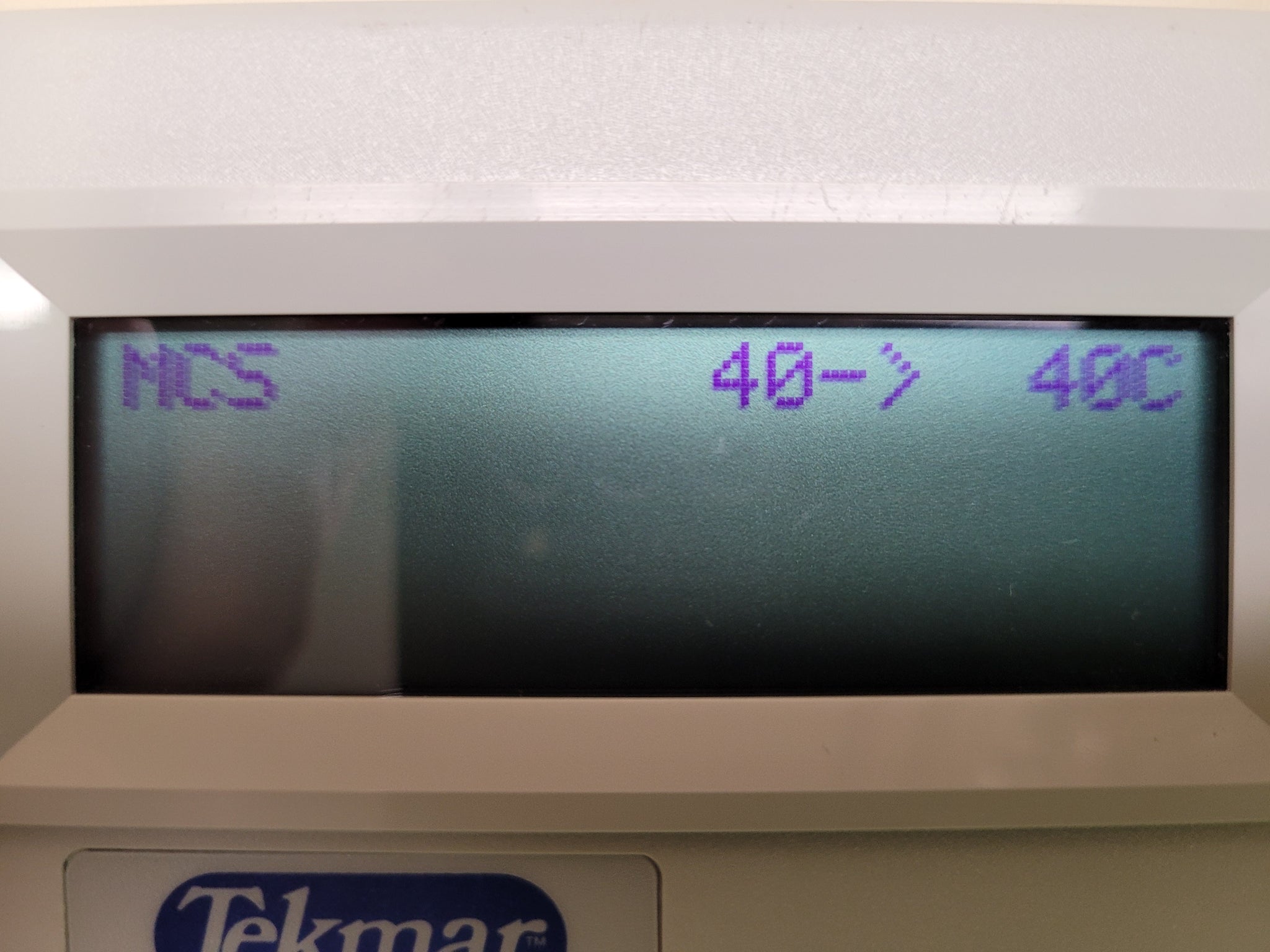

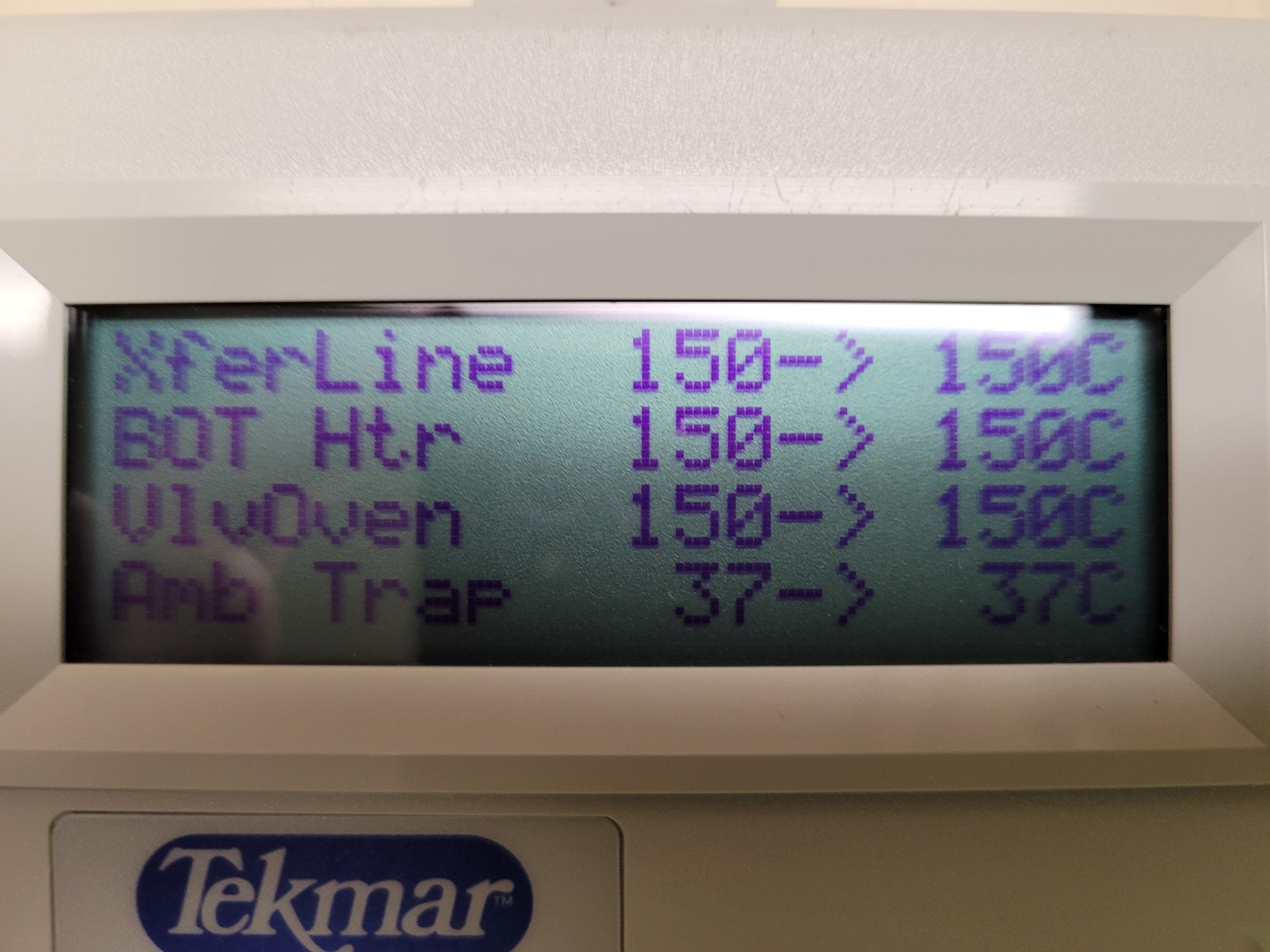

Used. Good functional condition. Zones verified to heat.

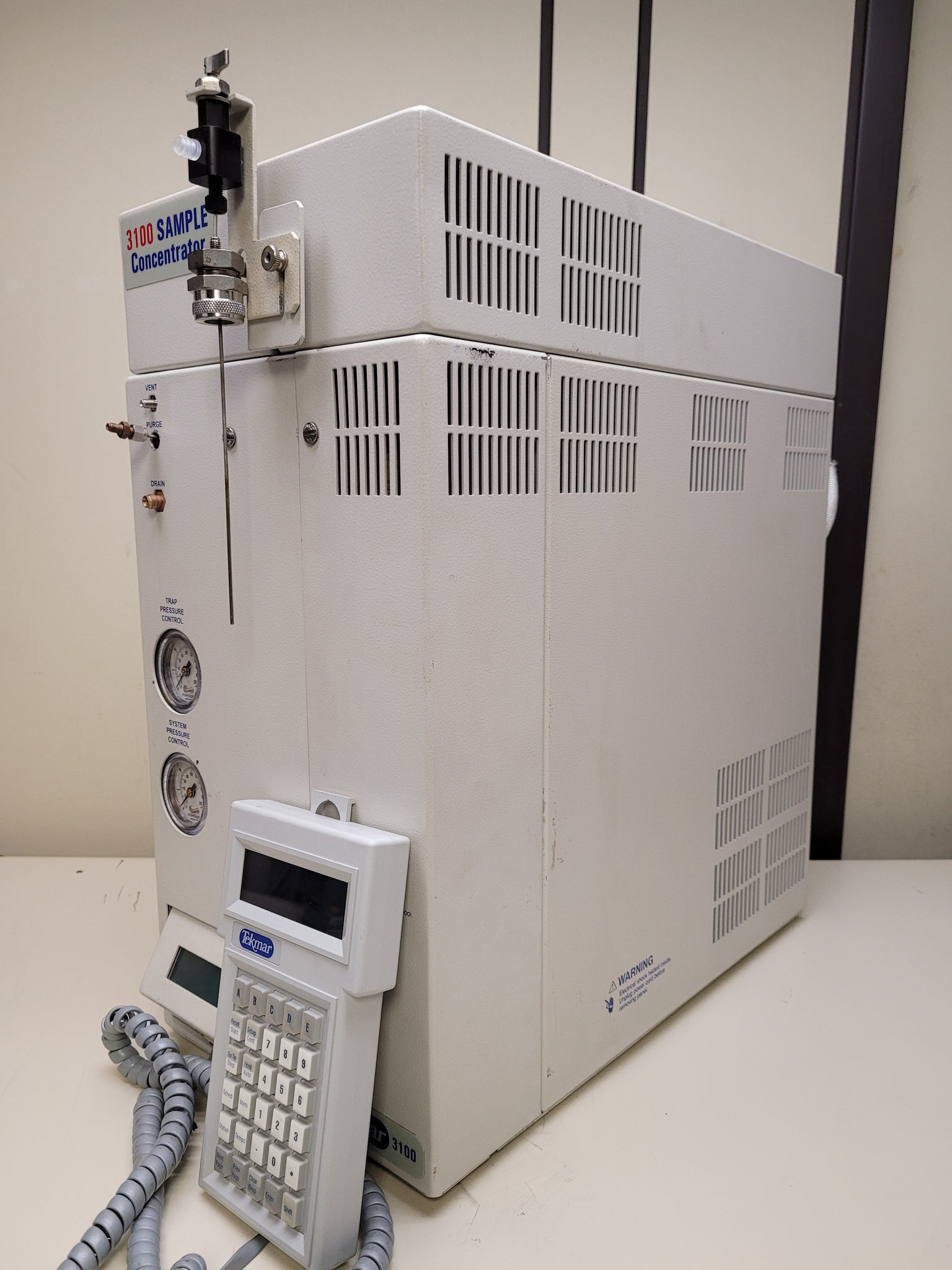

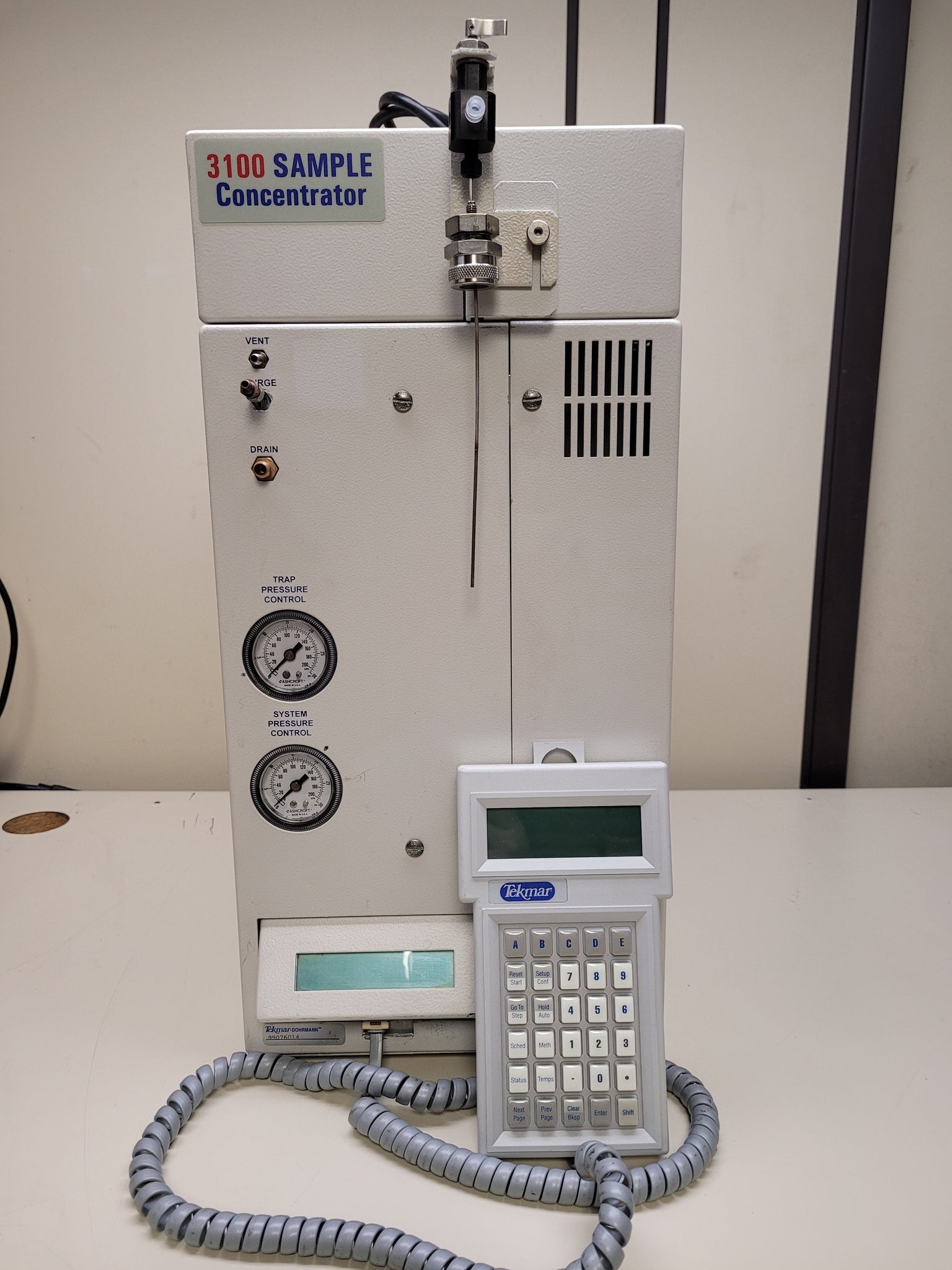

  • Tekmar Dohrmann 3100 Purge & Trap Concentrator

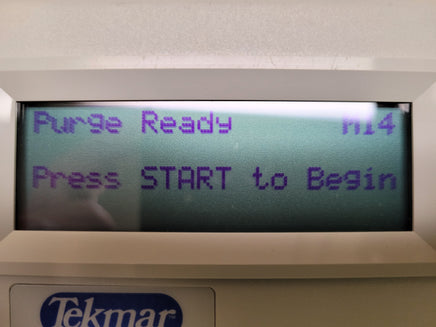

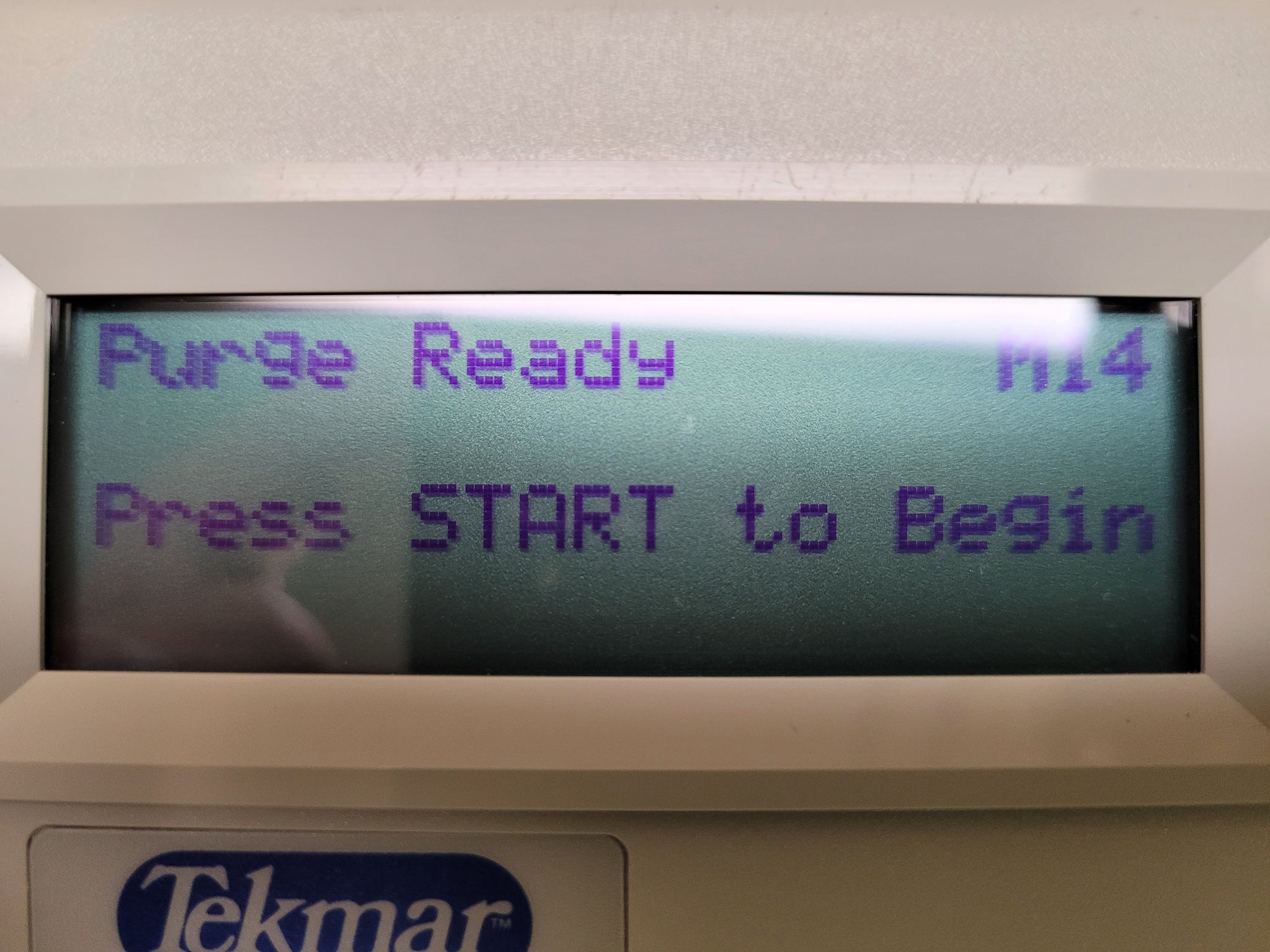

  • Handheld controller

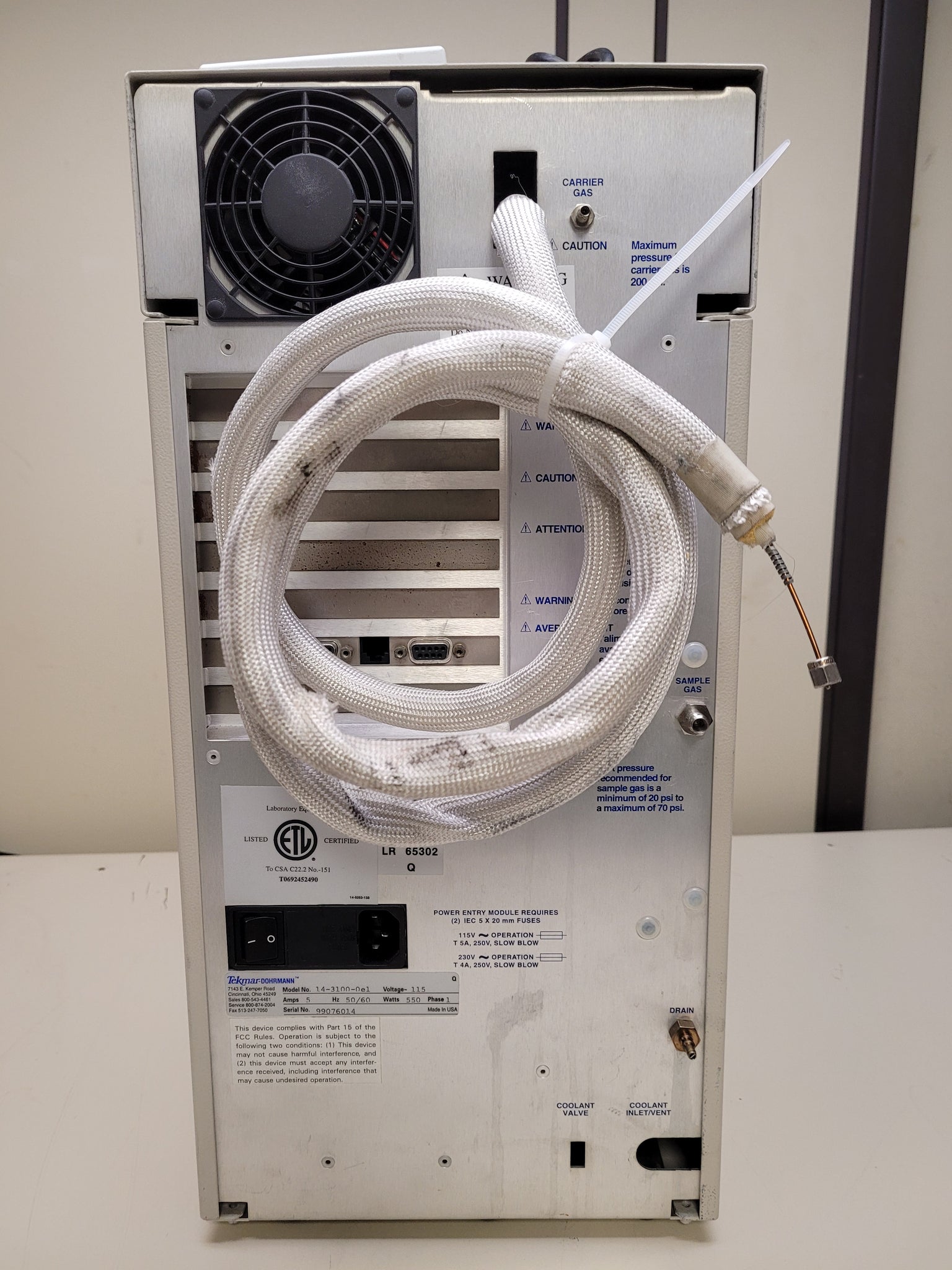

  • Transfer line
  • power cord


30 Day warranty. We pledge to offer the best service and warranty to all of our customers! We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.


This is a genuine product from this manufacturer.


The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping of the item."

Regardless of the origin of the equipment, documentation provided or identification appearing upon the equipment, the equipment described and offered here is in no way certified for, recommended for, or offered for any specific use. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. The purchaser, by bidding on this equipment, indicates their acknowledgment of, and agreement to the terms of this disclaimer. it is the purchaser's responsibility to have the item inspected and certified by a qualified professional before use!
