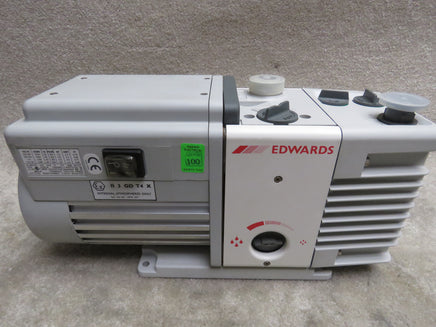

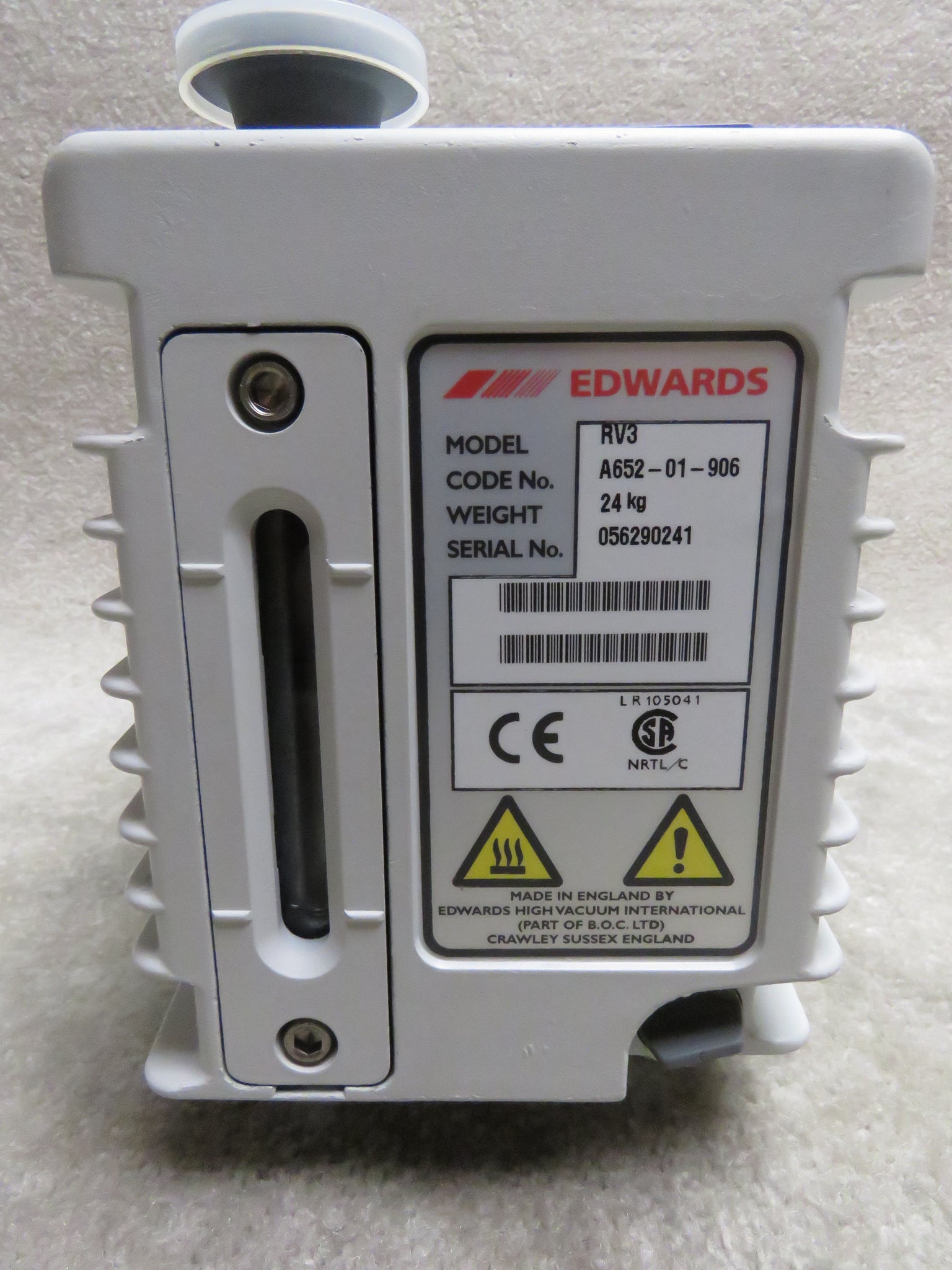

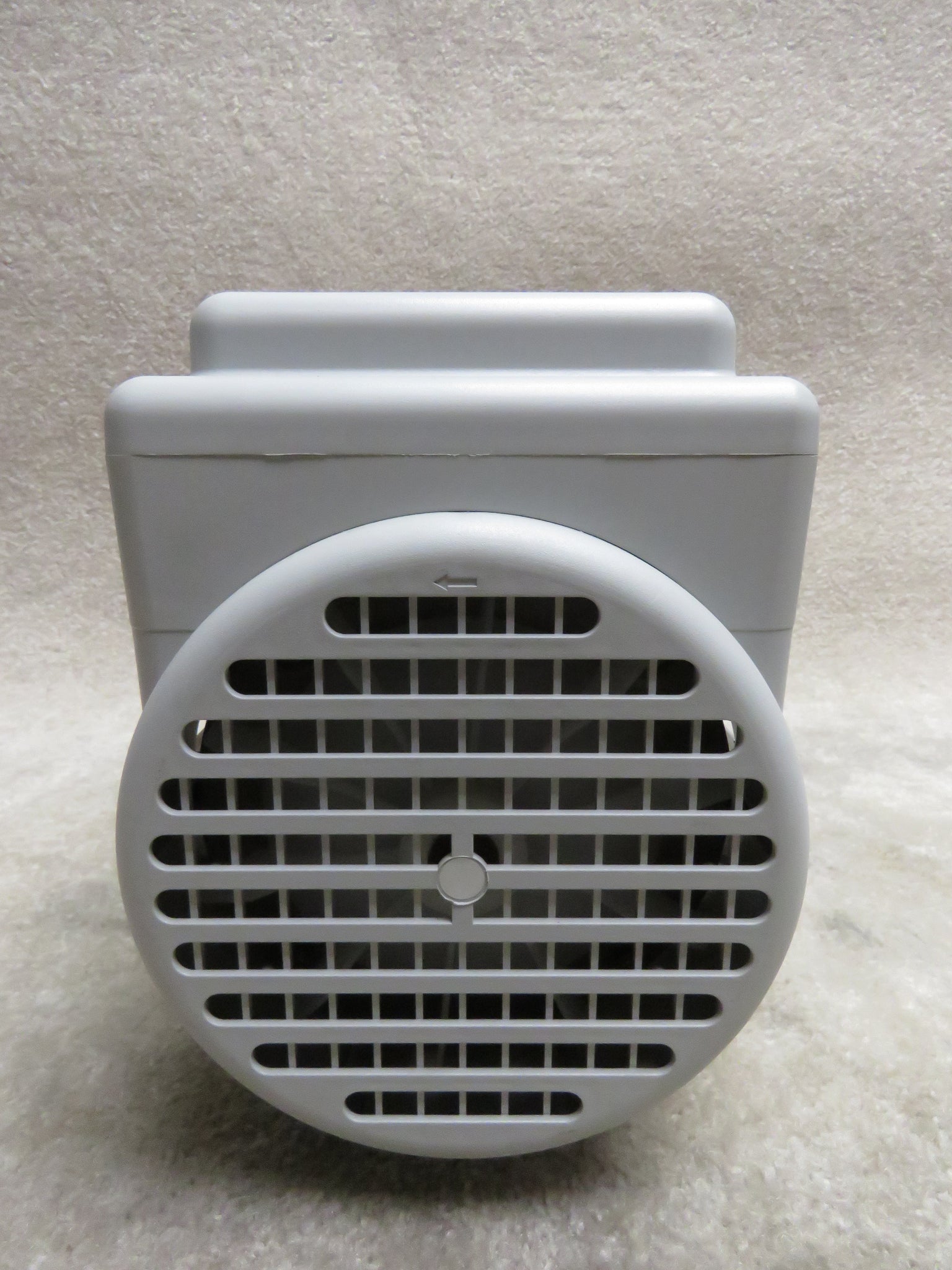

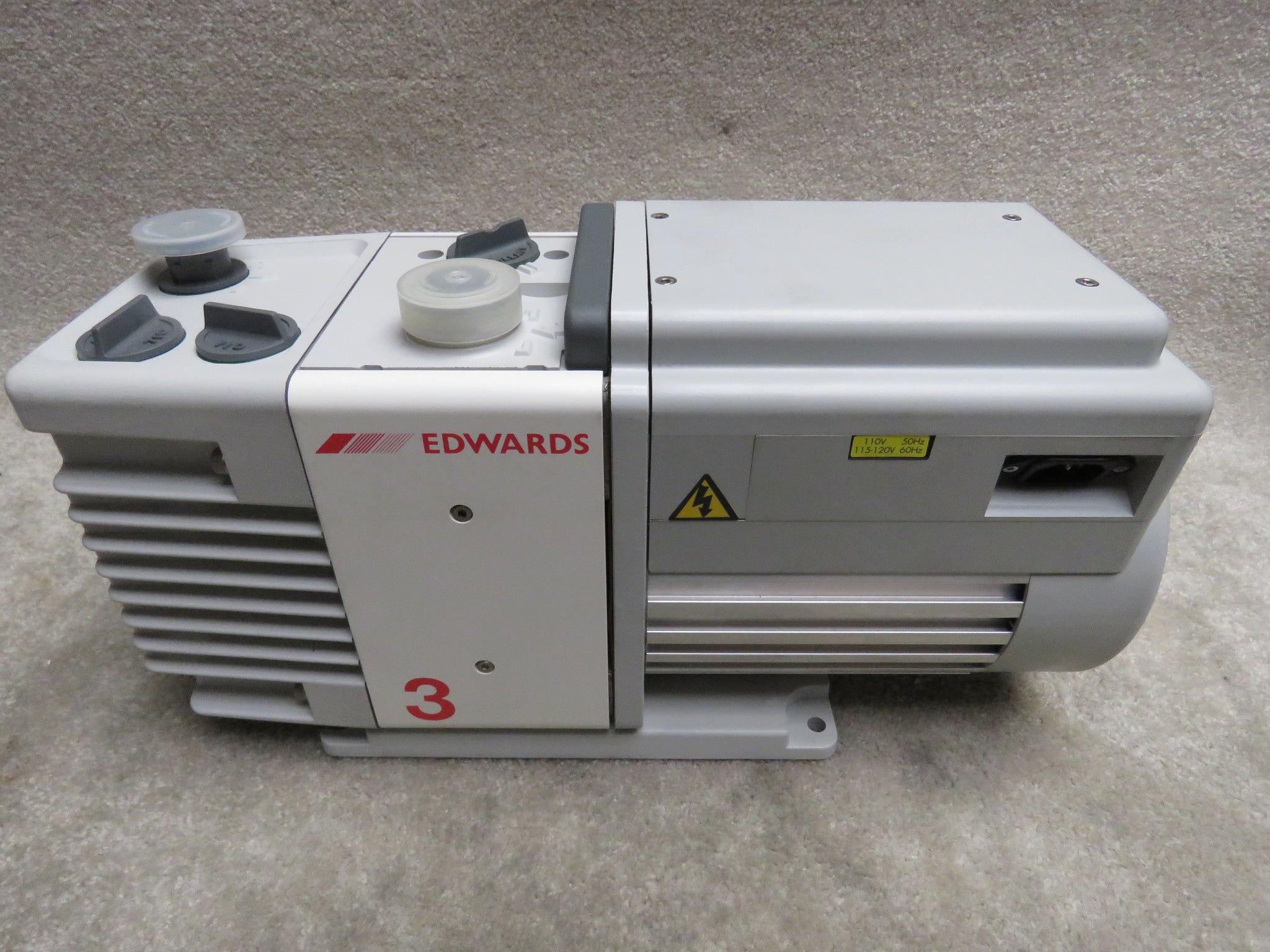

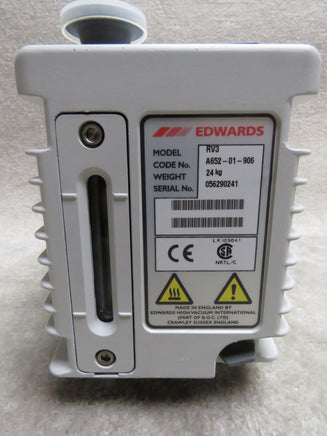

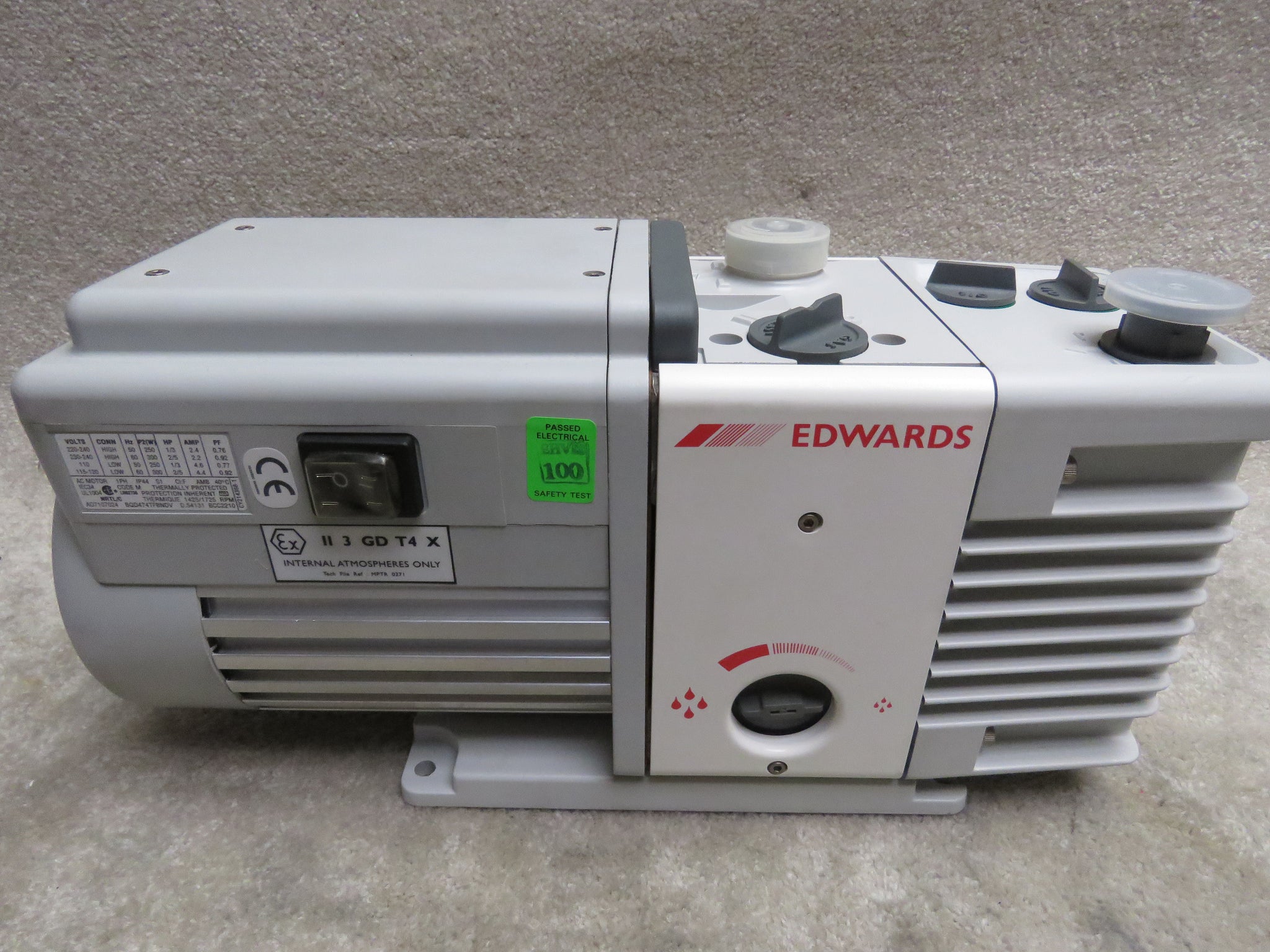

Edwards 3 RV3, A652-01-906 Vacuum Pump, 115 VAC, new old stock

Edwards Agilent

SKU: Edwards15

Sorry, this item is out of stock

Web Information

The Edwards RV3 dual-stage rotary vane mechanical vacuum pump offers a peak pumping speed of 2.6 cfm at 60 hz and an ultimate pressure of 1.5x10-3 Torr (2x10-3 mbar). The Edwards RV3 has a max vapor inlet pressure of 60 torr and a max water vapor capacity of 220 grams per hour. With a relatively light weight of only 47 pounds and a dimensions of 16.9 inches long by 6.2 inches wide and 8.9 inches tall the Edwards RV3 is both lightweight and transportable. This vacuum pump uses Ultragrade 19 for an oil type and has an oil capacity of 0.70 liters. The RV3 is capable of working in temperatures ranging from as low as 12 degrees Celsius to 40 degrees Celsius, and runs at a very quiet noise level of only 48 dB(A).


Peak Pumping Speed

2.6 cfm at 60 Hz

Ultimate Pressure

1.5x10-3 Torr (2x10-3 mbar)

Max water vapor inlet pressure

60 torr (80 mbar)

Max water vapor capacity II

220 grams/ hr


47 pounds

Noise Level 48 dB(A)


16.9 L x 6.2 W x 8.9 H in

Electrical Supply

1 Ph, 100-120/200-230 VAC 50/60 Hz

Operating temperature range

12-40 Celsius

Oil Capacity

0.70 Liters

Oil Type

Ultragrade 19

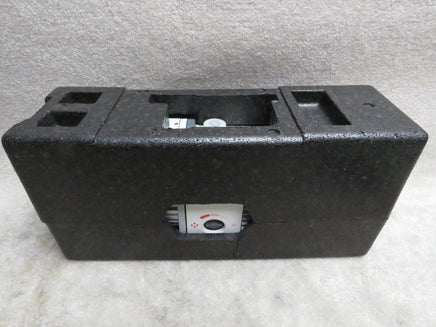

New old stock. Surplus item from decommissioned lab. Never used.


  • (1) Edwards 3 RV3, Vacuum Pump, 115 VAC

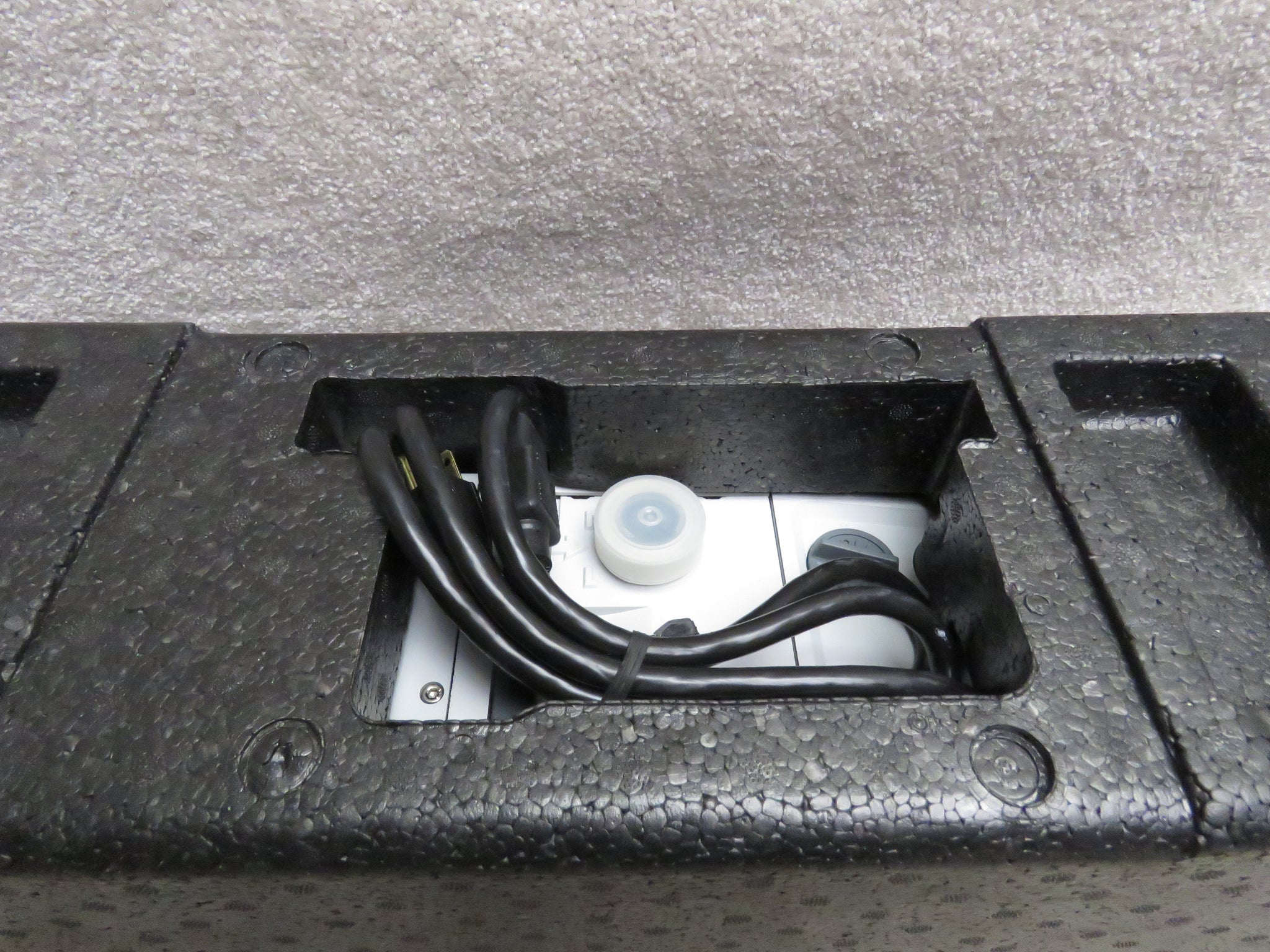

  • Power cable


      30 Day warranty. We pledge to offer the best service and warranty to all of our customers!  We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.


      This is a genuine product from this manufacturer.
