Edwards RV8 6.9 CFM Dual-Stage Vacuum Pump with Bellow 120 Volt

Web Information

Overview

Edwards RV pumps have become the industry standard for scientific primary pumping applications. RV pumps are uniquely capable of delivering high or low throughputs with high ultimate vacuum. This, combined with ultra-low noise levels, makes them ideal for a wide range of applications including GCMS and other small bench top type applications.

All pumps are approved to UL standards by an external test house. Edwards has a global network, providing world-wide support for product applications and service.

Supplied with: 1 litre of Ultragrade 19 oil, inlet filter and O-ring. Fomblin must be purchased separately for PFPE RV pumps.

Technology

All our RV pumps are significantly quieter noise levels of 48 dBA 50Hz are typically half the noise of a conventional pump and have been achieved by extensive work on the drive train and motor.

The pumps have the unique ability to deliver excellent ultimate vacuum in both high vacuum and high throughput modes with or without gas ballast. This gives the user an unrivalled opportunity to select the optimum pumping performance without compromising the application.

In its high vacuum mode, the RV pump is ideal for analytical instruments, electron microscopes, physics research, backing turbo pumps, TV tube pumping and leak detection applications. Configure the same pump in the high throughput mode, and it becomes suitable for mass spectrometer inlet systems, distillation, laboratory furnaces, backing vapor pumps, solvent concentration, freeze drying and other drying applications.

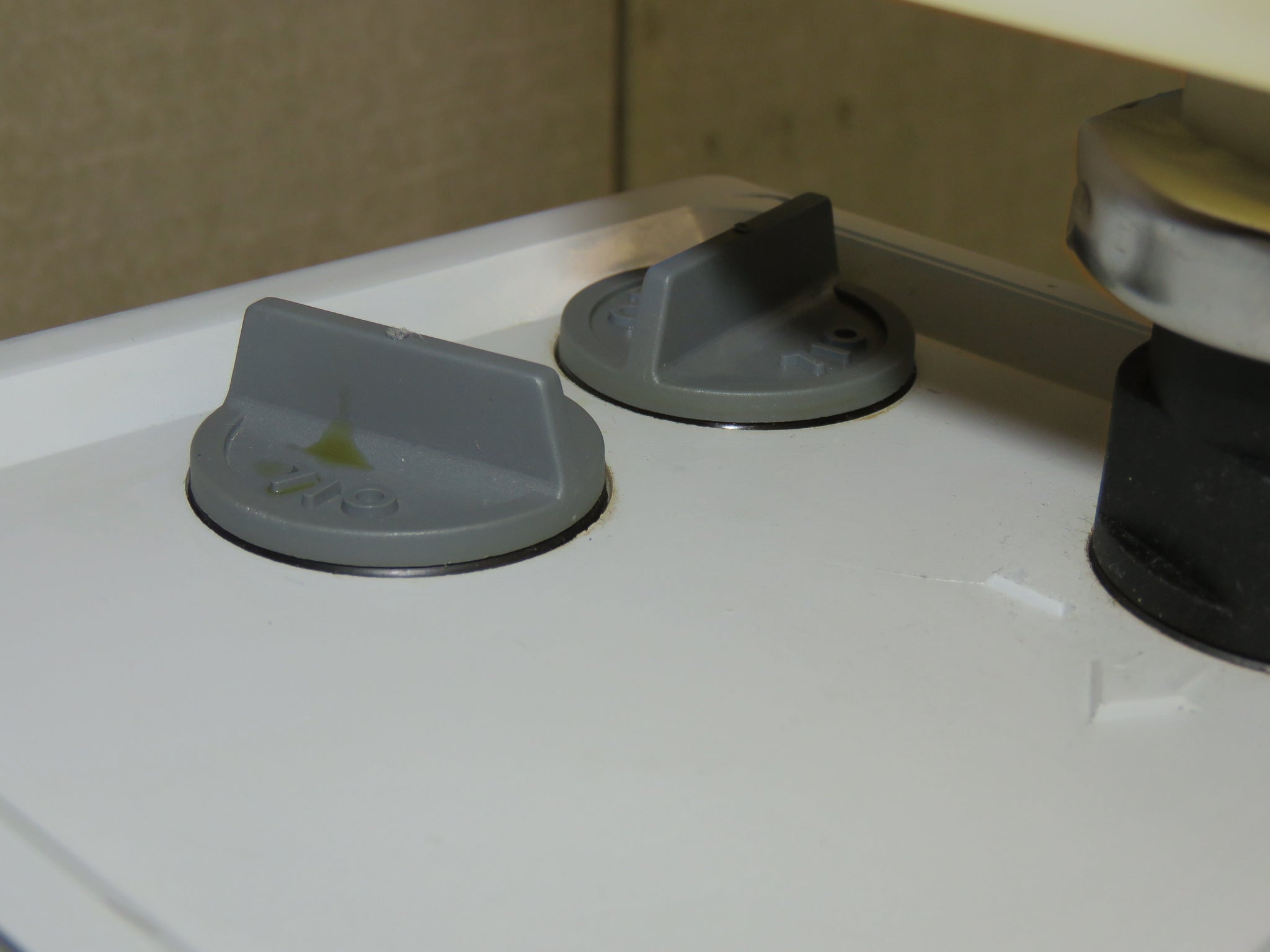

The simple to use mode selector and accessible, three-position gas ballast control allow the pump to be reconfigured at any time, even when the pump is running.

Applications

• Analytical instruments
• Centrifuges, ultra-high speed
• Coating
• Degassing/curing - oil, epoxy resin
• Distillation/extraction/filtration
• Freeze drying
• Furnaces
• Gas bottle filling/emptying
• Gel drying
• Glove boxes, ovens
• Laboratory bench top vacuum
• Leak detectors, Helium
• Load locks and transfer chambers
• Refrigeration manufacture
• Research and development
• Rotary, centirfugal evaporators
• Scanning electron microscopes - SEM
• SEM/FIB (ion beam repair)
• Solvent recovery
• Surface science instruments
• Turbomolecuar backing pumps

Features and Benefits

• 48 dB(A) and intrusive frequencies minimised.
• Dual mode. Suitable for high throughput and high vacuum applications.
• Easy-to-use gas ballast.
• Fast acting inlet valve for system protection.

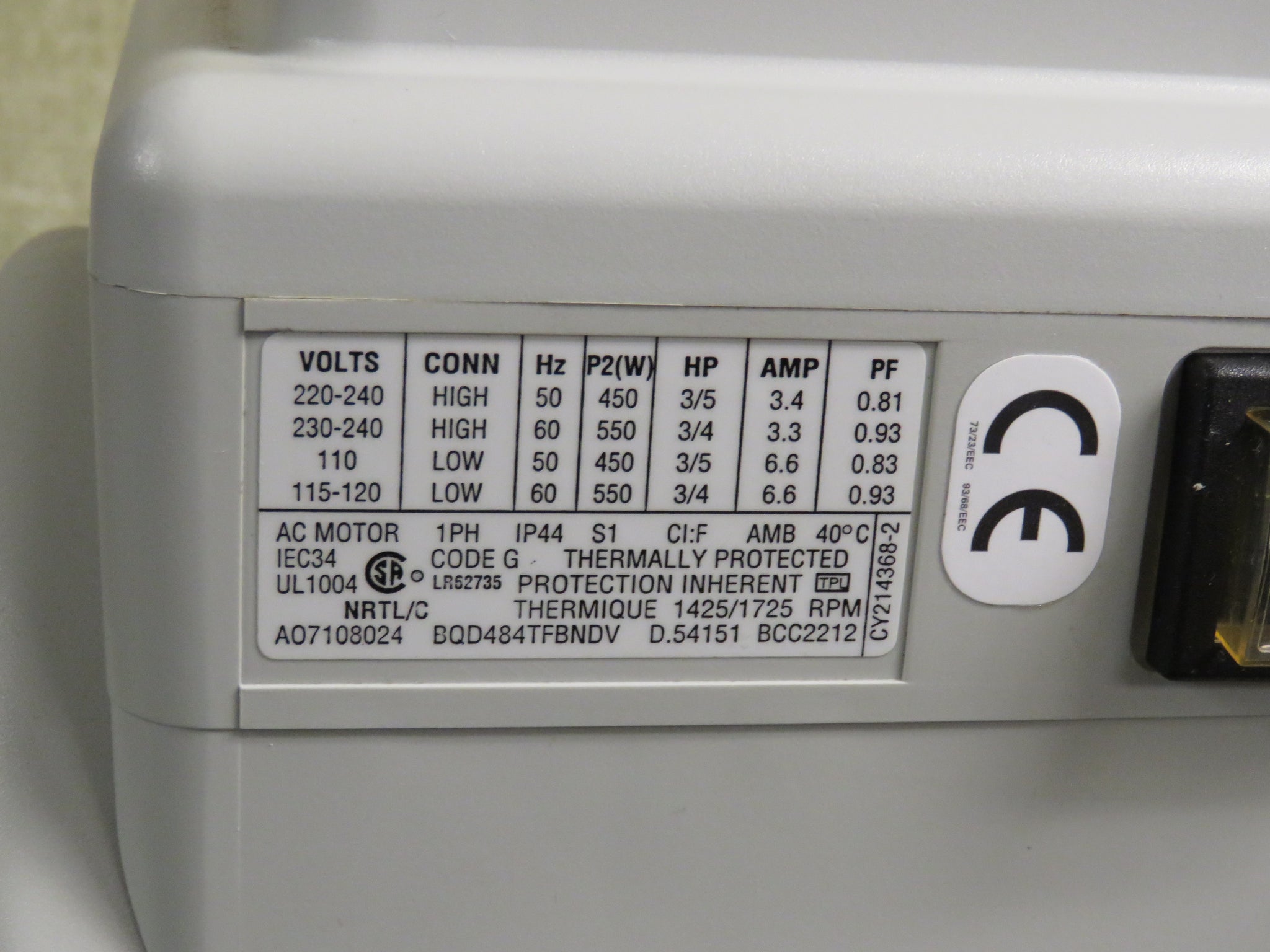

• High torque, dual voltage/dual frequency motor, electronic start relay.
• Efficient high pressure lubrication.
• Oil-tight with printed gaskets, effective shaft seals.
• Clamped-in sight glass.
• Oil box well contains filling spills.
• Hi-tech polymer blades, large diameter, easy-clean oil passages.
• Consistent, built-in quality, cast bar construction.
• One year warranty, as well as technical support from Edwards

Specifications

Condition

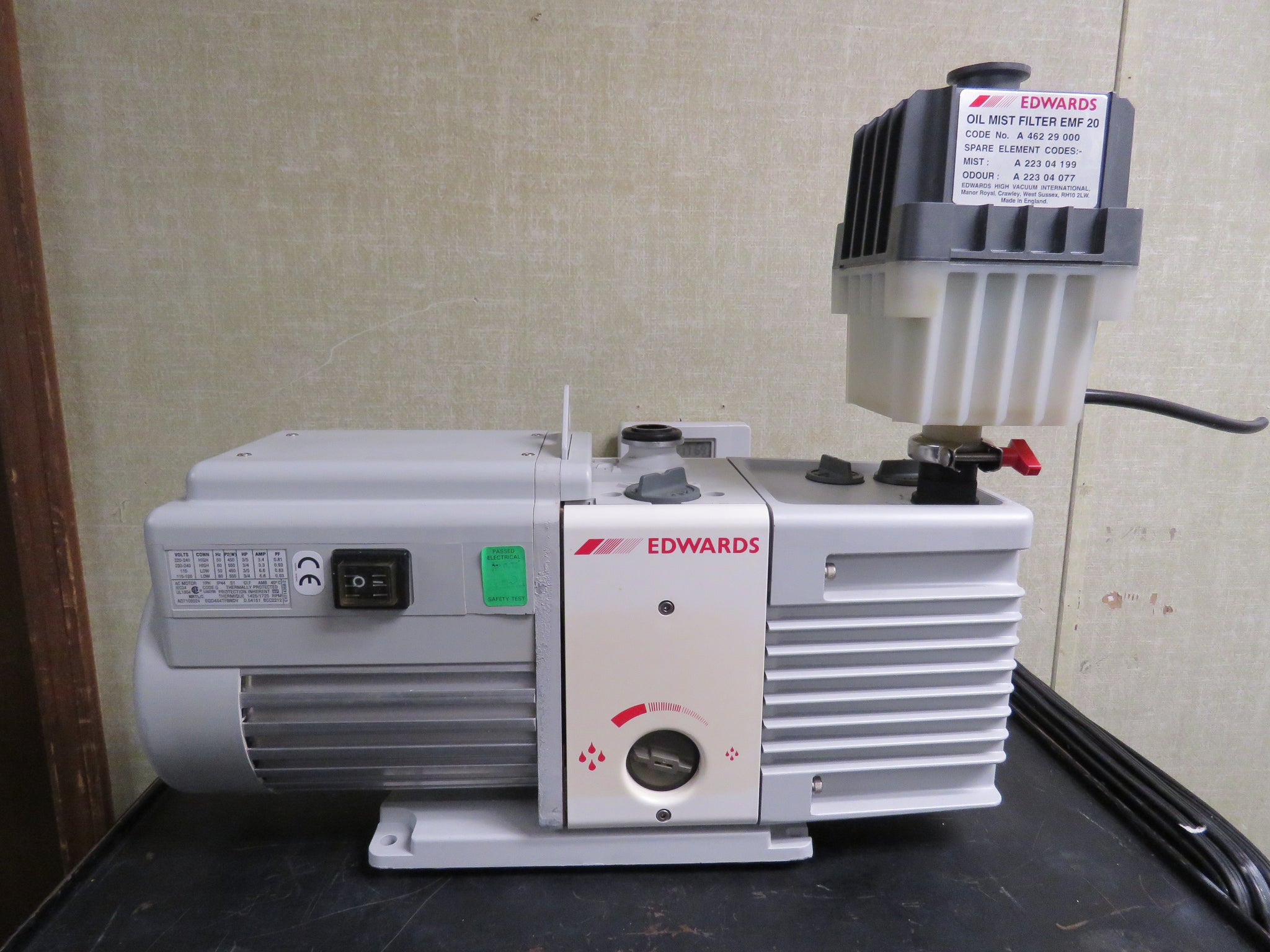

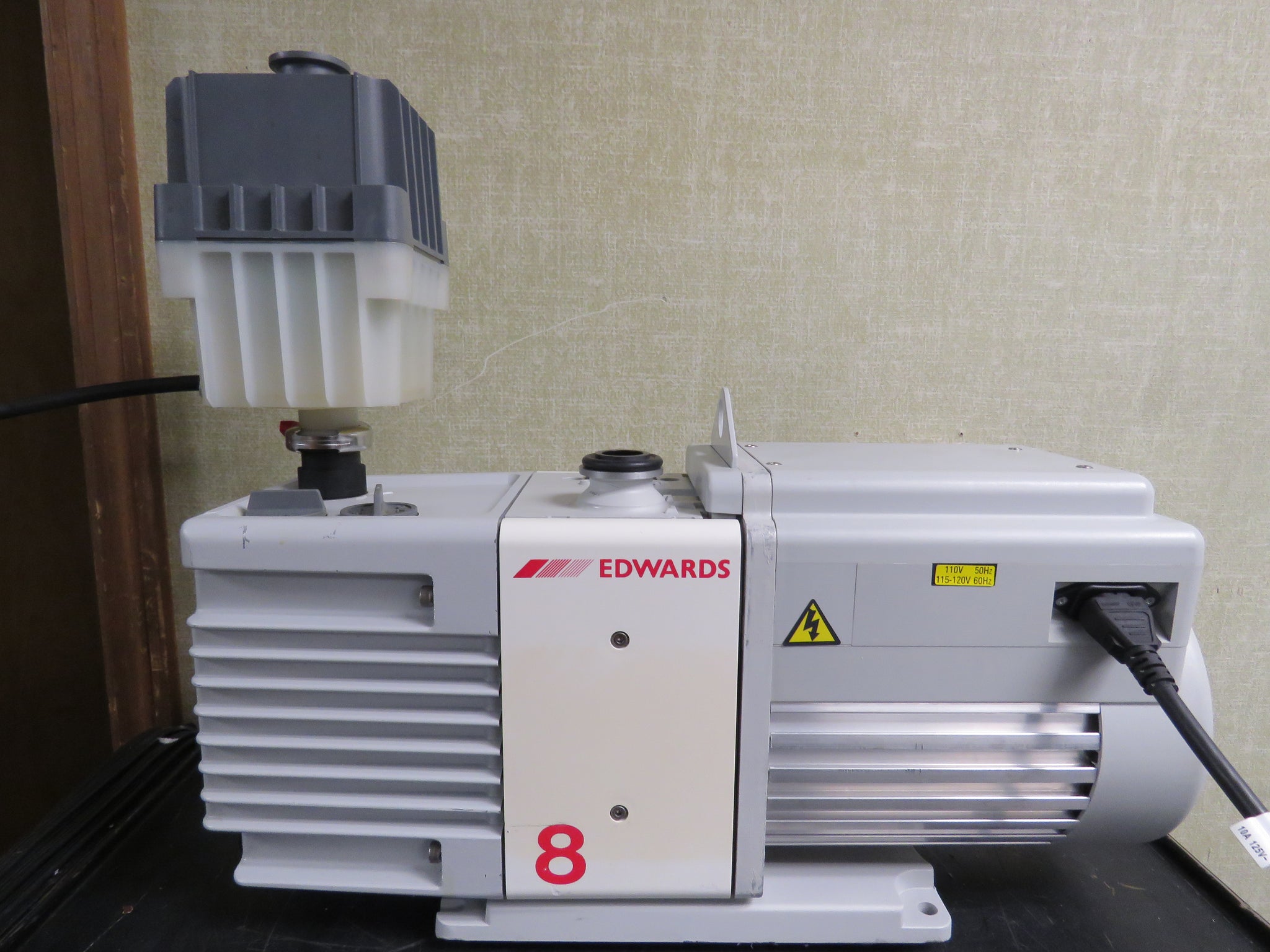

Used. Item removed from a working environment and is functional.  Please note:  The oil mist filter shown in the photos and video is not included.  This was used for testing the unit for operation.

Watch a video of this pump in operation below:

ExpressLabWerks.com Edwards RV8 6.9 CFM Dual-Stage Vacuum Pump with Bellow 120 Volt

Video will open in a new window
Using the eBay App? Paste link into a browser window:

[isdntekvideo]

Includes

• Edwards RV8 6.9 CFM Dual-Stage Vacuum Pump with Bellow 120 Volt

• Power cable

EV16

Warranty

30 Day warranty. We pledge to offer the best service and warranty to all of our customers!  We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.

Certification

This is a genuine product from this manufacturer.

Disclaimer

The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping of the item."

Regardless of the origin of the equipment, documentation provided or identification appearing upon the equipment, the equipment described and offered here is in no way certified for, recommended for, or offered for any specific use. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. The purchaser, by bidding on this equipment, indicates their acknowledgment of, and agreement to the terms of this disclaimer. it is the purchaser's responsibility to have the item inspected and certified by a qualified professional before use!
