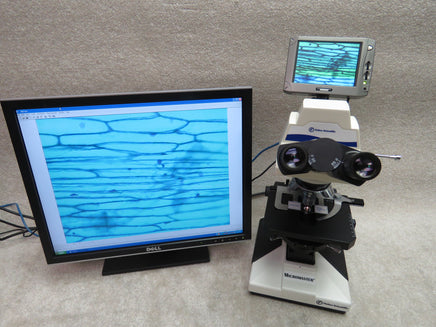

Fisher Scientific Micromaster 12-563-31 microscope, 4 objectives, digital imaging, LCD viewer

Fisher Scientific

SKU: FSMM1256331D

Web Information

Supplied with planachromatic objectives, Koehler illumination, and a reversed nosepiece, Fisher Micromaster I Series brightfield microscopes provide professional quality optics at affordable prices.

Eyepieces: 10X wide-field, DIN standard. Binocular and trinocular models equipped with two eyepieces.

Head: Available in monocular, binocular and trinocular configurations. Heads interchangeable and rotatable 360° with a 30° inclination. Binocular and trinocular heads adjustable for interpupillary distance and dioptric differences. Interpupillary adjustment range, 55 to 75mm. Adapters available for photomicroscopy or videomicroscopy.

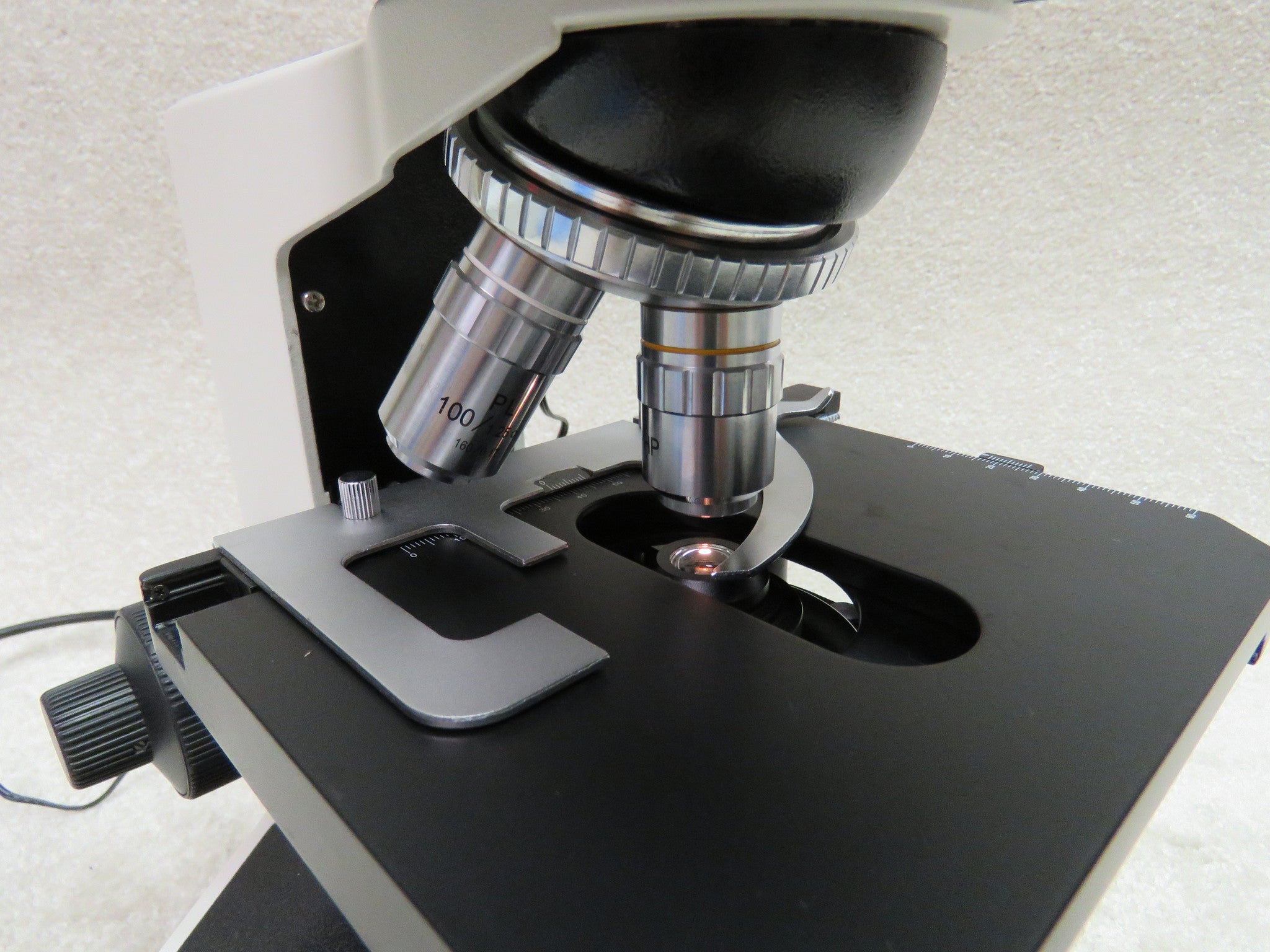

Nosepiece: Features quadruple reversed nosepiece with positive click stops enabling easy slide manipulation without interference by the objectives. Also aids in keeping optics clean. Stage: Precision-machined mechanical stage with oversized, low-position, coaxial control knobs. Chemical-resistant finish with removable spring-clip slide holder secures slide to the stage. Dimensions, 140 x 160mm.

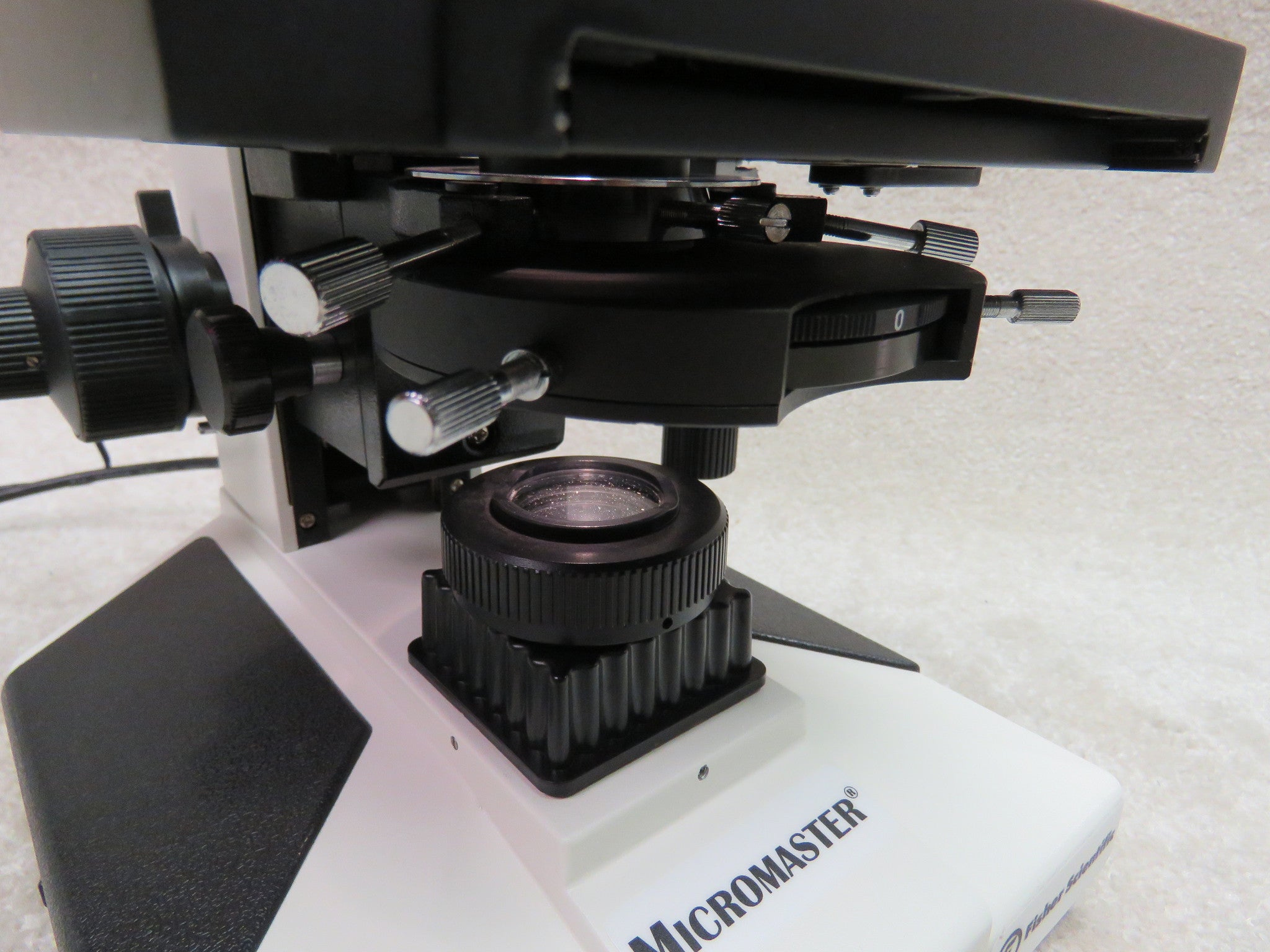

Focus Control: Low-position, coaxial, coarse/fine controls.Adjustable safety stop prevents slide damage.Tension adjustment ring permits custom user setup. Condenser: 1.25 N.A. Abbe condenser, fitted with an iris diaphragm and swing-in auxiliary lens for low magnification.

Illumination: Features Koehler illumination with variable-intensity quartz halogen lamp.


Seller refurbished. Fully functional. Optics, digital imaging and stage are in excellent condition.

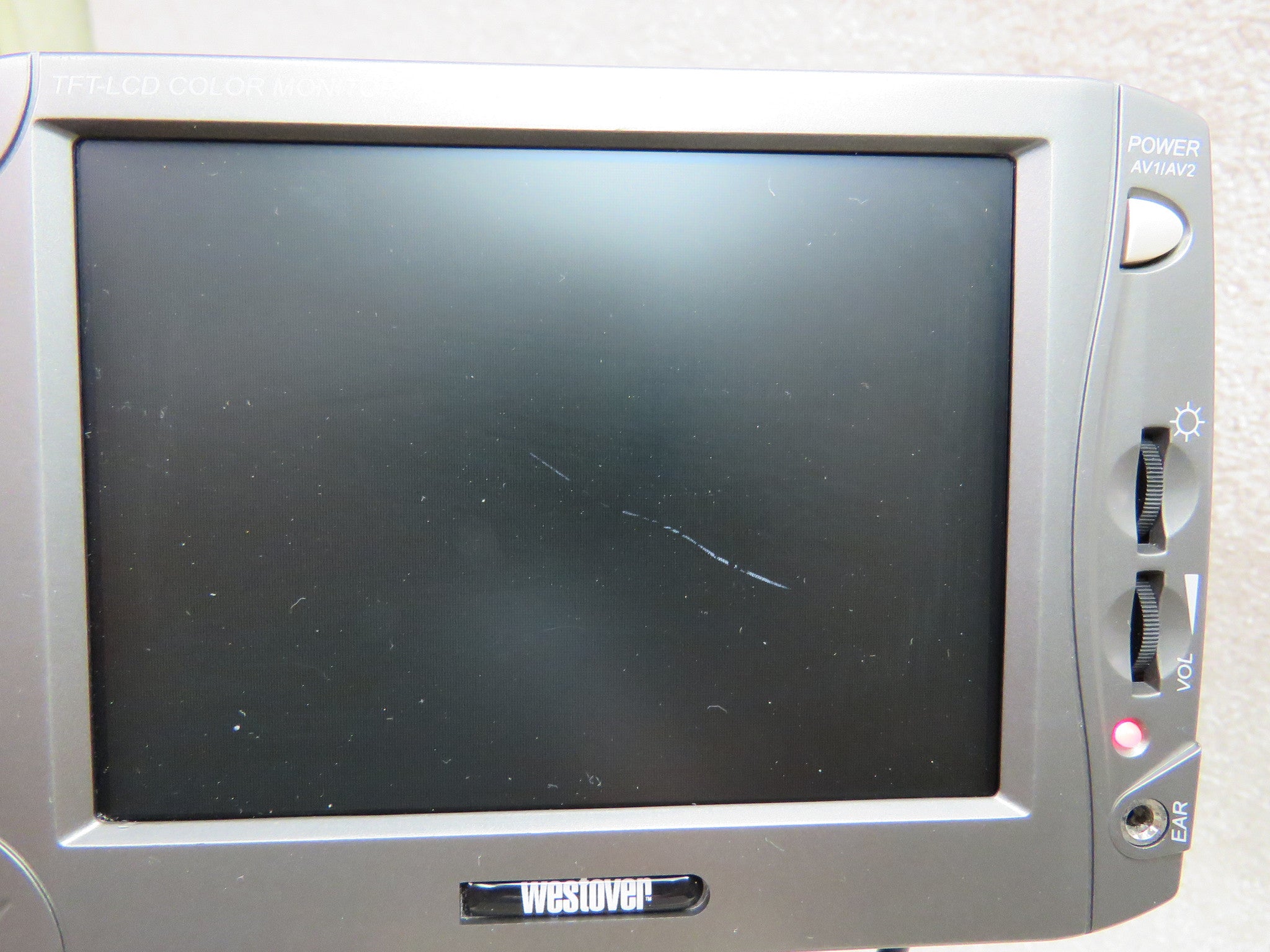

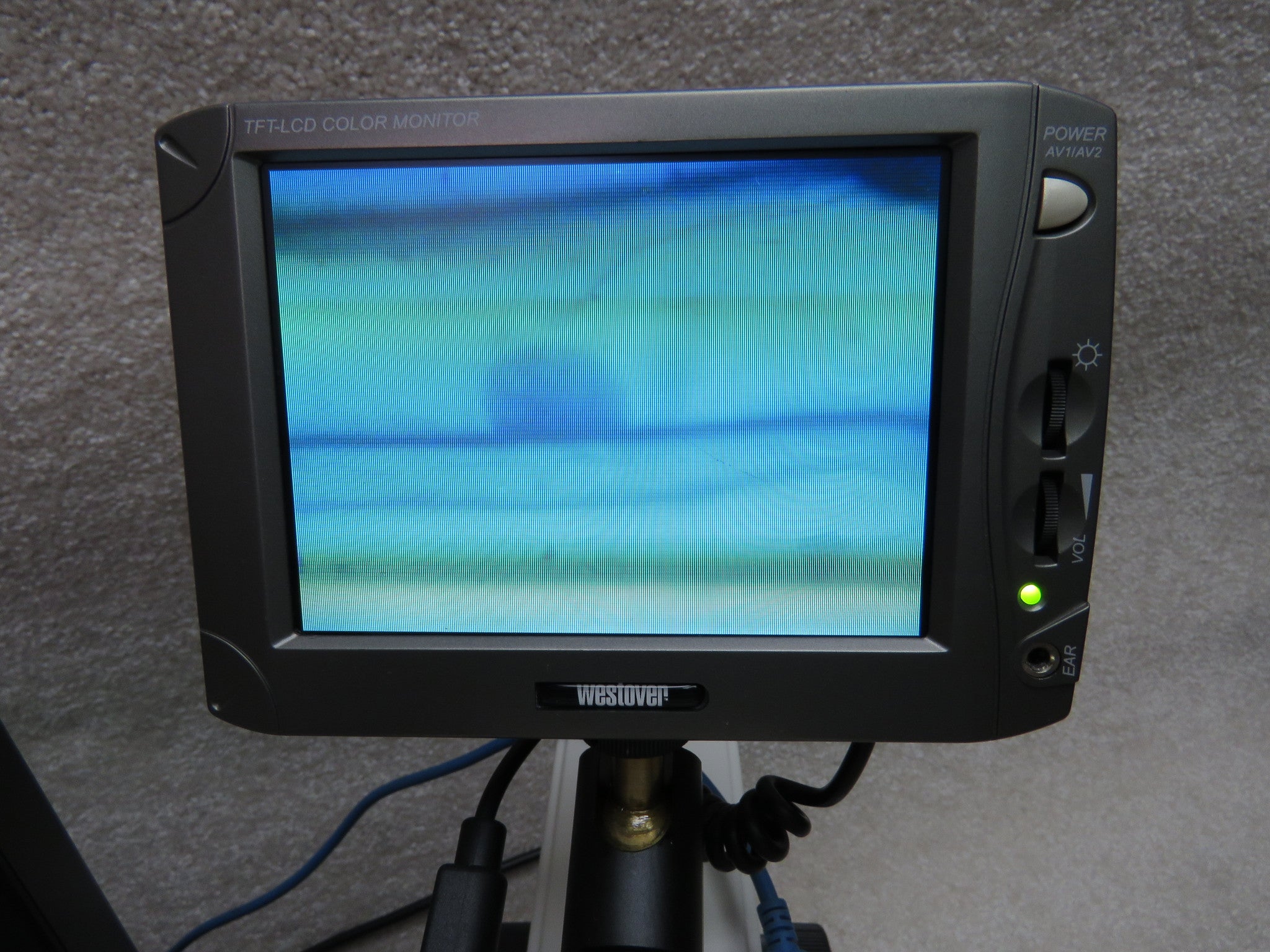

NOTE: The Westover LCD monitor has a horizontal scrolling line that sometimes appears on the image and has a scratch across the screen. Please see photos.

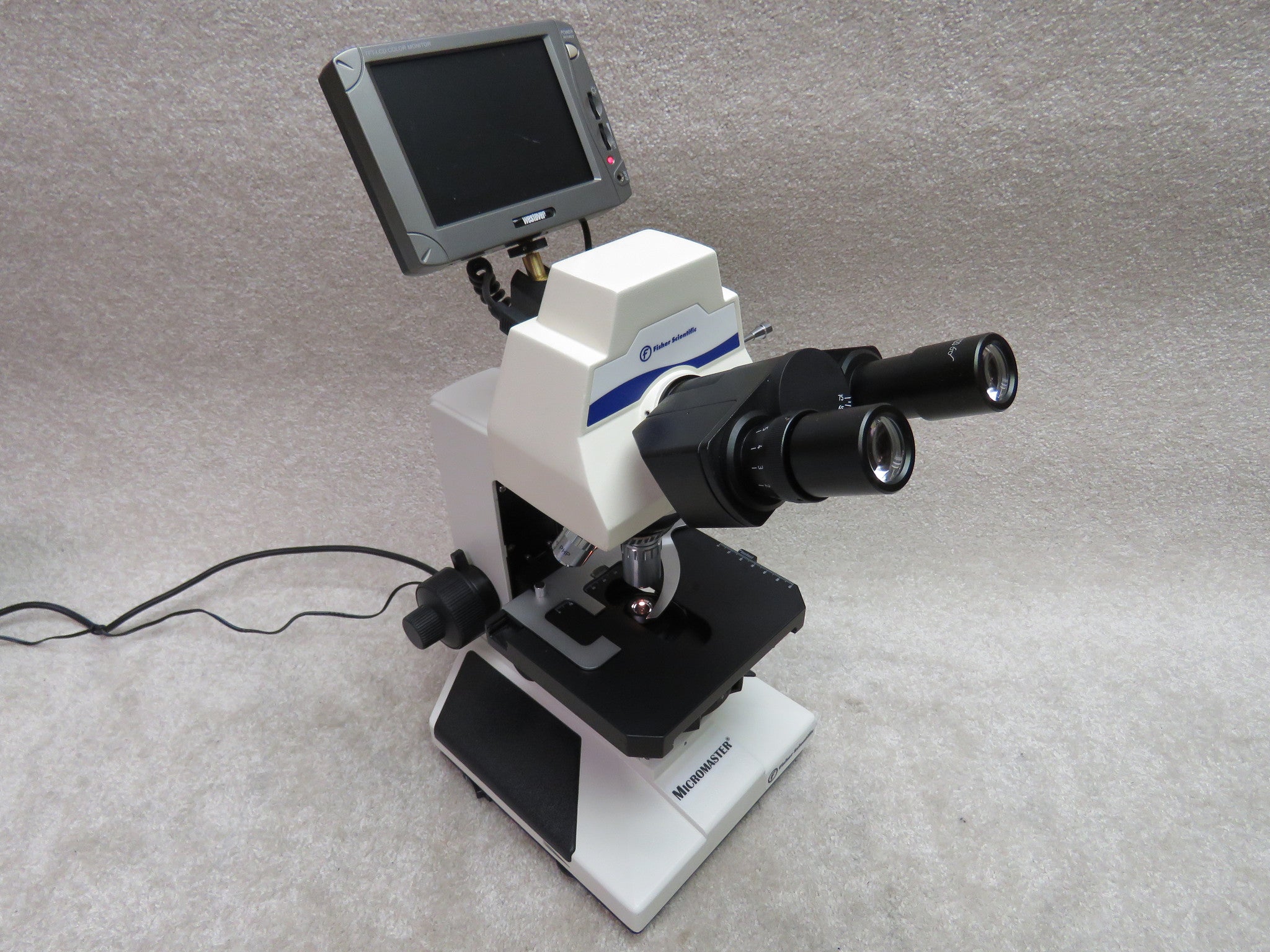

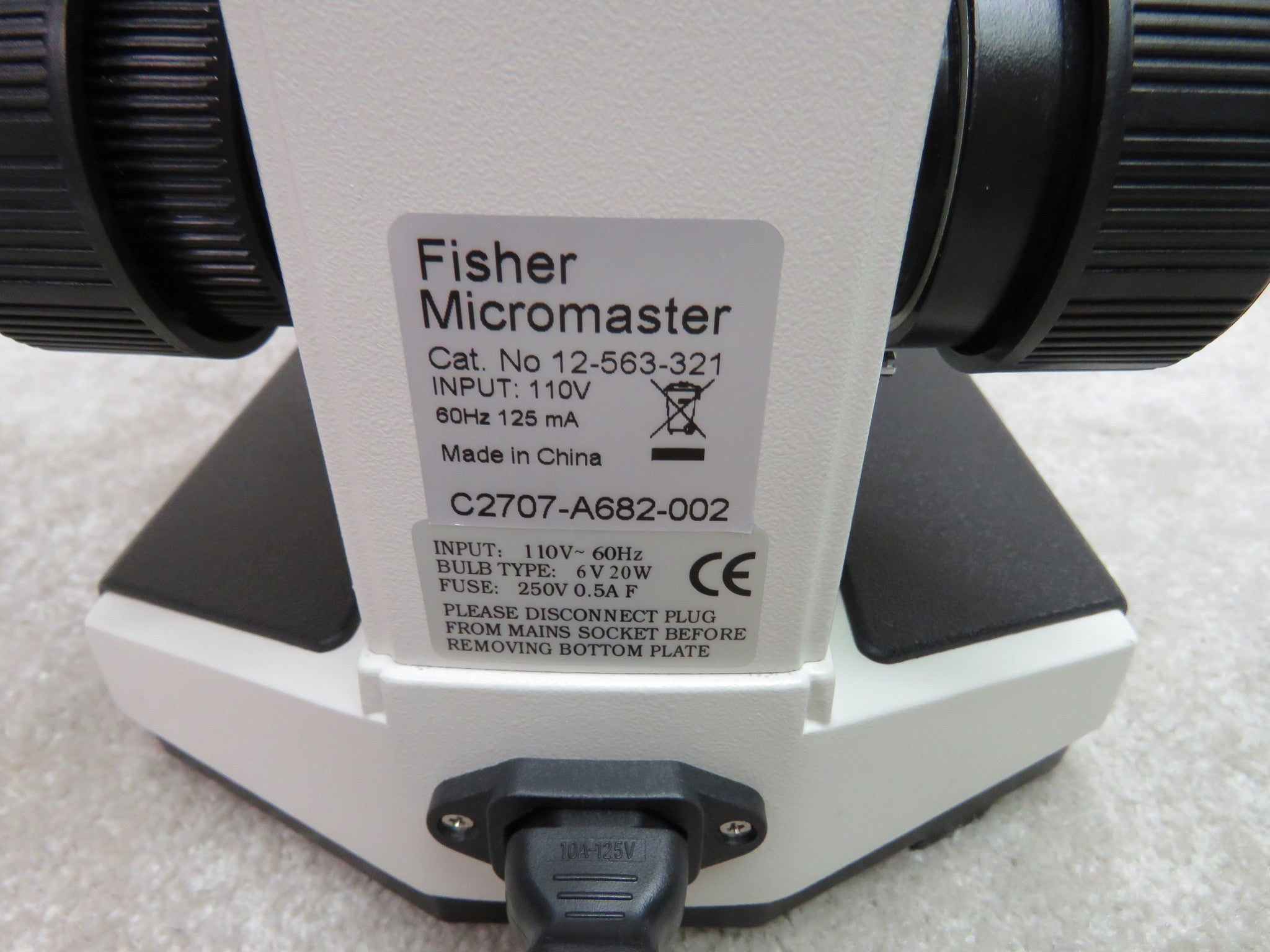

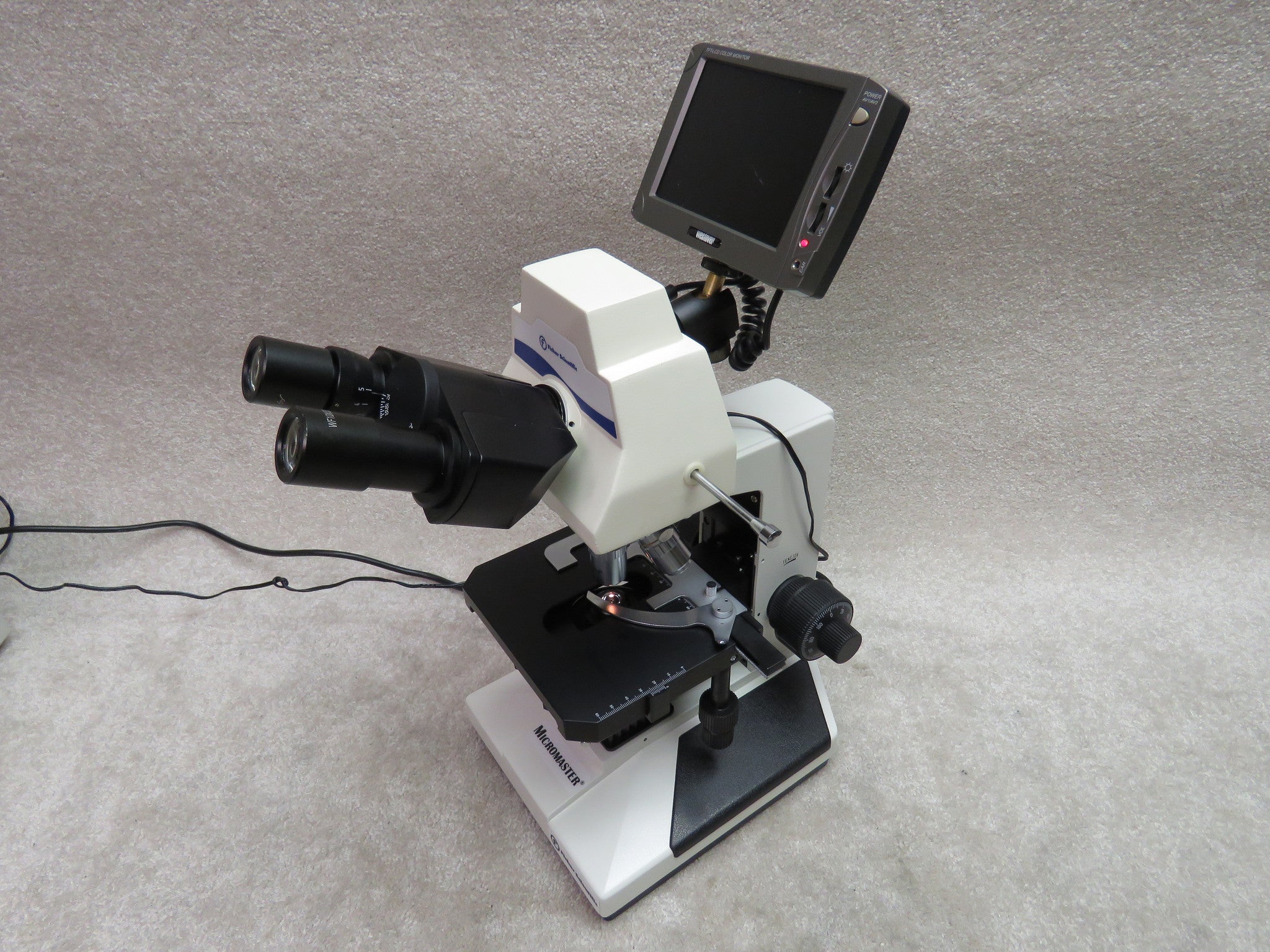

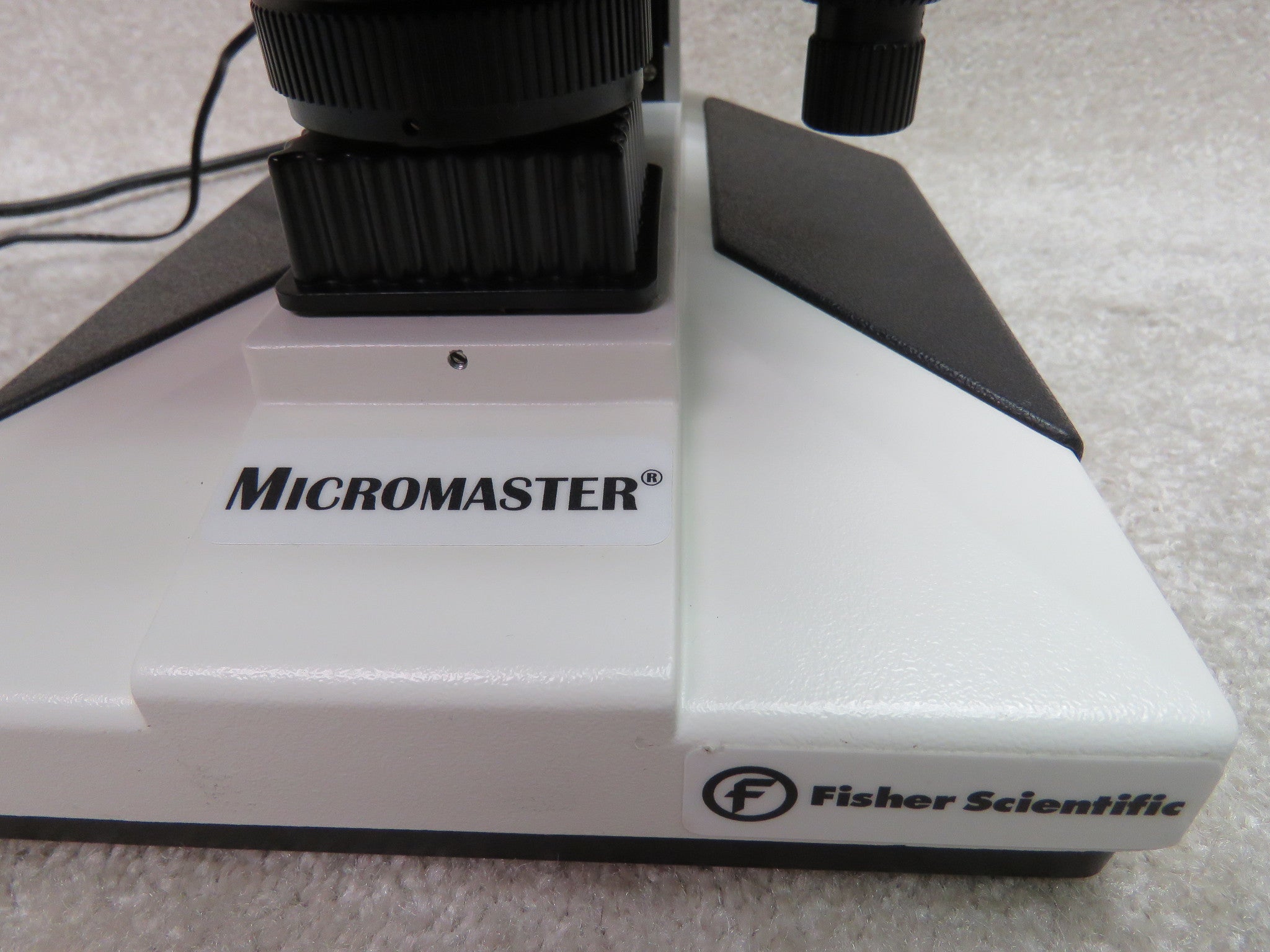

  • Fisher Scientific Micromaster 12-563-321 microscope

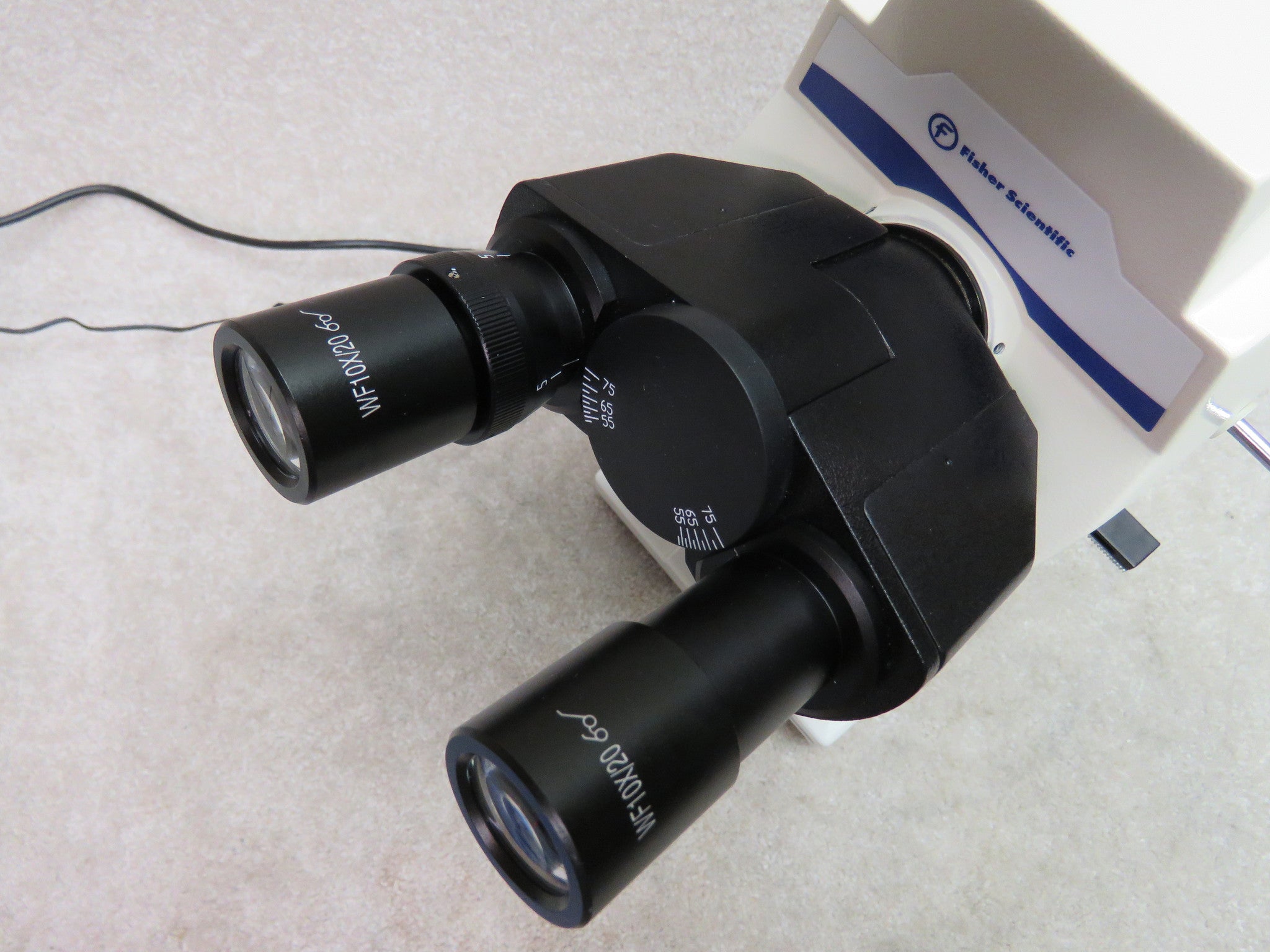

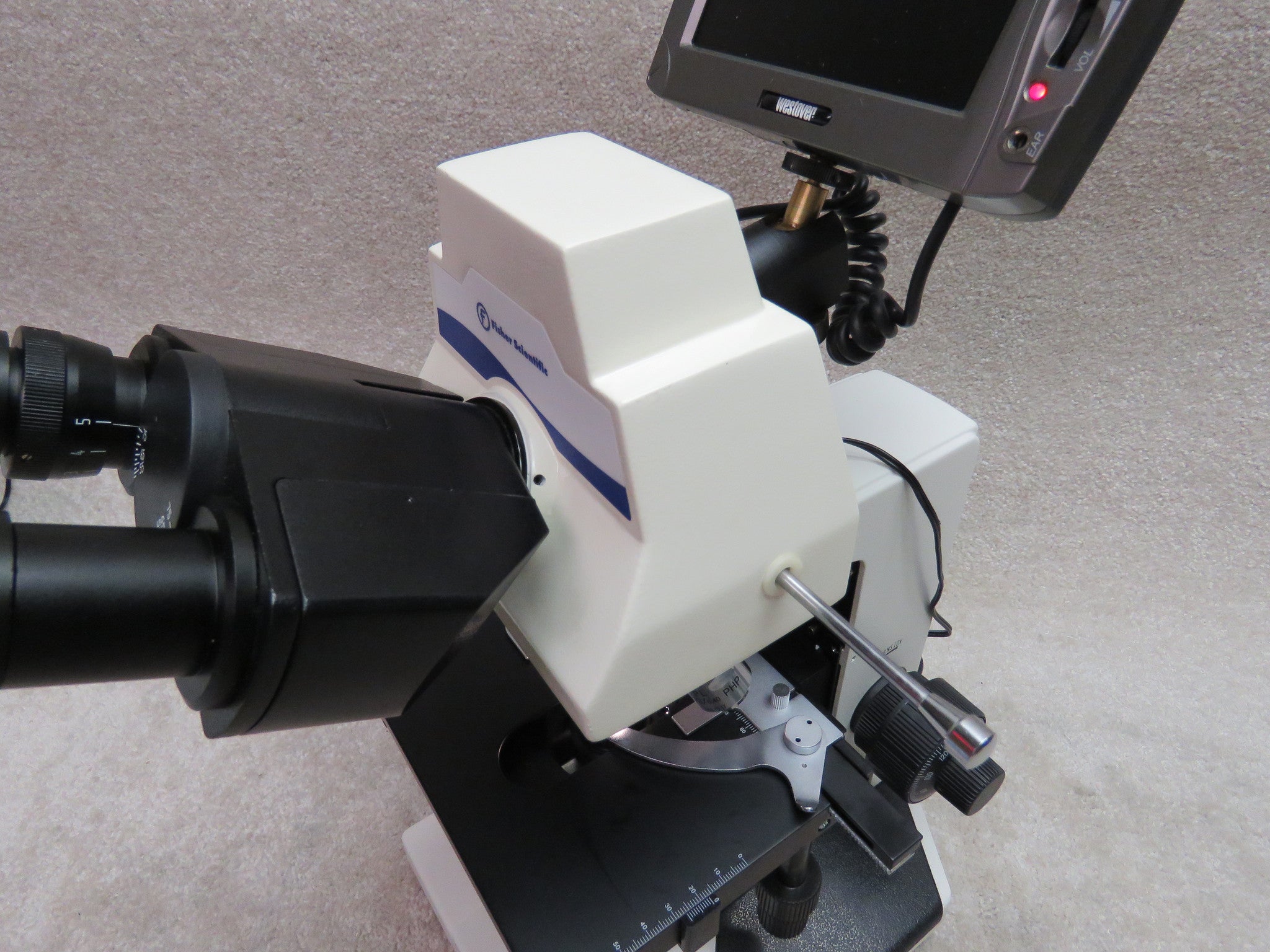

  • Binocular Westover Digital Head with (2) WF10X/20 eyepieces
    • Connections for external LCD screen and USB

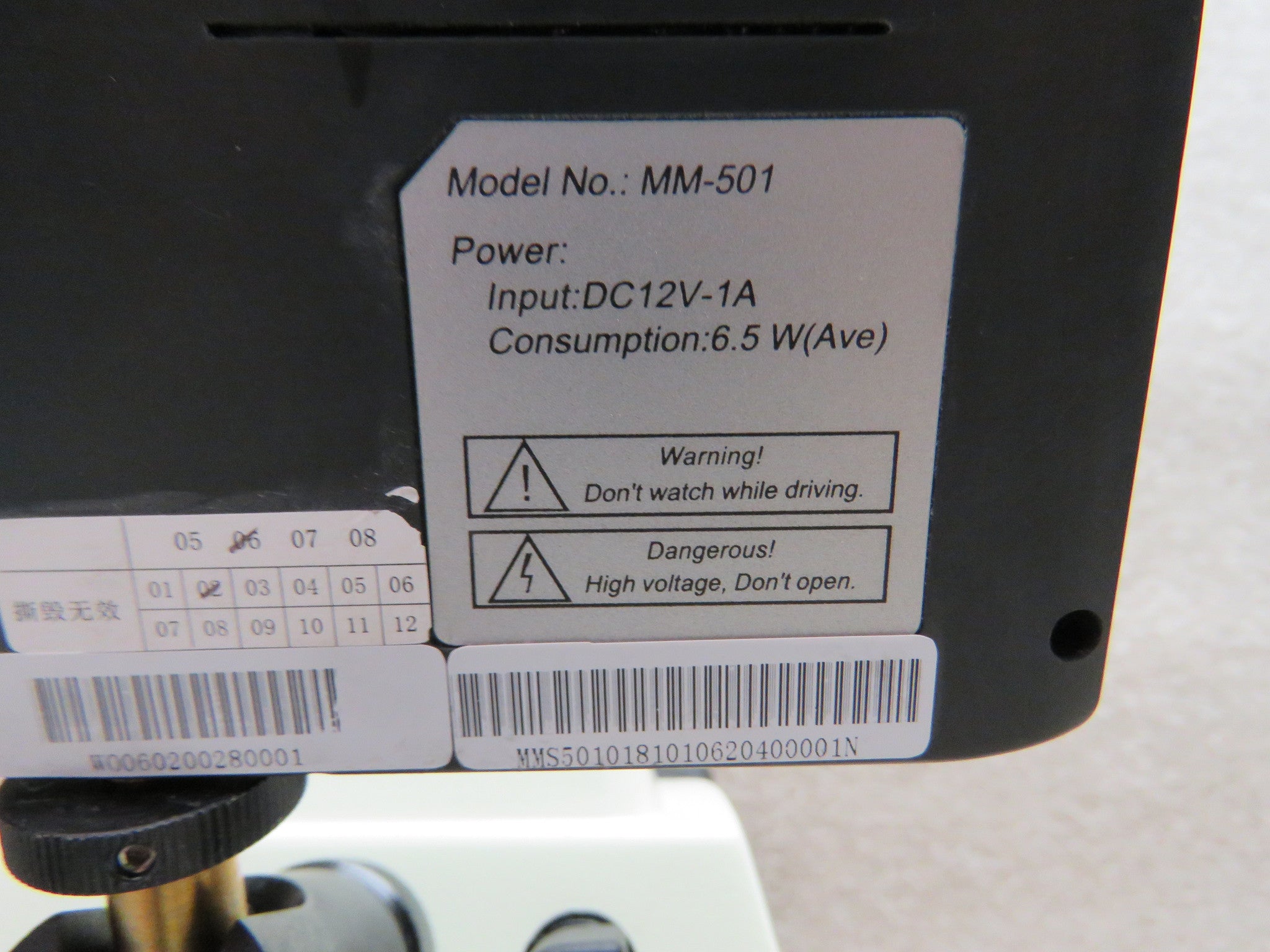

    • Westover MM-501 LCD screen
  • (4) objectives installed:

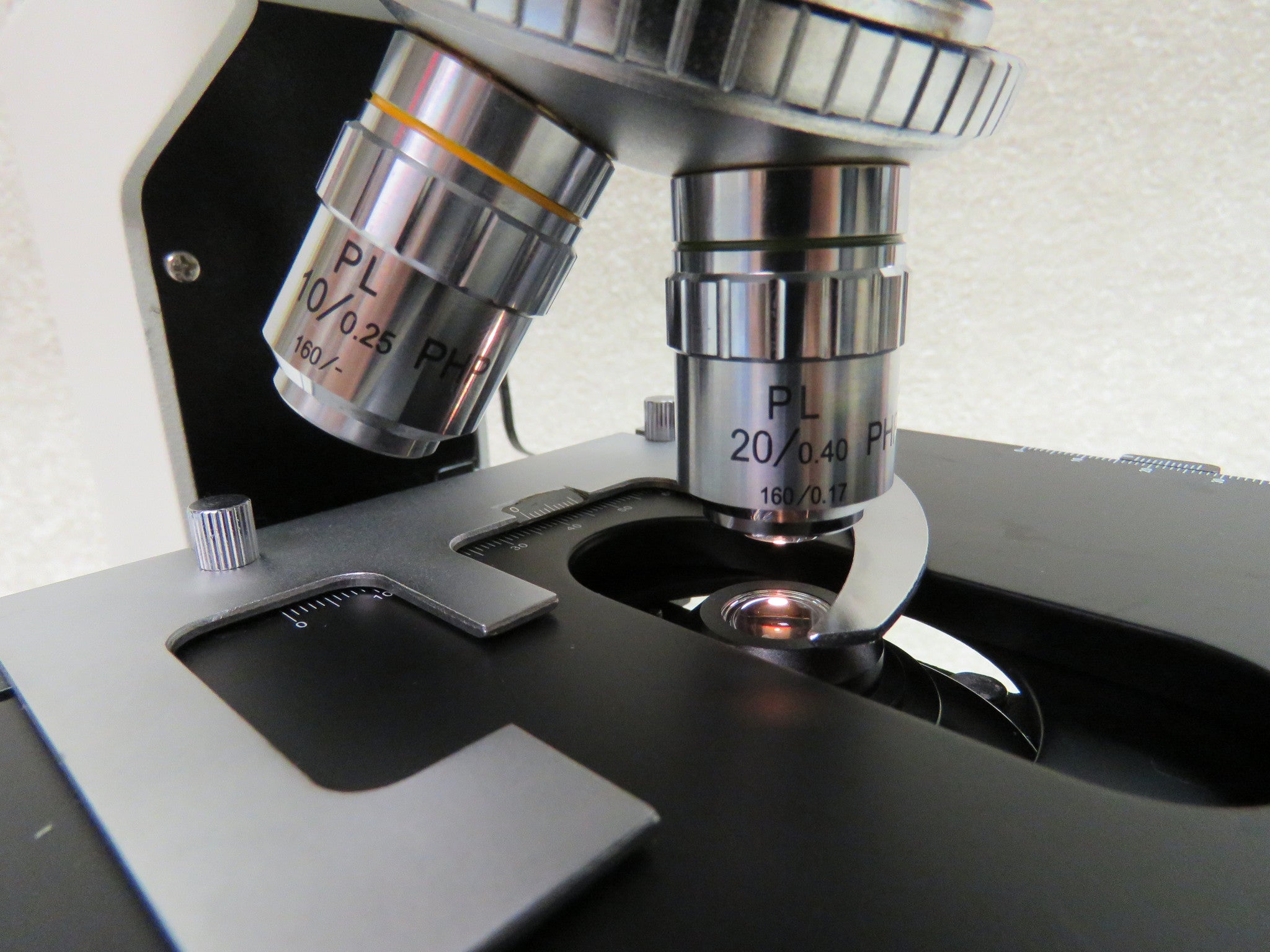

    • PL 10/0.25 PHP 160/-
    • PL 20/0/40 PHP 160/0.17

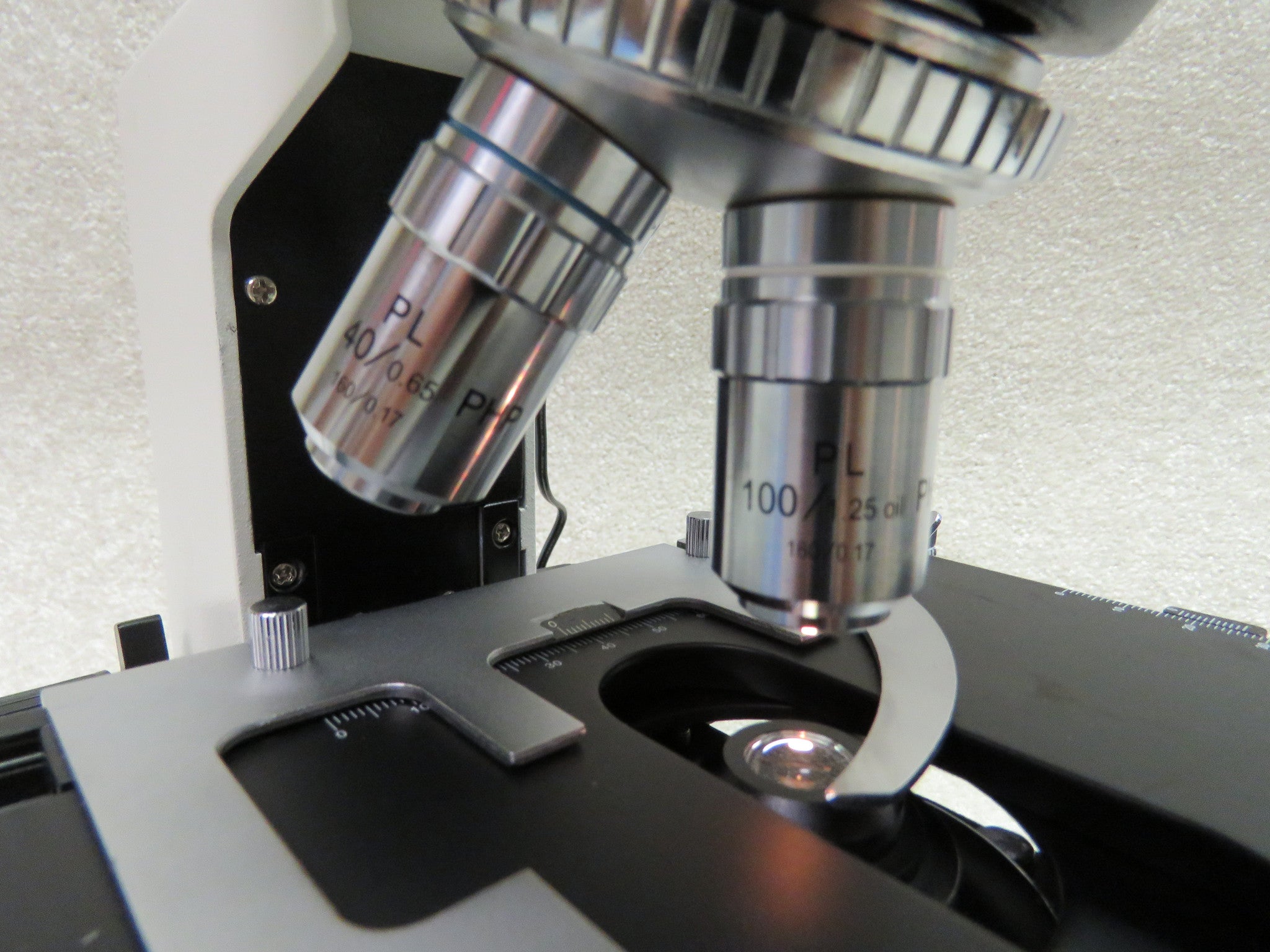

    • PL 40/0.65 PHP 160/0.17
    • PL 100/1.25 oil PHP 160/0.17
  • Westover Micron Imaging Software for PC
    • Power cords, USB cable

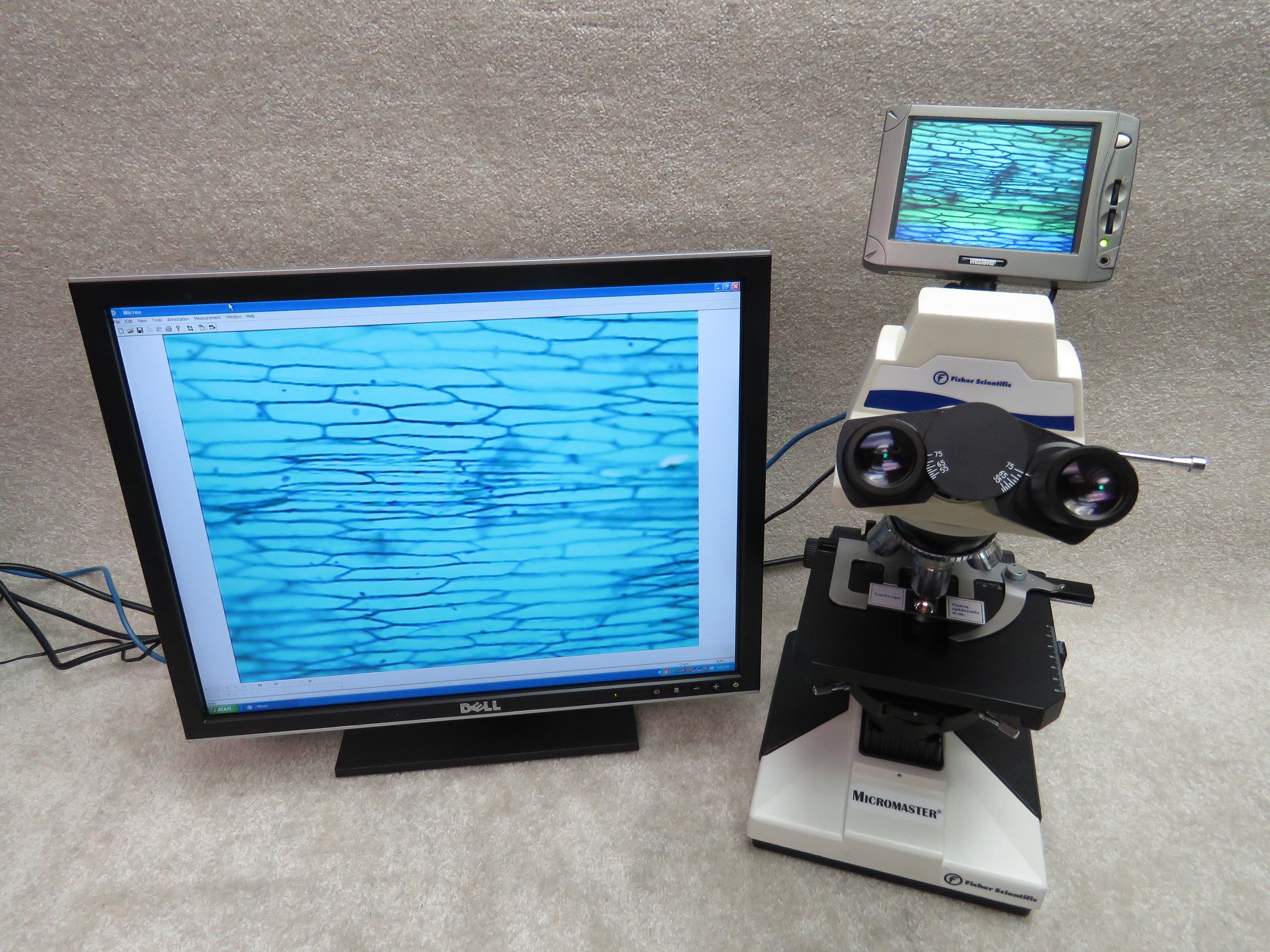

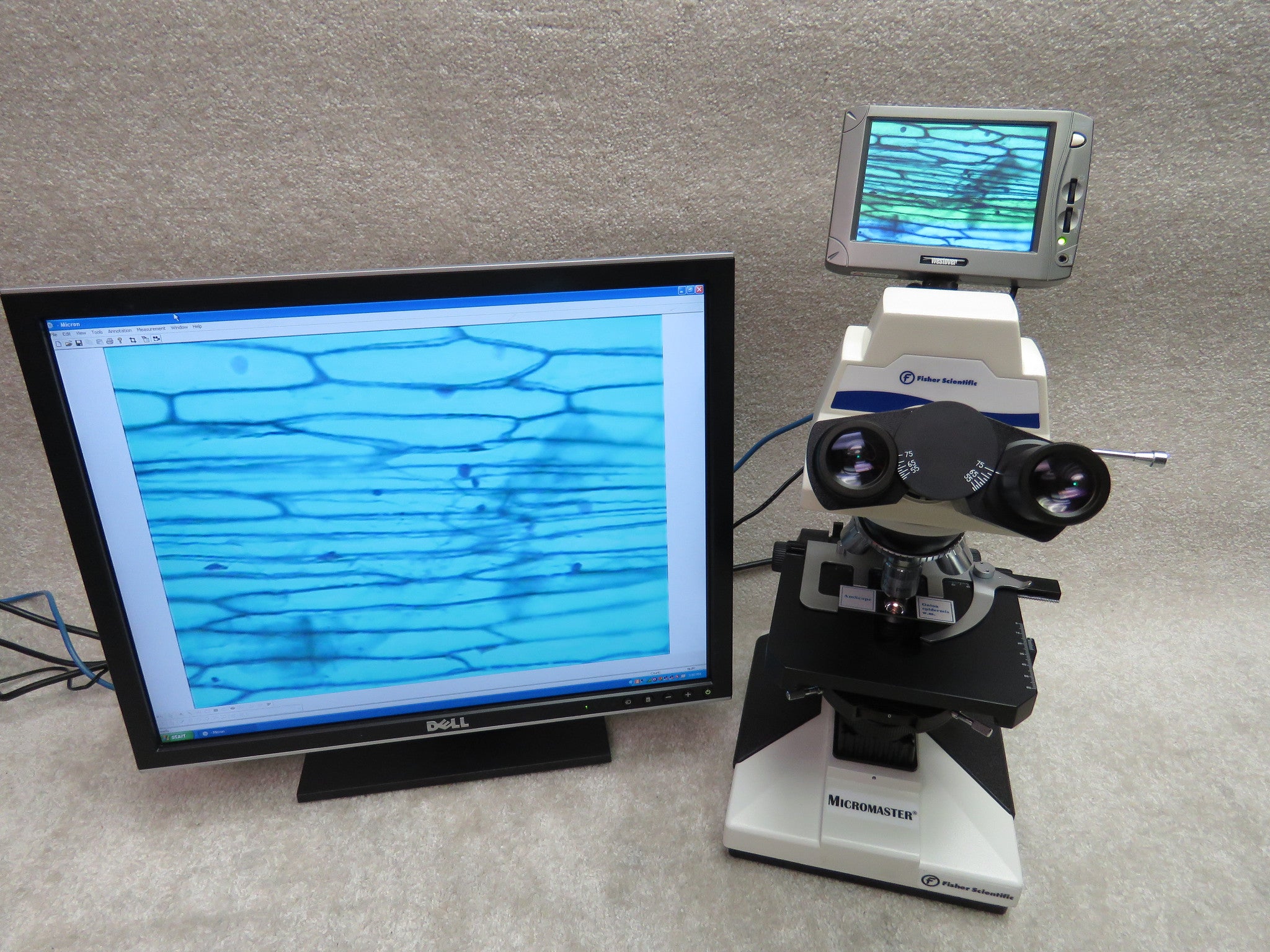

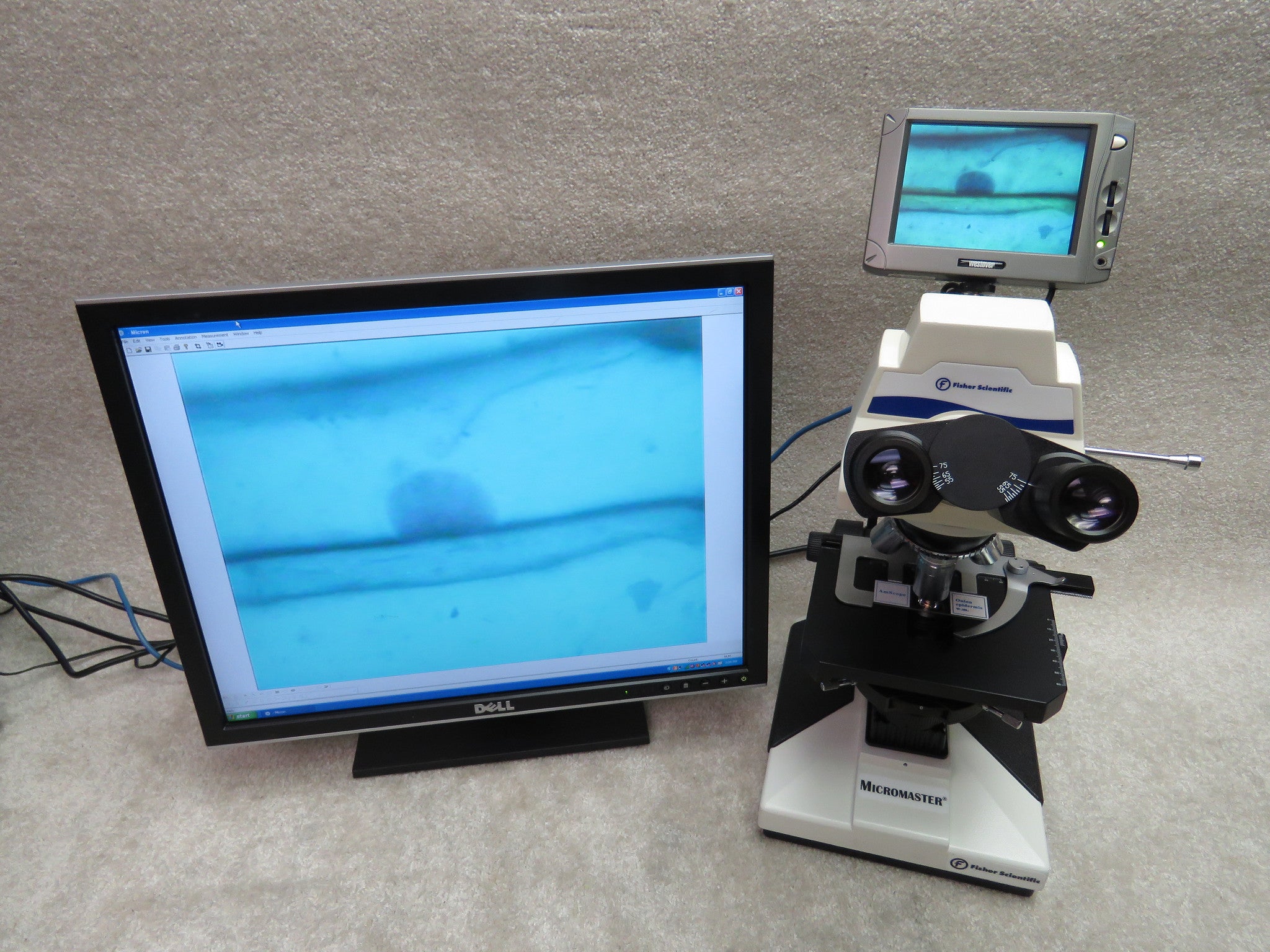

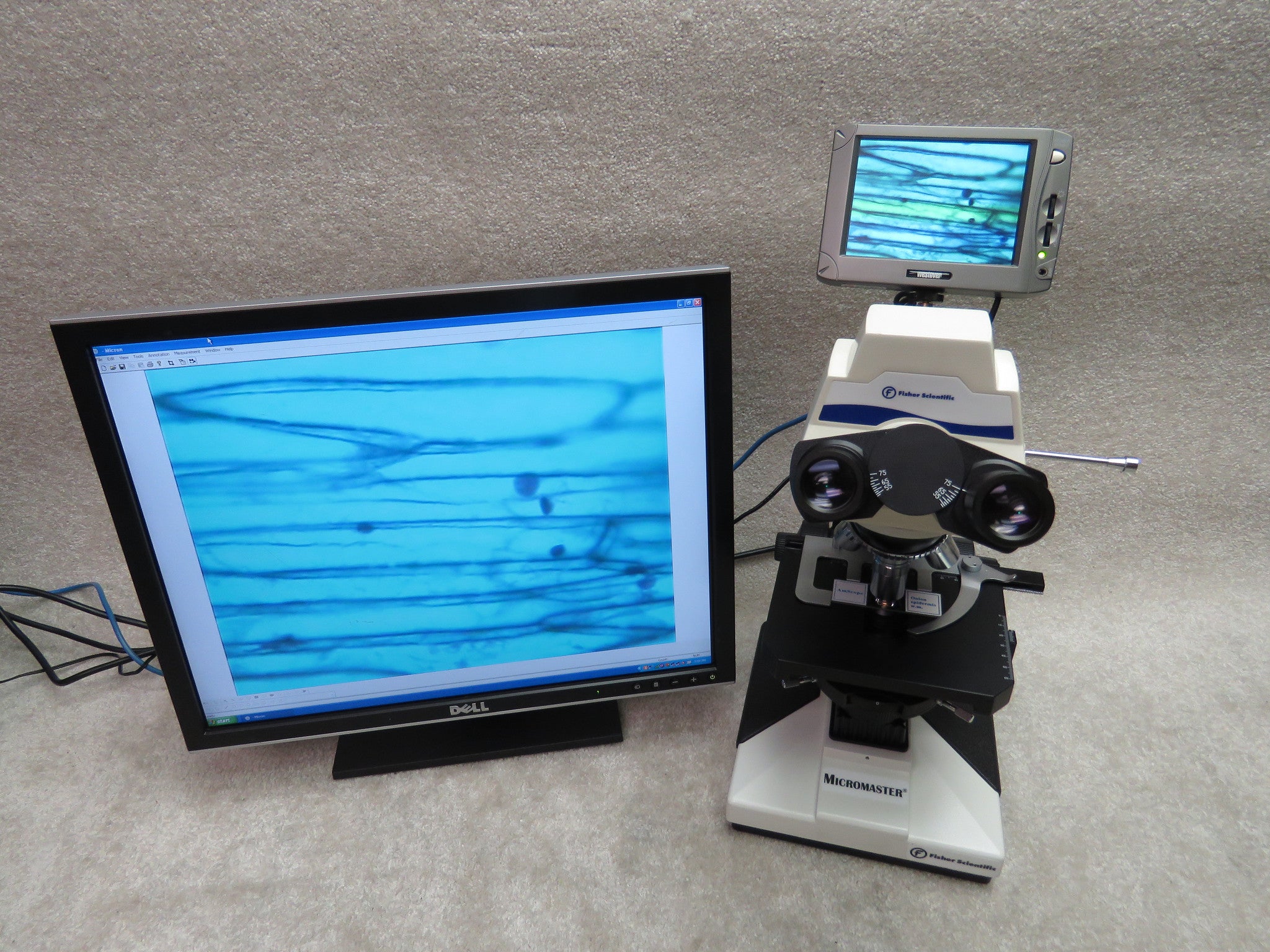

    NOTE: Monitor in pictures is for demonstration purposes only and not included in the sale of this item.


                  30 Day warranty. We pledge to offer the best service and warranty to all of our customers! We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.
