GE AKTA M-925 Amersham Biosciences HPLC Mixer Valve - without Mixing Chamber

Amersham Biosciences


Sorry, this item is out of stock

Web Information

The Amersham M-925 mixer is designed for high performance liquid chromatography.
It is a dynamic single chamber mixer powered and controlled by Pumps P-901, P-903, and P-920. Interchangeable mixing chambers are available to encompass the entire flow ranges of these pumps. The Amersham M-925 is an integral component of classic ÄKTA chromatography systems.

Mixer M-925 for classic ÄKTA details

Complete Packsize 1 Piece
Compliance The product fulfills valid directives and standards when used within the conditions specified in the user manual. The product must also be used in the same state as it was delivered from GE Healthcare and connected only to other CE labeled GE Healthcare modules or other products as recommended. For regulatory details please see declaration of conformity.
Depth 111 mm
Flow Rate 0.001-100 ml/min
Height 152 mm
Includes One UniNet cable is supplied with the mixer.
Material Polyetheretherketone (PEEK),
Polytetrafluoroethylene (PTFE)
Operating Pressure Max. 100 bar (10 MPa) at 0.1 to 100 ml/min (12 ml chambers)
250 bar (25 MPa) at 0.001 to 100 ml/min (0.6, 2 and 5 ml chambers)
350 bar (35 MPa) at 0.001 to 5 ml/min (90 μl and 0.2 ml chambers) (1450 psi at 0.1 to 100 ml/min (12 ml chambers)
3625 psi at 0.001 to 100 ml/min (0.6, 2 and 5 ml chambers)
5075 psi at 0.001 to 5 ml/min (90 μl and 0.2 ml chambers))
Operating Temperature 4°C-40°C
pH Stability Long Term 1-13
pH Stability Short Term 1-14
Power Consumption 1 VA
Power Requirement 12 to 40 V DC from the pump
Protection Class IP 43
Relative Humidity 20%-95% (non condensing)
Viscosity Max. 5 cP
Weight 1.2 kg
Wetted Part No
Width 77 mm


Used. Fully functional.  Unit was tested for functionality using UNICORN software.

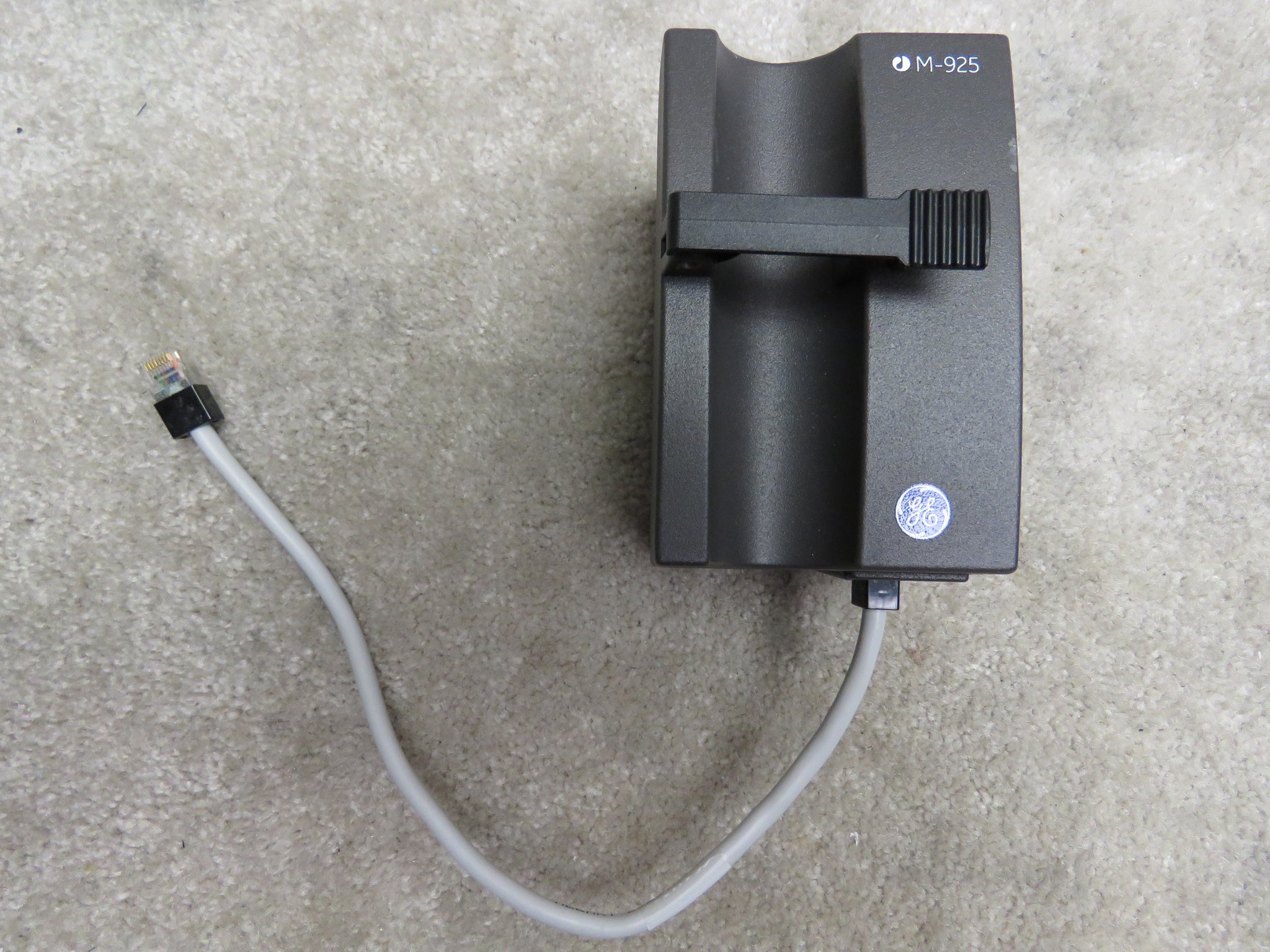

(1) Amersham Biosciences GE Healthcare M-925 HPLC mixer valve



        30 Day warranty. We pledge to offer the best service and warranty to all of our customers!  We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.


        This is a genuine product from this manufacturer.


        The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping of the item."

        Regardless of the origin of the equipment, documentation provided or identification appearing upon the equipment, the equipment described and offered here is in no way certified for, recommended for, or offered for any specific use. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. The purchaser, by bidding on this equipment, indicates their acknowledgment of, and agreement to the terms of this disclaimer. it is the purchaser's responsibility to have the item inspected and certified by a qualified professional before use!
