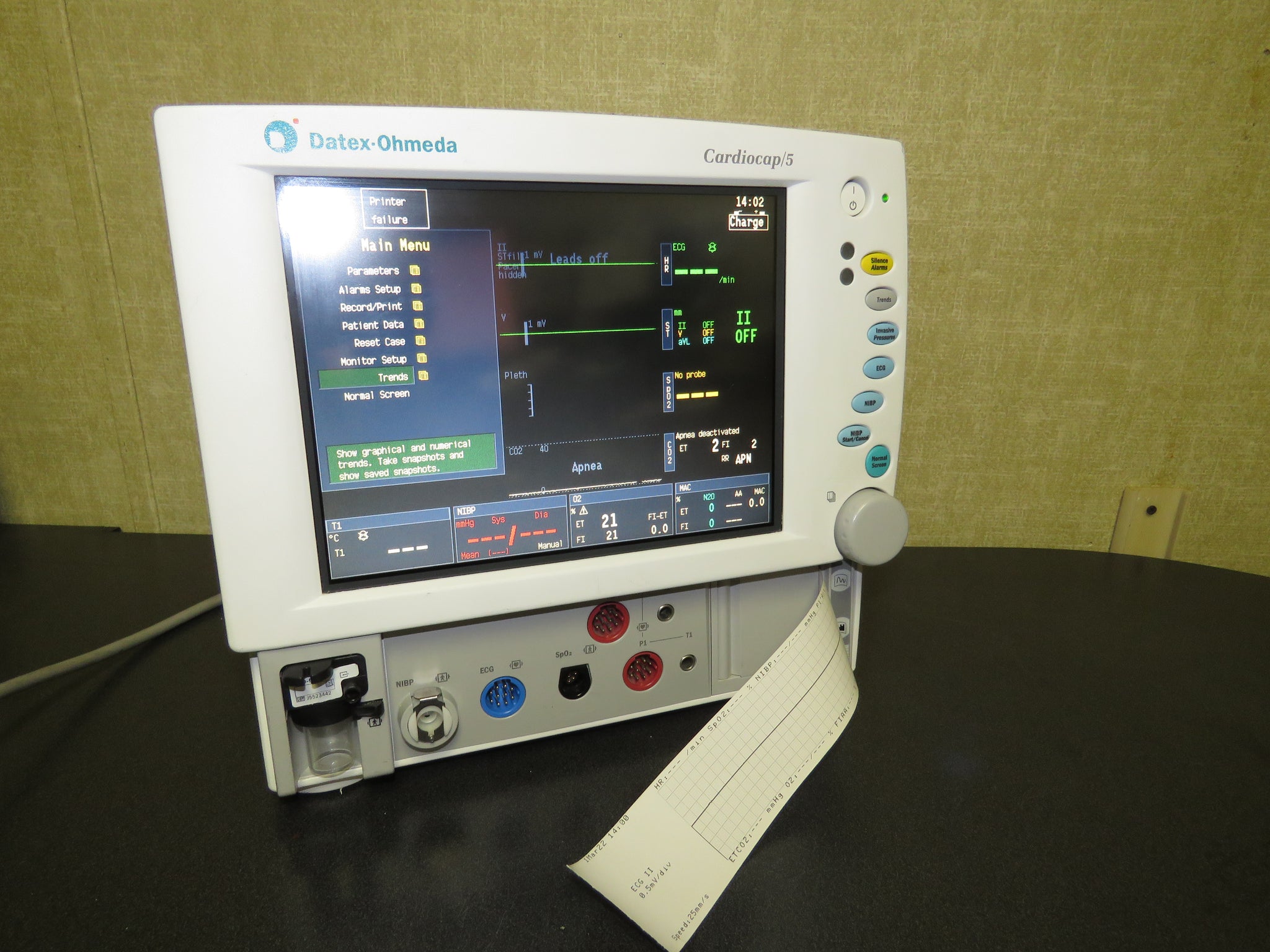

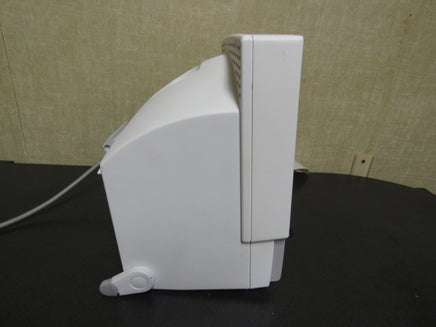

GE Datex-Ohmeda Cardiocap/5 with Printer

GE Datex Ohmeda

$2,450.00

Sorry, this item is out of stock

Web Information

Cardiocap 5 Features

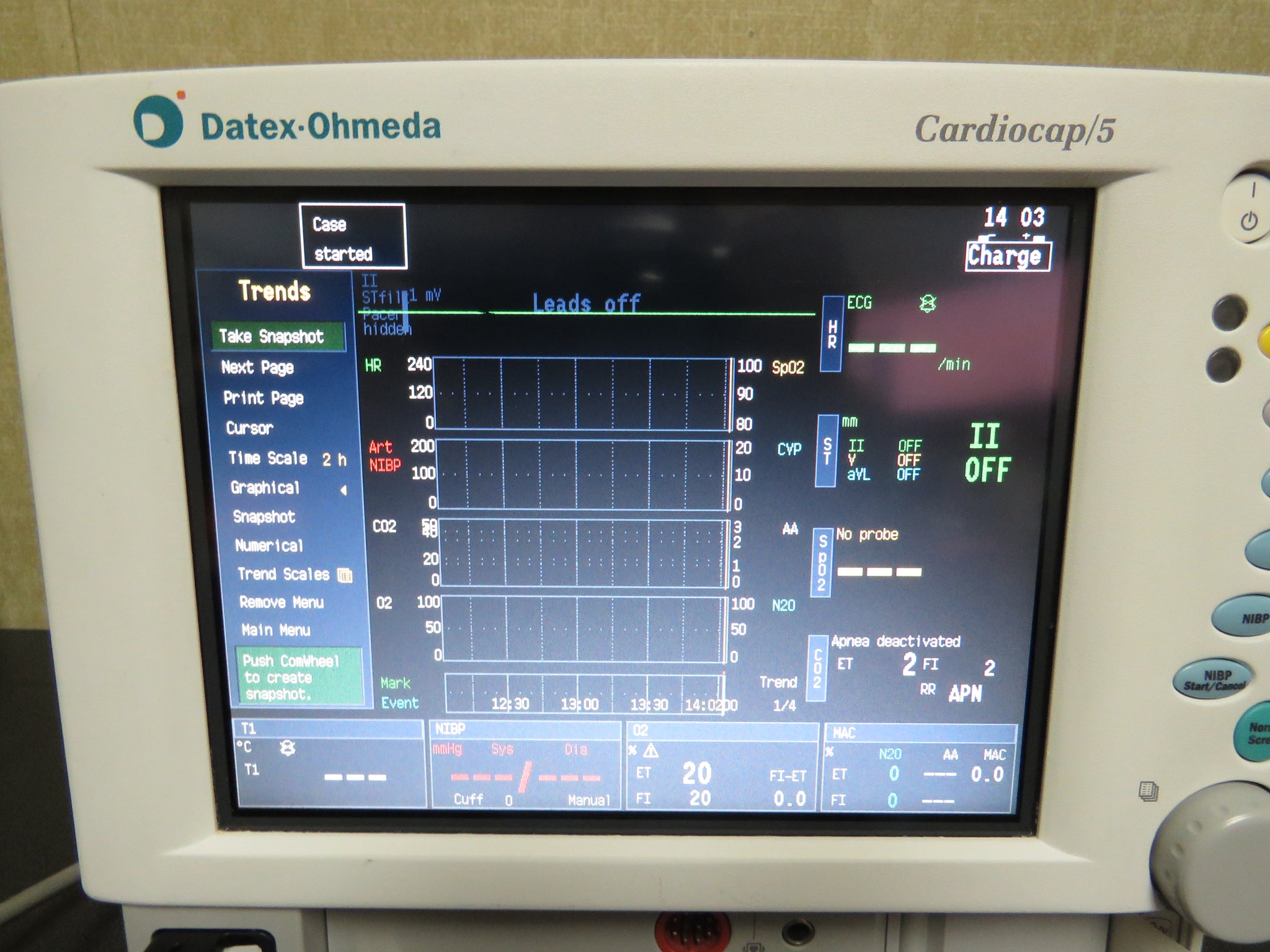

The GE Datex Ohmeda Cardio Cap 5 is a compact patient monitor that can double as an anesthesia agent monitor. Offering parameter measurements such as; ECG, Spo2, CO2, NIBP, temperature, and heart rate. Additionally the Cardiocaop 5 can measure the dynamics of blood flow and airway gas detection. The CardioCap can work in an operation room, recovery, ambulatory surgery centers, or anywhere else patient monitors are required. The CardioCap 5 comes with a color LCD monitor that is easy to read from across the room. The Display can show up to 6 different waveforms at once. The System can hold up to 24 hours of trending data.

  • Small Foot print and compact design

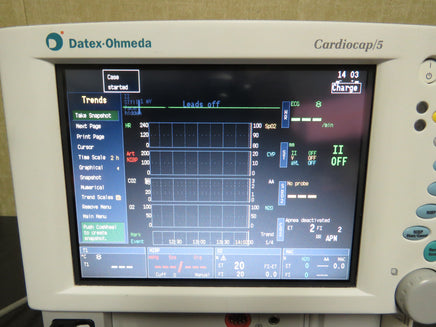

  • 10.4 color LCD Display Screen
  • 4 user configurable modes
  • built-in battery backup
  • Compatible with the Datex-Ohmeda S/5 Network
  • Convenient mounting system



Cardiocap 5 Specifications



Dimensions

  • Height: 11.8” (30 cm)
  • Width: 13” (33 cm)
  • Depth: 8.7” (22 cm)
  • Weight: <24.8 lbs (<11.2 kg)

LCD Display

  • Type: Active matrix color LCD
  • Size (Diagonal): 10.4”
  • Resolution: 640 x 480

Battery

  • Type: 12V 2.6AH, lead acid
  • Back-up battery time: at least 15 minutes when fully charged
  • Charging time: 5 hours (typical)
  • The green battery charge status LED is On when the battery is fully charged, on the holding voltage. The LED flashes when the battery is being charged.

NIBP

  • Measurement range:
    • Adult 25 to 260 mmHg (3.3 to 34.7 kPa)
    • Child 25 to 195 mmHg (3.3 to 26.0 kPa)
    • Infant 15 to 145 mmHg (2.0 to 19.3 kPa)
  • Pulse Rate Range Accepted: 30 to 250 bpm
  • Typical Measuring Time: Adults 23 seconds, infants 20 seconds

Temperature

  • Measurement Range: 50 to 113°F (10 to 45°C)
  • Measurement Accuracy: 77 to 113 °F ± 0.2 °F (25 to 45.0 °C ± 0.1 °C ); 50 to 76.8 °F ± 0.4 °F (10 to 24.9 °C ± 0.2 °C)
  • Probe Type: Compatible with Datex-Ohmeda temperature probes only

ECG

  • Waveform display (with 50 Hz power supply frequency):
    • Monitoring filter: 0.5 to 30 Hz
    • ST filter: 0.05 to 30Hz
    • Diagnostic filter: 0.05 to 100 Hz
  • Waveform display (with 60 Hz power supply frequency):
    • Monitoring filter: 0.5 to 40 H
    • ST filter: 0.05 to 40 Hz
    • Diagnostic filter: 0.05 to 100 Hz
  • Heart rate
    • Measurement range: 30 to 250 bpm
    • Measurement accuracy: ± 5% or ± 5
    • Pacemaker pulse detection level: 2 to 500 mV
    • Pacemaker pulse duration: 0.5 to 2 ms

Impedance Respiration

  • Respiration Range: 4 to 120 respirations/minute
  • Accuracy: ± 5% or ± 5 bpm

Pulse Oximetry (Standard)

  • Display Update Time: 5 seconds
  • Averaging Time: Adjustable
  • Plethysmographic Waveform Scaling: Adjustable
  • SpO2
    • Calibration range: 50 to 100%
    • Calibrated against functional saturation
    • Measurement range: 40 to 100%
    • Measurement accuracy (% SpO2 ±1 SD):
      • 80 to 100% ± 2 digits;
      • 50 to 80% ± 3 digits;
      • Below 50% unspecified
    • NOTE: SpO2 measurement accuracyis based on deep hypoxia studies using Datex-Ohmeda FingerSat sensors on volunteered subjects. Arterial blood samples were analyzed by a Radiometer OSM CO-oximeter. Refer to the sensor instructions for specific SpO2 accuracy data.
  • Pulse rate
    • Measurement range: 30 to 250 bpm
    • Measurement accuracy: ± 5% or ± 5 bpm
  • Default alarm limits
    • SpO2: high Off, low 90%
    • Pulse rate: high 160, low 40
    • NOTE: Limits are adjustable.
  • Sensor emitter wavelength ranges
    • Red LED: 660 nm
    • Infrared LED: 900 nm

    Condition

    This unit was power tested only. No other tests were performed. It is the buyer's responsibility to have this unit evaluated and certified by a professional service engineer prior to use.

    Includes

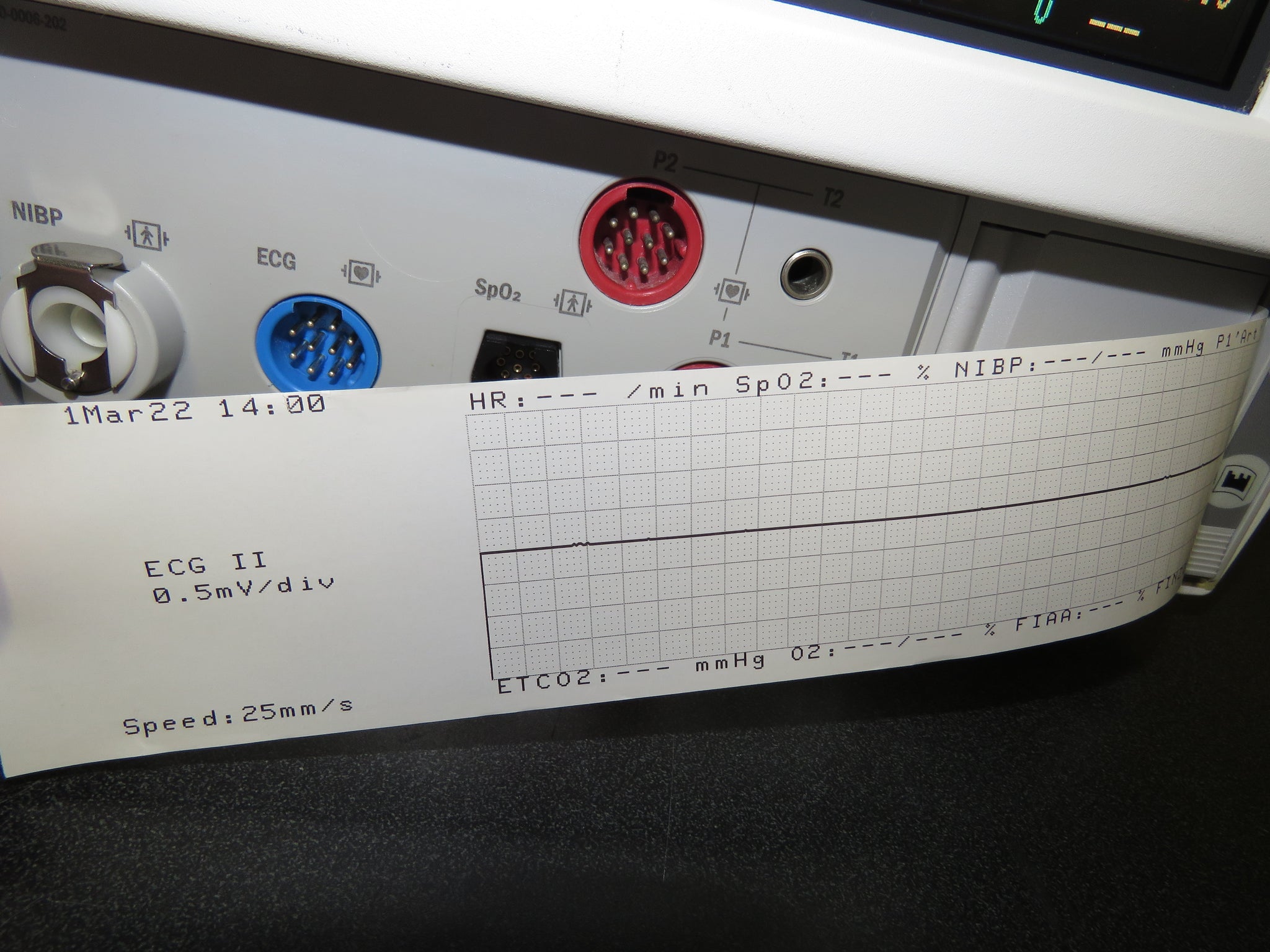

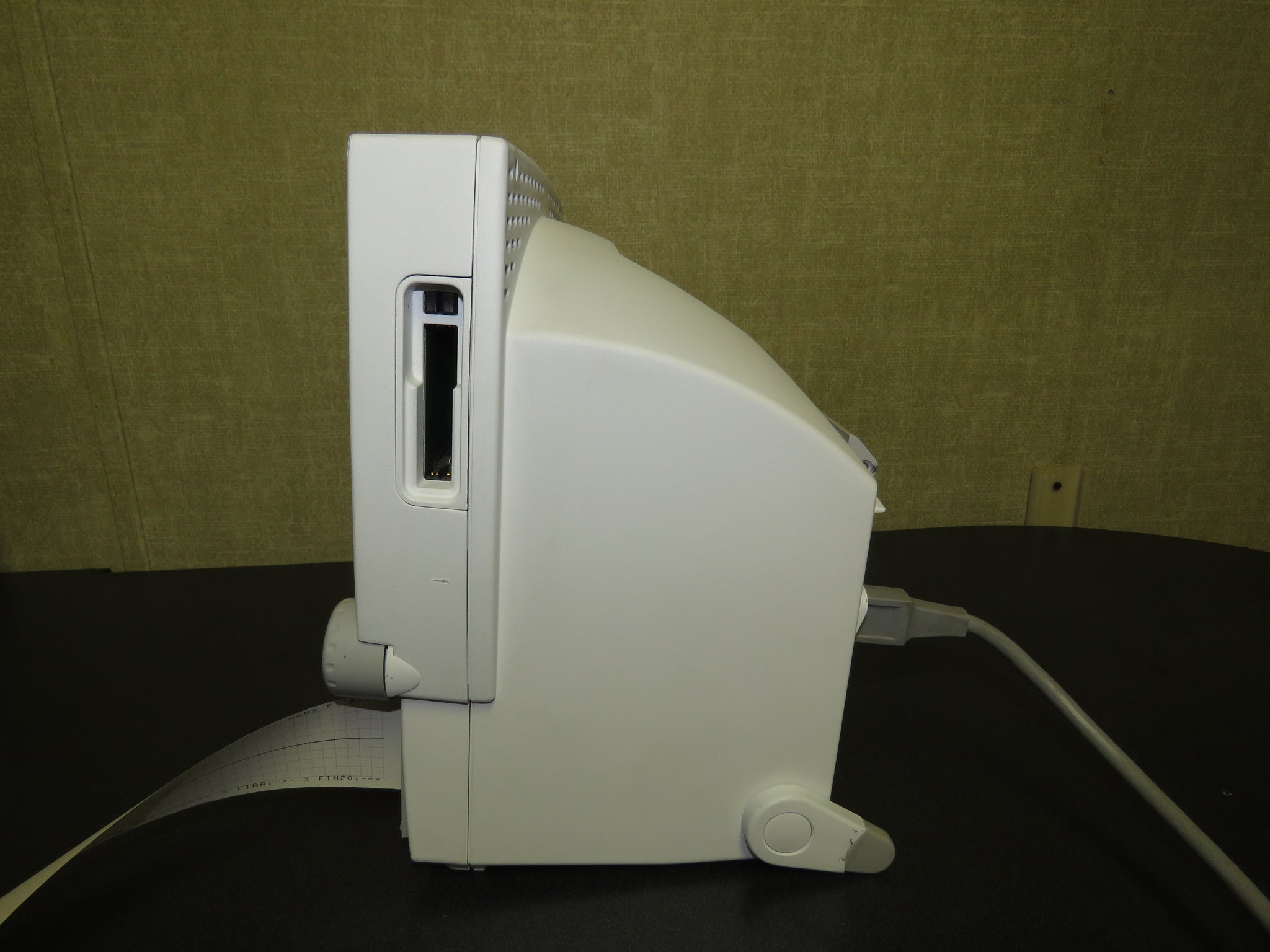

    • GE Datex-Ohmeda Cardiocap/5 with Printer
    • Power cord


    Warranty

    30 Day warranty. We pledge to offer the best service and warranty to all of our customers!  We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.

    Certification

    This is a genuine product from this manufacturer.

    Disclaimer

    Regardless of the origin of the equipment, documentation provided or identification appearing upon the equipment, the equipment described and offered here is in no way certified for, recommended for, or offered for any specific use. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. The purchaser, by bidding on this equipment, indicates their acknowledgment of, and agreement to the terms of this disclaimer. it is the purchaser's responsibility to have the item inspected and certified by a qualified professional before use!
