Hach NEMA 4X General Purpose Analyzer Model SC200 LXV404.99.00502 Great Condition!

Hach

$1,200.00
SKU: sc200

Sorry, this item is out of stock

Web Information

One Controller for the Broadest Range of Sensors

The SC200 Universal Controller is the most versatile controller on the market. It allows the use of digital and analog sensors, either alone or in combination, to provide compatibility with the broadest range of sensors. It replaces the Hach sc100 digital and GLI53 analog controllers with advanced features for easier operator use. The SC200 controller can be configured to operate two digital sensor inputs, two analog sensor inputs, or a combination of one digital and one analog input. Customers may add communication modules for a variety of protocols including MODBUS RTU, Profibus DPV1, and HART.

  • Maximum Versatility
  • Ease of Use
  • Confidence in Results
  • One Controller, Numerous Communication Options
  • Broadest Range of Sensors

Maximum Versatility

• Standardized controller eliminates the need for a variety of dedicated controllers
• Multi-channel controller operates either 1 or 2 sensors reducing inventory holding costs, and providing an inexpensive option to add a second sensor at a later time
• "Plug and Play" operation with all Hach digital sensors
• True dual sensor controller provides 4-20 mA outputs to transmit primary and secondary measurement values

Ease of Use

• New display and guided calibration procedures reduce operator error

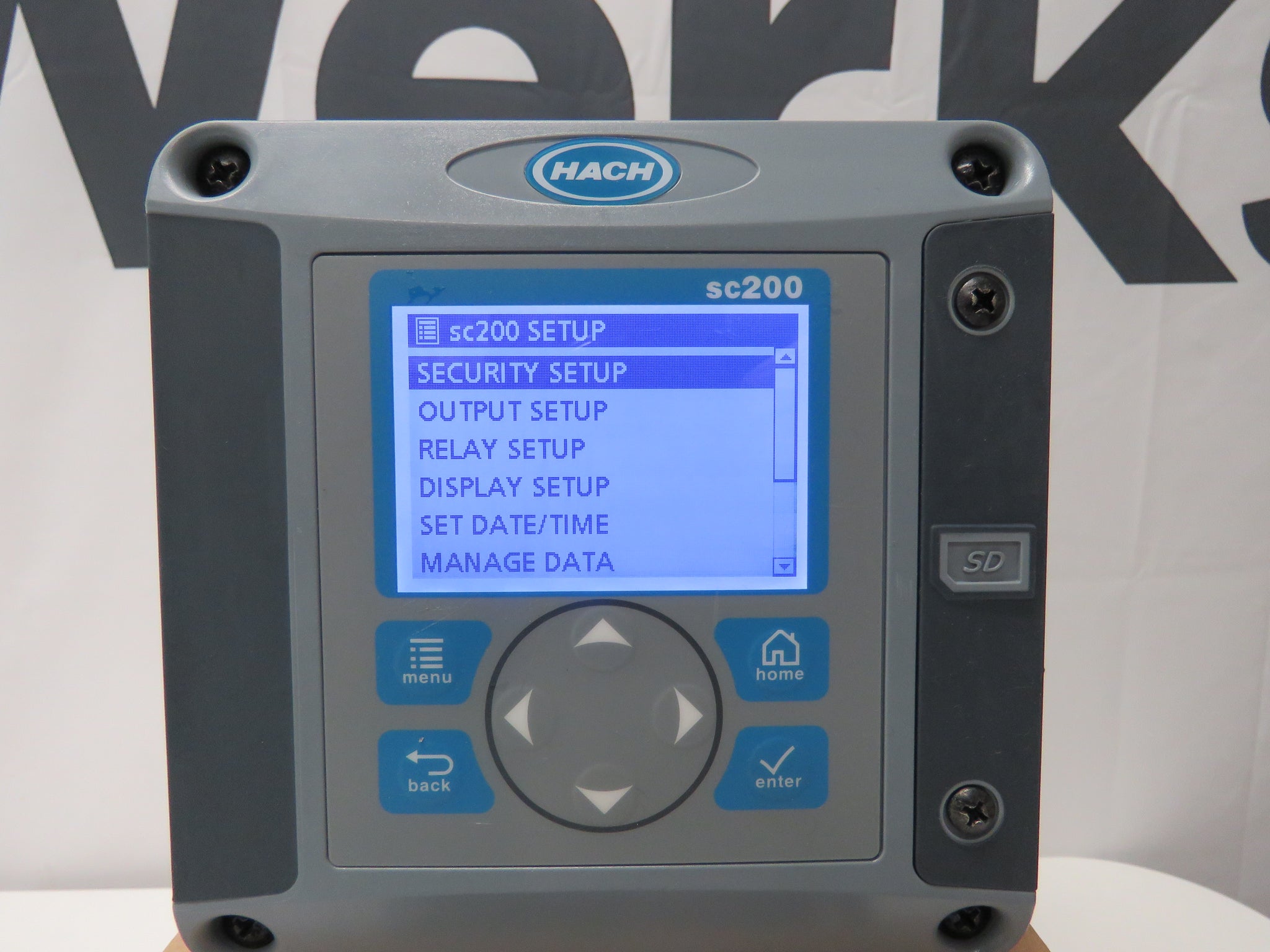

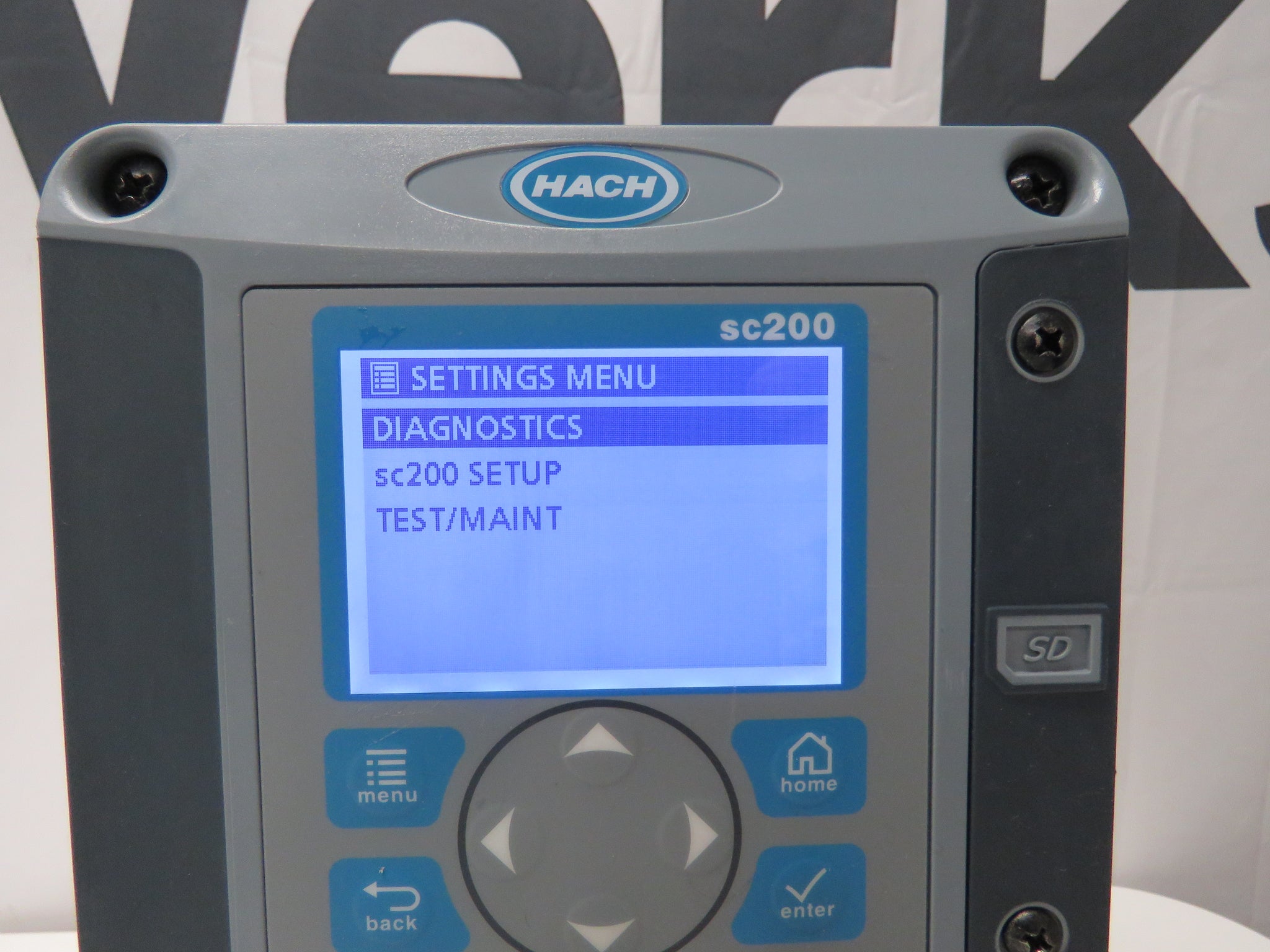

• Simple, intuitive user interface for navigating both sensor and controller options

Confidence in Results

• Password protected SD card reader offers a simple solution for data download and transfer
• Visual warning system provides critical alerts

One Controller, Numerous Communication Options

Hach offers the largest portfolio sensors and analyzers for water analytics with MODBUS RS232, MODBUS RS485, Profibus DP, and HART capability.

Broadest Range of Sensors

Use the SC200 Universal Controller in combination with over 30 different sensor families covering 17 different parameters

Specifications

Analogue Output Functional Mode: Linear, Logarithmic, Bi-linear, PID

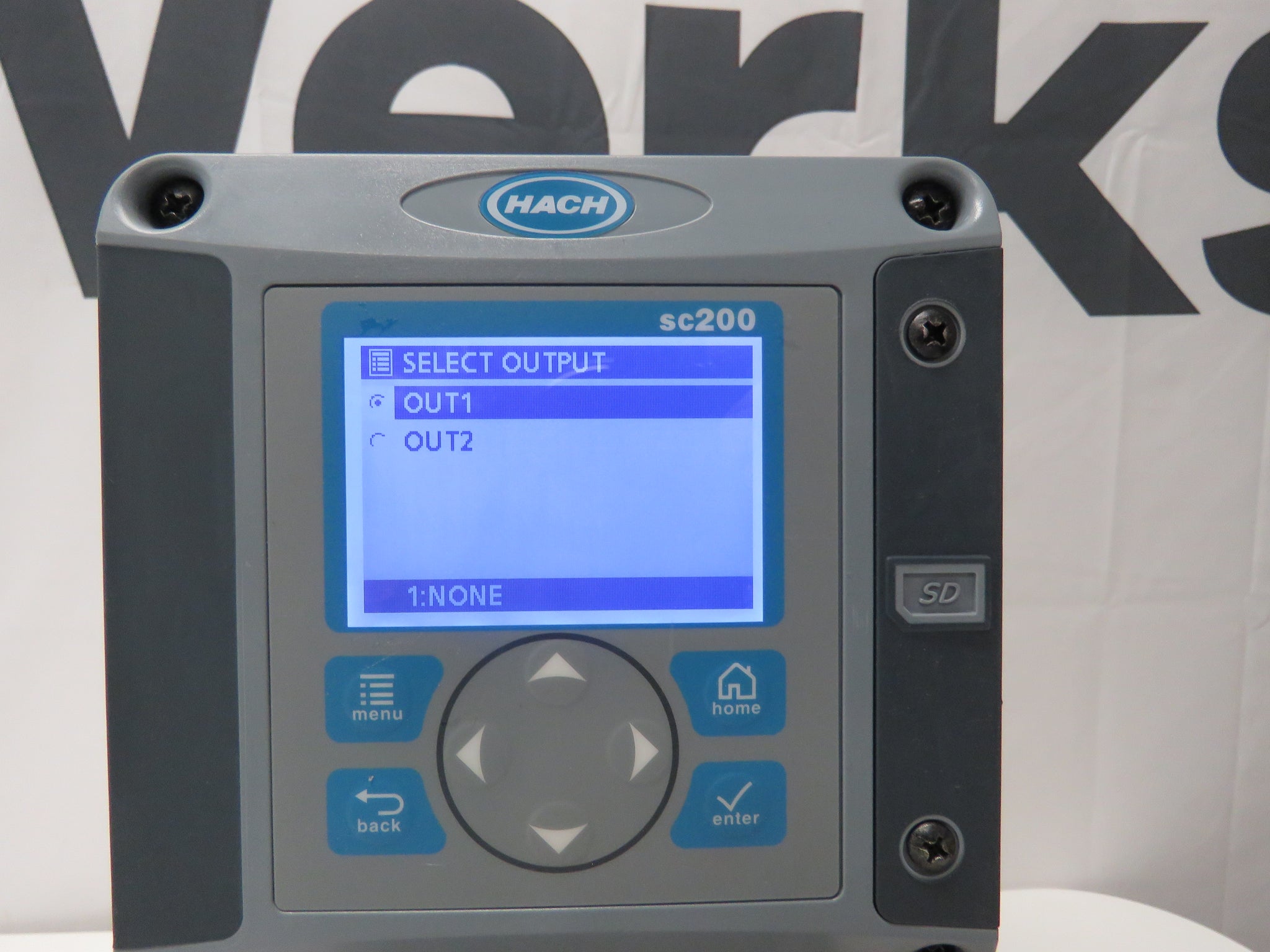

Analogue Outputs: Two (Five with optional expansion module) isolated current outputs, max 550 Ω. Optional 4 addition 4/20 insolated current outputs, max 550 Ω
Communication: Standard (2x 4-20 mA outputs)
Communication: digital: Modbus RS232/RS485, Profibus
Communication Capabilities: 2x 4-20 mA Out
Conduit Openings: 1/2" NPT Conduit
Depth: 7.1 inch
Dimensions (H x W x D): 144 mm x 144 mm x 181 mm

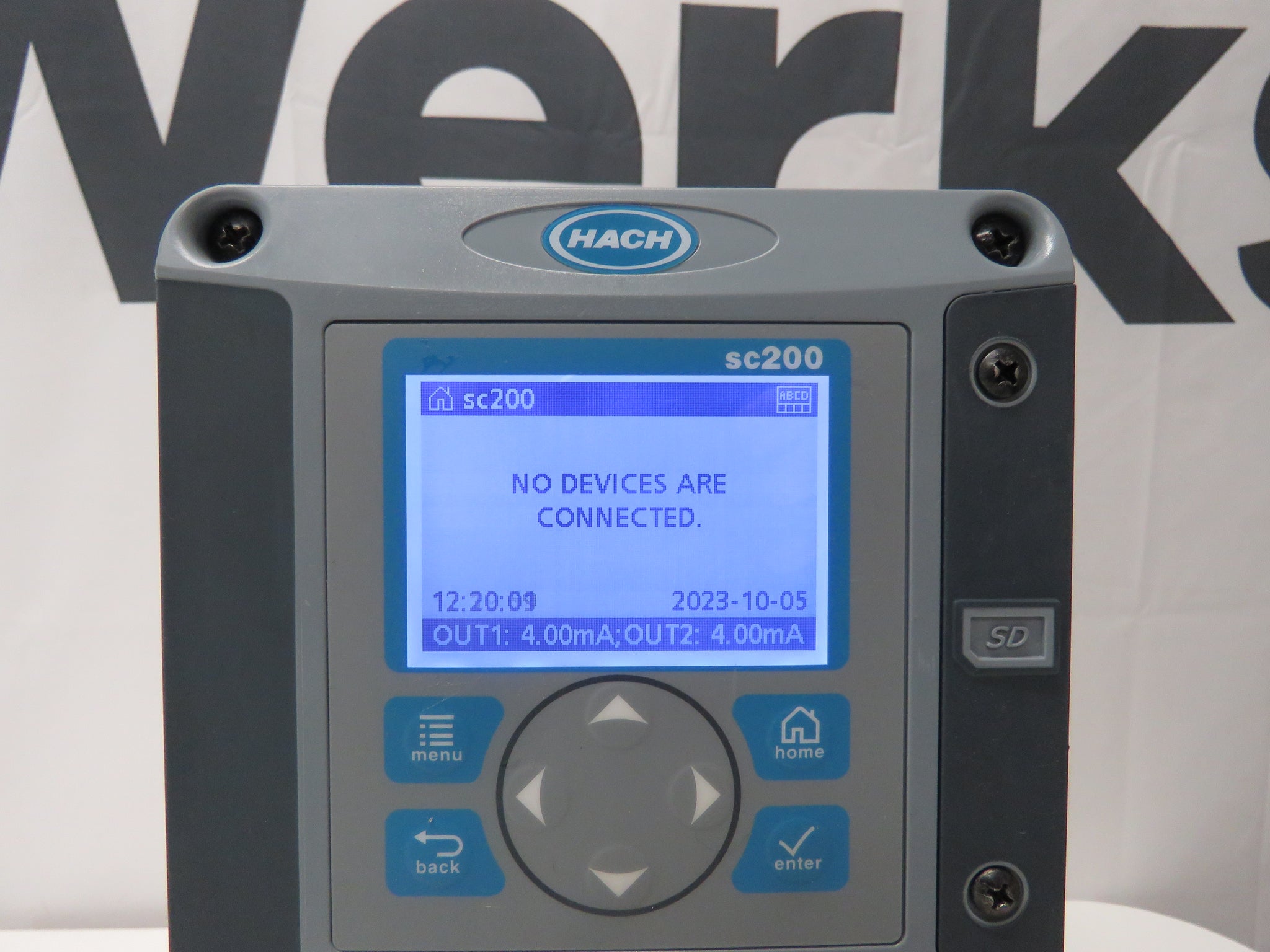

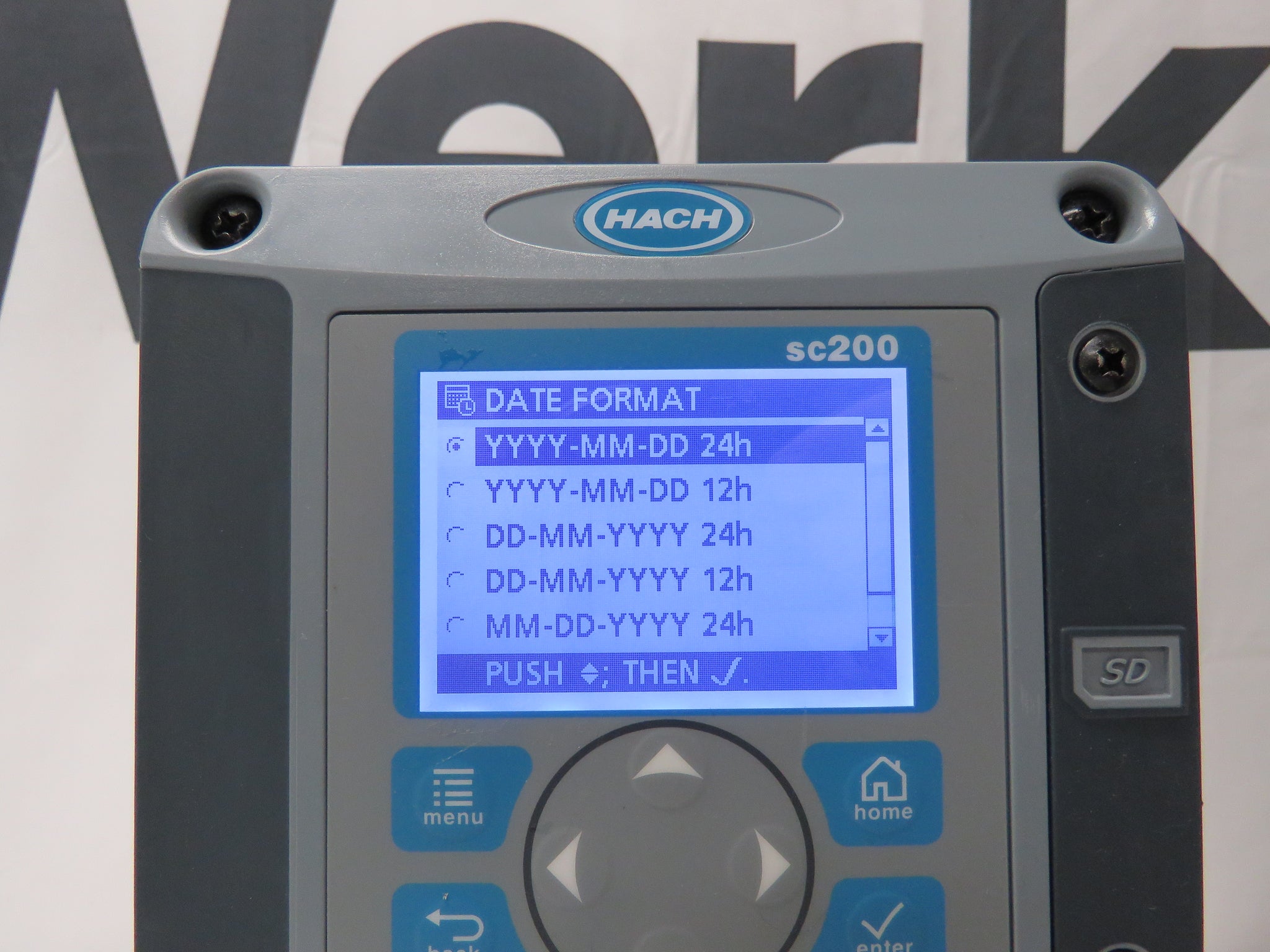

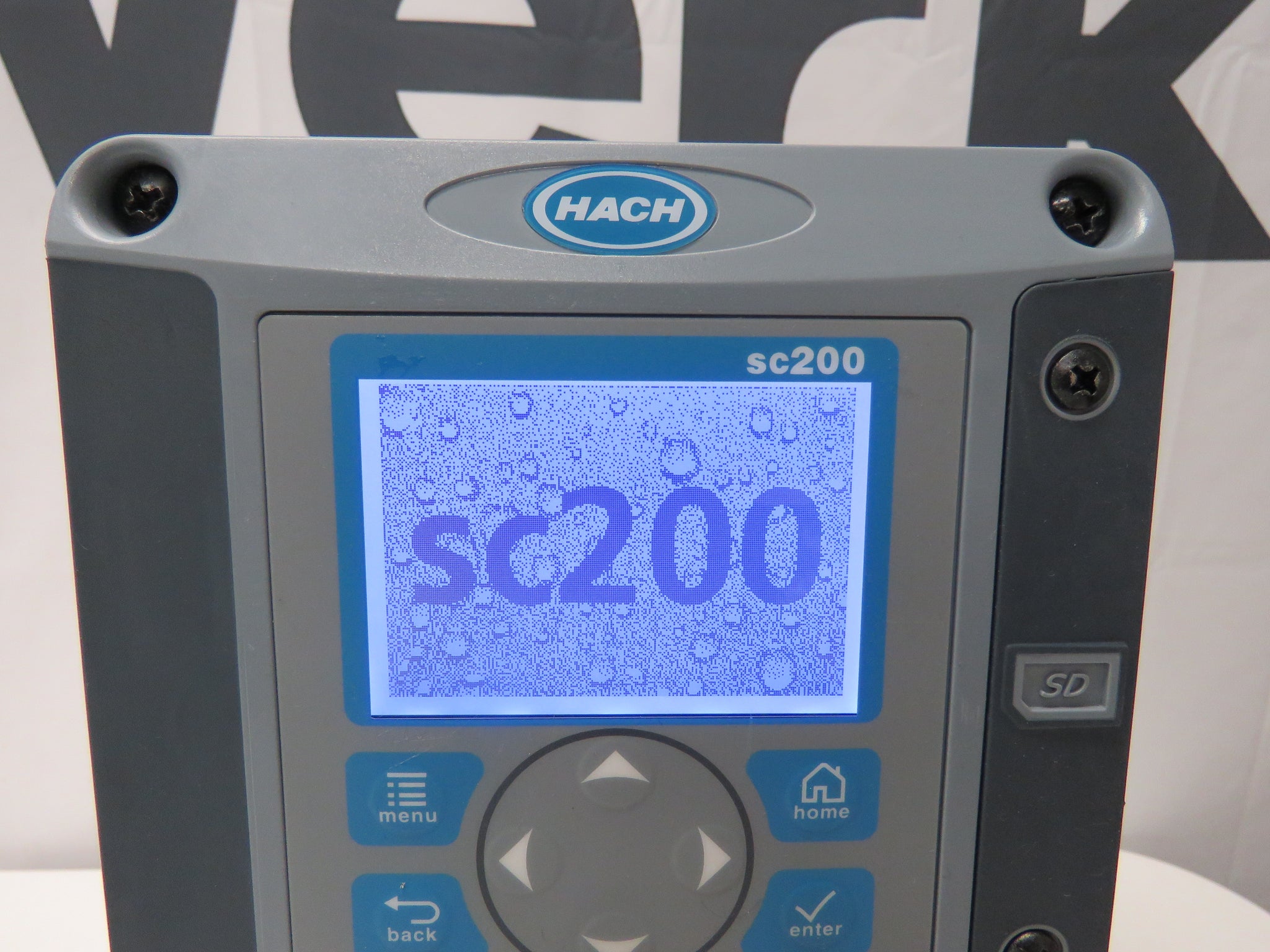

Display: Graphic dot matrix LCD with LED backlighting
Display Resolution: 240 x 160 pixels
Display Size: 1.9 x 2.7 inches (48 mm x 68 mm)

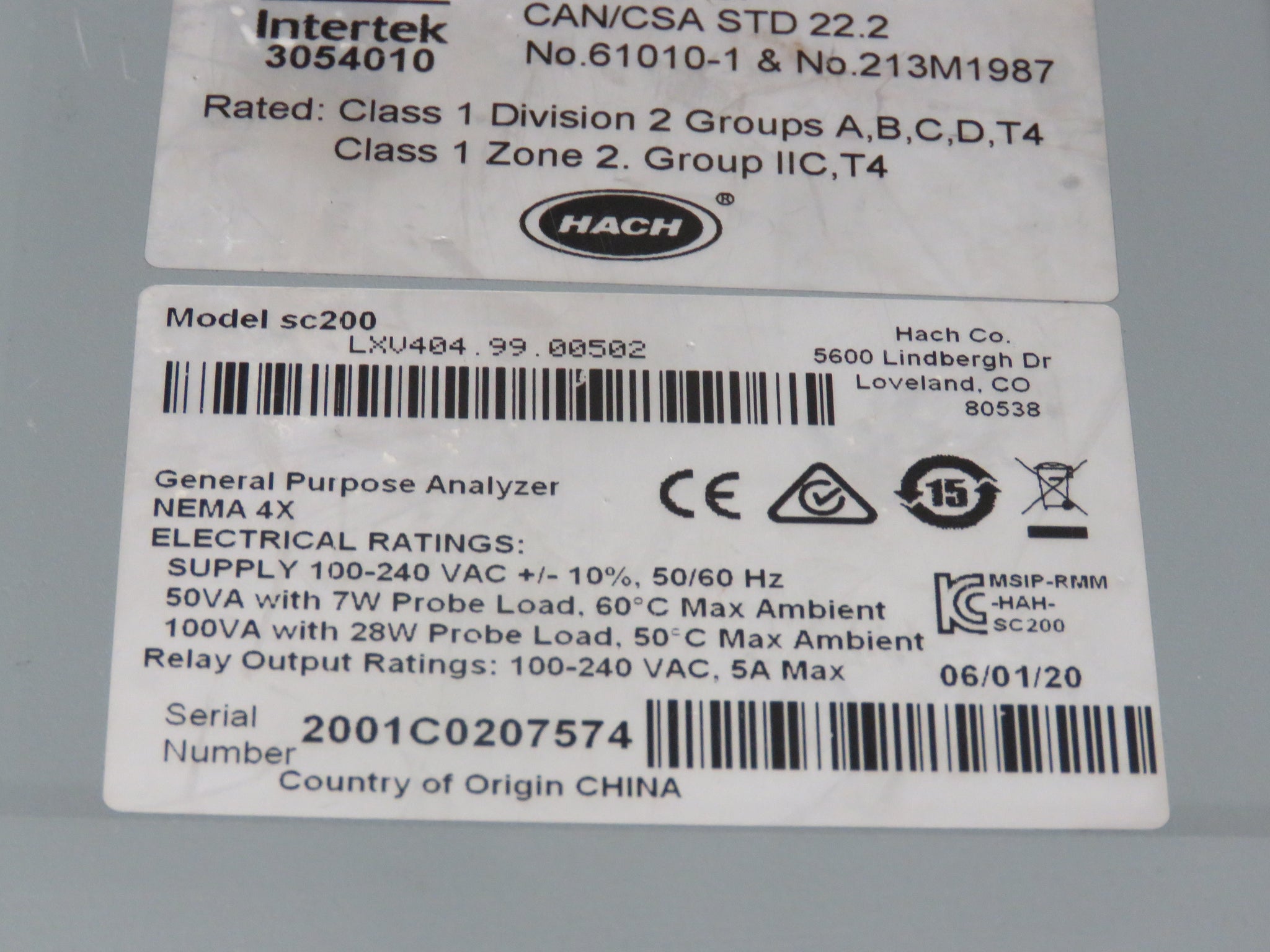

Electrical Certifications: EMC - Certified CE compliant for conducted and radiated emissions (EN 50081-2) and immunity (EN 61000-6-2), General purpose - UL through ETL, Class I, Div. 2 (Groups. A, B, C, and D) - CSA (pending)
Enclosure rating: IP66 / NEMA 4X
Length: 181 mm

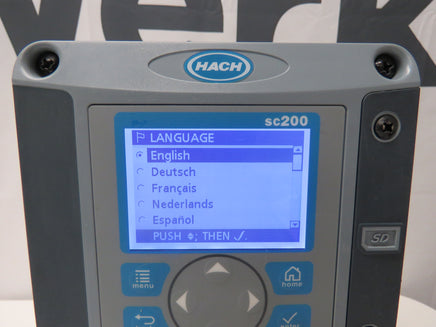

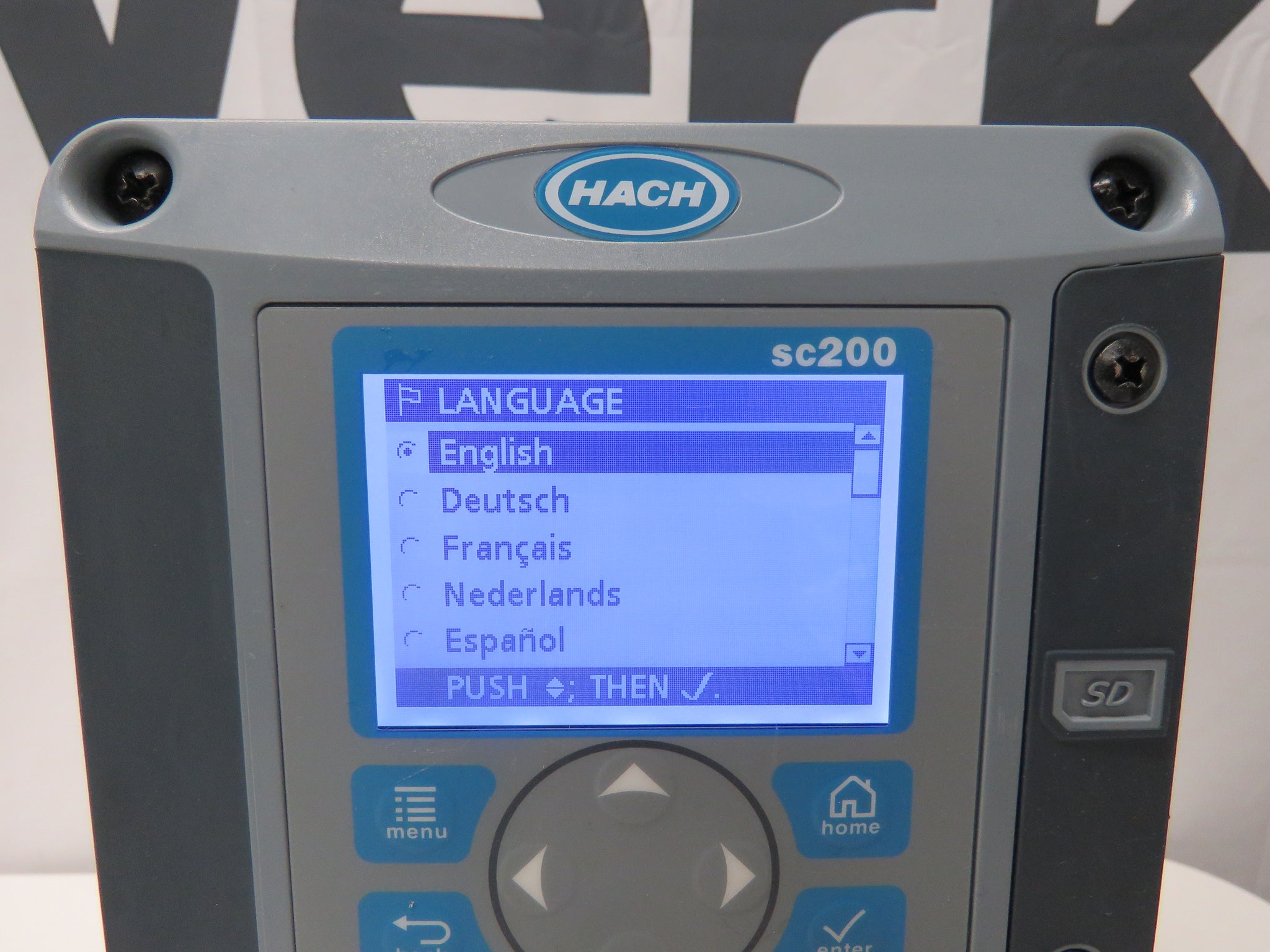

Manual Languages: Bulgarian, Chinese (PRC), Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Lithuanian, Polish, Portuguese (Brazil), Portuguese (Portugal), Romanian, Russian, Slovak, Slovenian, Spanish, Swedish, Thai, Turkish
Material Enclosures: Polycarbonate, Aluminium (powder coated), Stainless Steel
Mounting Configurations: Wall, Pole, Panel Mounting
Operating temperature range: -20 - 60 °C at 0 - 95% RH (non-condensing)
Power Options: 100 - 240 VAC, no power cord
Power requirements (Hz): 50 - 60 Hz
Power requirements (Voltage): 100 - 240 VAC
Power supply: Without power cord
Relay: Operational mode: Primary of secondary measurement, calculated value or timer

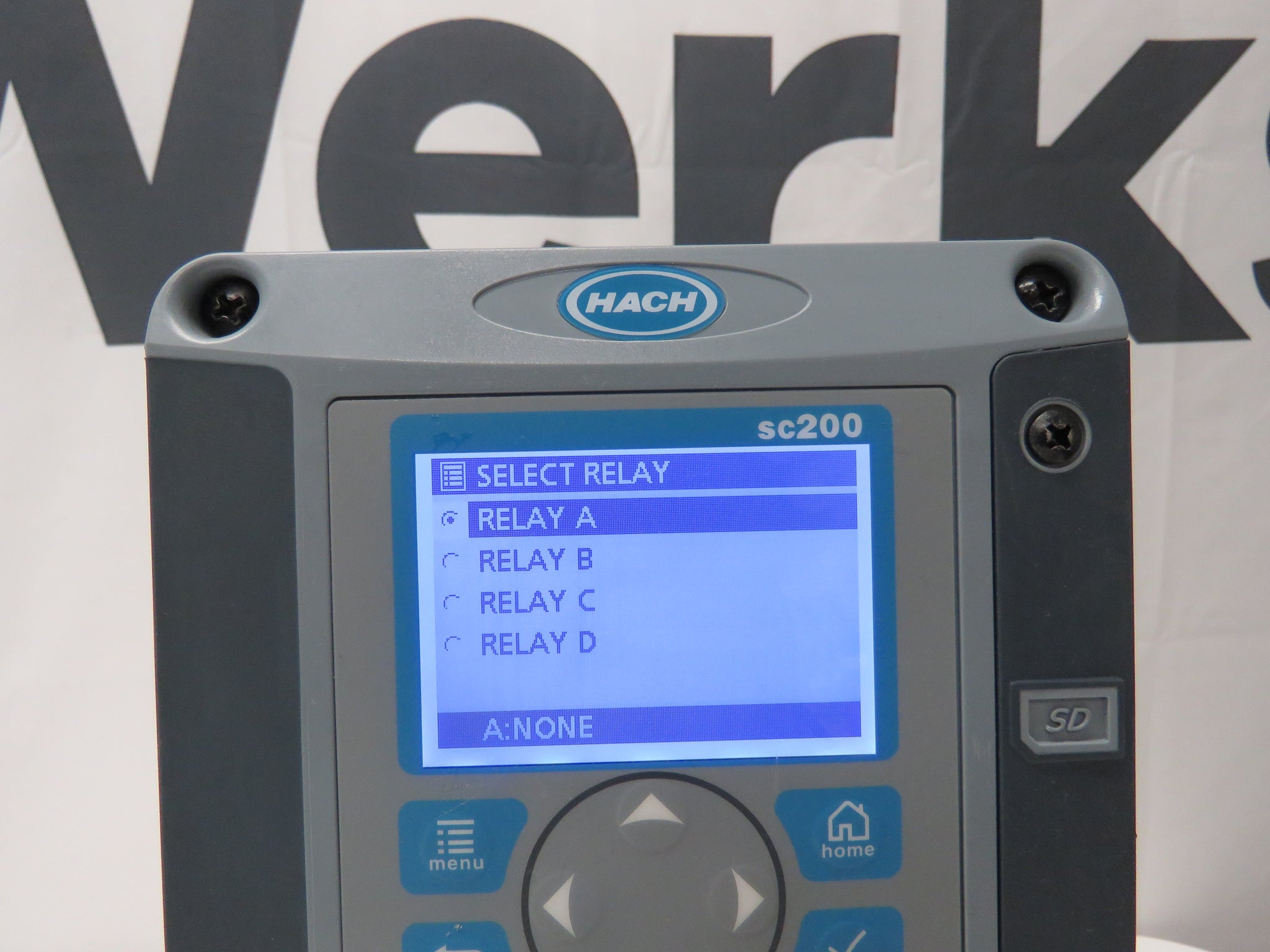

Relay functions: Scheduler (timer), alarm, feeder control, event control, pulse width modulation, frequency control, and warning
Relays: Four electromechanical SPDT (Form C) contacts, 1200 W, 5 A
Security levels: 2 password-protected levels
Sensor Input #1: Digital
Sensor Input #2: Digital
Storage conditions: -20 °C to 70 °C
Weight: 1.7 kg



Condition

Great condition.

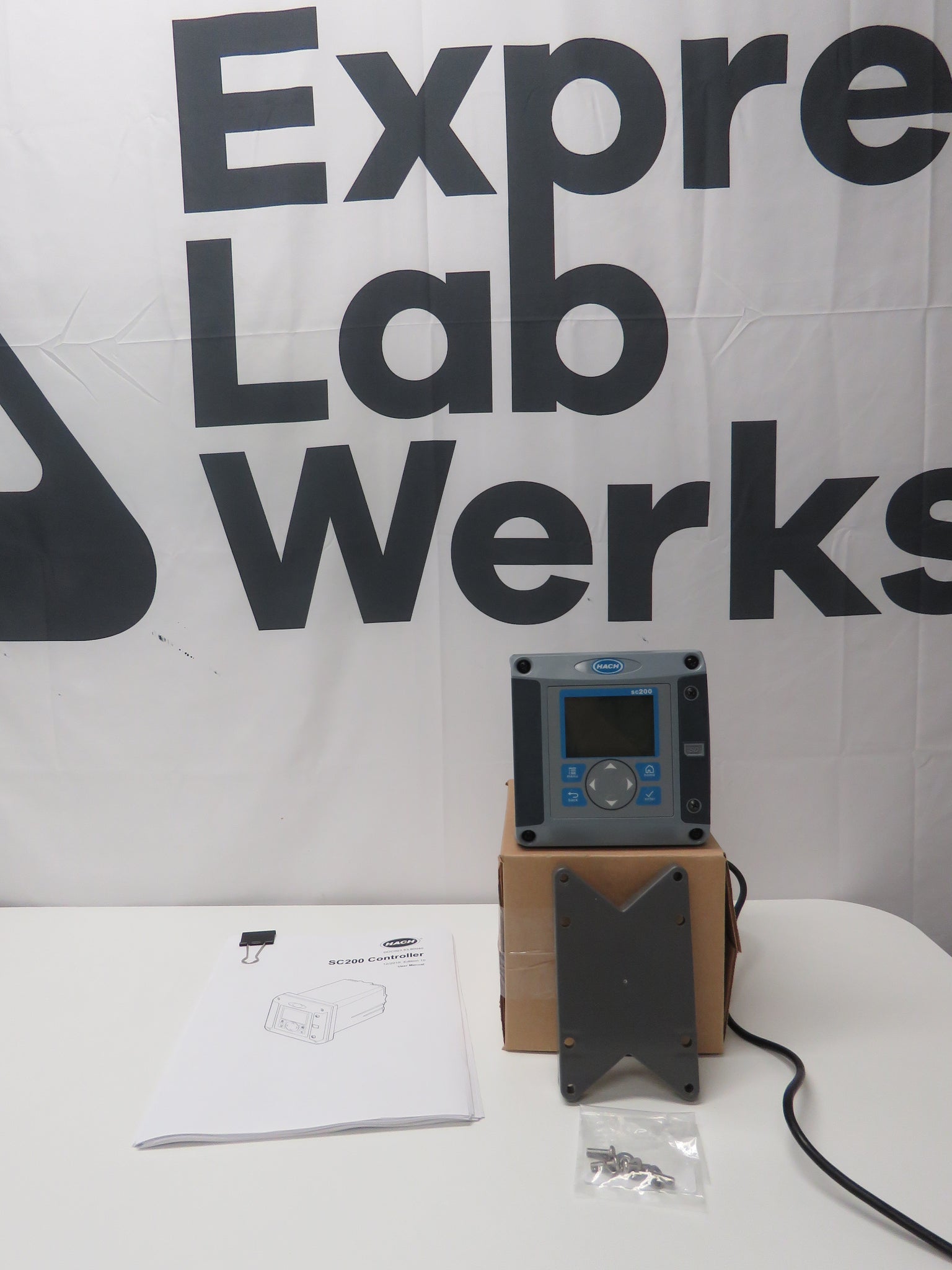

Includes

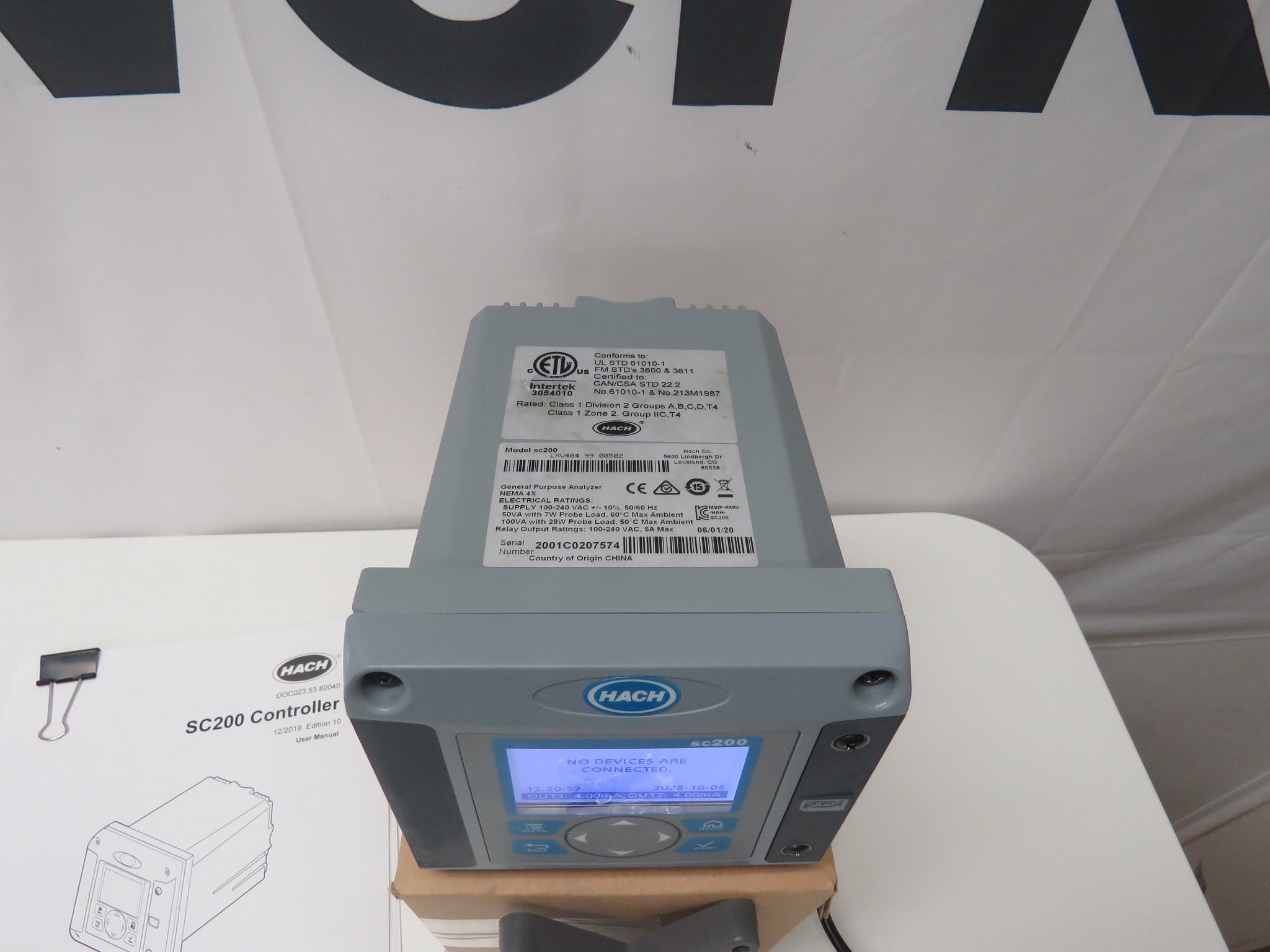

    • Hach NEMA 4X General Purpose Analyzer Model SC200 LXV404.99.00502

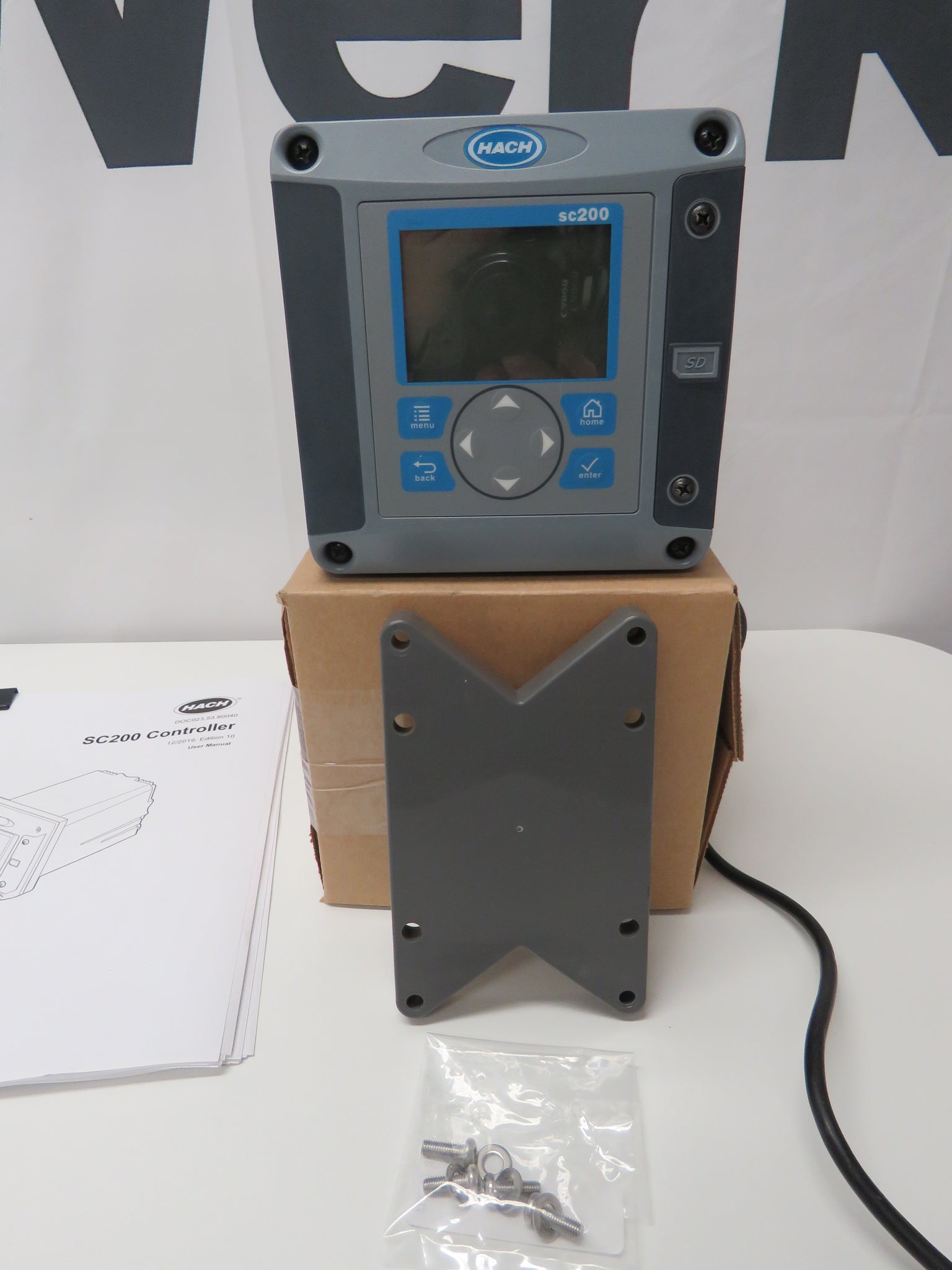

    • Wall mount with mounting screws
    • AC Line cord

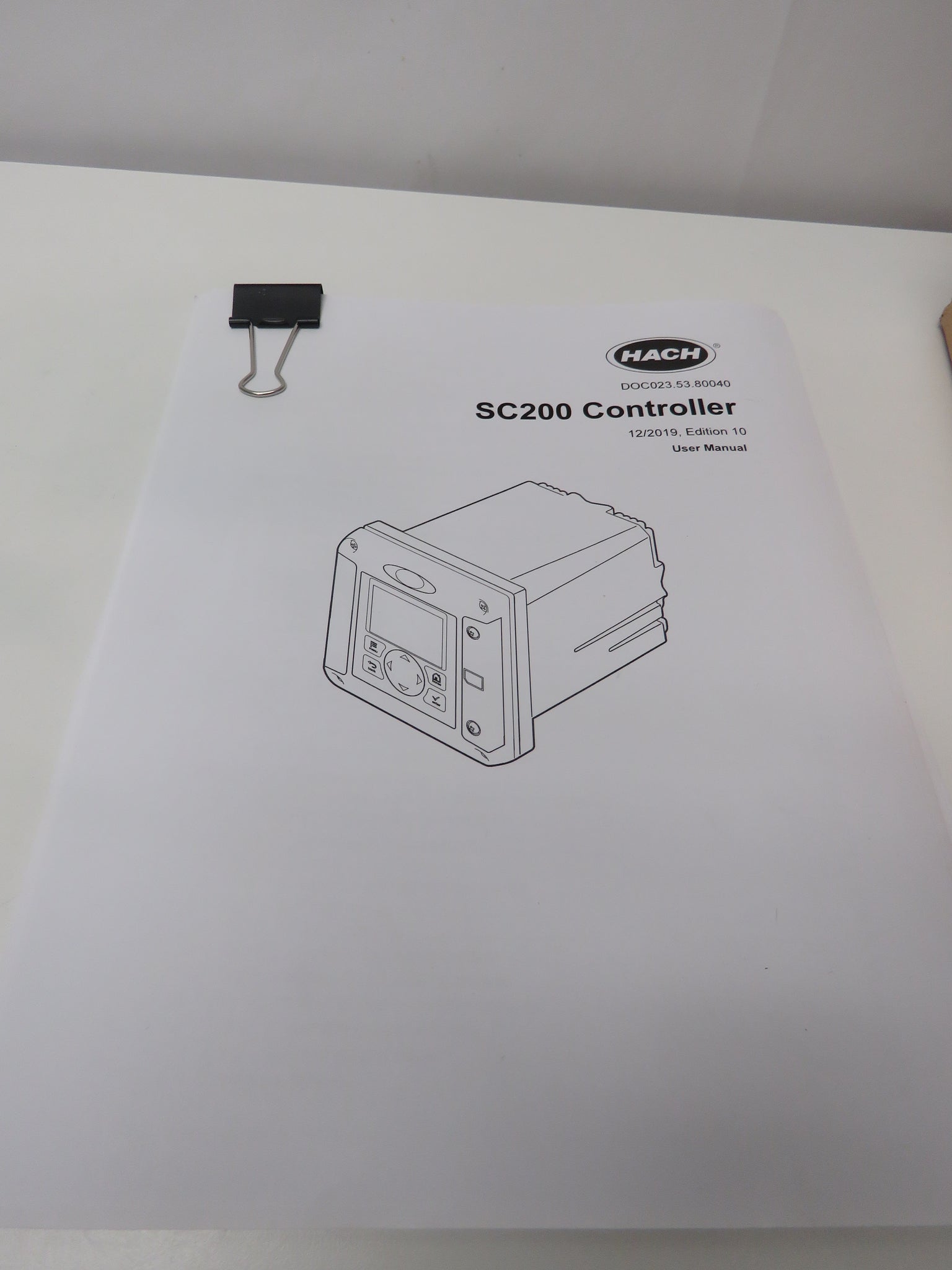

    • User Manual
