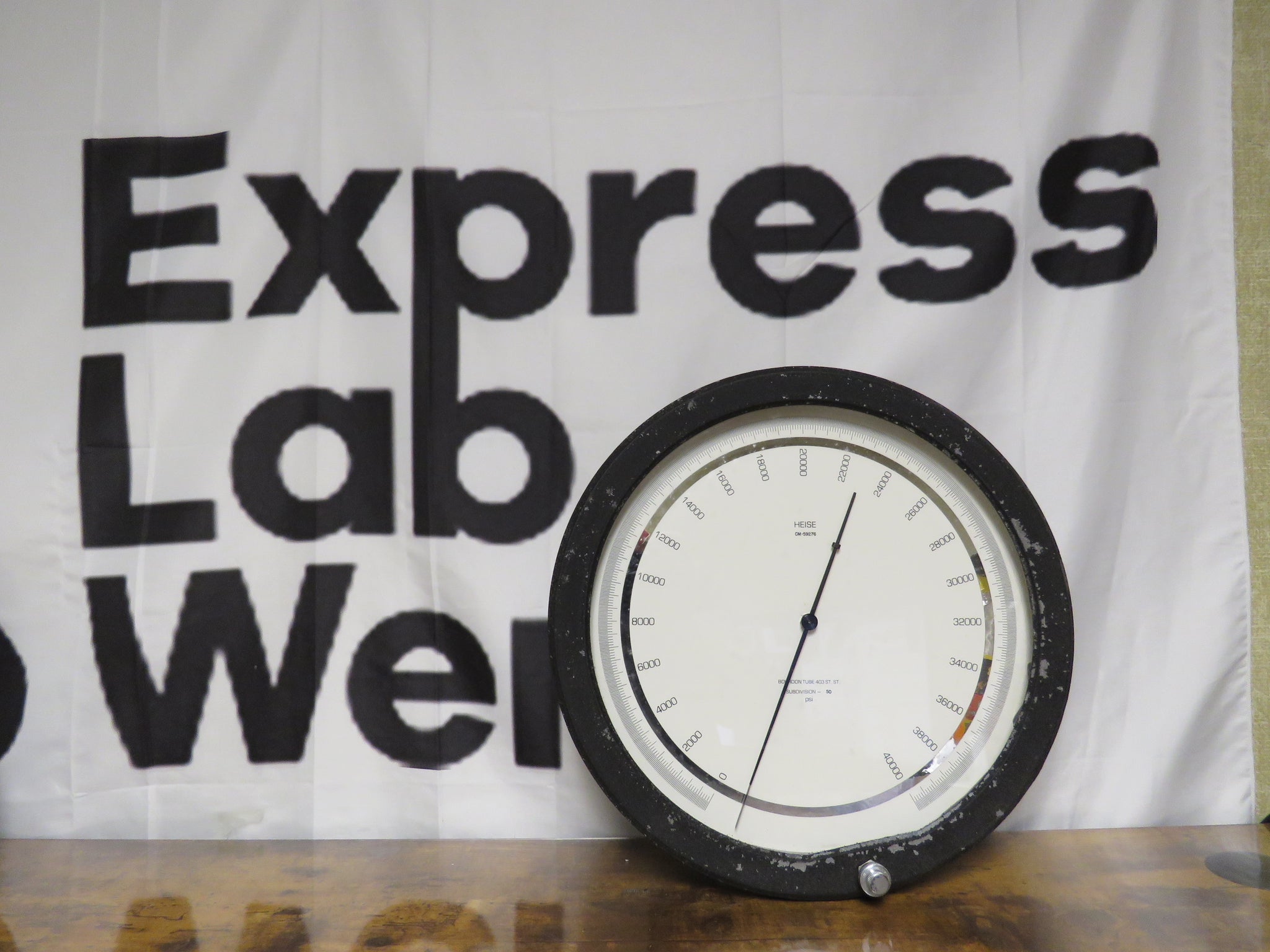

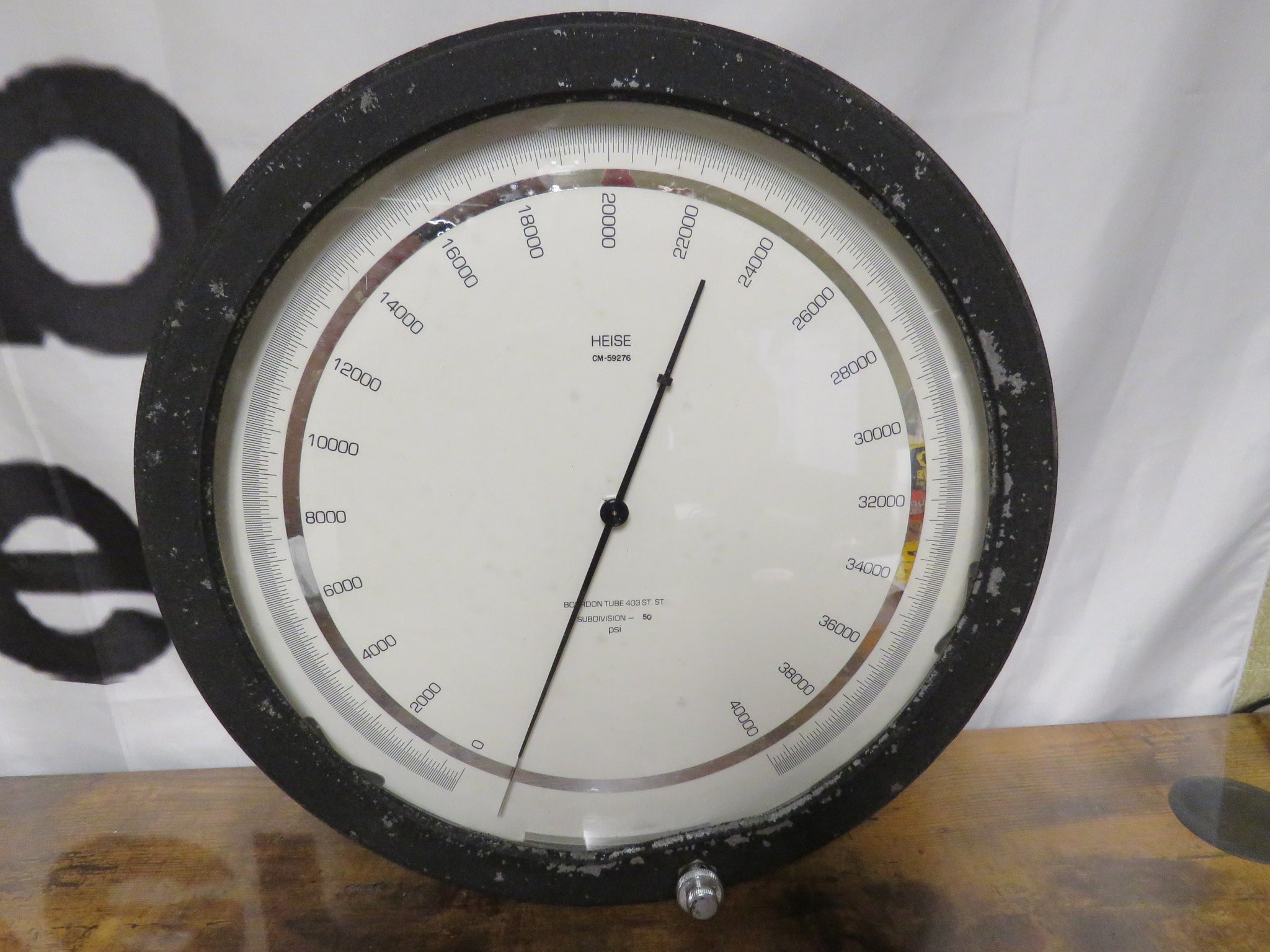

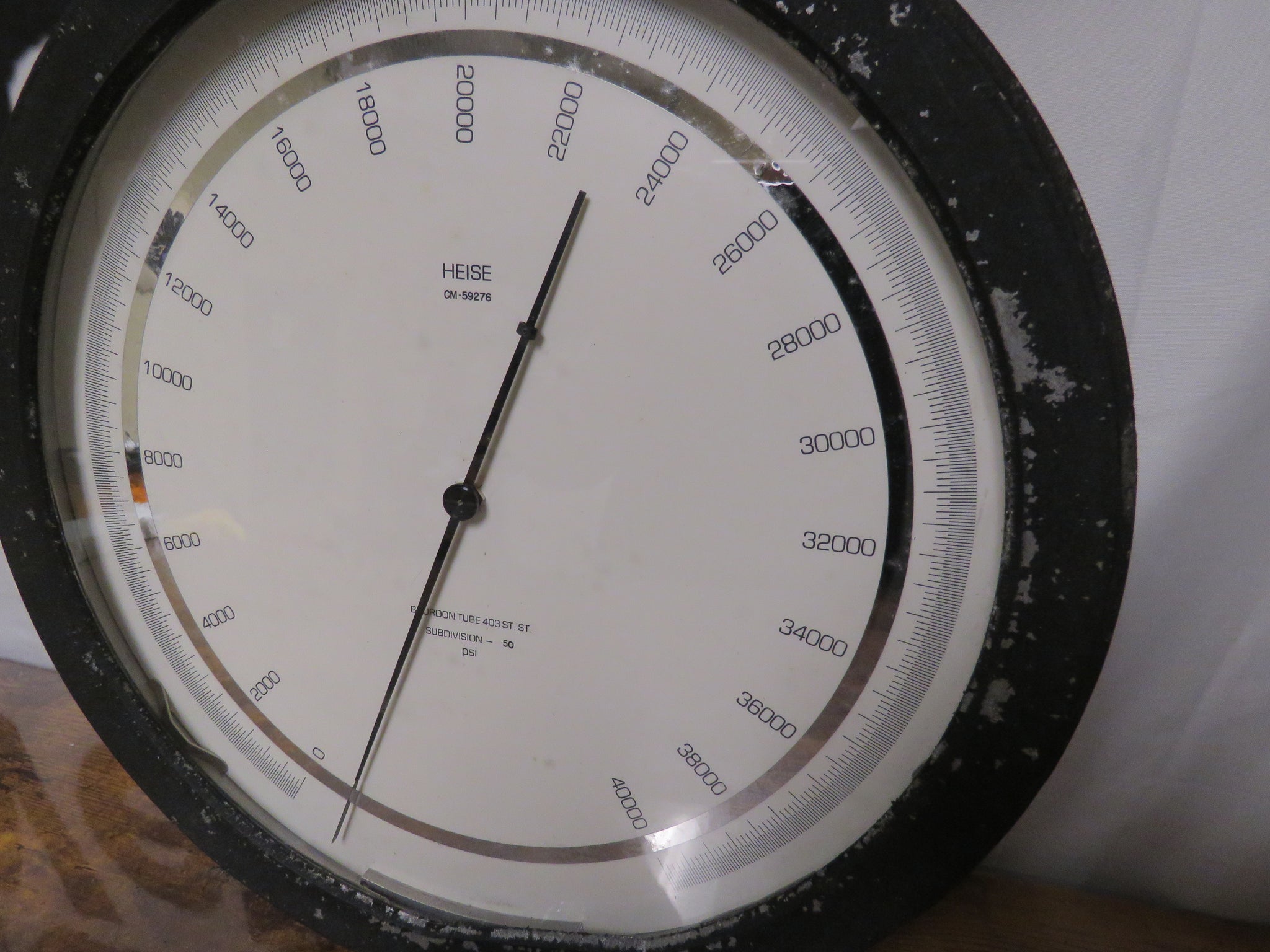

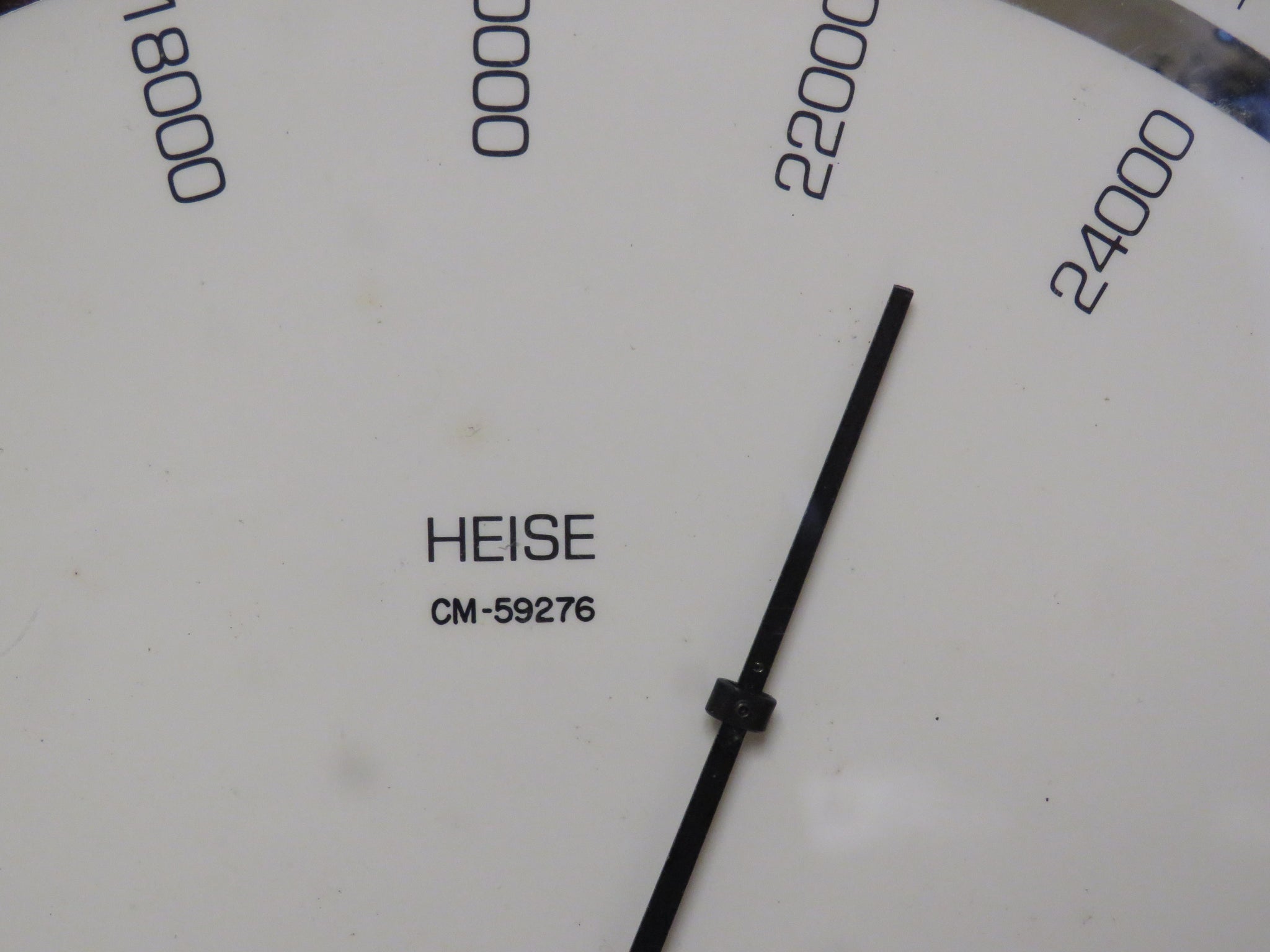

HEISE CM-59276 12" Dial, 0-40,000 PSI BOURDON TUBE 403 ST. ST. Subdivison 50 PSI
HEISE CM-59276 12" Dial, 0-40,000 PSI BOURDON TUBE 403 ST. ST. Subdivison 50 PSI
HEISE CM-59276 12" Dial, 0-40,000 PSI BOURDON TUBE 403 ST. ST. Subdivison 50 PSI
HEISE CM-59276 12" Dial, 0-40,000 PSI BOURDON TUBE 403 ST. ST. Subdivison 50 PSI
HEISE CM-59276 12" Dial, 0-40,000 PSI BOURDON TUBE 403 ST. ST. Subdivison 50 PSI
HEISE CM-59276 12" Dial, 0-40,000 PSI BOURDON TUBE 403 ST. ST. Subdivison 50 PSI
HEISE CM-59276 12" Dial, 0-40,000 PSI BOURDON TUBE 403 ST. ST. Subdivison 50 PSI
HEISE CM-59276 12" Dial, 0-40,000 PSI BOURDON TUBE 403 ST. ST. Subdivison 50 PSI
HEISE CM-59276 12" Dial, 0-40,000 PSI BOURDON TUBE 403 ST. ST. Subdivison 50 PSI

HEISE CM-59276 12" Dial, 0-40,000 PSI BOURDON TUBE 403 ST. ST. Subdivison 50 PSI

$650.00
SKU: HeiseCM

Web Information

CM Dial Pressure Gauge

The Heise® model CM precision pressure gauge yields consistent, reliable accuracy through the use of precision machining and refined Bourdon tube technology. Pointer rotation of up to 350 degrees with up to 1500 divisions offers high resolution to easily support tight tolerances. As a mechanical instrument, the gauge does not require a power supply.  In addition, this pressure gauge is simple to operate, easy to troubleshoot, and can be readily flushed or purged to remove foreign matter or trapped gas. That’s why the Heise® precision dial gauge continues to be the #1 choice in ASME B40.100, grade 4A precision mechanical pressure instrumentation.

Key Features:

    Accuracy ±0.1% of span
    Gauge, Compound and Vacuum ranges
    Pressure ranges 15 to 100,000 psi
    Up to 350 degree of pointer rotation
    Mirror-band dial and knife-edge pointer eliminates parallax error while
    assuring easy readability of precise measurements

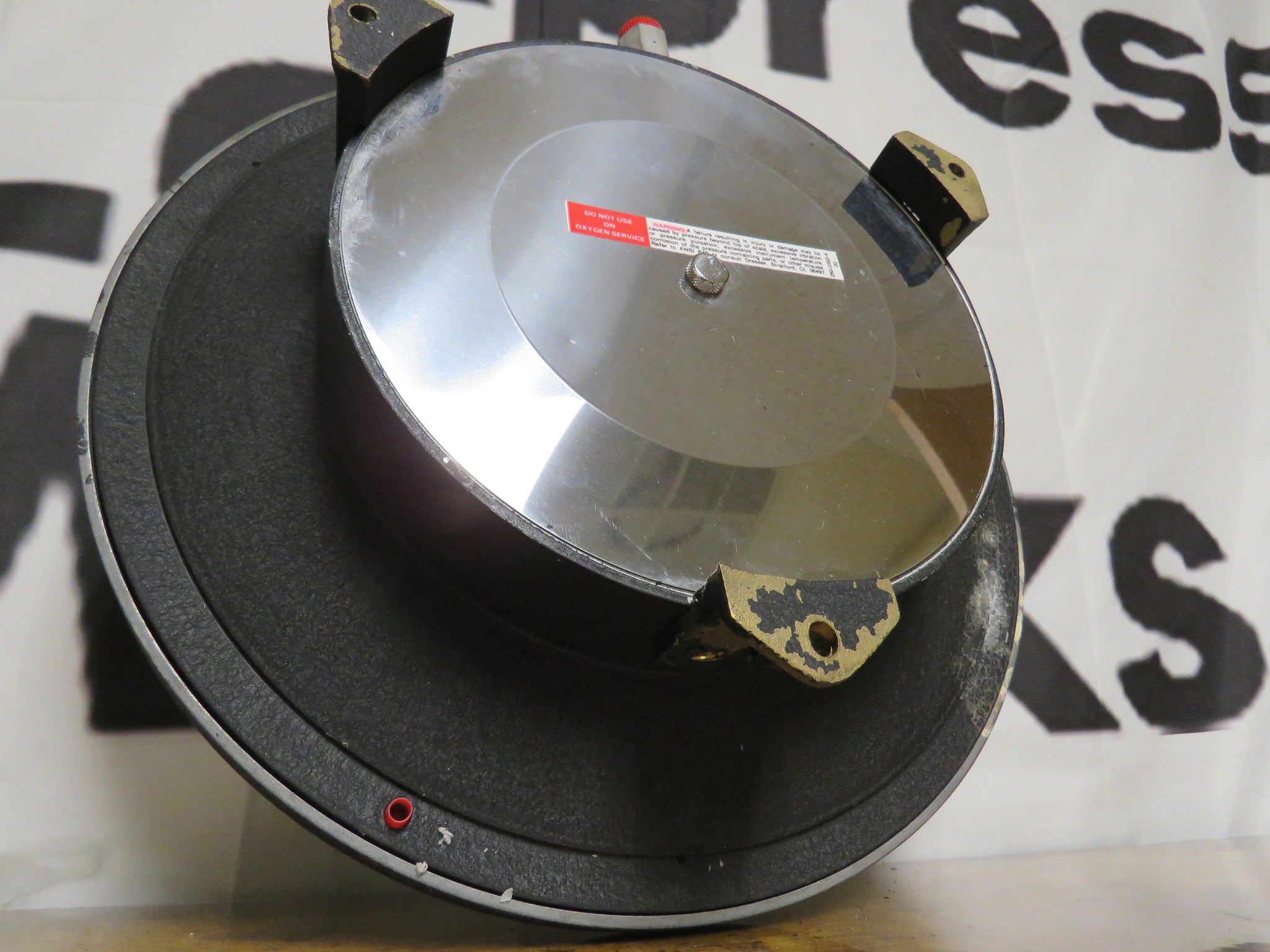

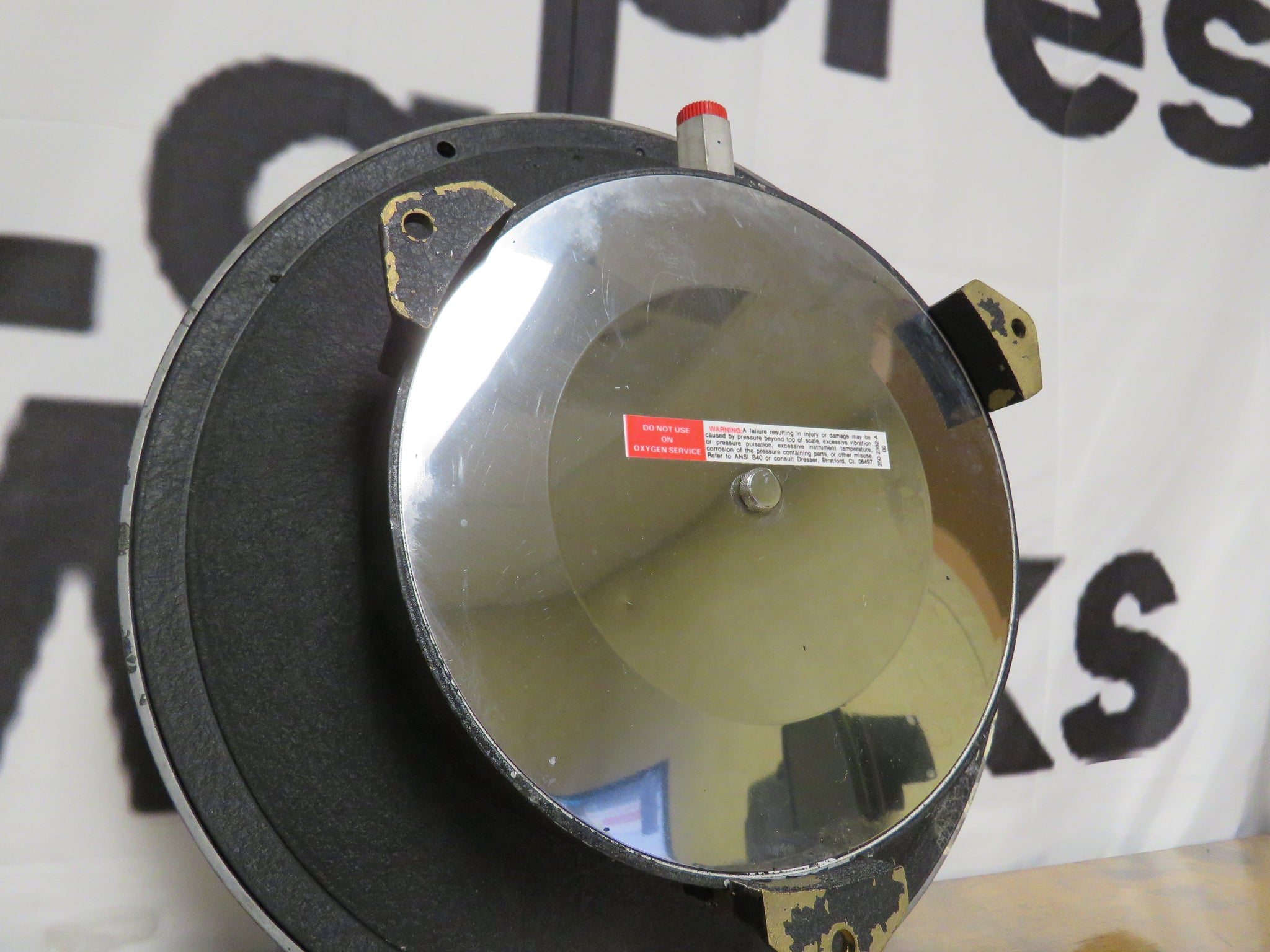

    Solid-front case design and blow-out safety back protect users from
    extreme overpressure
    Optional Slotted link – protects gauge from sudden decrease in pressure
    Optional Thermal Compensation – to maintain accuracy over a wide
    temperature range from -25° to +125°F



Condition

Used condition, cosmetic black paint flaking off body.

Please note: Manufacturer statement of use:

Mandatory Safety Recalibration

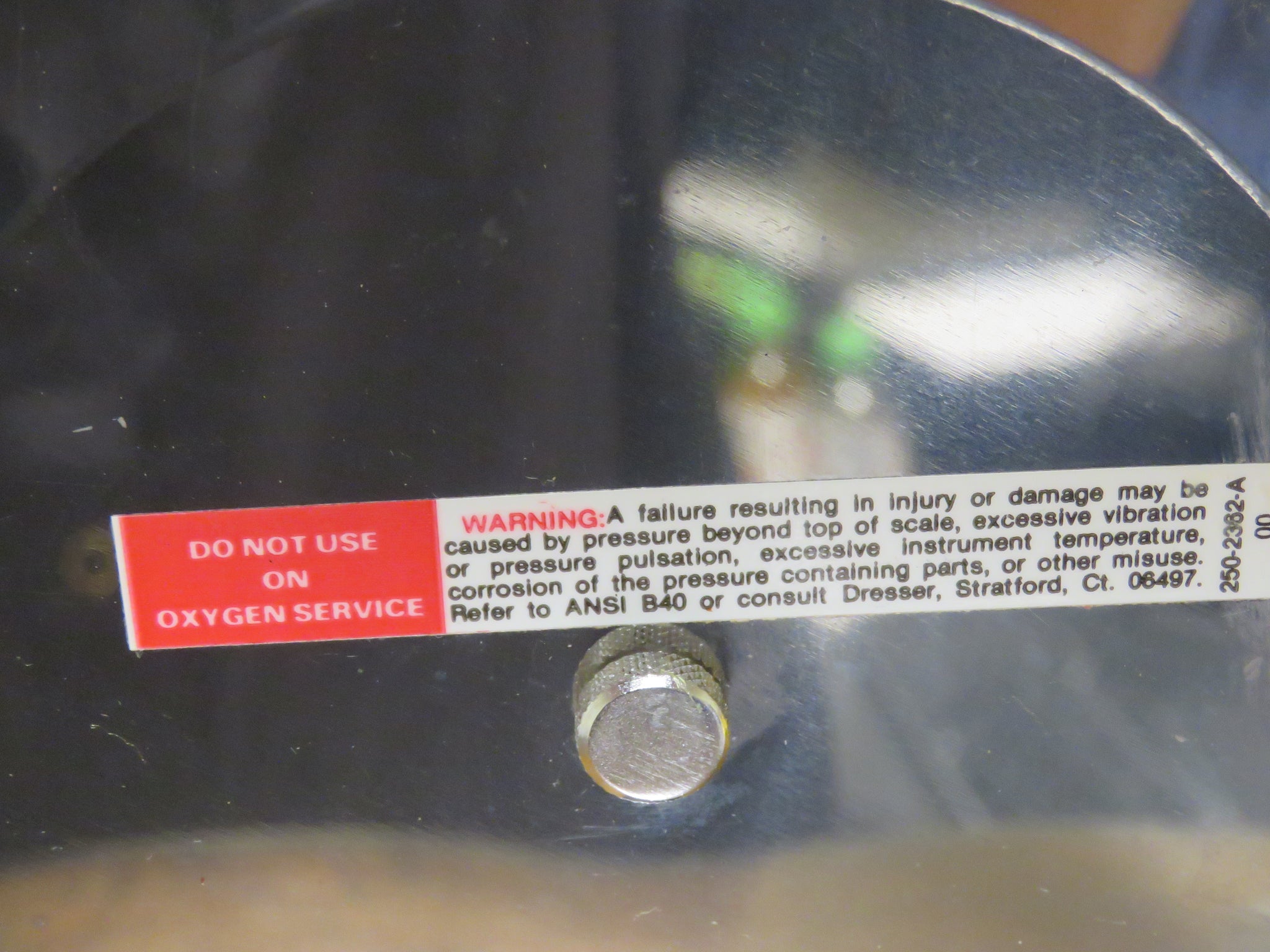

Do not use a pre-owned 40,000 psi mechanical gauge straight out of the box. At 40k psi, a ruptured or fatiguing internal Bourdon tube can cause catastrophic failure. Even though the gauge features a solid-front safety case to redirect explosive pressure out the back, you should always send a used high-pressure gauge to an accredited calibration lab first to check for accuracy, micro-cracks, or metal fatigue.  Buyer agrees to adhere to all safety requirements.

Includes

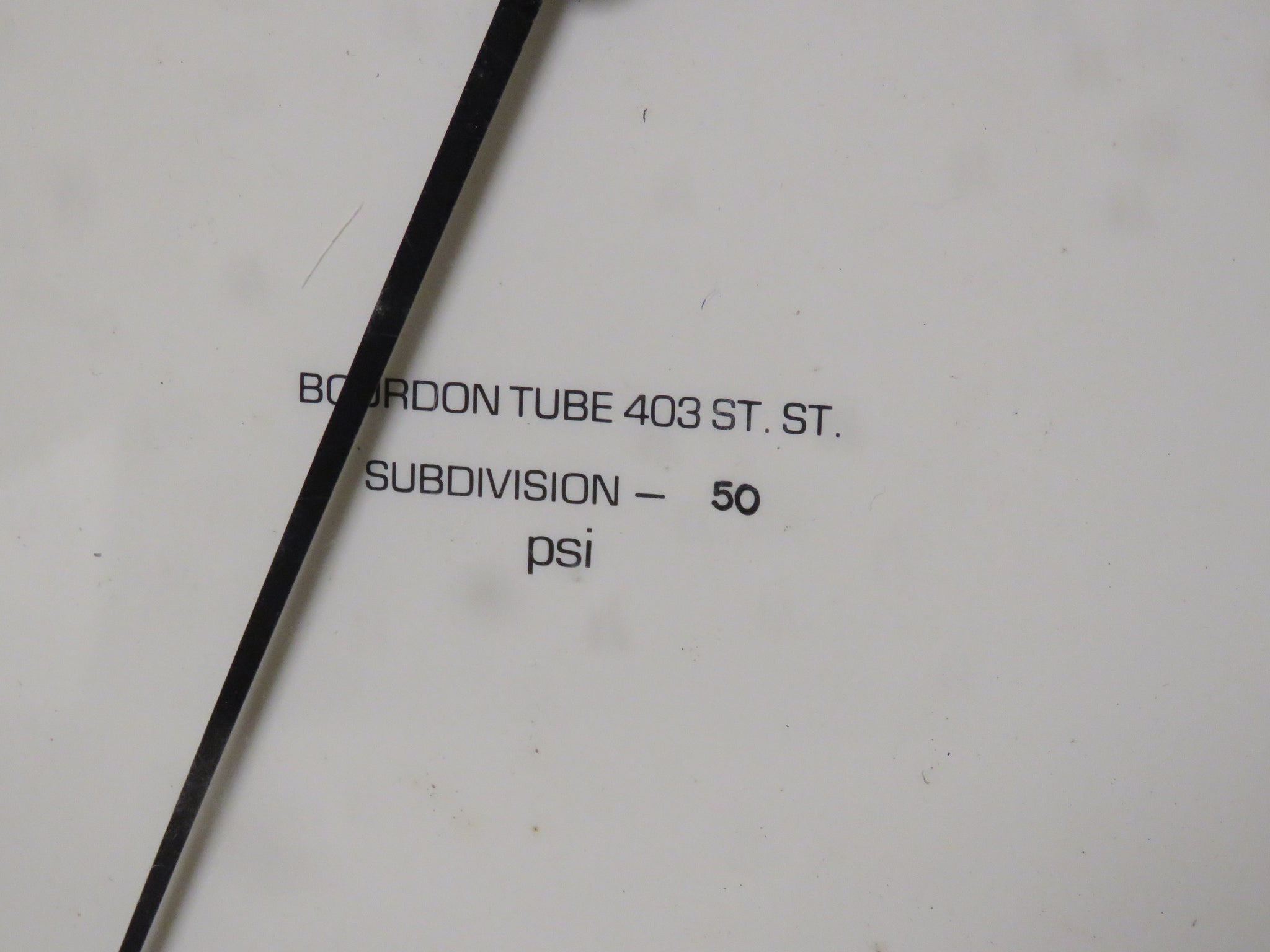

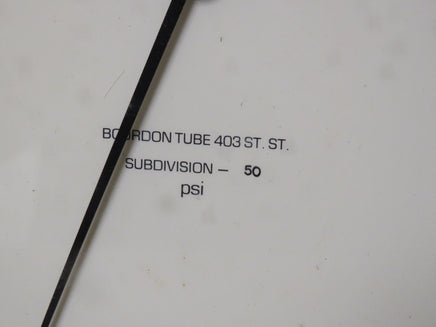

  • HEISE CM-59276 12" Dial, 0-40,000 PSI BOURDON TUBE 403 ST. ST. Subdivison 50 PSI

LRGS

Warranty

30 Day warranty. We pledge to offer the best service and warranty to all of our customers!  We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.

Certification

This is a genuine product from this manufacturer.

Disclaimer

The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping of the item."

Regardless of the origin of the equipment, documentation provided or identification appearing upon the equipment, the equipment described and offered here is in no way certified for, recommended for, or offered for any specific use. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. The purchaser, by bidding on this equipment, indicates their acknowledgment of, and agreement to the terms of this disclaimer. it is the purchaser's responsibility to have the item inspected and certified by a qualified professional before use!
