Horizon Technology SPE-DEX 3000XL Automated Extraction System Oil & Grease

Horizon Technologies

$7,499.00
SKU: spedex3000xl

Sorry, this item is out of stock

Web Information

The SPE-DEX 3000XL Extractor automates EPA Method 1664A, and provides an alternative to expensive, labor-intensive LLE methods for extracting oil and grease from aqueous samples.

Using a combination of advanced liquid handling and 'Certified for Automation' Pacific O&G SPE Disks, the SPE-DEX 3000XL Extraction System delivers the accuracy and consistency of data laboratories need to comply with Method 1664A & 1664B QC specifications. Using SPE, in high-throughput laboratories solvent use is reduced by up to 90% when compared to traditional LLE, and sample run times can be less than 30 minutes.

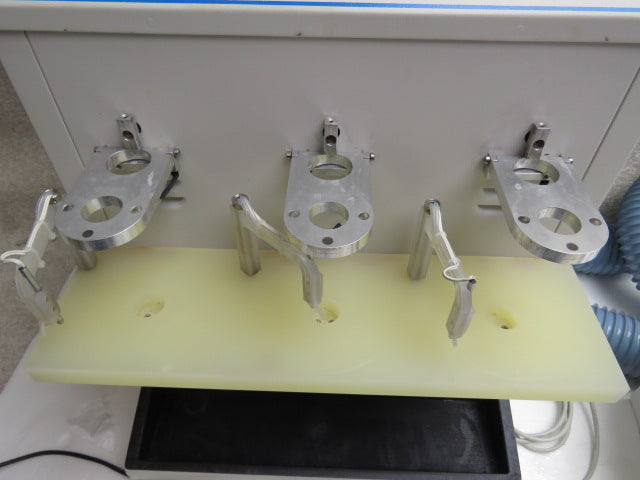

The SPE-DEX 3000XL is a three-station system, and is automated allowing unattended operation which increases the overall productivity of your lab, as technicians are freed up for other projects. The SPE-DEX 3000XL system processes samples directly from the original sample bottle. It automatically delivers all solvents, regulates sample processing and disk drying times, rinses the sample bottle and collects the extract.

SPE methods offer significant advantages over traditional LLE techniques:

SPE uses less solvent than LLE.
NO shaking is required, and NO emulsions form.
SPE is faster; only 20-30 min for a 1-liter sample.
SPE provides comparable / better recoveries than LLE.
EPA Methods are constantly being developed for SPE.

Some of the design features of the SPE-DEX 3000XL system include:

Bench-top operation, which frees up valuable hood space.
Reduced operator exposure to hazardous solvents.
Automated extraction eliminates variability between chemists' techniques.
Can use 47 mm and 90 mm SPE disks
Can be used with the Solvent Trap Recovery System which captures up to 70%
of the n-hexane solvent vapor from EPA Method 1664A & 1664B oil & grease extractions.
Can be used with the Speed-Vap III Solvent Evaporation System, which provides
safe and fast evaporation of n-hexane solvent for oil and grease extractions.

3000XL Physical Properties

Dimensions: 18'W x 15'D x 21.5' H
Weight: 45 lbs

Controller Physical Properties

Dimensions: 7' W x 10' D x 5.5' H
Weight: 2 lbs
Power Requirements: 120 Volts

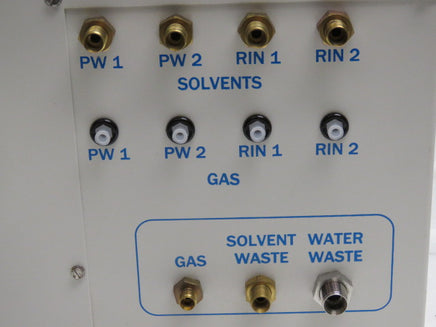

Gas requirements

Nitrogen (Commercial Grade) (60 PSI min)

Vacuum requirements

25' Hg (min)

Condition

Working condition, received from lab environment.  Please note, waste bottles and plumbing lines are not included.

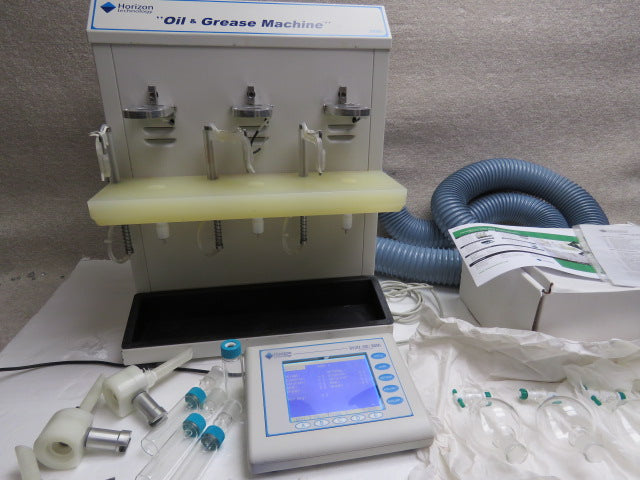

Includes

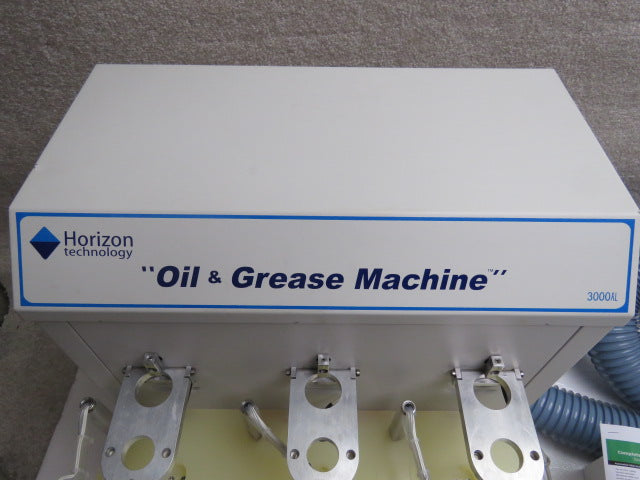

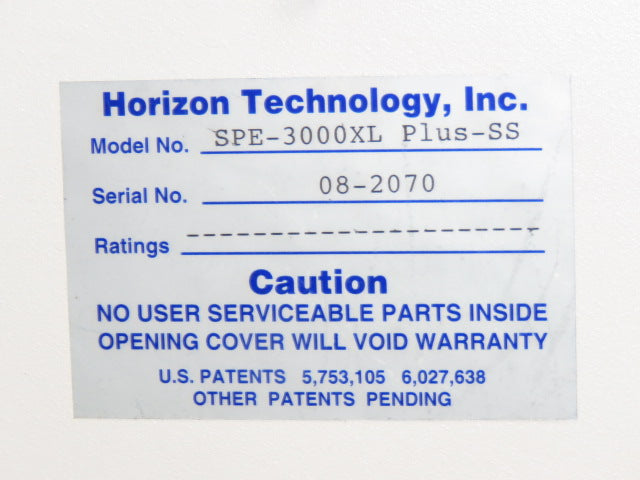

  • SPE-DEX 3000XL Plus SS  - Oil / Grease Machine

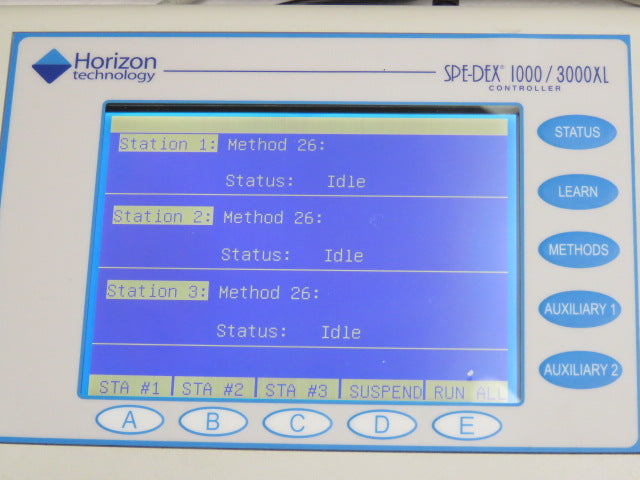

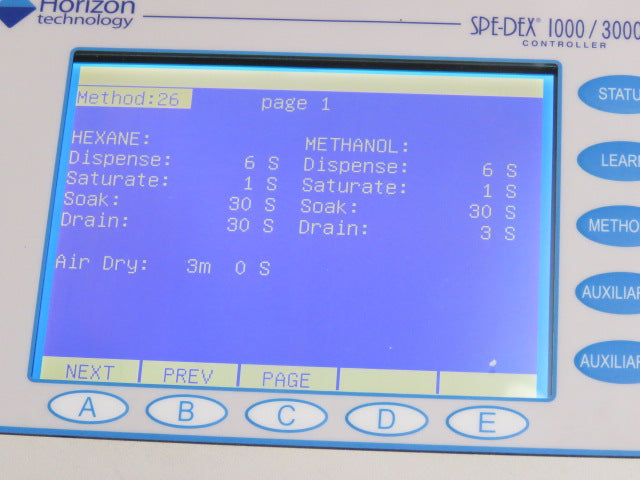

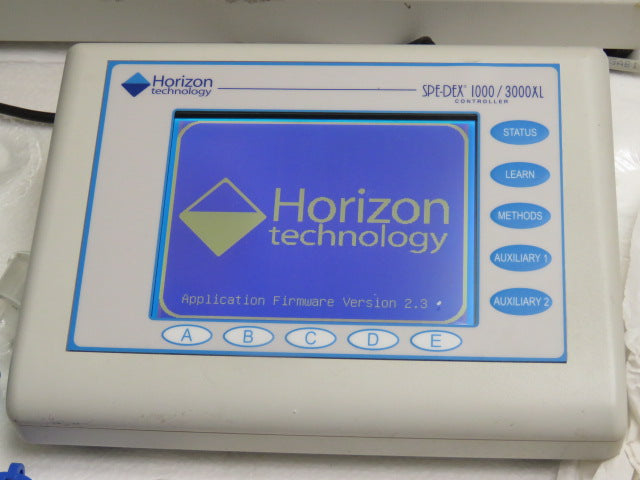

  • LCD Display Desktop controller 50-0412092

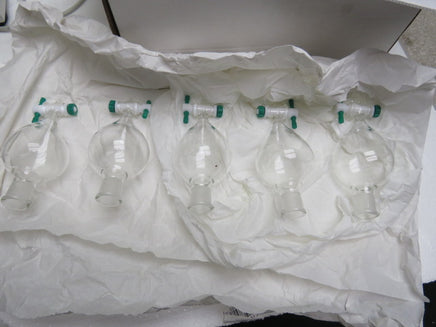

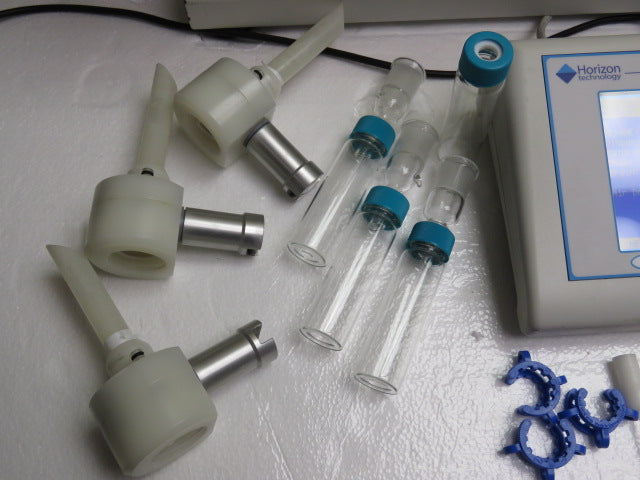

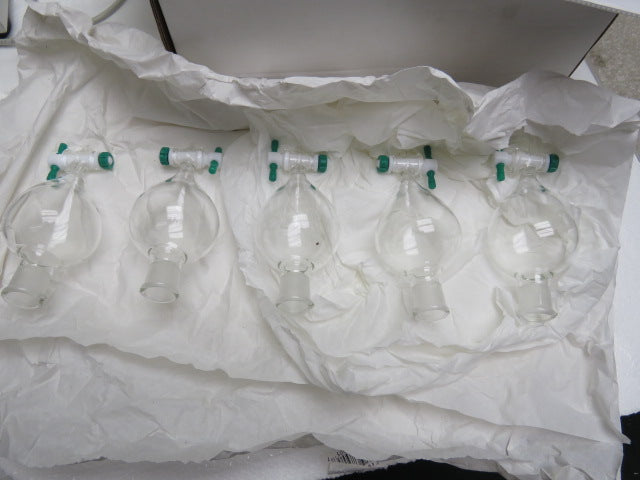

  • Assorted glass vessels and accessories as shown
  • Product guide
  • Power supply
  • Vent hose

Warranty

30 Day warranty. We pledge to offer the best service and warranty to all of our customers! We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.

Certification

This is a genuine product from this manufacturer.
