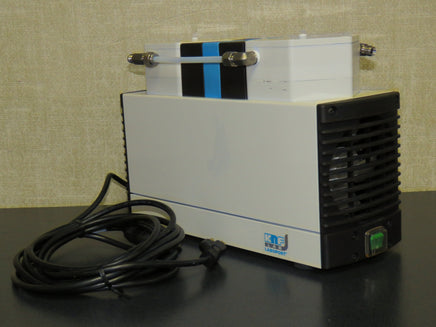

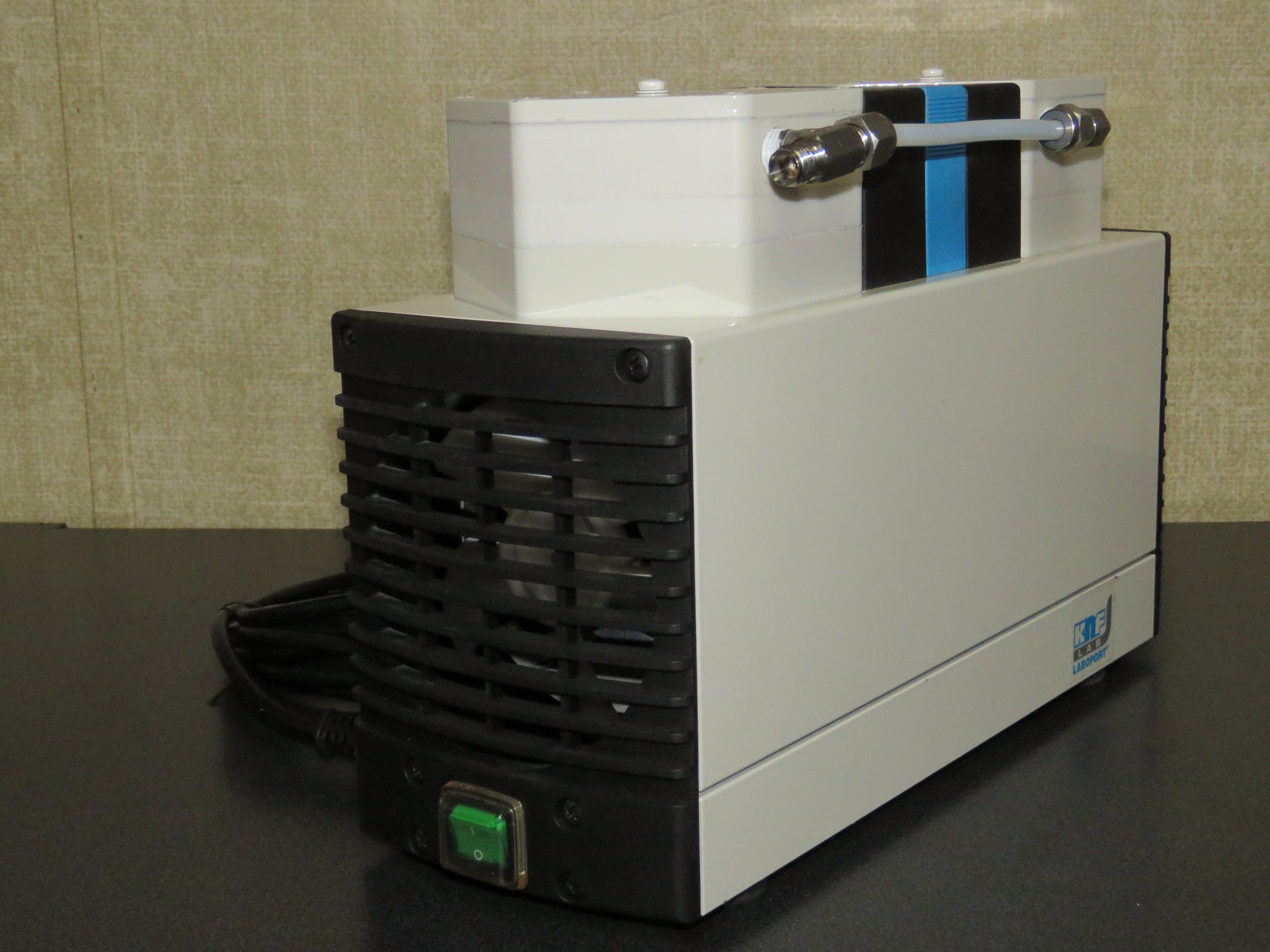

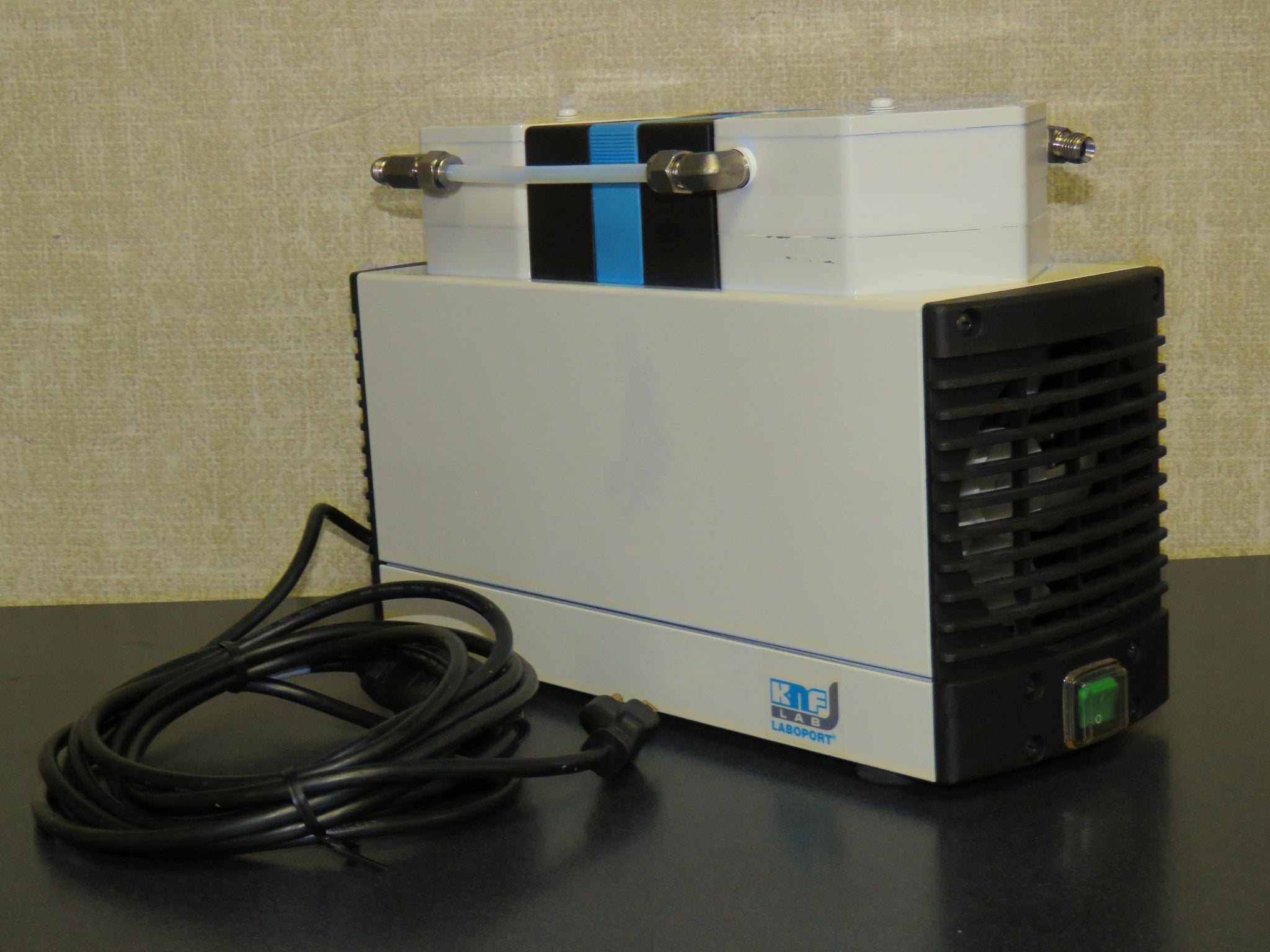

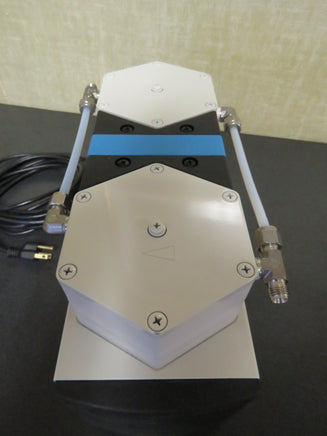

KNF UN840.1.2FTP IP44 Diaphragm Pump
The chemically-resistant UN840.1.2FTP diaphragm pump is a oil-free device used in a wide range of laboratory applications. These pumps transfer and pump down without contamination.

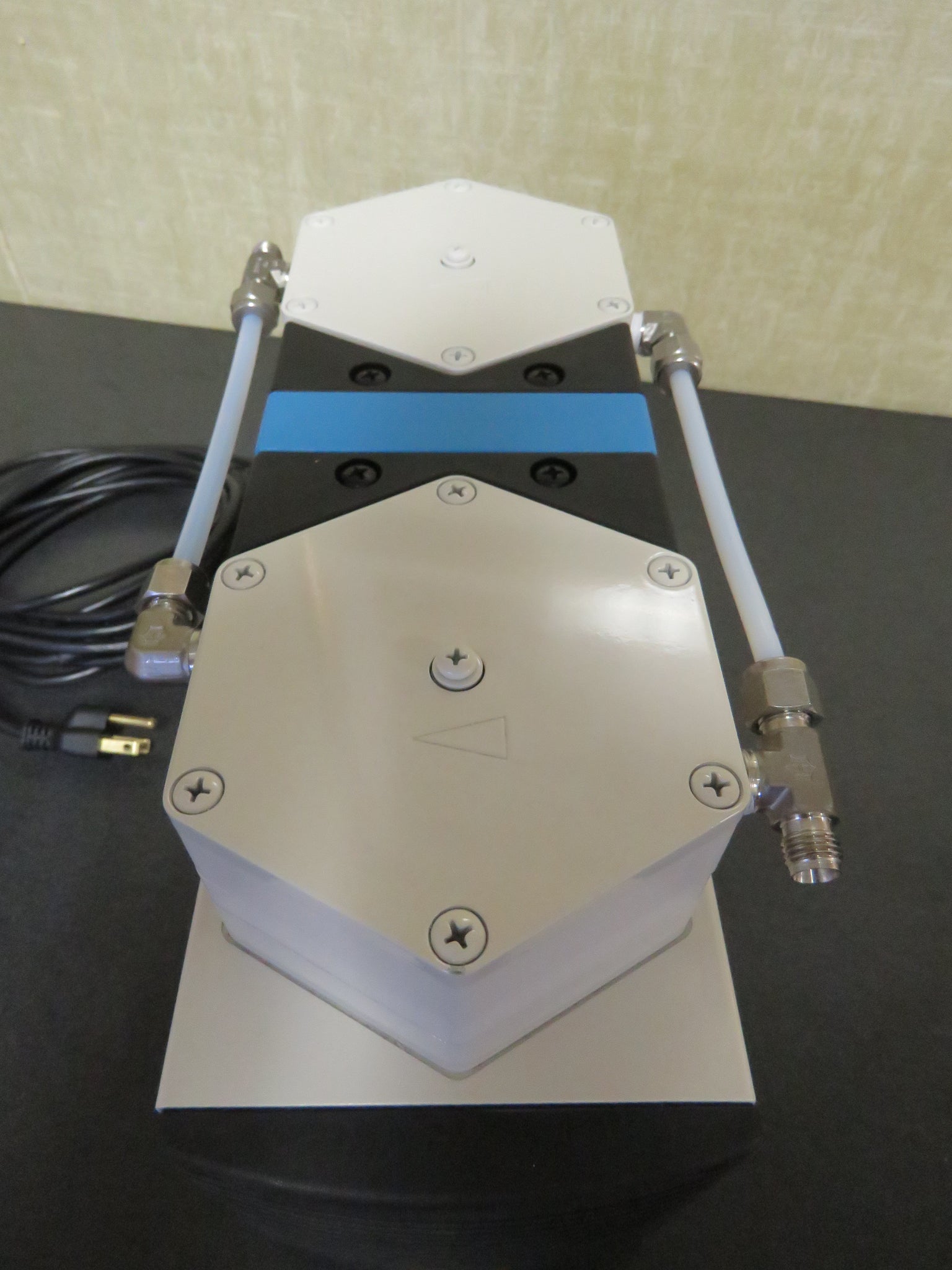

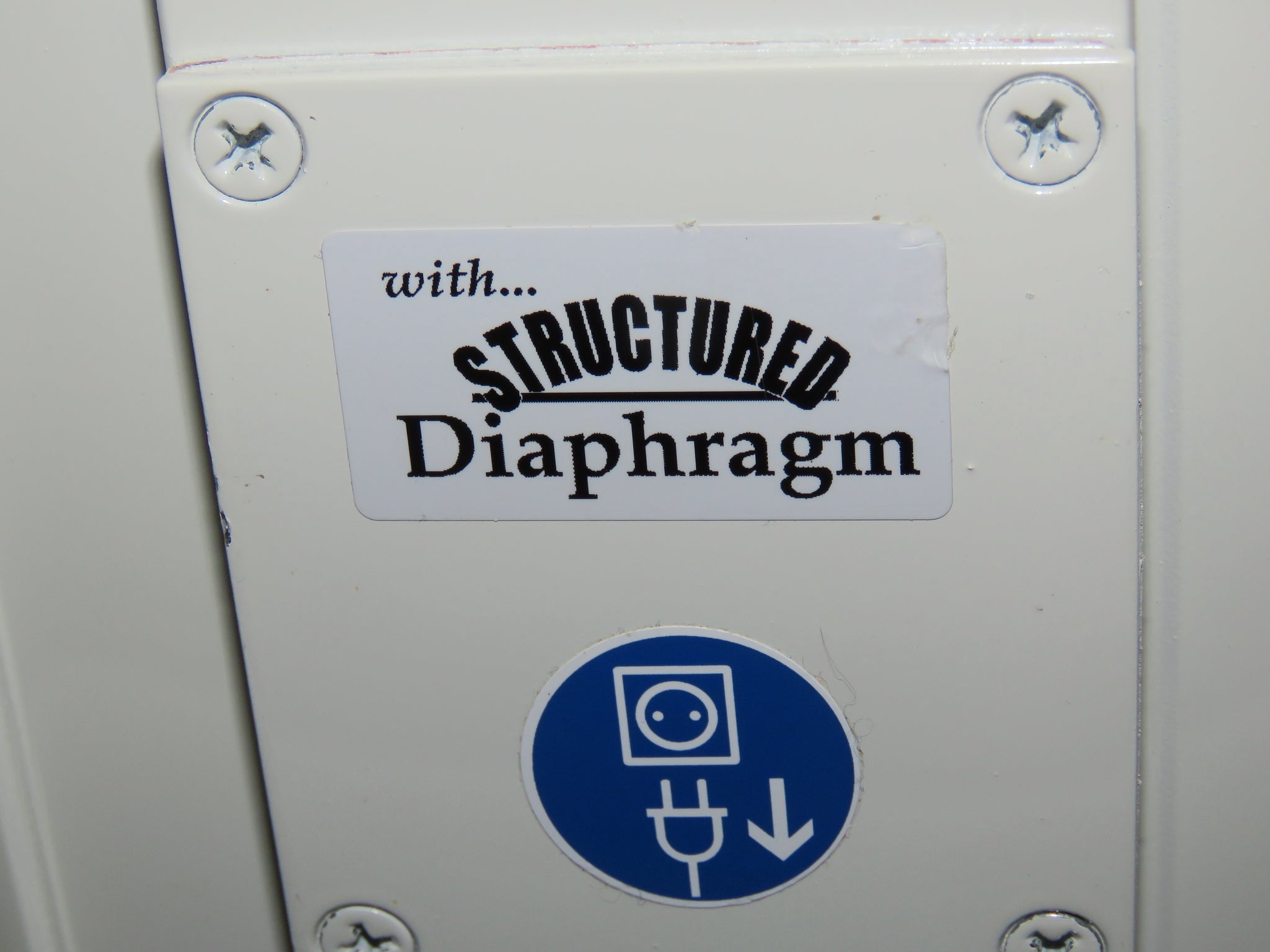

The heart of this very compact pump is a KNF structured diaphragm. This patented diaphragm was stress-optimized using the Finite Elements method. As a result, we were able to make the pump smaller while increasing the service life of the diaphragm and improving performance.
KNF UN840.1.2FTP IP44 Diaphragm Pump Specifications
|
Max. Permissible operating pressure (bar g)
|
1.0
|
|
Ultimate Vacuum (mbar abs)
|
£ 90
|
|
Delivery rate at atm. Pressure (L/min)
|
Max. 60
|
|
Hose connection (mm)
|
ID 10
|
|
Permissible Ambient Temperature
Permissible Media Temperature
|
+ 5 °C to + 40 °C
+ 5 °C to + 40 °C
|
|
Maximum Permissible ambient relative humidity
|
80 % for temperatures up to 31 °C, decreasing linearly to 50 % at 40 °C
|
|
Maximum Altitude of site (above sea level)
|
2000
|
|
Weight (kg)
Dimensions (mm)
|
12.6
341 x 226 x 160
|
|
Protection Class Motor
|
IP44
|
|

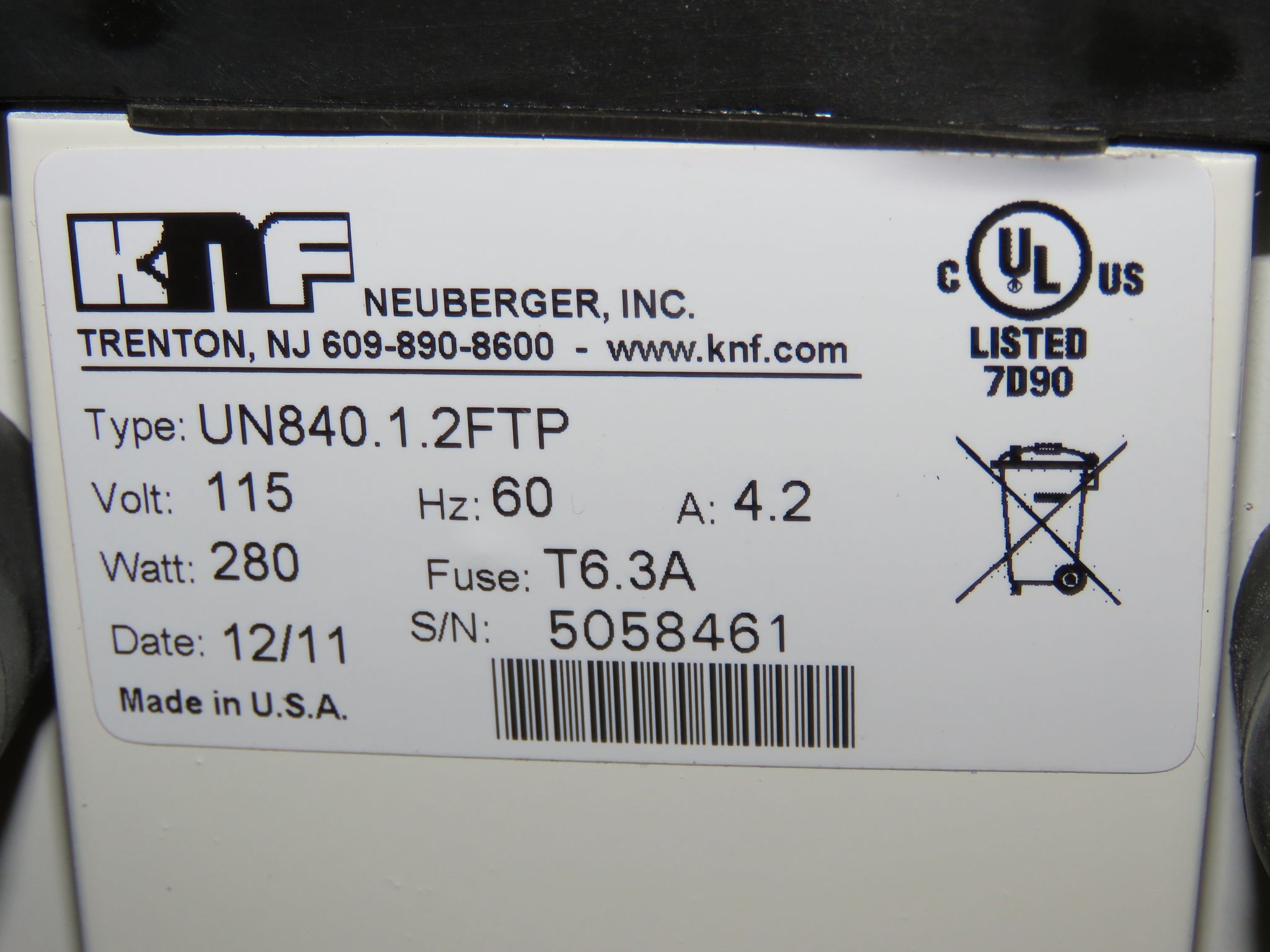

Voltage (v)
|
100
|
115
|
230
|
|
Frequency (Hz)
|
50/60
|
60
|
50
|
|
Maximum Current Consumption (A)
|
5.1
|
4.2
|
1.9
|
|
Power Consumption Pump (W)
|
275
|
280
|
270
|
|
Maximum permitted mains voltage fluctuation
|
+/- 10 %
|
+/- 10 %
|
+/- 10 %
|
|
Fuse Pump
(2x) T (A)
|
6.3
|
6.3
|
3.15
|
|
|
|
Condition
Excellent functional condition, recently received from a working environment and is fully functional.
Includes
-

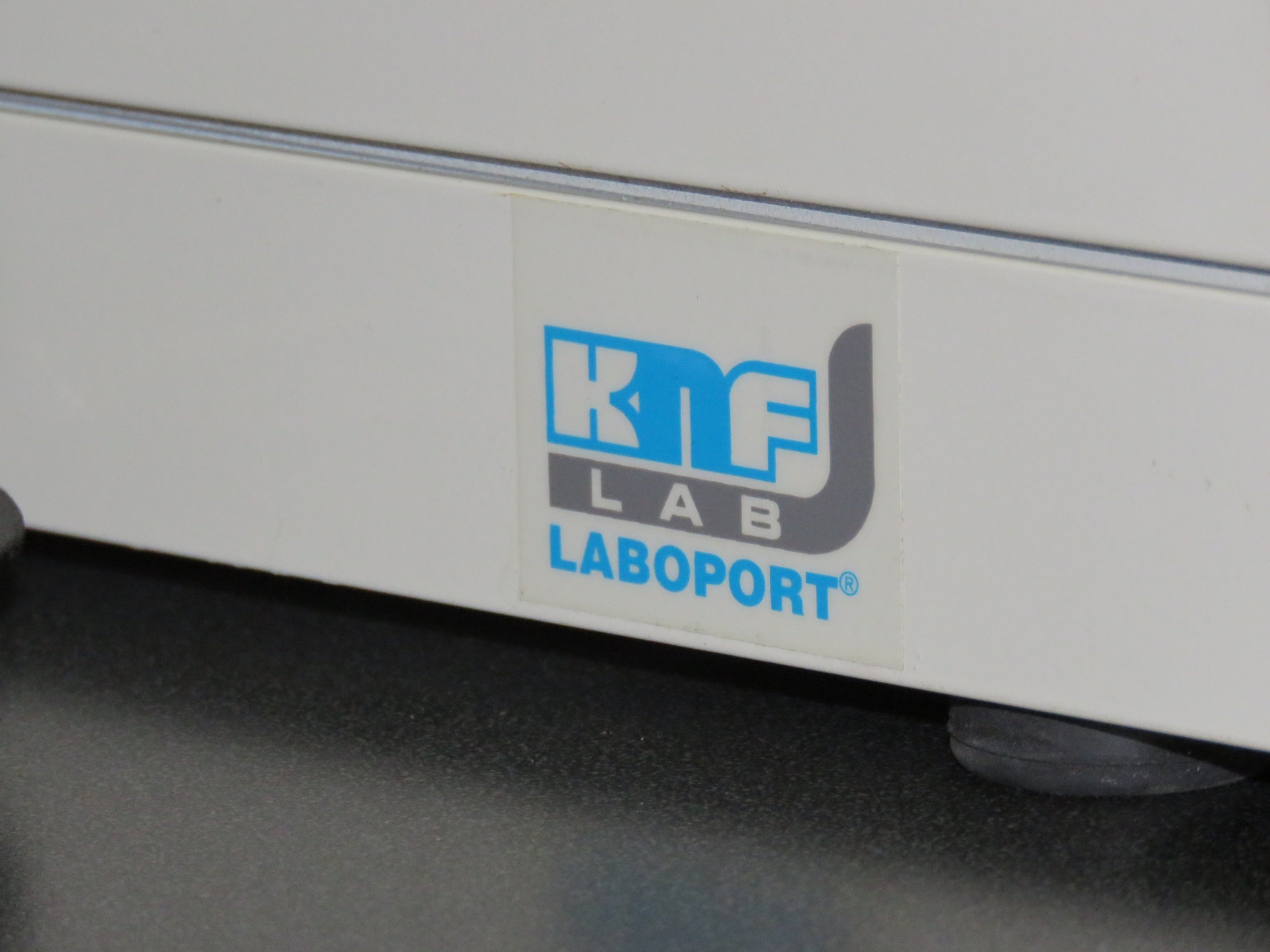

KNF Laboport Structured Diaphram UN840.1.2FTP pump
- Power cable
PS
Warranty
30 Day warranty. We pledge to offer the best service and warranty to all of our customers! We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.
Certification
This is a genuine product from this manufacturer.
