LACHAT QuiKChem QC8500 Series 2 Flow Injection Analysis ASX-410 Autosampler RP-150

Lachat

$26,500.00

Sorry, this item is out of stock

Web Information

A Performance Advantage from the Leaders in Continuous Flow Analysis

The Lachat QuikChem 8500 Series 2 Flow Injection Analysis System features high sample throughput and simple, but rapid, method changeover. The QuikChem 8500 Series 2 system maximizes productivity in determining ionic species in a variety of sample types—from sub-ppb to percent concentrations. More than 500 methods are available for environmental, agronomic and industrial applications—including EPA-accepted methods.

  • MAXIMUM PRODUCTIVITY WITH FIA TECHNOLOGY
  • TIME SAVINGS WITH IMPROVED ACCURACY AND QUALITY CONTROL
  • OVER 500 METHOD VARIATIONS AVAILABLE

MAXIMUM PRODUCTIVITY WITH FIA TECHNOLOGY

The QuikChem 8500 Series 2 system uses reliable, accurate Flow Injection Analysis (FIA) technology. FIA technology was developed when scientists processing large numbers of samples experienced productivity delays while using Segmented Flow Analysis (SFA). Innovations of Flow Injection Analysis include:
• Bubble elimination from the analytical stream.
• Reduced inner diameter of the reactor tubing.
• Precise injection of samples into the analytical stream.

TIME SAVINGS WITH IMPROVED ACCURACY AND QUALITY CONTROL

FIA technology produces analytical peaks with very rapid rise and recovery times and provides complete inter-sample washout to prevent carry-over between samples. Other FIA productivity characteristics include:
• Fast startup and shutdown times approximately five minutes for rapid method changeover.
• Rapid analysis times typically 20 to 60 seconds let samples be analyzed in near real-time while data quality can be monitored and controlled during the analysis.
• High sample through-put typically 60 to 120 samples/hour.
• Broad working range sub-ppb to percents.
• Wide dynamic range typically two to three decades.

OVER 500 METHOD VARIATIONS AVAILABLE

The QuikChem 8500 Series 2 system uses reliable, accurate Flow Injection Analysis (FIA) technology. FIA technology was developed when scientists processing large numbers of samples experienced productivity delays while using Segmented Flow Analysis (SFA). Innovations of Flow Injection Analysis include:
• Methods that comply with EPA, ISO, and DIN standards.
• Customized method development available.
• Simple to run in-line preparation methods.
• Many new methods including Lachat’s new ultra-high throughput methods.

Channels: 2

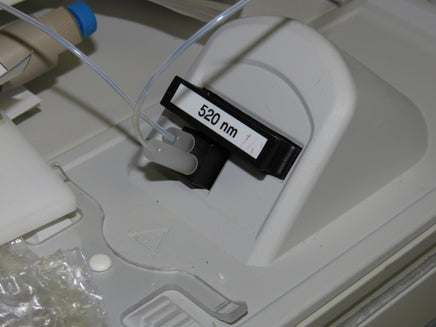

Detector: Dual beam photometer (340-880 nm)
Dimensions (H x W x D): 251 mm x 701 mm x 406 mm

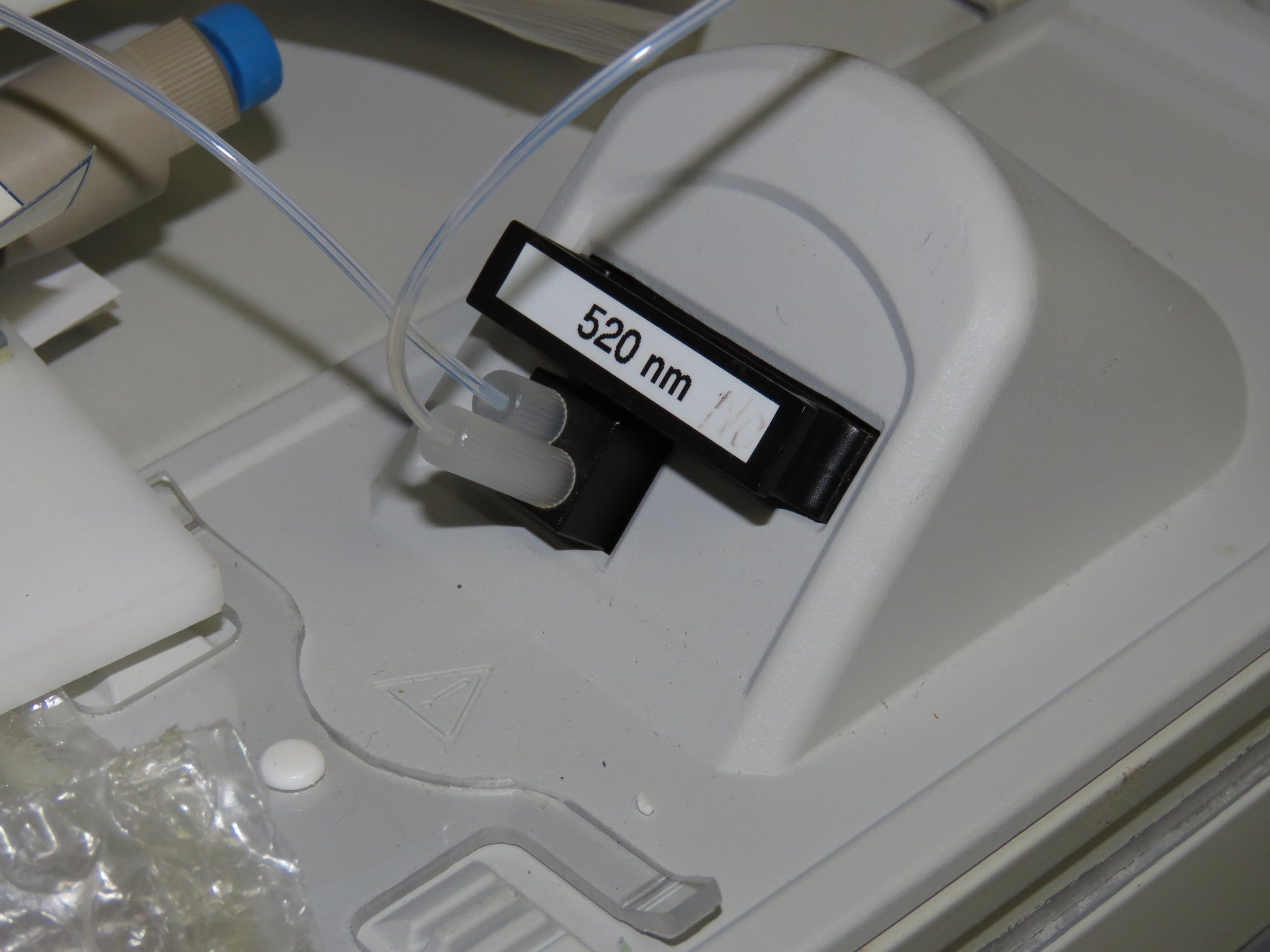

Flow Cell Dimensions: 10 mm or 20 mm
Light Source: Tungsten halogen lamp
Number of Channels: 2
Power Options: 115 V
Power Requirements (Voltage): 115 V AC
Pumps: 1 x 12 Channel
Reproducibility: 0.50 %
Sampler Type: ASX520
Sample Volume: 0.002 mL - 0.250 mL


Condition

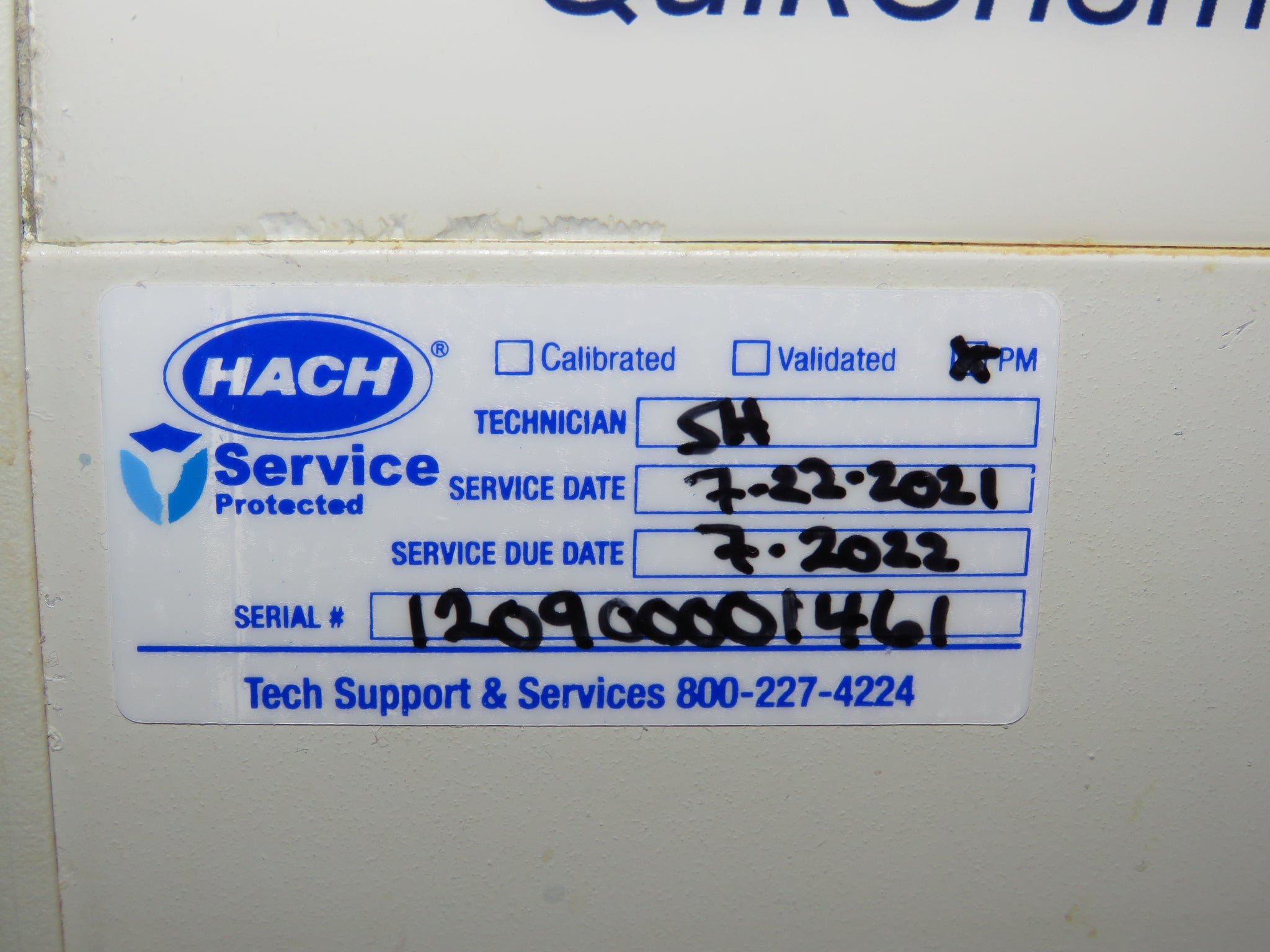

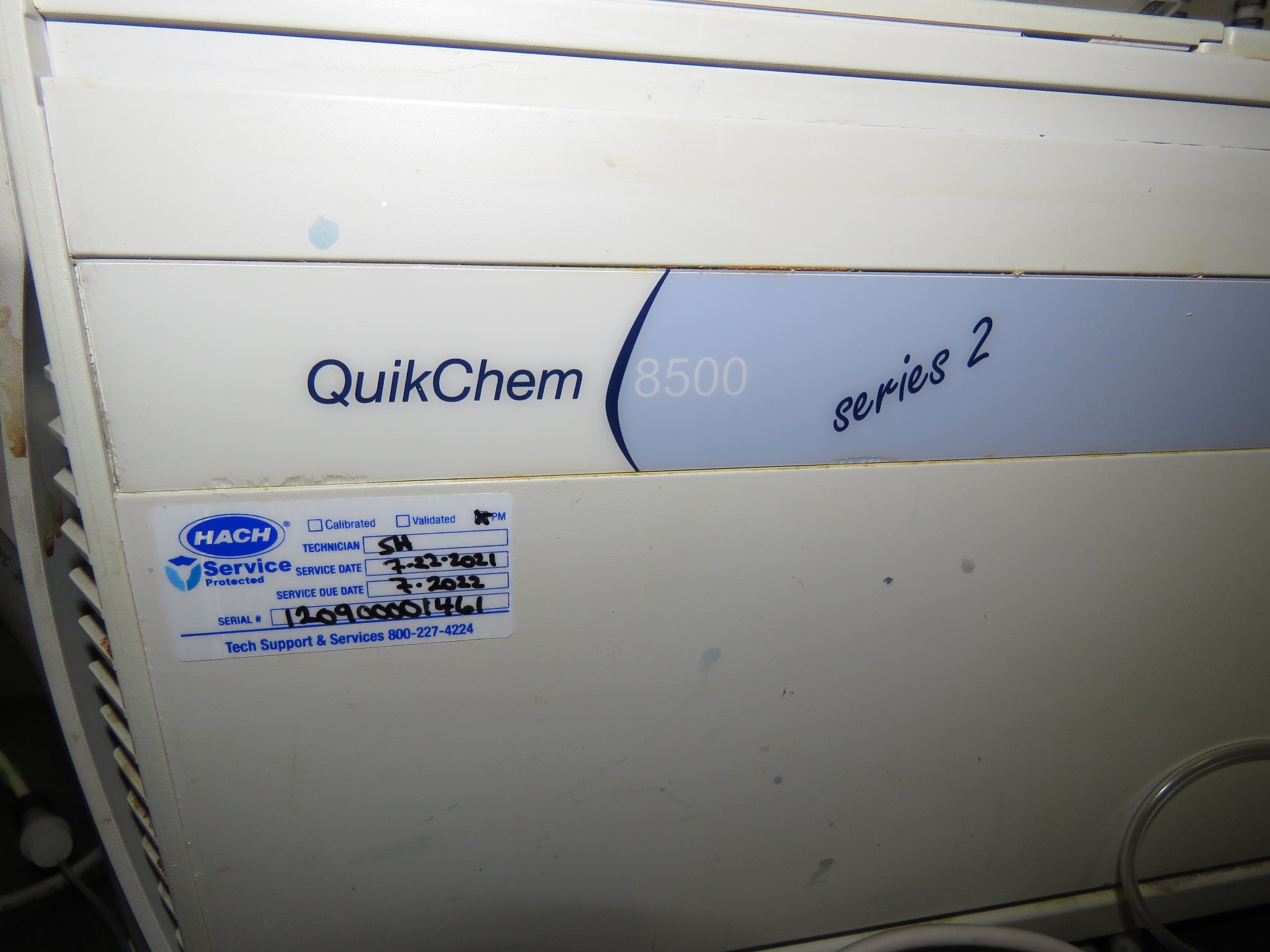

Excellent working condition with 2021 PM!  Complete system.  Includes control computer.

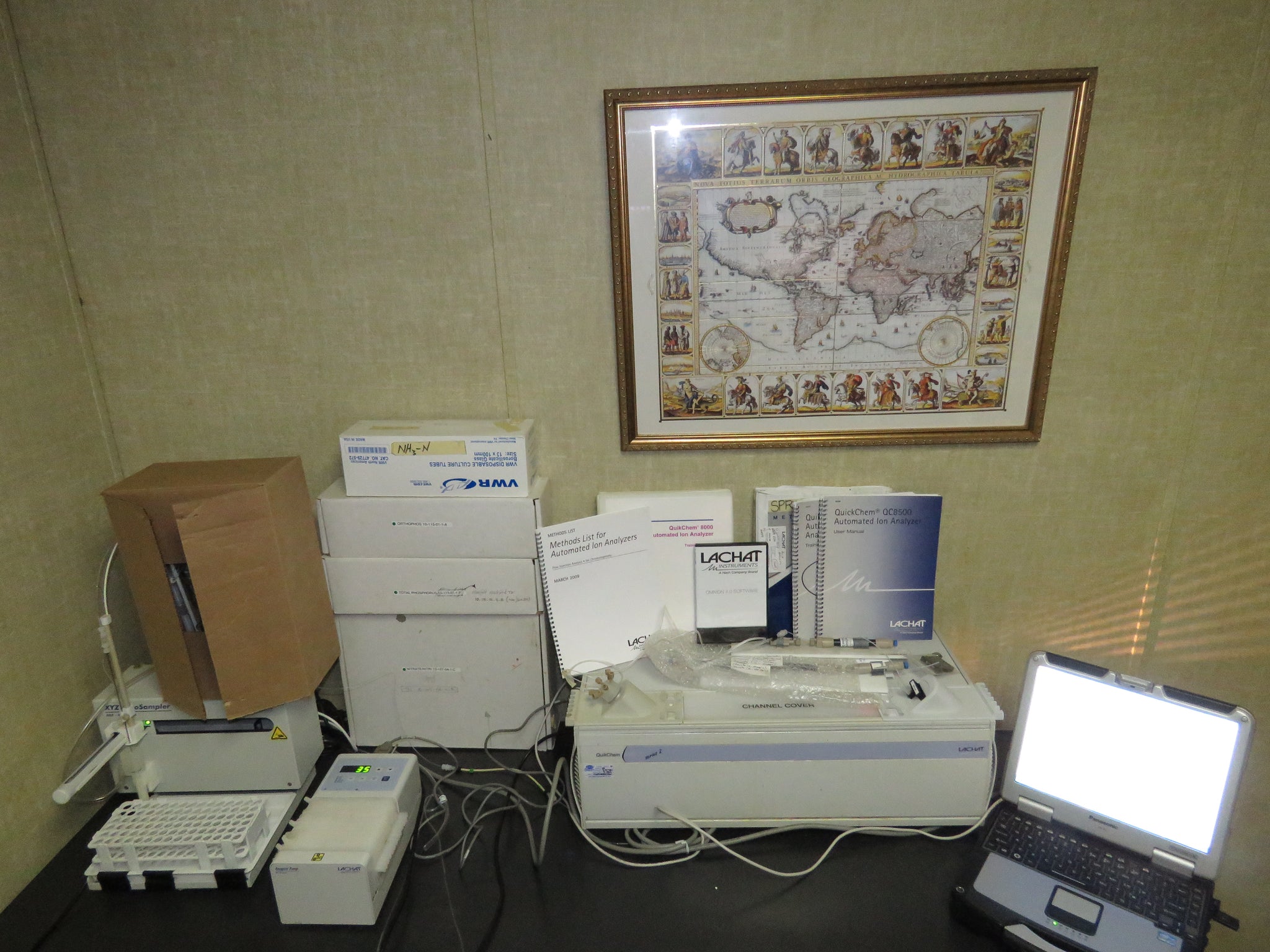

Includes

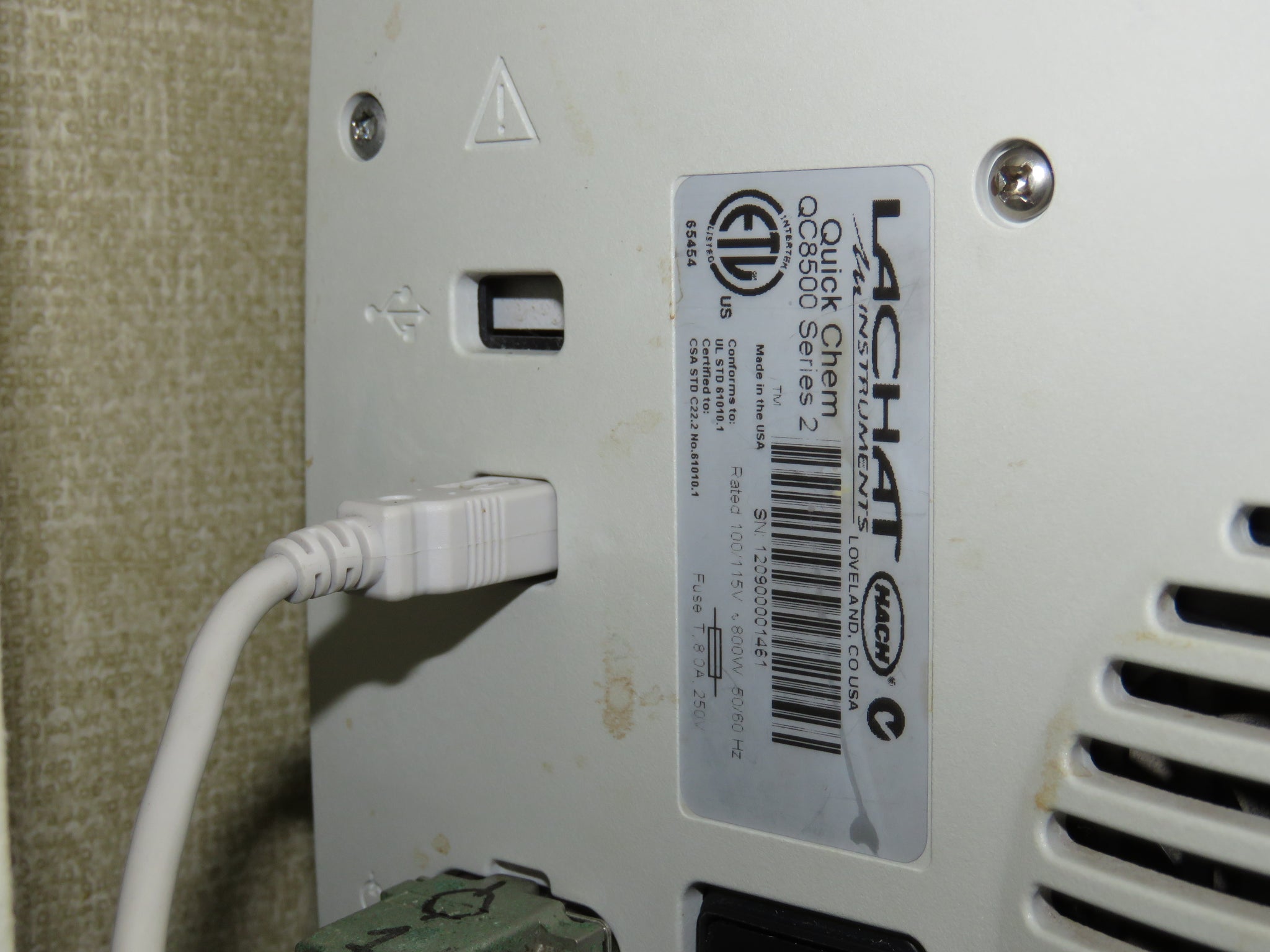

    • LACHAT QuiK Chem QC8500 Series 2 Flow Injection Analysis - Single Channel

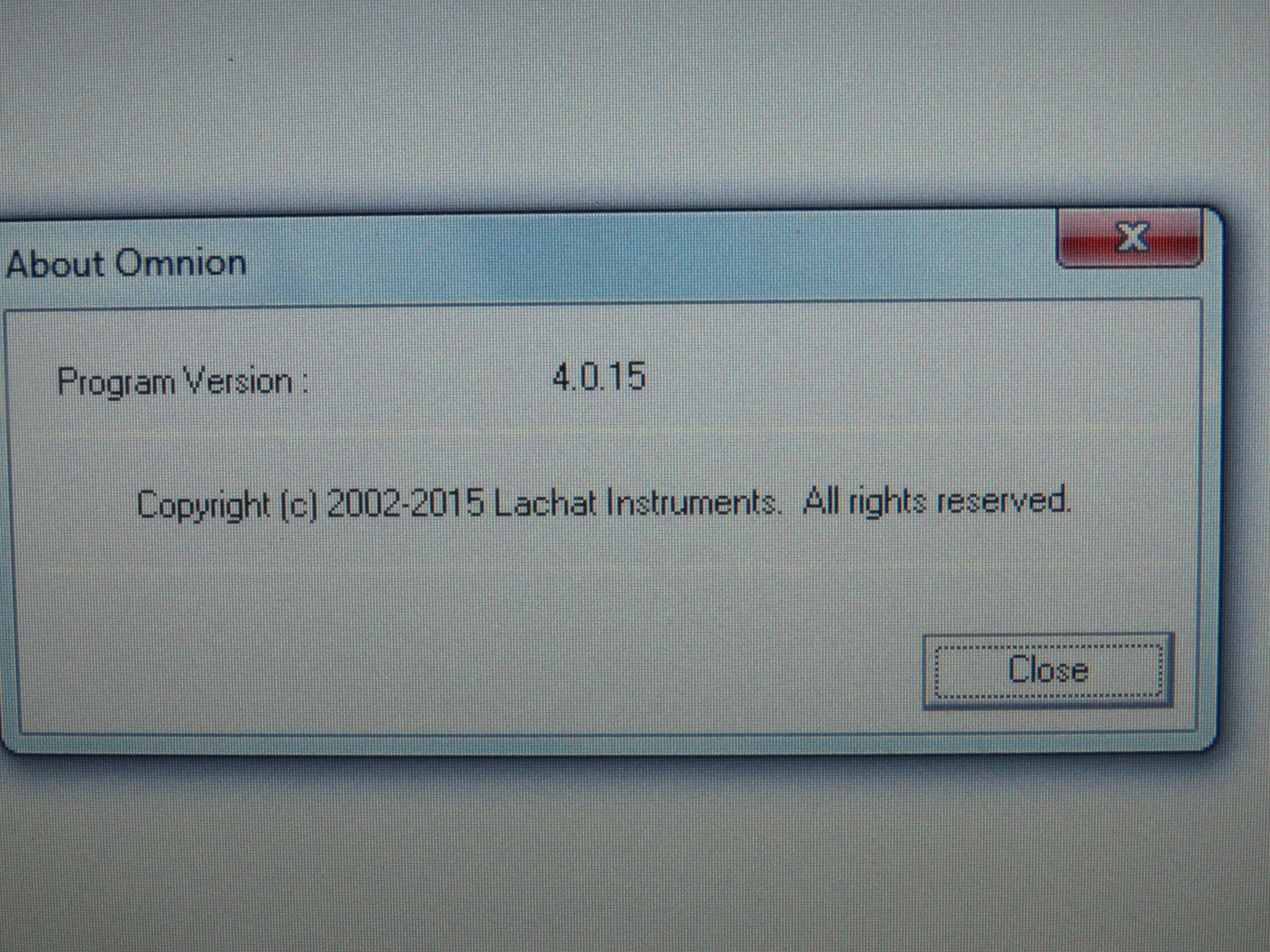

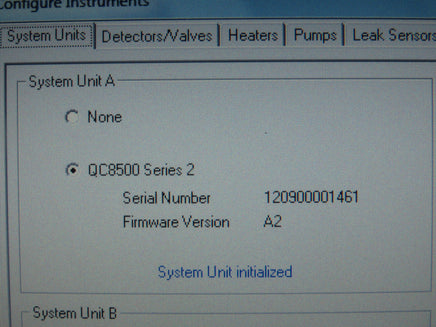

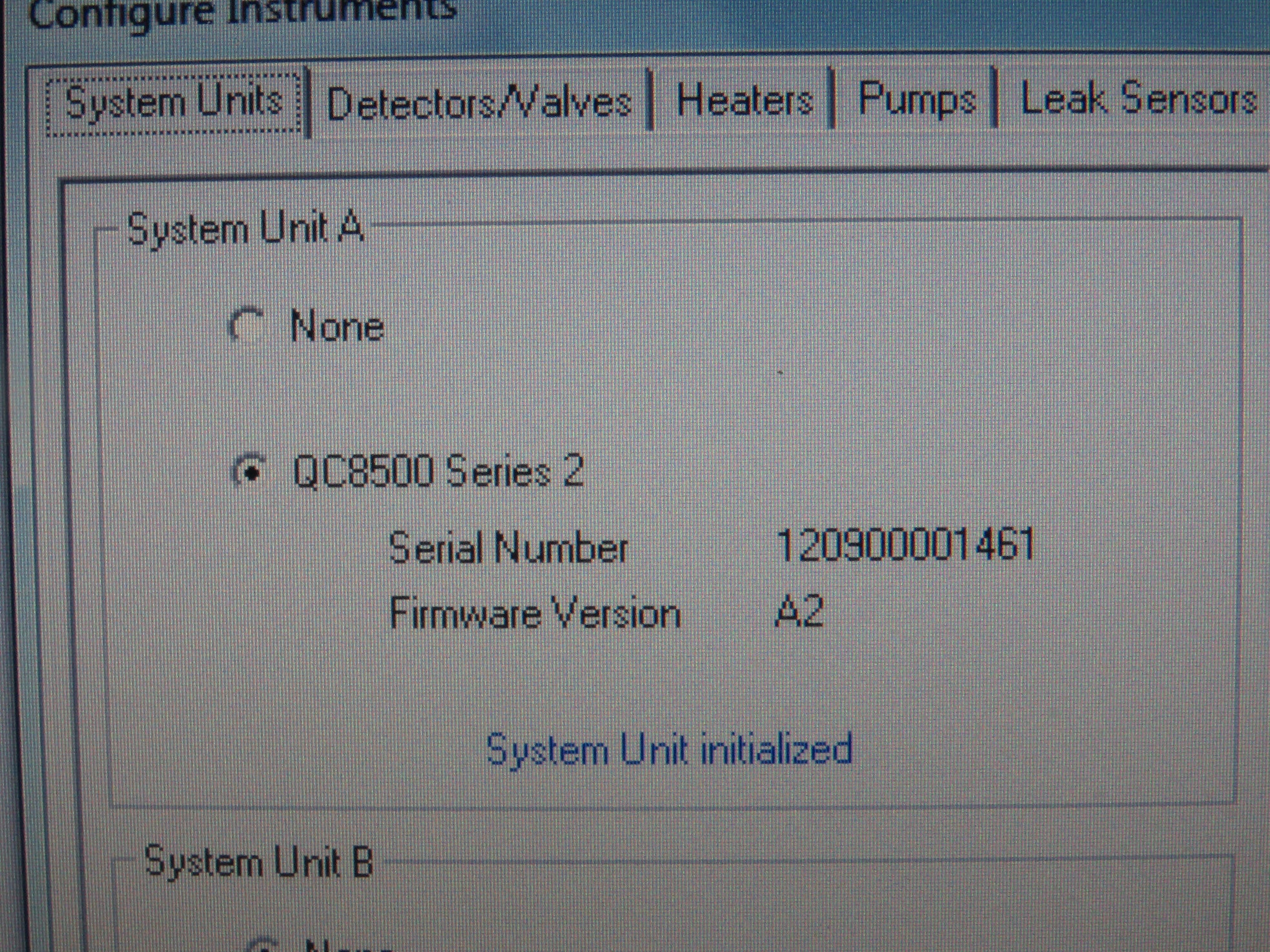

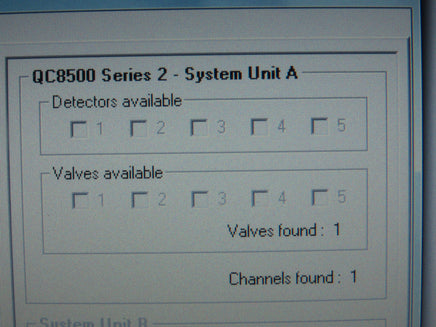

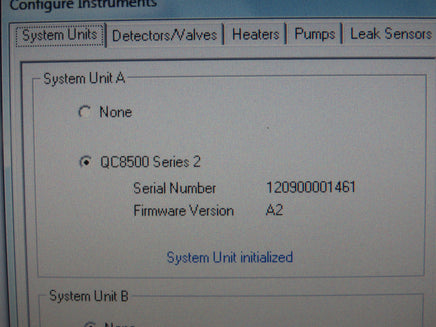

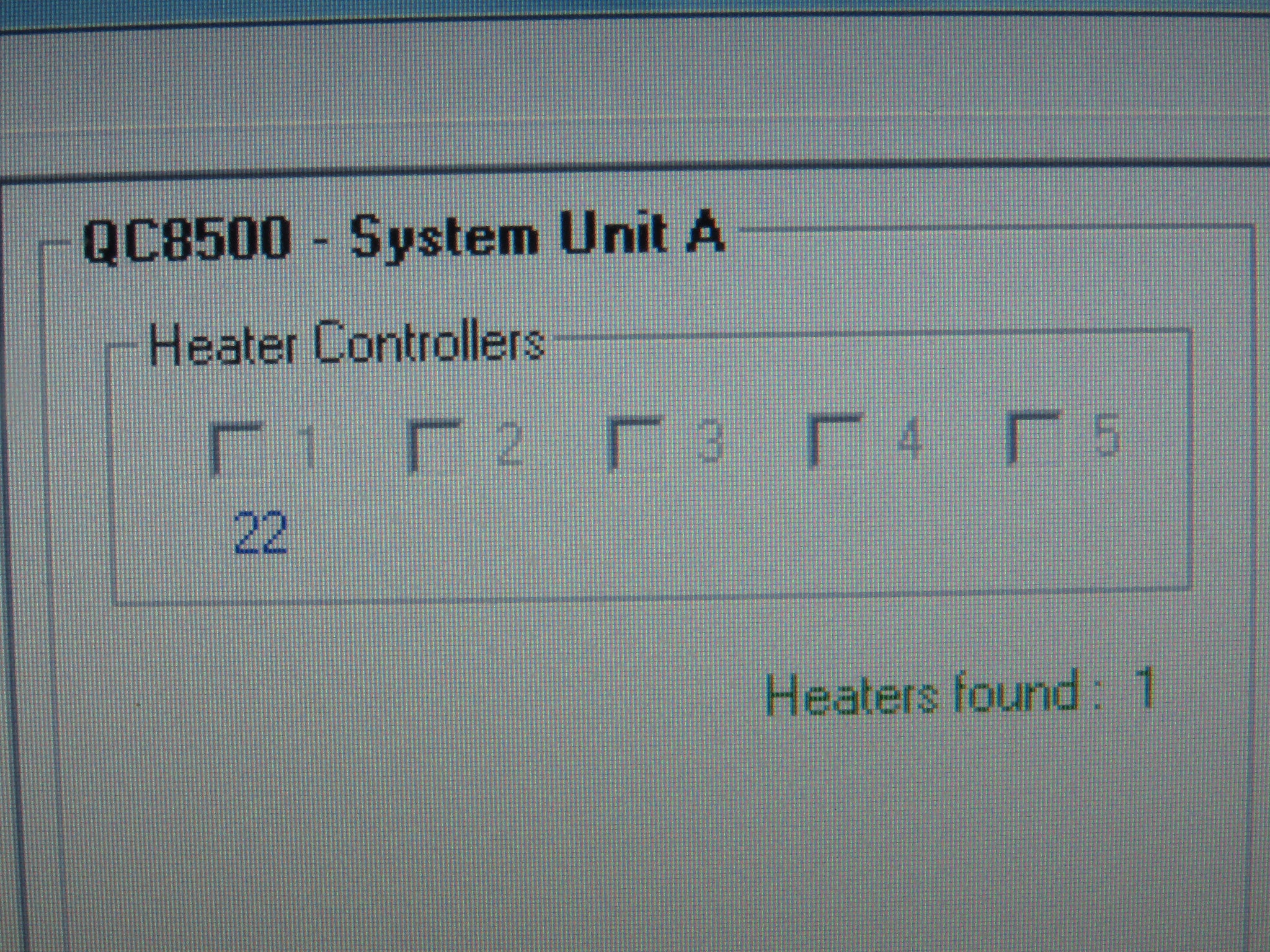

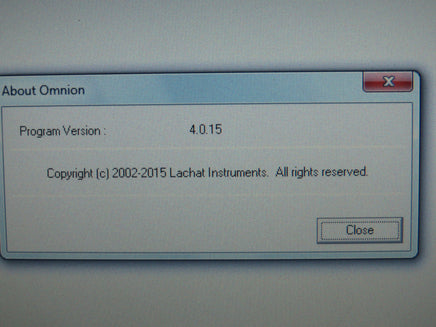

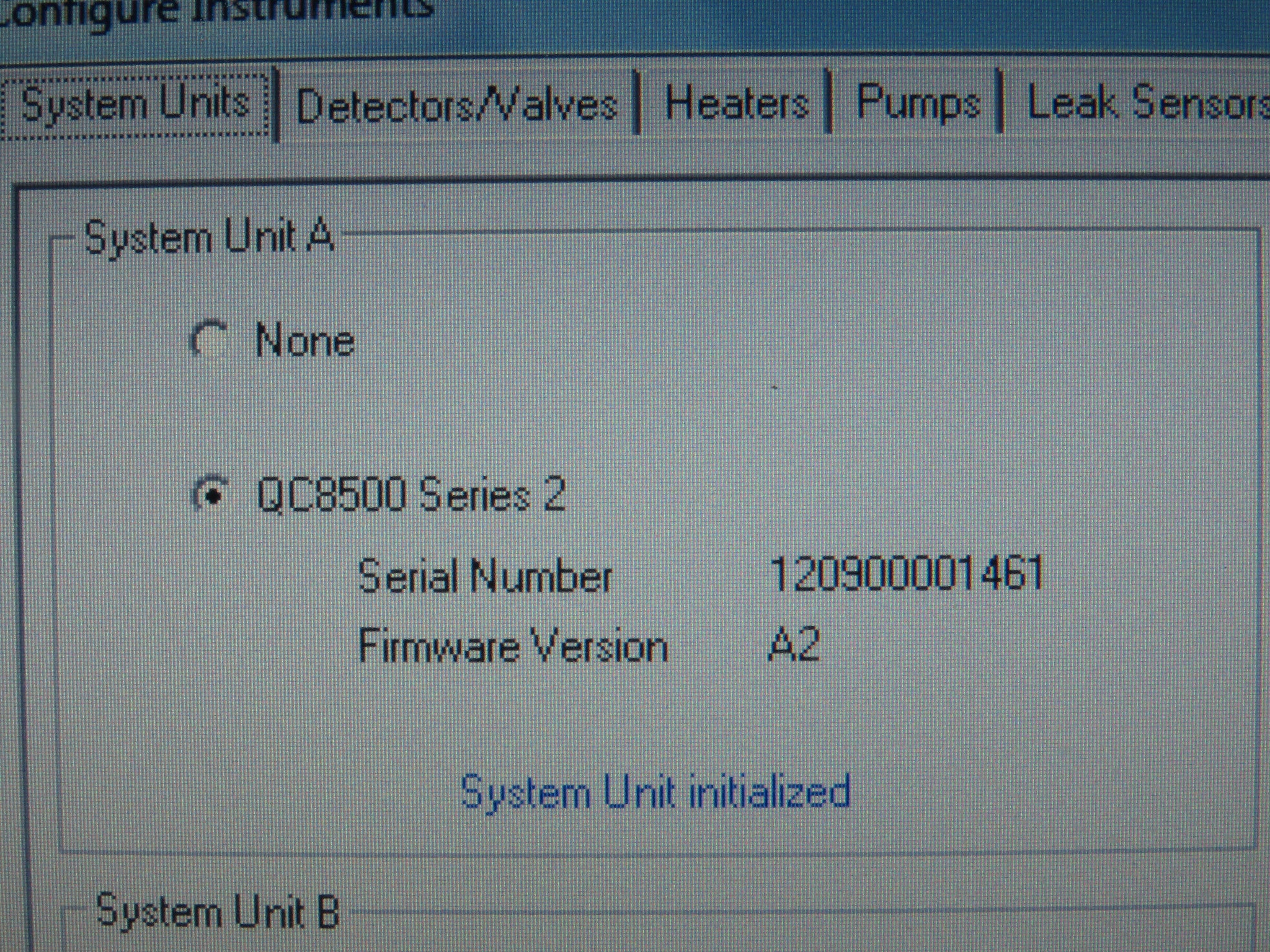

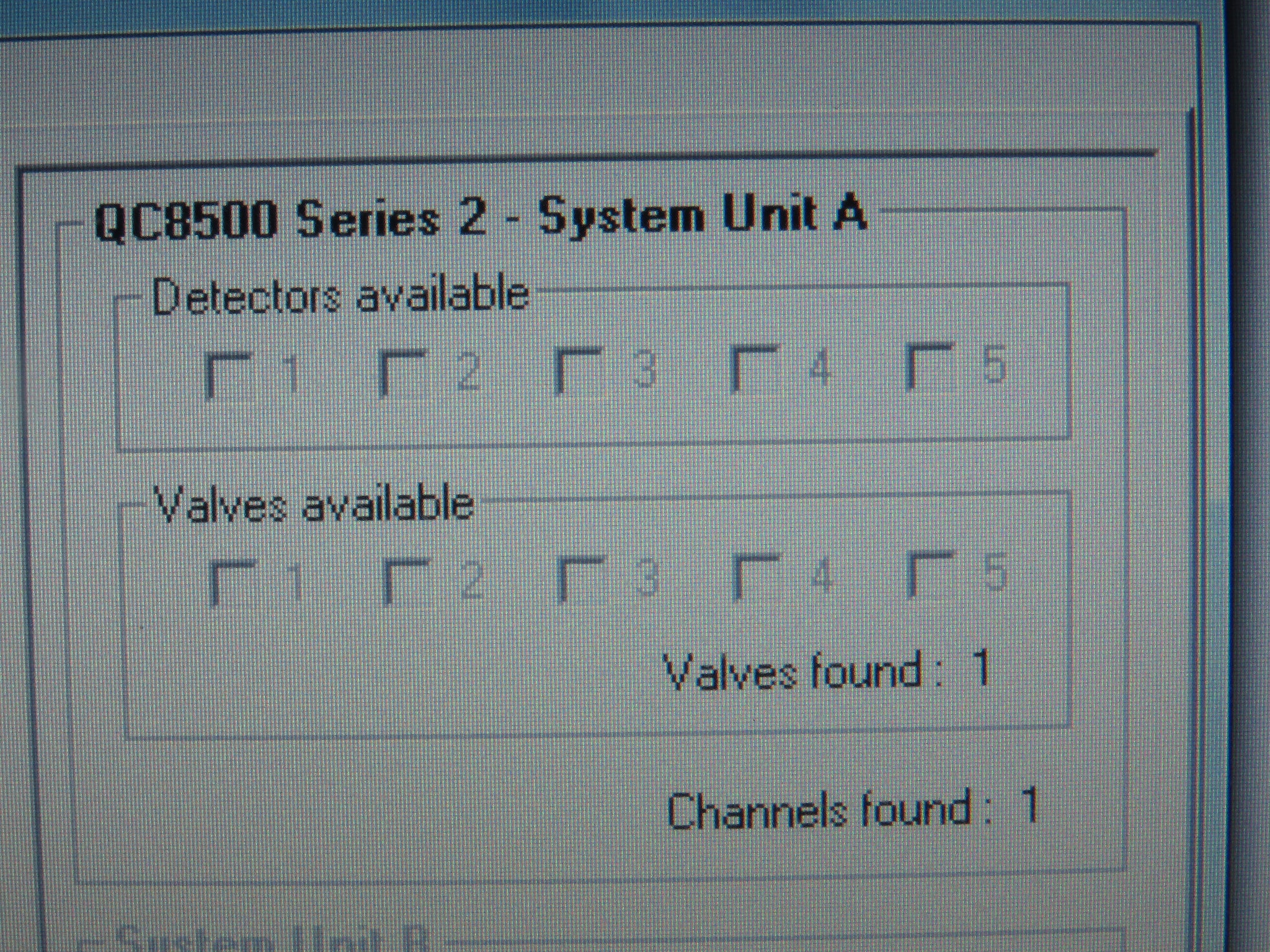

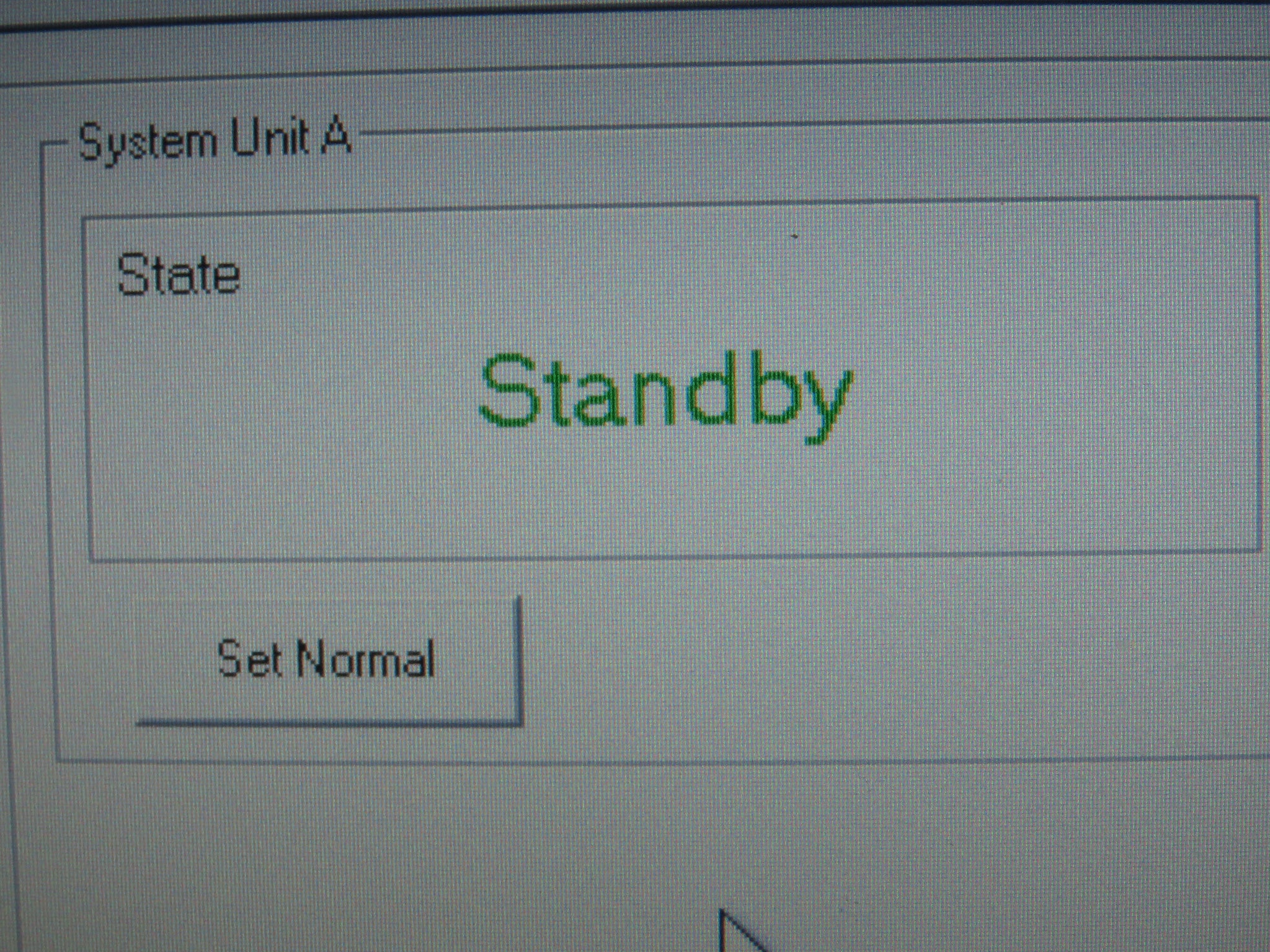

    • Panasonic CF-31 Control Laptop computer with Omnion 4.0 Software
    • Omnion 4.0 Software package on DVD

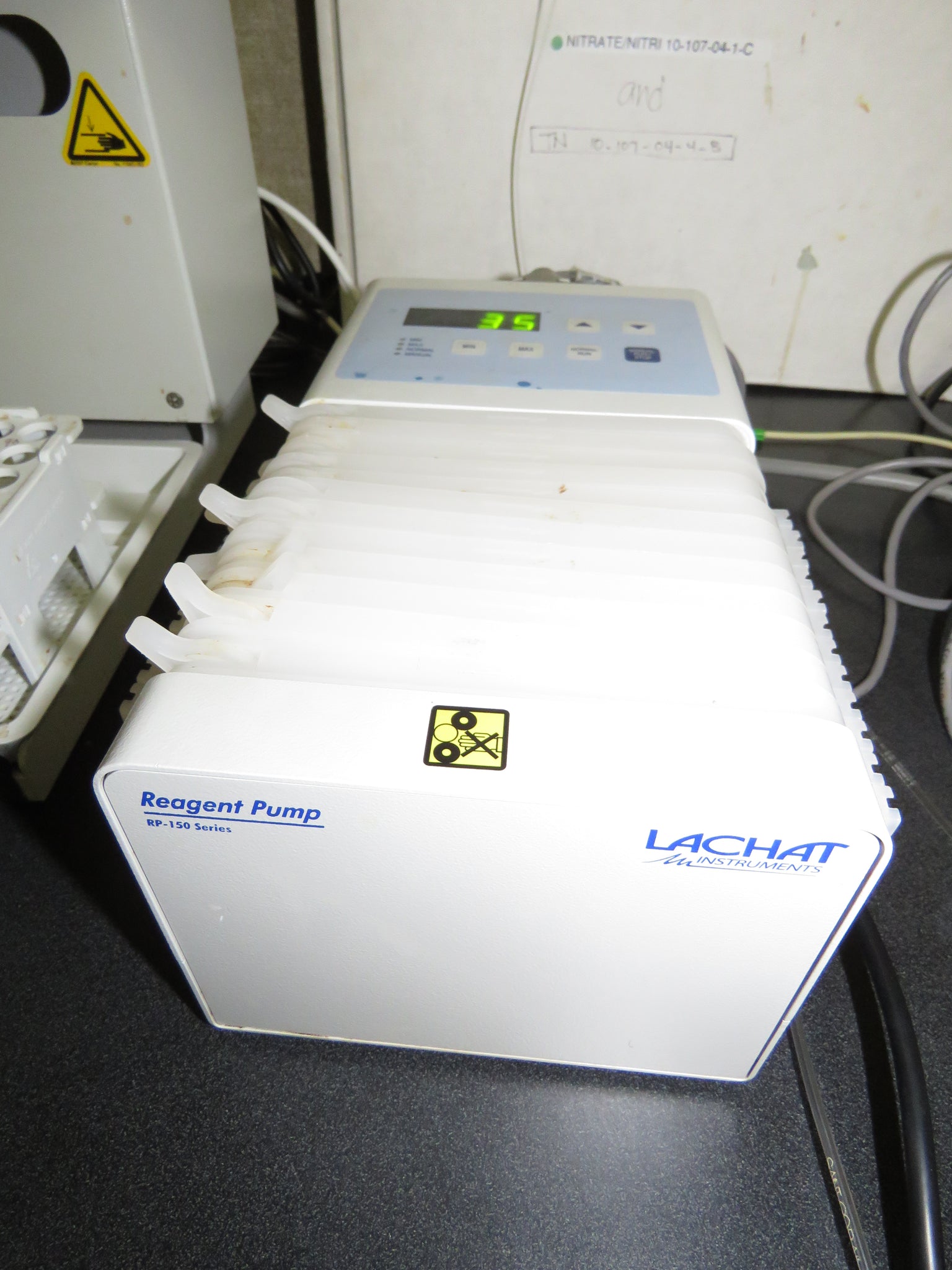

    • LACHAT (Ismatec) RP-150 Reagent pump

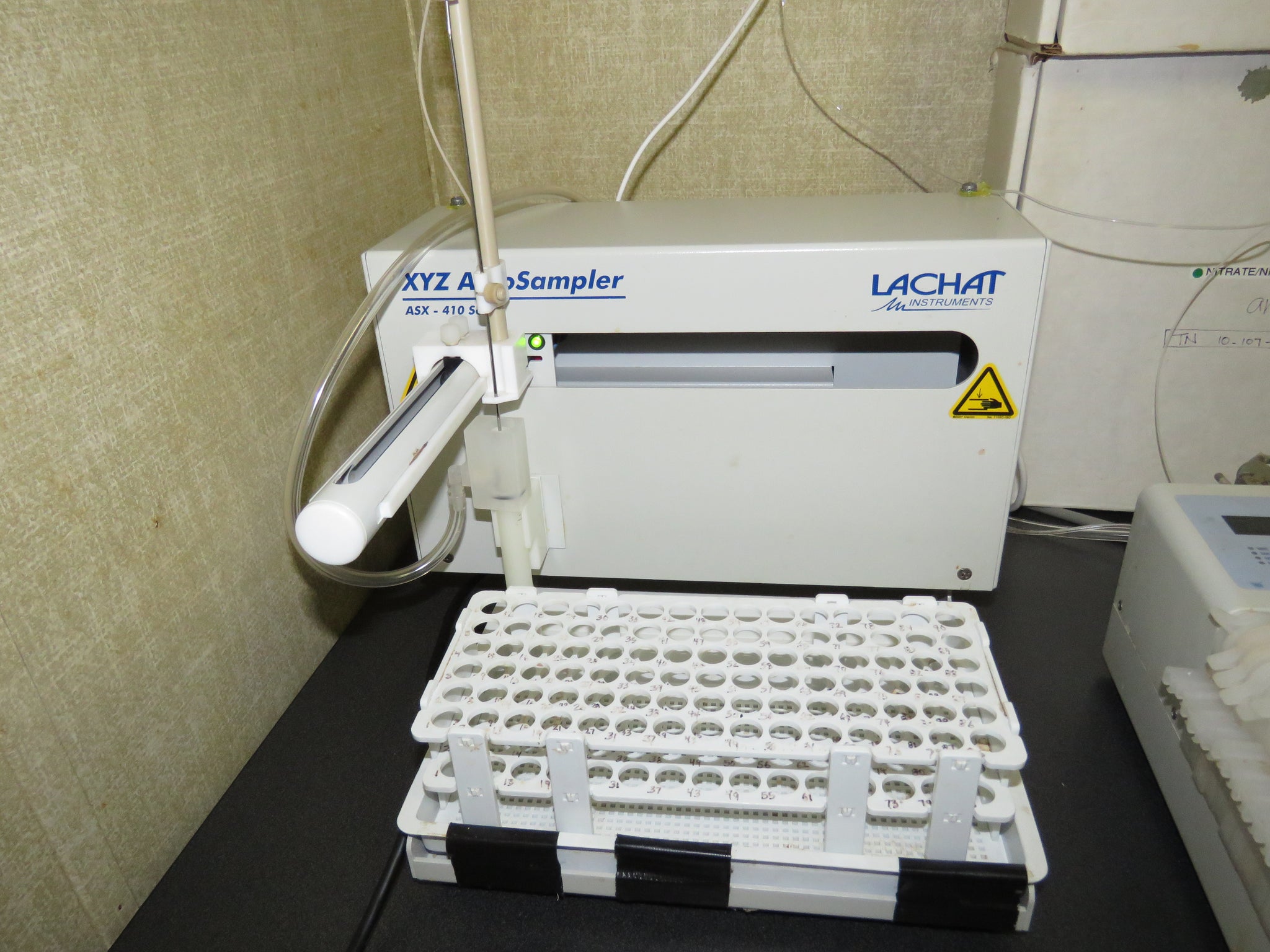

    • LACHAT (Cetac) ASX-410 Autosampler

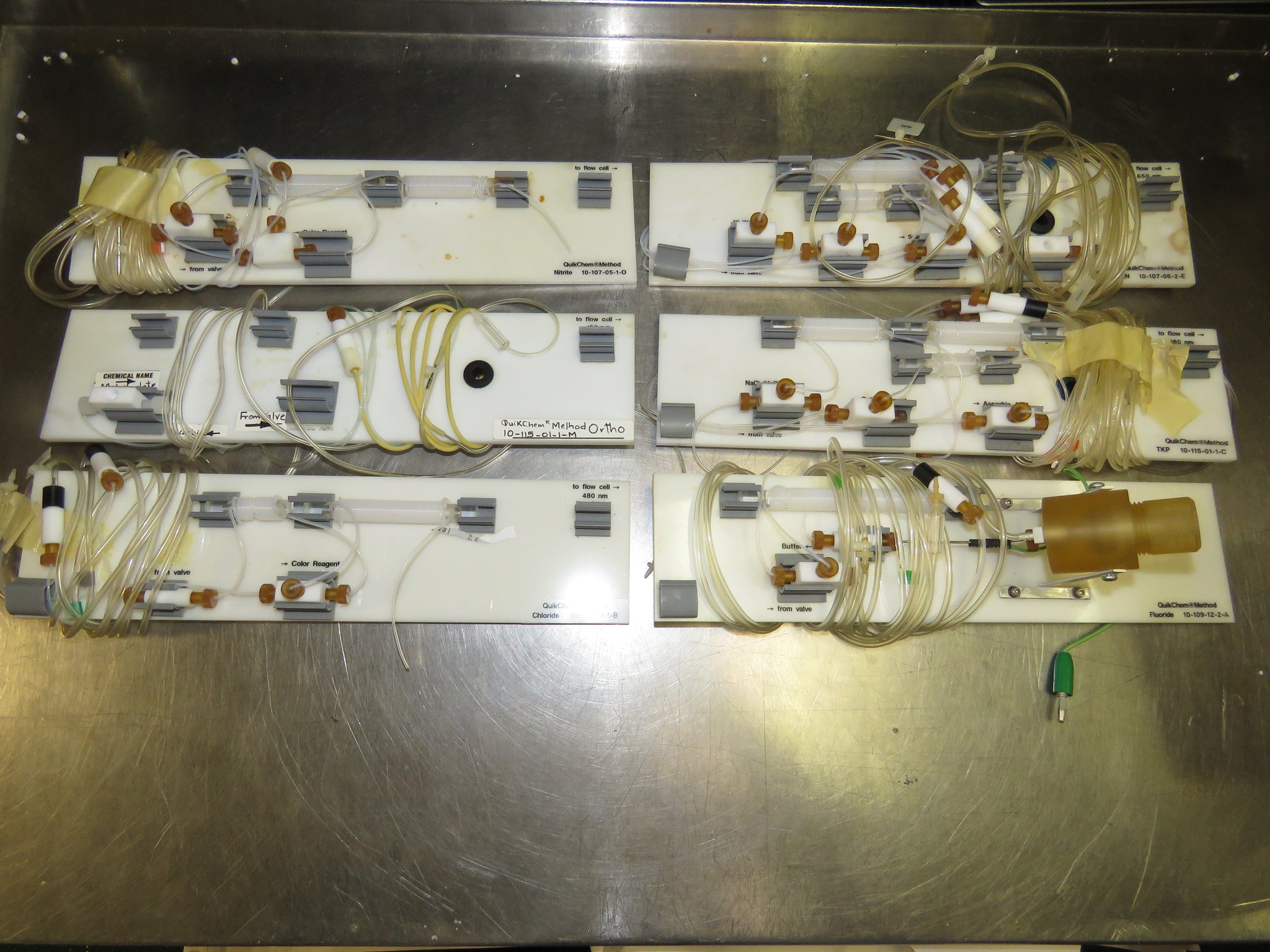

    • TN 10-107-04-4-B Method
    • Nitrate-Nitrite-N 10-107-04-1-C Method

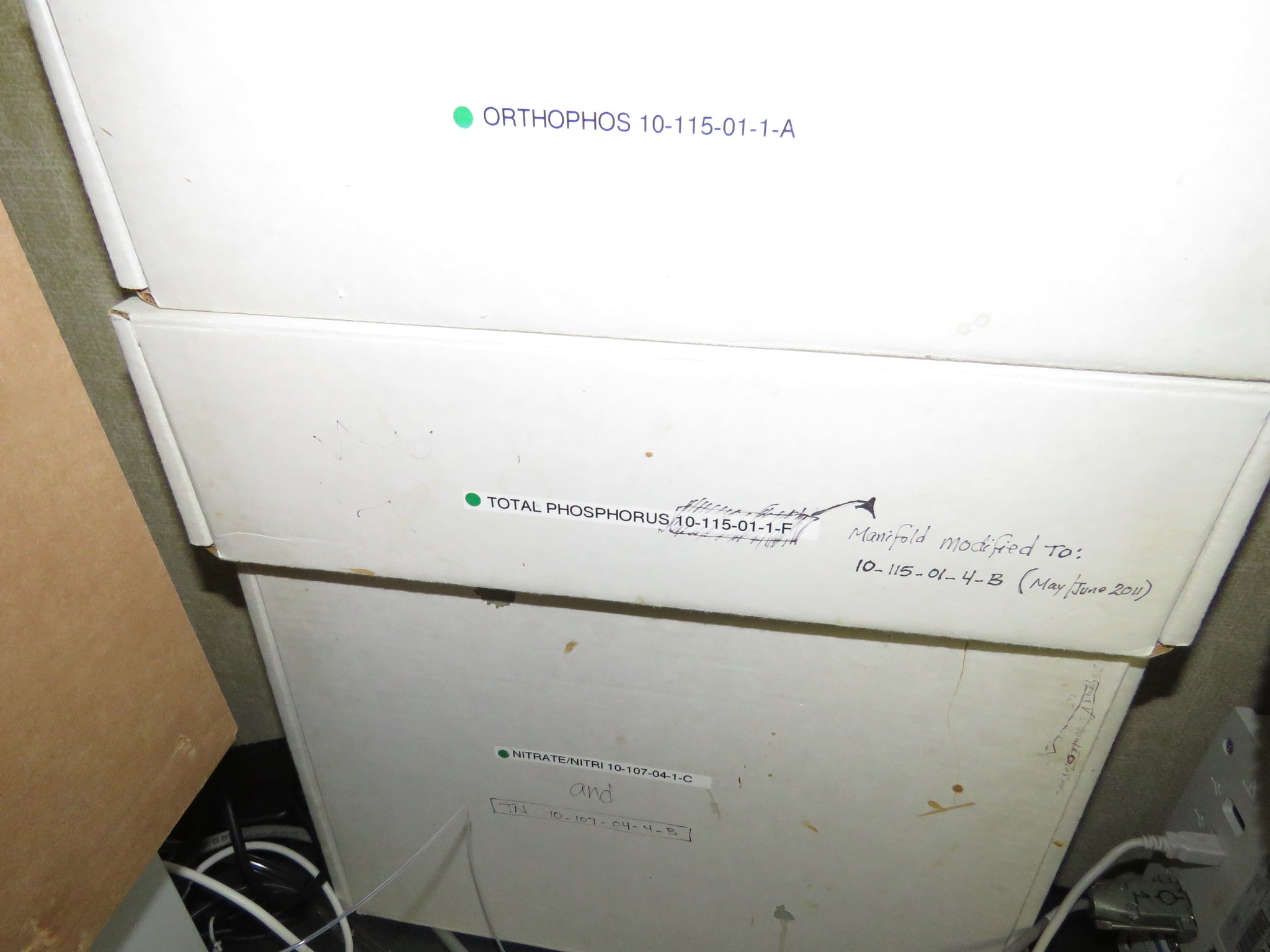

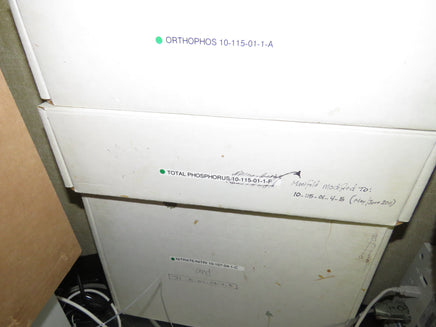

    • Total Phosphorus 10-115-01-4-B Method
    • Orthophosphate 10-115-01-1-A Method
    • Ammonia 10-107-06-1B Method

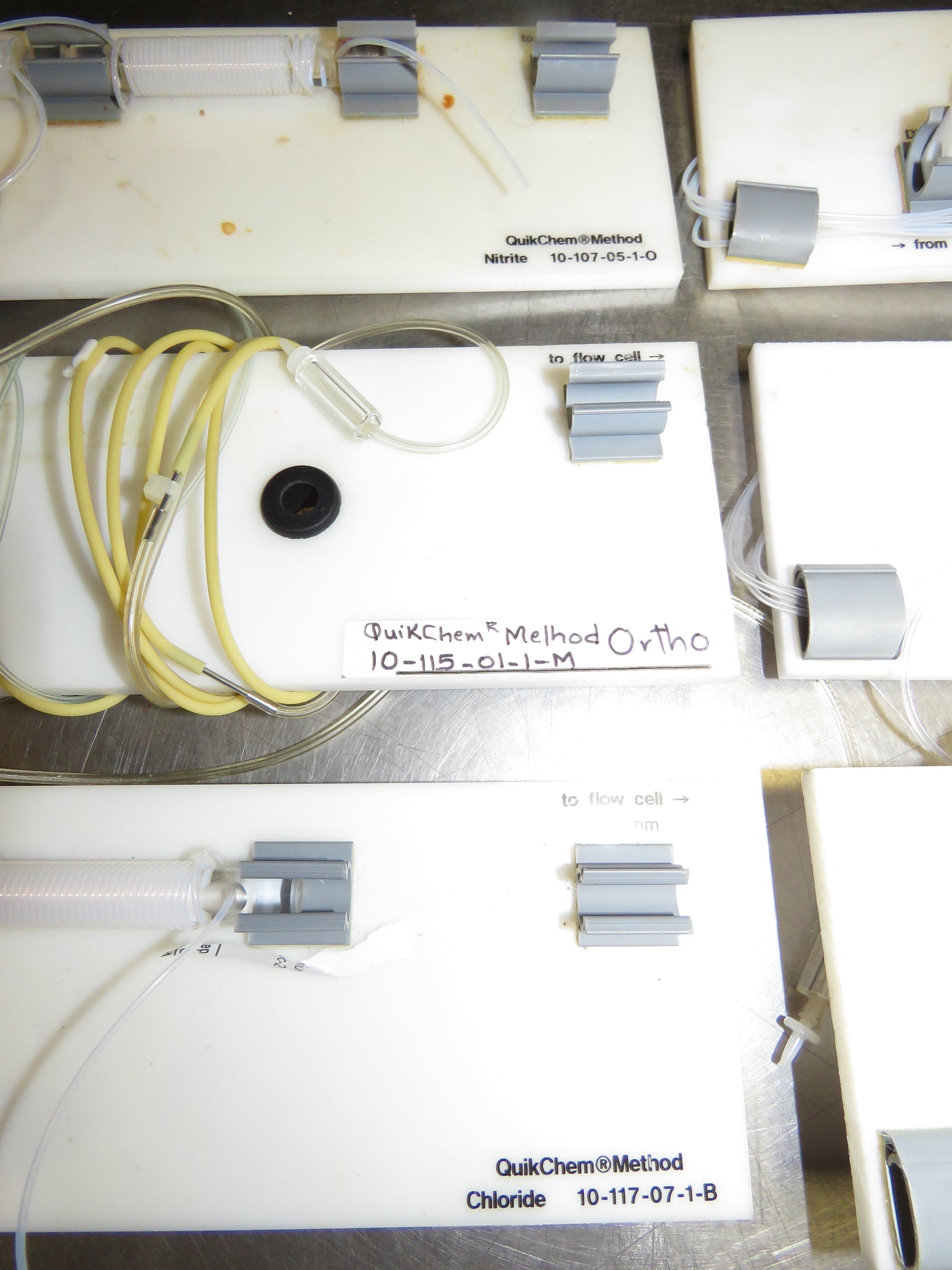

    • Chloride 10-117-07-1-B Method
    • Orthophosphate 10-115-01-01-M Method
    • Nitrite 10-107-05-1-0 Method

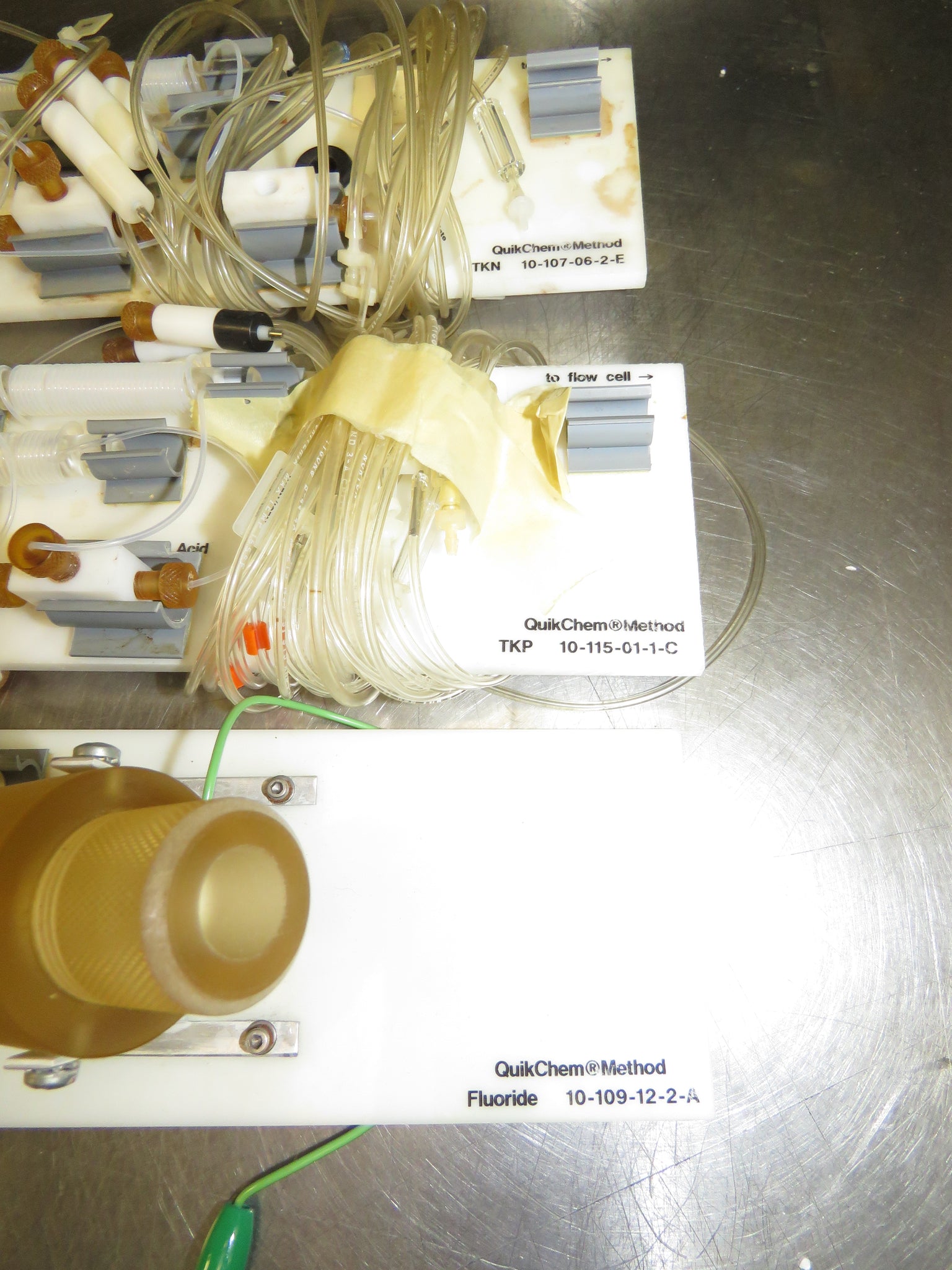

    • TKP 10-115-01-1-C Method
    • Fluoride 10-109-12-2-A Method
    • TKN 10-107-06-2-E Method

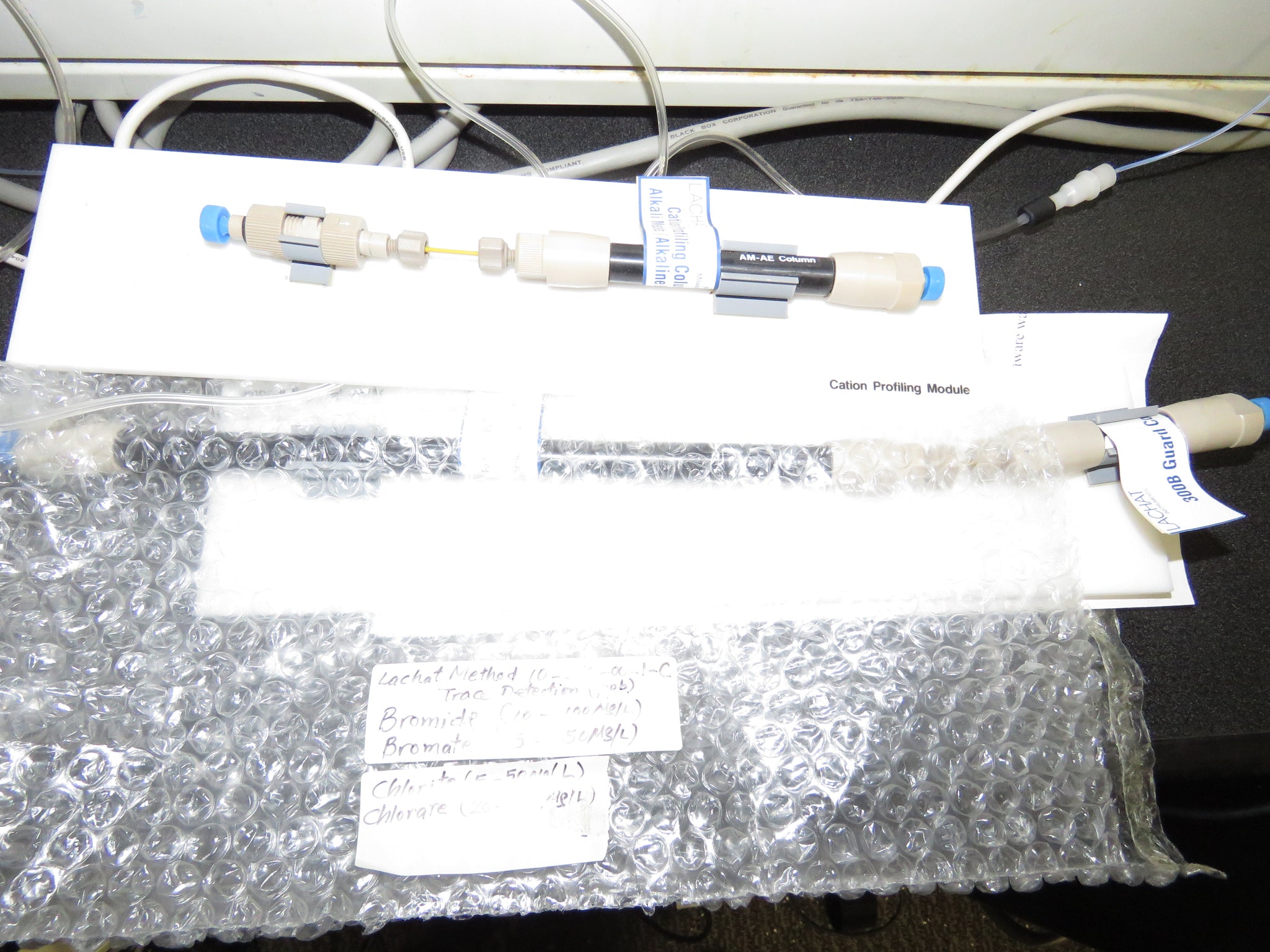

    • Anion Profiling Module
    • AM-AE Column
    • Lachat Methods Manual
    • Training Manual
    • User Manuals
    • Power cords, and communication cables
