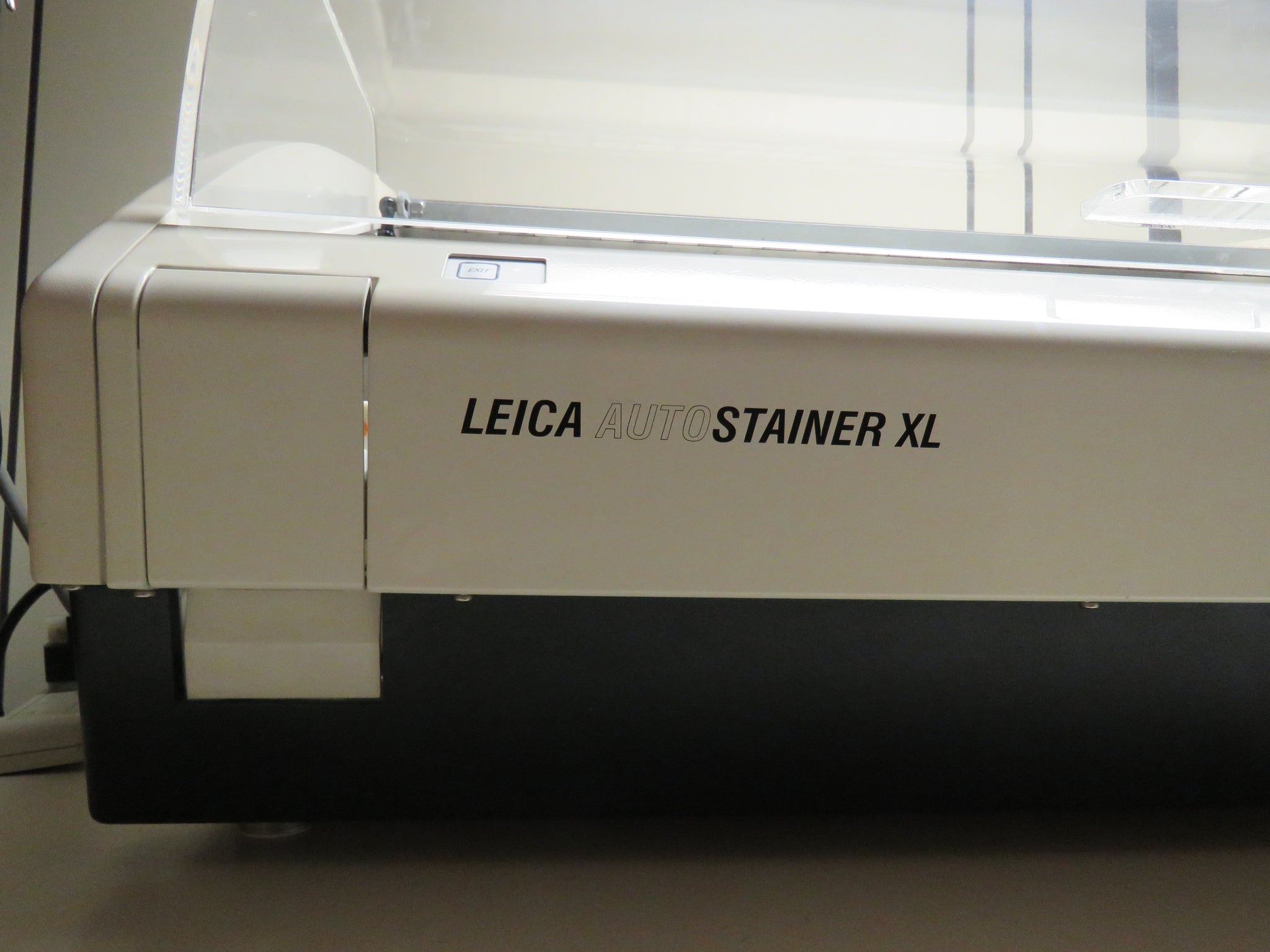

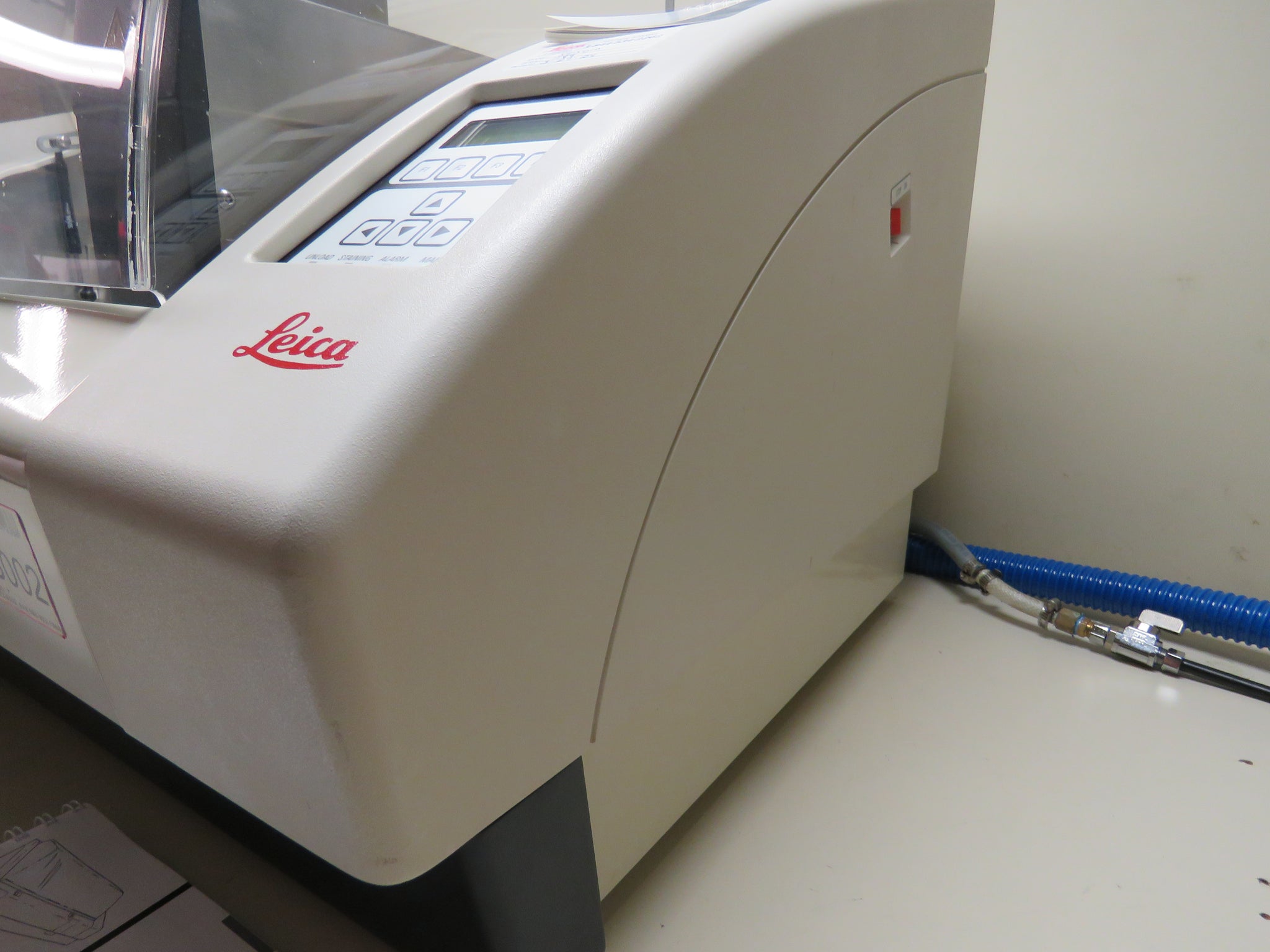

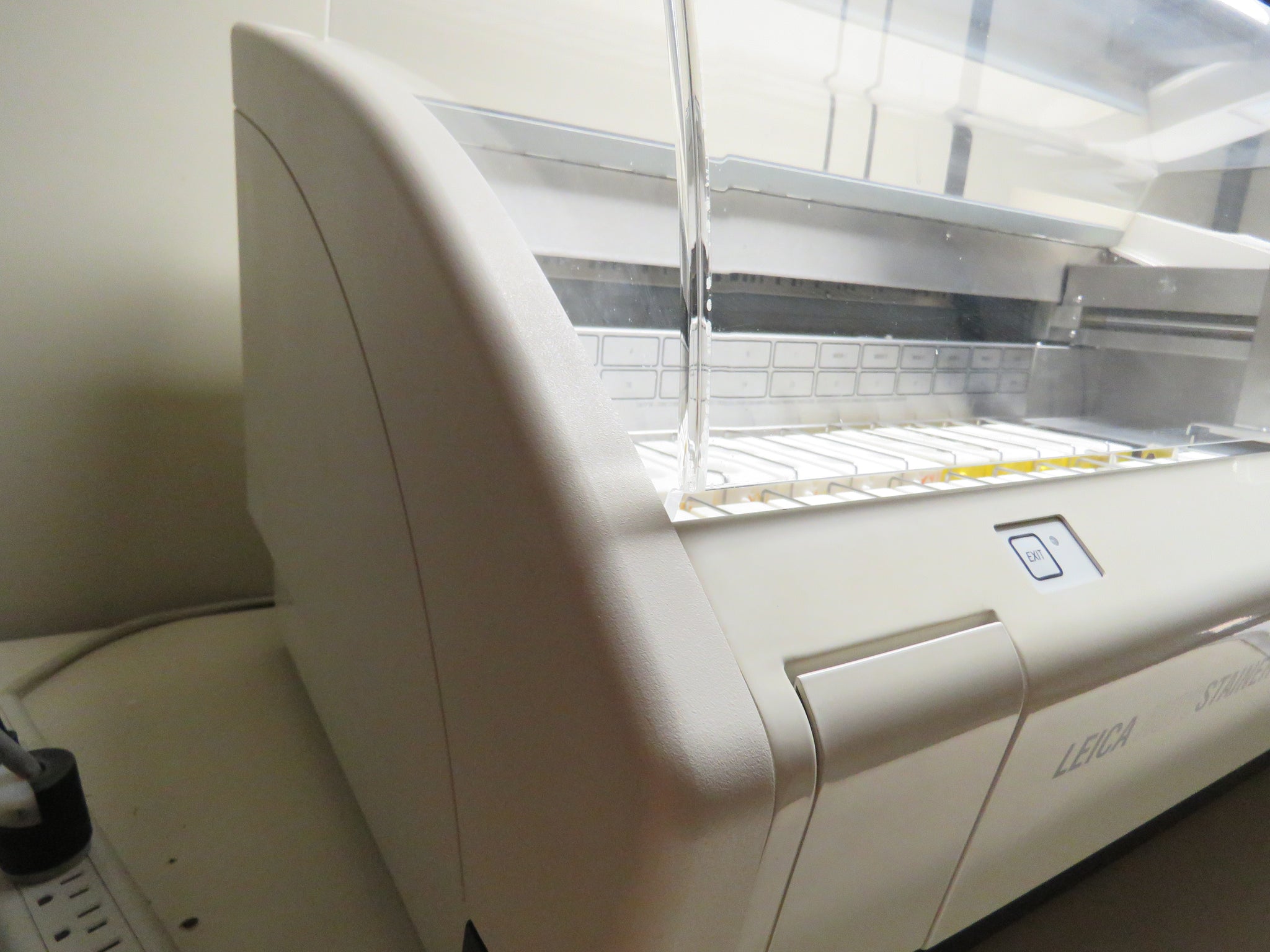

Leica Autostainer XL Automated Slide Stainer with Buckets / Leica 2024 PM
Web Information
Product Description
- High specimen throughput
- Simultaneous realization of various different staining protocols
- Continuous slide unload / reload function

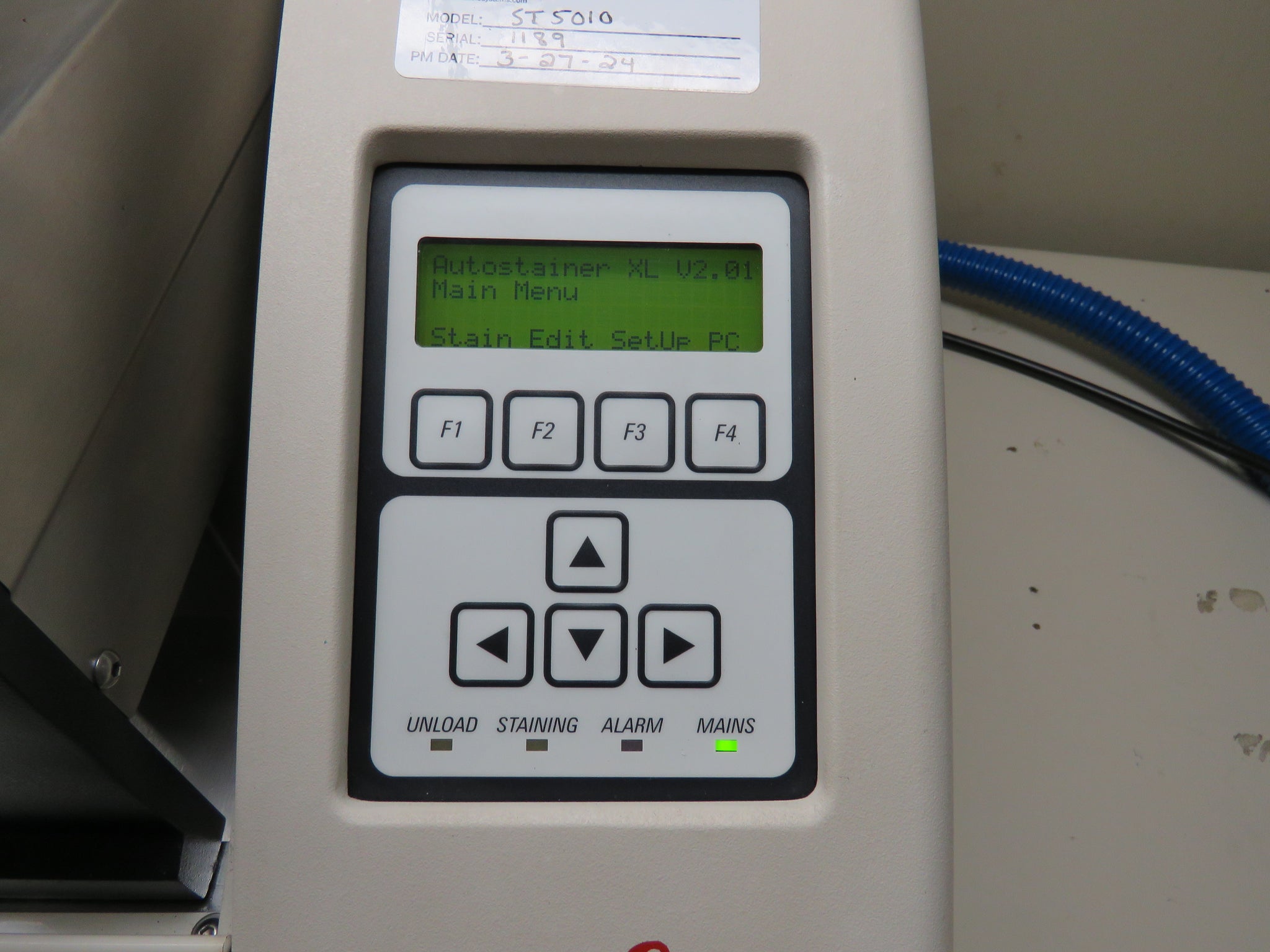

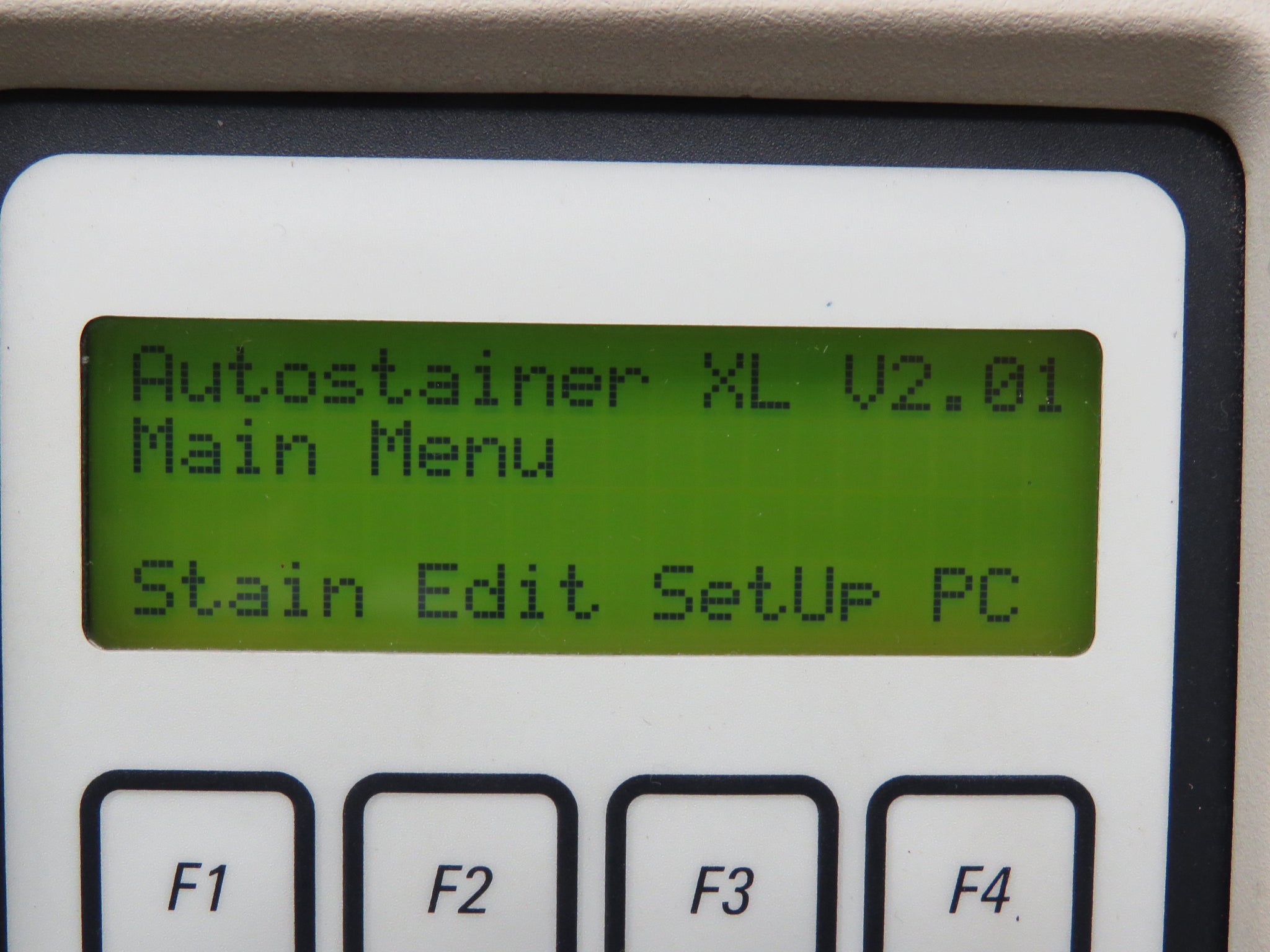

- Simple, menu-driven programming
- Integrated oven for optimal slide drying
- Integrated fume extraction system with activated charcoal filter
- Easy-to-clean and resistant surfaces made out of polyester epoxy resin and stainless steel
The Leica Autostainer XL is designed especially for routine staining in the histopathology laboratory. Featuring flexibility and reliability, the Autostainer XL has become one of the most successful within its class as 2,000 laboratories worldwide are using it.
The most powerful feature of the Leica Autostainer XL stainer is that it can be used for routine H&E staining alone or simultaneously with other staining protocols. The tissue sections adhere firmly to the slides, and staining results are exceptionally reproducible. Because of its simple and logical operation, the Autostainer XL makes daily use especially easy and efficient.

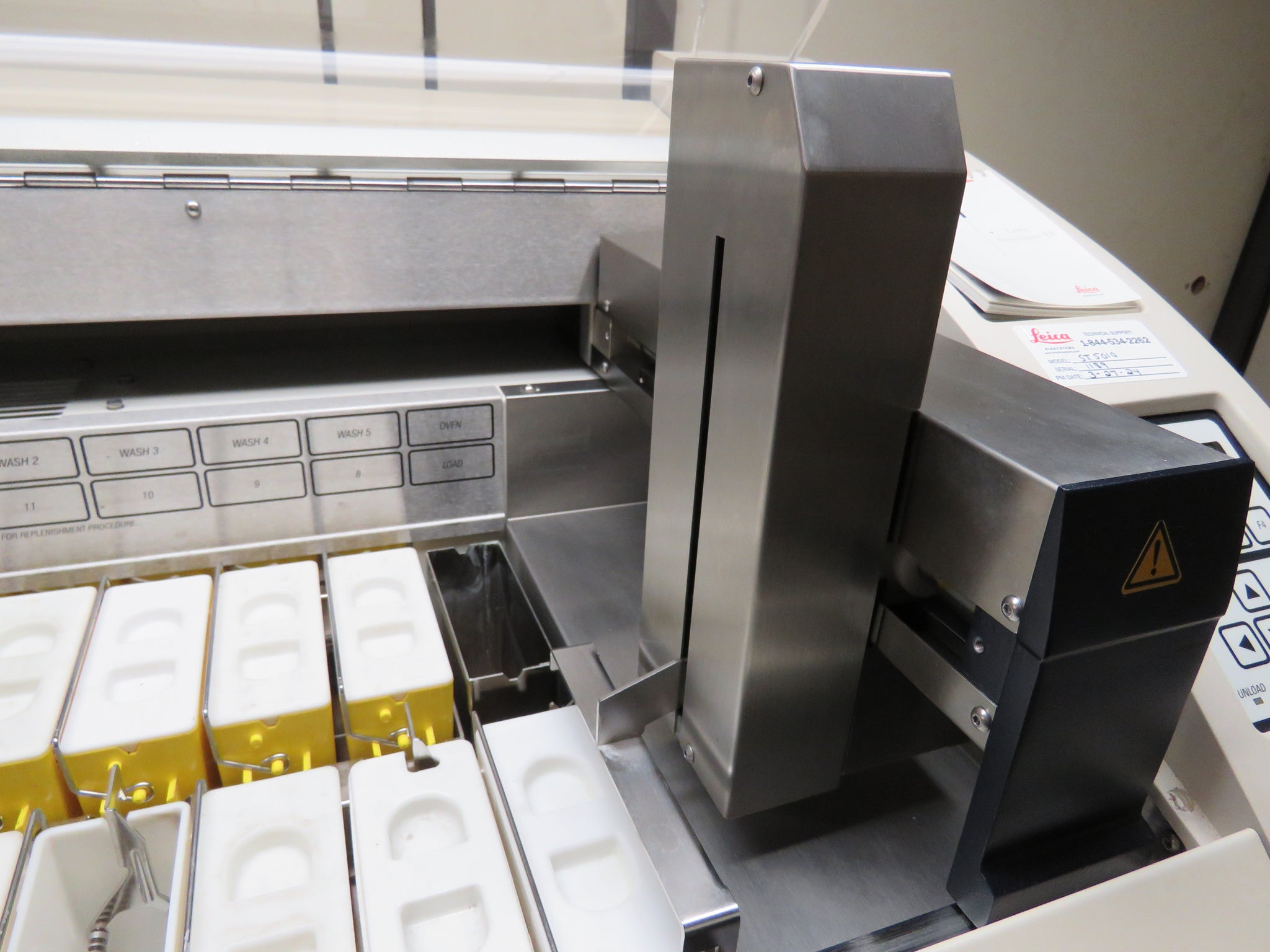

The microprocessor-controlled Leica Autostainer XL has 15 programs for operation. Together with these programs, the Leica stainer system also carries a trouble-free, stainless steel robot arm which moves swiftly and quietly on the x, y and z motion axes to process slide racks.
Additionally, the Leica Autostainer XL has an innovative continuous load and unload drawer access and robot arm system that lets you continue slide processing without stopping instrument operation. Reagent containers of the Autostainer XL can also be quickly and easily exchanged. Exposure to hazardous reagent fumes is even minimized.
Specifications
| Leica Autostainer XL | |
| Specimen Slide Throughput | At least 200 specimen slides per hour (depending on the selected program – up to 600 slides per hour) |
| Loading Capacity | 11 slide racks |
| Loading Capacity Per Slide Rack | 30 specimen slides |
| Total Number of Processing Stations | 26 |
| Reagent Stations | At least 18 |
| Reagent Container Volume | 450 ml |
| Number of Wash Stations | Max. 5 |
| Oven | 1 |
| Oven Chamber Temperature | Off or 30 °C to 65 °C |
| Incubation Time Setting | From 0 sec. up to 99 min, 59 sec. |
| Load / unload Stations | 1 each |
| Permanent Memory Capacity | 15 programs, up to 25 program steps each |
| Dimensions (W x D x H) | 109 cm x 67 cm x 51 cm |
| Weight | 65 kg |
| Voltages | 110-120 V 50/60 Hz / 230-240 V 50/60 Hz |
| Leica Autostainer XL | |
| Instrument Type | Automated Stainer (Leica Autostainer XL) and Coverslipper (Leica CV5030), modular, connected through Leica Transfer Station TS5015 |
| Sample Types | Histology and cytology specimen |
| Fume Handling | Activated carbon filter and fume extraction hose system |
| Dimensions (W x D x H) | 165 cm 67 x cm x 55 cm |
| Dry Weight | Approx. 164 kg |
Condition

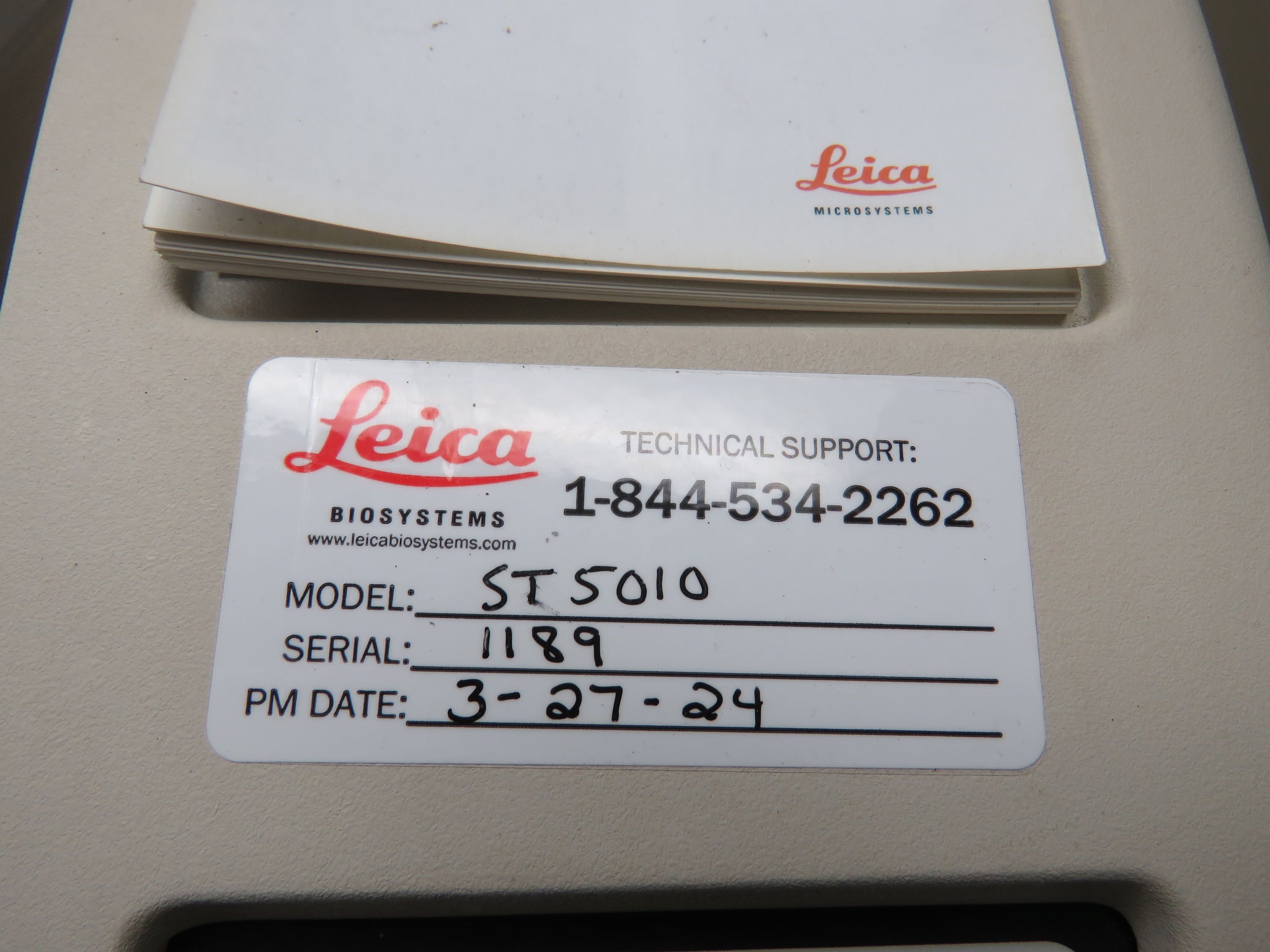

Great working condition, with very recent Leica factory PM performed. This instrument was just taken out of well maintained laboratory that decided to outsource their histology program.
Includes

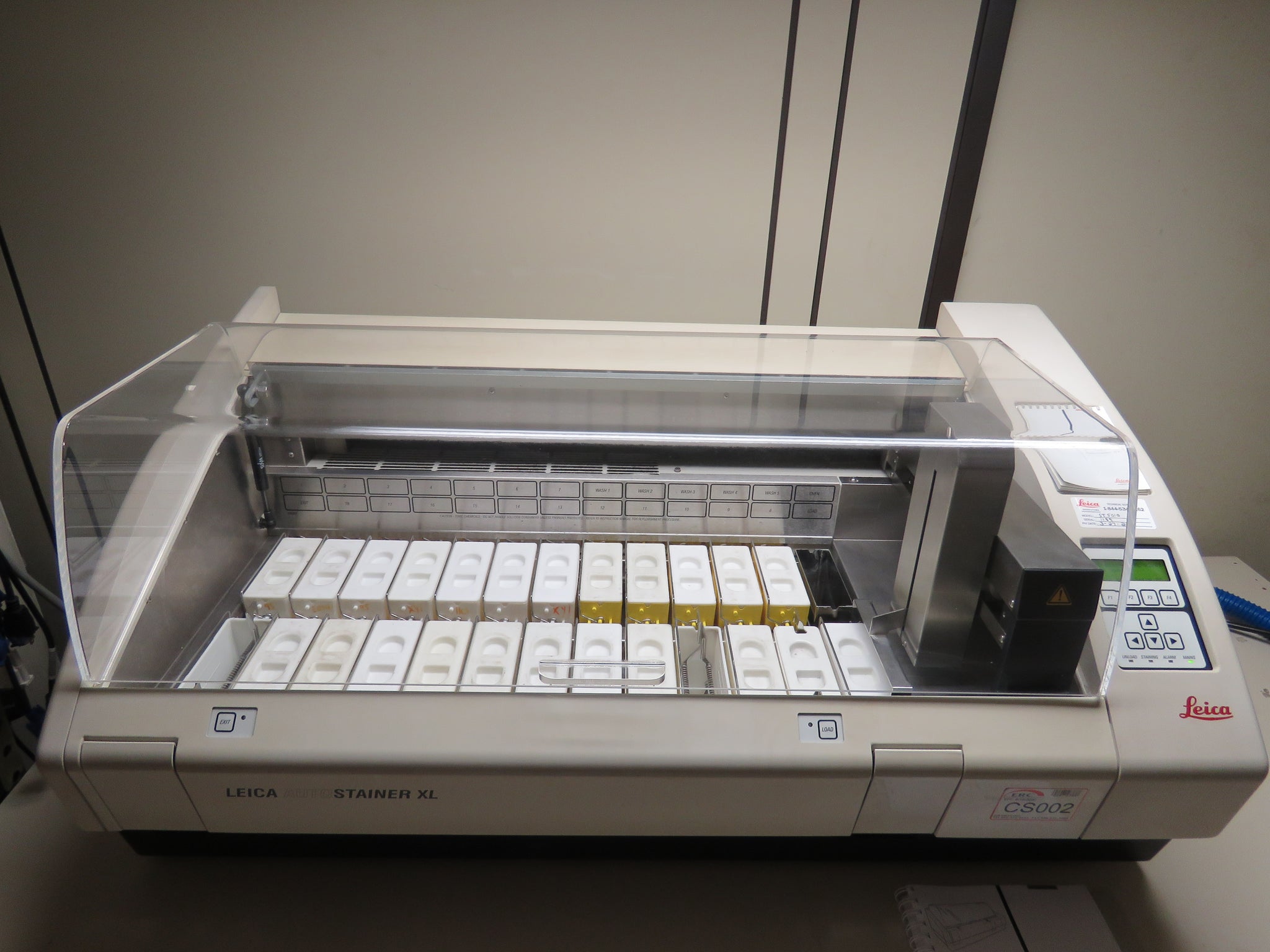

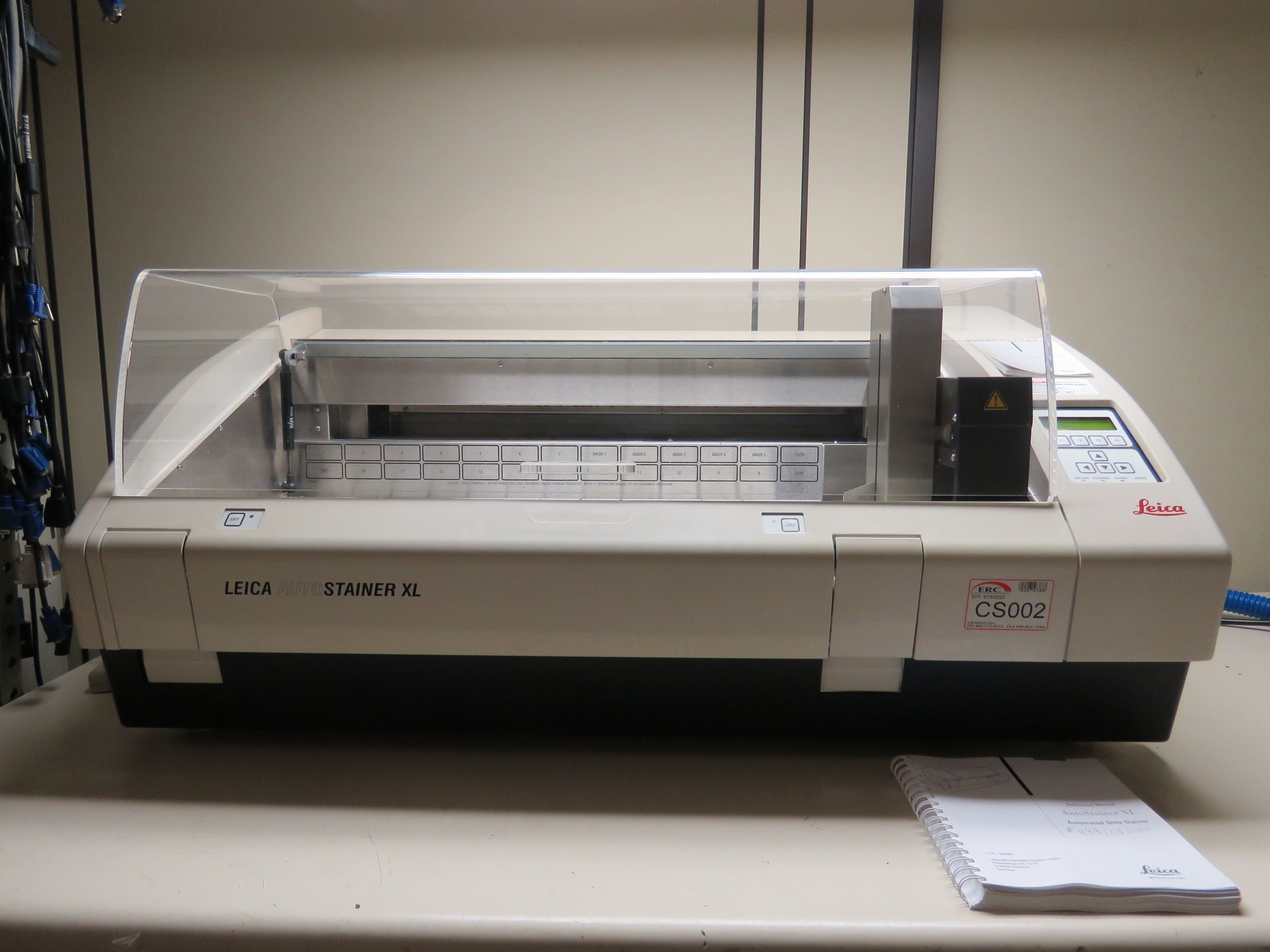

- Leica Autostainer XL Automated Slide Stainer

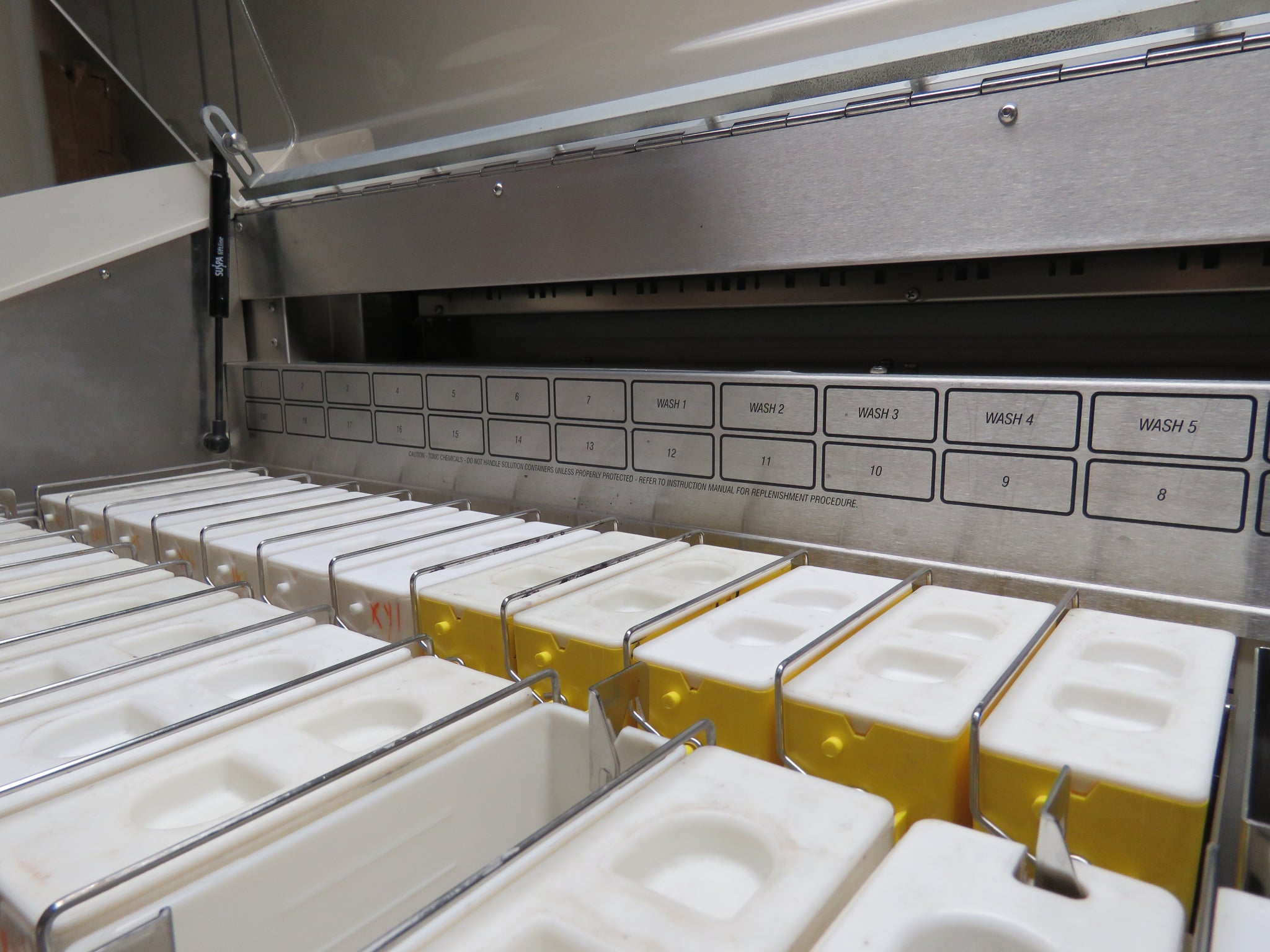

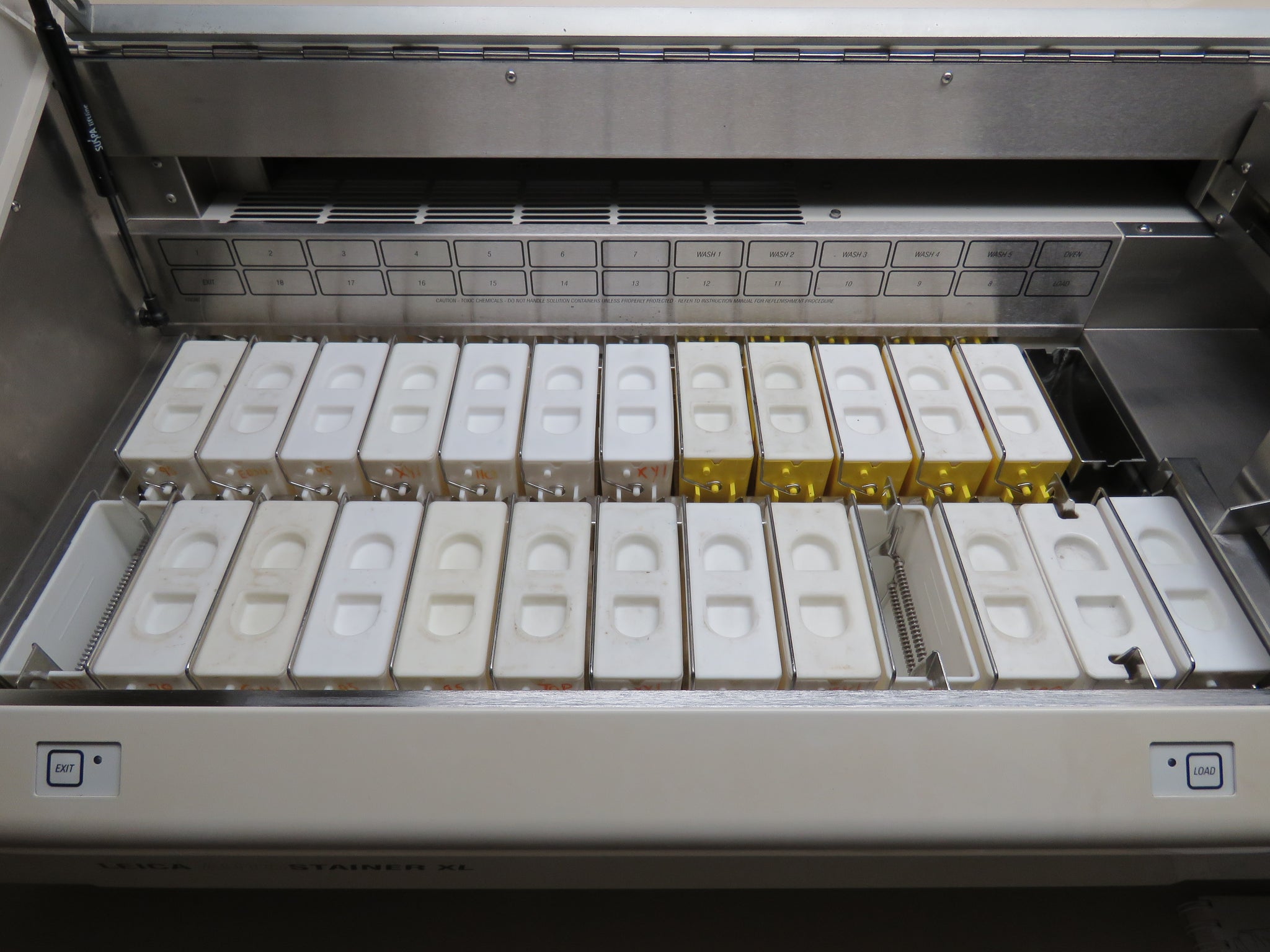

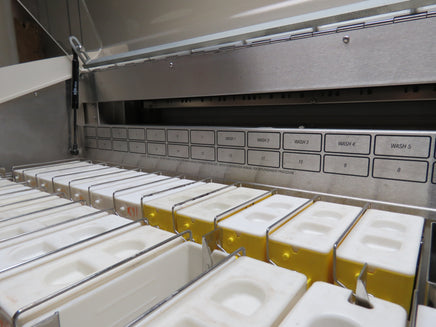

- Assortment of buckets / lids as shown

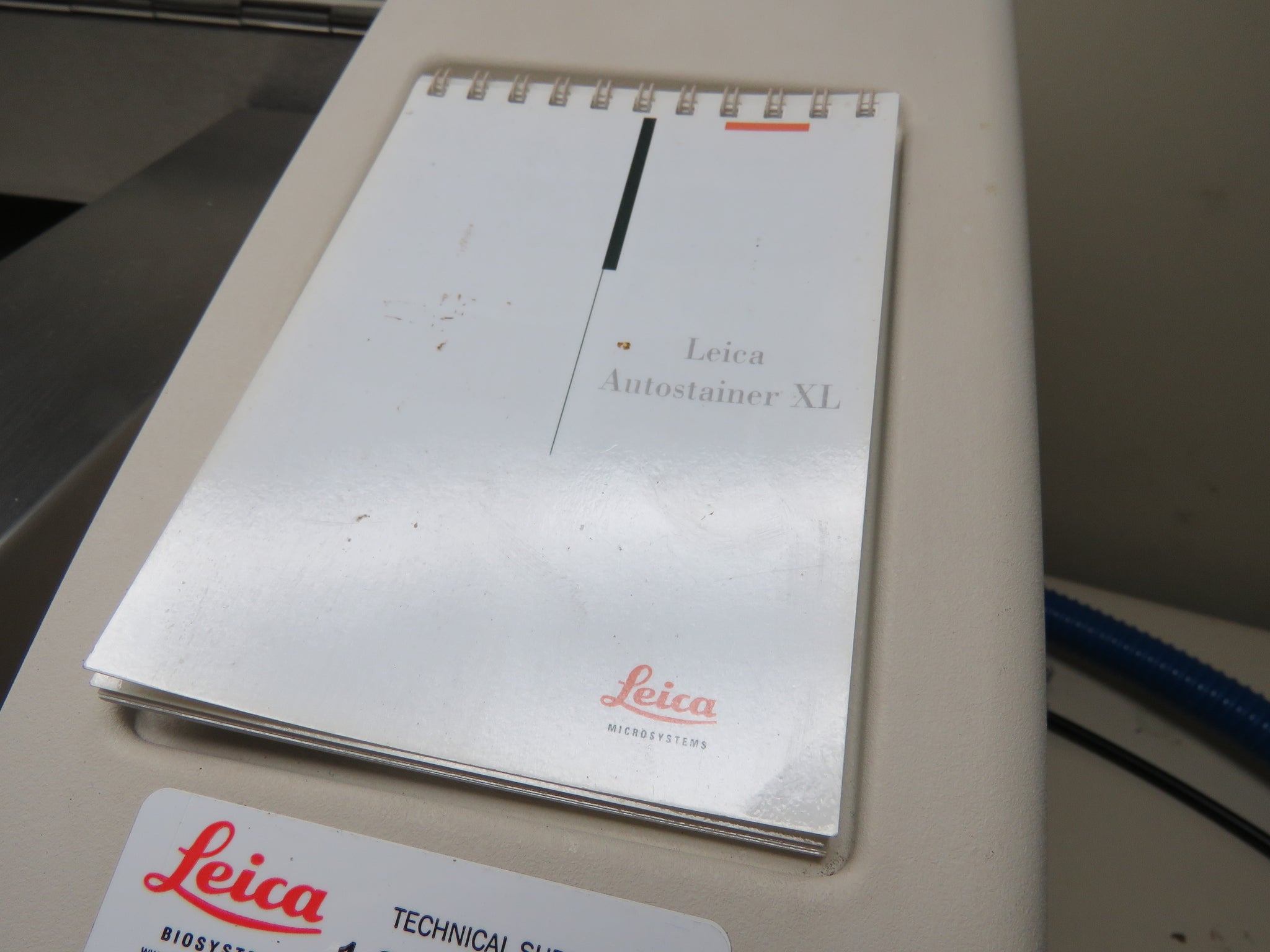

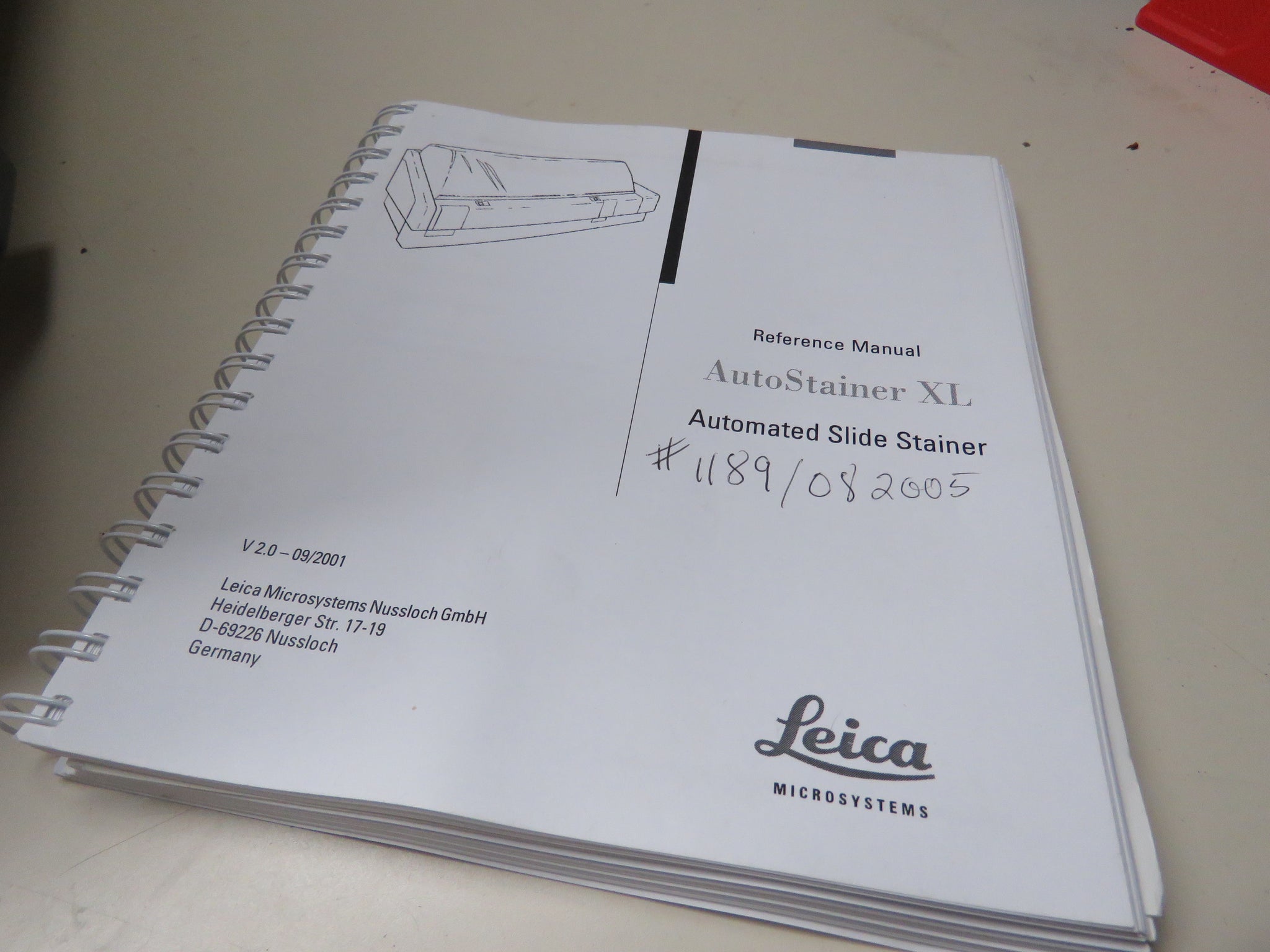

- Operator manual
- power cable
BBOR
Delivery
We will professional package this instrument to ensure safe delivery to your location.
Warranty
30 Day warranty. We pledge to offer the best service and warranty to all of our customers! We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.
Certification
This is a genuine product from this manufacturer.
