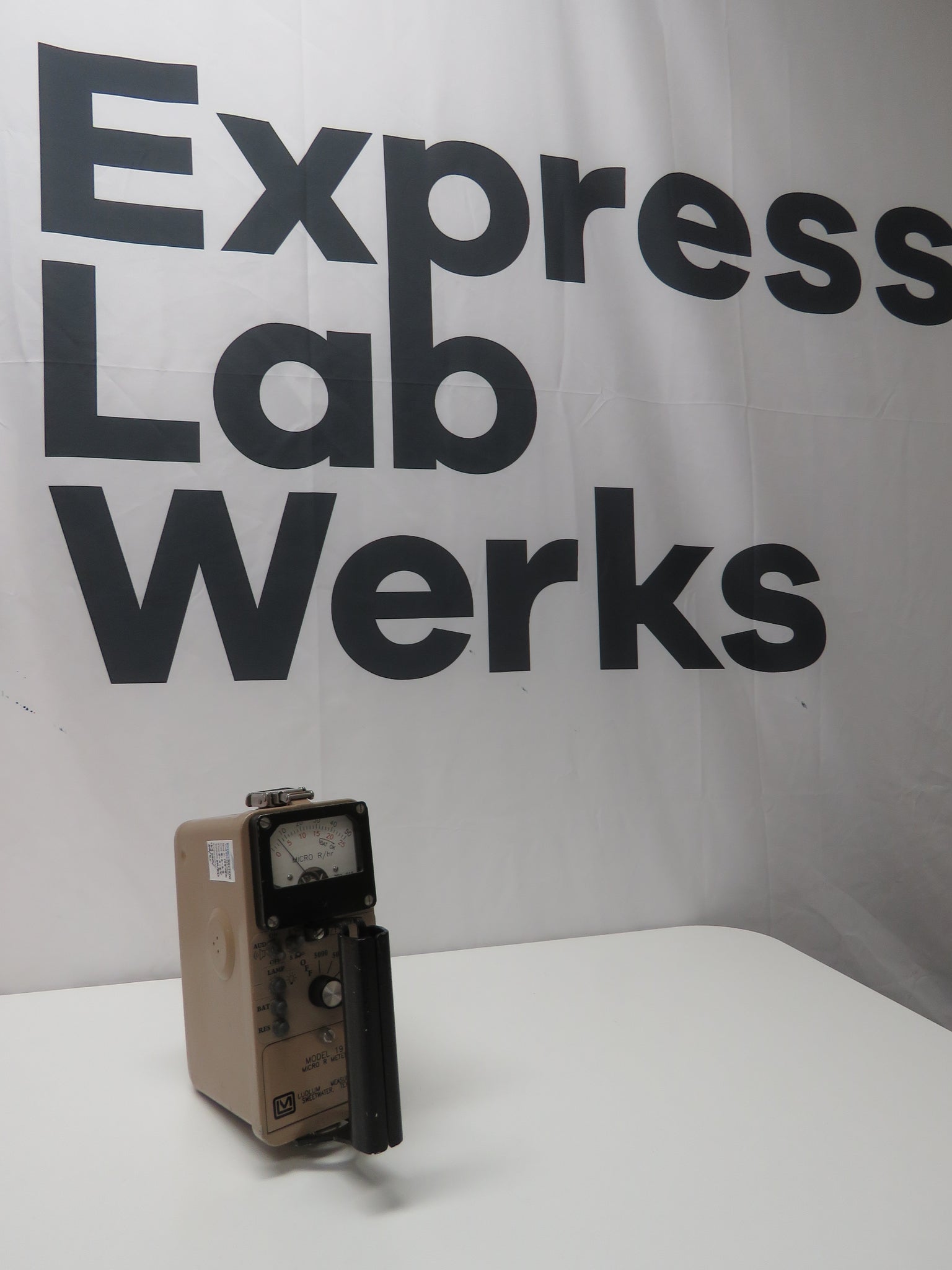

Ludlum Model 19 Micro R Meter - Radiation Meter - 2023 Calibration

Ludlum

$950.00
SKU: ludlum19

Sorry, this item is out of stock

Web Information

Features

  • High Sensitivity to Gamma
  • Range: 0 to 5000 μR/hr
  • Rugged
  • Splashproof Protection for Outdoor Use
  • 2000 Hour Battery life
  • Meter Light

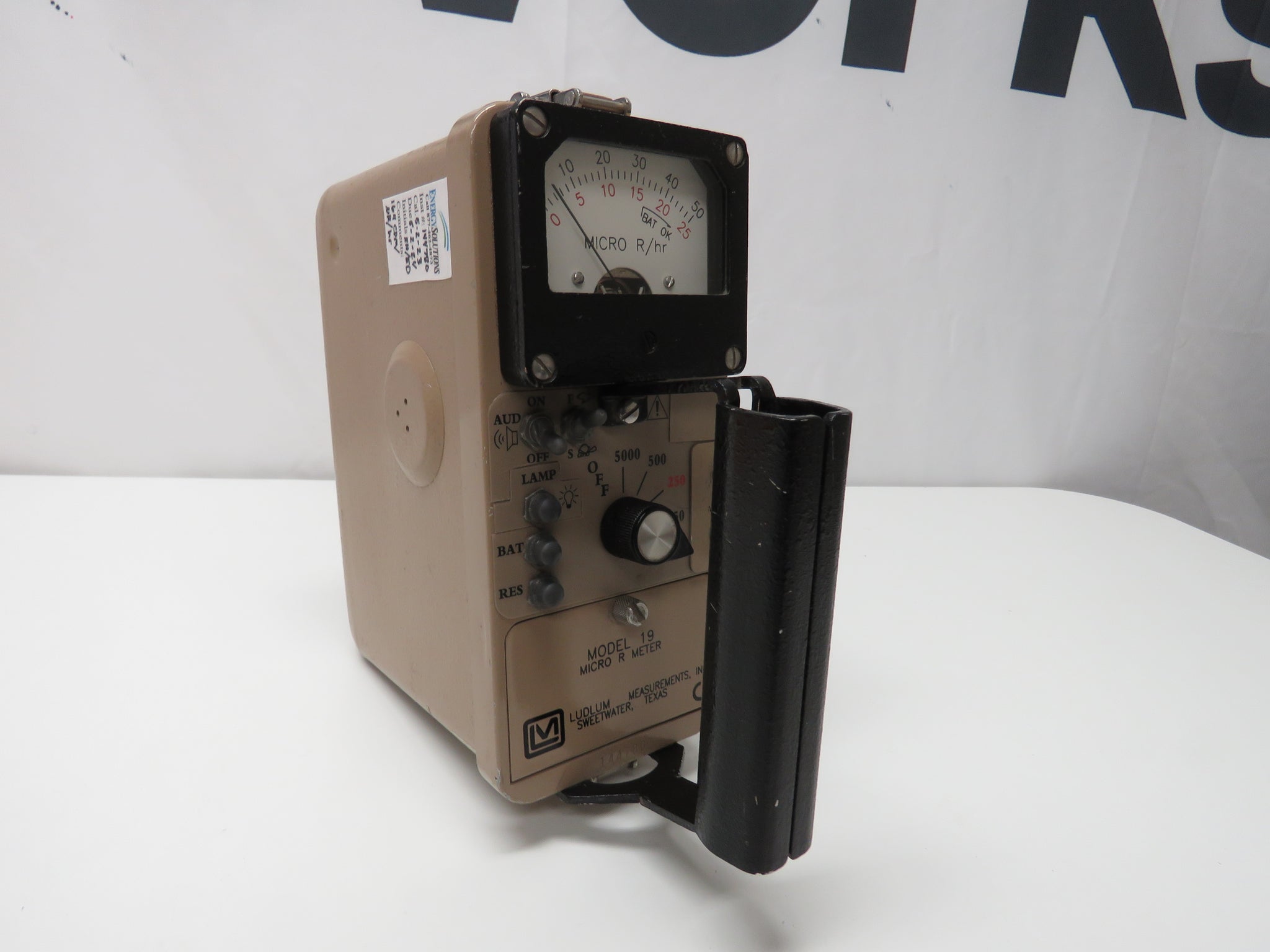

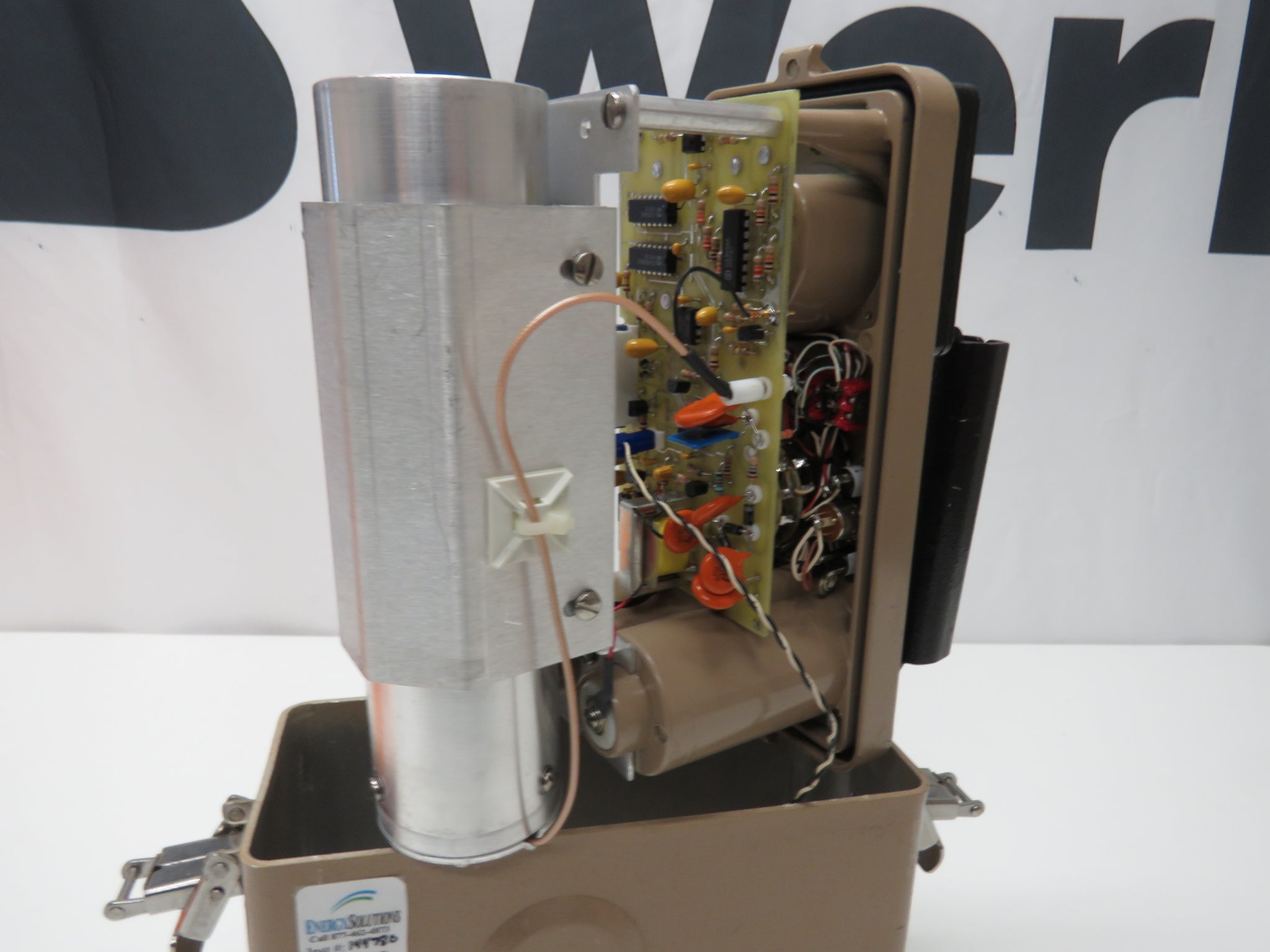

The Model 19 is a highly sensitive gamma microR meter employing an internally housed, 2.5 x 2.5 cm (1.0 x 1.0 in.) NaI detector. The measuring range is 0 to 5000 µR/hr. (For µSv/h, use Model 19 Series 8, P/N: 48-2582.) The cast aluminum instrument housing with a separate battery compartment and accompanying metal handle offer an industrial robustness and quality that promote long lasting protection and instrument life.

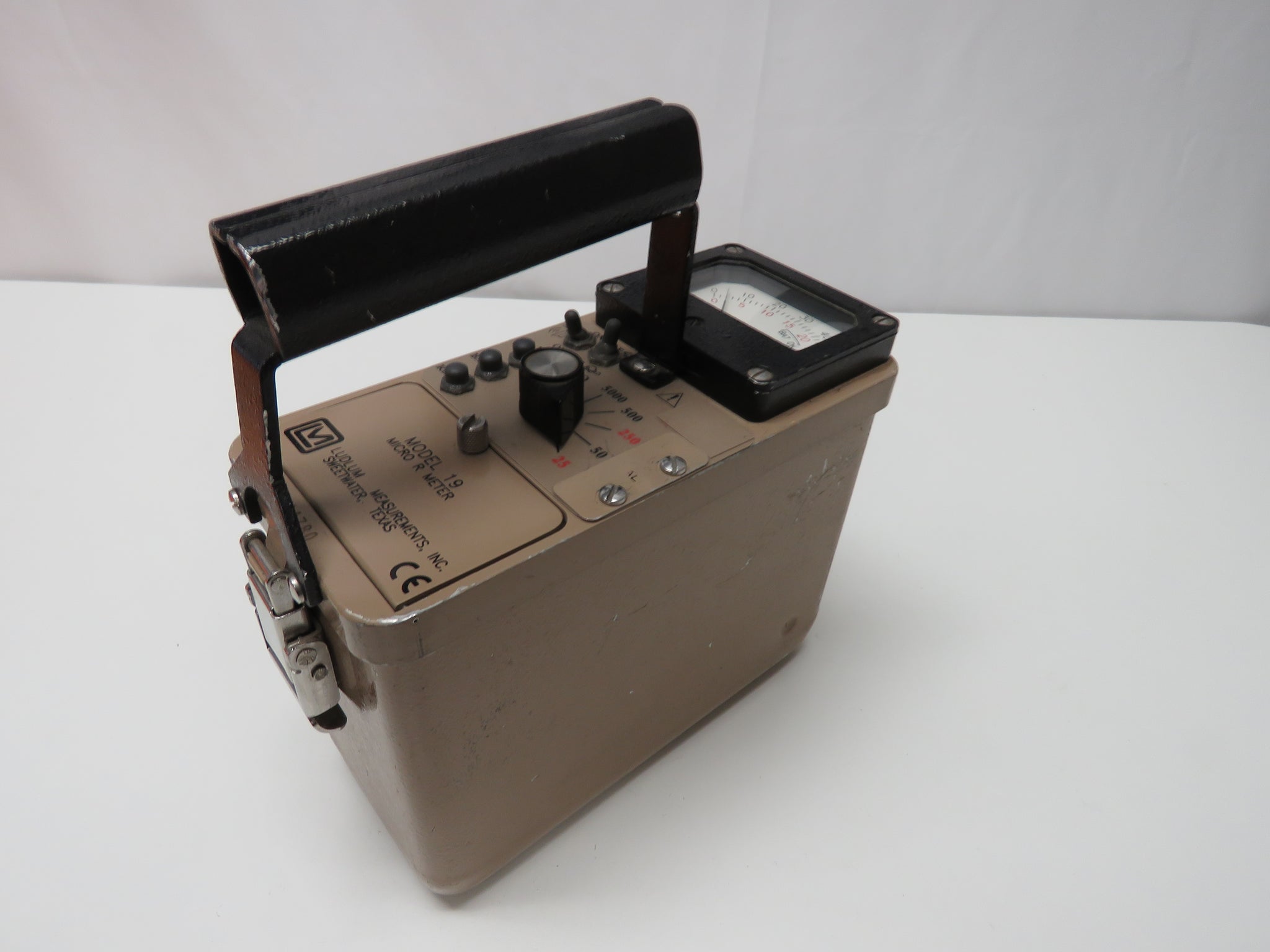

The front-panel controls include a rotary switch for selecting the five-decade range and instrument shut-off, an audio on/off switch, a fast/slow response switch, and pushbuttons for activating the meter lamp, high-voltage display, battery test, and count reset. The Model 19 is a complete turn-key system and includes two "D" cell batteries.

Note: While the detector used in this instrument is sensitive and is often used for detection of near-background levels of radiation, its nonlinear energy response means that dose and exposure measurements may be over/underreported.

Application Low-level (microR) gamma survey
Detector (D x L) NaI(Tl) scintillator, 2.5 x 2.5 cm (1 x 1 in.)
Detection Range 0 to 5000 μR/hr (for µSv/h, see note below)
Sensitivity (137Cs gamma) Approximately 175 cpm per μR/hr
Energy Response Energy dependent
Linearity Reading ± 10% of true value

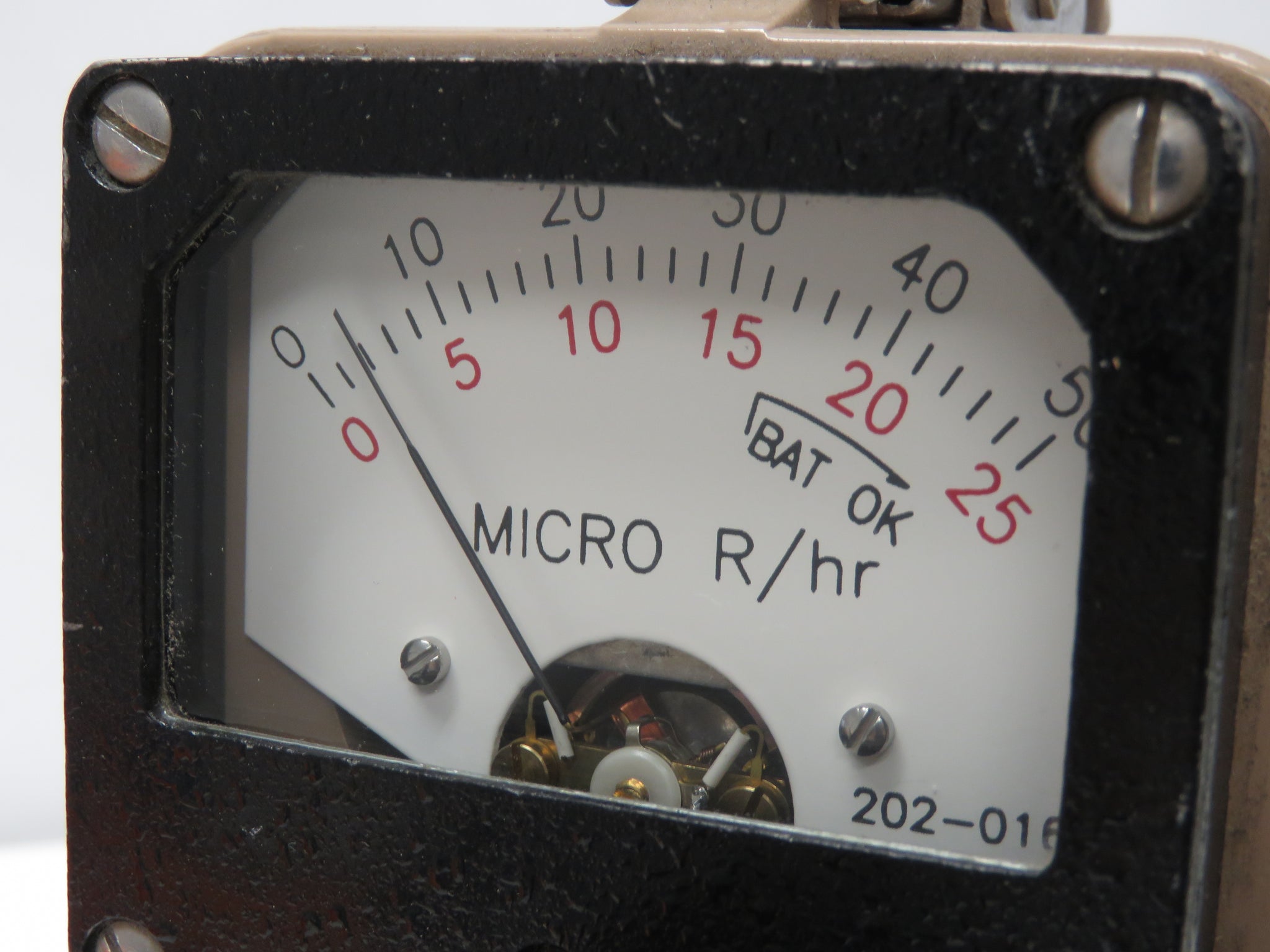

Meter Dial 0 - 25 µR/hr, 0 - 50 µR/hr, BAT TEST, High Voltage Test
Meter 6.4 cm (2.5 in.) arc, 1 mA analog type
Controls

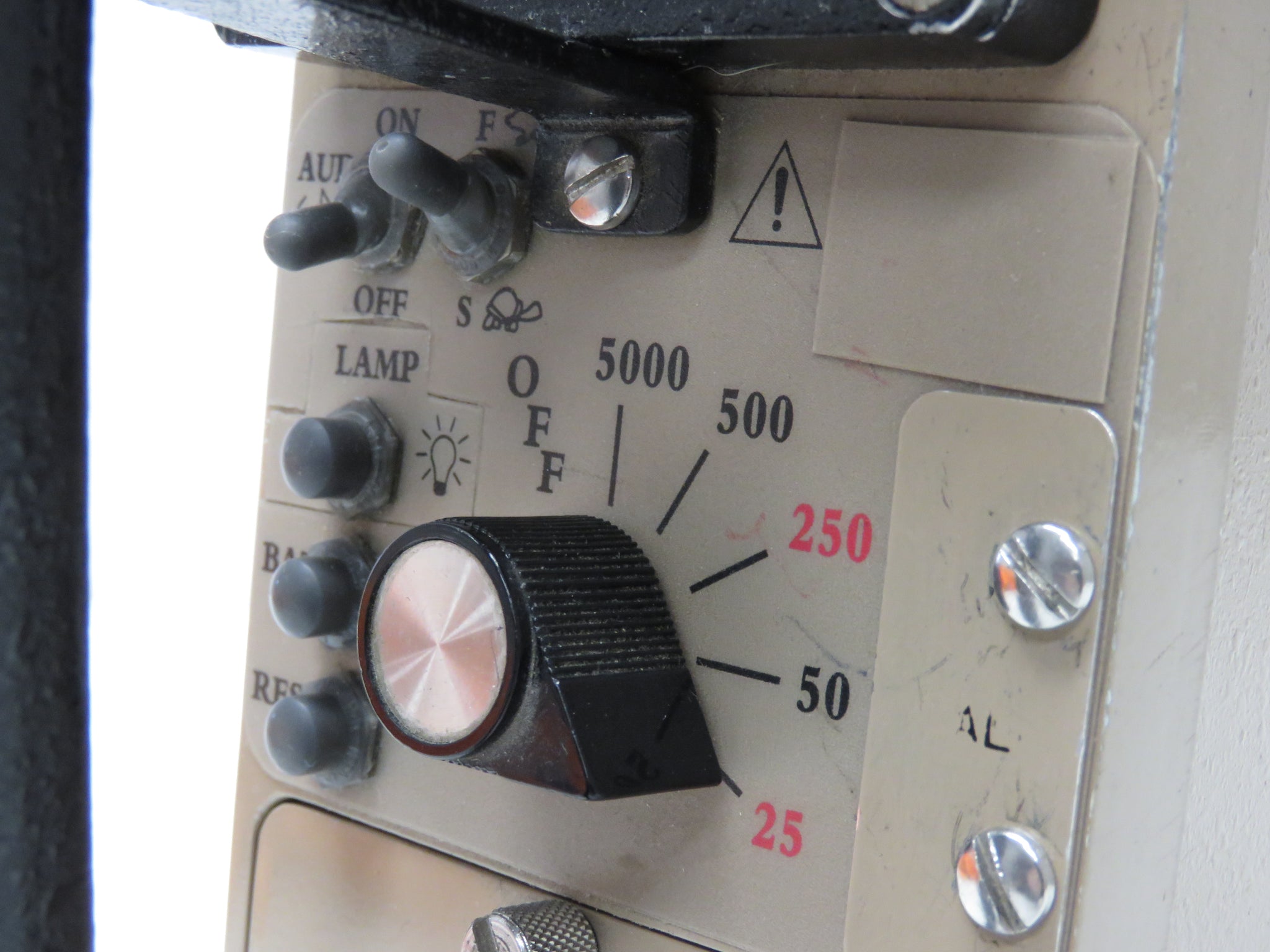

  • Rotary Knob Selector: Switches between: 0 to 25, 0 to 50, 0 to 250, 0 to 500, 0 to 5000 μR/hr, Instrument Off
  • Response: Toggle switch for FAST (4 s) or SLOW (22 s) from 10% to 90% of final reading
  • Audio: Built-in unimorph speaker with ON/OFF switch (greater than 60 dB at 0.6 m [2 ft])
  • High Voltage: Pushbutton to display HV setting on meter
  • Battery: Pushbutton checks battery voltage
  • Reset: Pushbutton to zero meter
  • Lamp: Pushbutton to activate meter light
  • Calibration Controls: Accessible from front of instrument (protective cover provided)
Working Environment Splashproof shields for outdoor use
Temperature Range -20 to 50 °C (-4 to 122 °F)
May be certified for operation from -40 to 65 °C (-40 to 150 °F)
Power 2 each “D” cell batteries (housed in sealed compartment that is externally accessible)
Battery Life Typically 2000 hours with alkaline batteries (battery condition can be checked on meter)

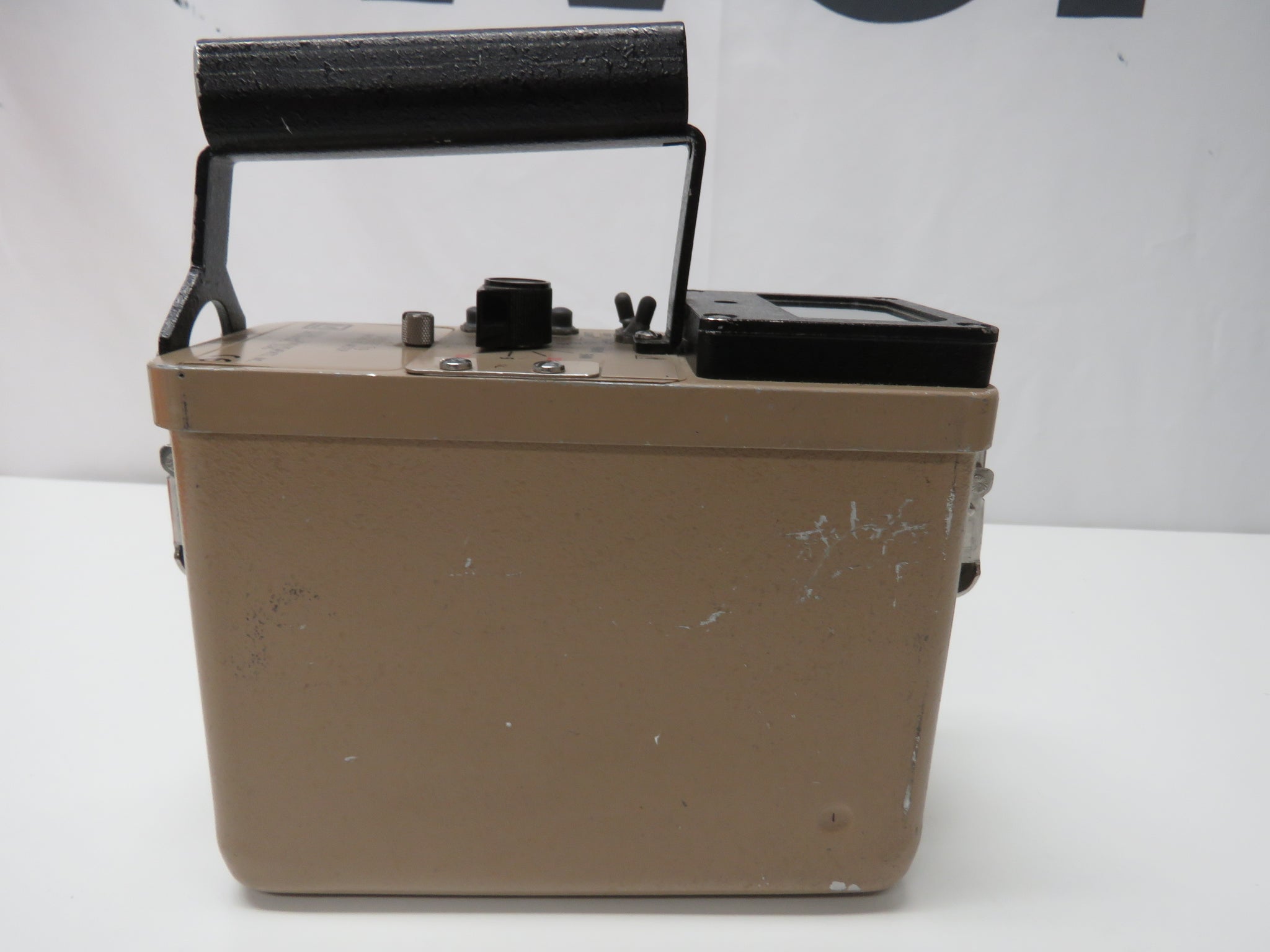

Construction Cast and drawn aluminum with beige powder coat finish
Size (H x W x L)  15.2 x 8.9 x 21.6 cm (6.0 x 3.5 x 8.5 in.) without handle
Weight  2.04 kg (4.5 lb), including batteries



Condition

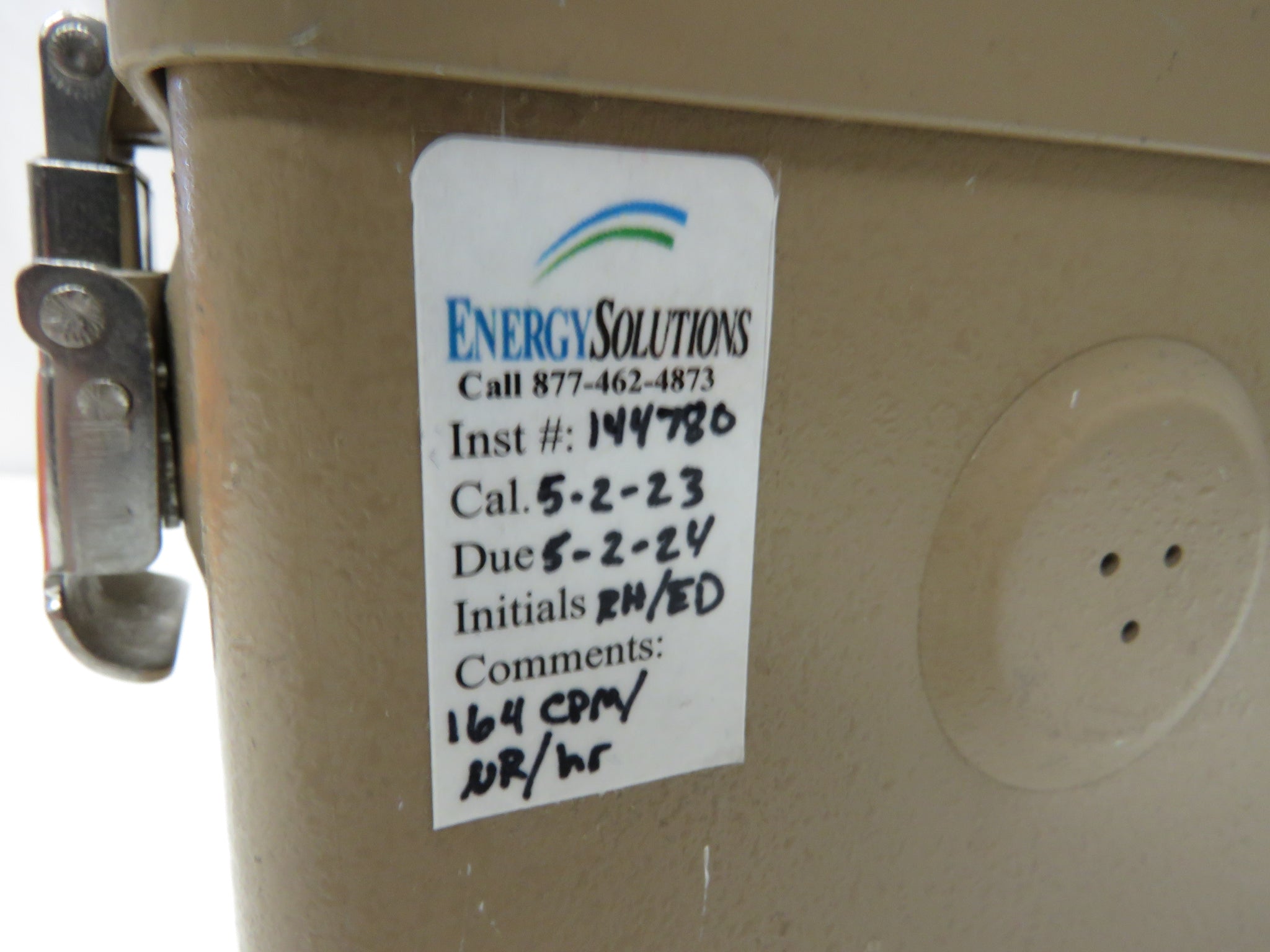

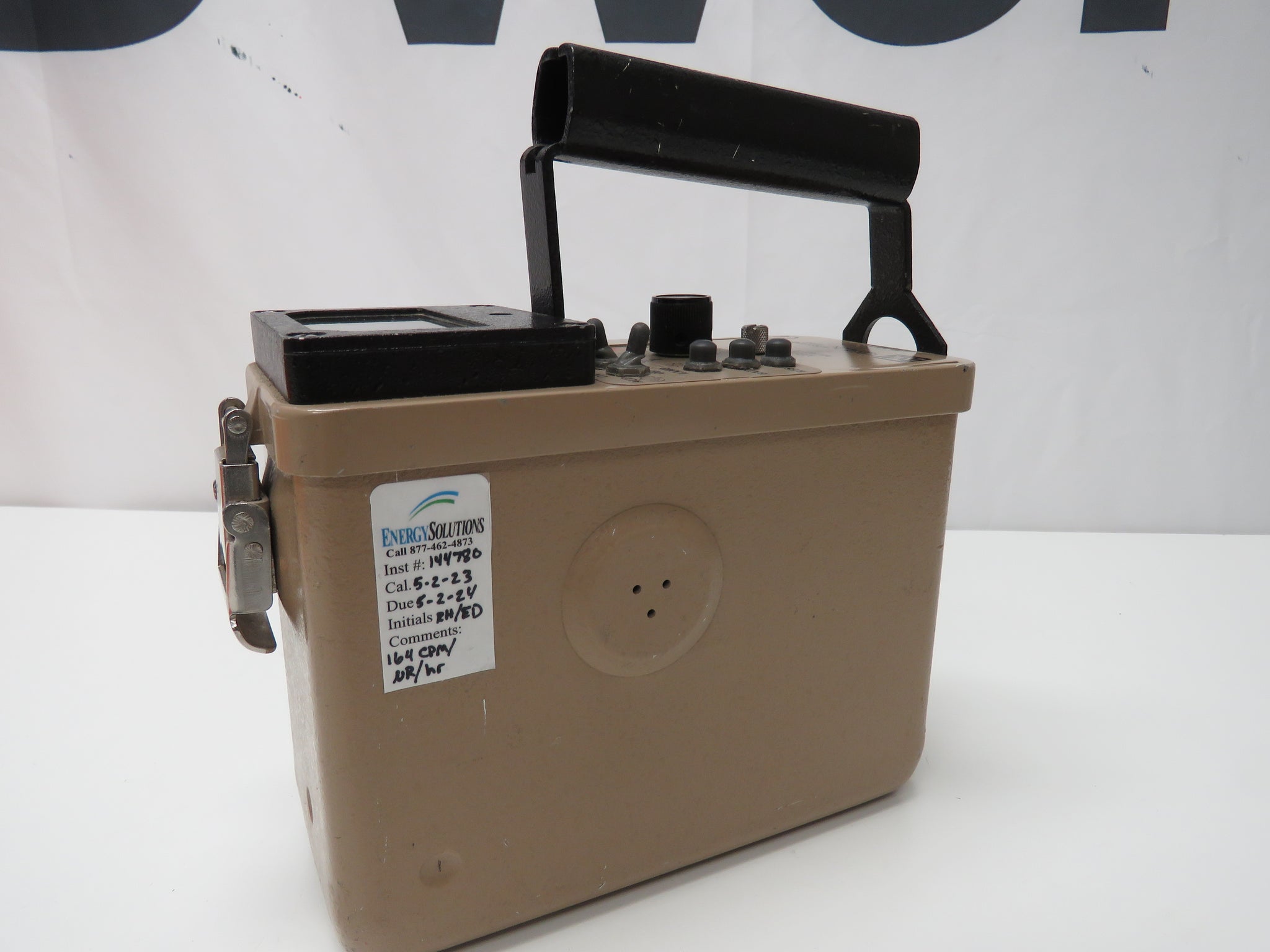

The item is tested and is in excellent working condition.   It was calibrated in 2023.

Watch a video of this unit in operation below:

ExpressLabWerks.com LUDLUM MODEL 19 Micro R Meter - gamma radiation survey meter

Video will open in a new window
Using the eBay App? Paste link into a browser window:





Includes

  • Ludlum Model 19 Micro R Meter
  • (2) good D Cell batteries

BBR3

Warranty

30 Day warranty. We pledge to offer the best service and warranty to all of our customers! We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.

Certification

This is a genuine product from this manufacturer.
