Laboratory Devices MEL-TEMP Melting Point Determination - Temperature Verified w/ Warranty

Laboratory Devices


Web Information

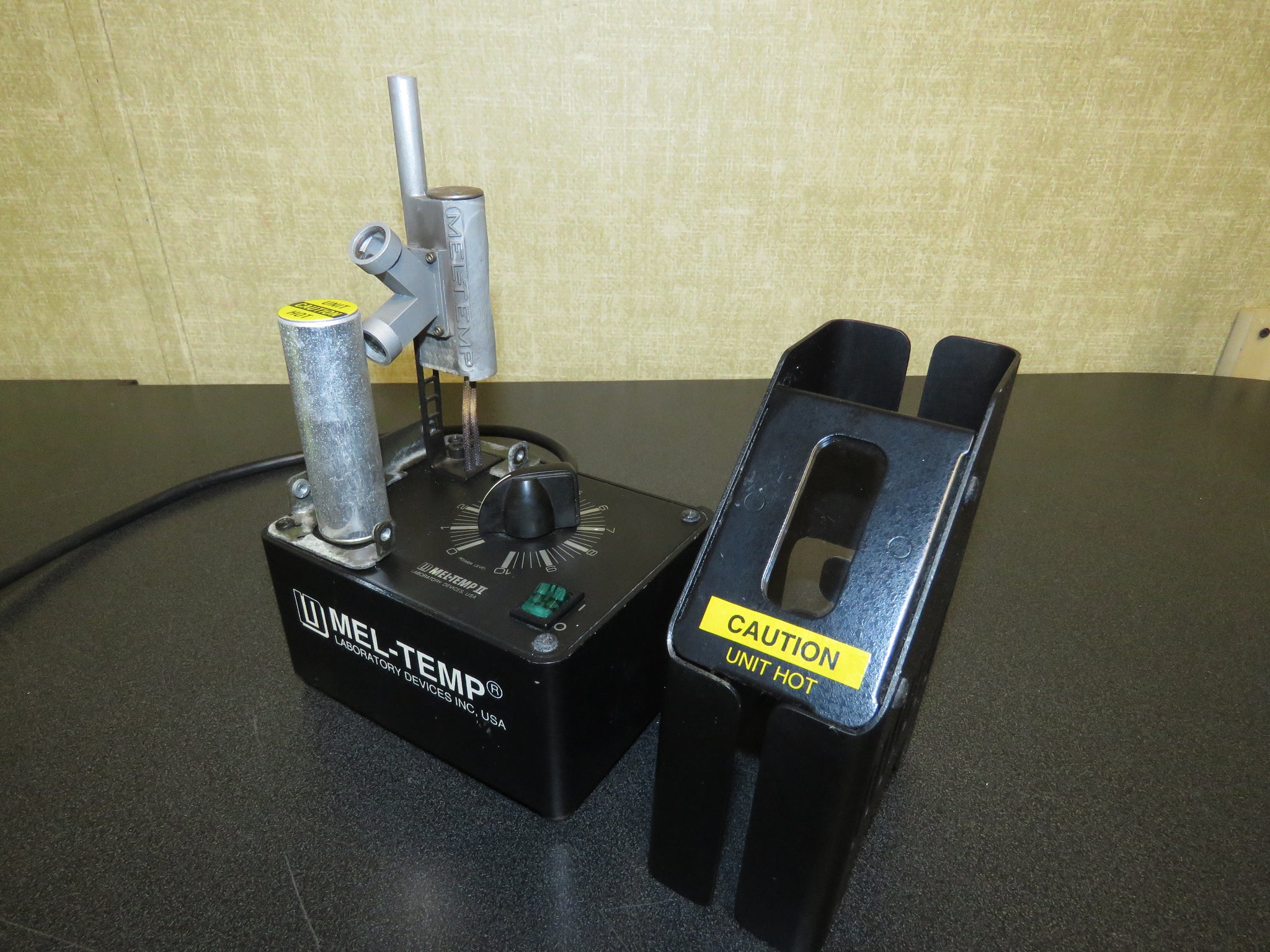

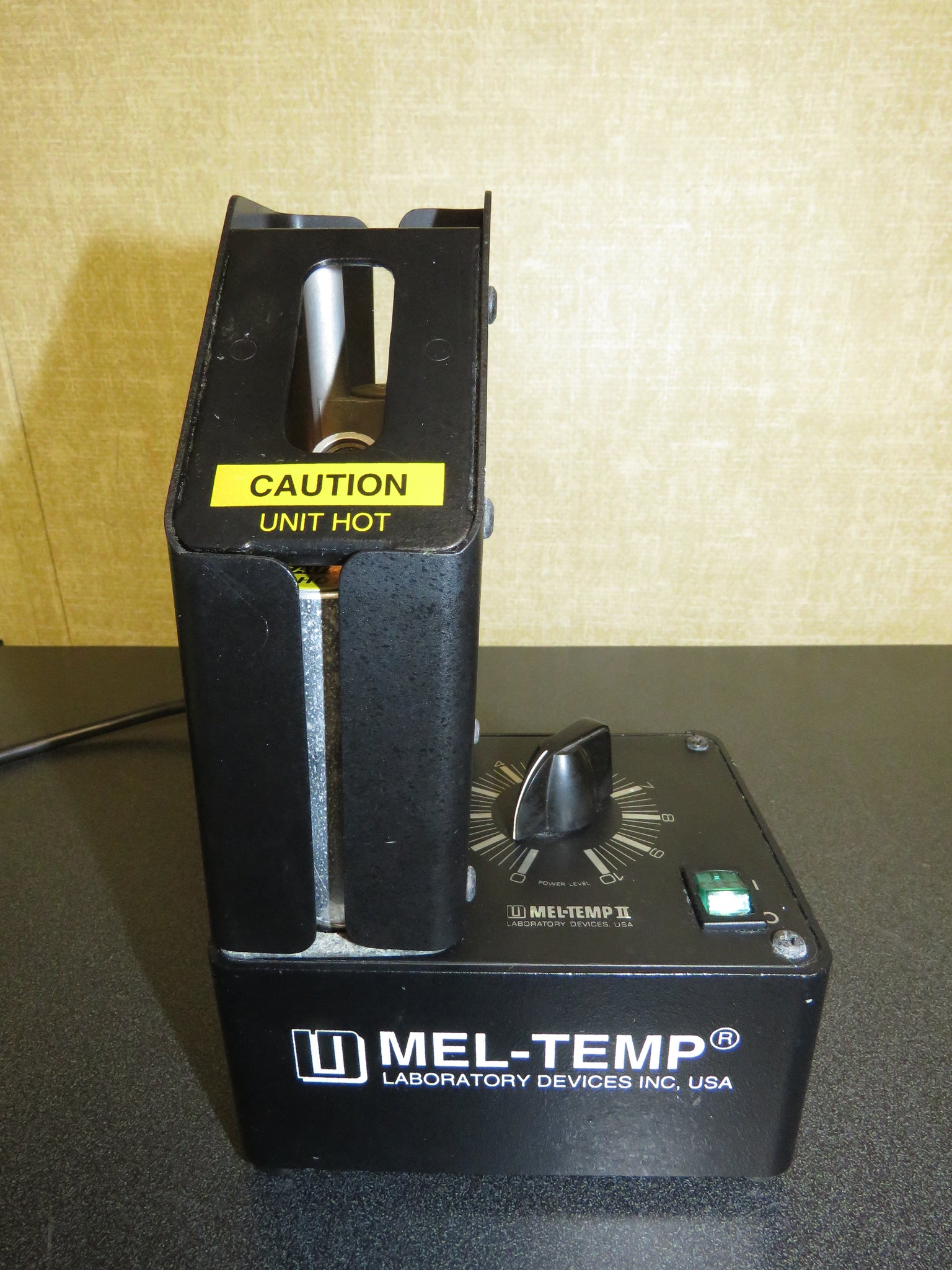

MEL-TEMP provides precise melting points up to 500°C. Castings conduct and radiate heat uniformity to capillaries and thermometer. This patented technology completely eliminates the mess and hazards of conventional oil bath designs. Sample observation is enhanced by an integrated light and precision 6X lens. MEL-TEMP is engineered to withstand years of heavy use.The housing is made of extruded aluminum. Durable, top quality components are mounted on a 1/8” thick aluminum panel.

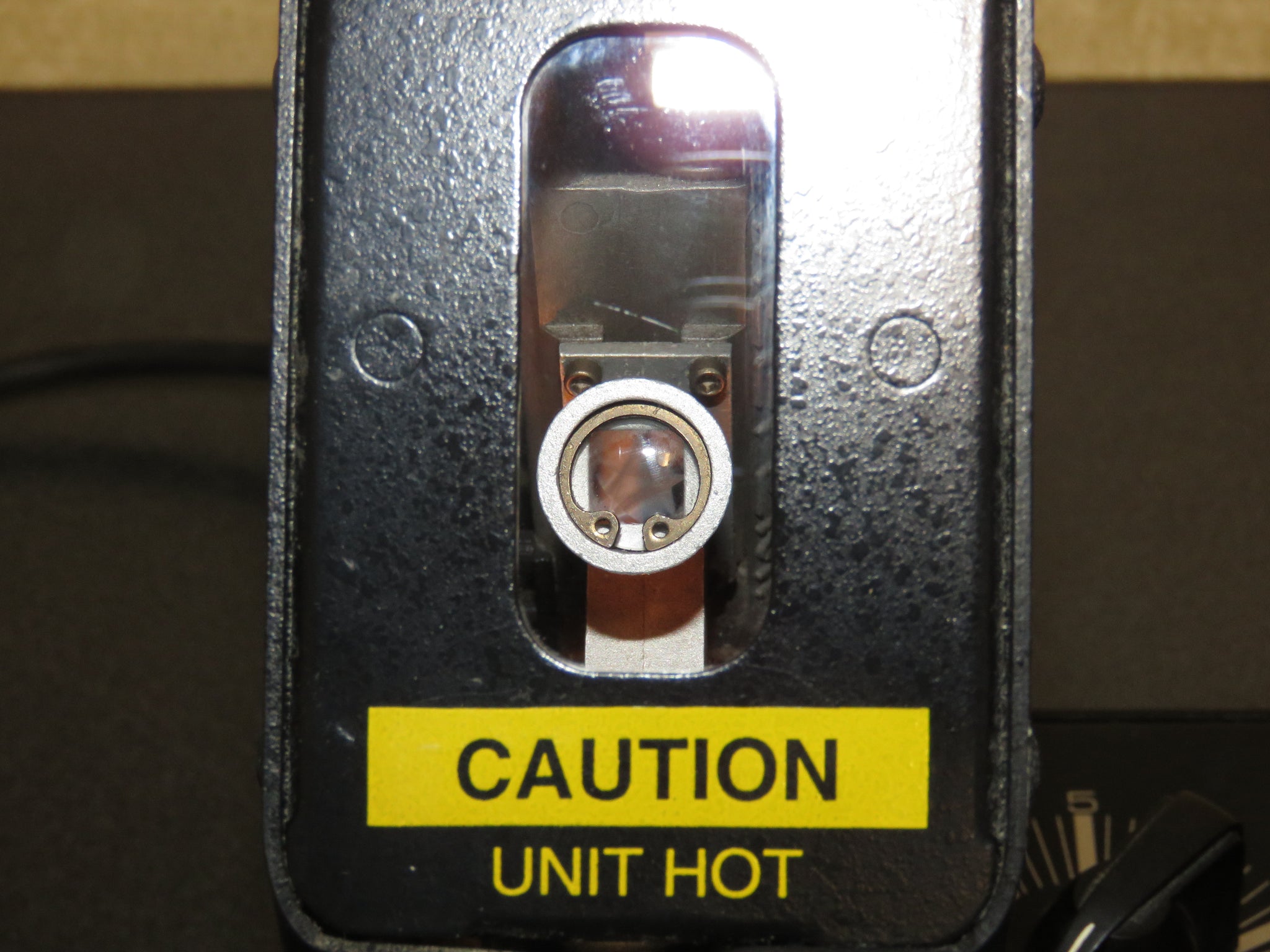

MEL-TEMP accepts up up three capillaries. Samples are illuminated and clearly visible through the precision 6-power lens. Each capillary is heated on three sides and the
block is made from a highly conductive alloy to prevent hot spots.

Temperature range: Ambient to 500°C

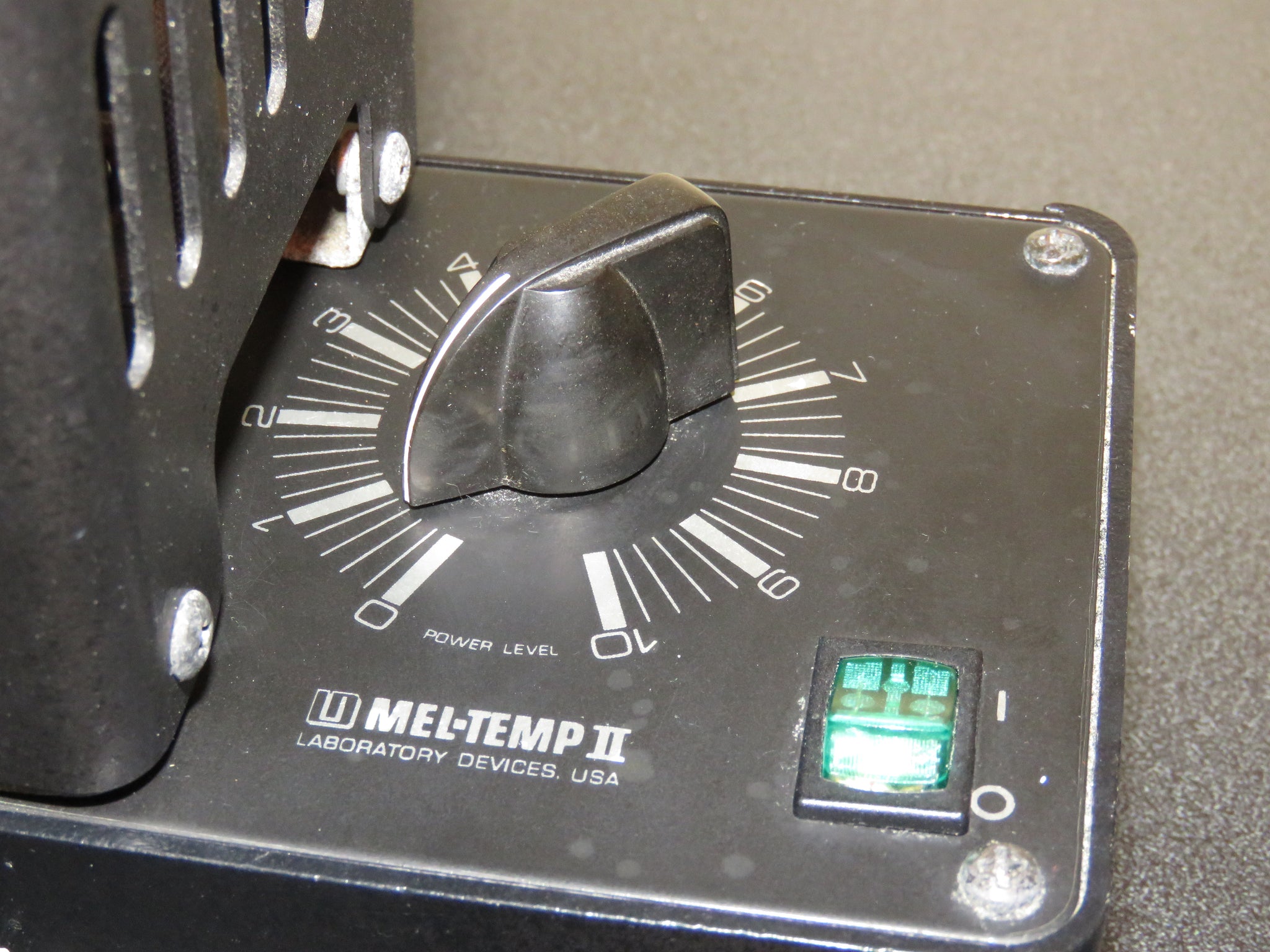

Heating rate control: Continuously adjustable with built-in variable transformer
Temperature resolution: 0.1°C with low mass thermocouple and precision digital thermometer. One-half the smallest graduation with glass thermometer
Absolute accuracy of melting point: determined by thermometer
Melting point capillaries: accepts 1 to 3 capillaries simultaneously,
1.5-1.75mm outside diameter.
Thermometer well: 6.75mm inside diameter, 76 mm deep
Heat-up time, full power:
25°C-400°C in 5 minutes
400°C-500°C in 4 minutes
Cool-down time, unassisted:
500°C-400°C in 2 minutes
400°C-300°C in 2 minutes
300°C-200°C in 5 minutes
200°C-100°C in 7 minutes
Dimensions: 14L x11.7W x23H (cm)
Shipping Weight: 2.3kg

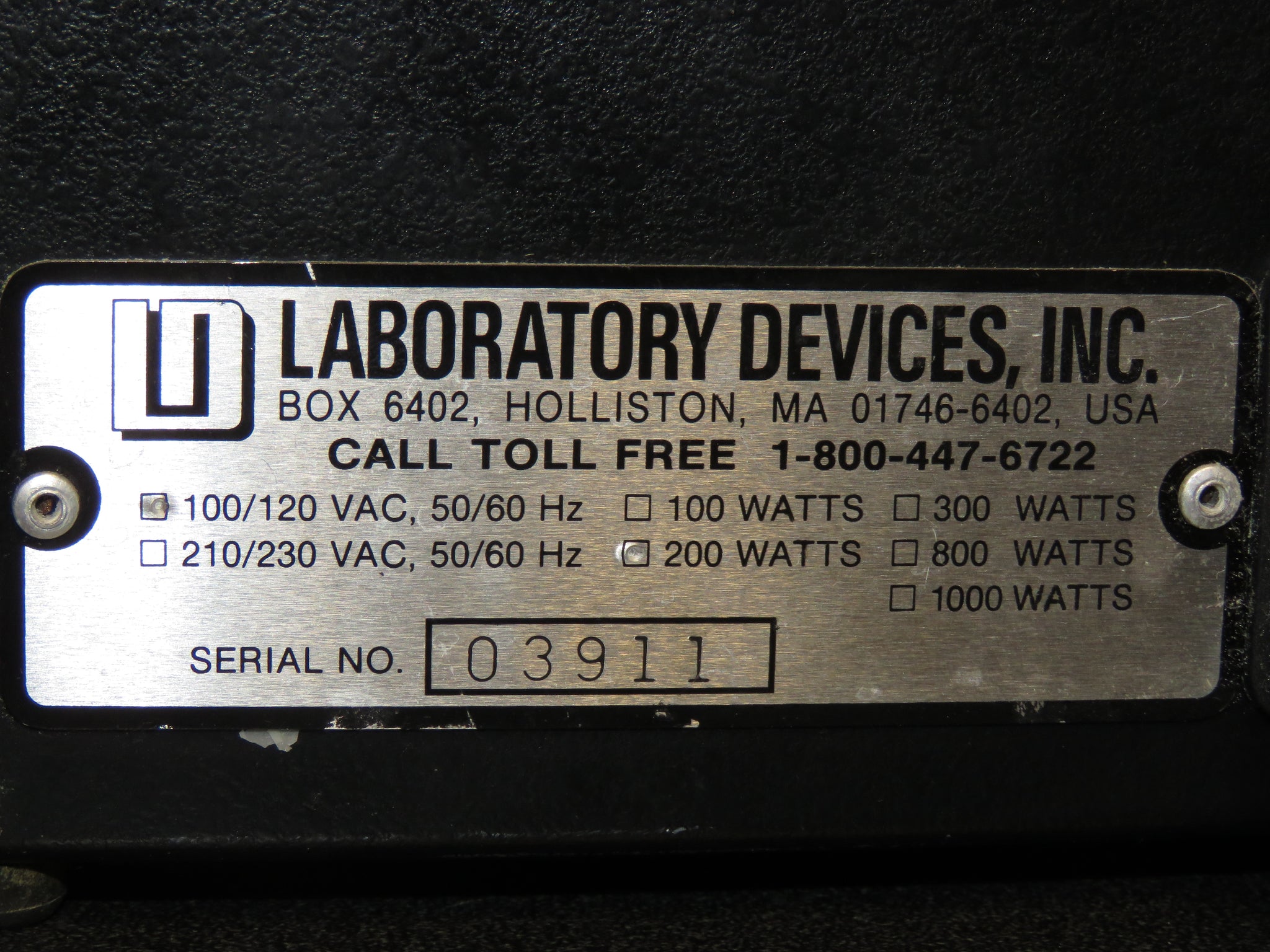

Power requirements: 200 watts,120 VAC or 200 watts, 230 VAC

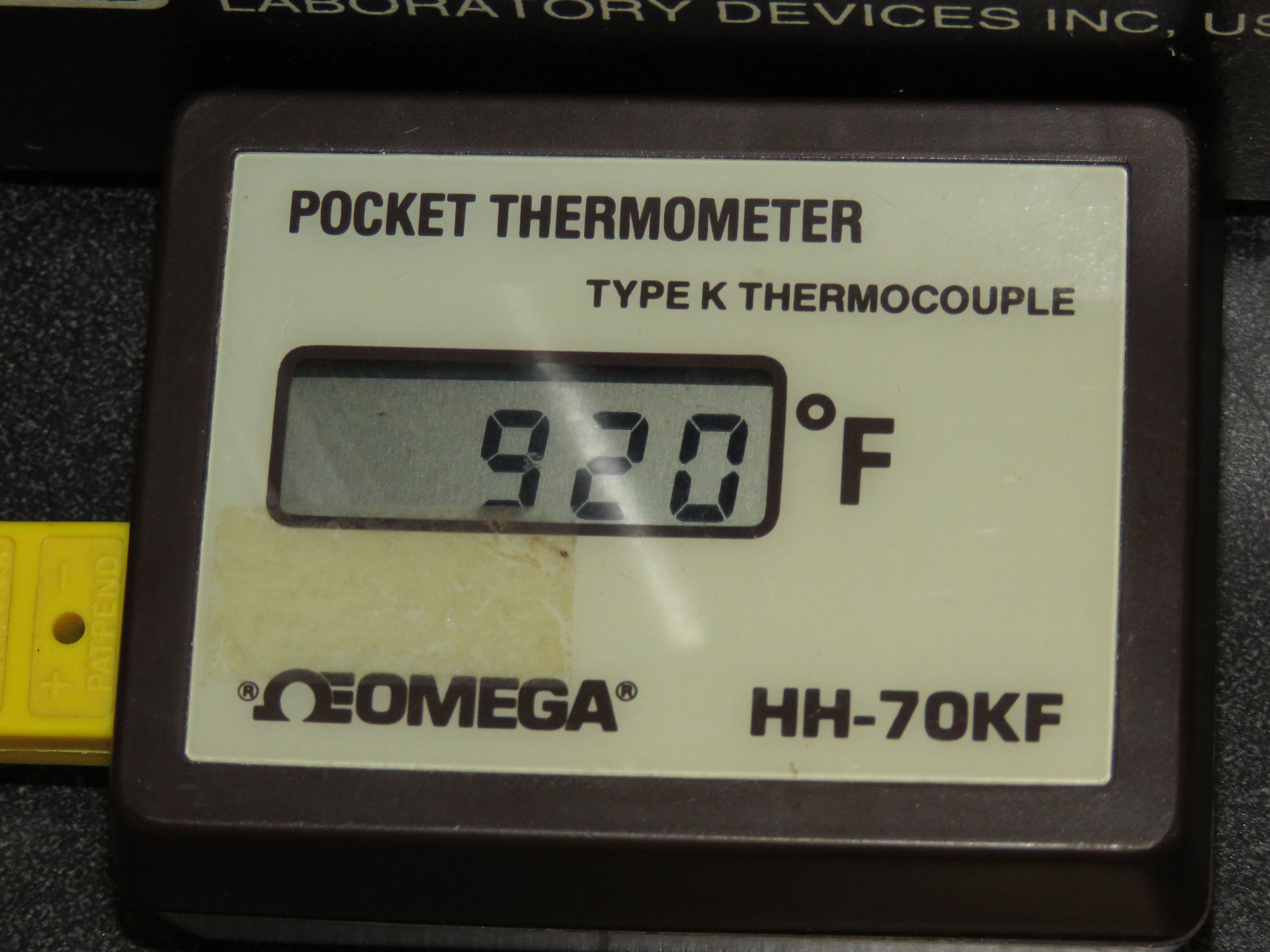

The instrument was removed from a working environment and is fully functional.  Temperature verified. Please note, thermometer is not included.


  • (1) Laboratory Devices MEL TEMP
  • (1) Power Cord



      30 Day warranty. We pledge to offer the best service and warranty to all of our customers!  We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.
