Nikon SMZ-800 Inspection Microscope Stereo head w/ C-W10xA/22 optics 1X WD70
Web Information
The SMZ-800 model stereoscopic microscope is equipped with several ergonomic features that can reduce fatigue when spending hours observing through the microscope.
The eyepiece tube is inclined at an angle of 20 degrees, instead of the normal 45 degrees, and can be adjusted from 0 to 30 degrees. This enables the user to make observations with a straight back, without having to bend over. A newly designed ergonomic objective can be extended or retracted up to 40 millimeters (1.6") to obtain the optimum user eye-level without changing the magnification or working distance. An eye-level riser is also available.

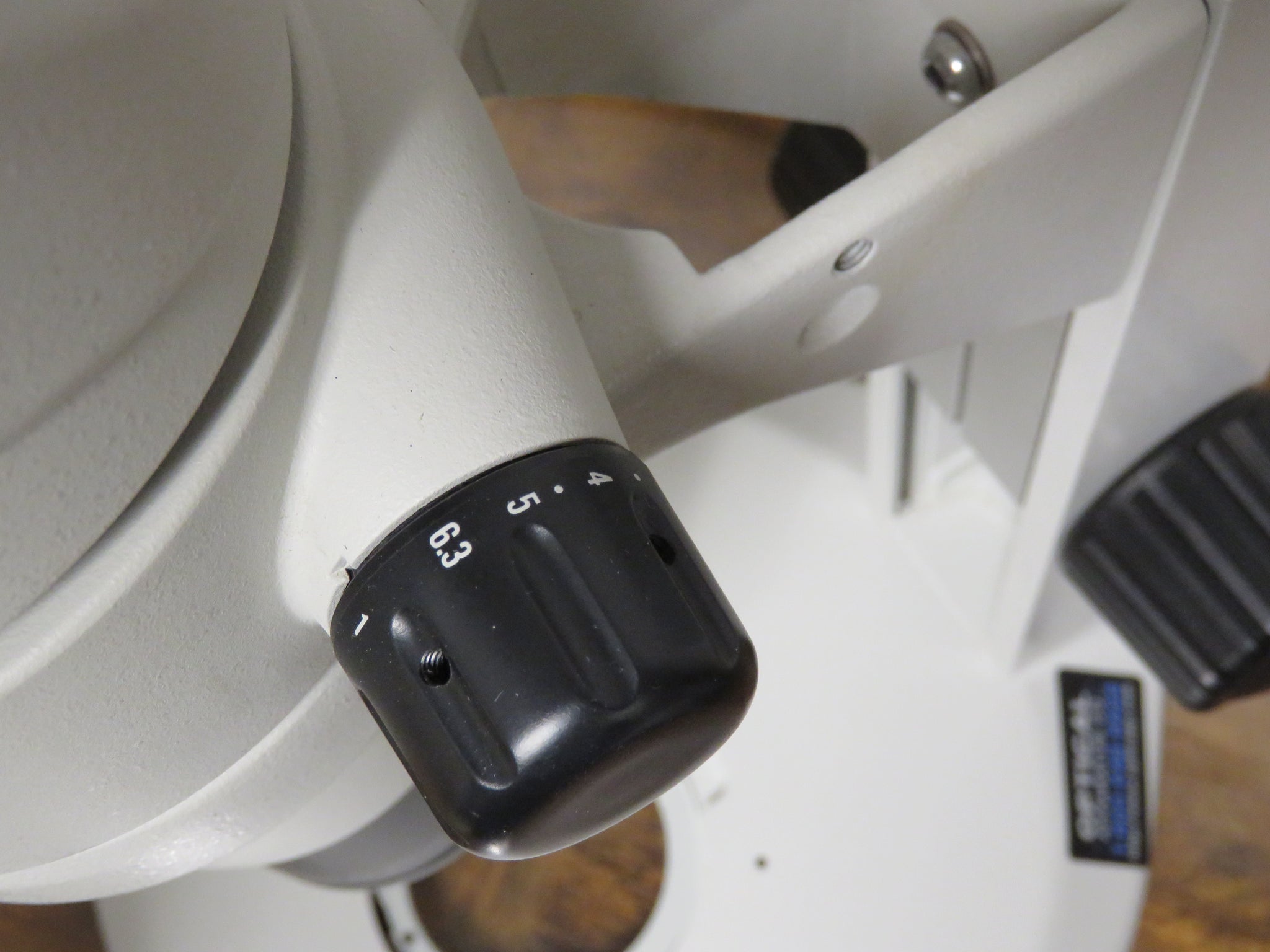

The high-eyepoint eyepieces feature a built-in diopter adjustment, which brings the image and the reticle into focus simultaneously. The SMZ-800 incorporates the same parallel-optics zoom system as the SMZ-U, Nikon's highest quality stereoscopic zoom microscope, to provide a 6.3x zoom ratio. The zooming knob also features click-stops at 1x intervals from 2x to 5x. Like the SMZ-U, SMZ-800 ensures images with minimal curvature of field.

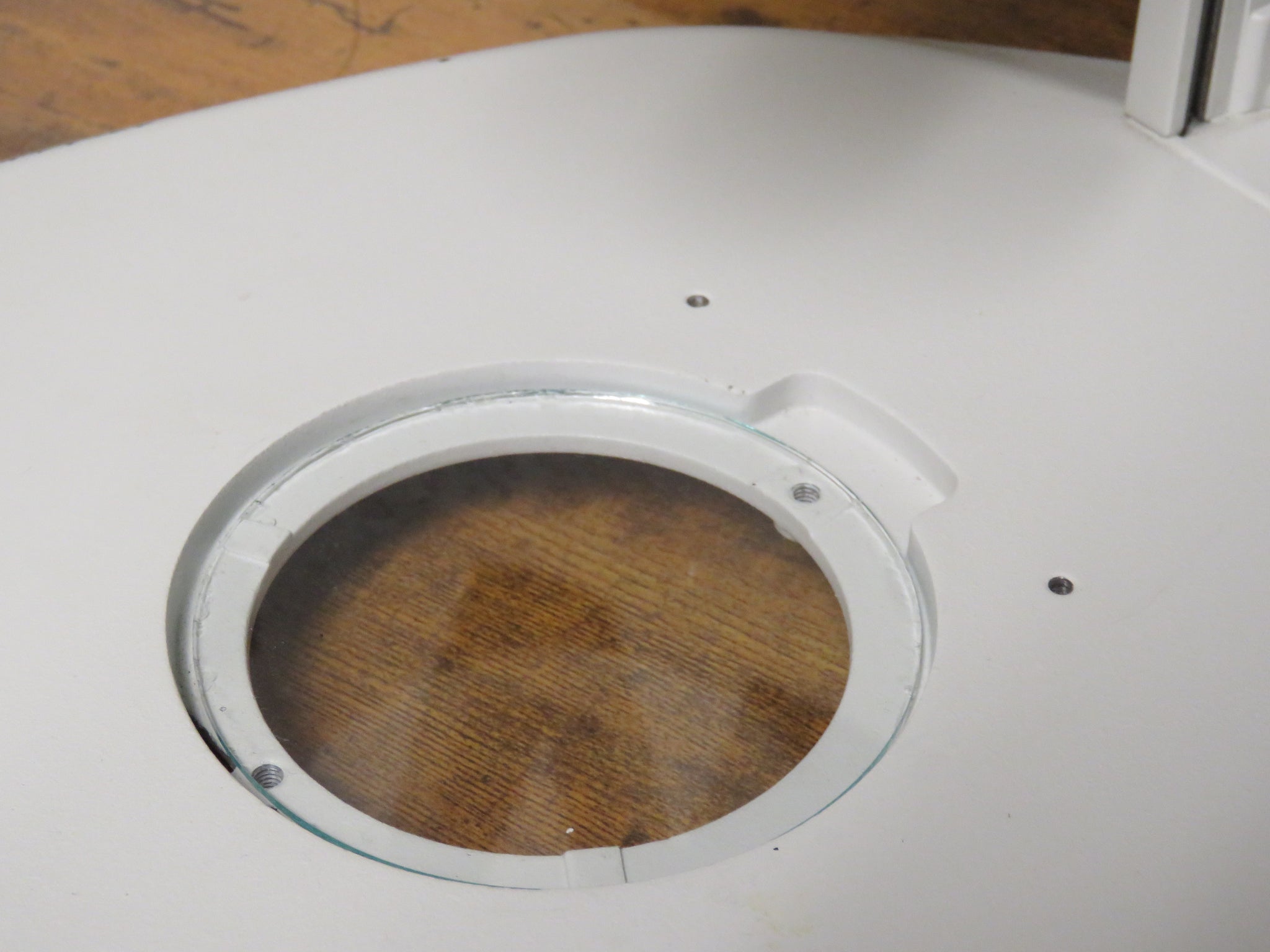

The stage glass in the diascopic stand has been enlarged so that specimens in large Petri dishes can be viewed up to the periphery of the dish. A new plain focusing stand is also available in addition to the SMZ-U stands and teaching head stands. Three focusing mounts and three types of universal table stands are also available. By using a beam splitter and adapter, FX-III or U-III series photomicrographic systems, a closed-circuit television (CCTV) camera, or a digital still camera can be attached.
Condition
Excellent functional condition. Optics are in nice clean condition.
Includes

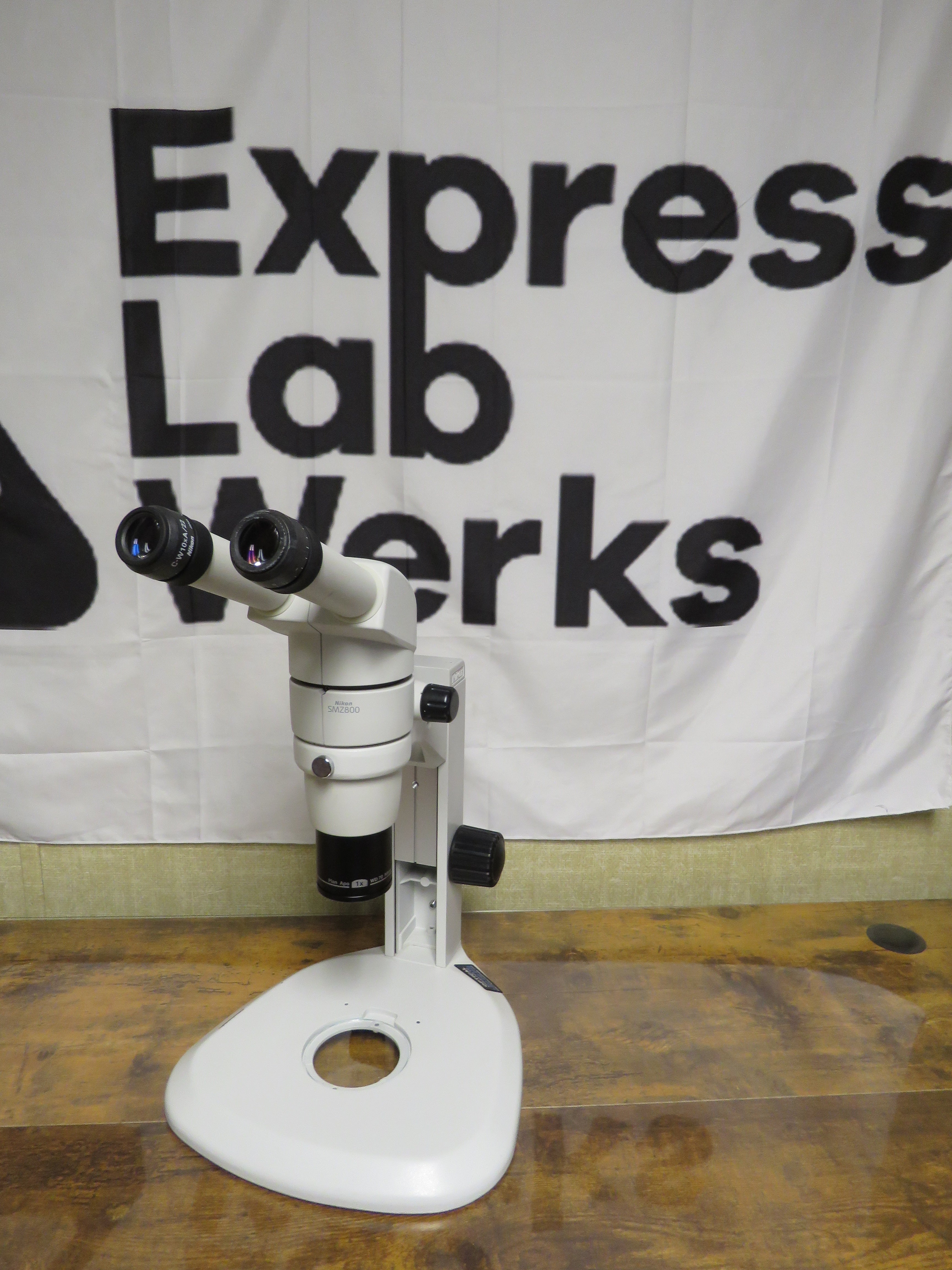

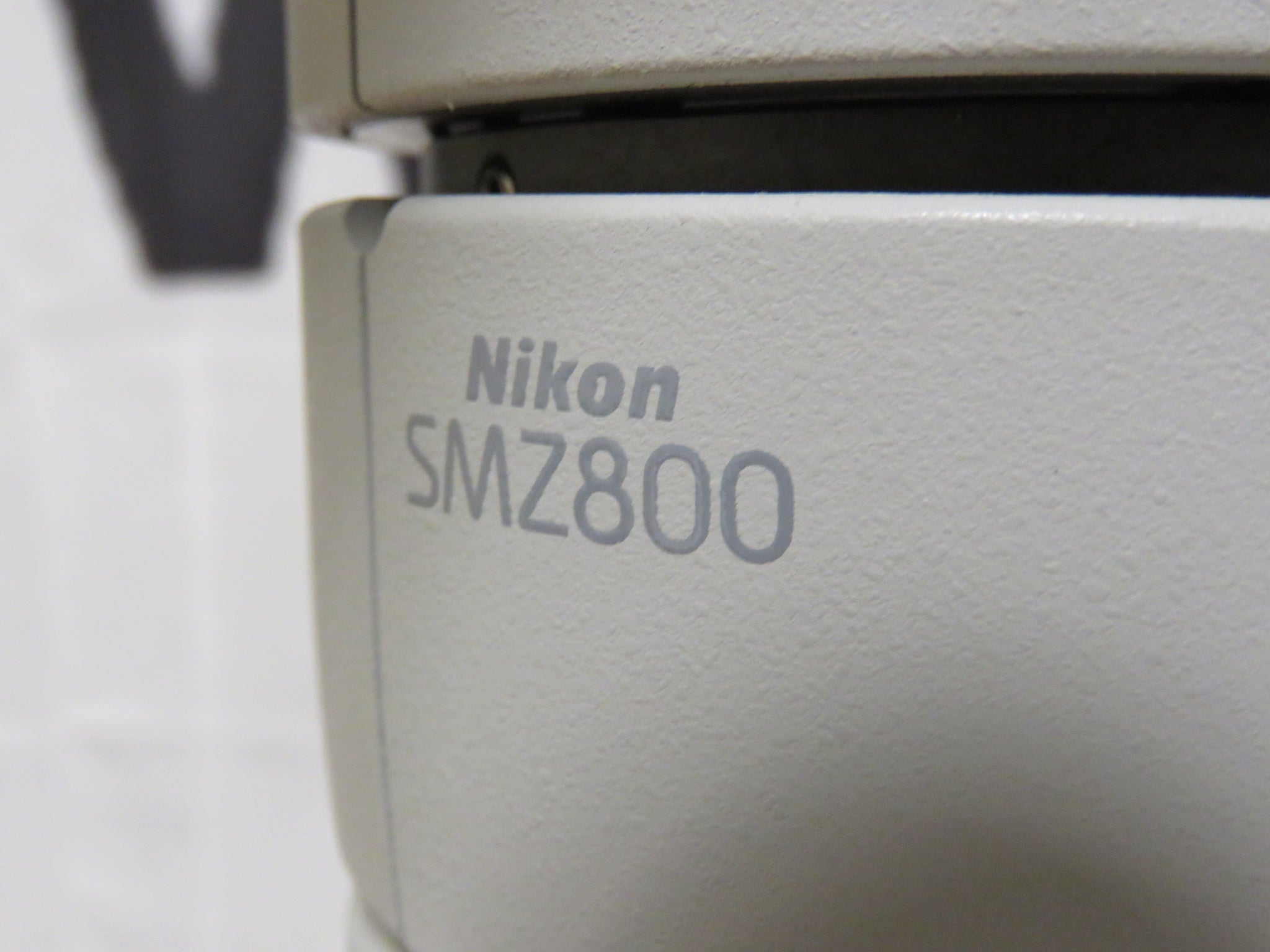

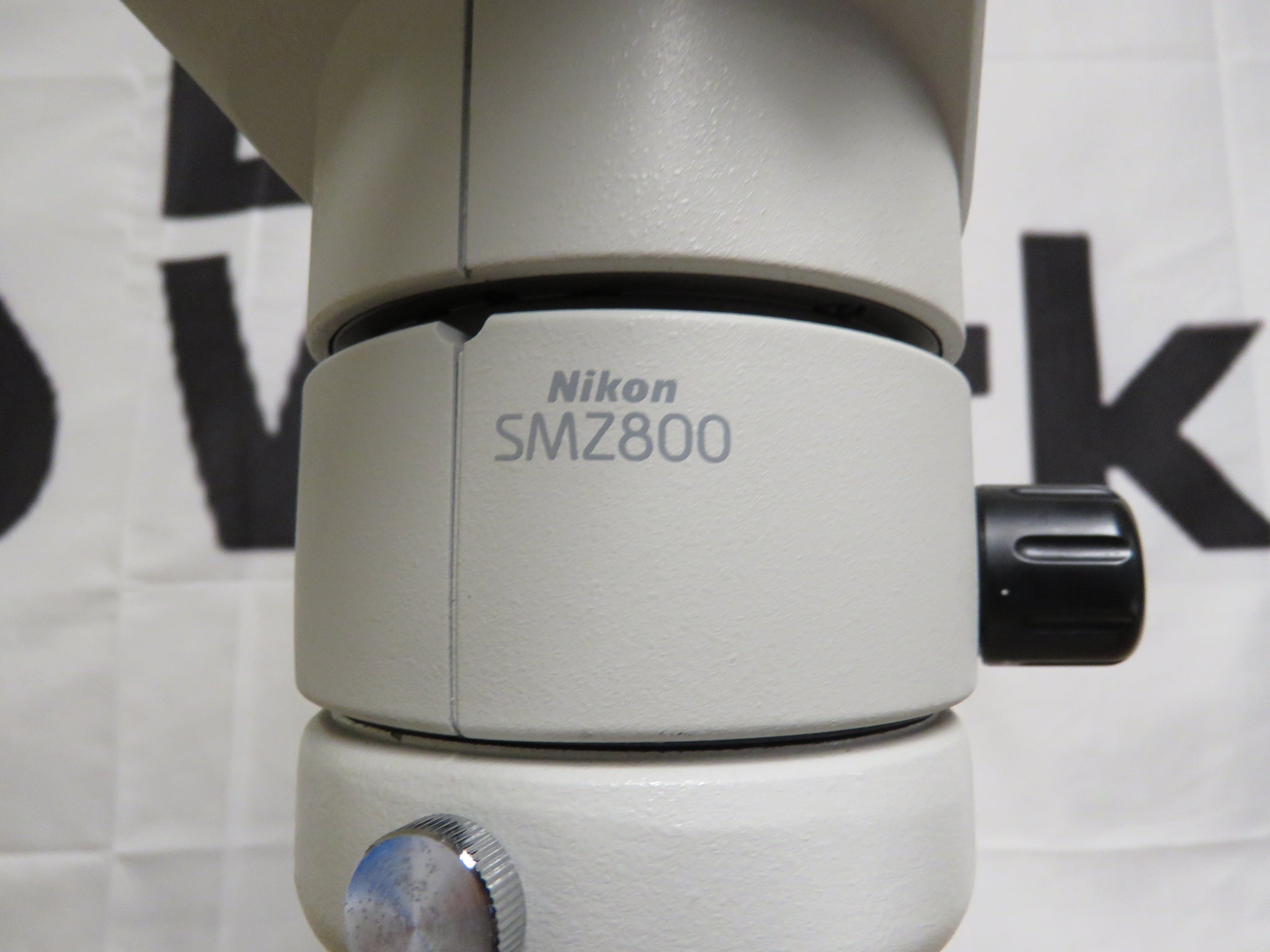

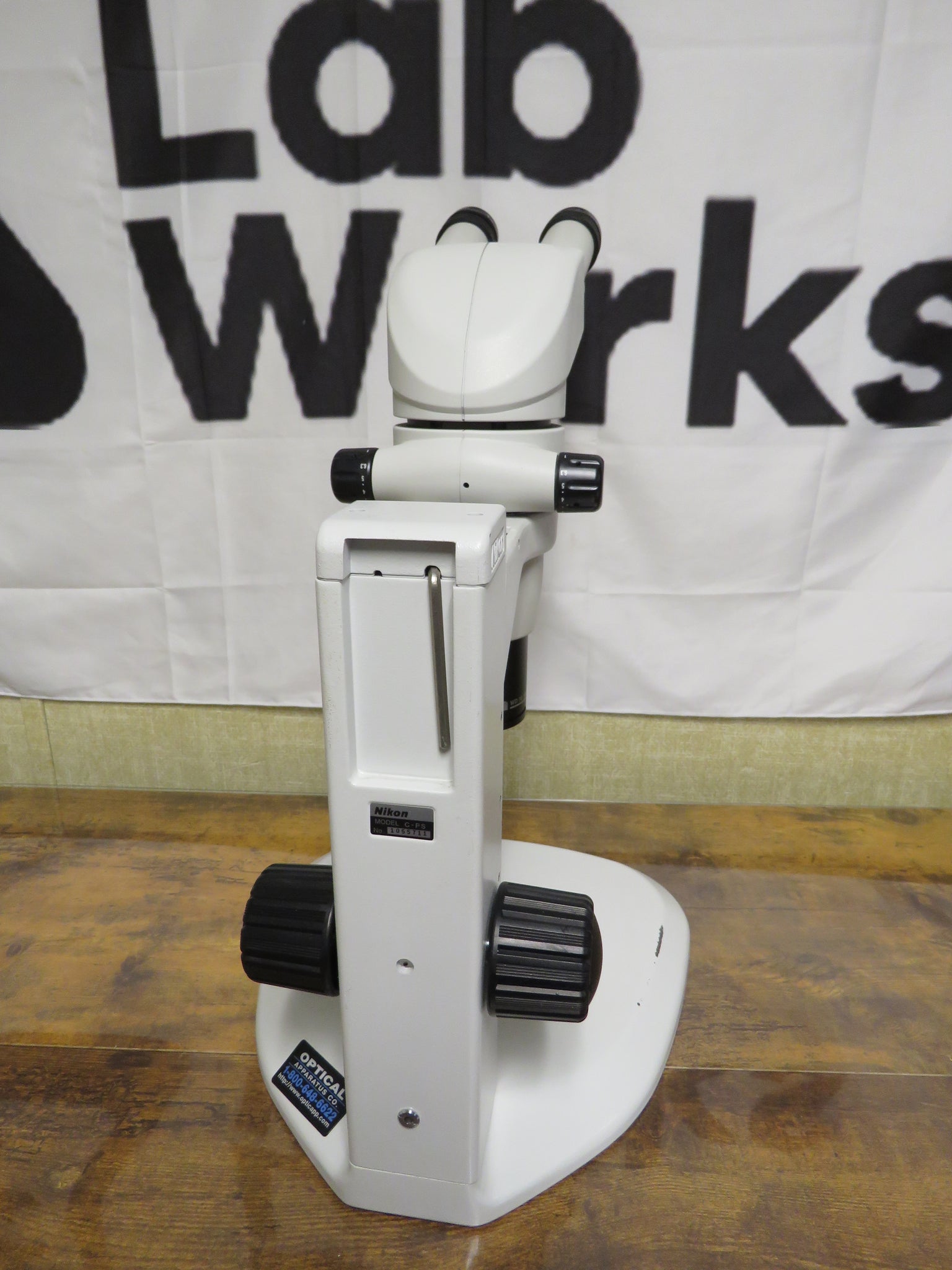

- Nikon SMZ-800 Inspection Microscope Stereo head

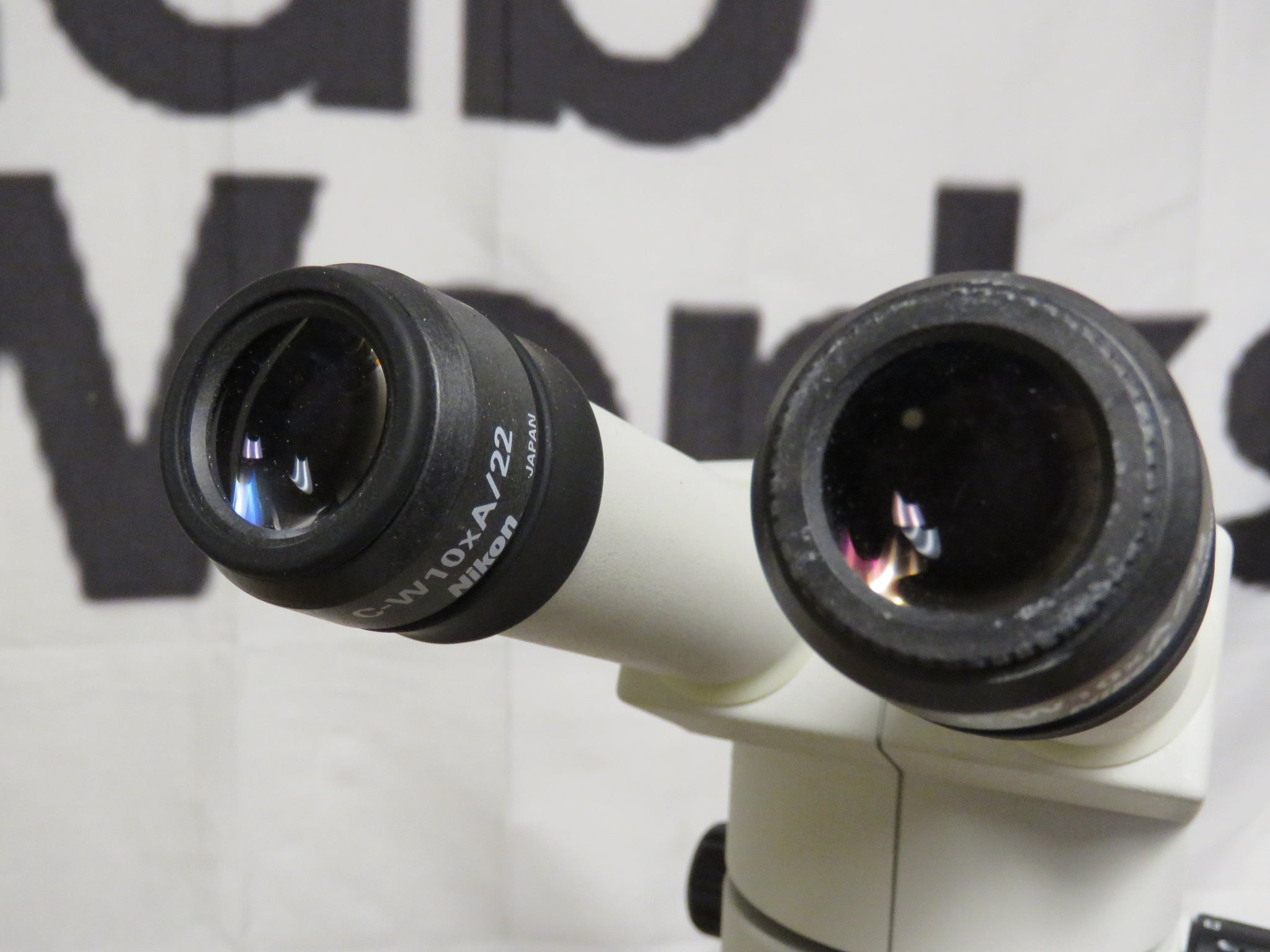

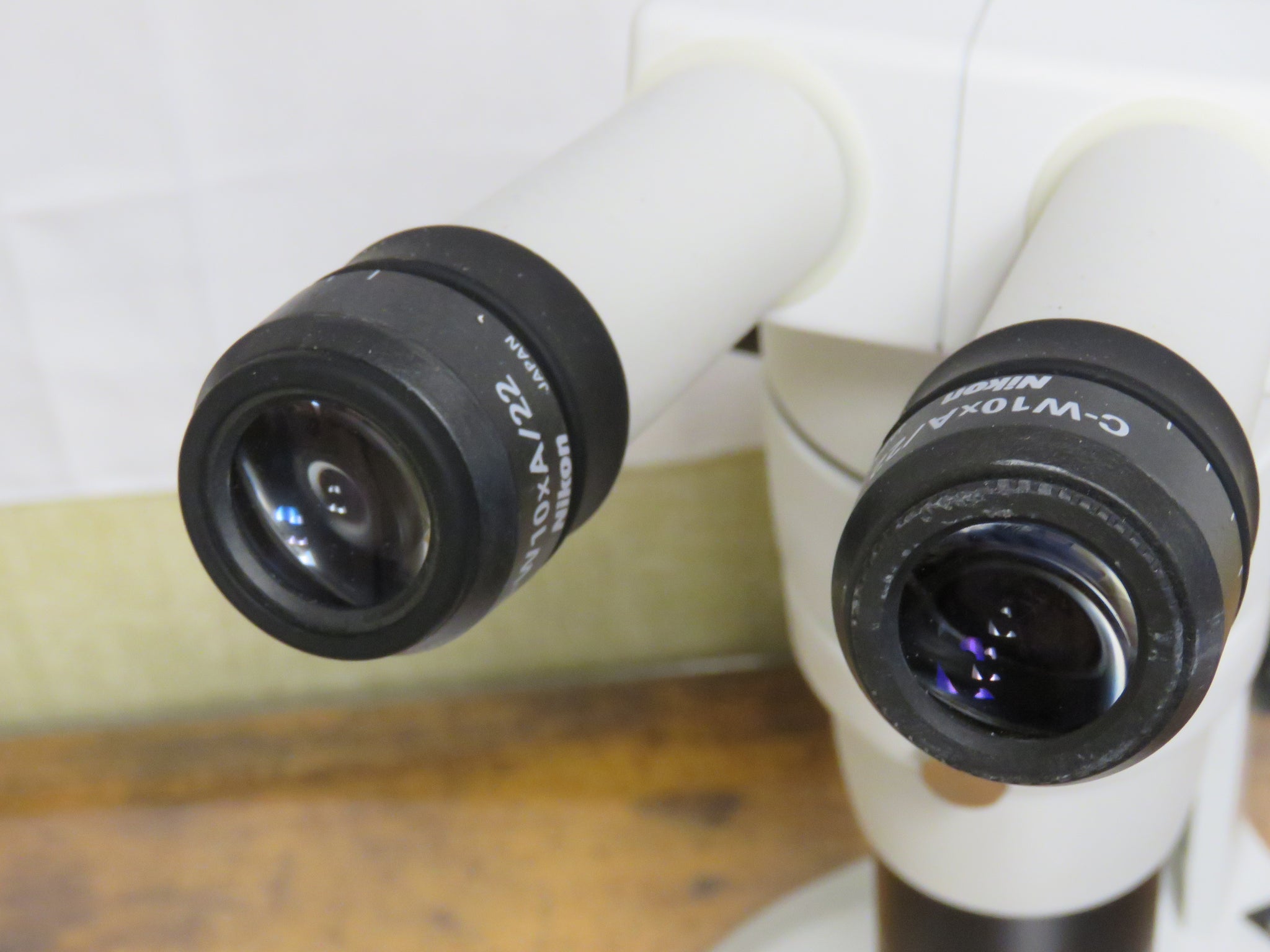

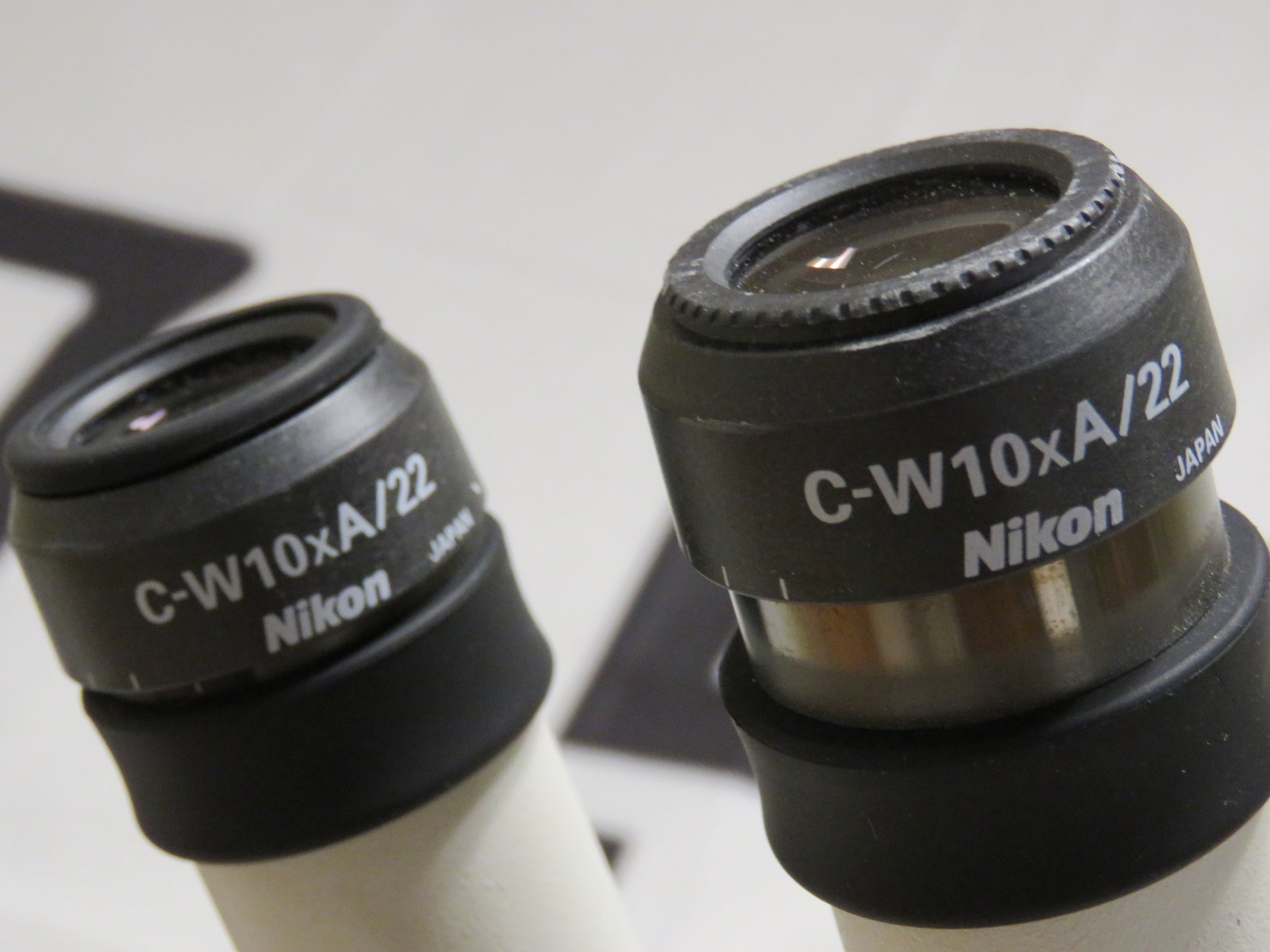

- (2) C-W10xA/22 eyepieces

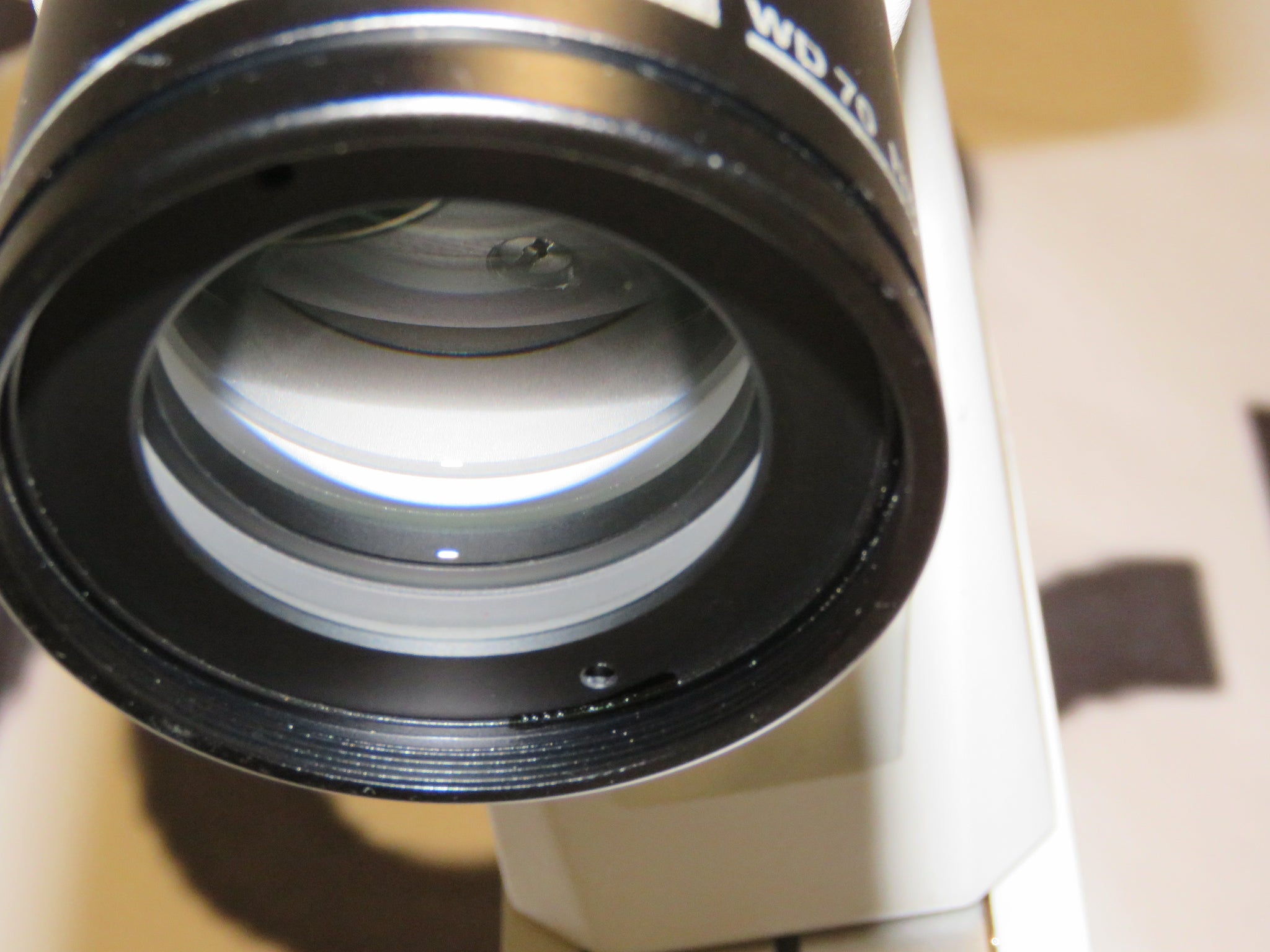

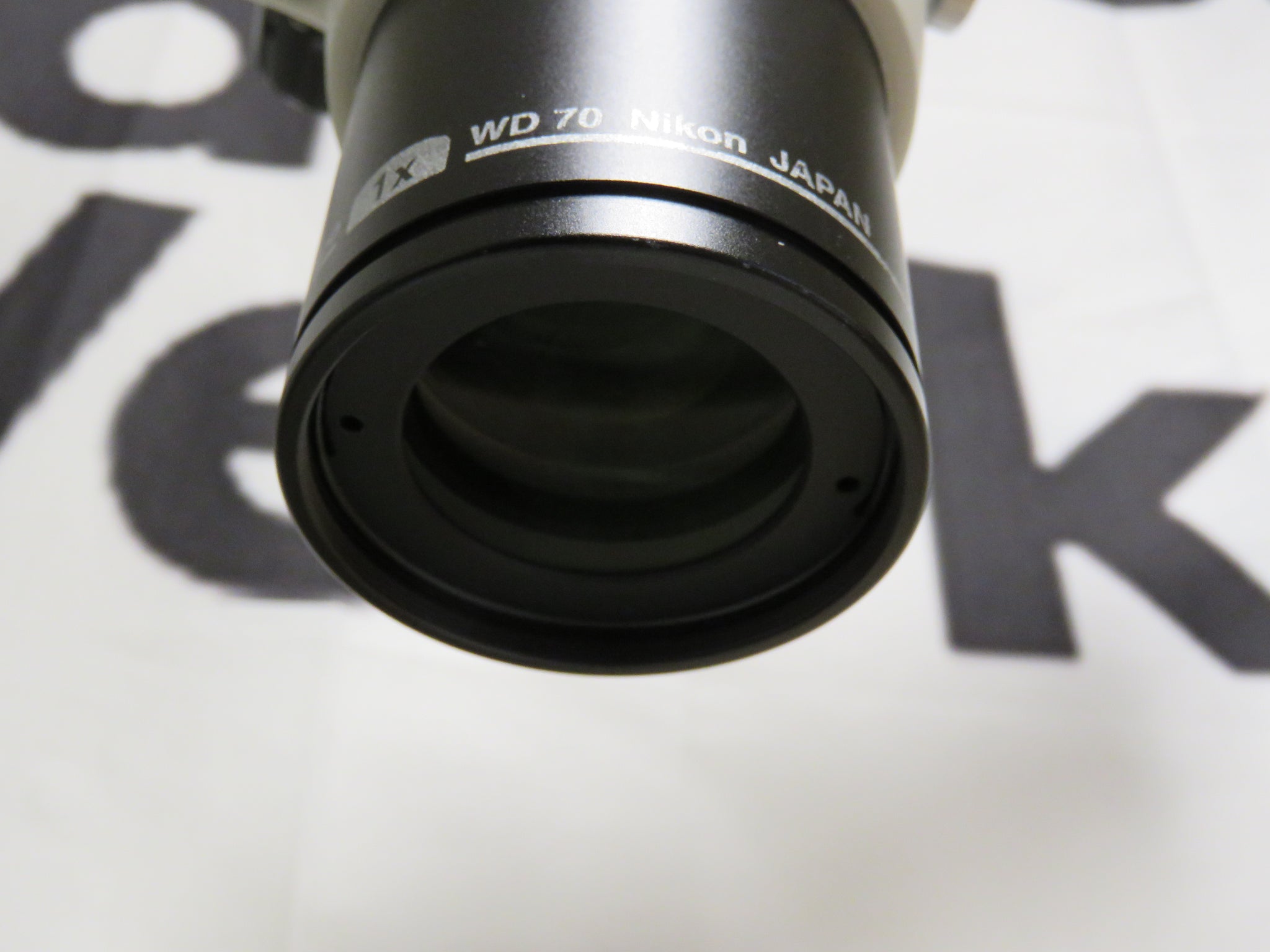

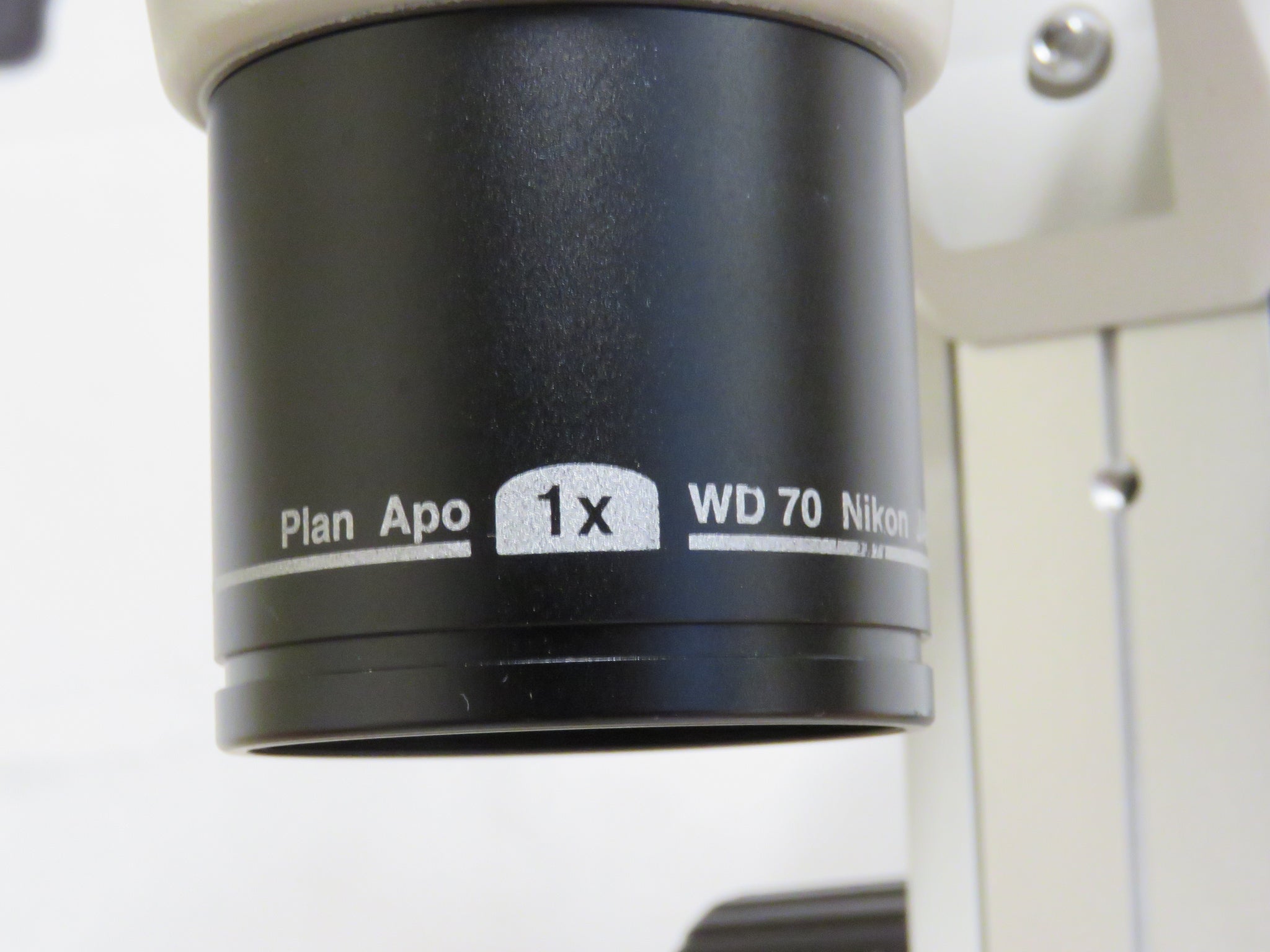

- Plan Apo 1X WD70 Objective

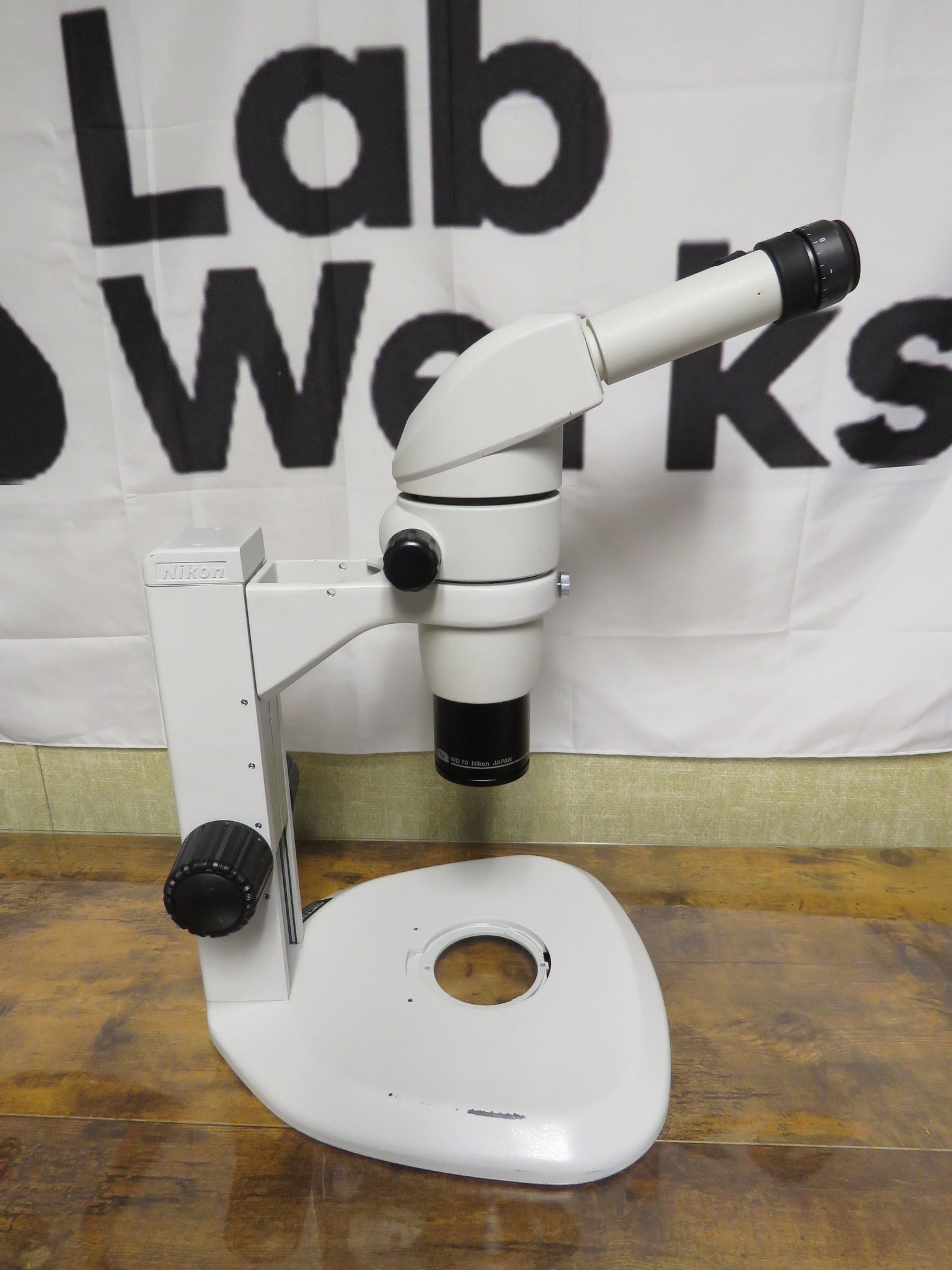

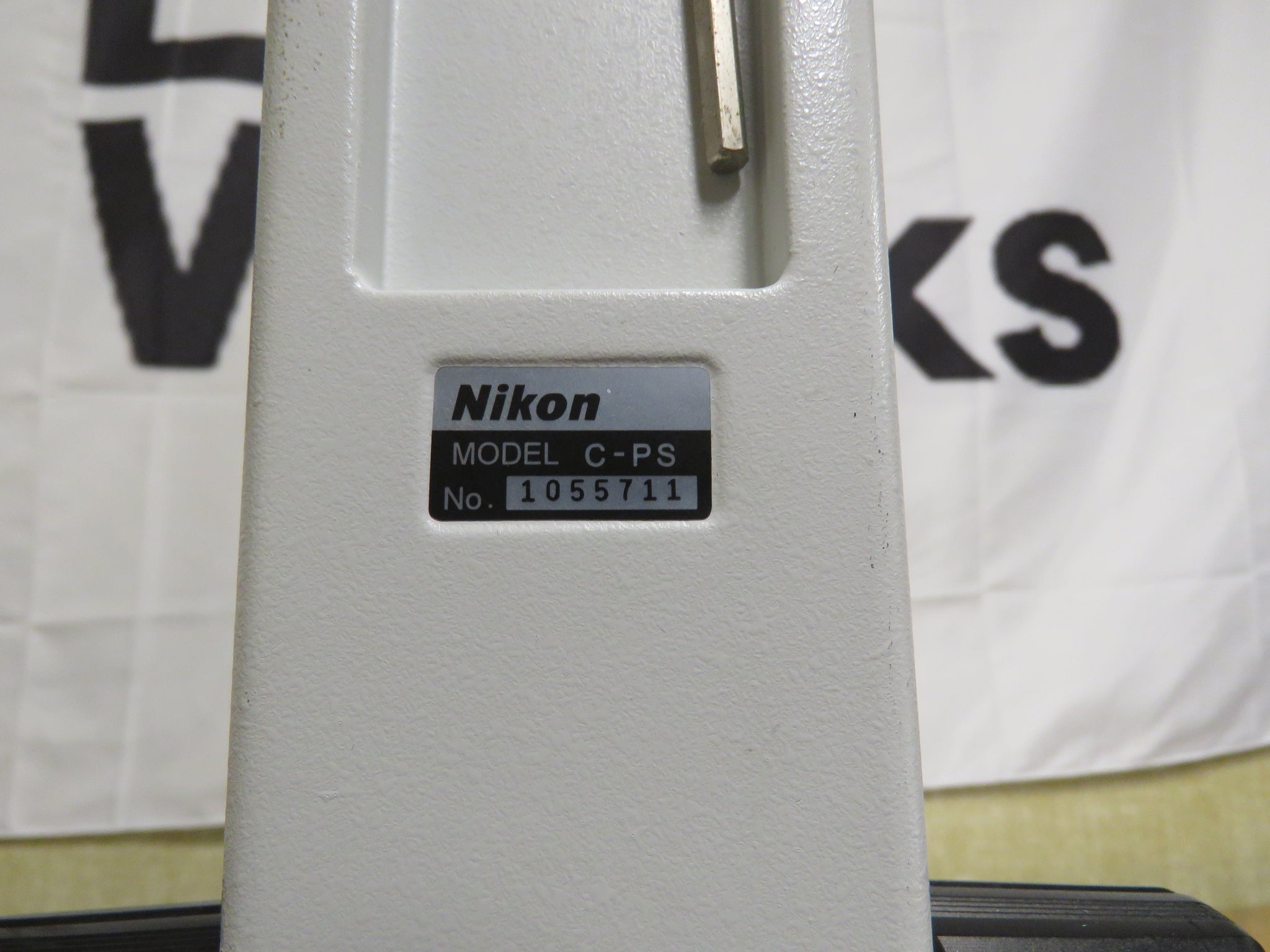

- Nikon C-PS Stand
BBOR
Certification
This is a genuine product from this manufacturer.
Disclaimer
The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping of the item."
Regardless of the origin of the equipment, documentation provided or identification appearing upon the equipment, the equipment described and offered here is in no way certified for, recommended for, or offered for any specific use. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. The purchaser, by bidding on this equipment, indicates their acknowledgment of, and agreement to the terms of this disclaimer. it is the purchaser's responsibility to have the item inspected and certified by a qualified professional before use!
