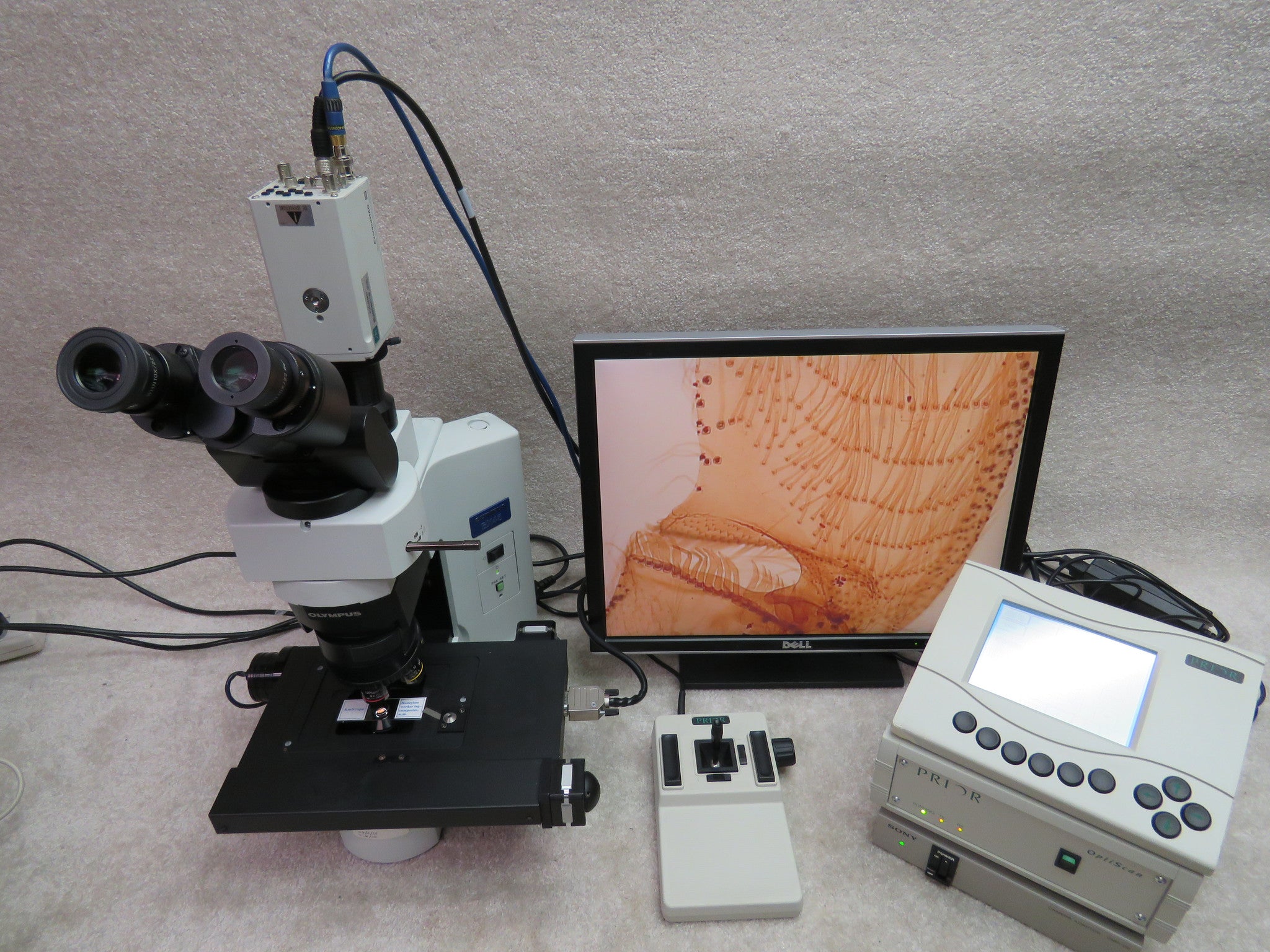

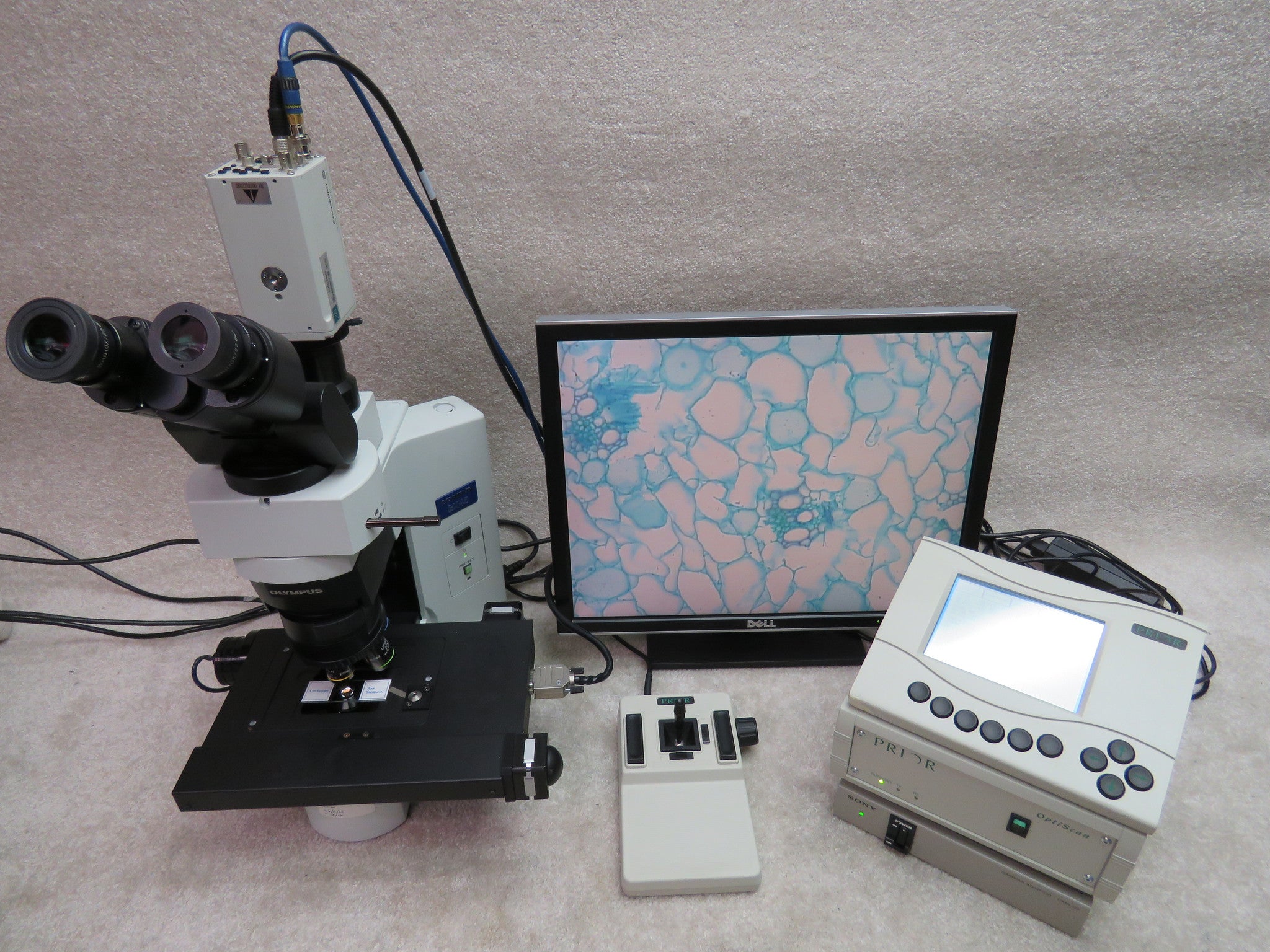

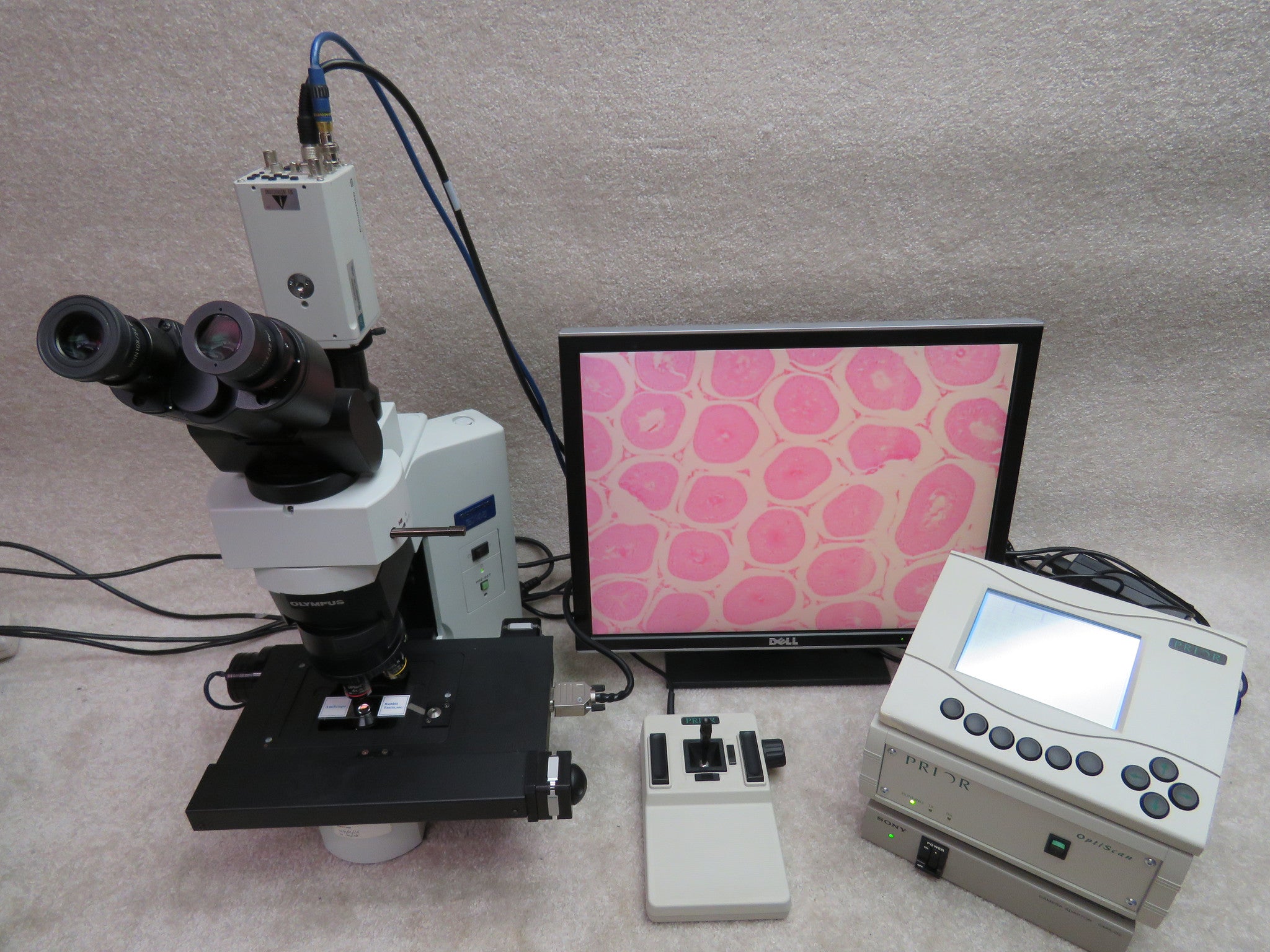

Olympus BX45TF microscope, 4 objectives, PRIOR motorized stage, digital imaging



Sorry, this item is out of stock

Web Information

For prolonged microscope use in the laboratory, ergonomic considerations are of paramount importance. Careful study of such critical aspects as observation posture, position of arms, arm and hand movements during operation have led to important ergonomic advances. As a result, the BX45 makes every microscopy task in the lab, easier, more efficient and more comfortable.

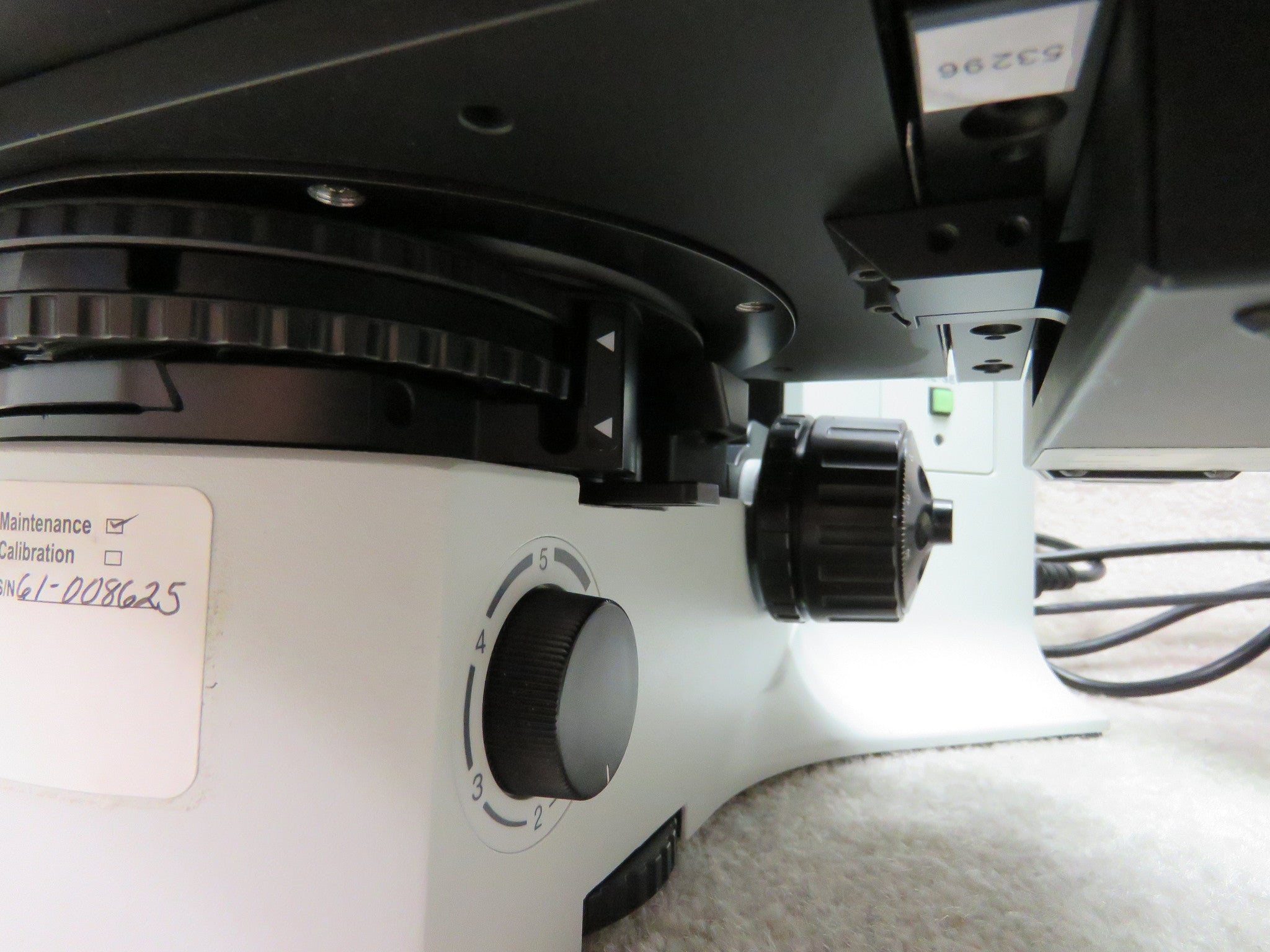

Most noticeable is the new, super-low positioned stage, only five inches off the work surface, allowing specimen change with minimal operator effort and hand movement. Stage and focus controls too can be operated from a resting hand position, with tactile surfaces inviting fingertip control.

The built in universal condenser, nearly adjustment free, offers the full range of observation methods – brightfield, darkfield, phase contrast and polarized light. The intensity equalized 10x and 40x objectives make light adjustment between magnifications unnecessary, adding to overall convenience.

With the newly designed tilting and telescoping observation tube every user can adjust the microscope to suit their ideal observation position. There is increased flexibility to set both the height and inclination angle of the eyepieces. Accommodating ergonomic needs more thoroughly, the observation tube is 80mm higher and 70mm closer to the operator than a conventional tilting tube. The eyepoint can be moved toward the observer by 45mm with an inclination range of 0 - 25 degrees, making the BX45 the most adjustable microscope available today.


Seller refurbished. Fully functional. Optics, digital imaging and motorized stage are in excellent condition.

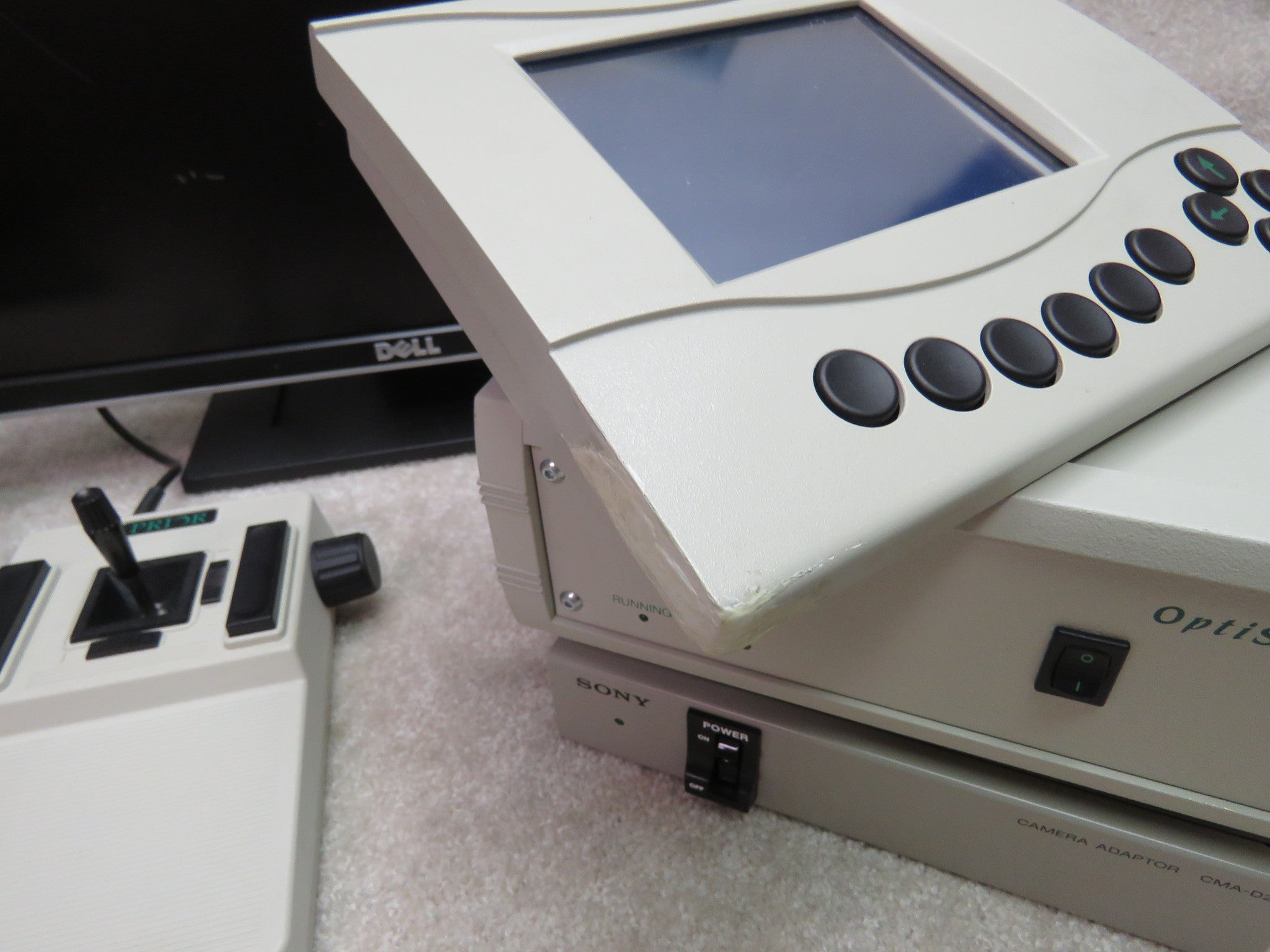

NOTE: CS152KB touch screen control has slight damage to the corner of the plastic housing. This is only cosmetic and does not impact functionality. See picture.

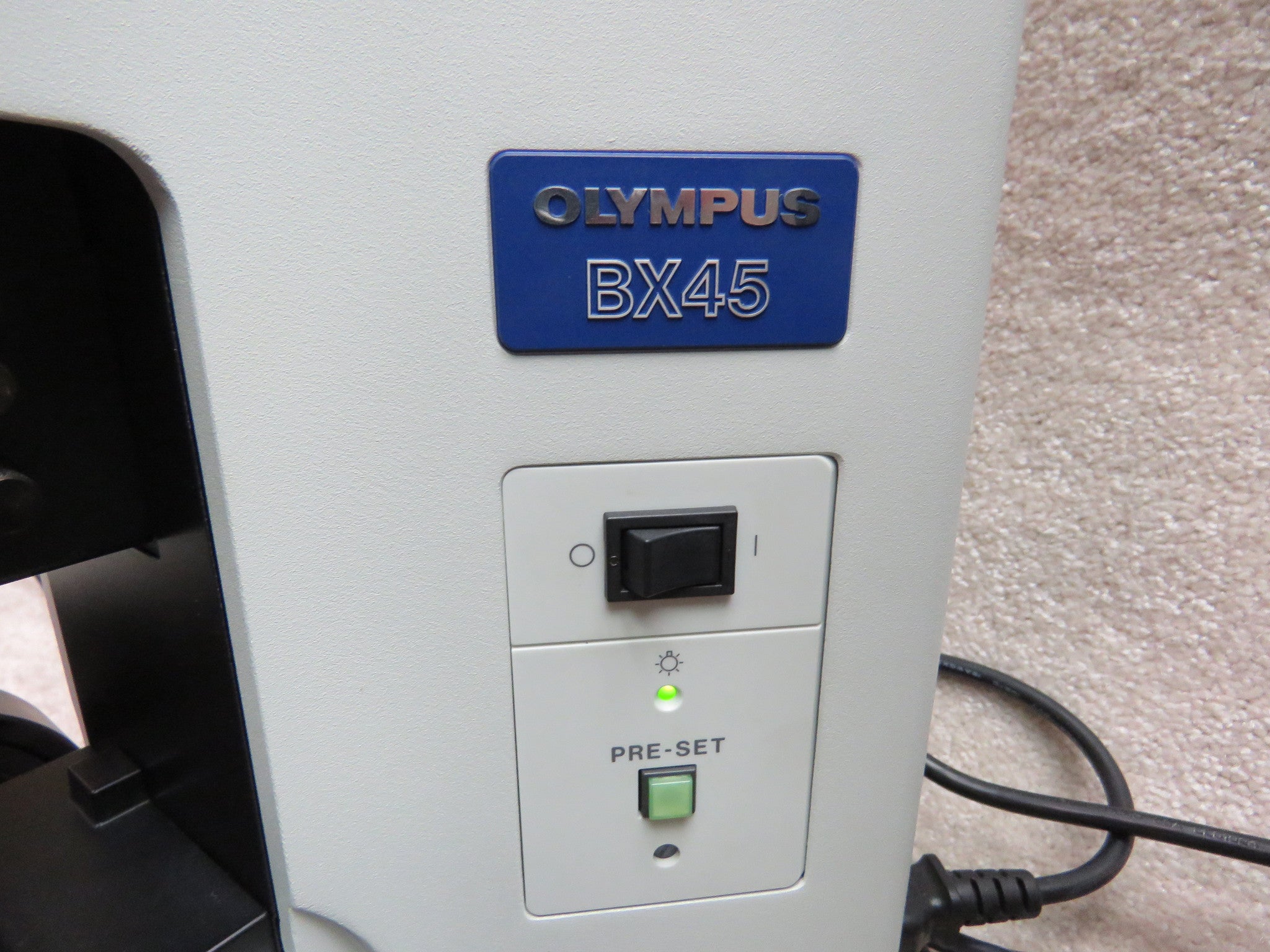

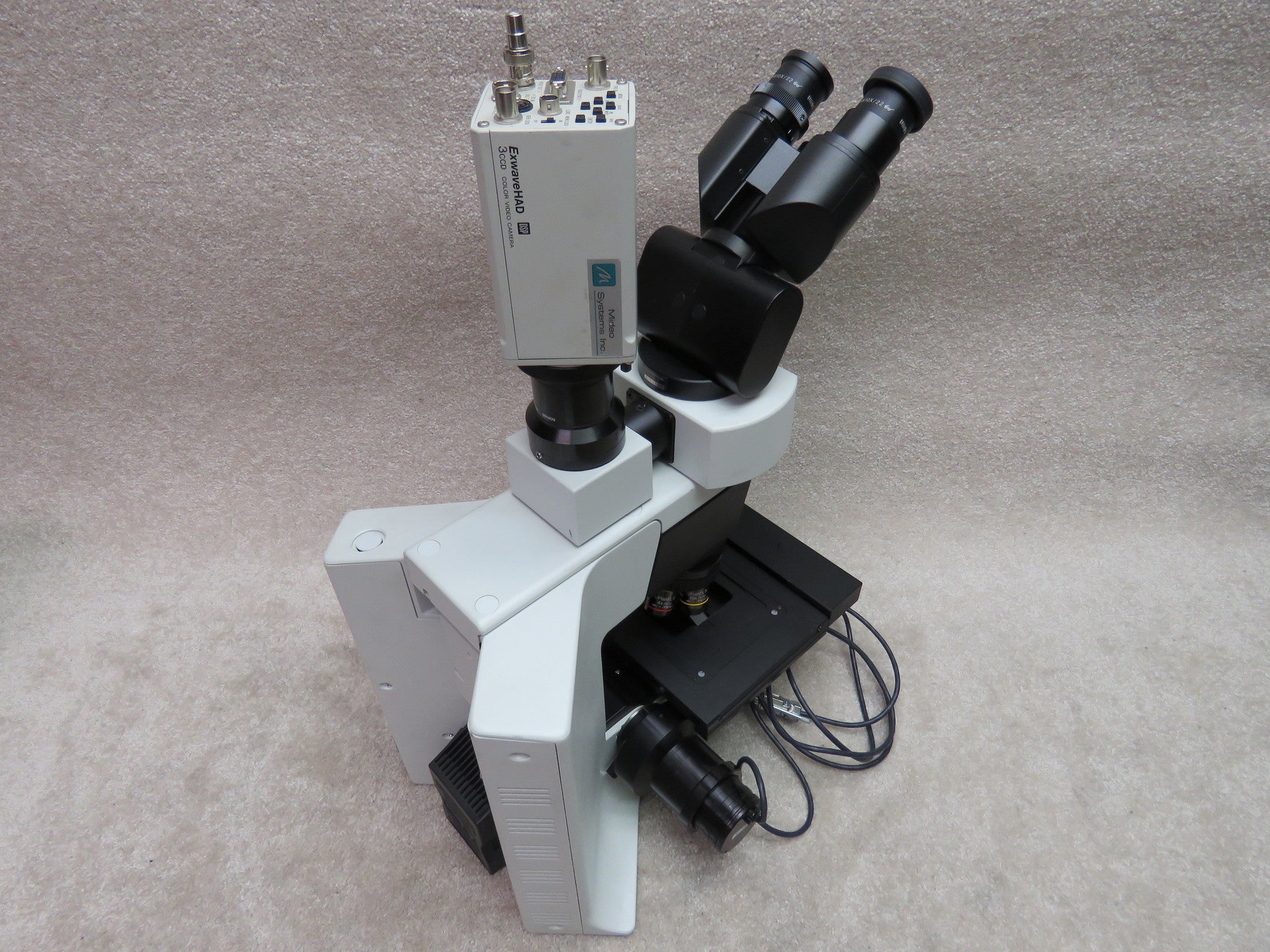

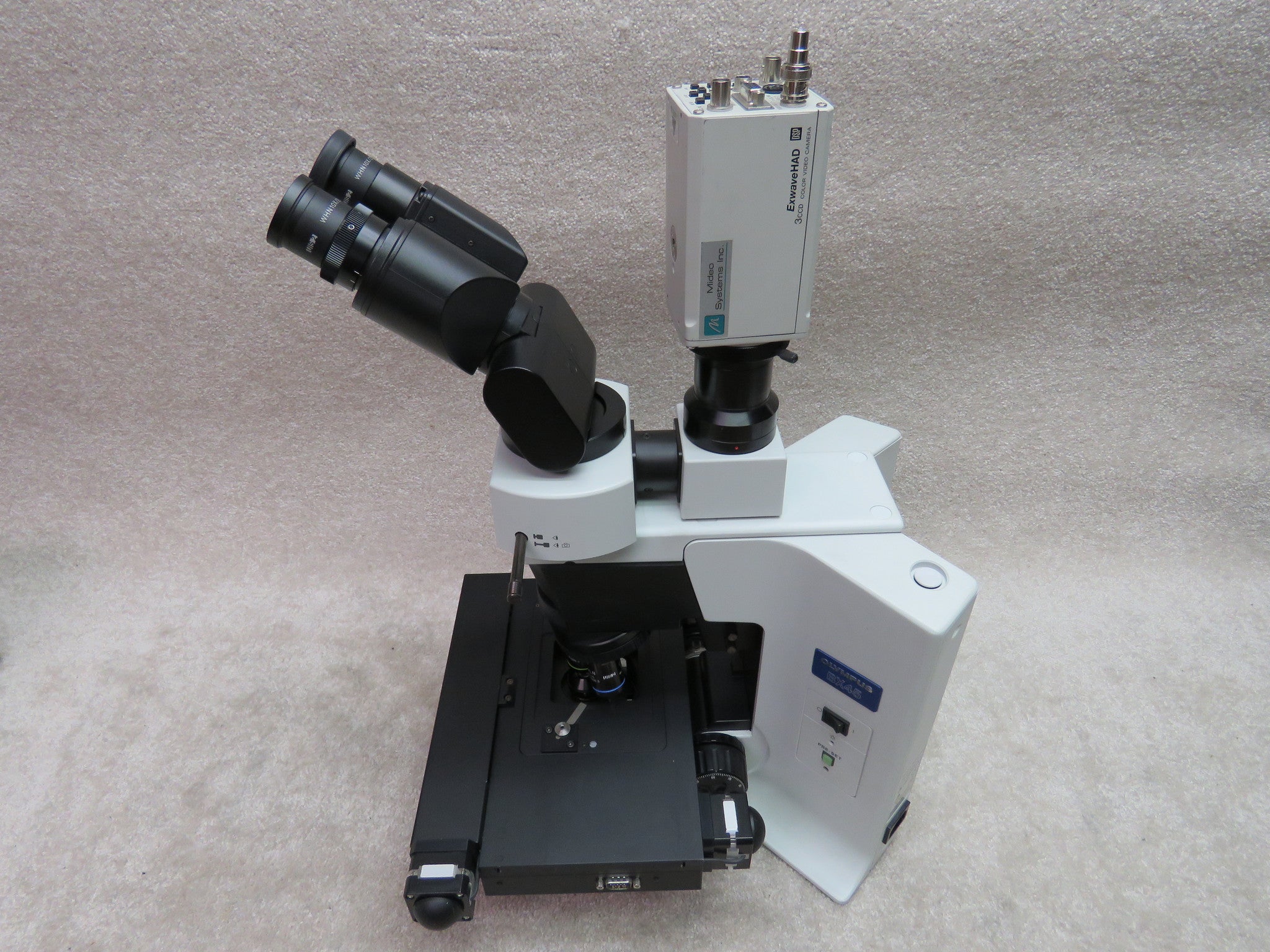

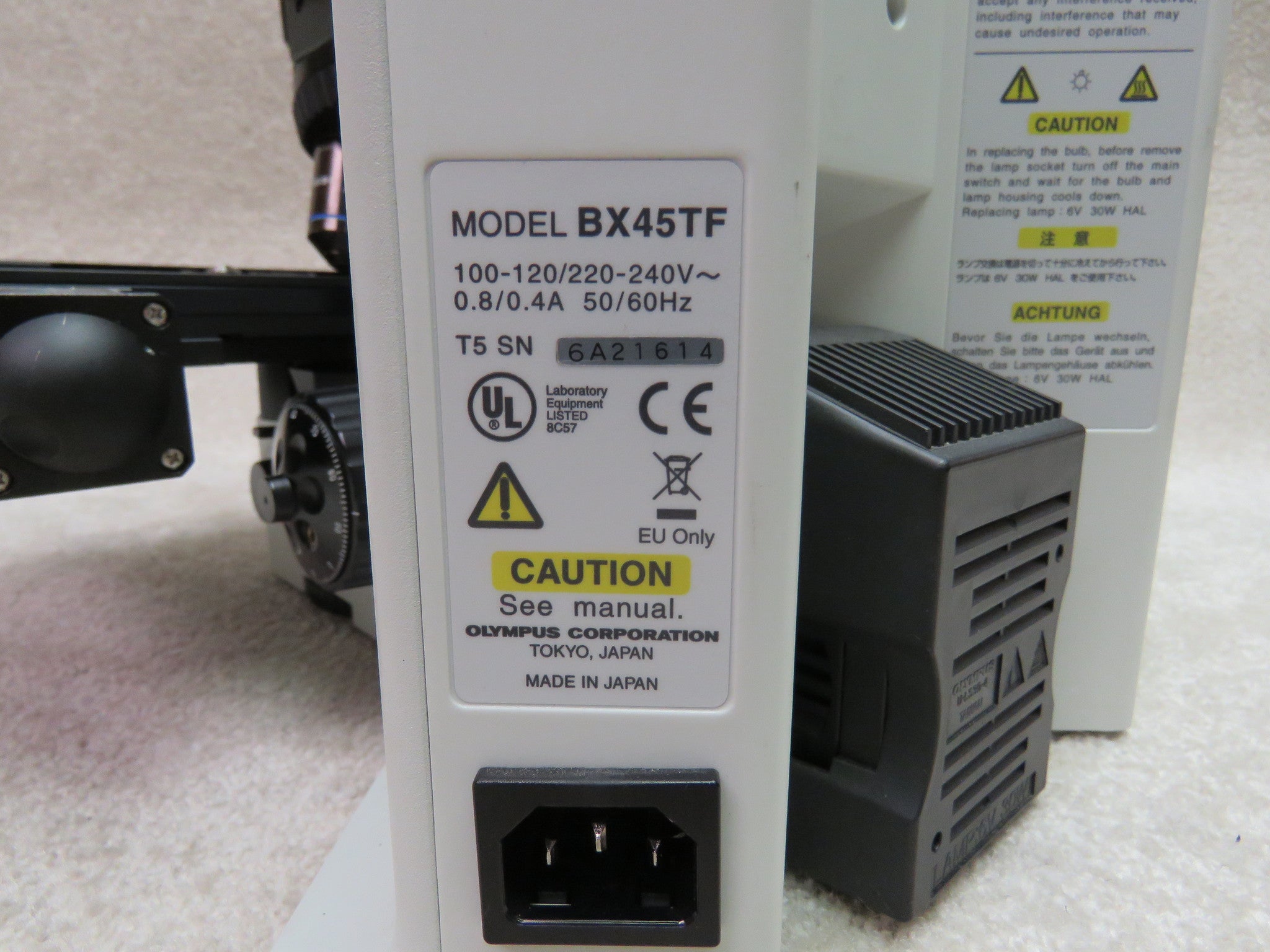

  • Olympus BX45TF microscope

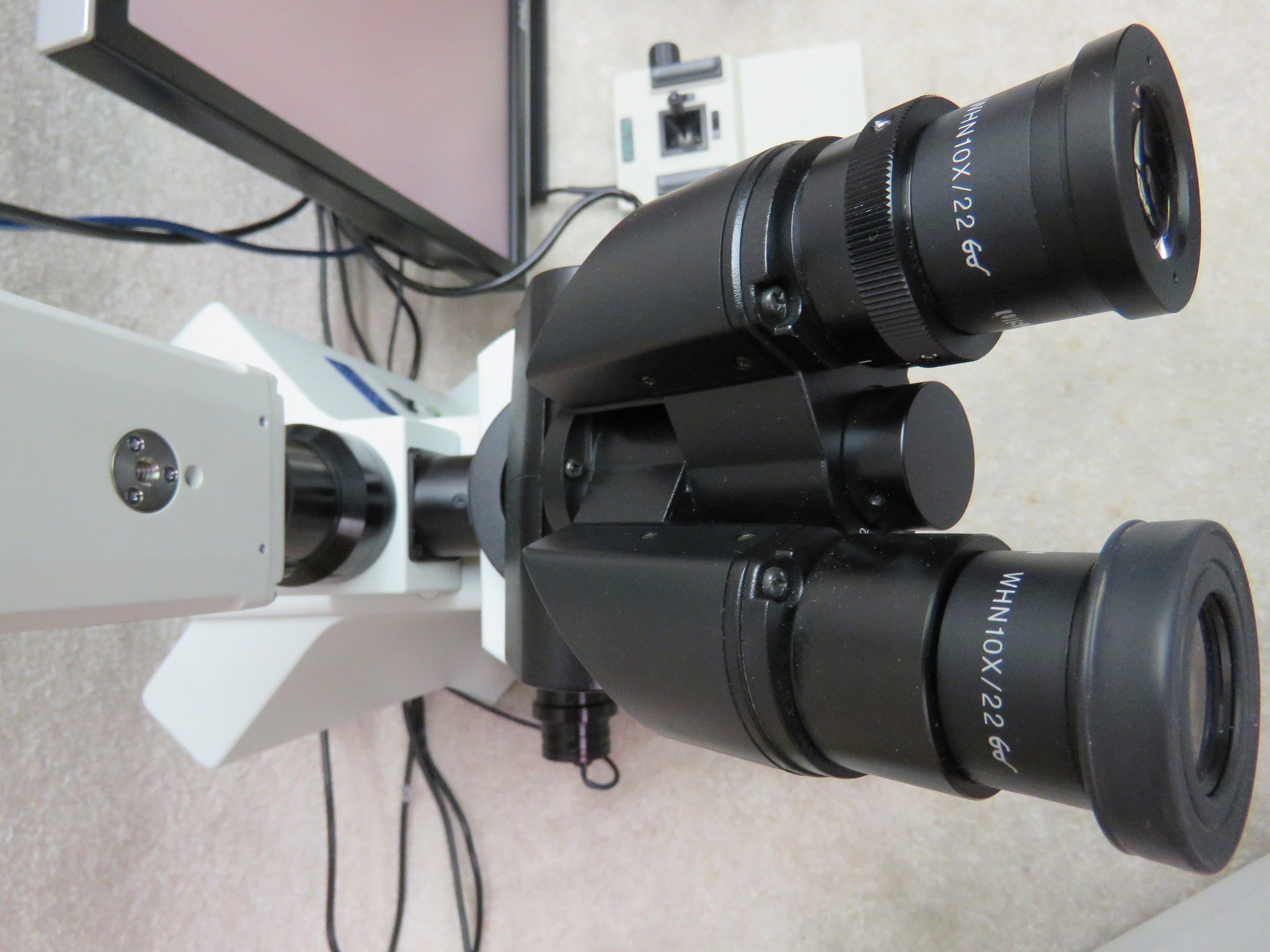

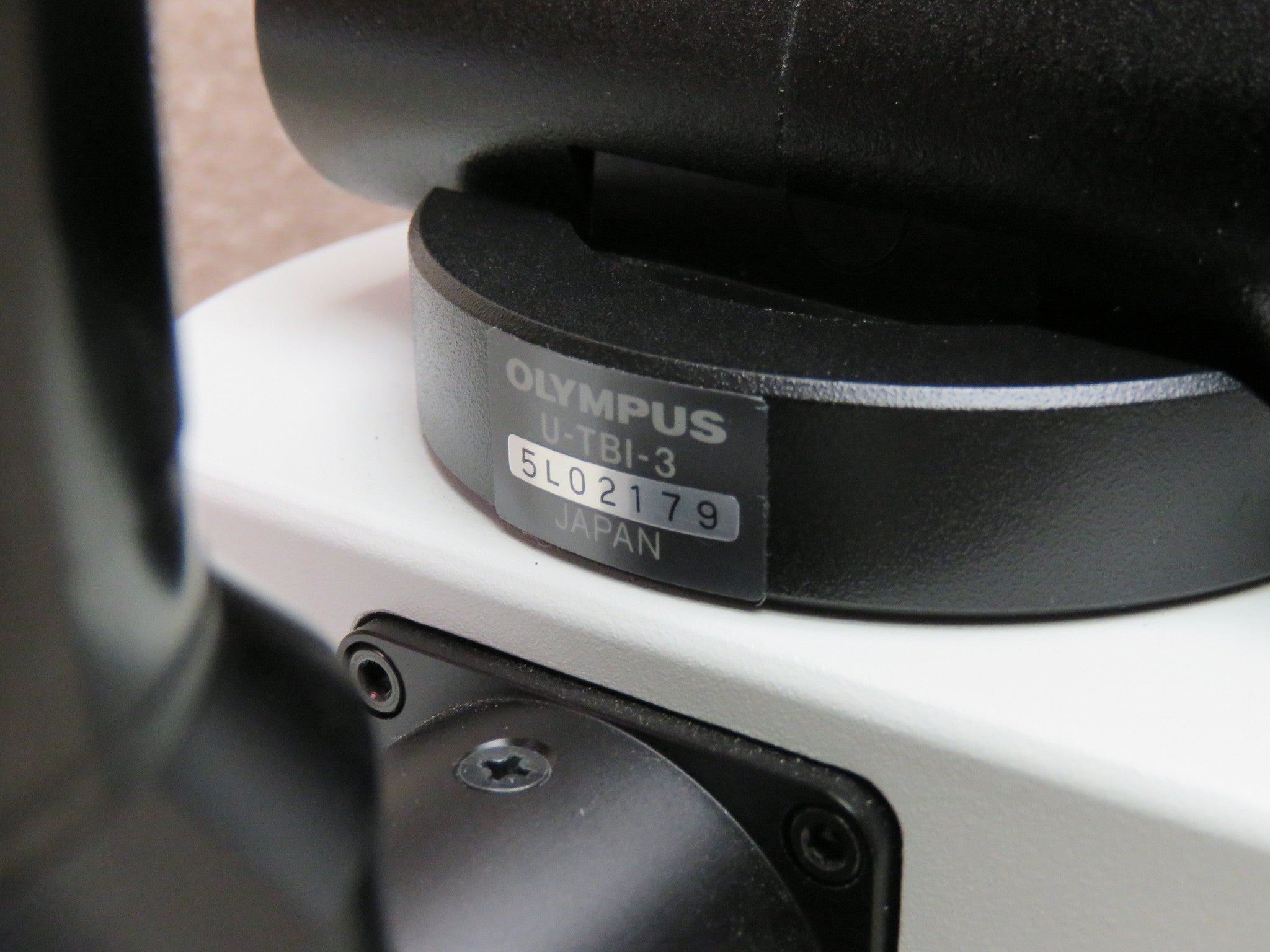

  • Olympus U-TBI-3 Tilting Binocular Head with (2) WHN10X/22 eyepieces
  • (4) objectives installed:

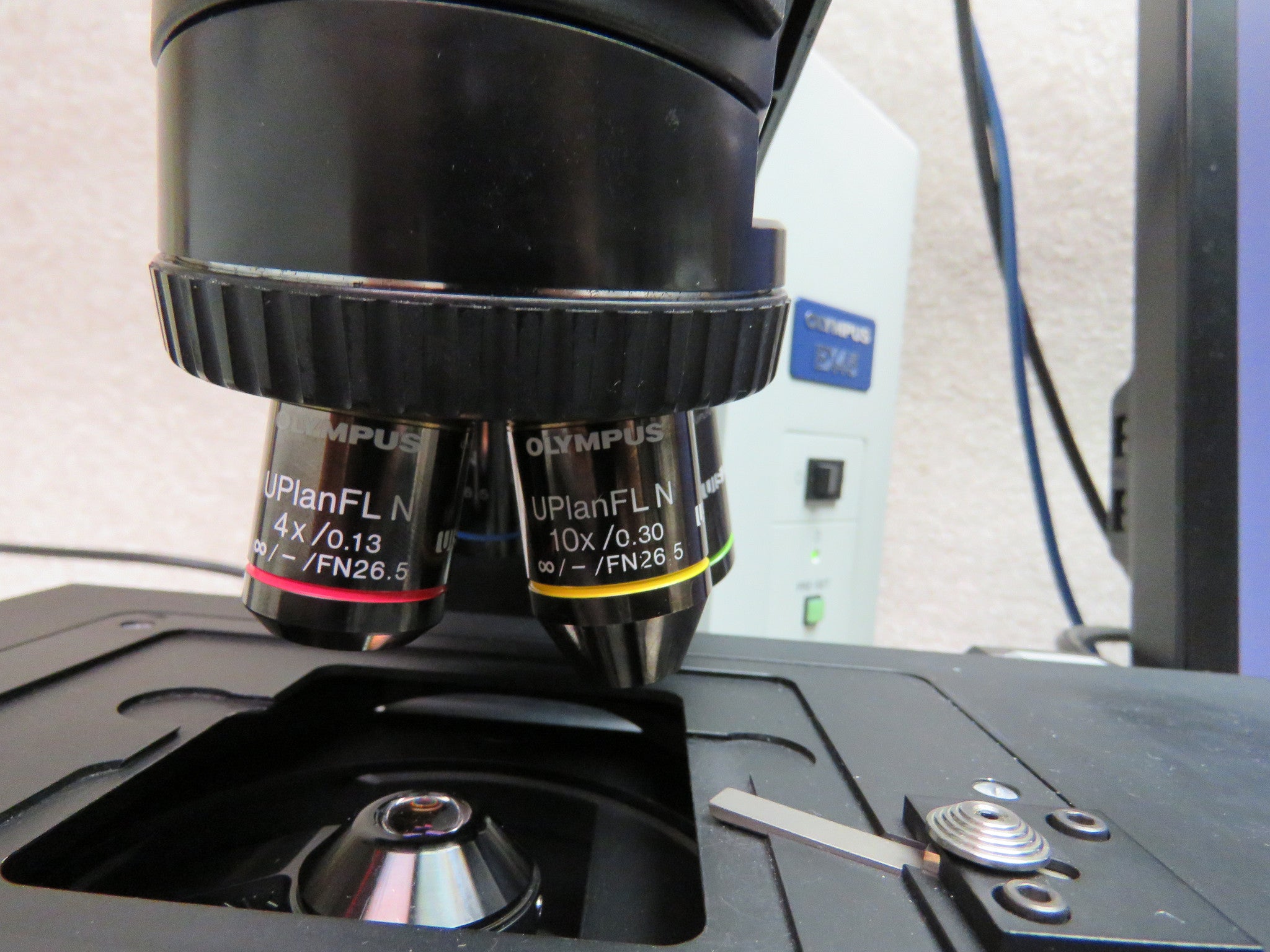

    • Olympus UPlanFLN 4x/0.13 infinity / - / FN26.5
    • Olympus UPlanFLN 10x/0.30 infinity / - / FN26.5

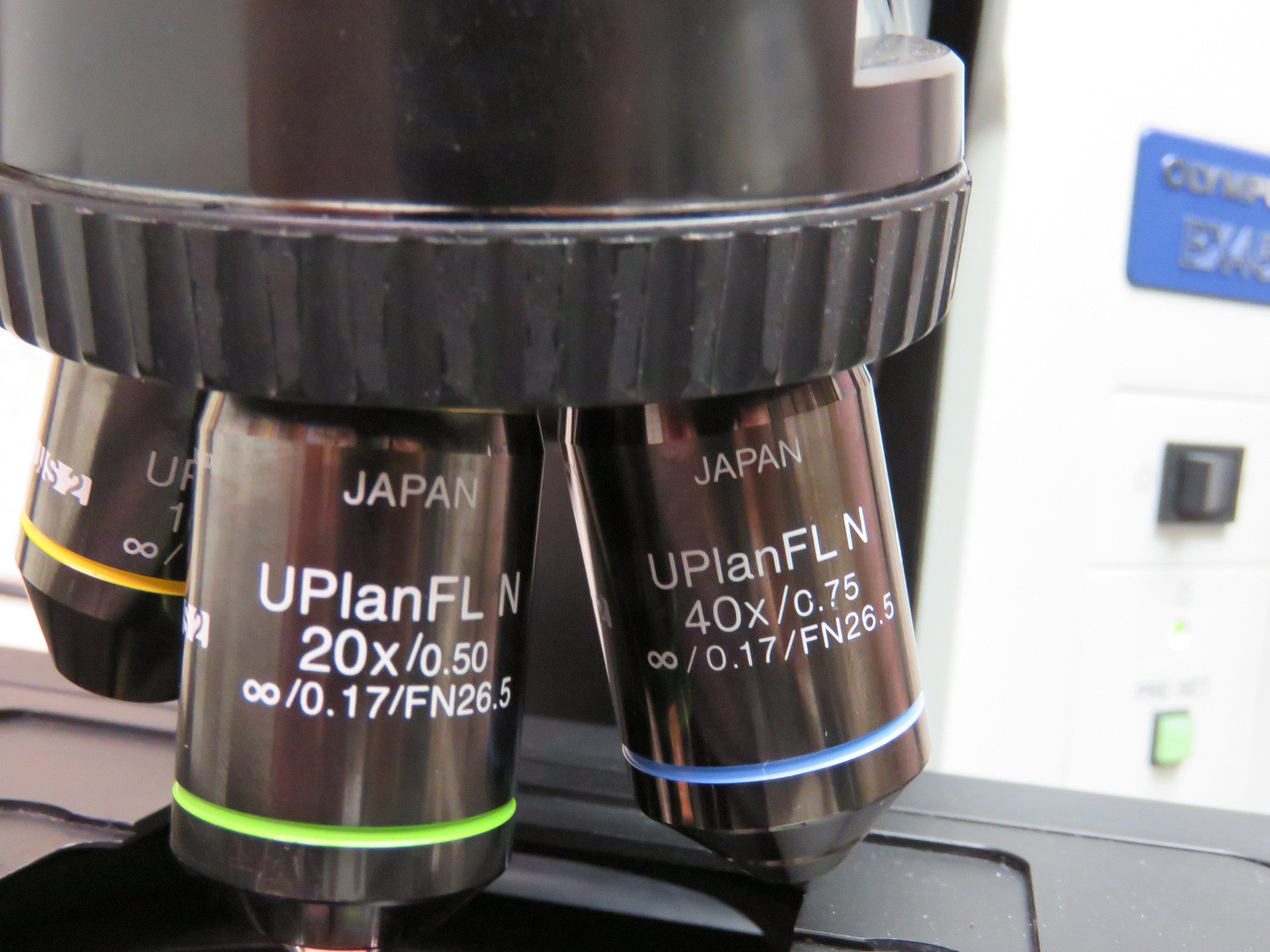

    • Olympus UPlanFLN 20x/0.50 infinity / 0.17 / FN26.5
    • Olympus UPlanFLN 40x/0.75 infinity / 0.17 / FN26.5
  • PRIOR motorized stage:

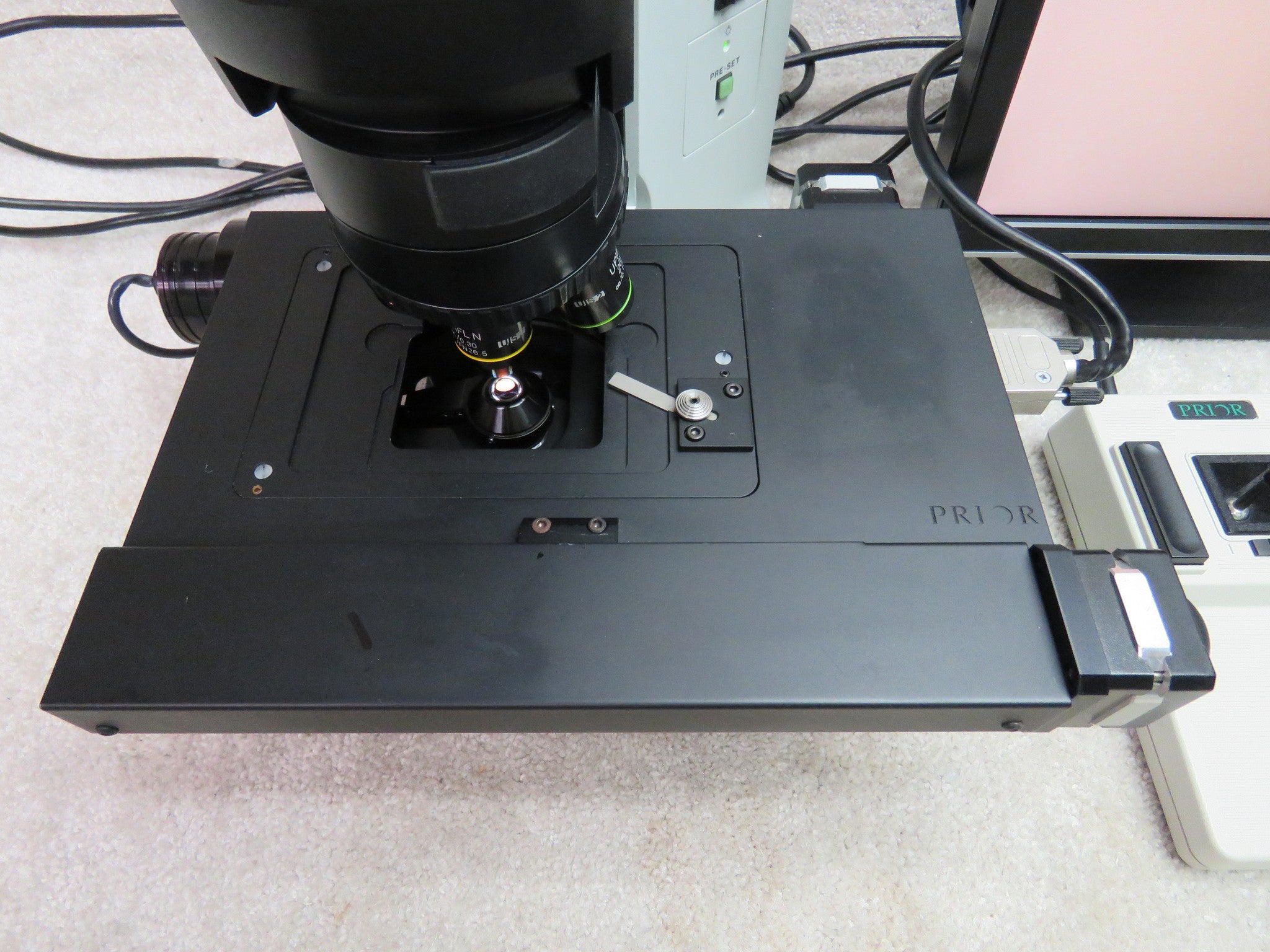

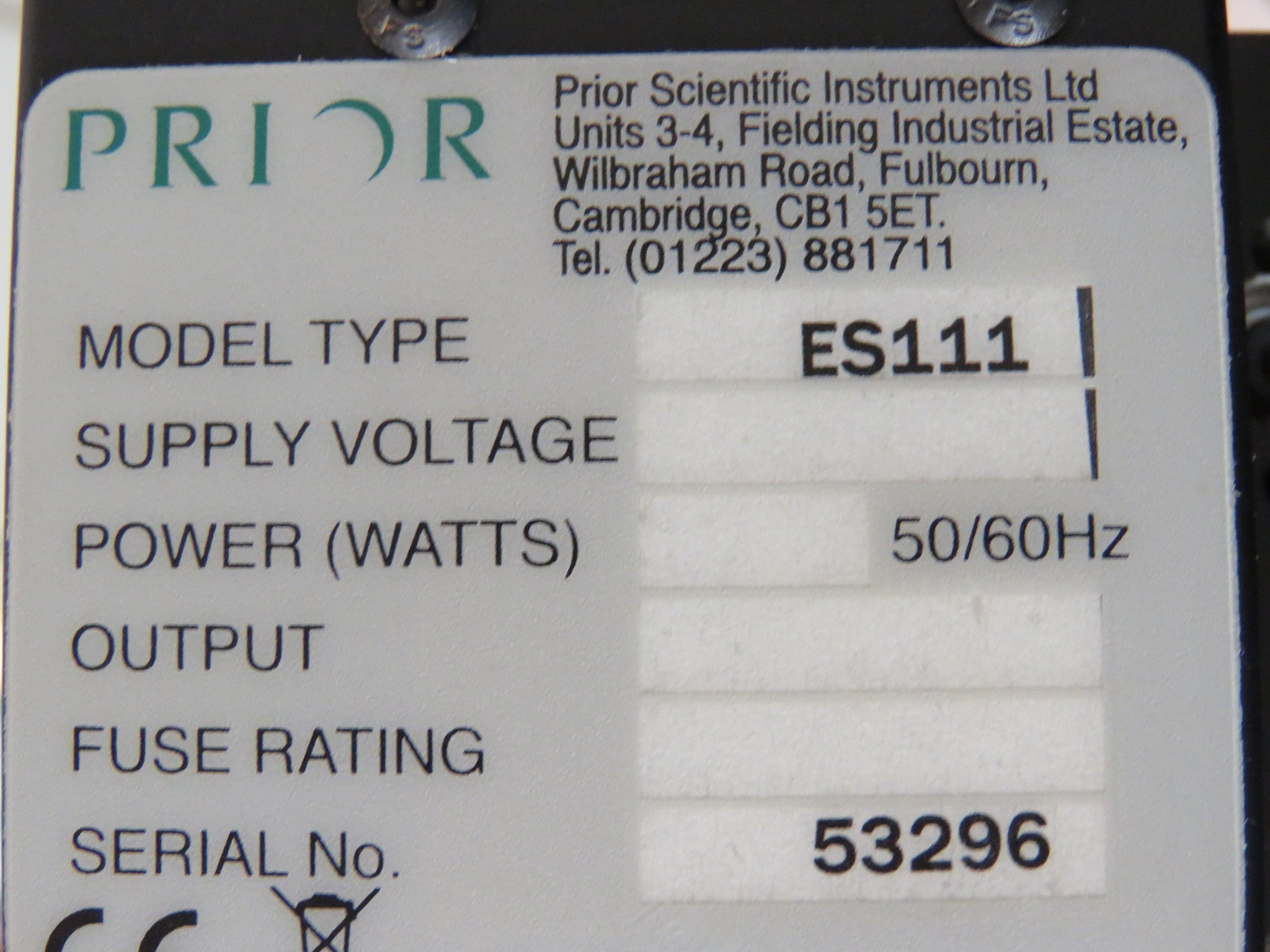

    • ES111 stage

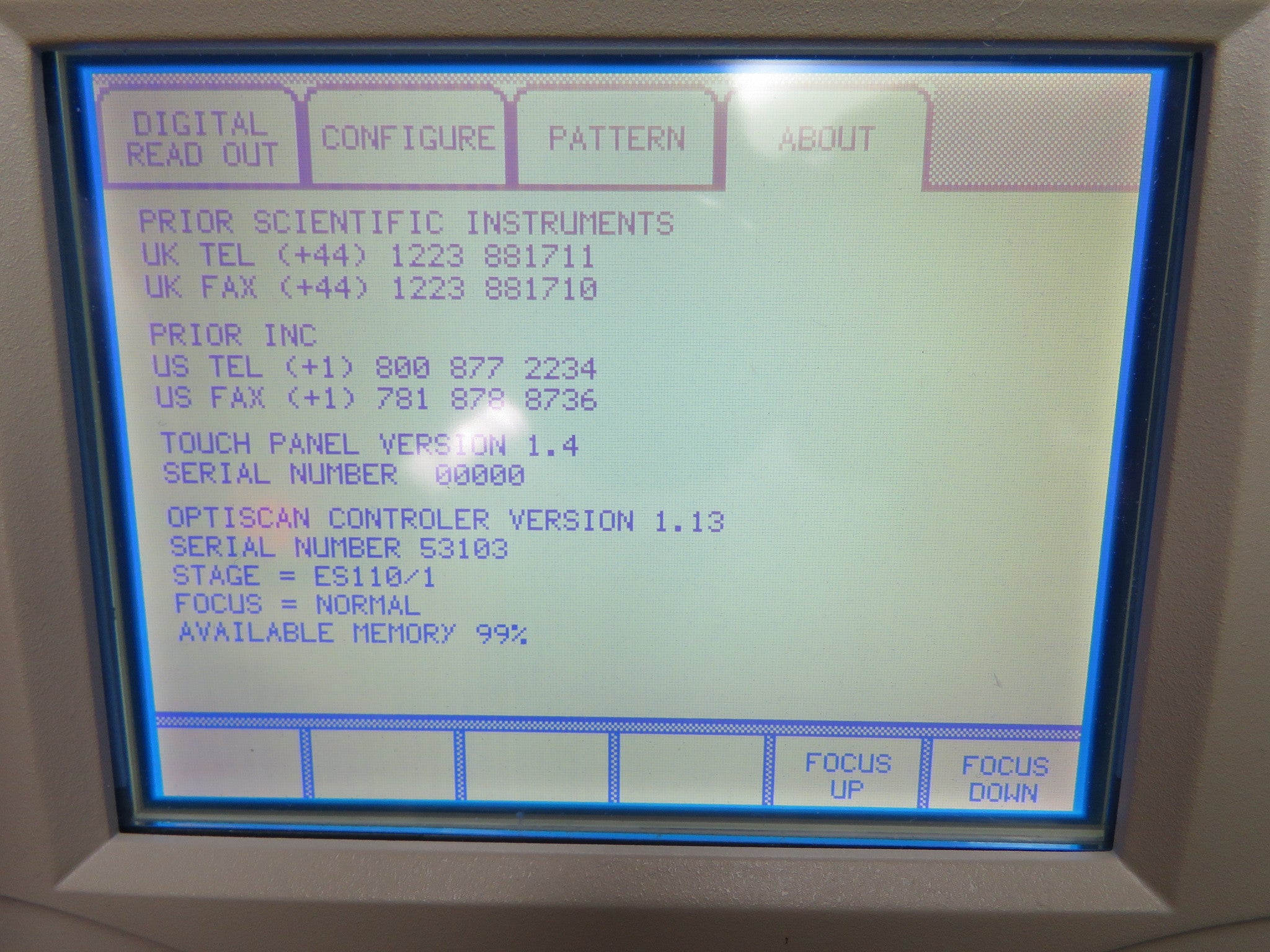

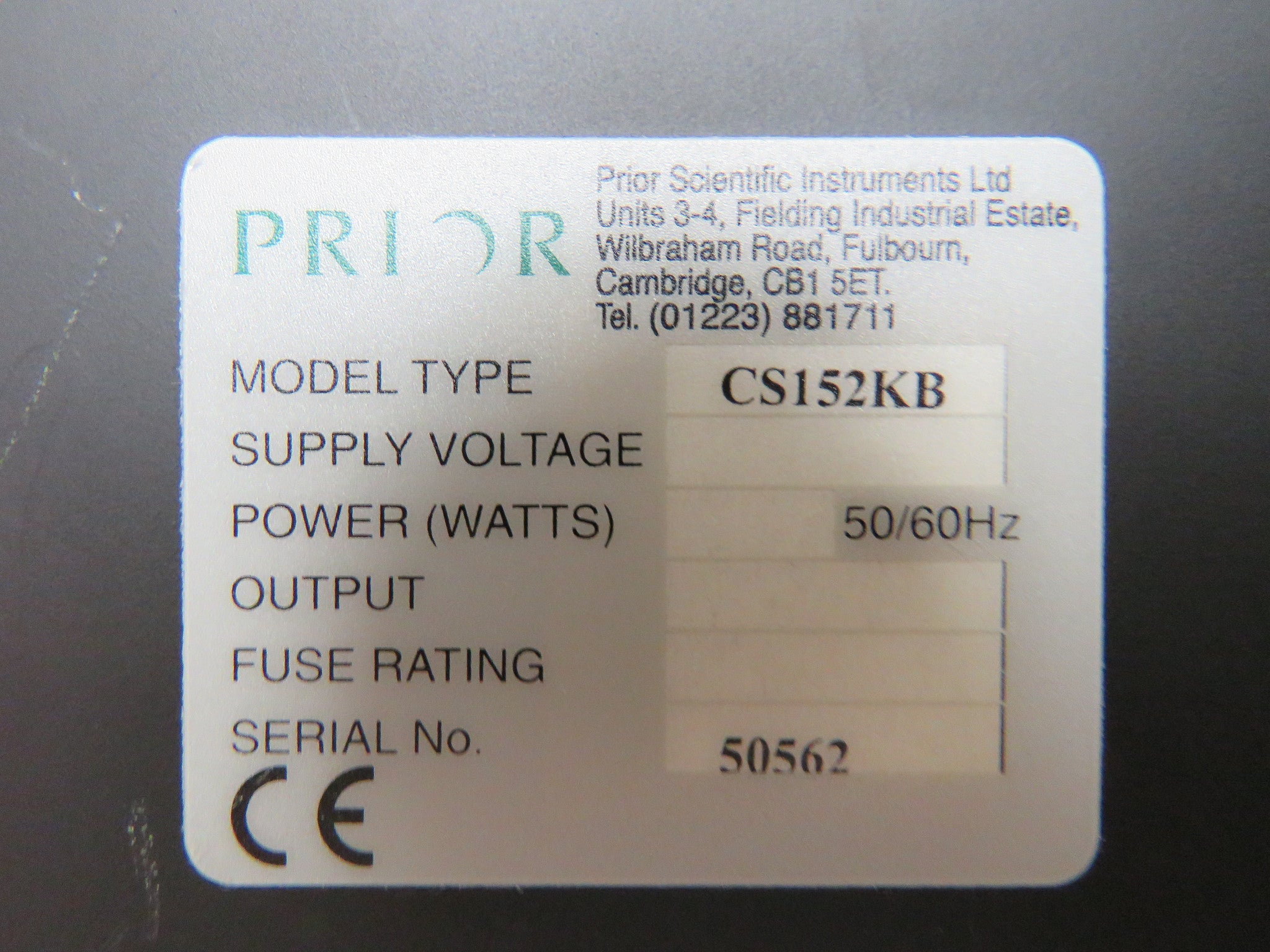

    • CS152KB touch screen controller

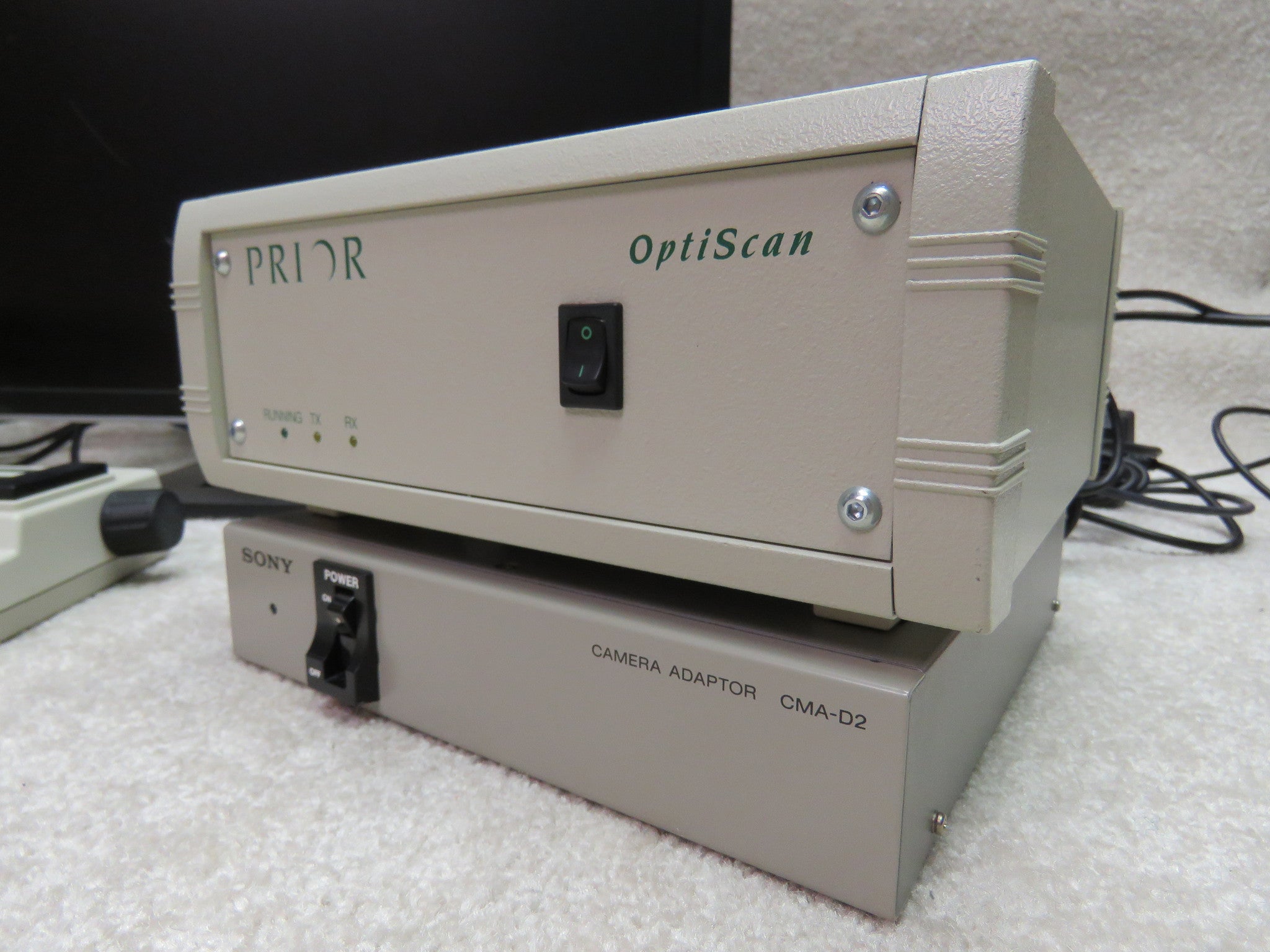

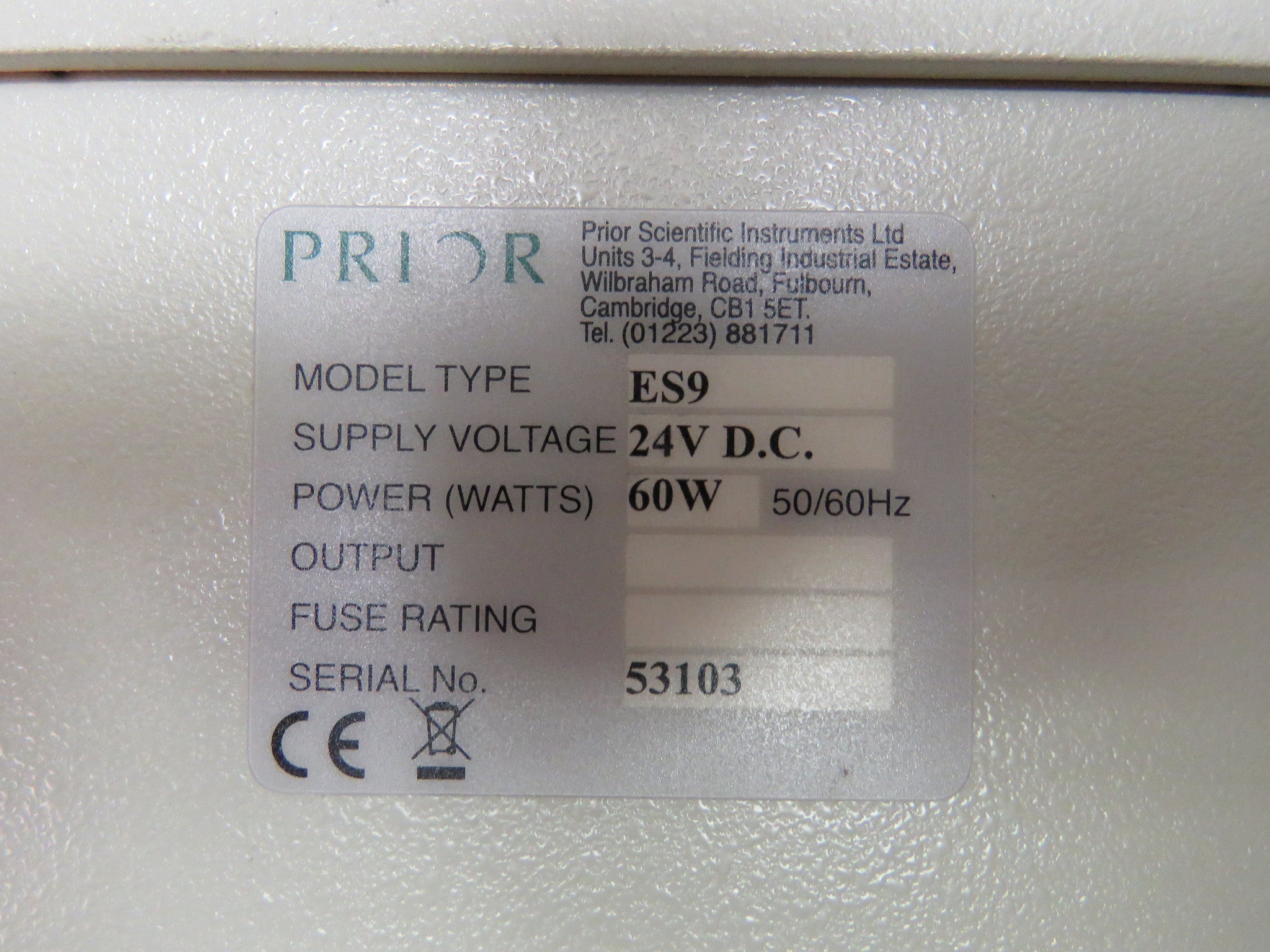

    • ES9 Optiscan controller

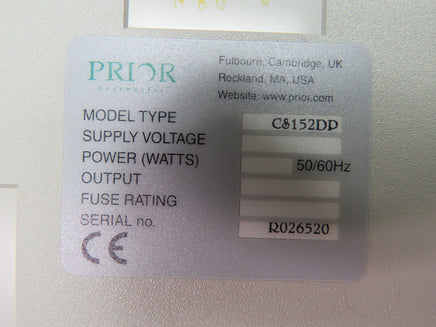

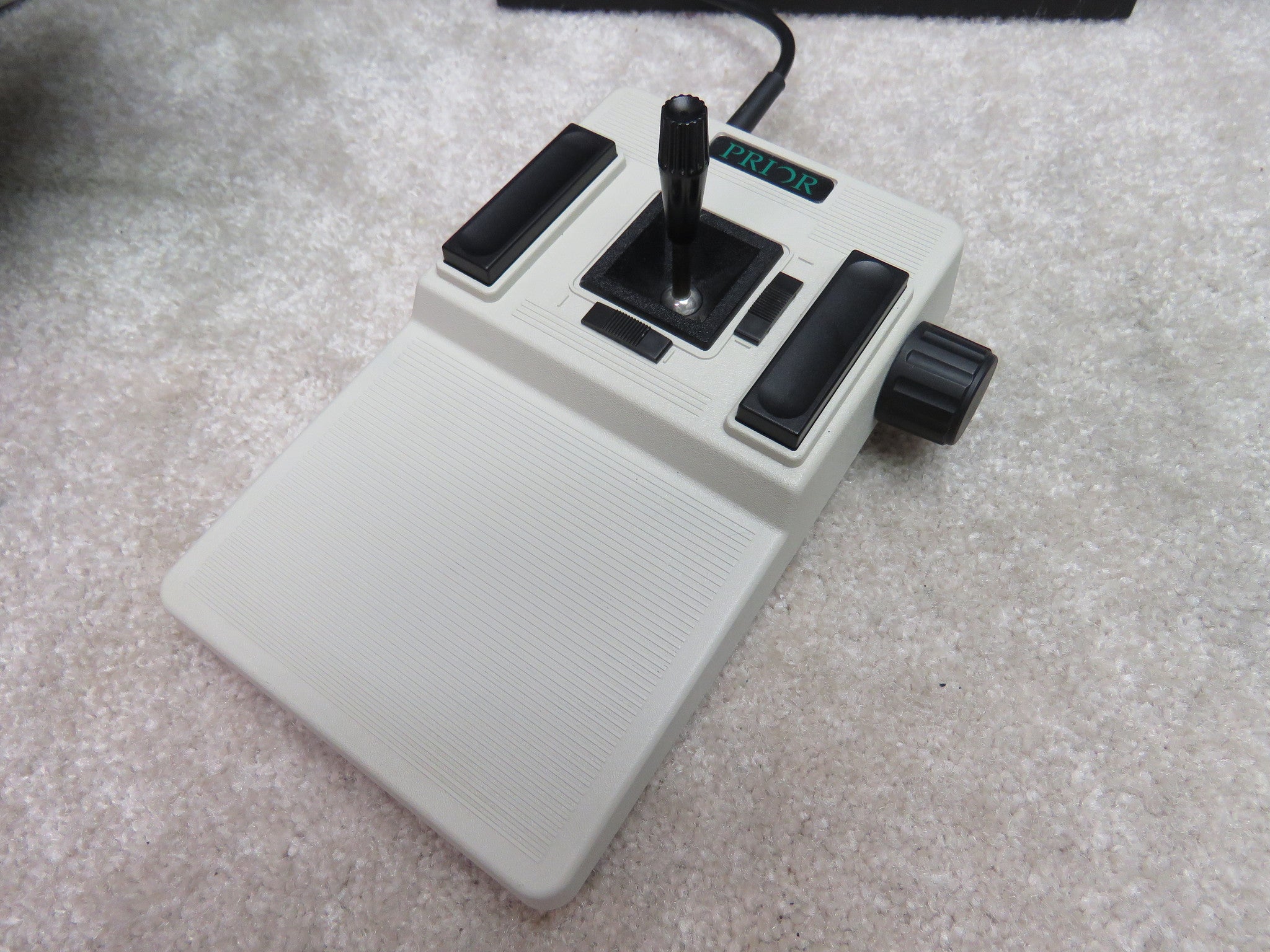

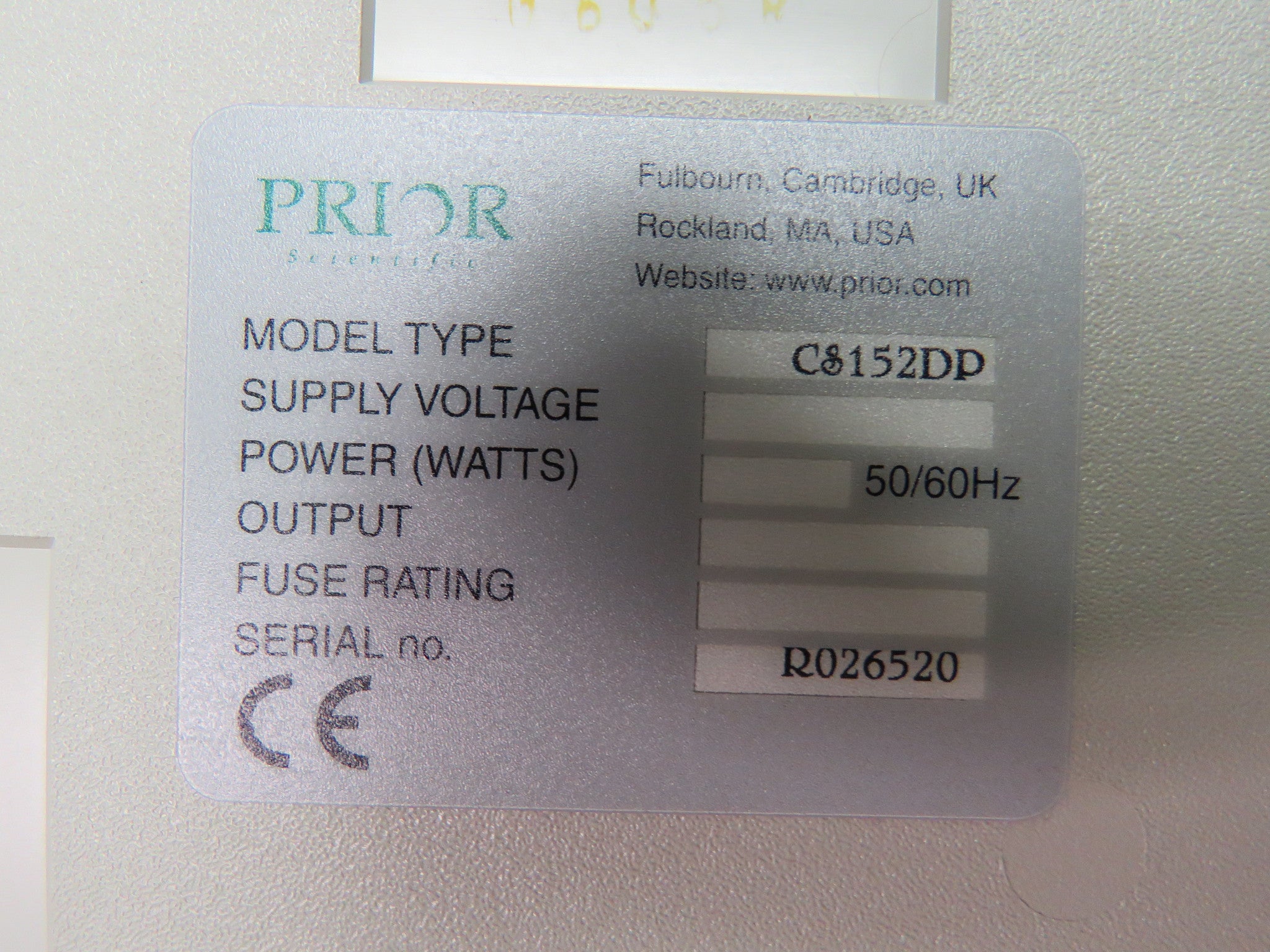

    • CS152DP joystick

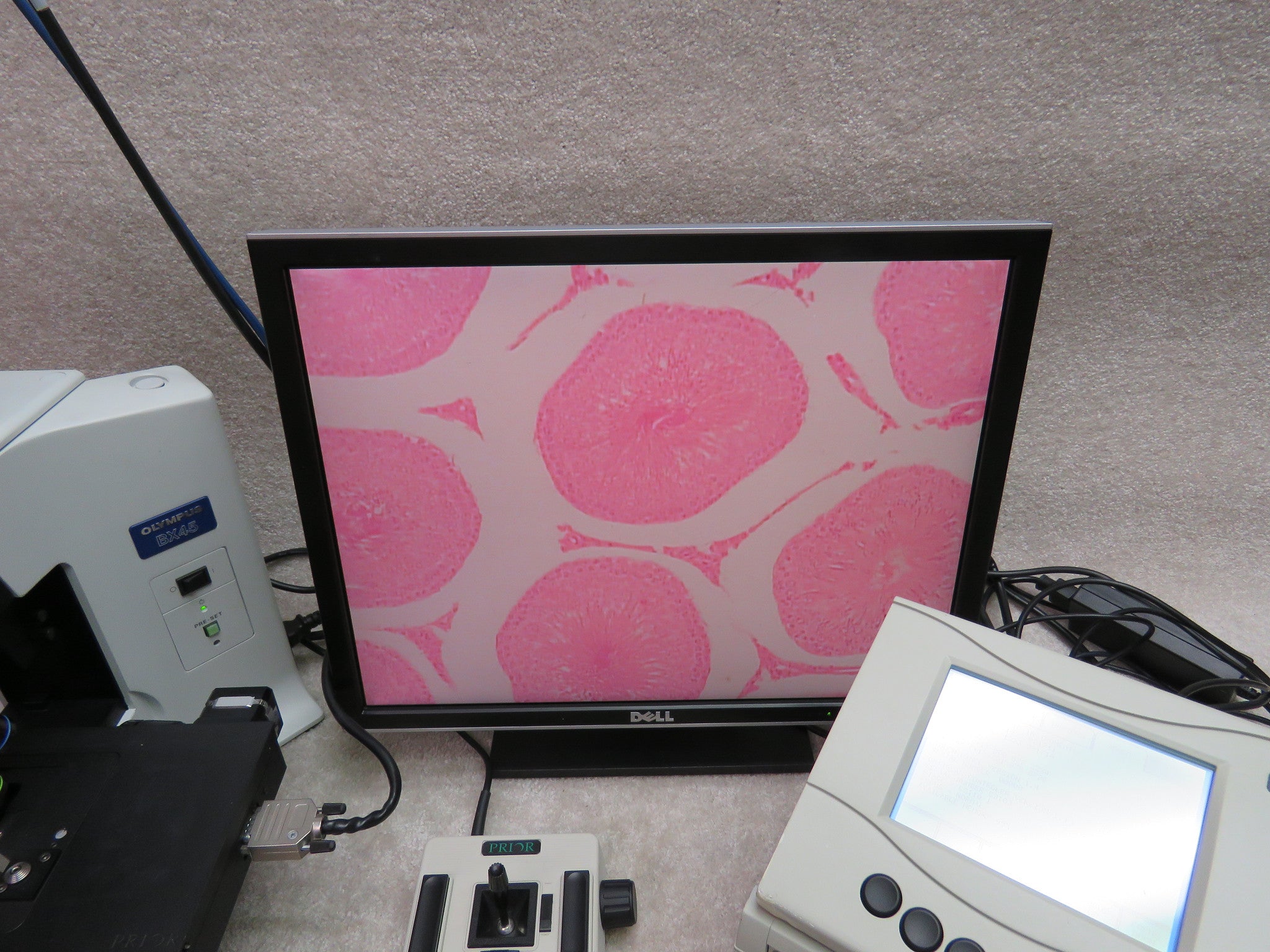

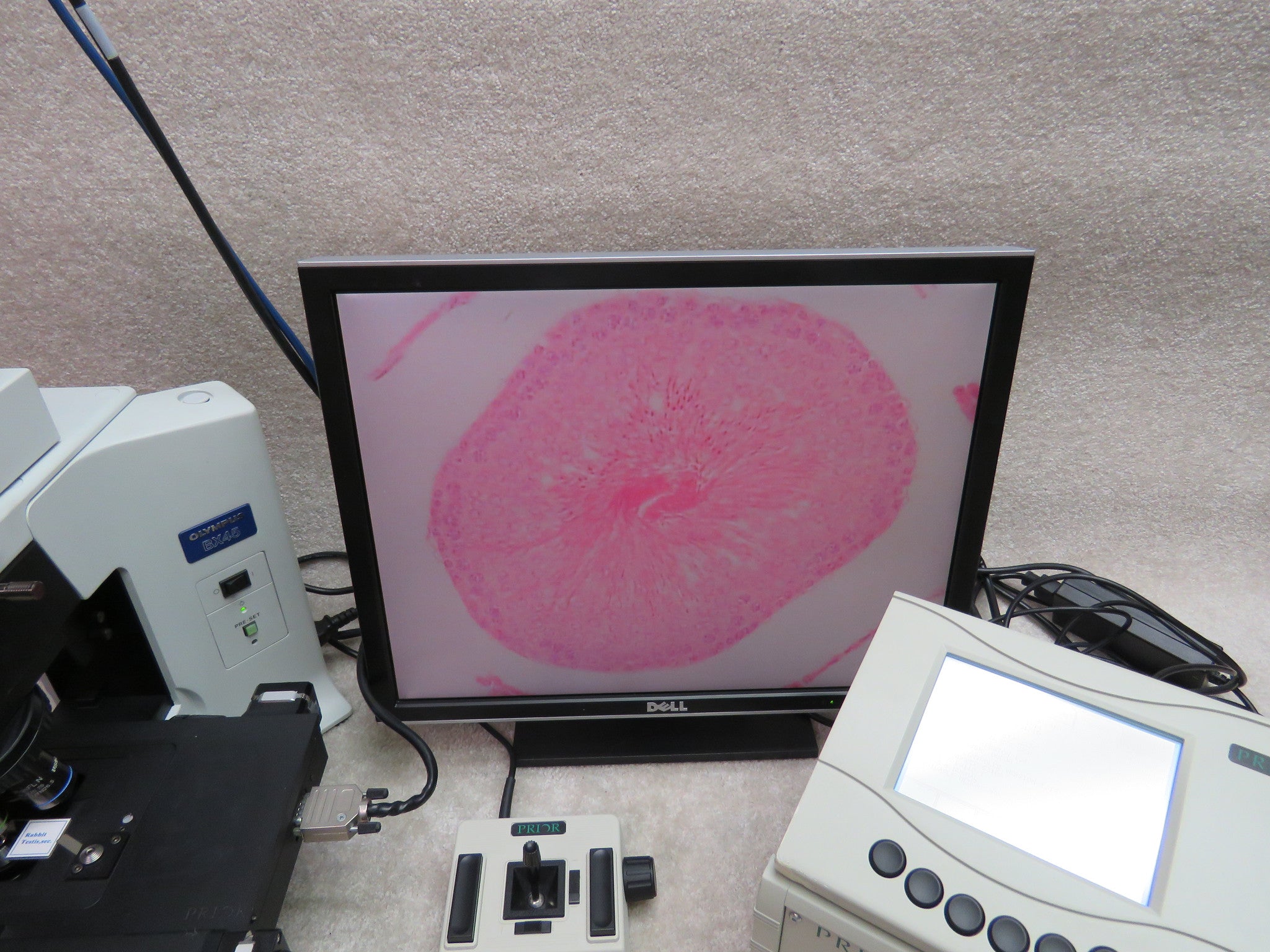

  • Digital imaging system:

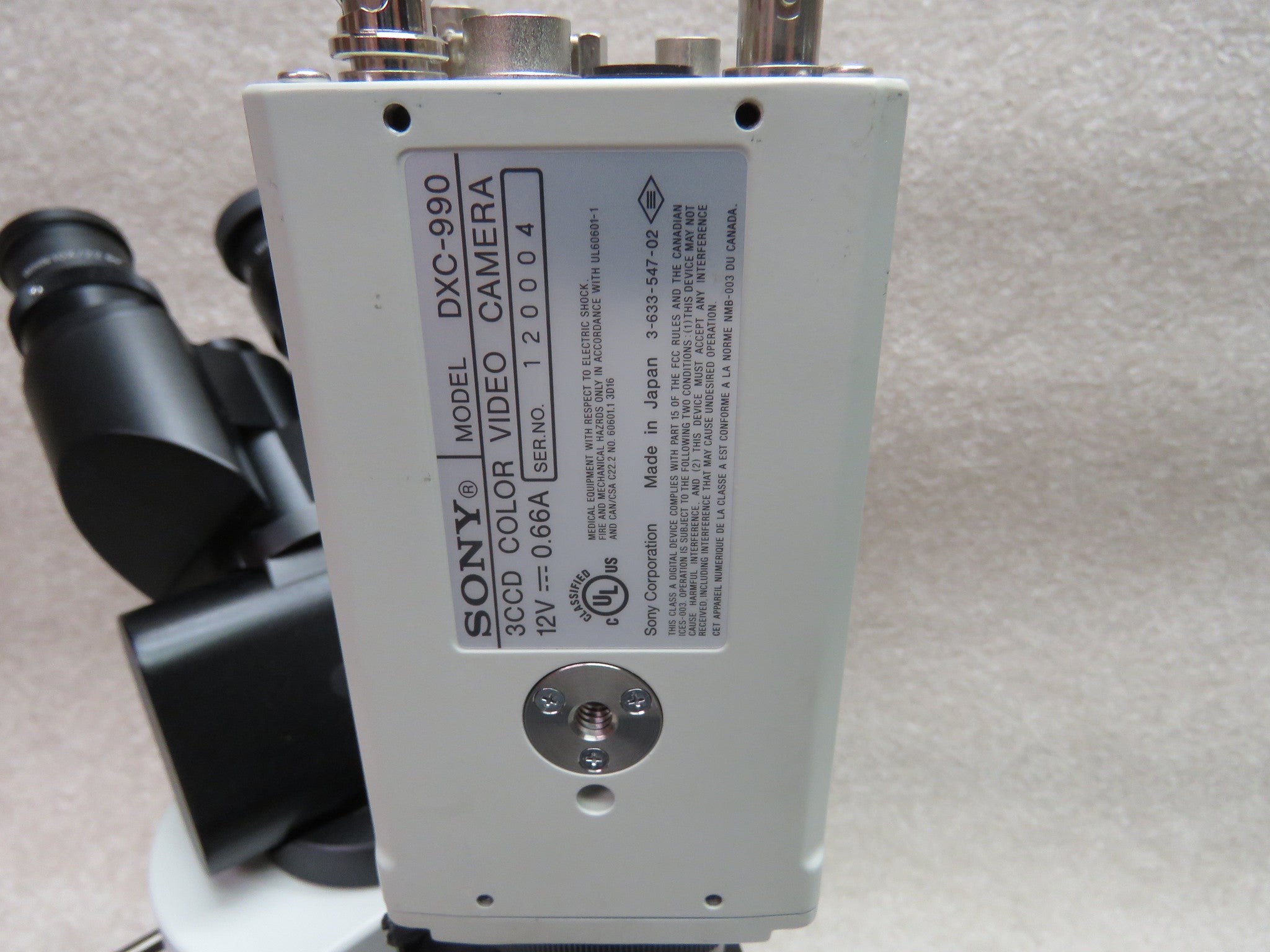

    • Sony DXC-990 3CCD Color video camera

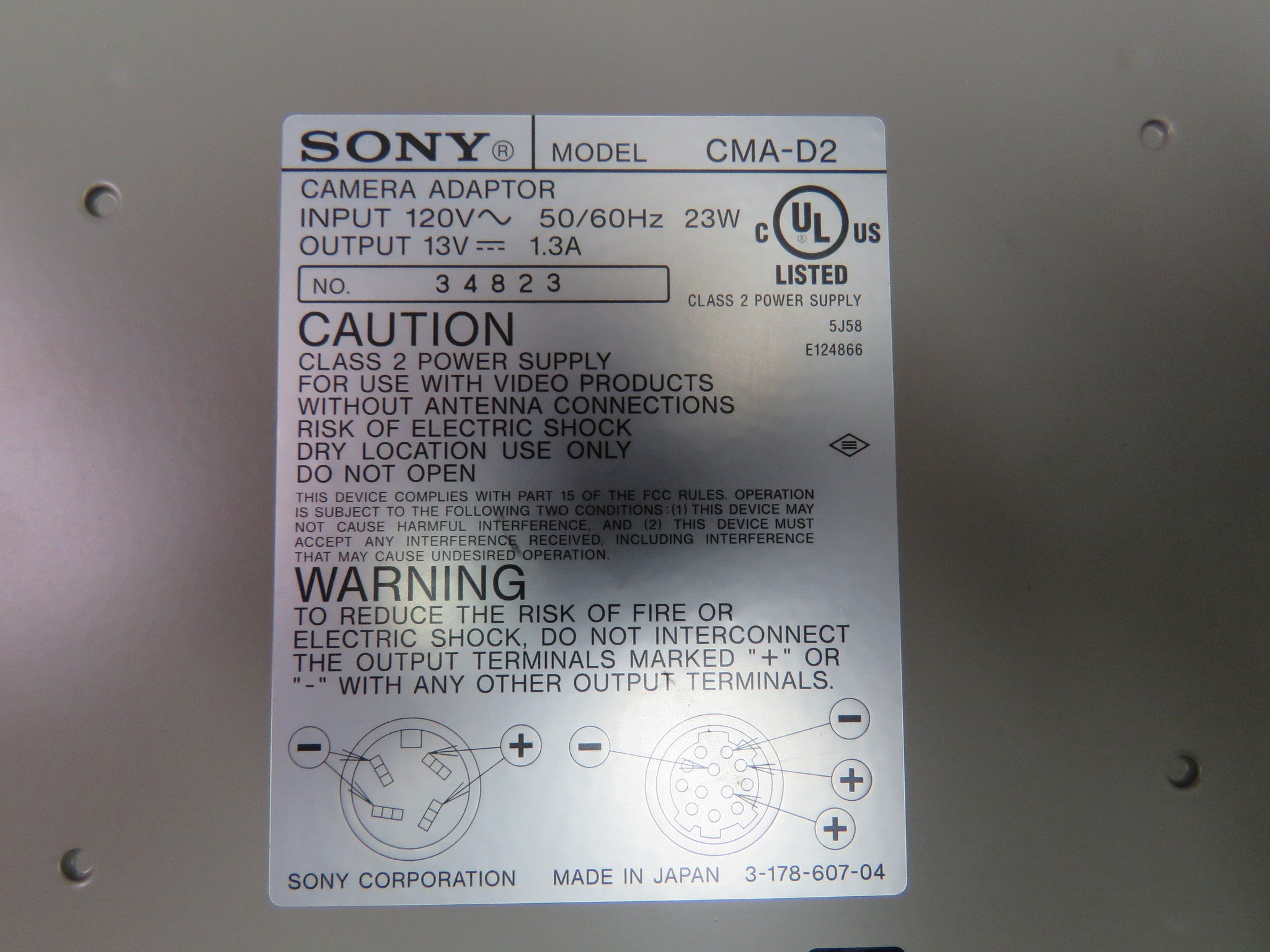

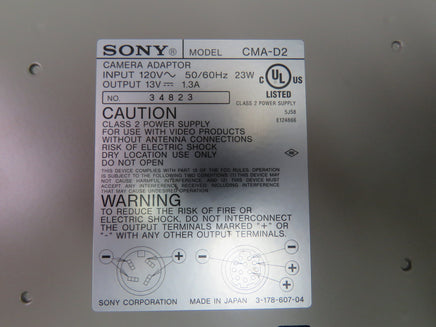

    • Sony CMA-D2 controller
    • Sony CCDC5 cable
  • Power cords


                30 Day warranty. We pledge to offer the best service and warranty to all of our customers! We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.
