Web Information
93.63.7.024

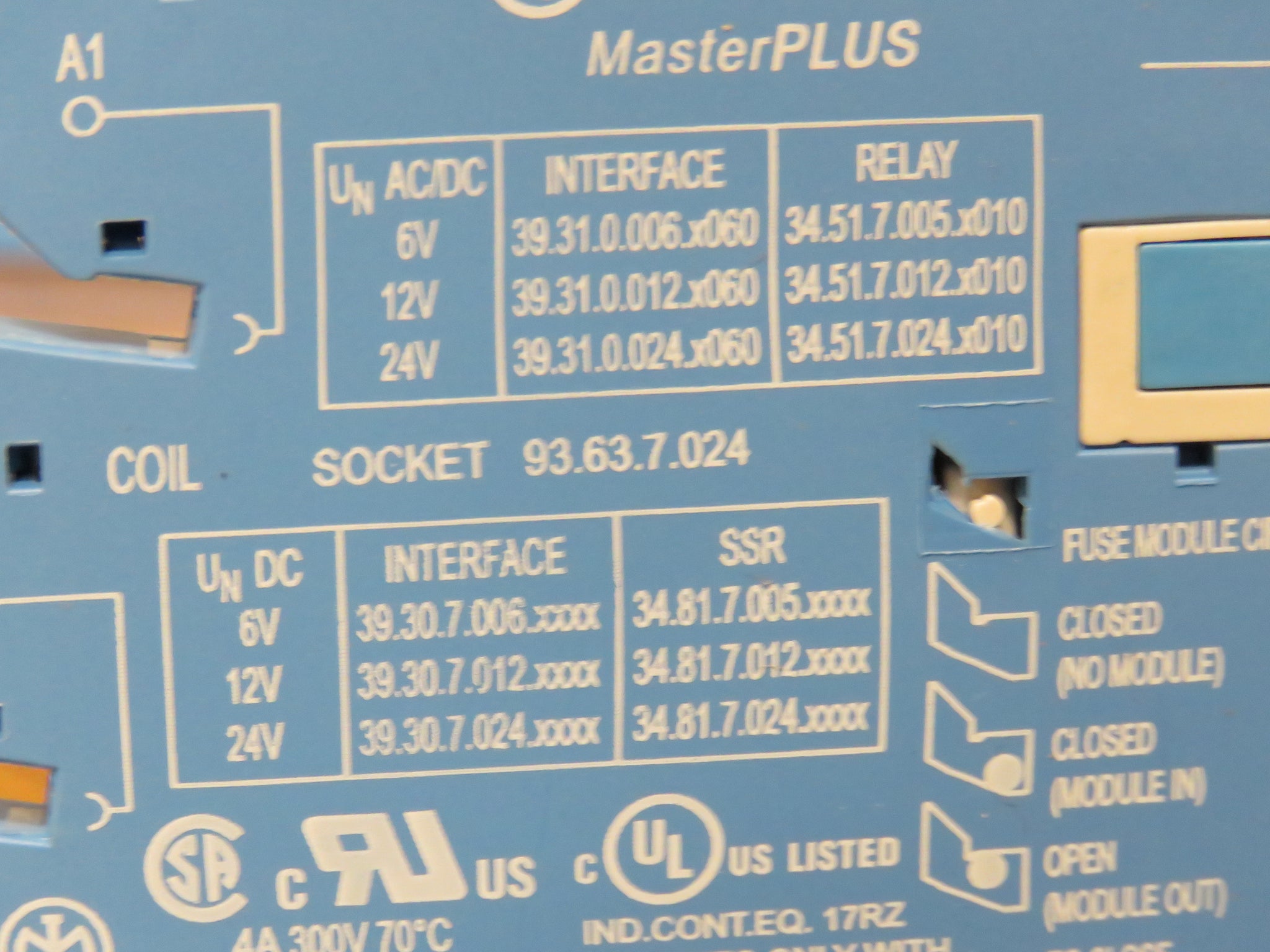

DIN-Rail screw terminal (Box Clamp) socket for 34 Series relay (MasterPLUS) RoHS Compliant: Yes

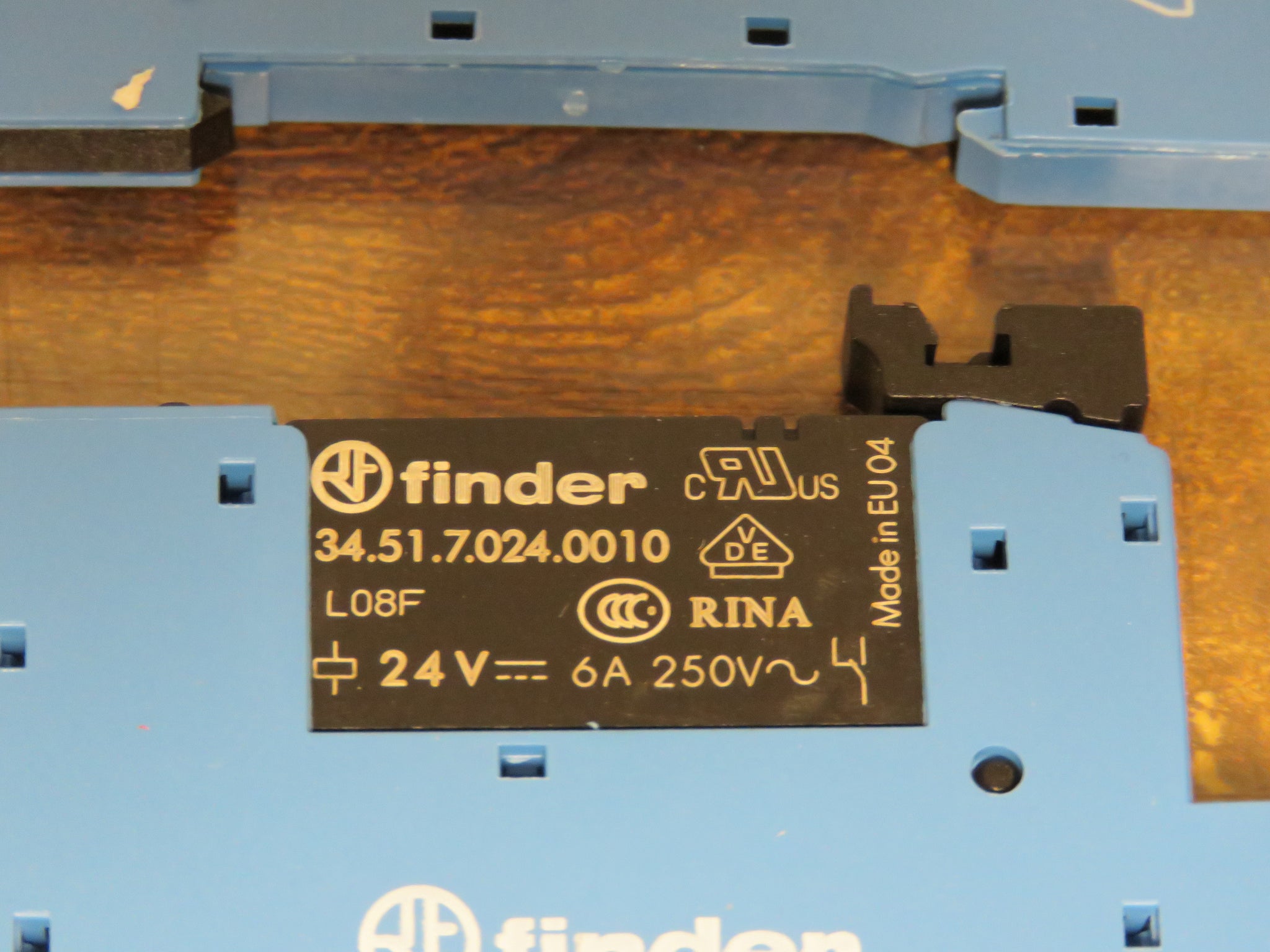

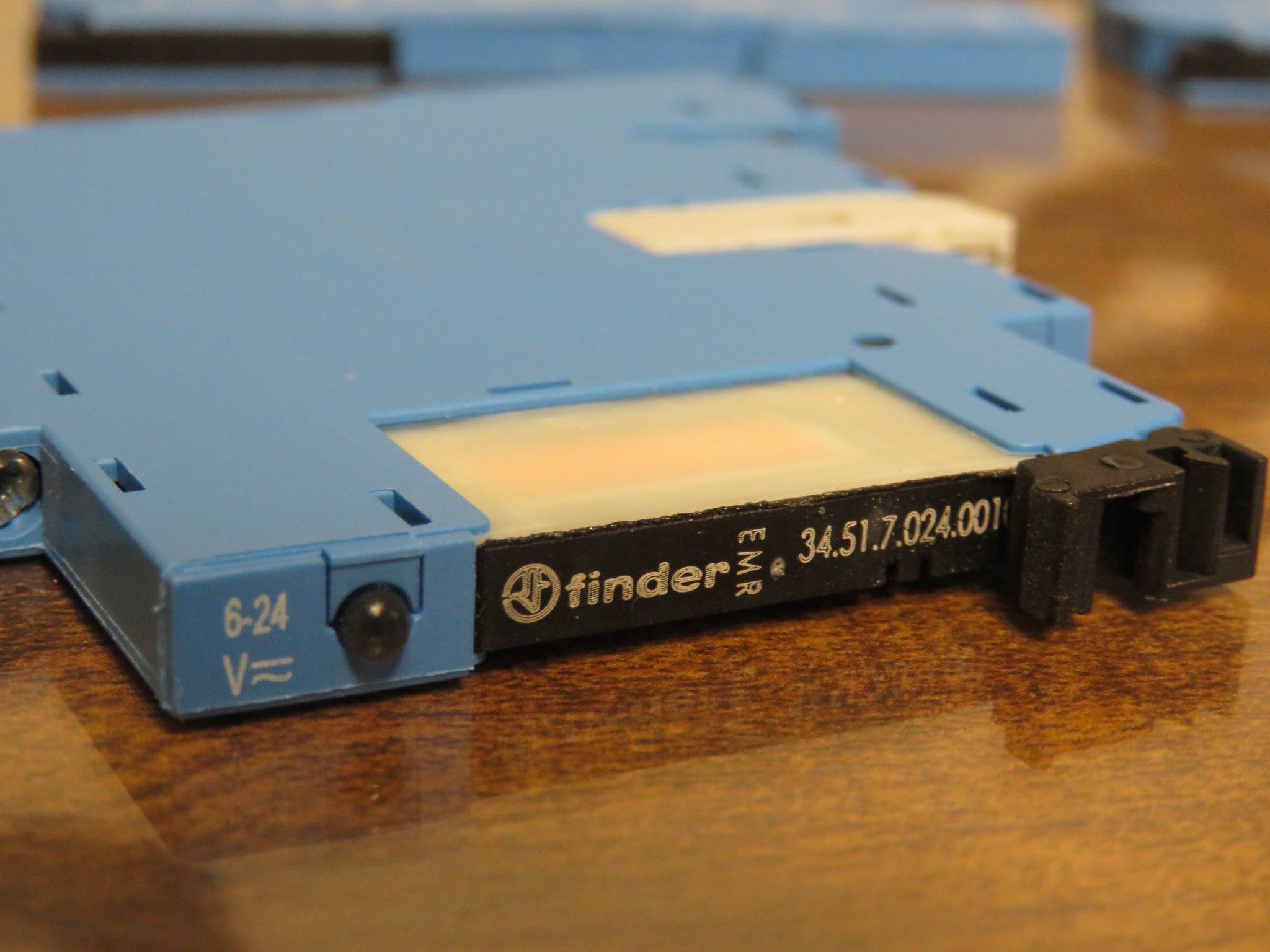

34.51.7.024.0010
General Purpose Relay, 34 Series, SPDT, 24 VDC, 6 A
Product Overview
34.51.7.024.0010 is a type 34.51 ultra-slim electromechanical subminiature PCB relay. It is suitable for PCB mounting using the 93 series sockets.
Low absorption coil power
1 pole, CO (nPDT) contact configuration, AgNi material, DC sensitive coil
6A rated current (contacts), 0.17W rated power
Operating range from 16.8 to 36VDC
3350 ohm resistance, 7.1mA current consumption
Holding voltage is 9.6V, 1.2V must drop-out voltage
6kV insulation coilNcontacts
60000 cycles electrical life, DC sensitive coil supply
Dimension is 5 x 15 x 28mm
Ambient temperature range from -40 to +85°C

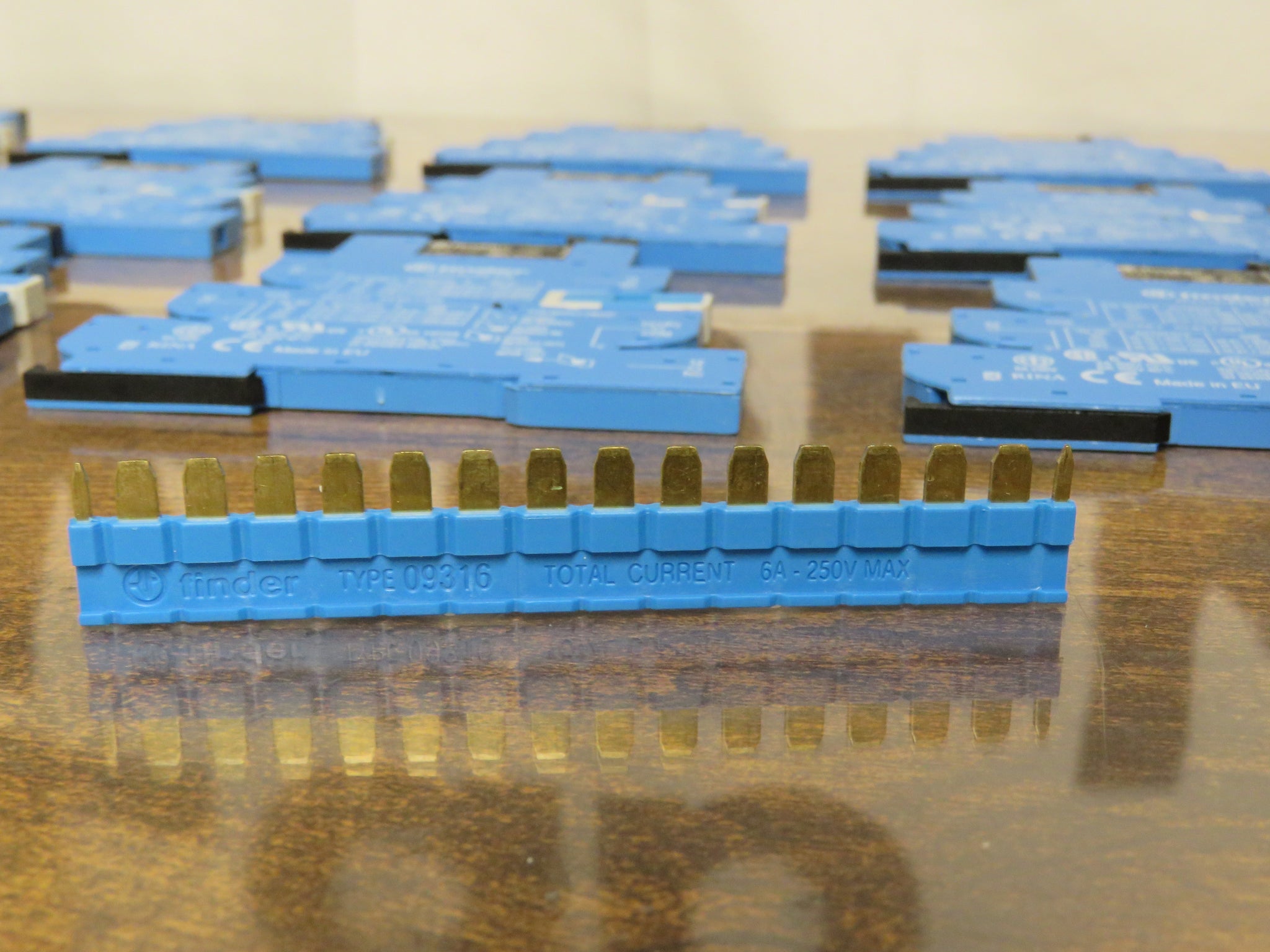

093.16
JUMPER, 16 WAY, BLUE
Condition
Excellent condition.

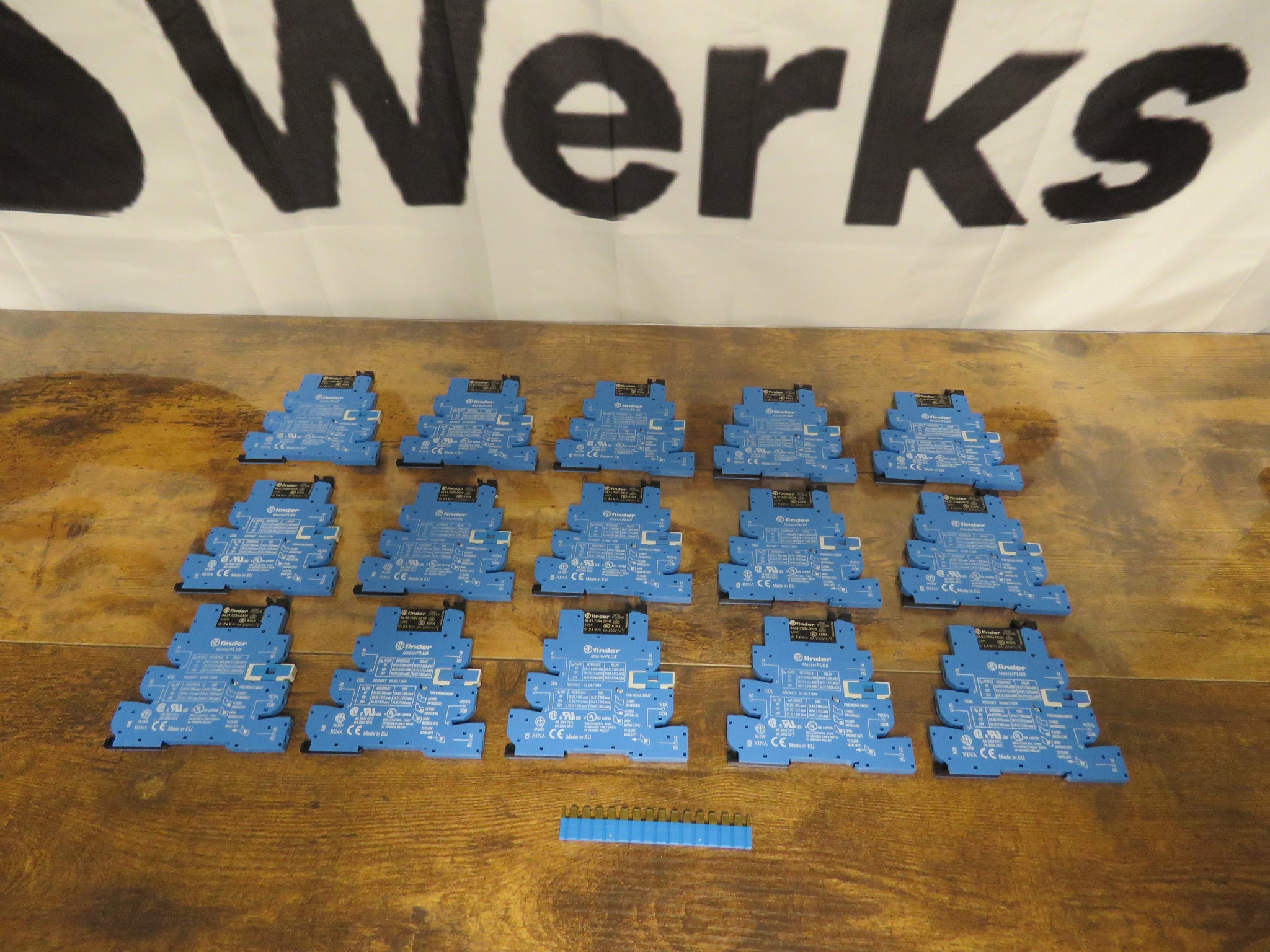

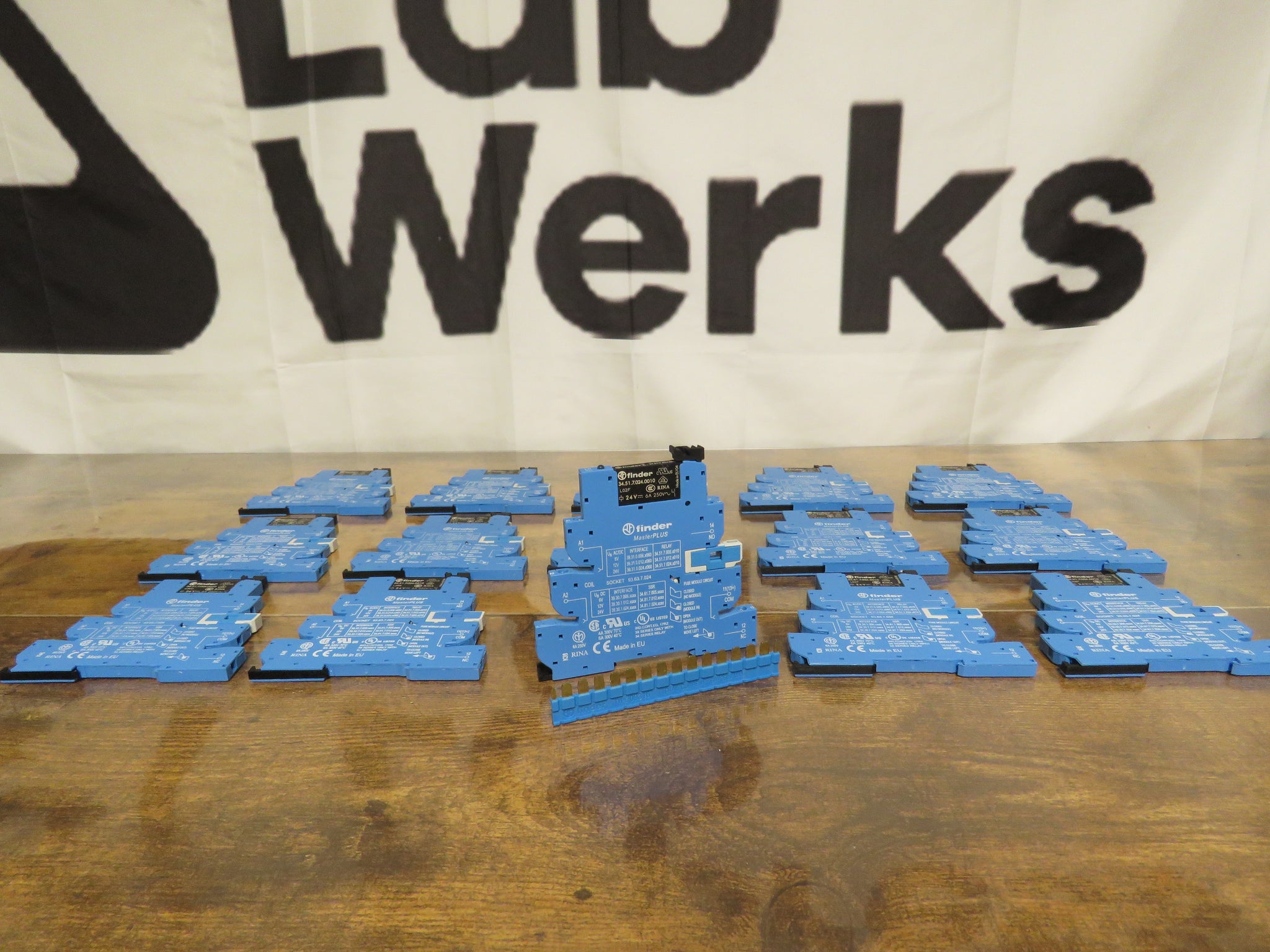

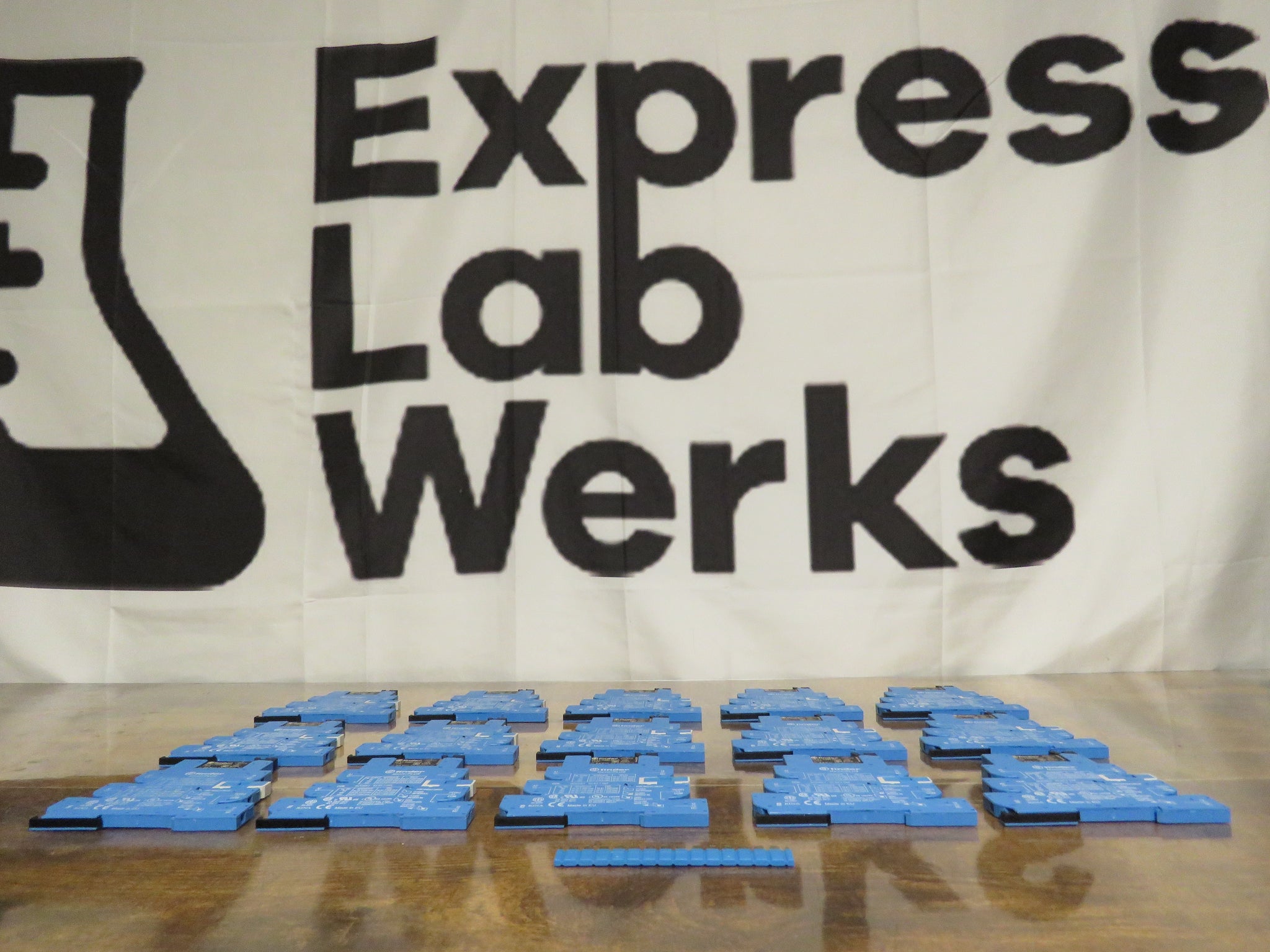

Includes

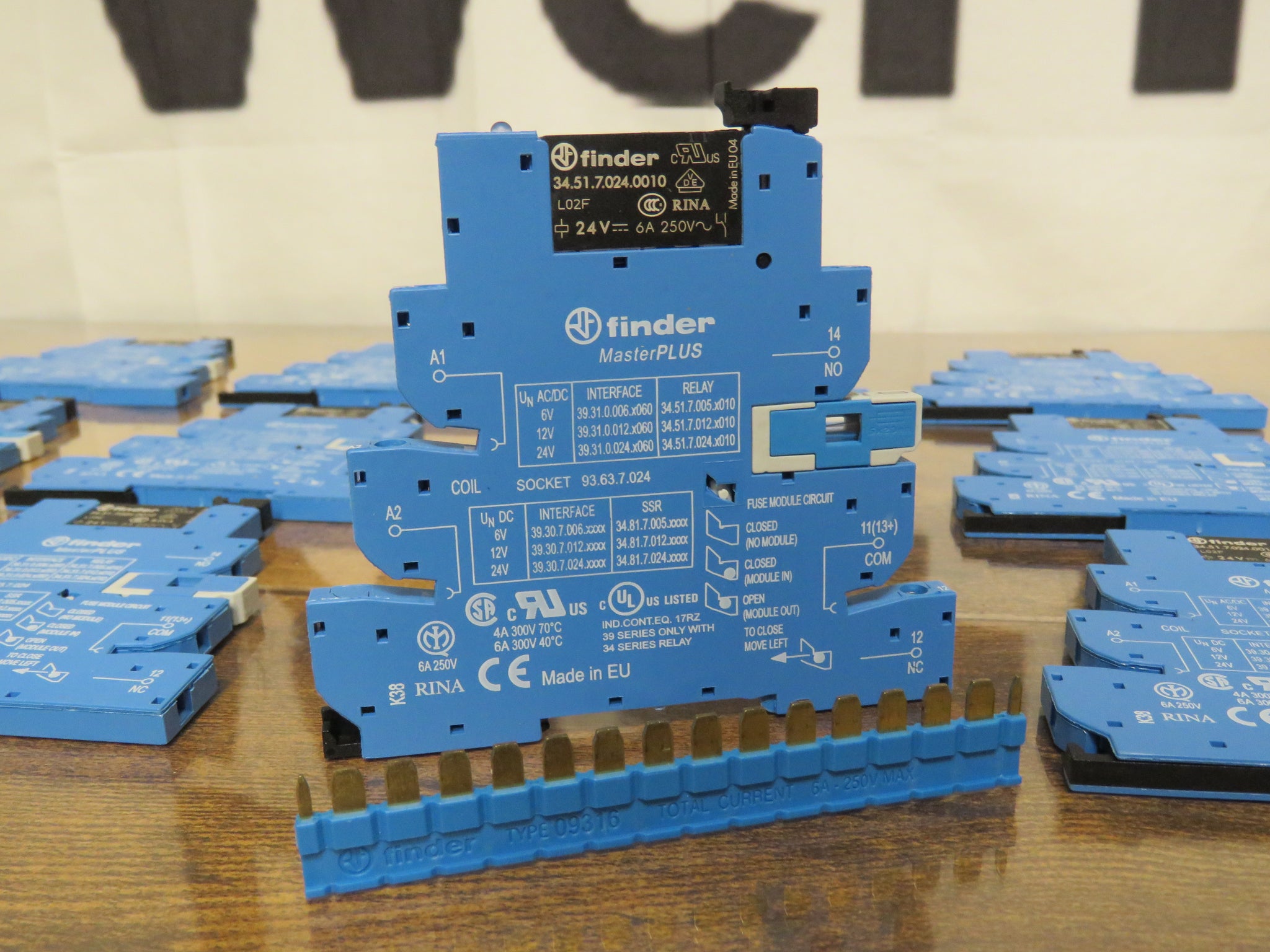

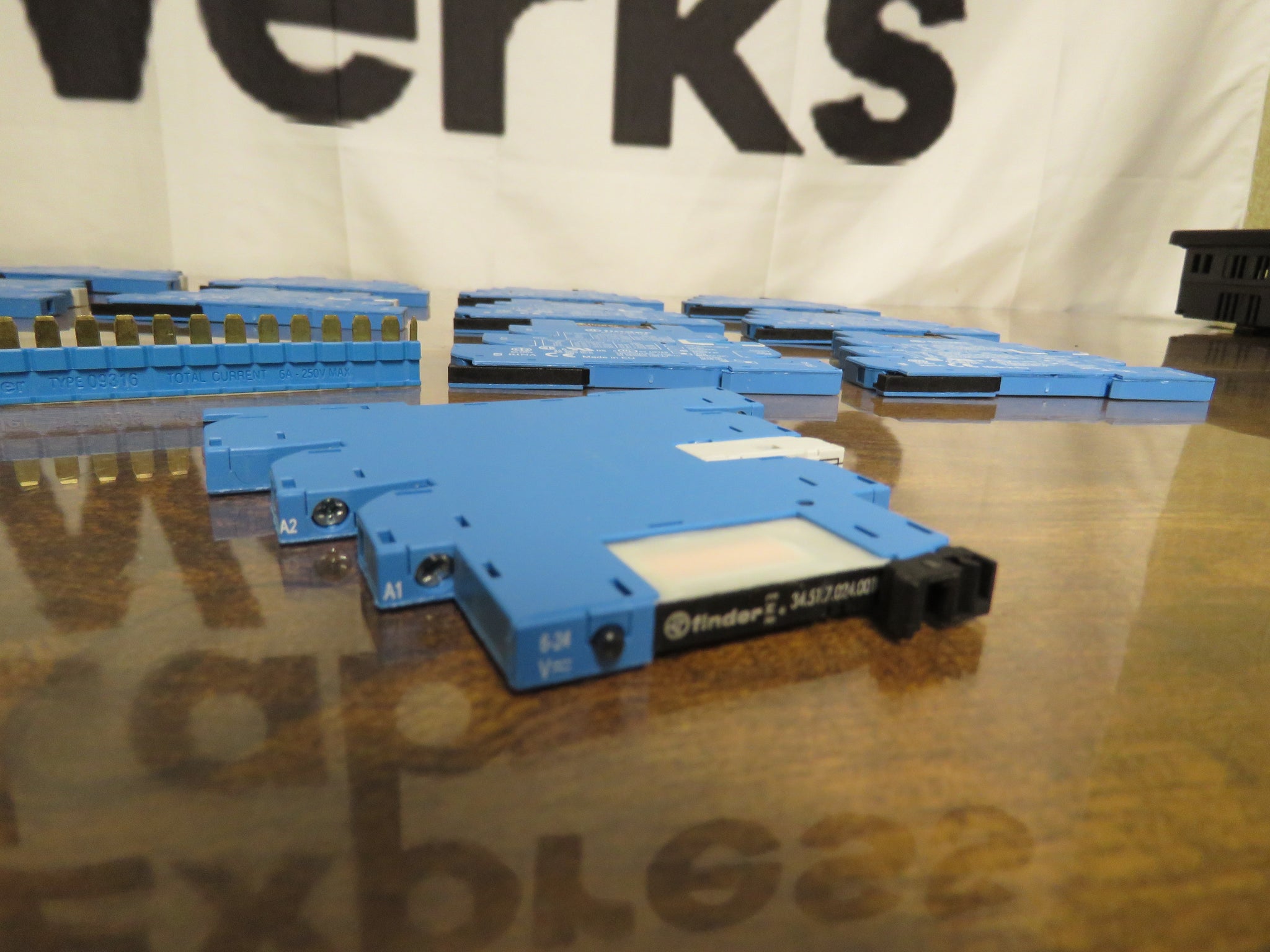

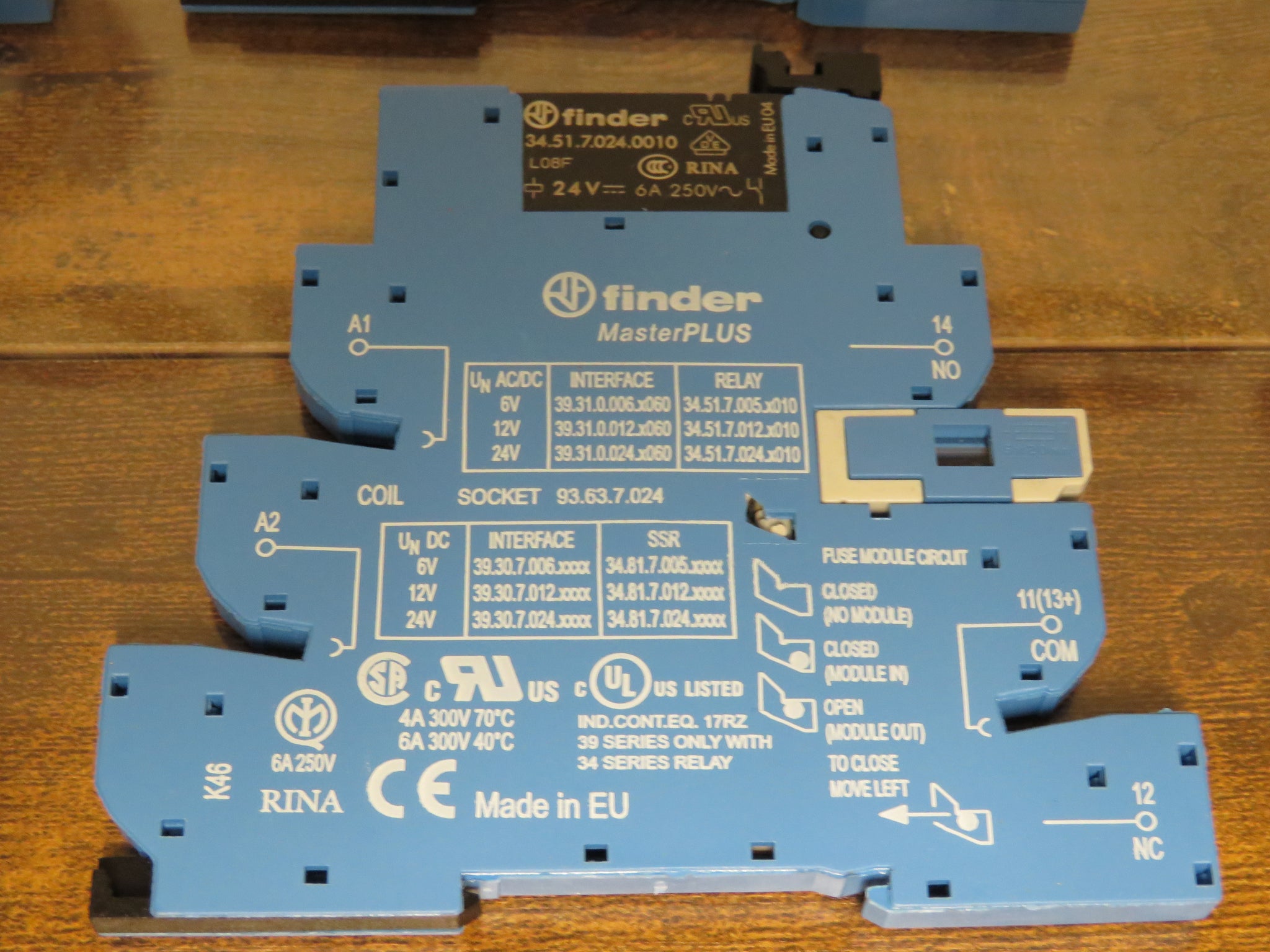

- FINDER MasterPLUS 93.63.7.024 Socket with FUSE
- 34.51.7.024.0010 Relay
- Type 09316 Jumper
BBR3
Warranty
90 Day warranty. We pledge to offer the best service and warranty to all of our customers! We are extending a 90 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.
Certification
This is a genuine product from this manufacturer.
Disclaimer
The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping of the item."
Regardless of the origin of the equipment, documentation provided or identification appearing upon the equipment, the equipment described and offered here is in no way certified for, recommended for, or offered for any specific use. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. The purchaser, by bidding on this equipment, indicates their acknowledgment of, and agreement to the terms of this disclaimer. it is the purchaser's responsibility to have the item inspected and certified by a qualified professional before use!
