Raytheon L-3 Thermal-Eye 400D Palm IR PRO infrared camera + Pelican case & more!

Raytheon

$3,500.00
SKU: thermaleye400d

Web Information

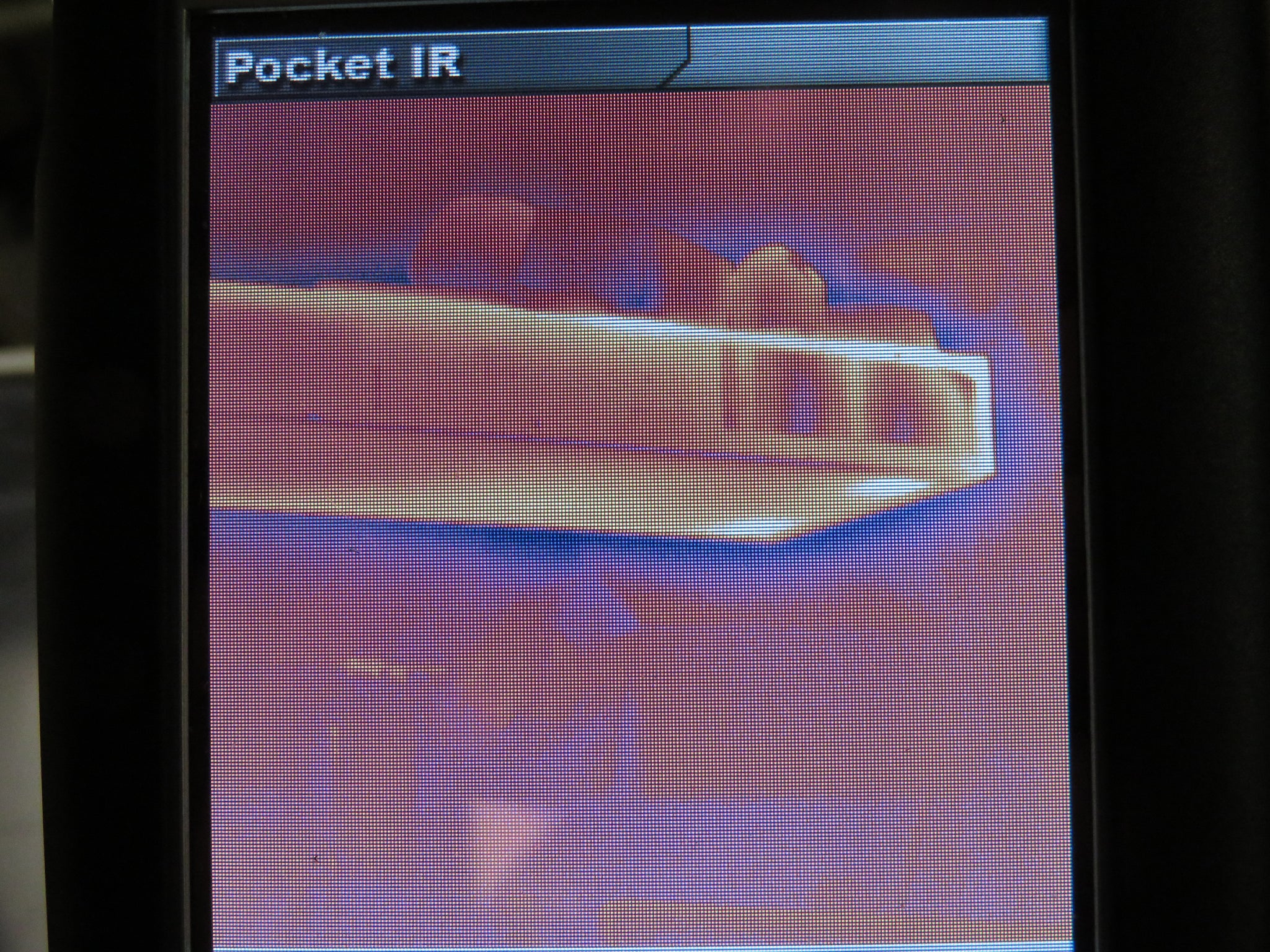

Full Color Real Time Thermal Imaging - The 400 series is the most economical high resolution color infrared camera offering true color thermal images, digital image storage and voice annotation. The unit comes standard with multiple user select able color schemes including Rainbow, Iron, and Grayscale color palettes.

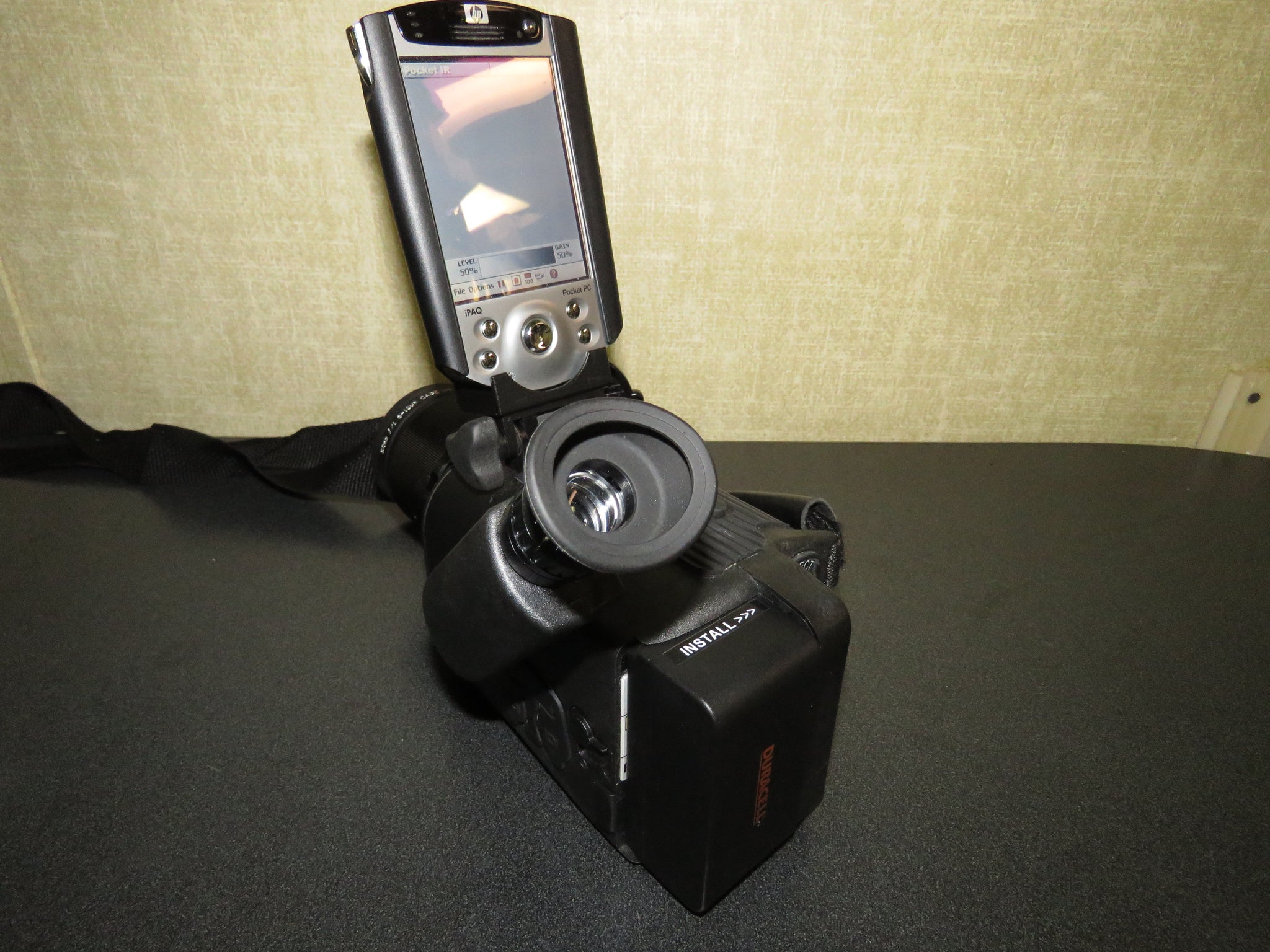

Integrated Eyepiece - The professional grade eyepiece gives you a crisp bright monochrome thermal image with real time imaging and camera controls. The comfortable eyepiece allows you to view the image under bright lights or even direct sunlight.

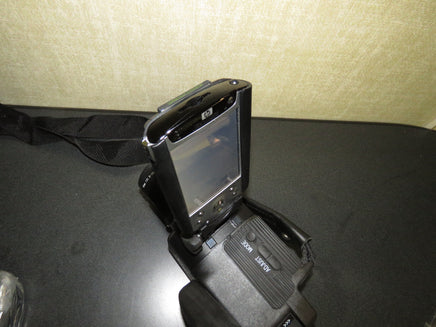

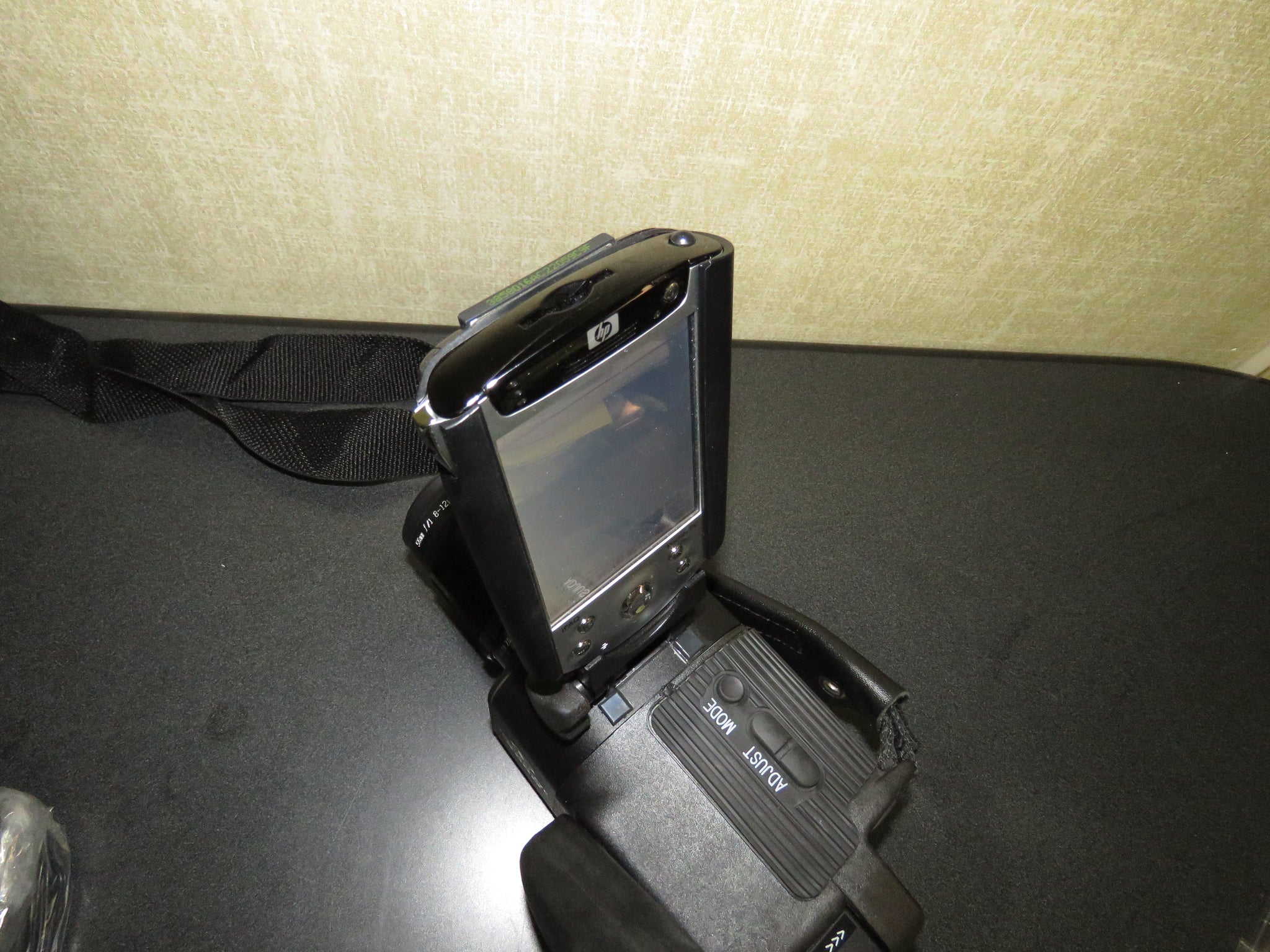

Integrated Compaq IPAQ Module
The integration with the IPAQ computer is seamless. The IPAQ PDA gives you a bright TFT display that is lit from the side to enhance viewing in difficult situations that normal LCD's cannot handle. The powerful Compaq IPAQ (Win CE based) allows you to view real time color thermal imagery and store large numbers of images with audio / text documentation. The most exciting part of the IPAQ add-on is the availability of third party and custom wireless solutions. You can now integrate your field camera with the corporate intranet, cross index all components with bar-code scanning, and even transmit live thermal images to an expert in a distant office half way around the world! The possibilities are endless when you are dealing with a versatile Win CE based computer system.

EZ Software - Simple computer software allows you to download your thermograms taken in the field. Included with the IR PRO 400 D is the SPI EZ Report IR software template solution. We have many upgrades and can arrange custom solutions for your organization.

High Power Zoom- The 400 D and integrated IPAQ offer you a unique high power image zoom capability. The system can zoom up to 16x with the computing power of the IPAQ.

Advanced Image Averaging - Proprietary image enhancement technology gives you the power to integrated multiple frames into a single image all in real time. The advanced image averaging features of the 400D can greatly enhance the look of your images as well as give you a tool to analyze difficult components.

Light Weight Leader - The entire package is featherweight and can easily be used as a field, lab, or toolbox instrument.

The Thermal-Eye 400D handheld color-imaging camera provides digital data storage and robust performance, all combined with Raytheon reliability. The Thermal-Eye 400D boasts an affordable price and excellent image quality.


With the power and flexibility of the industry's leading PDA, the Thermal-Eye 400D can store and recall over 150 images. Perfect for industrial or public safety applications, the Thermal-Eye 400D can be used for predictive maintenance, process control, insulation analysis and general law enforcement surveillance operations.

This camera is a long wave, uncooled, handheld, Focal Plane Array camera. The package is not capable of temperature measurement. This camera is best suited for Preventive Maintenance, Research and Development, Surveillance and Medical Applications. The Camera stores images on a PCMCIA Card, and the images can be easily dropped into Word, Excel, PC Paint



Performance
Detector Type
BST Uncooled focal plane array, FPA (320 x 240 pixels) Digital
Digitizing resolution
12 bits
Detector Sensitivity
Better than 0.1 °C
Wavelength Sensitivity
7-14 microns
Video update rate
60 Hz (NTSC) or 50 Hz (PAL)

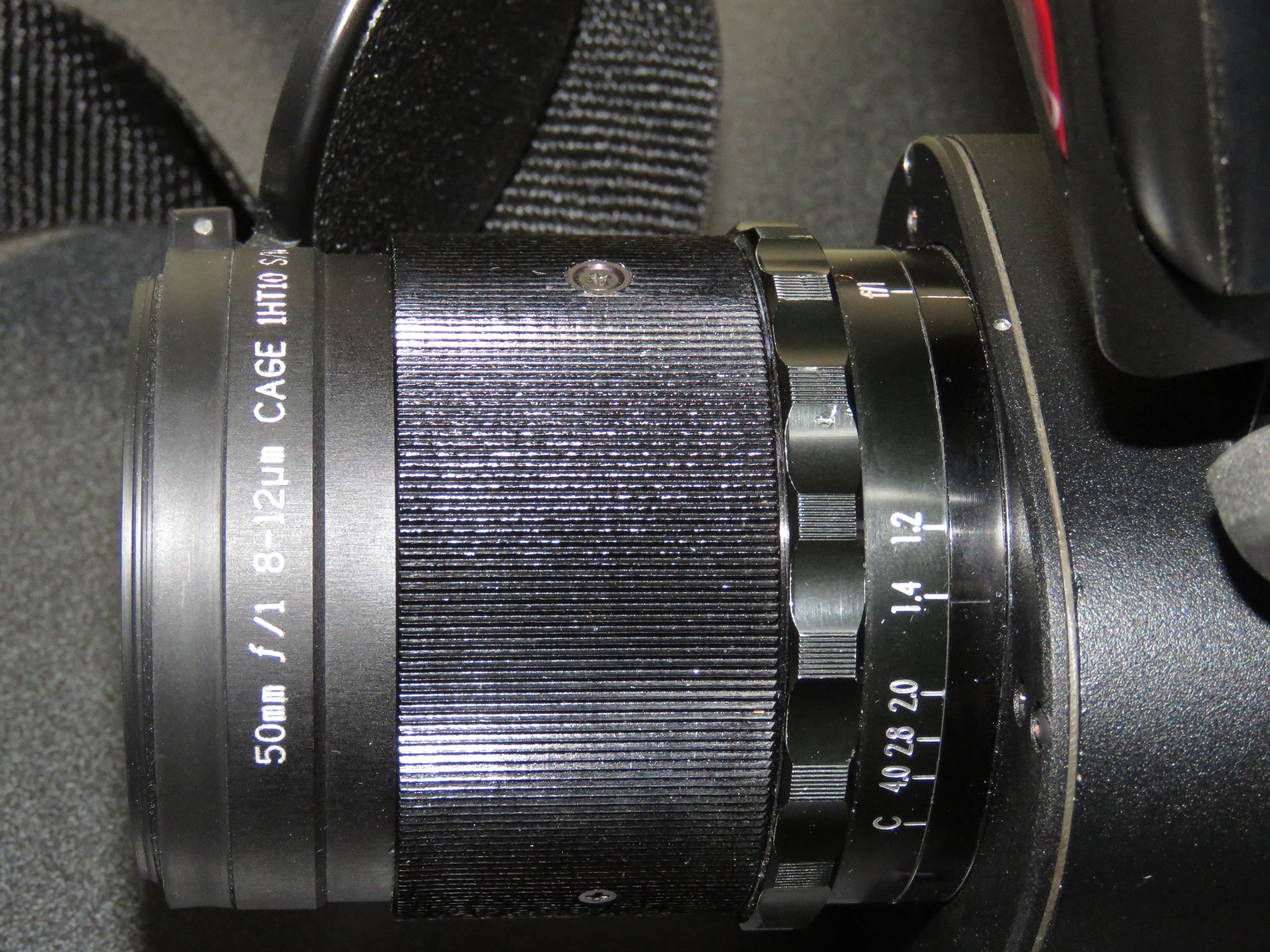

Standard Lens
50 mm f1.0 or 25mm f1.0
Field of View
36 x 27 (25mm) 18 x 13.5 (50mm)
Viewfinder
Monochrome
Focus Type
Manual w/Iris
Video Output
Composite color NTSC or PAL (RCA Jack)
Viewfinder
Black and White
Power Conservation
Camera operates with viewfinder off
Data Logger Interface
Windows CE
Digital LCD Display
Bright Color LCD Via Compaq IPAQ Handheld Computer
Integrated Image Recorder / Color Display Features
Image storage / recall text and audio annotation color palette selection and digital zoom
Removable Image Storage
16mb compact flash memory card (>150 images) Upgrade able to standard Compact Flash card memory.
Integrated Front Lit PDA
LCD Display color LCD.
240 x 320 H x V front illuminated touch sensitive NTSC or PAL real time update rate.
Memory
16mb memory card
Battery Separate for PDA
950 mAh Lithium Polymer, rechargeable
User Interface
Windows CE
Image Storage
150 images
Infrared Software
Download PRO infrared software
EZ Report IR template
IR Resources Level 1
Video Output
Full Color Output RCA jack NTSC or PAL compatible with all standard video recording equipment

Power

Power Supply
Rechargeable Camcorder Battery (6VDC) 4 Standard
Power Consumption
<8W (w / PDA), <6W (w/o PDA)
Power Conservation
Standby mode for instant on
Operating Time per Charge
More than 2 hours (Variable)
Charging
AC Fast Charger
Physical
Dimensions
10”L x 5.5”W x 5.5”H (w / PDA) or
10”L x 5/5”W x 4”H (w/o PDA)
Weight
4.8 lb (w / PDA), 4.1 lb (w/o PDA)
Mounting Provisions
Tripod mount
Environmental
Operating Temperature
-20° to 49°C (-4° to 120°F)
Storage Temperature
-25° to 60°C (-13 to 150°F)
Operating humidity
0 - 95% non-condensing
Special Package
IR400 Infrared Camera with Lens Cap and Hand Strap
AC/DC Battery Charger Kit (110/220 VAC)
3 Rechargeable Batteries
EZ Report IR Reporting Template Software
Operations Manual
Carrying Case
RCA Video Cable
Voice Annotation
Durable Neck Strap

Condition

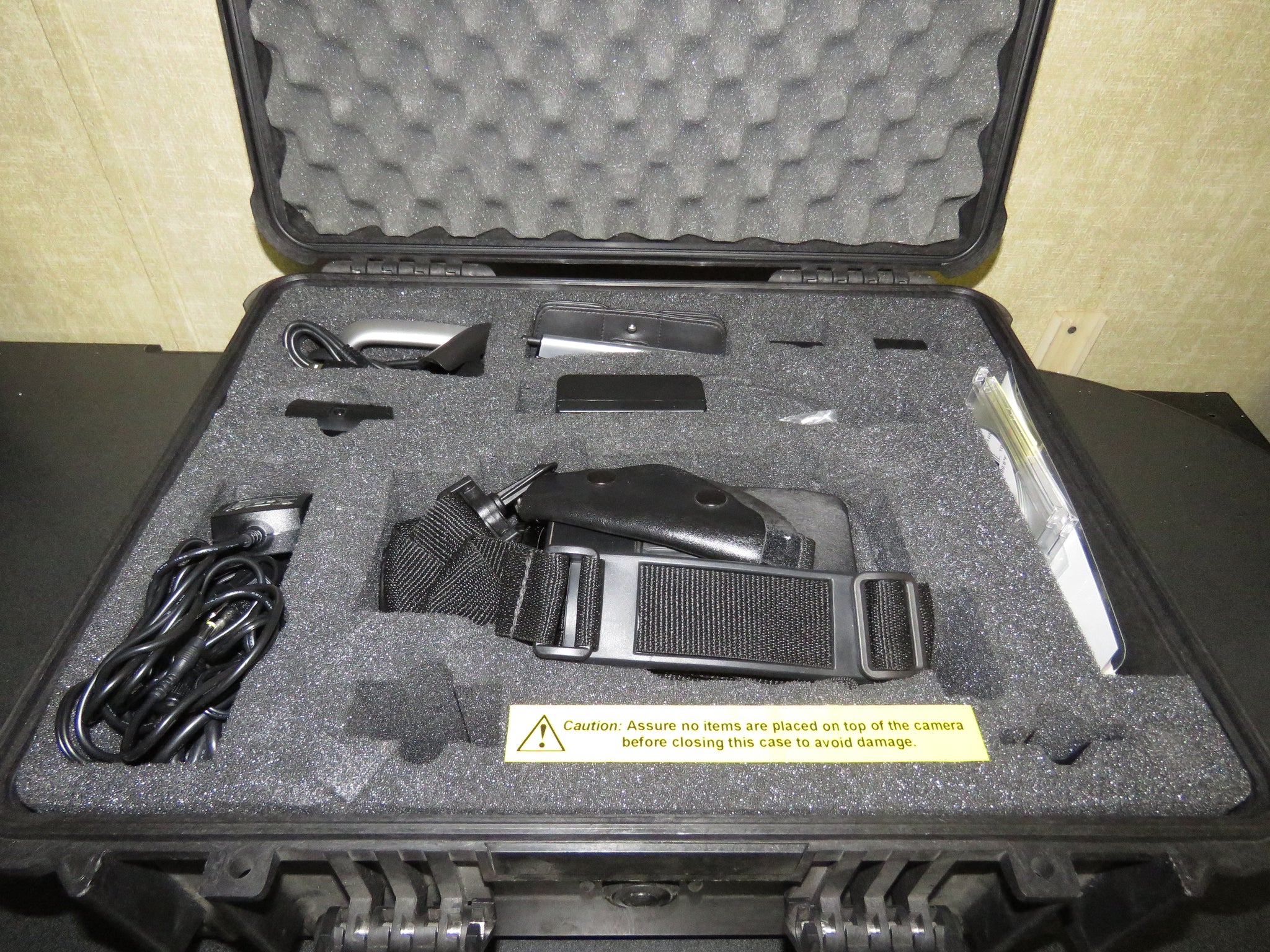

Preowned, excellent condition.  Camera is in great working and cosmetic condition.  Comes complete with waterproof pelican travel case.

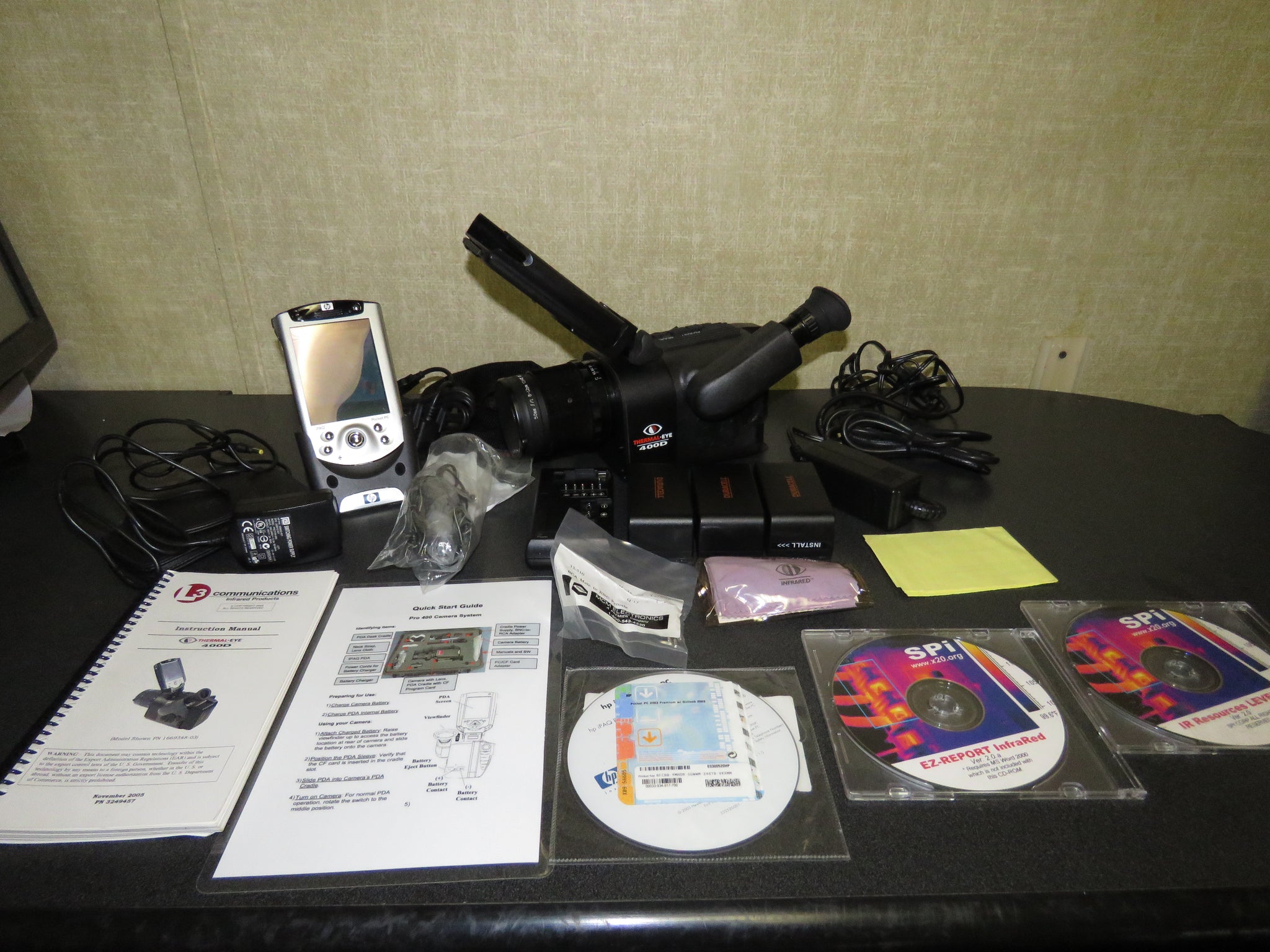

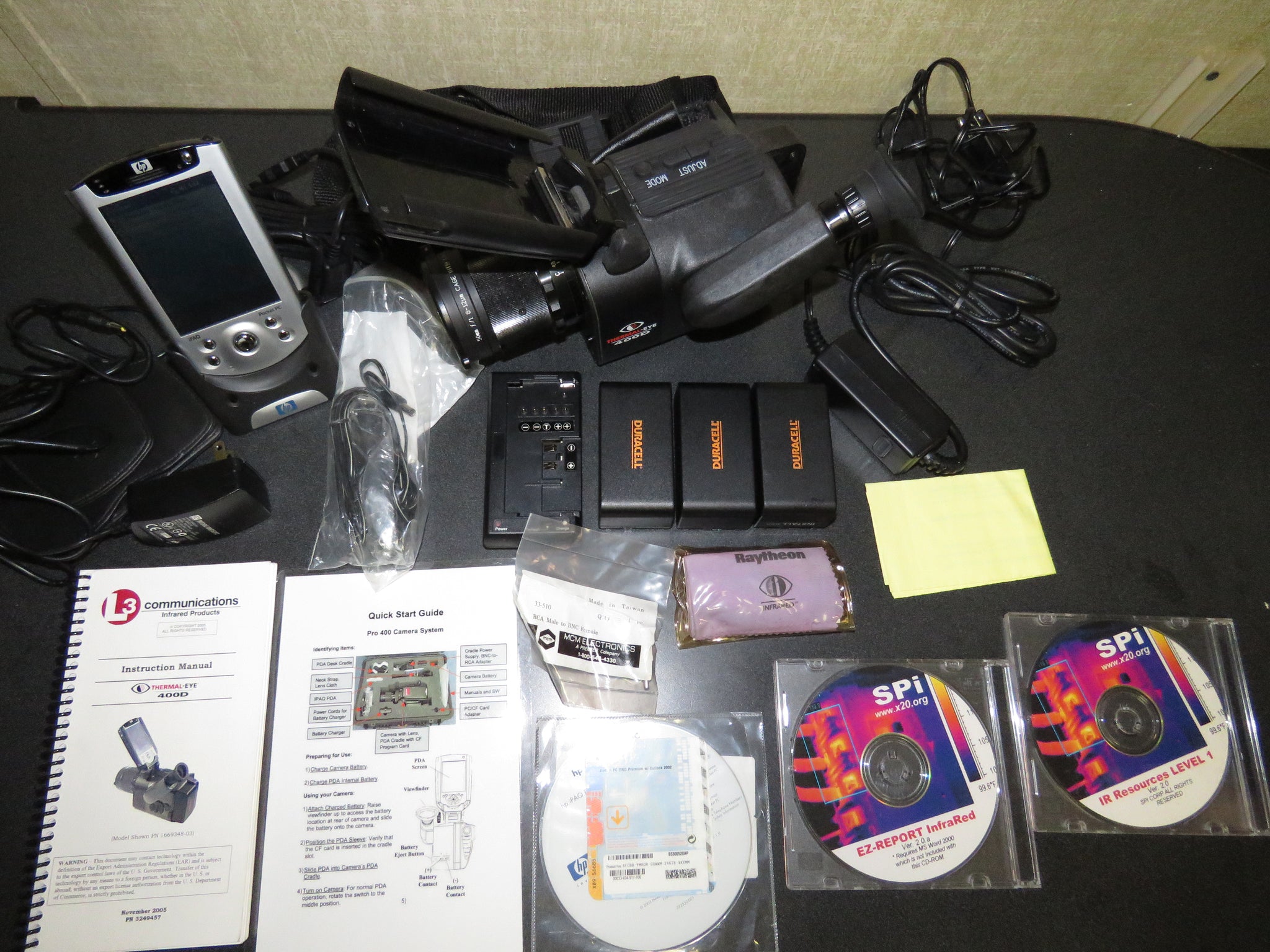

Includes

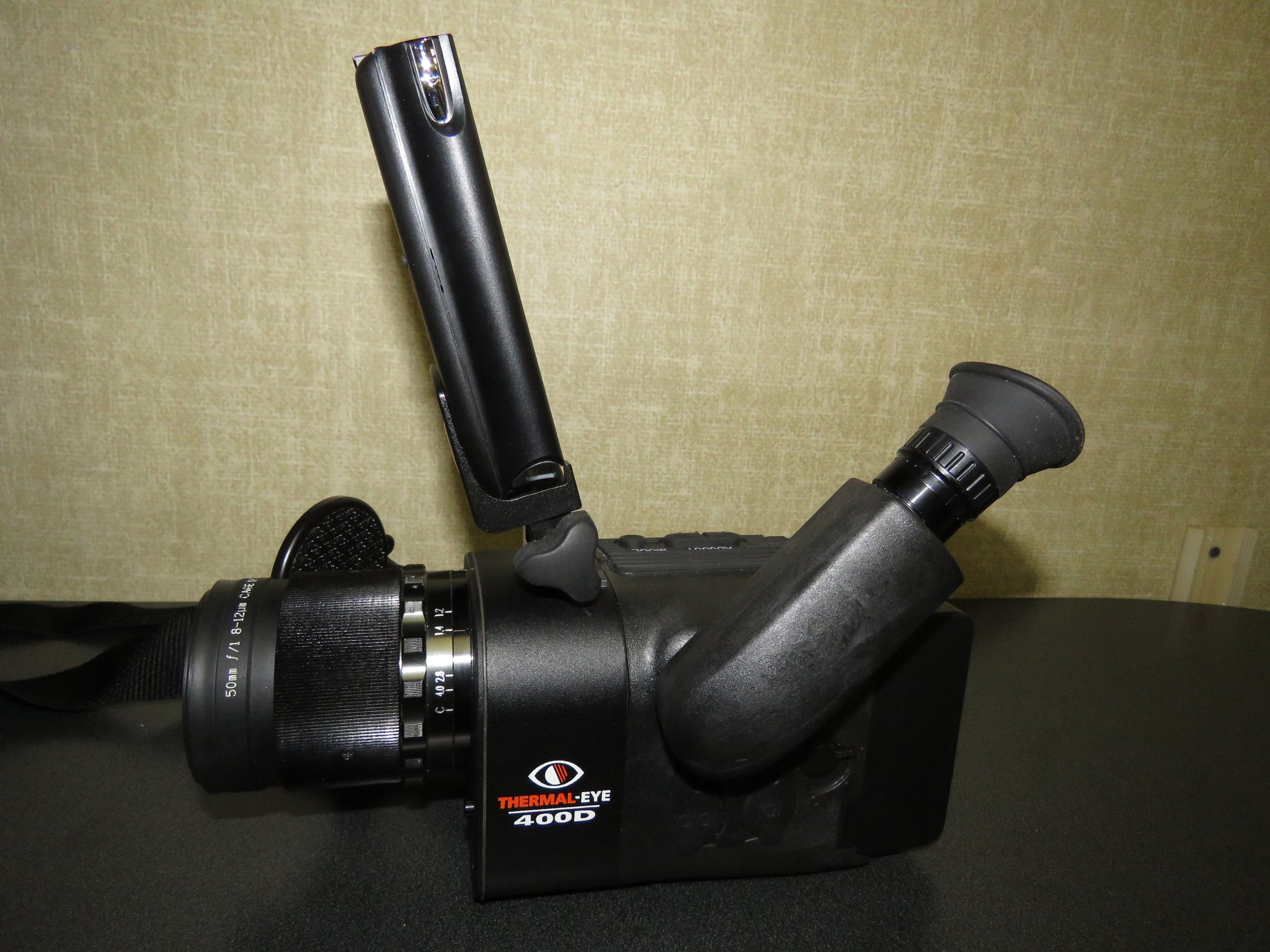

    (1) Raytheon L-3 Thermal-Eye 400D infrared camera
    (1) Camera battery charger

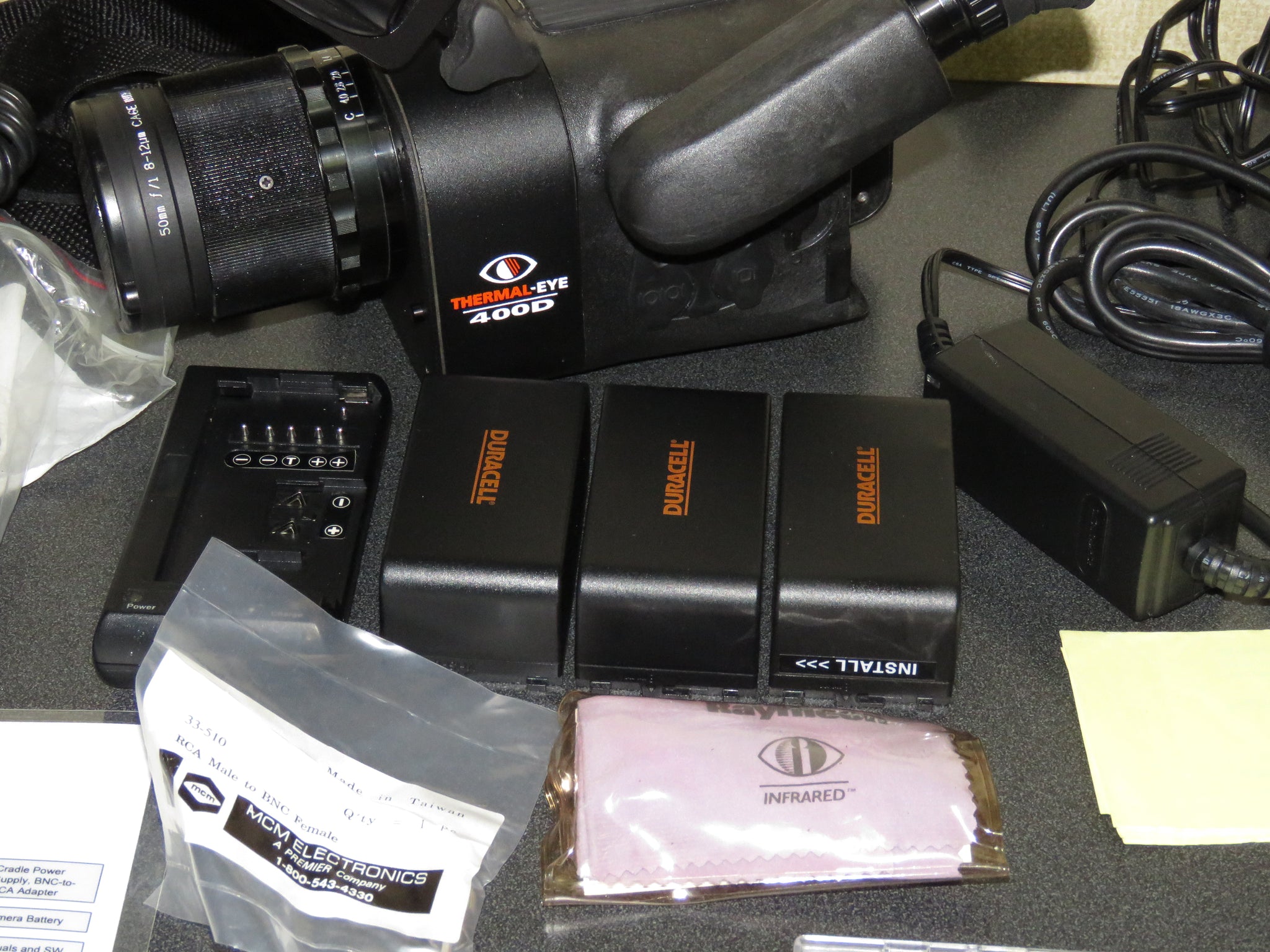

    (3) Duracell batteries (used, without warranty)

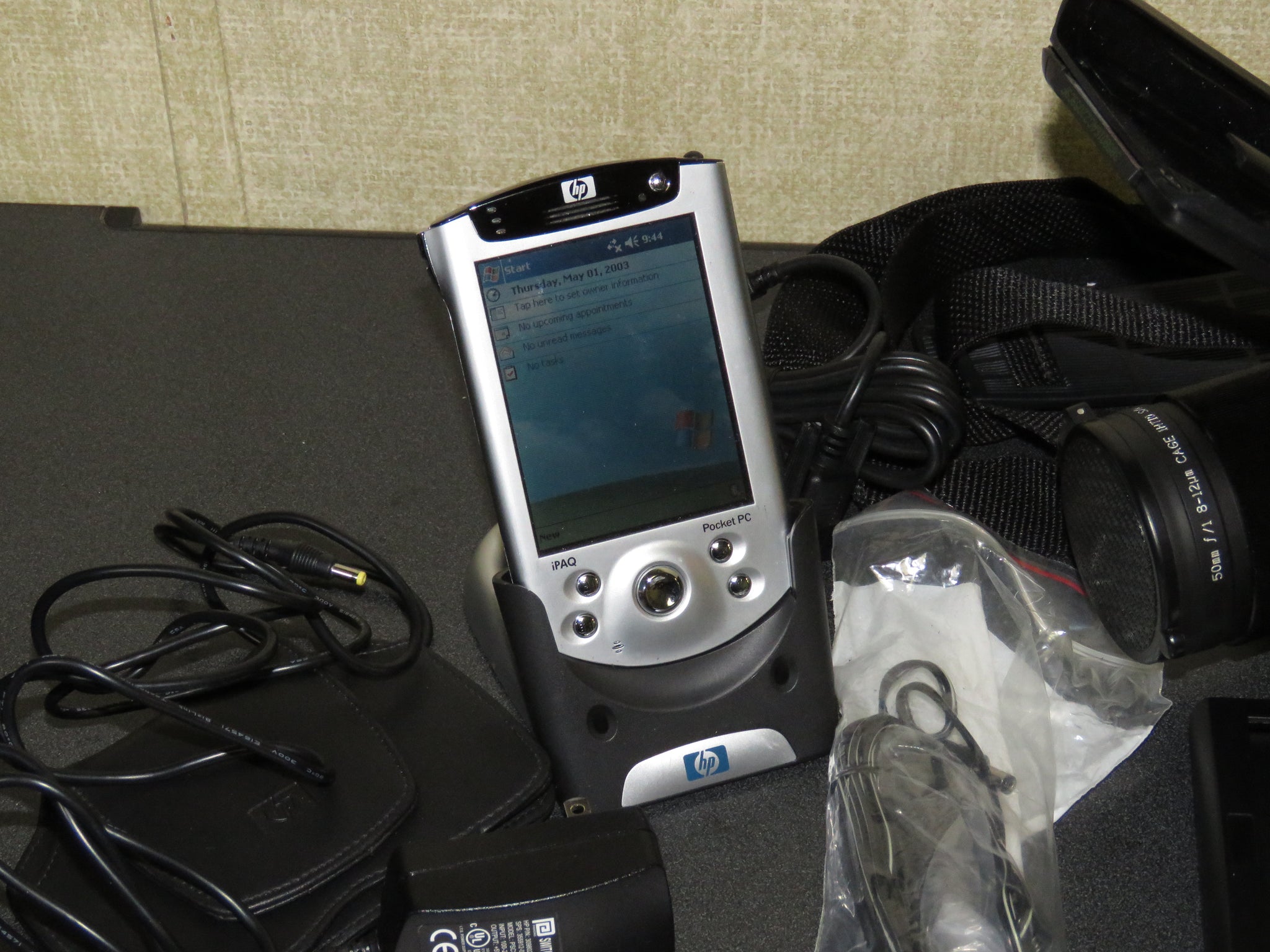

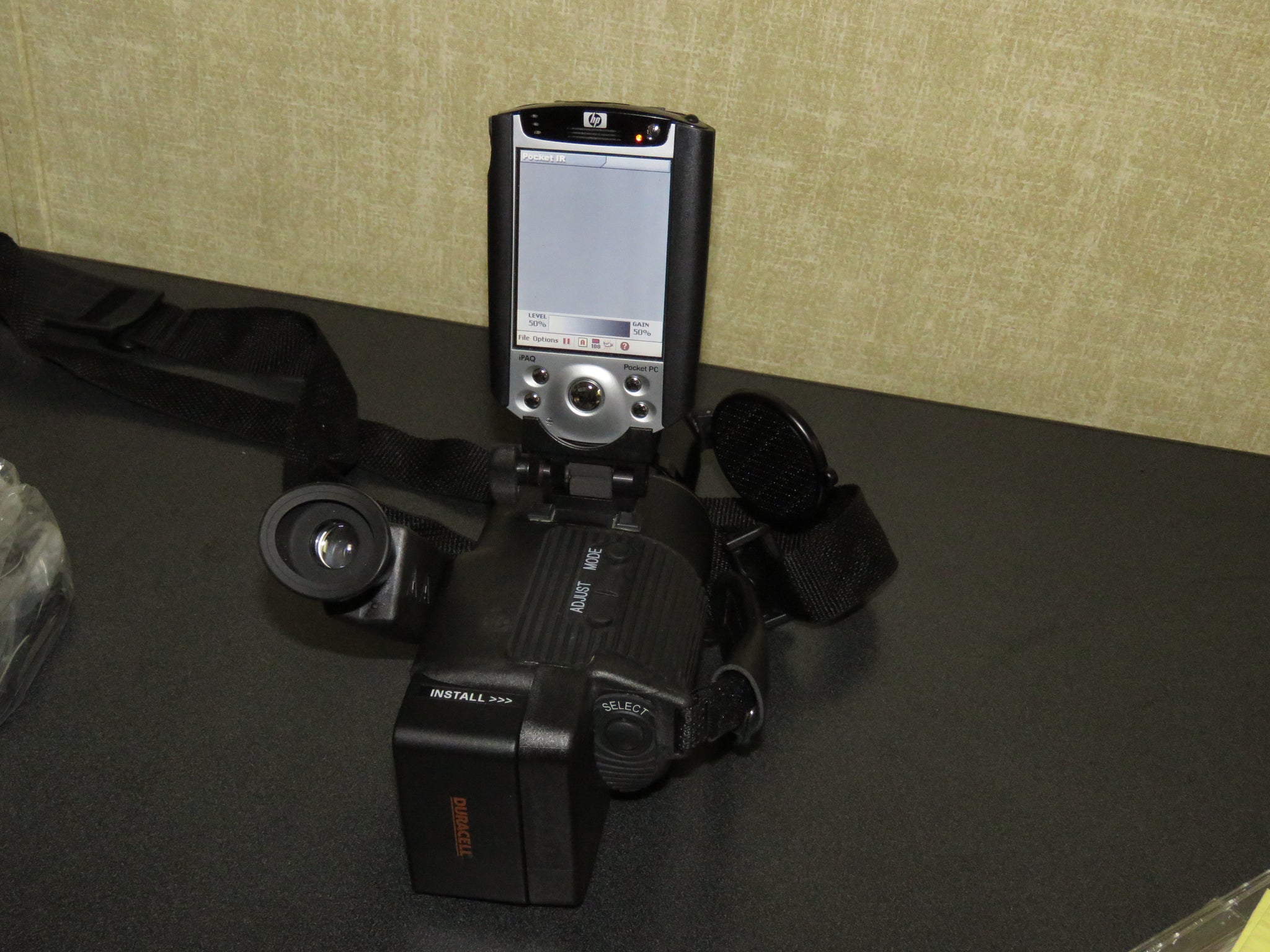

    (1) HP iPAQ pocketPC with IR Pro software installed

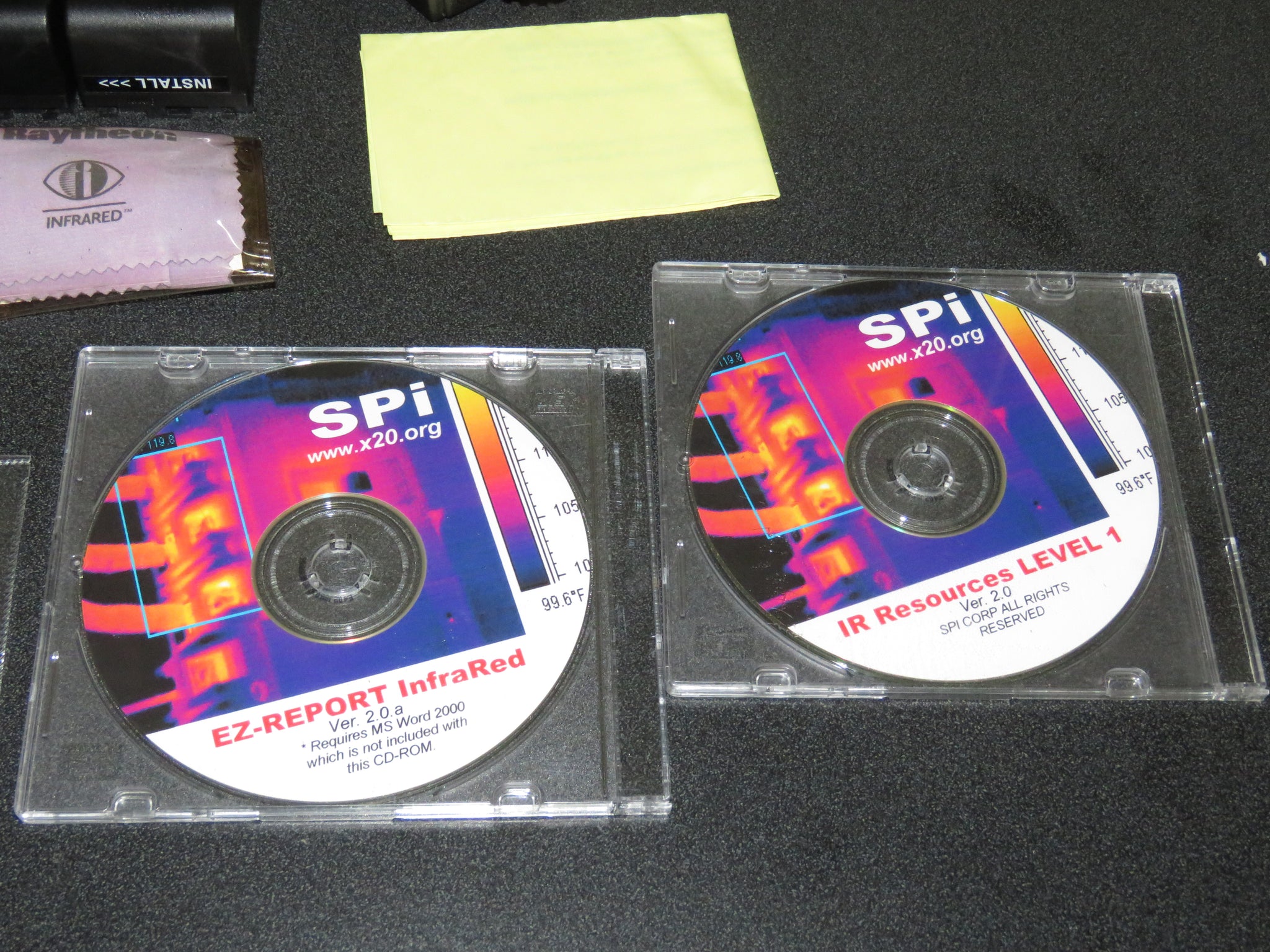

    SPi EZ Report and IR Resources Level 1 software cds
    (2) power supplies

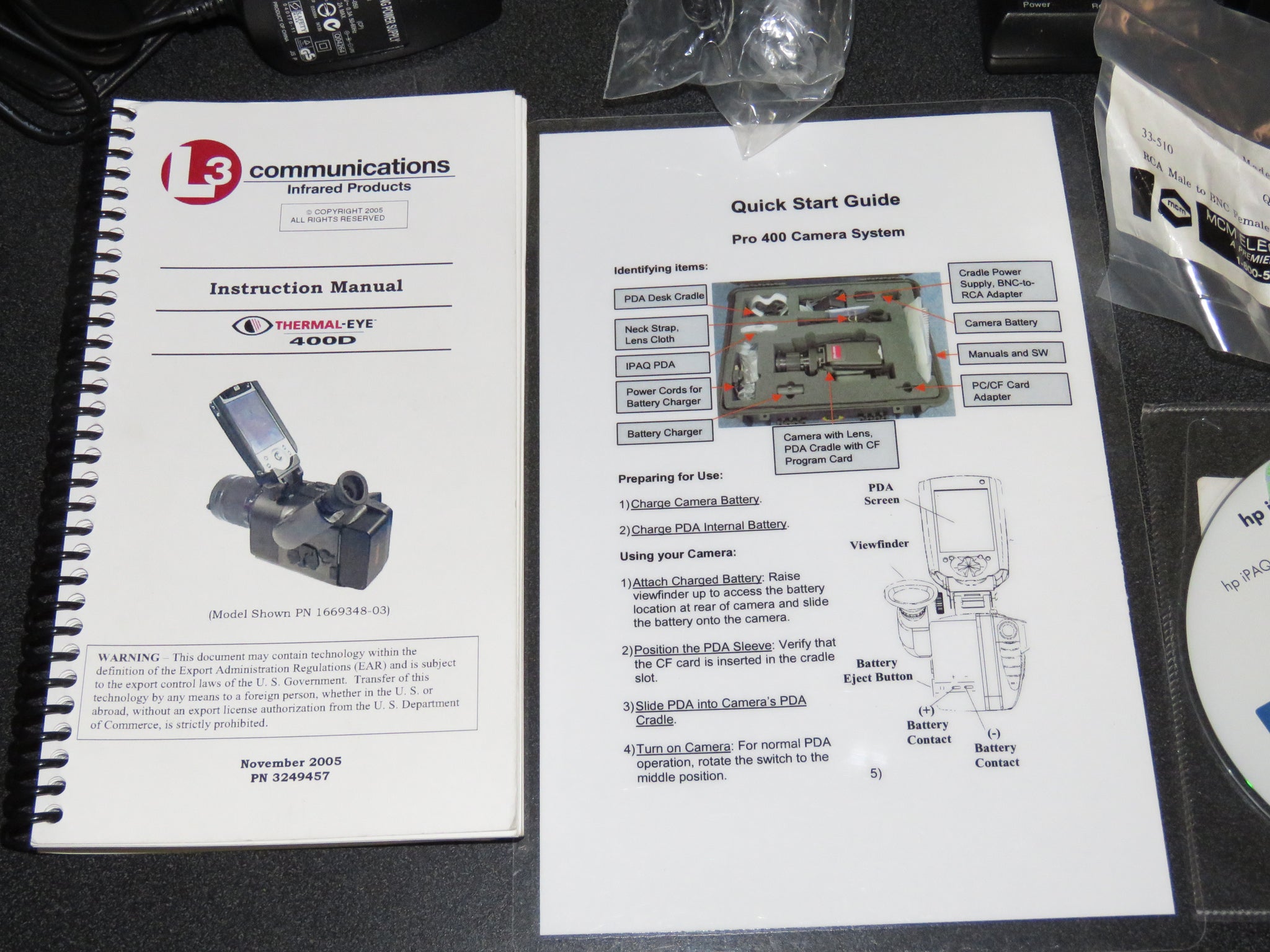

    Quick start guide and operator manual

    Warranty

    30 Day warranty. We pledge to offer the best service and warranty to all of our customers!  We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.

    Certification

    This is a genuine product from this manufacturer.
