Seiko Instruments SII DPU-414 Thermal Printer w/ Serial Cable, Power Cord & Warranty
Web Information
|
Model |
DPU-414 |
|
|---|---|---|
|
*1 Use recommended thermal papers. *2 Excluding protrusion. |
||
|
Printing |
Method |
Thermal serial dot printing |
|
Number of dots/line (H×W) |
9 × 320 |
|
|
Paper width (mm) |
112 |
|
|
Printing width (mm) |
89.6 |
|
|
Speed (character/sec) max |
52.5 |
|
|
Character matrix (H×W dots) |
9 × 7 |
|
|
Character size (H×W mm) |
2.5 × 1.9, 2.5 × 0.9 (Condensed) |
|
|
Number of columns |
40, 80 (Condensed) |
|
|
Character type |
Extended graphics character set, Alphanumeric, International characters, Katakana character set |
|
|
Power supply (V) |
Option: Specified AC adapter, Ni-MH battery |
|
|
Battery |
Without (option) |
|
|
Communication interface |

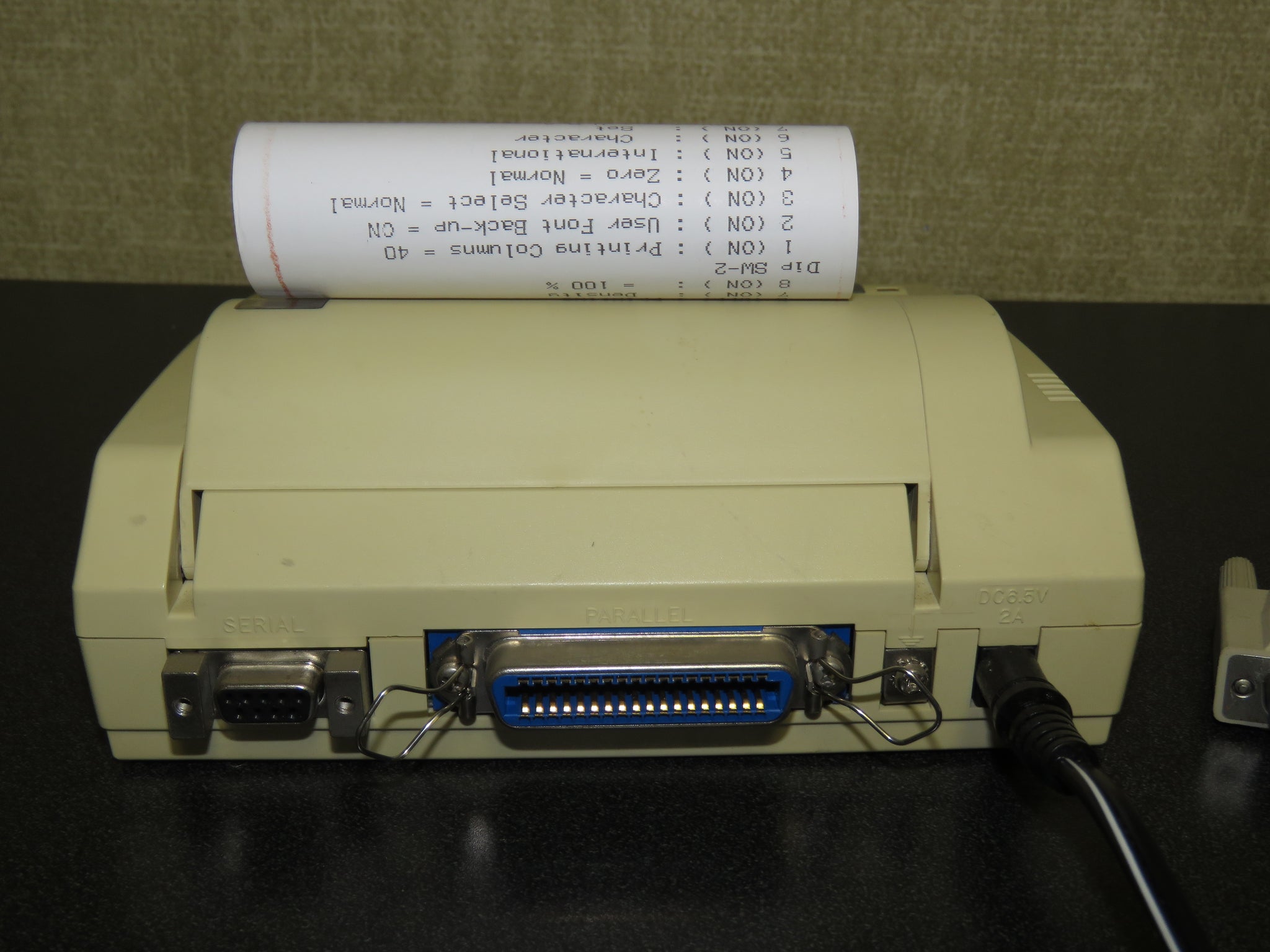

Parallel (36pins Amphenol), Serial (9pins D-SUB) |
|
|
Input buffer |
28K bytes |
|
|
Command |
ESC/P™ conformity |
|
|
Cutting |
Tear bar |
|
|
Operating temperature (˚C) |
0 to 40 |
|
|
Service life (line) |
500,000*1 |
|
|
Dimensions (W×D×Hmm) |
160.0 × 170.0 × 66.5 (printer unit only)*2 |
|
|
Mass (g) |
Approx. 580 (without Battery) |
|
|
Standard |
FCC, CE, VCCI, CCC |
|
|
Option |
AC adapter, Battery |
|

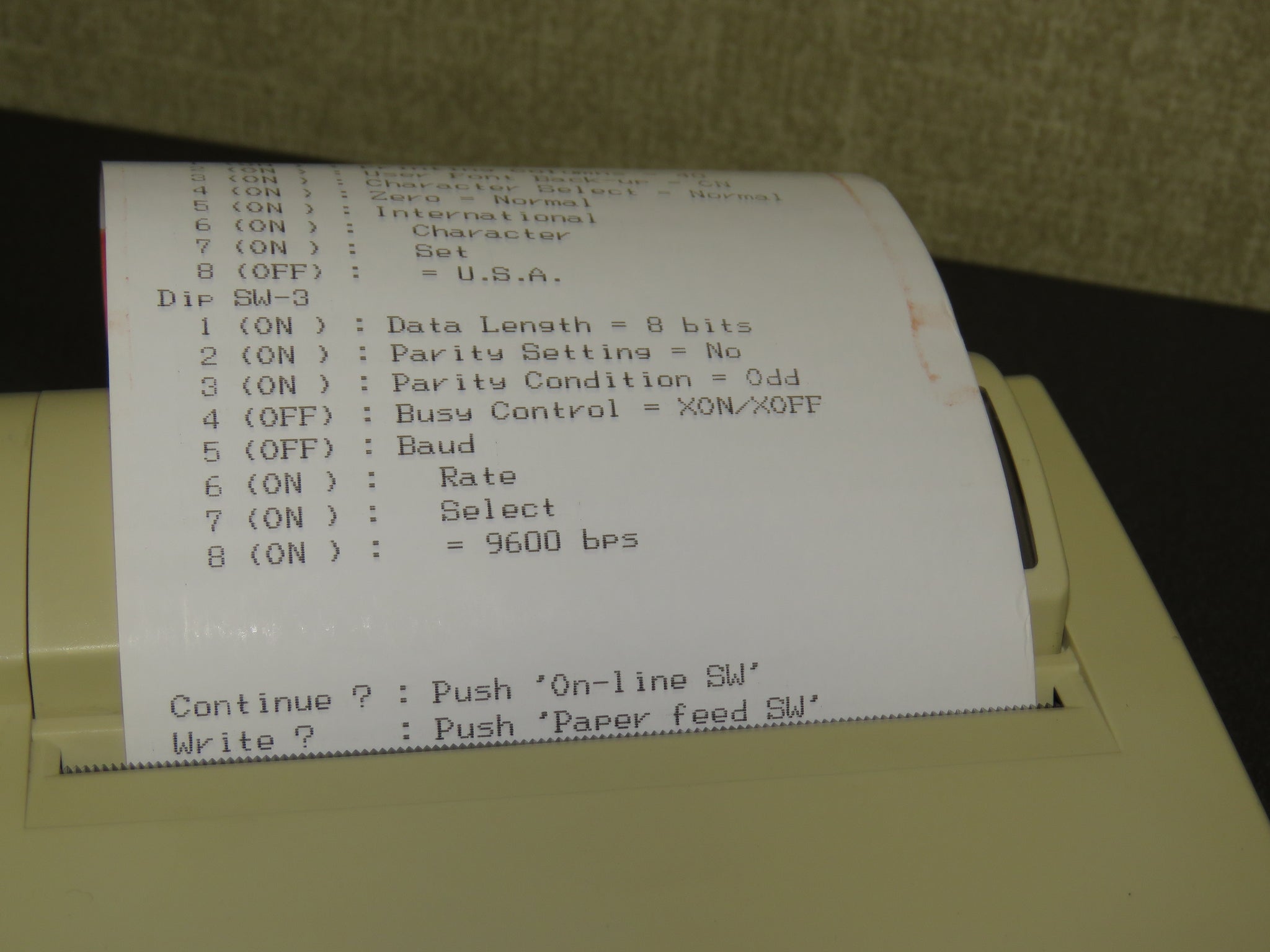

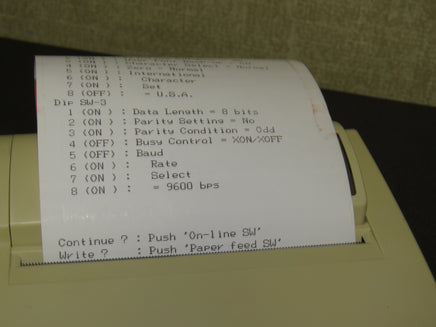

Serial interface specification
|
Item |
Specification |
|---|---|
|
Baud rate |
75, 110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200bps |
|
Data bit |
7bits, 8bits |
|
Parity bit |
Odd, Even, or None |
|
Stop bit |
1bit |
|
Control method |
H/W BUSY, Xon/Xoff |
Parallel interface specification
|
Item |
Specification |
|---|---|
|
Synchronization |
Synchronized with STROBE signal |
|
Handshaking |
Synchronized with ACK and BUSY signal |
|
Signal level |
TTL level |
Condition
Good working condition. Print quality is excellent.

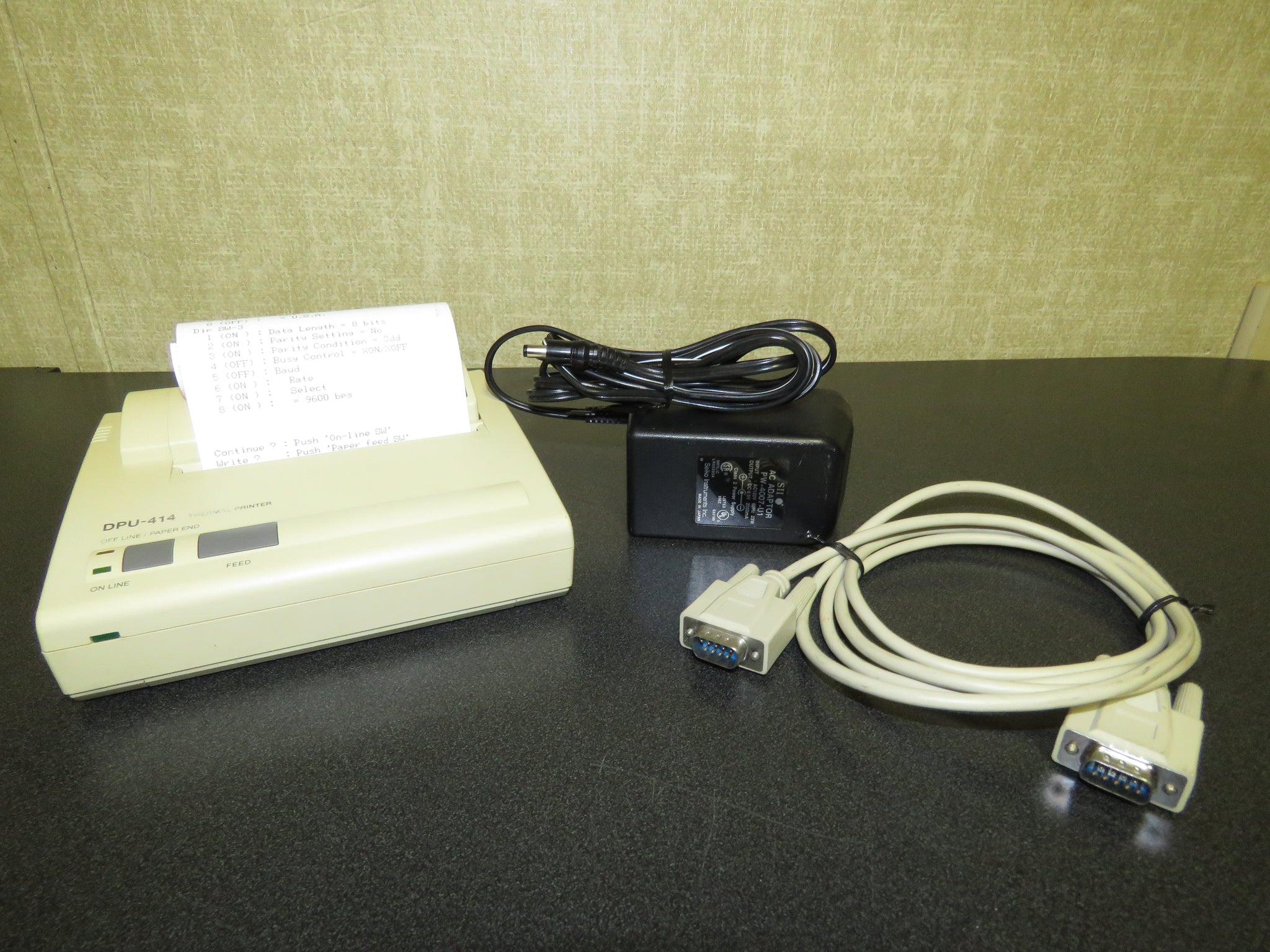

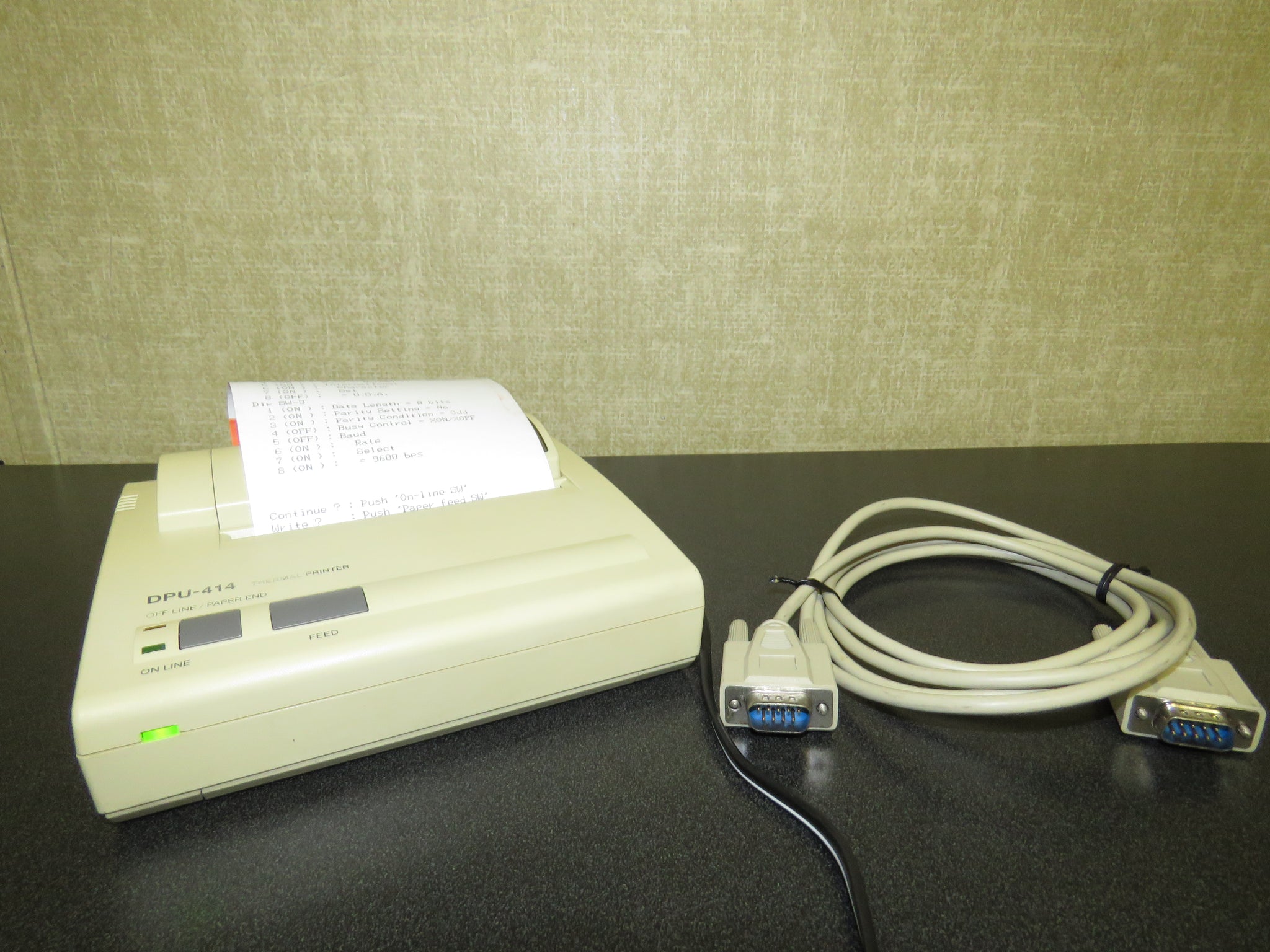

Includes

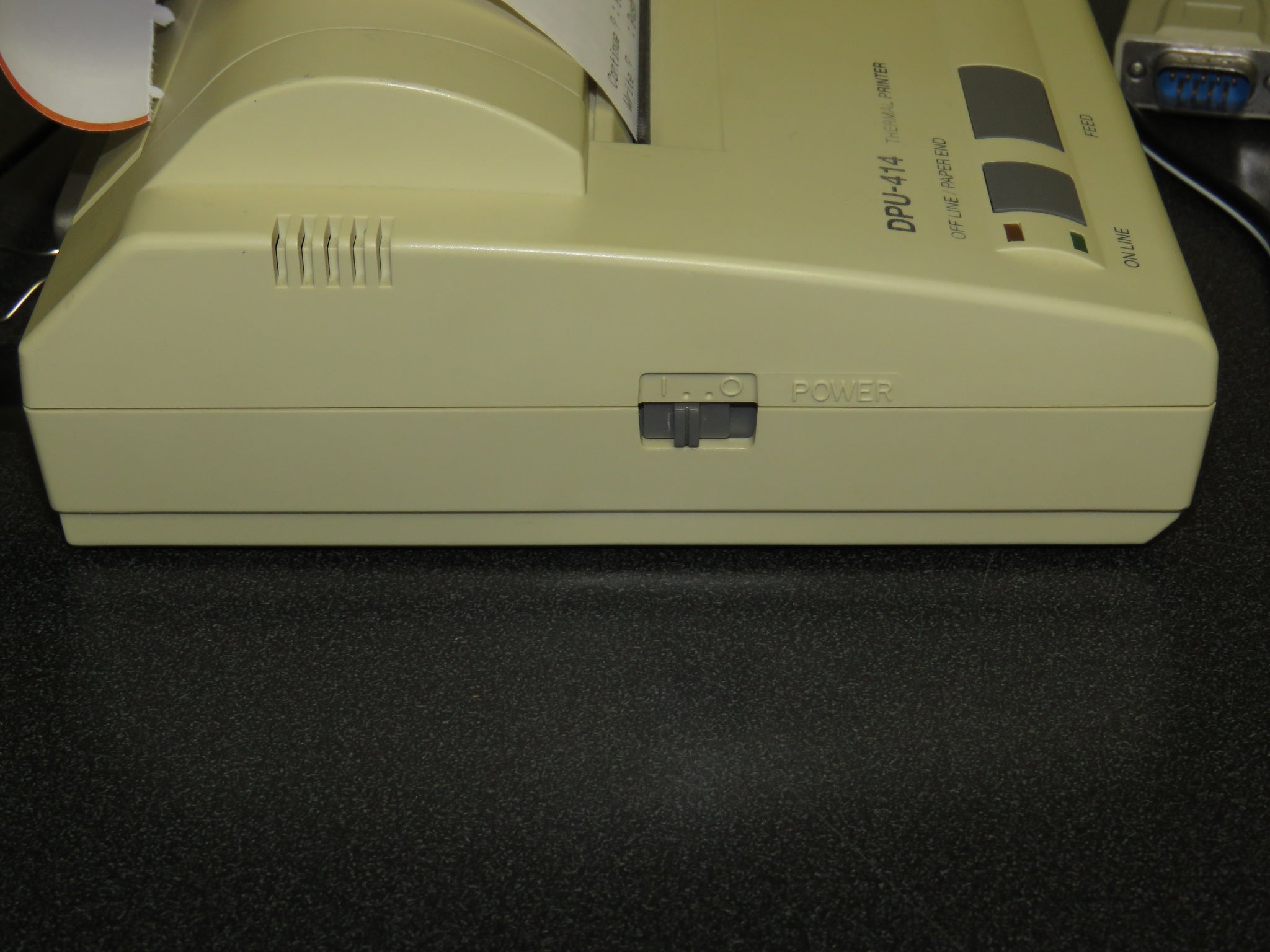

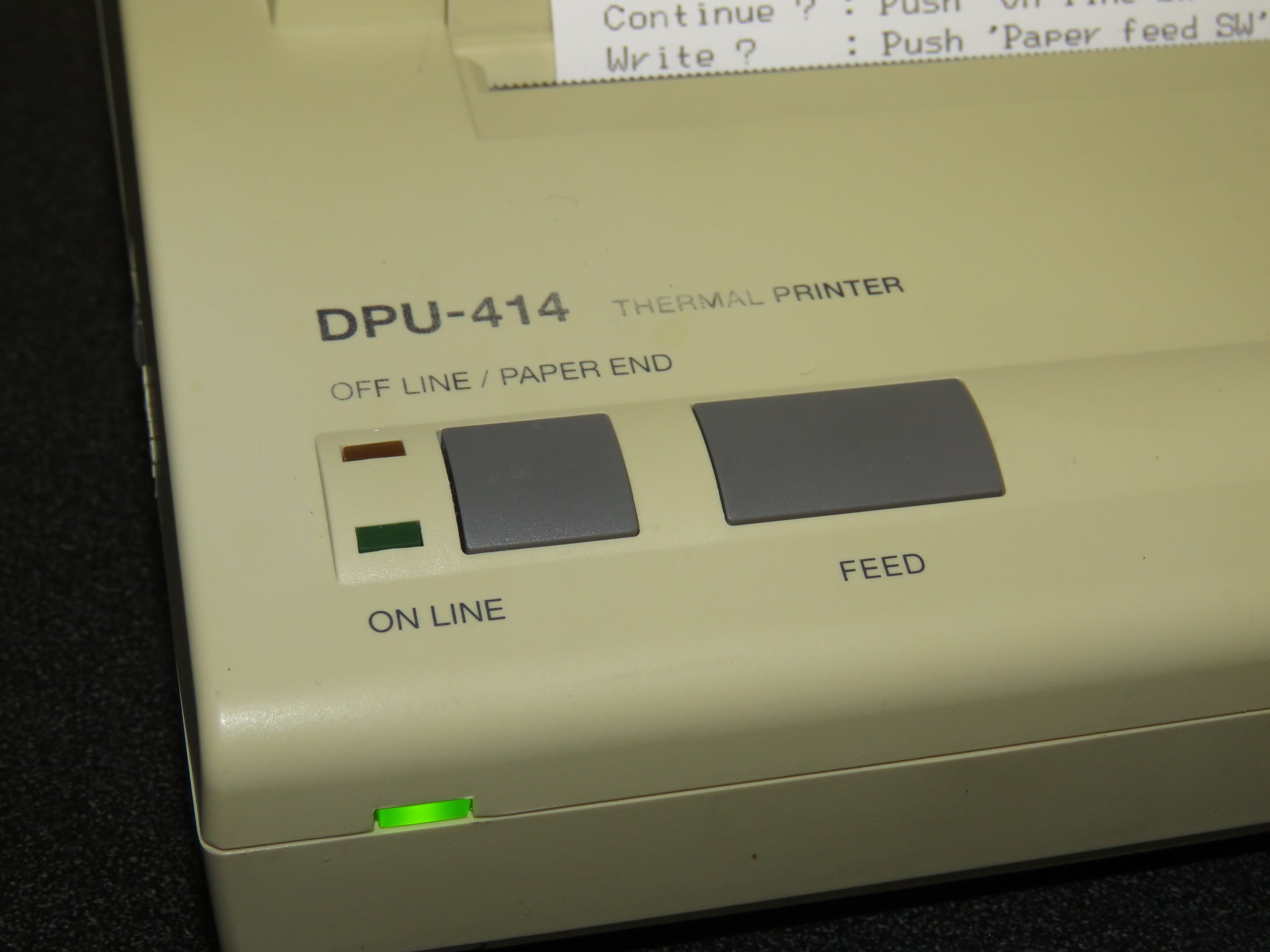

- Seiko Instruments SII DPU-414 Thermal Printer
- 9 Pin serial interface cable
- AC adapter
LR
Warranty
30 Day warranty. We pledge to offer the best service and warranty to all of our customers! We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.
Certification
This is a genuine product from this manufacturer.
Disclaimer
The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping of the item."
Regardless of the origin of the equipment, documentation provided or identification appearing upon the equipment, the equipment described and offered here is in no way certified for, recommended for, or offered for any specific use. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. The purchaser, by bidding on this equipment, indicates their acknowledgment of, and agreement to the terms of this disclaimer. it is the purchaser's responsibility to have the item inspected and certified by a qualified professional before use!
