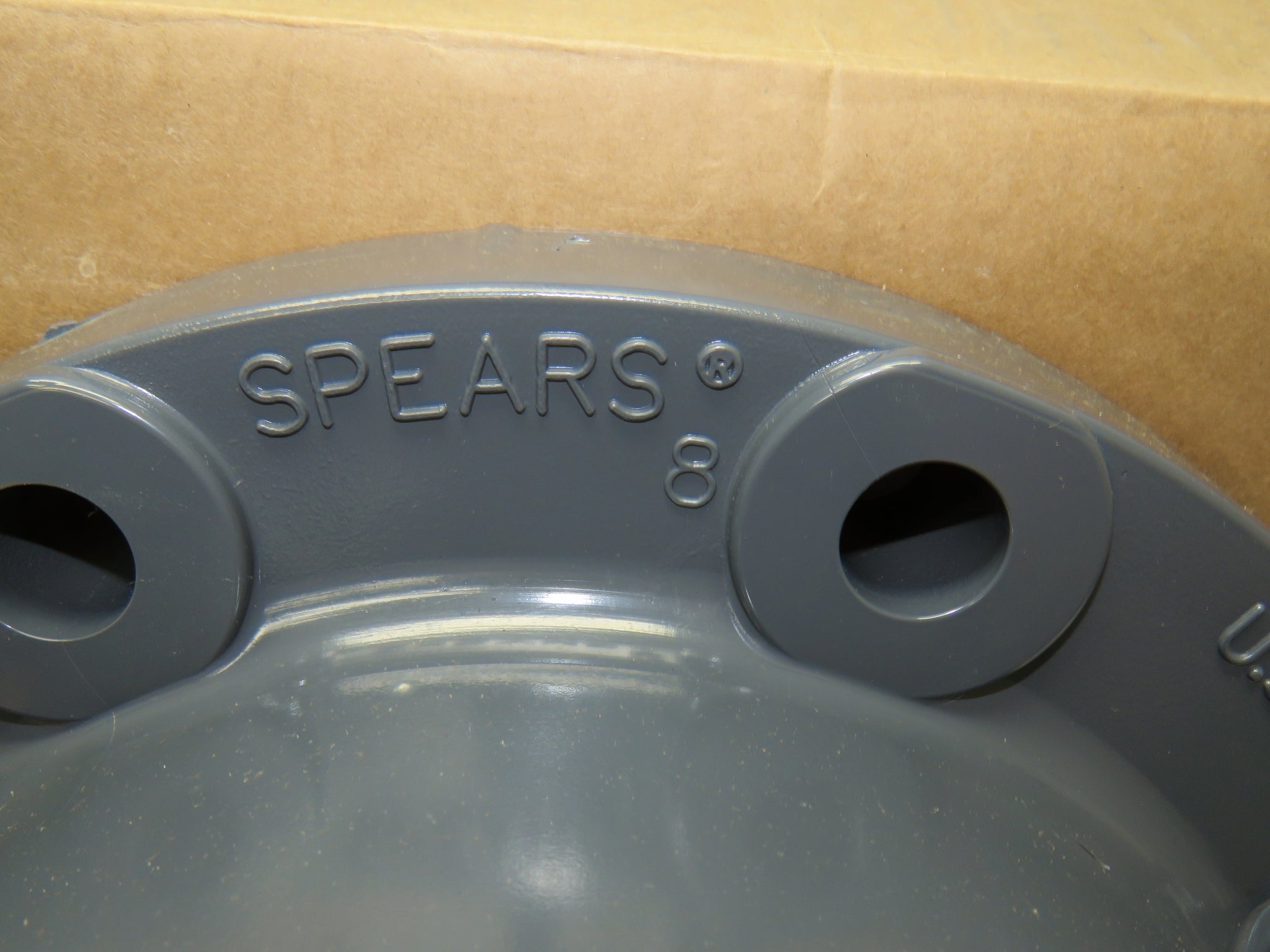

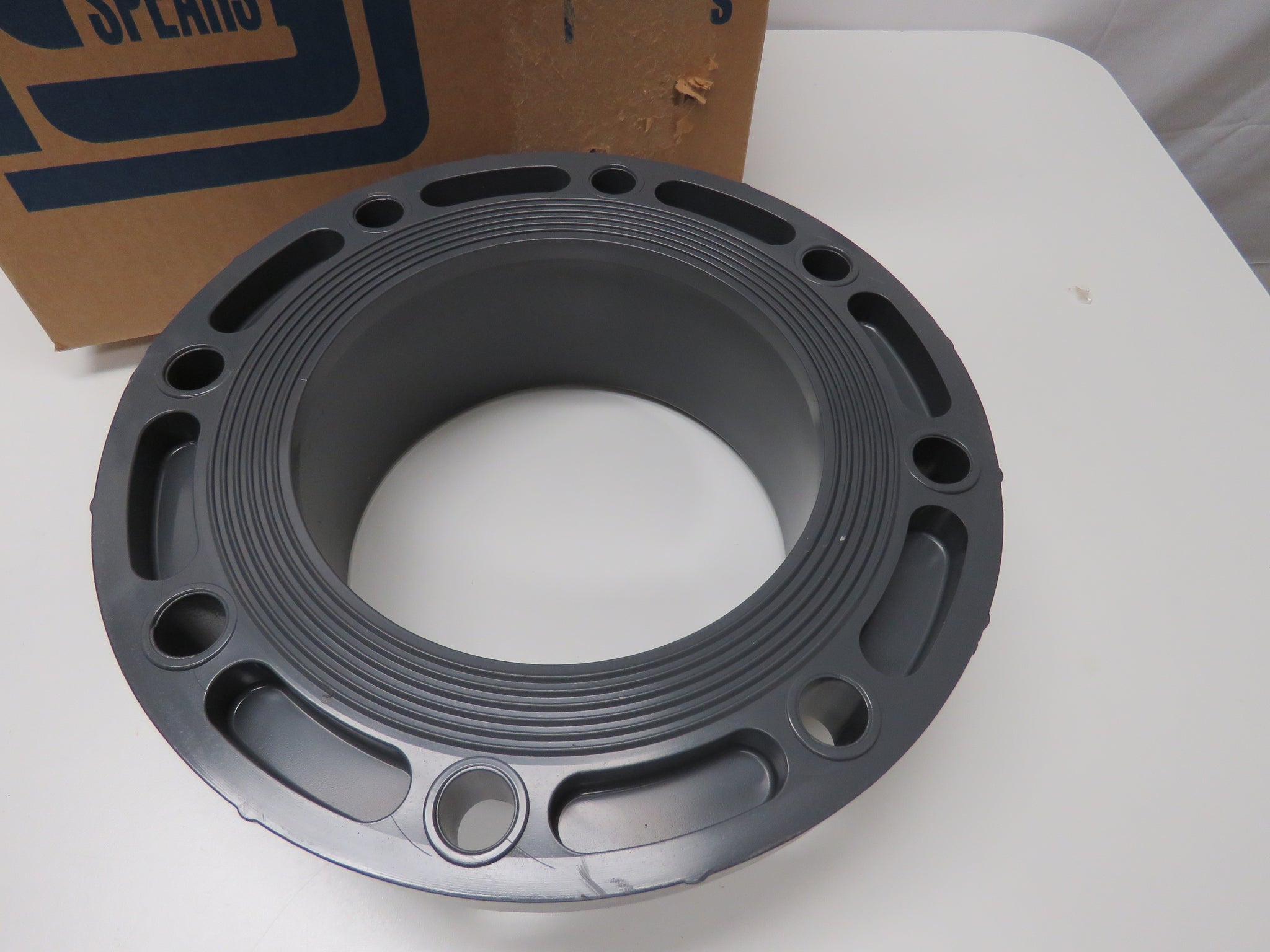

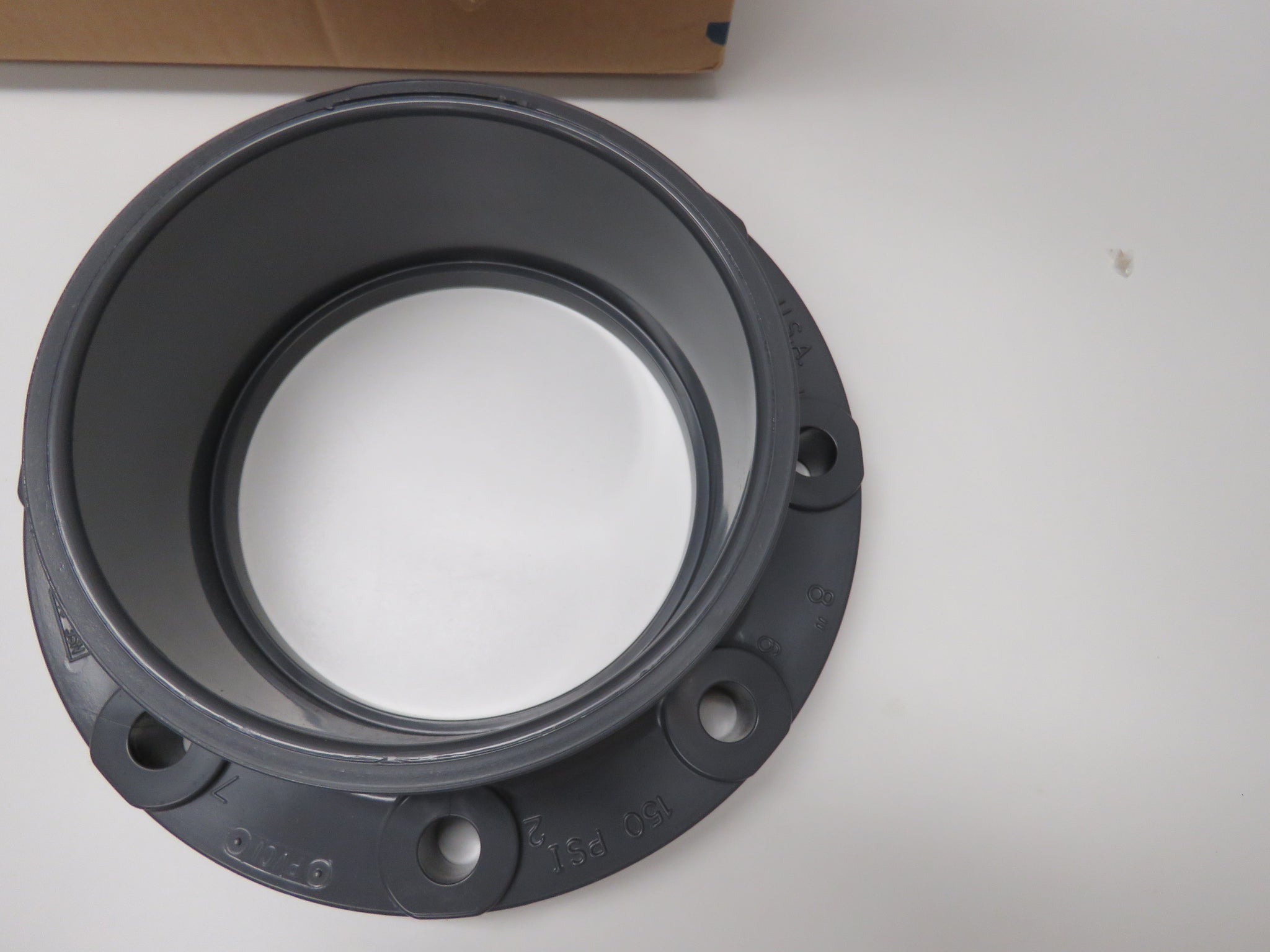

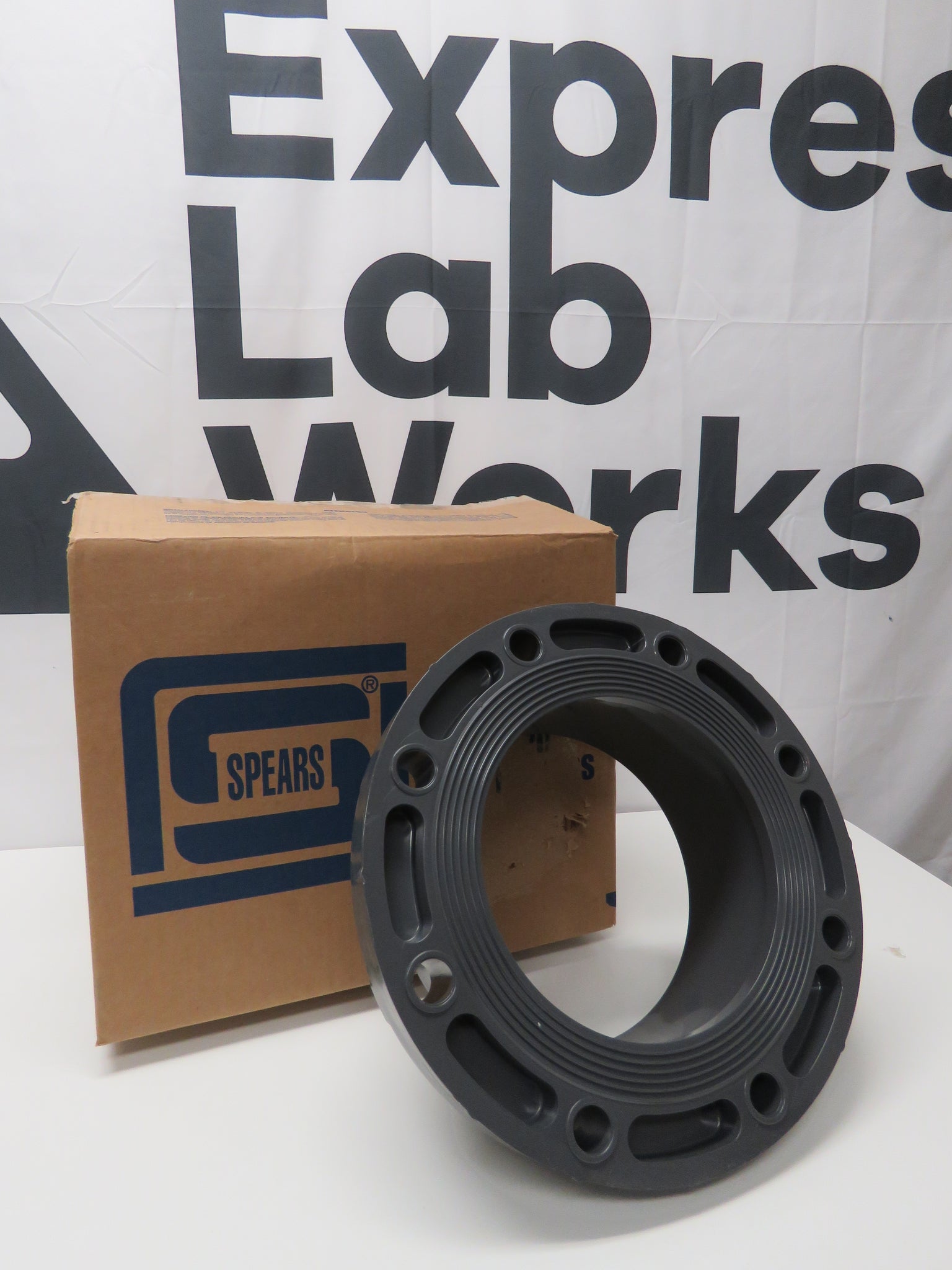

SPEARS 851-080 Flange: 8 in Fitting Pipe Size, Schedule 80, Socket, 150 psi, Gray



Web Information

Product Details

Basic Fitting Shape: Flange
Specific Fitting Shape: Flange
Flange Outside Diameter: 13-1/2 in
Number of Bolt Holes: 8

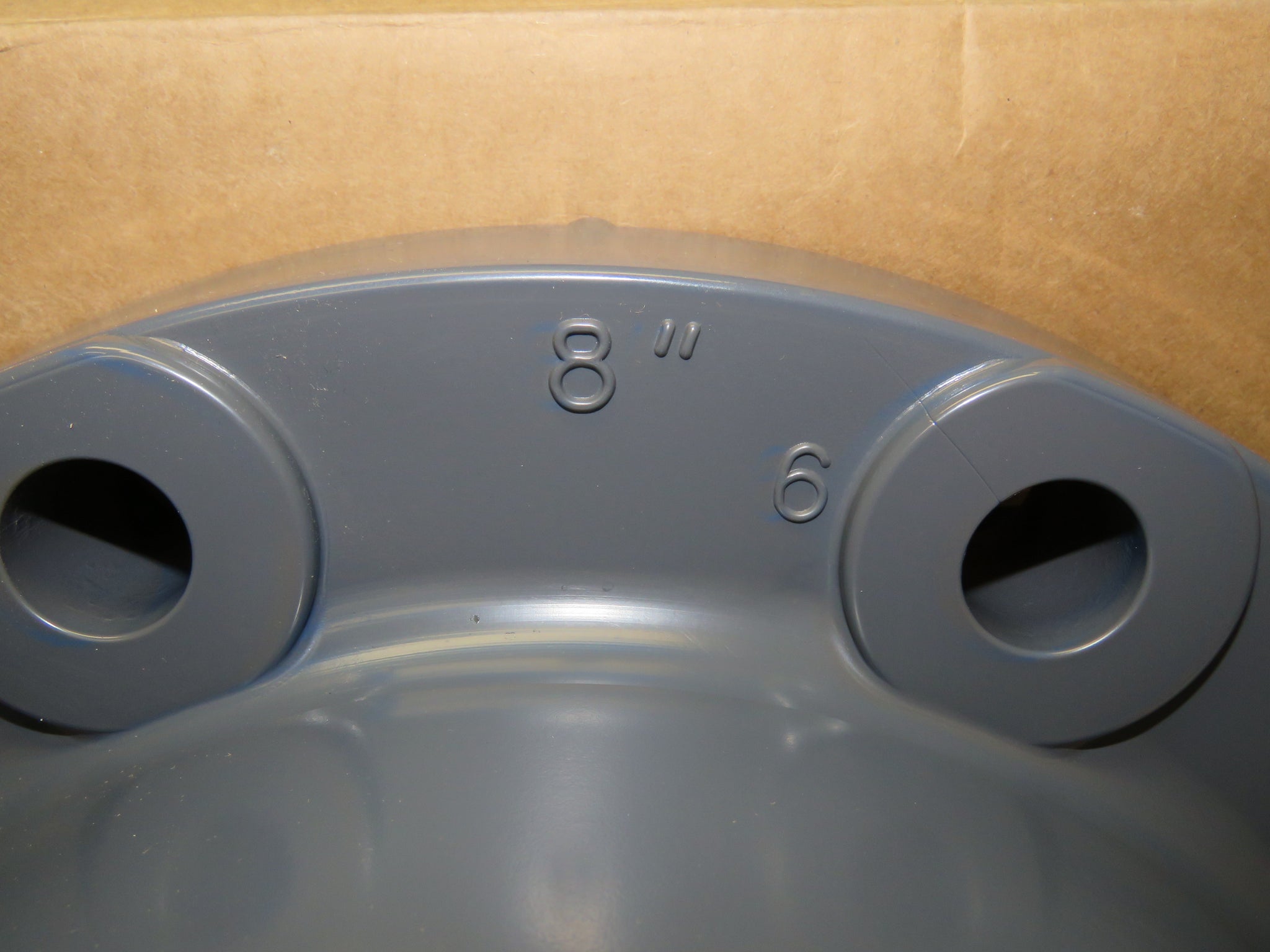

Nominal Pipe Size: 8 in
Schedule: Schedule 80
Temp. Range: 140° F
Color: Gray
Standards: NSF
Pipe Fitting Material: PVC
Application: Non-Potable Water; Potable Water
Bolt Circle Diameter: 11-3/4 in
Bolt Hole Diameter: 13/16 in
Class: Class 150
Connection Surface: Flat
Fitting Connection Type: Socket
Flange Thickness: 1-7/16 in
For Pipe Schedule: 80

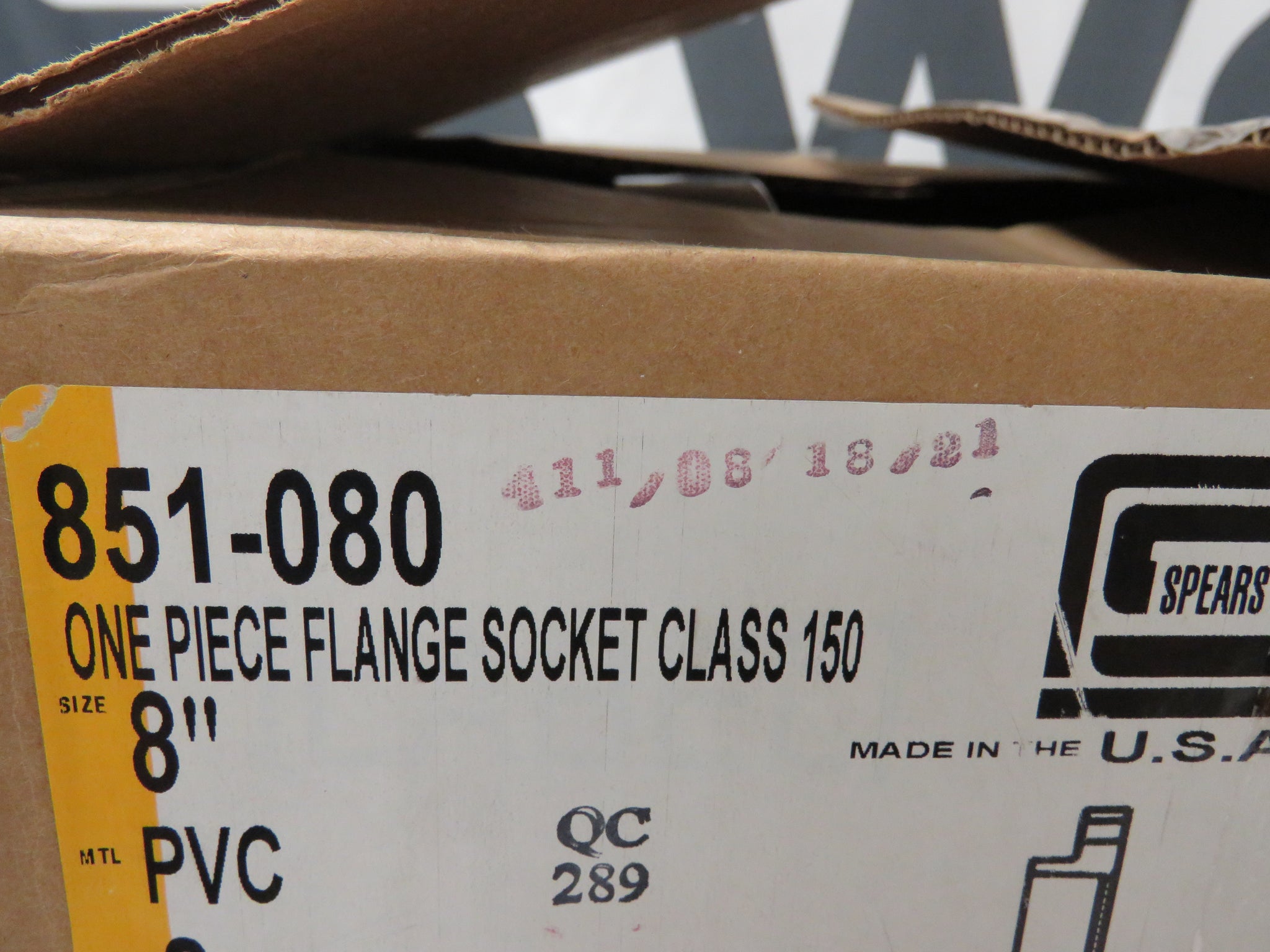

Item: Flange - One Piece (S) - 150#

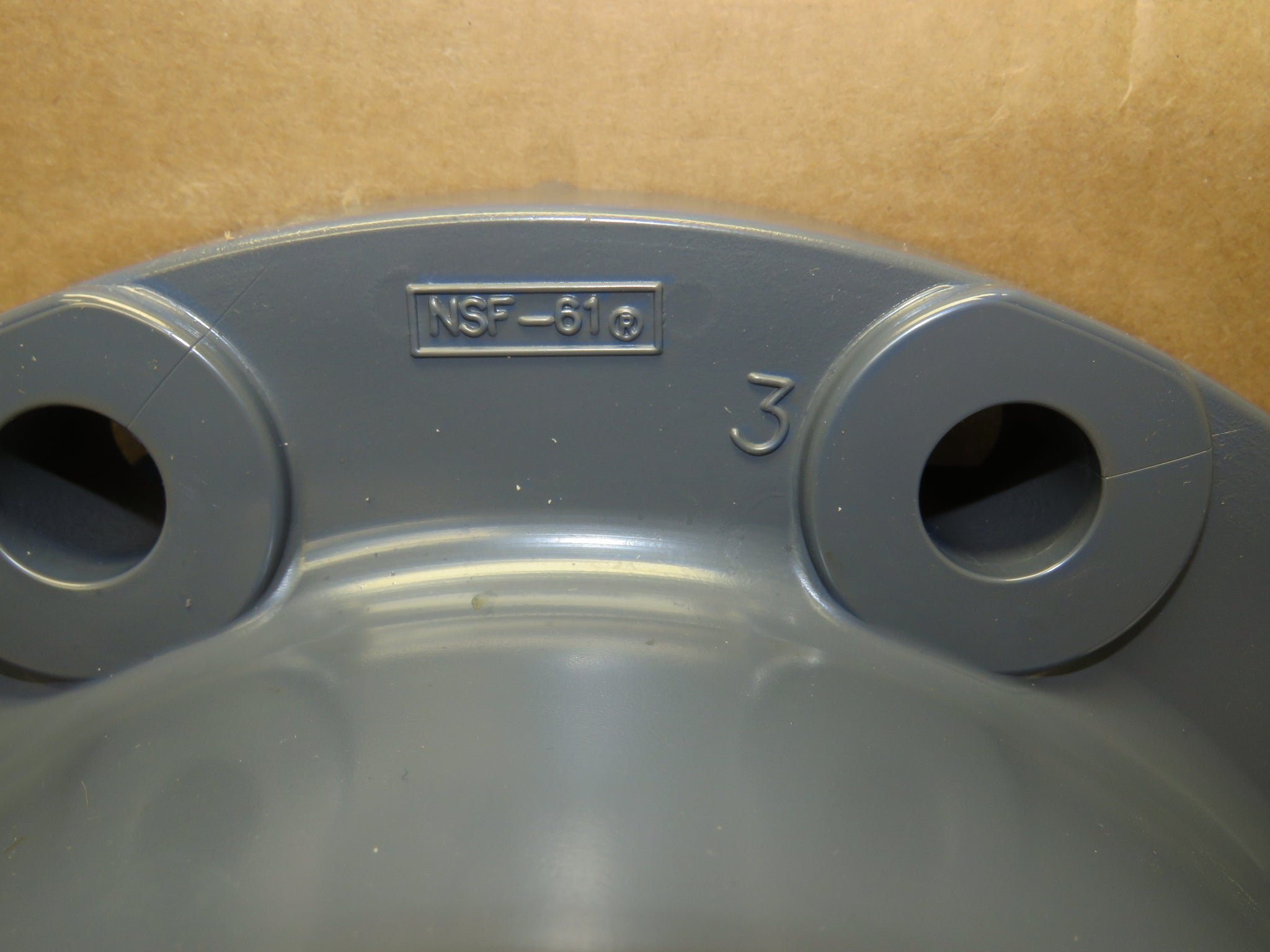

Low Lead Certified Standard: NSF61
Overall Length: 4-7/8 in
Manufacturer Part Number: 851-080
Sub-brand: Flange(S)

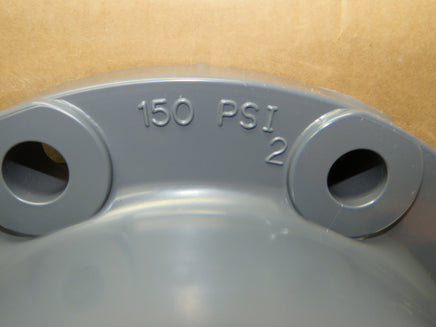

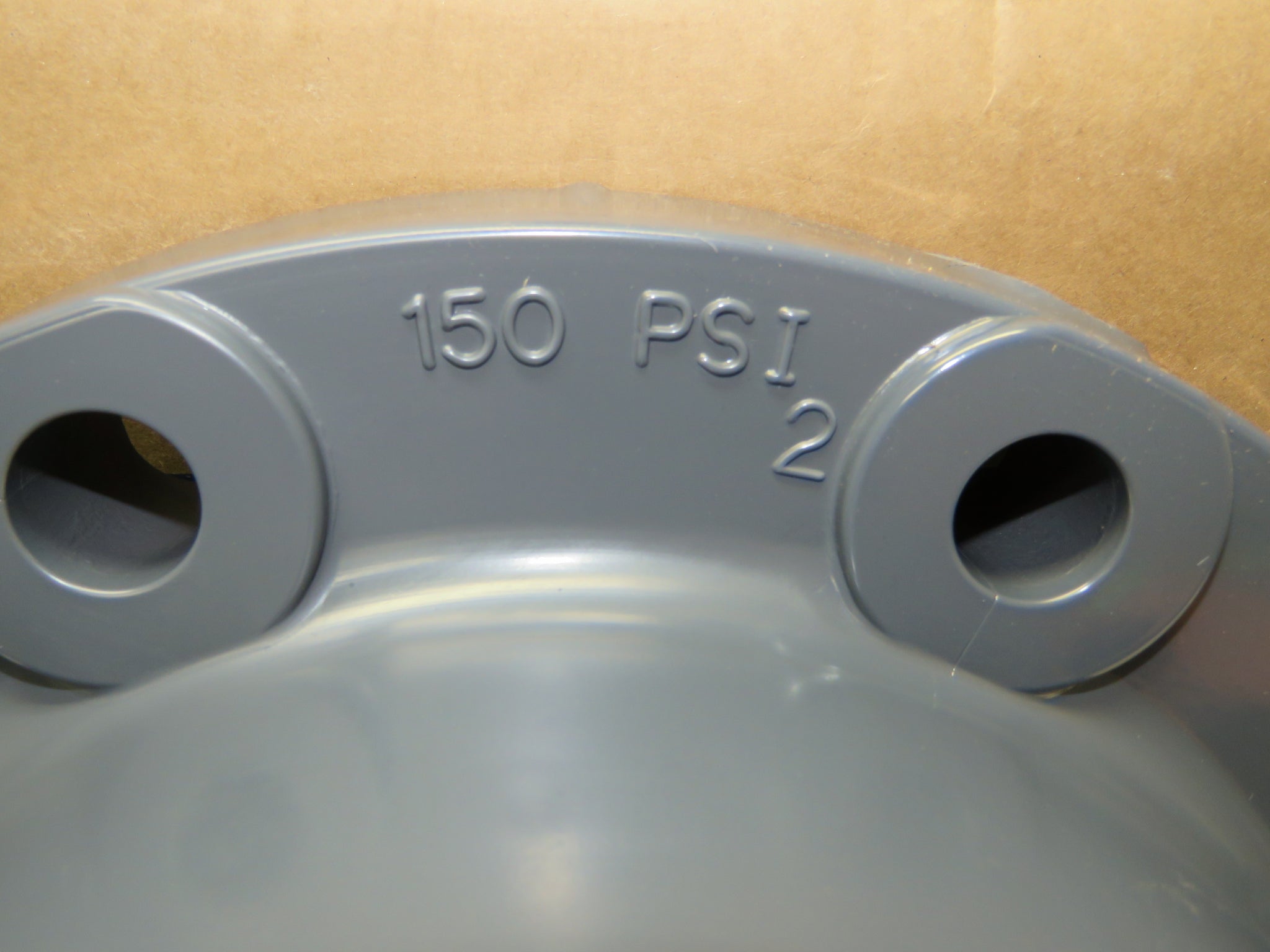

Maximum Operating Pressure: 150 psi
UNSPSC: 40142407
Country of Origin: USA (subject to change)
Product Description

Socket x socket Schedule 80 fittings, also called slip or hub fittings, include socket ends on all fitting connection ends. The socket ends fit over the end of a PVC pipe and requires glue or adhesive to secure the connection. Schedule 80 fittings have thicker walls than Schedule 40, but not as thick as Schedule 100.


Brand new.


  • SPEARS 851-080 Flange: 8 in Fitting Pipe Size, Schedule 80, Socket, 150 psi, Gray



30 Day warranty. We pledge to offer the best service and warranty to all of our customers!  We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.


This is a genuine product from this manufacturer.


The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping of the item."

Regardless of the origin of the equipment, documentation provided or identification appearing upon the equipment, the equipment described and offered here is in no way certified for, recommended for, or offered for any specific use. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. The purchaser, by bidding on this equipment, indicates their acknowledgment of, and agreement to the terms of this disclaimer. it is the purchaser's responsibility to have the item inspected and certified by a qualified professional before use!
