TECHNE 3Prime 30 x 0.5ml Thermal Cycler w/ GRADIENT option - Model 3 Prime G/05


SKU: 3primeG05

Web Information

3 PRIME G (gradient) Thermal Cycler

  • Colour touchscreen for fast program setup
  • Small space-saving footprint
  • Temperature range 4°C to 100°C
  • Fast ramp rate of up to 3.0°C/sec
  • Larger block sizes; 48 x 0.2ml, 30 x 0.5ml and half a 96 well plate in horizontal format.
  • Gradient can be applied across a temperature range of 30°C to 80°C
  • Maximum Gradient 30°C
  • Gradient calculator function
  • Data transfer via USB
  • 4 year warranty

The 3 PRIME G is a small gradient thermal cycler that builds on all the features of the 3 PRIME X instrument. The 48 well block format offers eight columns for annealing temperature optimisation and six rows for optimising reagents such as MgCl2 and primer concentrations. Annealing temperatures can be optimised over 30oC between temperatures 30°C to 80°C. The gradient calculator function displays the temperature for each of the eight columns, ensuring easy replication of thermal conditions.

Technical Specification

Sample capacity: 0.2ml


Sample capacity: 0.5ml


Maximum heating rate


Block temperature range

4 °C to 100°C

Block uniformity at 50°C


Temperature accuracy at 50°C


Gradient Range

30°C to 80°C

Maximum Gradient


Minimum Gradient



4 peltier element/block

Maximum cooling rate


Selectable heated lid temperature

100 °C to 115°C or off

Heated Lid pressure

Adjustable, dependent on consumables

Program interface

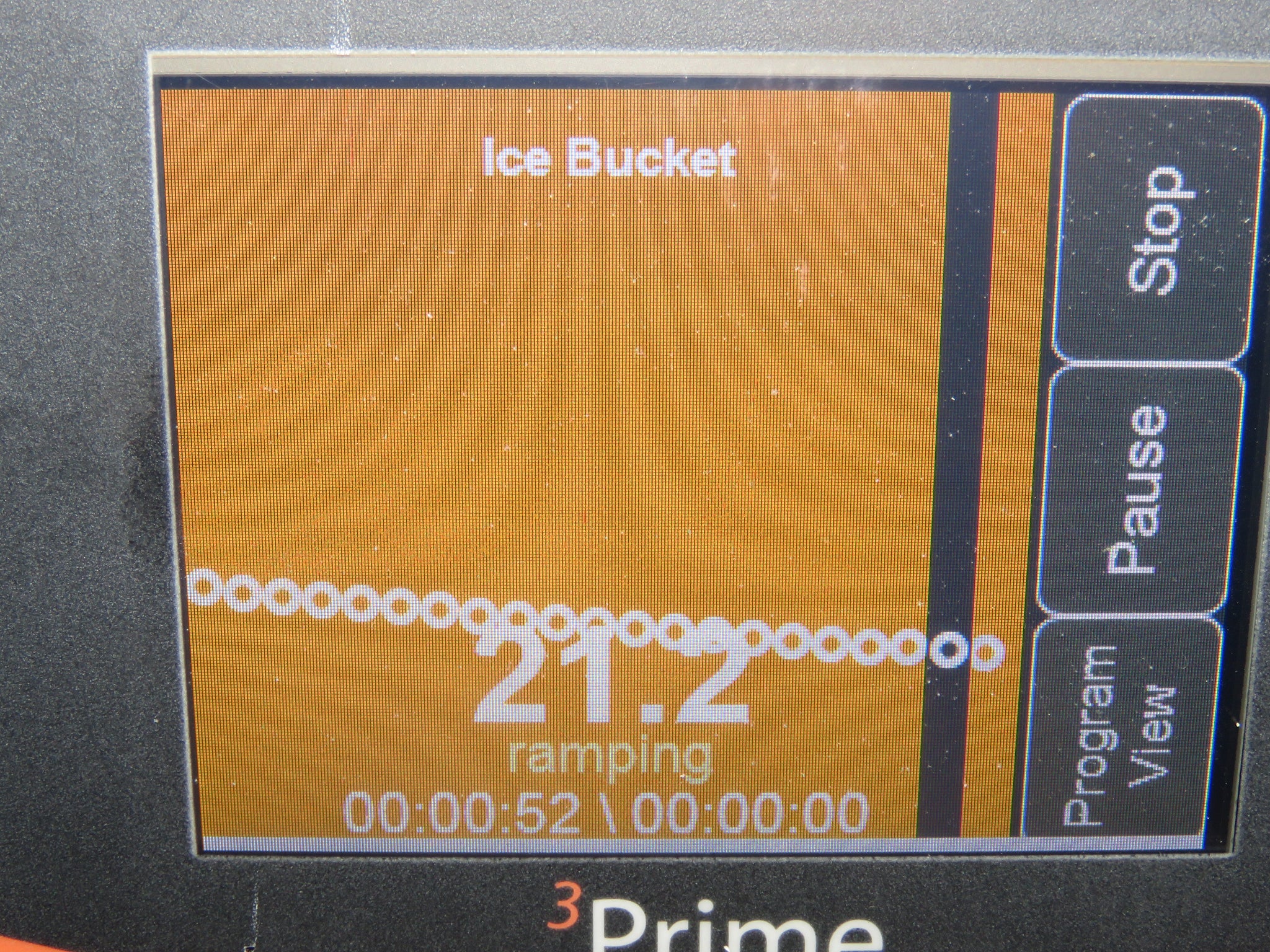

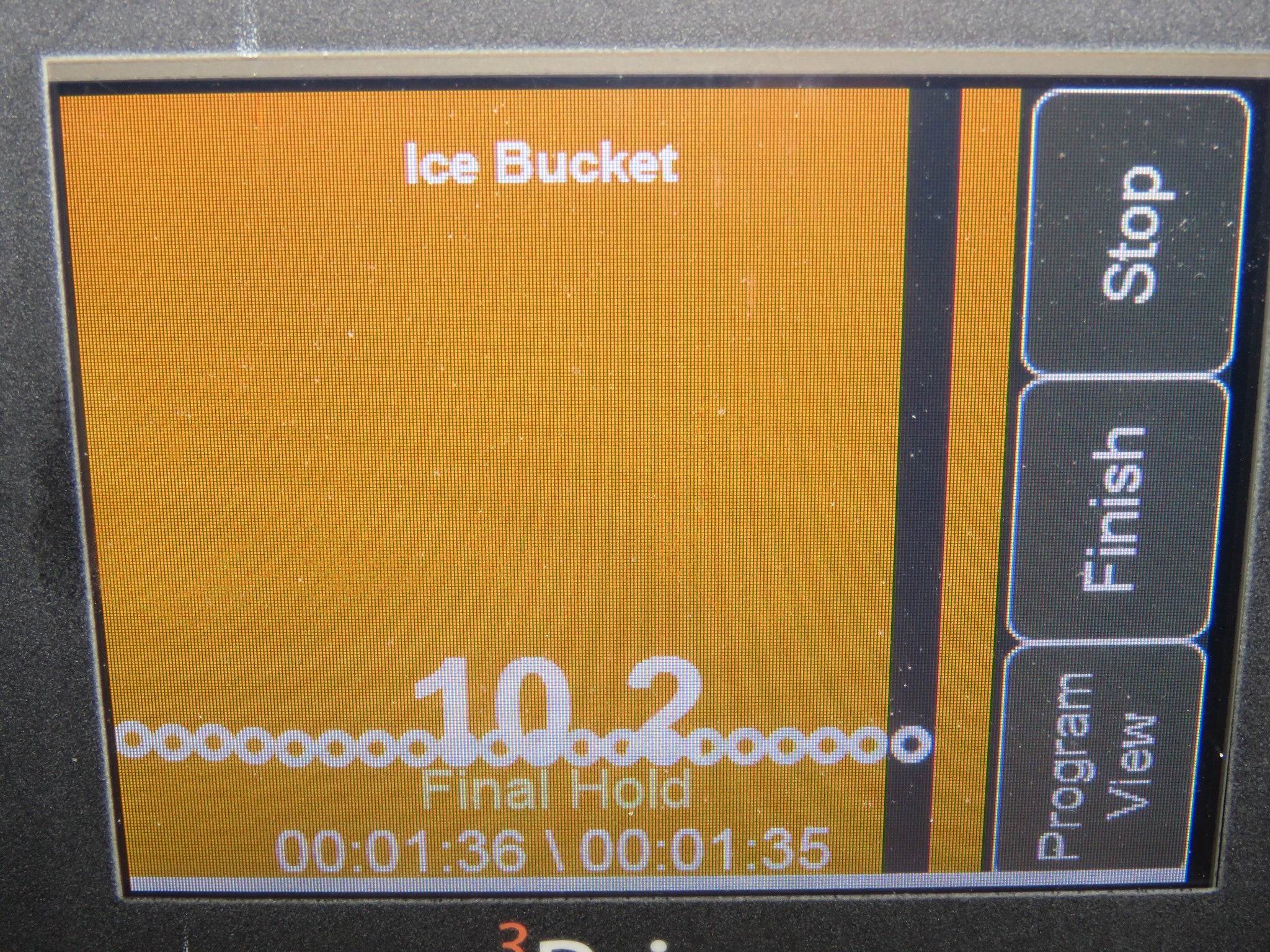

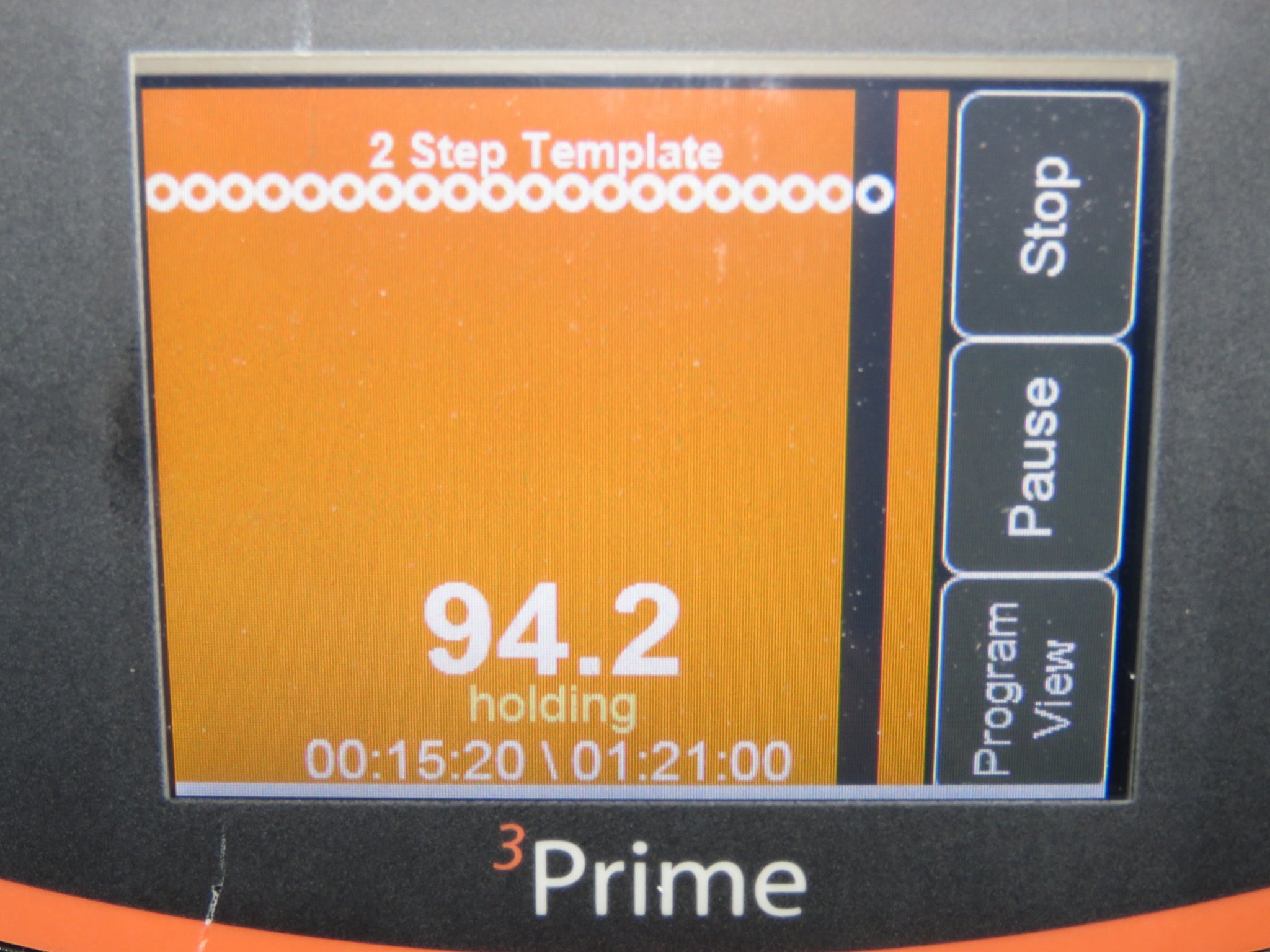

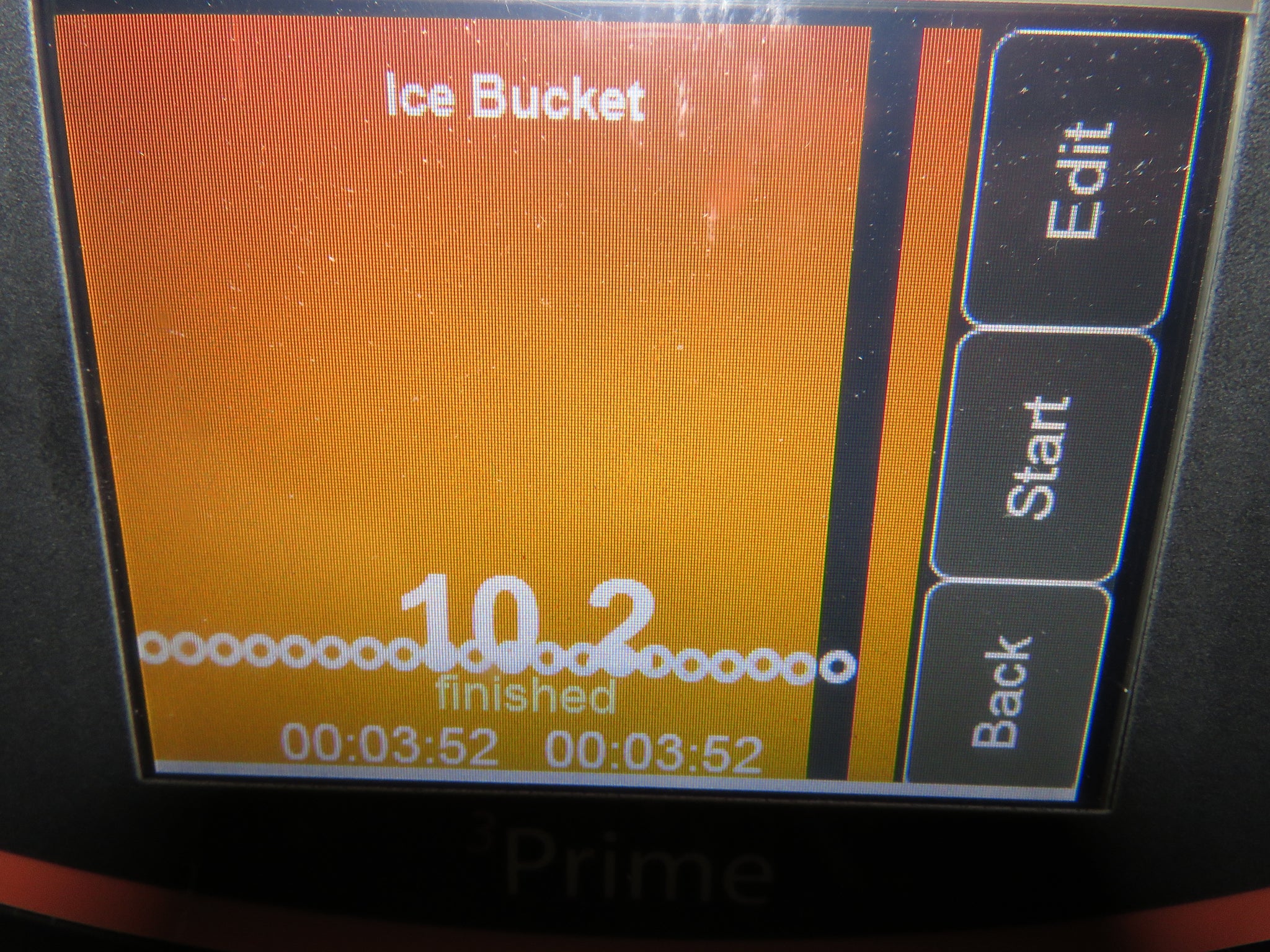

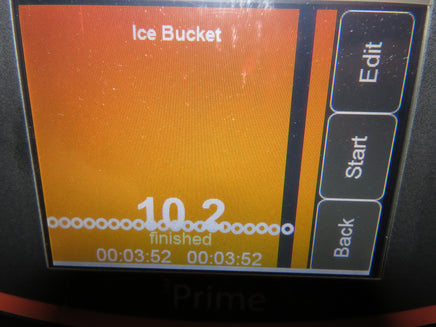

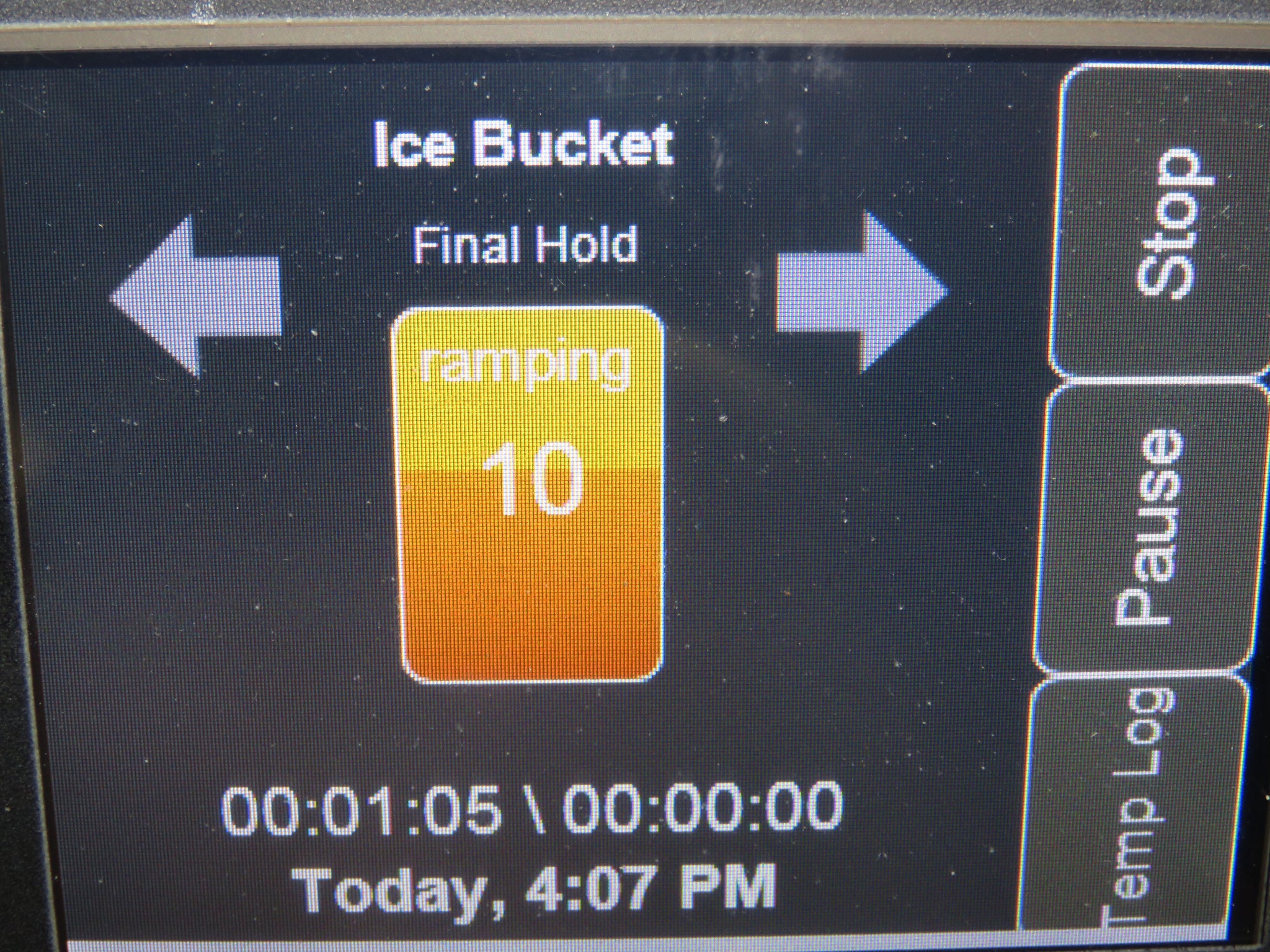

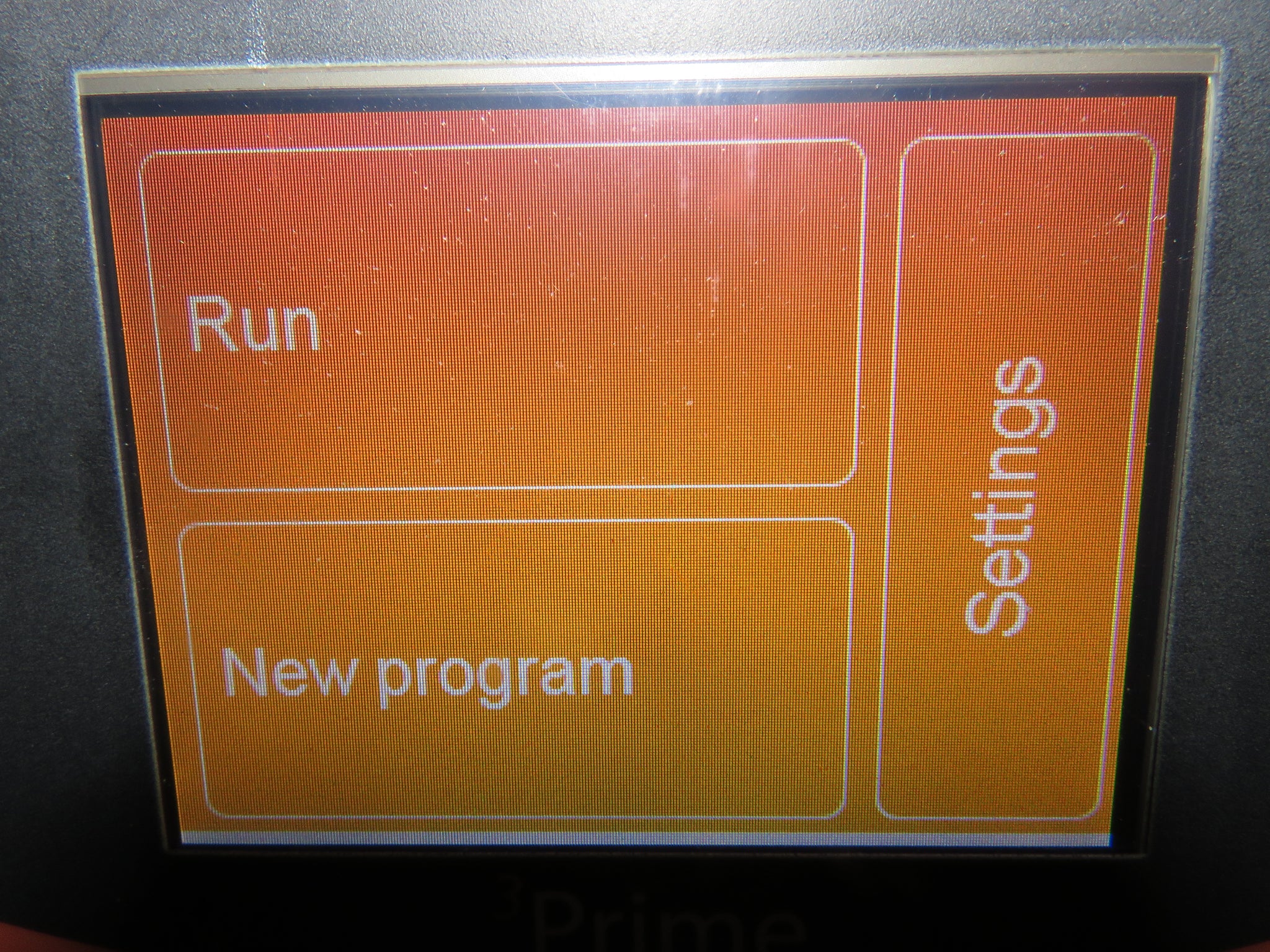

3.5" VGA colour touchscreen with graphical display

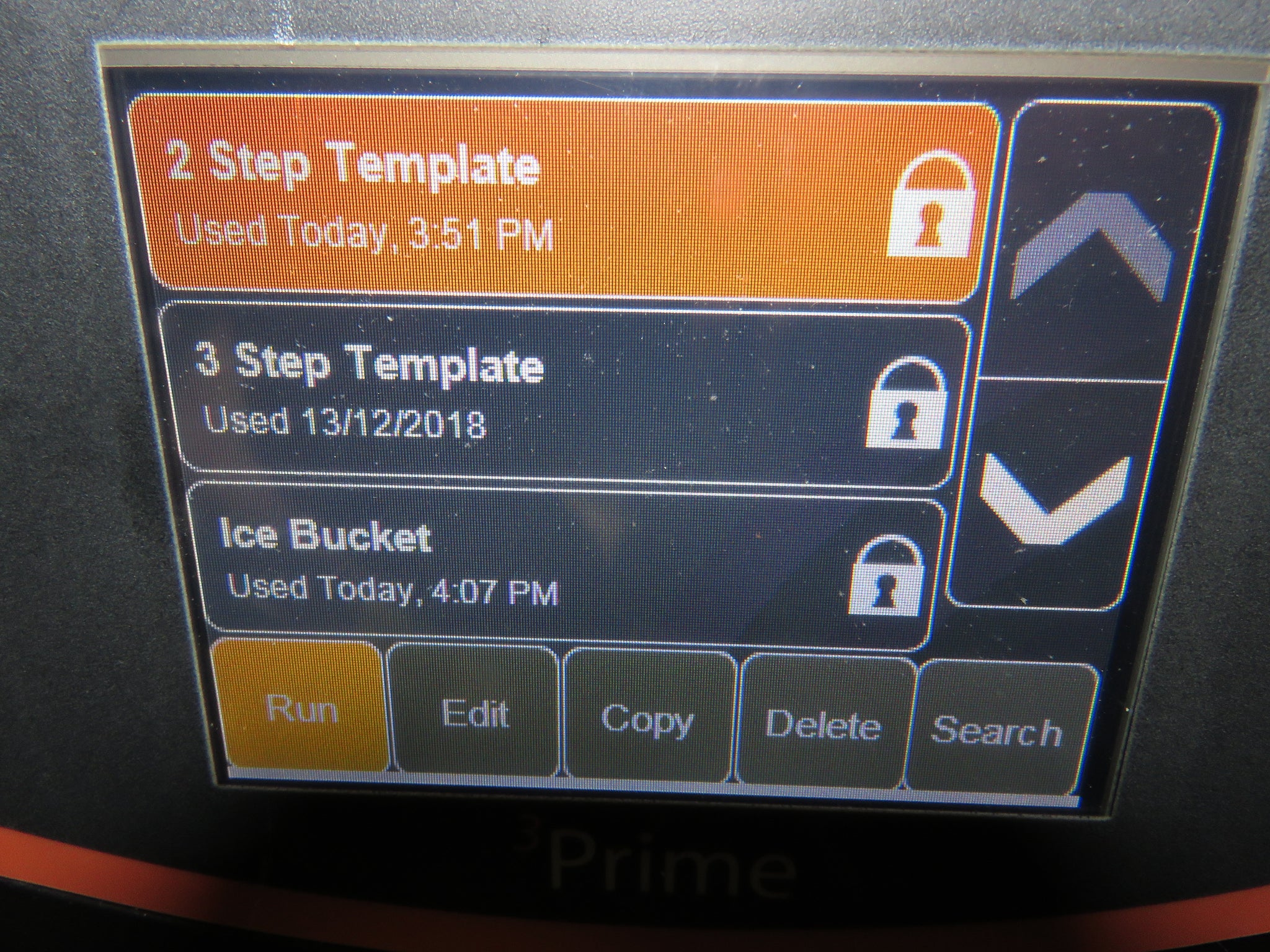

Maximum number of programs stored


Data transfer

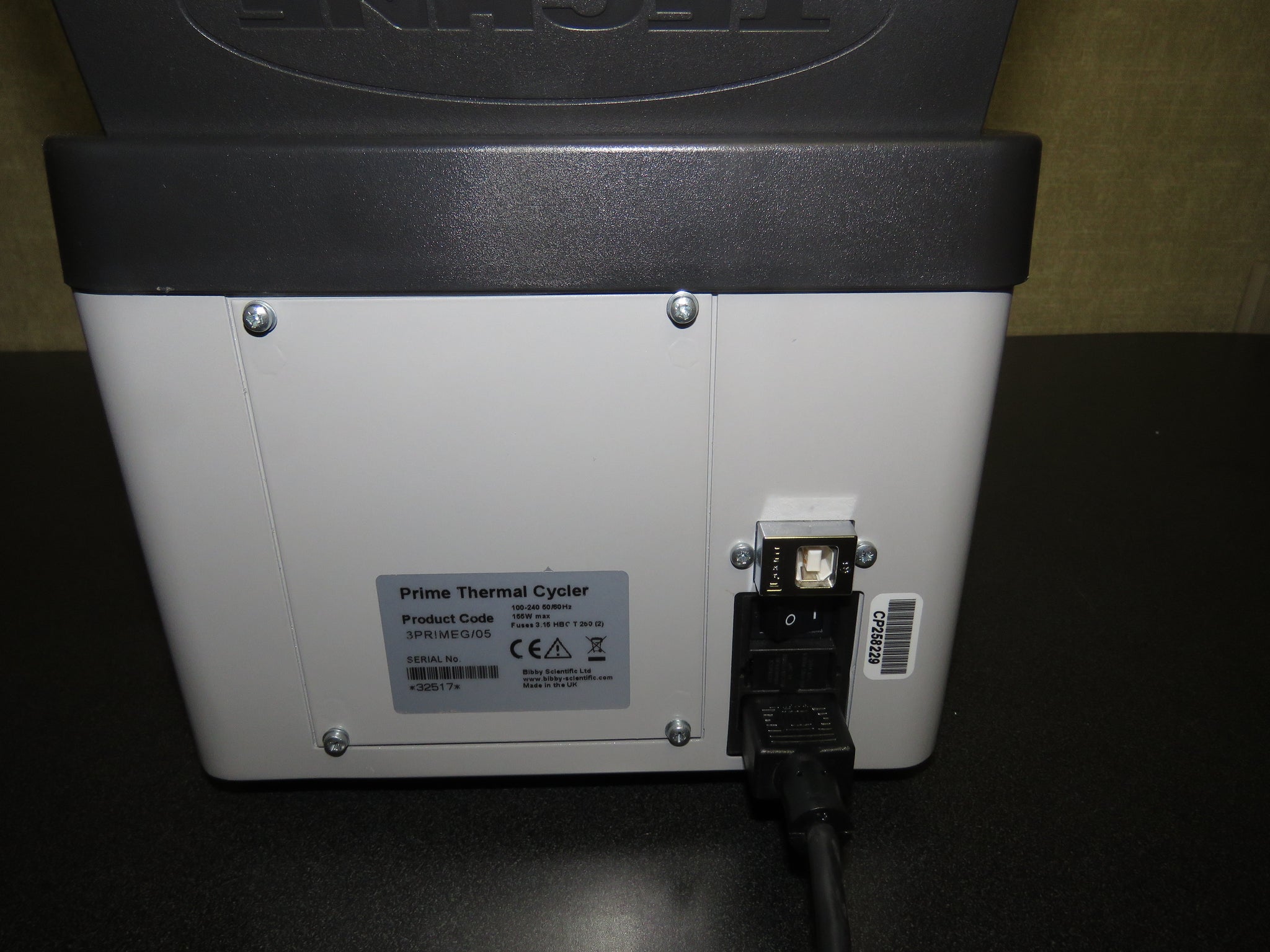

USB port

Auto re-start on power failure


Dimensions (L x W x H)

350 x 210 x 180mm




100-230V, 50-60Hz





Used - received from lab.  May require calibration prior to putting into service.

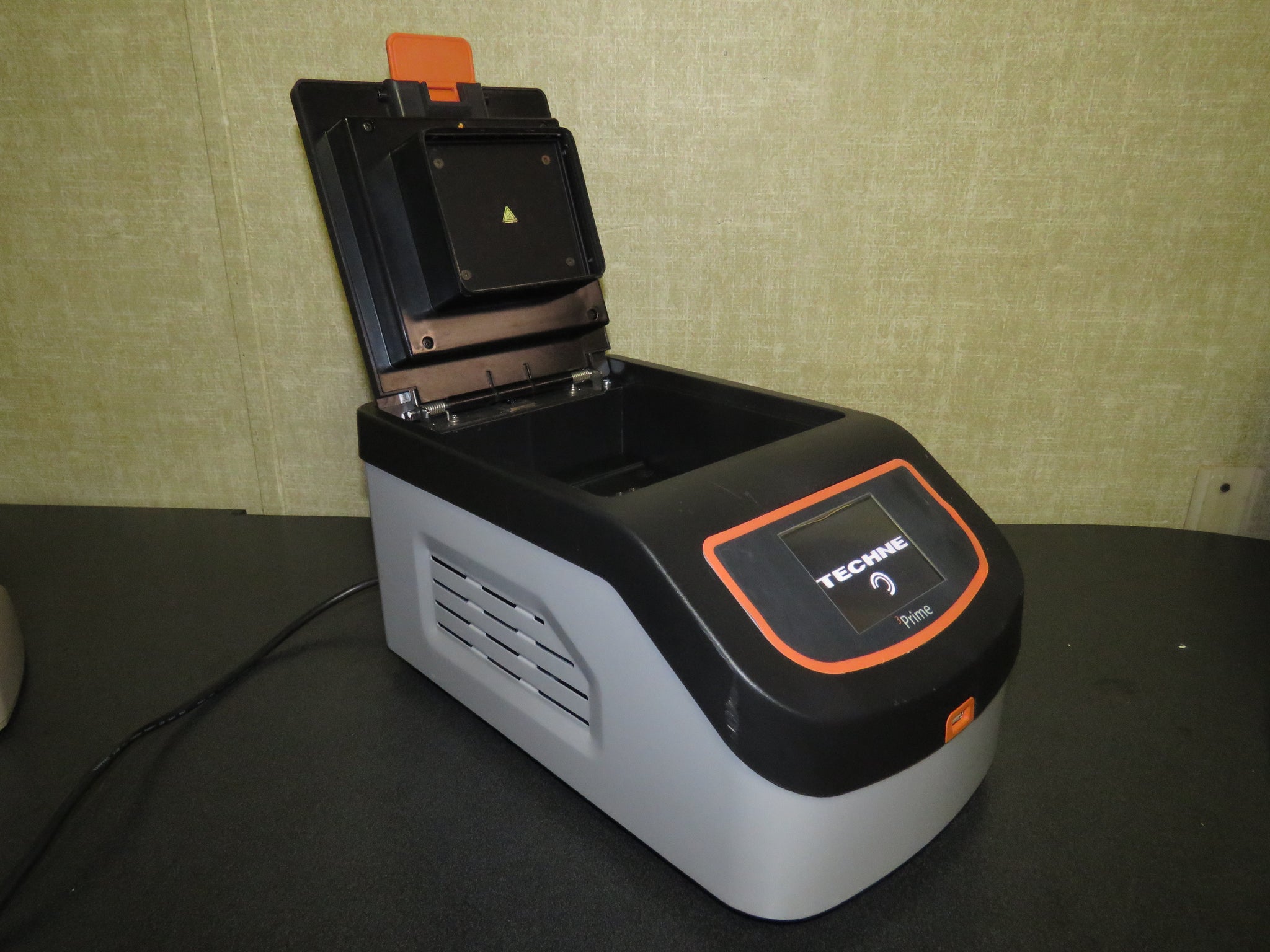

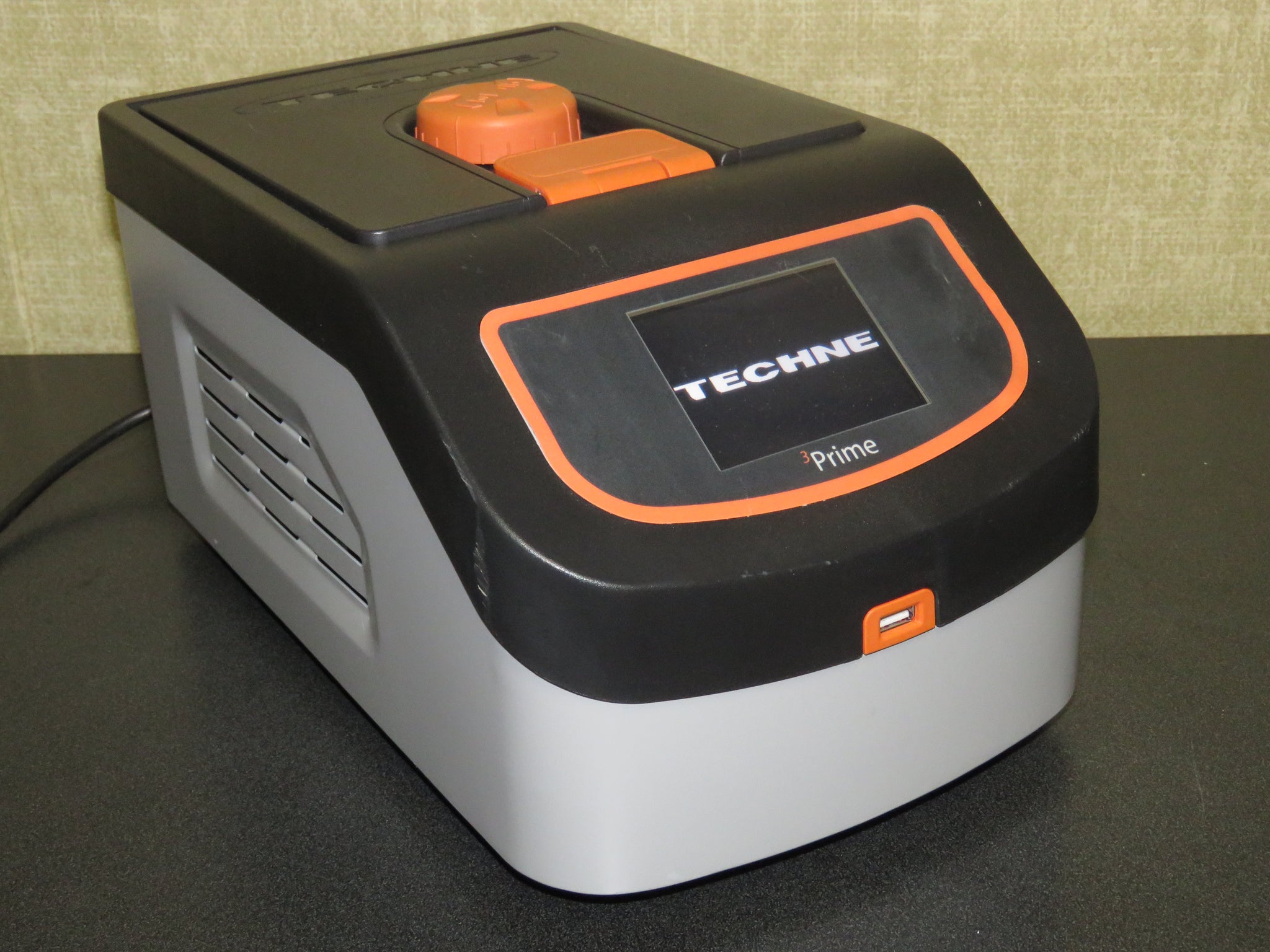

  • Techne 3PRIMEG Gradient Thermal Cycler

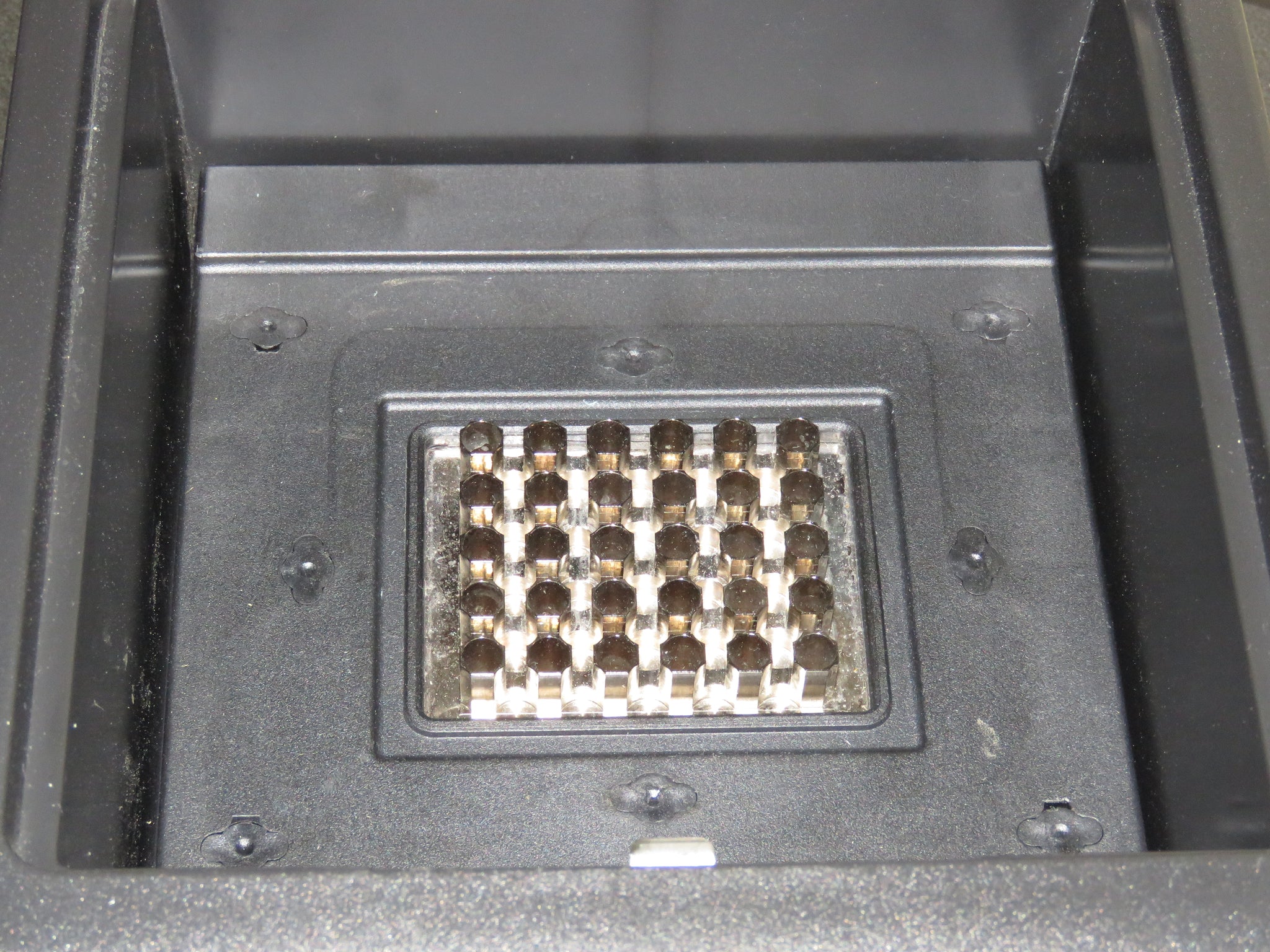

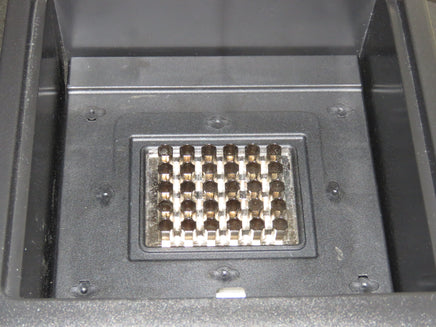

  • 30 x 0.5ml Gradient Block
  • Power cord


30 Day warranty. We pledge to offer the best service and warranty to all of our customers!  We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.


This is a genuine product from this manufacturer.


The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping of the item."

Regardless of the origin of the equipment, documentation provided or identification appearing upon the equipment, the equipment described and offered here is in no way certified for, recommended for, or offered for any specific use. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. The purchaser, by bidding on this equipment, indicates their acknowledgment of, and agreement to the terms of this disclaimer. it is the purchaser's responsibility to have the item inspected and certified by a qualified professional before use!
