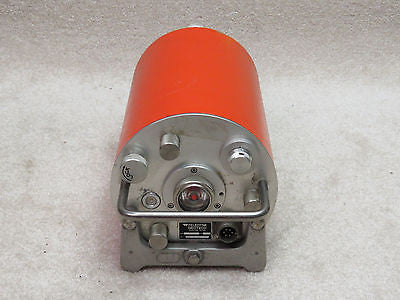

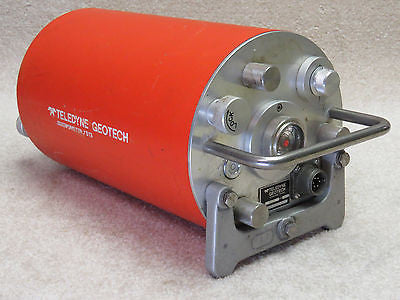

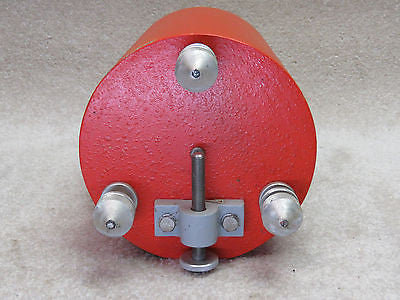

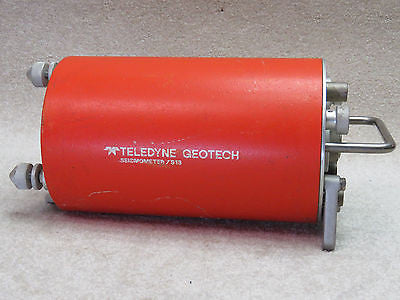

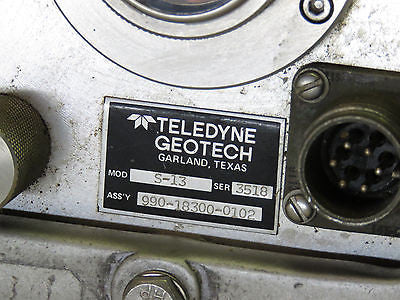

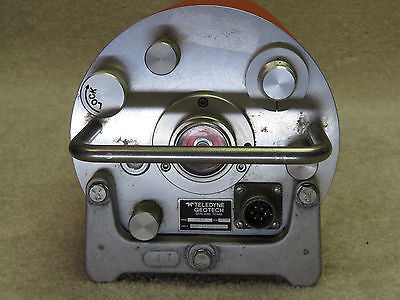

Teledyne Geotech S-13 Short Period Seismometer Earthquake Sensor

Teledyne Geotech

$975.00

Sorry, this item is out of stock

Web Information

Short-period Seismometer

Model S-13/GS-13

  • 629 V/(m/sec) sensitivity / 2000 V/(m/sec)

  • Mass lock

  • Period adjust

  • Simplified field maintenance

  • Excellent stability over long periods of time

  • More than 4500 units in operation

    The Geotech Model S-13 is a high resolution, premium seismometer capable of meeting the noise and stability requirements of the most demanding seismic studies. It features adjustable natural frequency from 0.75 to 1.1 Hz (typical 1.0 Hz).  The S-13 external mass lock, spring tension and operational adjustments are all fitted with seals that enable the instrument to be submerged to 100 feet without leakage. A major attribute of the S-13 is a mechanical design that lends itself to field repairs by unskilled persons using minimal spares. This quality, plus 30 years of outstanding performance in the field, qualify the S-13 to be the short-period seismometer standard by which others are compared.

TECHNICAL SPECIFICATIONS

OPERATING CHARACTERISTICS

Mode of Operation
Natural frequency
Tilt
Inertial mass
Temperature Range
Transducer
Type
Damping
Generator constant
Coil resistance
Maximum Mass Travel
Calibration Coil Resistance

Dynamic range



- Convertible - vertical and horizontal
- 0.75-1.1 Hz, typical 1 Hz
- Operates within 4º of vertical at 0.8 Hz
- 5.0 kg (11.0 lbs.)
- -51 to +60 ºC (-60 to +140 ºF)

- Moving coil (velocity)
- Electromagnetic
- 629 V/(m/sec) / 2000 V/(m/sec)
- 3600 Ohms / 9100 Ohms (consult factory for other values)
- ±3.0 mm (0.12 in.)
- 23 Ohms, maximum current 100 mA, calibration coil well separated from the signal coil
- 164 dB @ 1 Hz and 184 dB @ 100 Hz


PHYSICAL CHARACTERISTICS

Dimensions
Height
Diameter
Net Weight
Shipping Data
Weight
Volume




- 38.1 cm (15 in.) over handle
- 16.8 cm (6.63 in.)
- 10.4 kg (23 lbs.)

- 13.6 kg (30 lbs.)
- 0.036 m³ (1.3 ft³.)



Condition

Seller refurbished.  Excellent working condition.  Fully tested.

Includes

  • Teledyne Geotech S-13 Short Period Seismometer earthquake sensor

Warranty

30 Day warranty. We pledge to offer the best service and warranty to all of our customers! We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.

Certification

This is a genuine product from this manufacturer.
