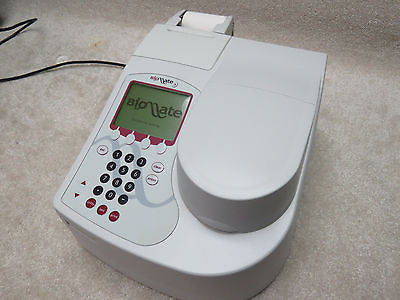

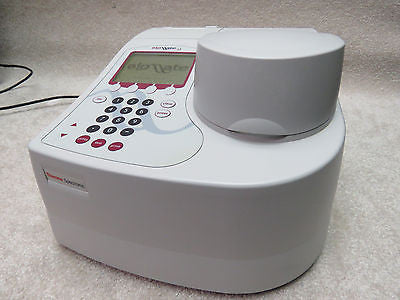

Thermo Spectronic Biomate 3 Spectrophotometer - Excellent shape

Thermo Spectronic

$2,399.00

Sorry, this item is out of stock

Web Information

Thermo BioMate 3 Provides convenient, accurate UV-Vis measurements for life science laboratories

Accurate, Reliable Performance for Life Science Laboratories

The BioMate 3 is a grating-based spectrophotometer that can also be used as a general purpose instrument to measure other life science applications such as kinetics or multiwavelength analysis. In addition, it includes built-in software that will run performance verification measurements of photometric accuracy, wavelength accuracy, noise and stray light.

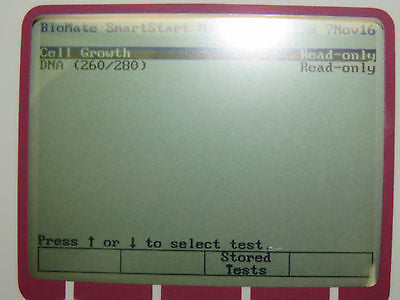

The instruments feature the unique SmartStartTM screen that lets you select one, two or more pre-selected protocols. Turn on the instrument and the boot-up screen shows the selected tests ™ without additional scrolling.

DNA ratio and concentration, with or without scanning

  • Protein standard curves for Bradford, Lowry, BCA and Biuret reagents
  • Direct UV concentrations of dsDNA, ssDNA, RNA and oligonucleotides
  • Warburg-Christian method for measuring protein concentration
  • Cell growth
  • Oligo calculations for absorptivity, concentration factor, theoretical Tm values from a user-entered base sequence

Hardware Designed for Performance

  • Improved, 1.8nm spectral bandwidth is compliant with worldwide Pharmacopeia requirements, allowing research quality measurements with routine simplicity
  • Patented optical design provides a compact, high-performance dual-beam system with very few moving parts
  • Xenon lamp gives balanced light over the full instrument wavelength range of 190 to 1100nm
  • Dual-beam optical system includes an internal reference detector and offers significant advantages over a single beam or diode array instruments, including compensation for lamp intensity changes, better performance for kinetics, and better long-term stability

BioMate 3 ™

DNA/RNA and protein analyzer

  • High quality optics that include a long-life xenon lamp for stability and drift-free readings. No warm-up time required!

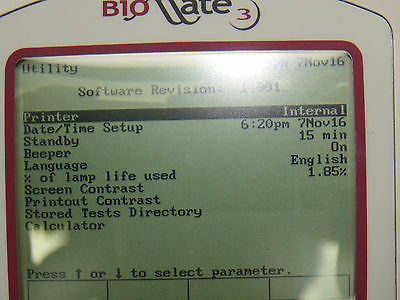

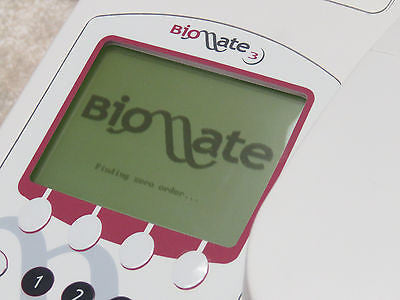

  • A large 3.5™ x 2.5™ LCD displays current sample position, date and time, test parameters, graphs and data
  • Models with 6-position cell changer for faster sample throughput
  • Optional 3™ 40-column printer shows all parameters, graphs and data
  • Includes seven additional test protocols including absorbance ratio, kinetics and survey scan
  • Optional ultra-microcells with 40µL and 10µL chamber volume
  • Sipper system for faster sample throughput

  • Unit is ideal for DNA/RNA and protein analysis
  • Optional built-in 3 in. (7.6cm) graphical printer shows test parameters, graph, and data
  • Optional automatic six-position cell holder speeds up cell growth measurements or standard curve preparations

Pre-programmed life science assays include:

  • Nucleic acid ratio and concentration (260/280 and 260/230)
  • Direct protein concentration at 280nm and 205nm
  • Coomassie*/Bradford (Standard and Micro)
  • Lowry
  • BCA
  • Pierce Micro-BCA
  • Pierce 660nm Protein Assay
  • Cell growth (with scaling factor)
  • Kinetics

Software Enhanced Flexibility



  • Embedded software provides pre-programmed assays for RNA/DNA concentration or purity estimation, protein concentrations, cell growth, kinetics, or routine measurements
  • For more intense applications, optional application software programs allow more sophisticated data collection, analysis, and reporting

Time-Saving Bioanalysis Software

  • Pre-programmed assays deliver fast, accurate results
  • Built-in assays for nucleic acid concentration and purity estimations, protein concentration, and cell growth at 600nm
  • Flexible Oligo calculator feature for calculating molecular weight, theoretical Tm and Oligo concentration factor
  • Other standard applications include single and multicell kinetics, wavelength scanning, and user-defined fixed wavelength measurements



Specifications                                                                            335905
Optics Split-beam, quartz-coated optics
Lamp Long-life xenon
Wavelength Range 190–1100nm
Wavelength Accuracy ±1.0nm
Bandwidth 5nm
LCD Large 3.50 x 2.50 in. (8.9 x 6.4cm), shows all data and final results
Noise <0.001A
Scan Speed Survey scan (100nm increments)
RS-232-C Interface Bidirectional RS-232-C
Stability <0.001A/hr.
Stray Light <0.1%T at 220 and 340nm
Dimensions 16 x 13 x 9 in. (41.0 x 33.0 x 23.0cm)
Weight

19 lb. (8.6kg)



Software:





Built-in: DNA ratio/concentration(with or without scanning); Nucleic Acid (dsDNA, ssDNA, RNA, oligos) concentration @ 260nm; Protein (Direct UV @ 280 & 205nm, Warburg-Christian); Protein Standard Curves (Bradford, Lowry, BCA, Biuret); Cell Growth; Oligo Calculator (absorptivity, mol. wt., factor, Tm); Direct Abs, %T, Concentration/Factor, Concentration/Standard; Standard Curve (up to 15 stds, 7 curve fits); Absorbance Ratio (with and without Reference Wavelength Correction); Absorbance Difference (with and without Reference Wavelength Correction); Kinetics (with and without Reference Wavelength Correction) with rate curve graph & calculated rate & activity over user-specified section; Survey Scan with graphical display, peak/valley, 3-pt net & Area under the Curve; 3-Point Net; Multiple Wavelengths (up to 31 wavelengths in Abs or Conc); Performance Verification



Condition

Seller refurbished.  Great working unit.  Fully Tested.

Includes

  • Thermo Biomate 3 spectrophotometer
  • Power cable

Warranty

30 Day warranty. We pledge to offer the best service and warranty to all of our customers! We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.

Certification

This is a genuine product from this manufacturer.
