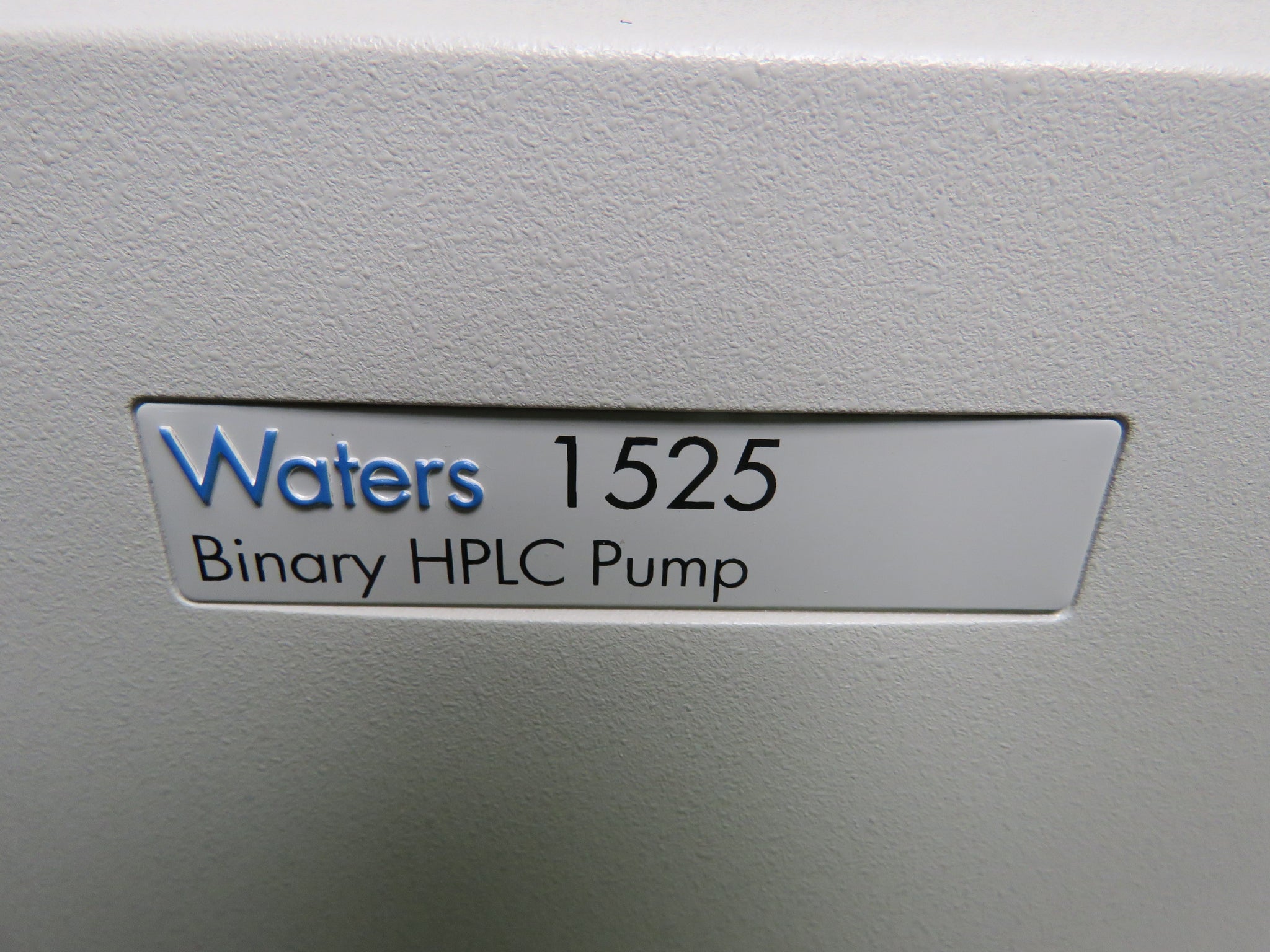

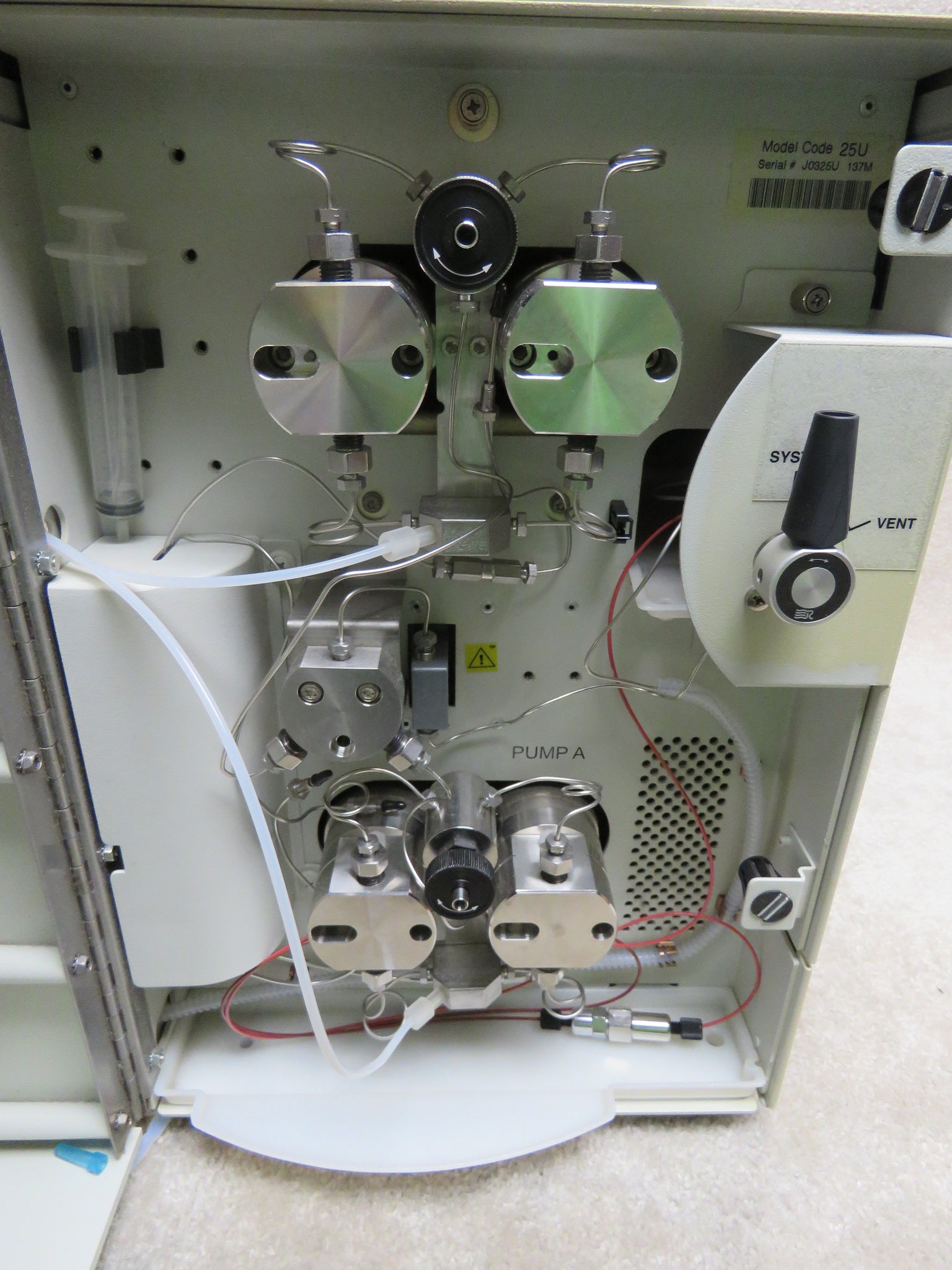

Waters 1525u Binary HPLC Pump PN 186001811 Model 25U
Web Information
Operating Specifications
- Number of eluents: Two
- Programmable flow rate range: 0.00 to 10.00 mL/min in 0.01 mL increments
- Flow precision: ≤ 0.1% RSD or 2 sec SD, six replicates, based on retention time or volumetric measures, at 1.0 mL/min, 1000 to 2000 psi back pressure, PQ test (each pump individually)
- Flow accuracy: ± 1.0% of setting at 1.0 mL/min or 30.0 μL/min, whichever is greater, using degassed methanol, 1000 to 2000 psi back pressure (each pump individually)
- Maximum operating pressure: 6000 psi (41,370 kPa, 401 bar)
- Operating pressure limits: Software programmable high and low pressure limits; user selectable in psi, kPa, bar
- Delay volume (1525): < 200 μL (with one GM 150 mixer)
- Gradient compositional accuracy (1525): ± 0.5% of setting at 1 mL/min and 1000 psi back pressure (methanol:methanol with propylparaben) with one GM 150 mixer
- Gradient compositional precision (1525): < 0.5% RSD of setting at 1.0 mL/min and 1000 psi back pressure (methanol:methanol with propylparaben) with one GM 150 mixer (based on six replicates of compositional accuracy)
- Pressure ripple (one pump): ≤ 2.0% at 1.0 mL/min, degassed methanol, at 1000 psi back pressure
- Gradient ripple: < 1.5% normalized to full scale between 10% to 90%, 1.0 mL/min, and 1000 psi back pressure (methanol:methanol with propylparaben with one GM 150 mixer)
Condition
Used. Unit was removed from laboratory surplus. Item was power tested, but no liquids were introduced. We don't have the right software to control and test the pump.
Includes

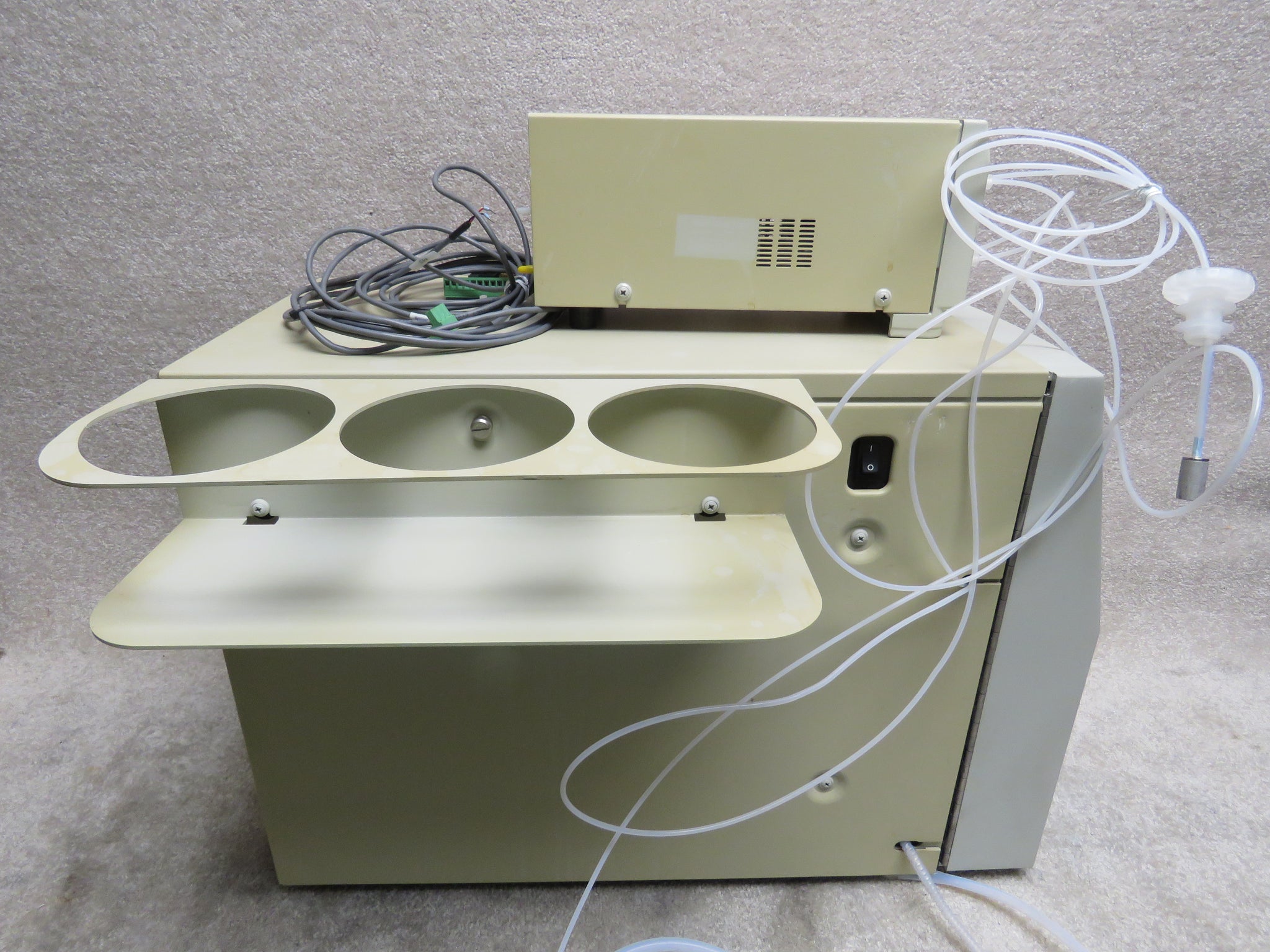

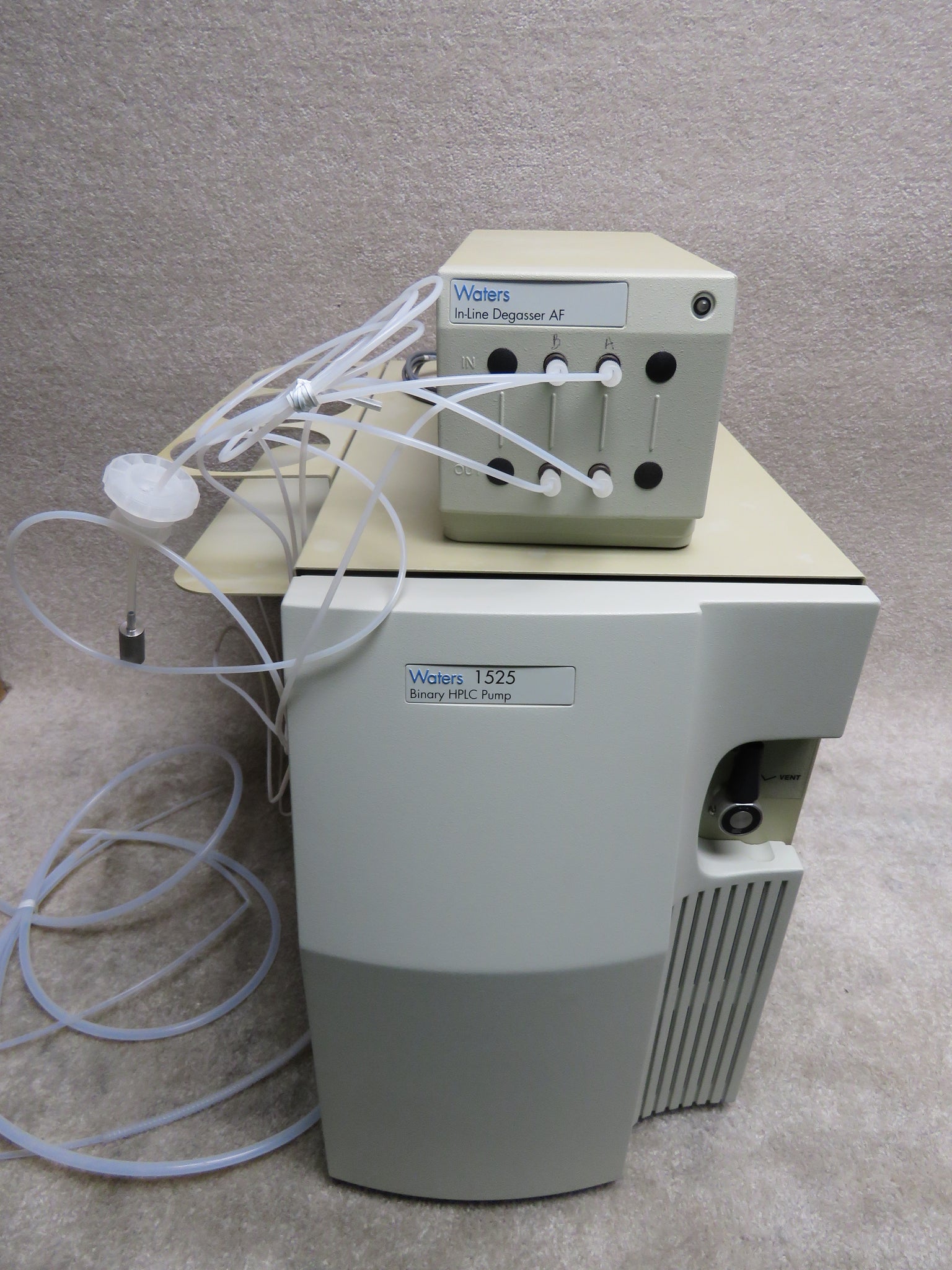

- Waters 1525u Binary HPLC pump

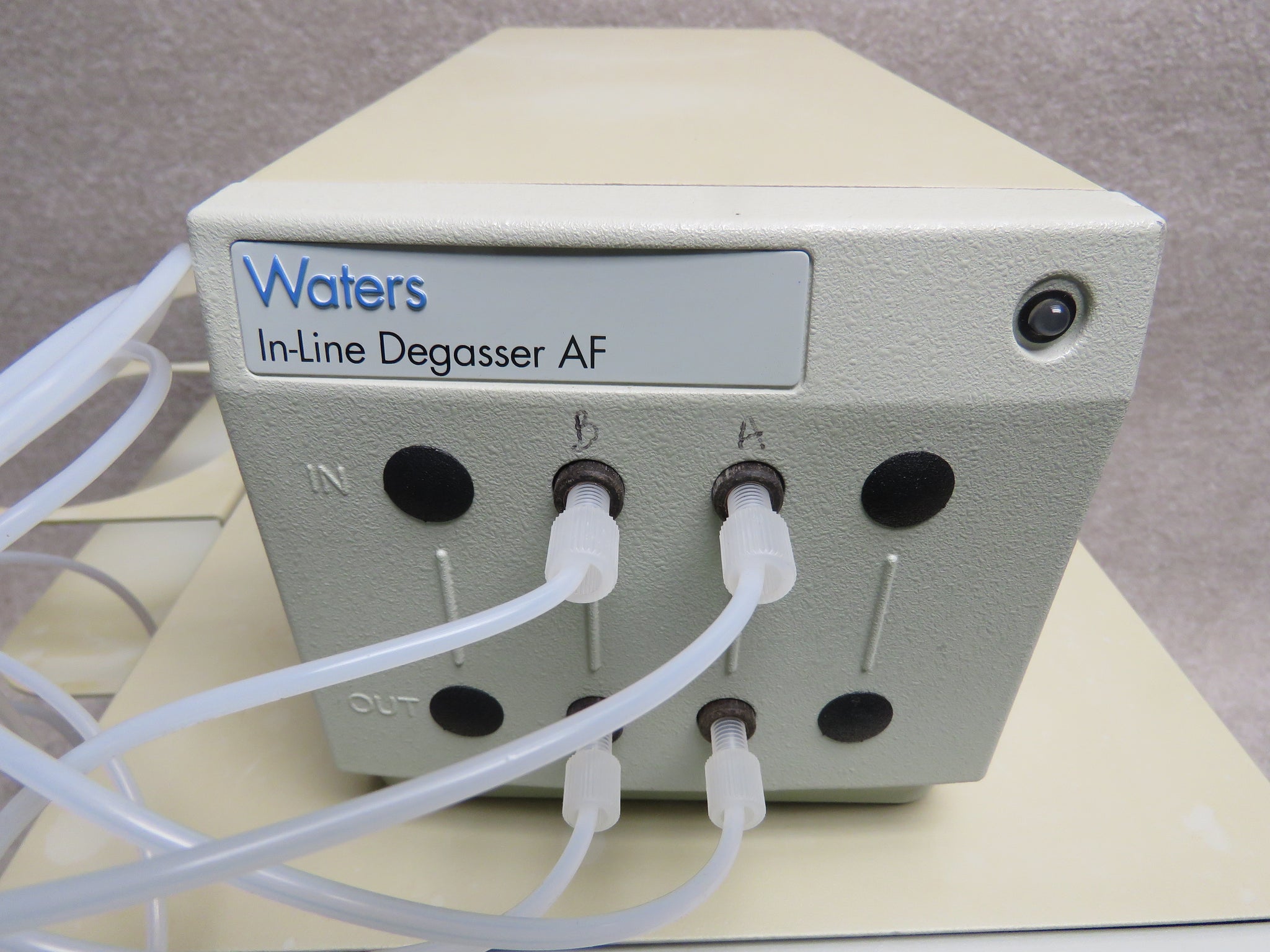

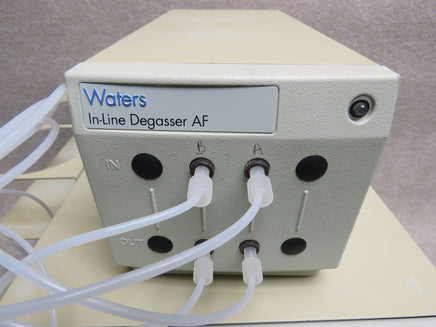

- Waters inline degasser

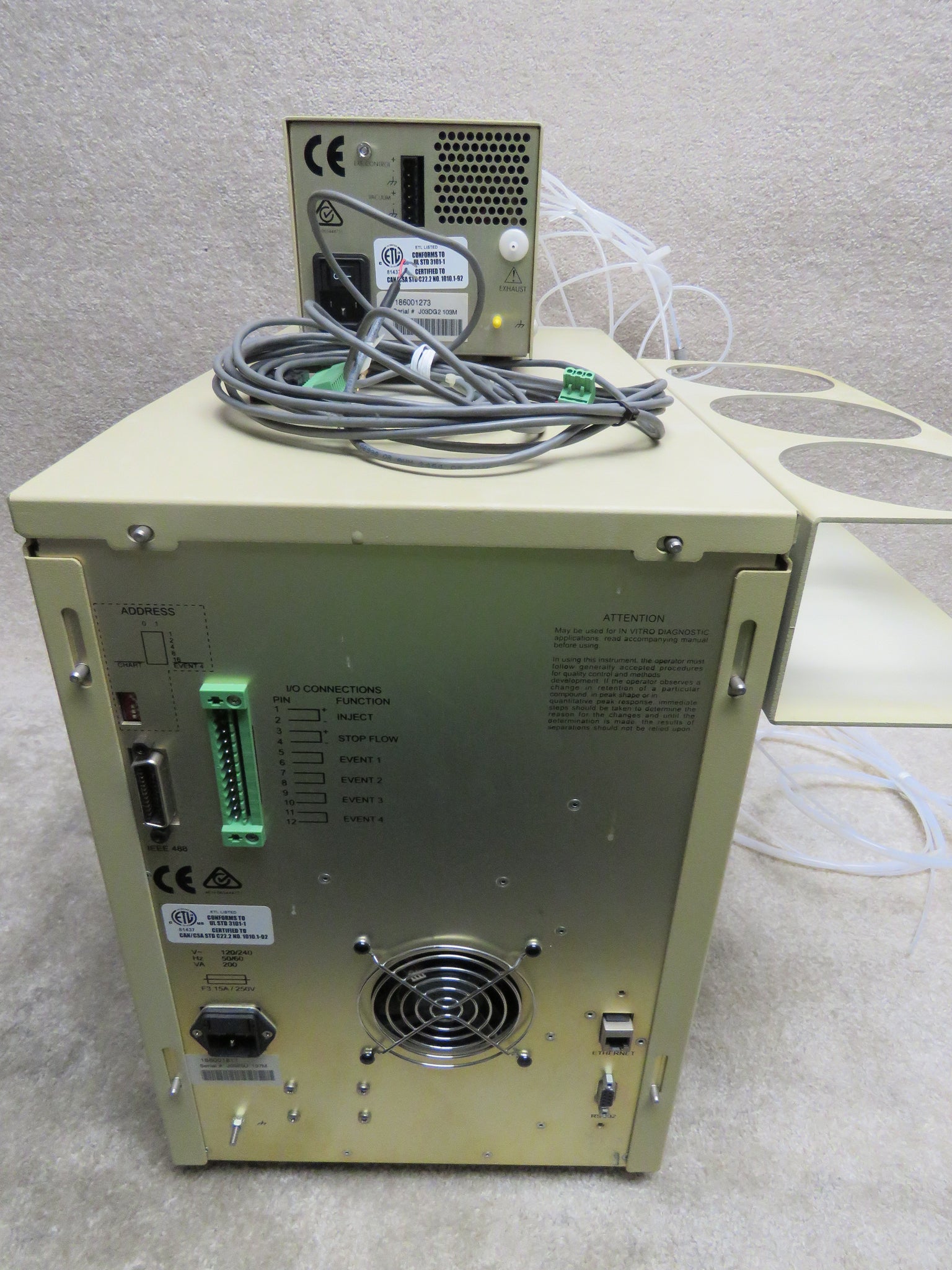

- 2 interface cables
- Power cords
Warranty
30 Day warranty. We pledge to offer the best service and warranty to all of our customers! We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.
Certification
This is a genuine product from this manufacturer.
Disclaimer
Regardless of the origin of the equipment, documentation provided or identification appearing upon the equipment, the equipment described and offered here is in no way certified for, recommended for, or offered for any specific use. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. The purchaser, by bidding on this equipment, indicates their acknowledgment of, and agreement to the terms of this disclaimer. it is the purchaser's responsibility to have the item inspected and certified by a qualified professional before use!
