Waters 1525u Binary HPLC Pump PN 186001811 Model 25U
Web Information
Operating Specifications
- Programmable flow rate: 0.00 to 5.00 mL/min, in 0.01 mL/min increments
- Flow precision: 2 sec SD, six replicates based on retention time or volumetric measures at 0.2 mL/min, 1000 to 2000 psi back pressure, PQ test (each pump individually)
- Flow accuracy: 2.0% of setting at 0.1 mL/min using degassed methanol at 1000 to 2000 psi backpressure (each pump individually)
- Maximum operating pressure: 6000 psi (41,370 kPa, 401 bars)
- Operating pressure limits: Software programmable high and low pressure limits; user selectable in psi, kPa, bar
- Delay: volume < 30 μL (without mixer), < 100 μL (with one 50 μL mixer)
- Gradient accuracy: < 1.0% of setting (typical) at 0.1 mL/min between 10% to 90%, and 1000 psi backpressure (methanol:methanol with propylparaben and one 50.0 μL mixer)
- Gradient precision: < 0.5% RSD (typical) between 10.0% to 90.0%, 0.1 mL/min, and 1000 psi back pressure (methanol:water with octanophenone and one 50.0 μL mixer)
- Pressure ripple (one pump): < 2.0% at 0.5 mL/min, degassed methanol, at 1000 to 2000 psi back pressure
- Gradient ripple: < 1.5% normalized to full scale between 10.0% to 90.0%, 0.1 mL/min, and 1000 psi backpressure (methanol:methanol with propylparaben) with one 50.0 μL mixer
Condition
Used. Unit was removed from laboratory surplus. Item was power tested, but no liquids were introduced. We don't have the right software to control and test the pump.
Includes

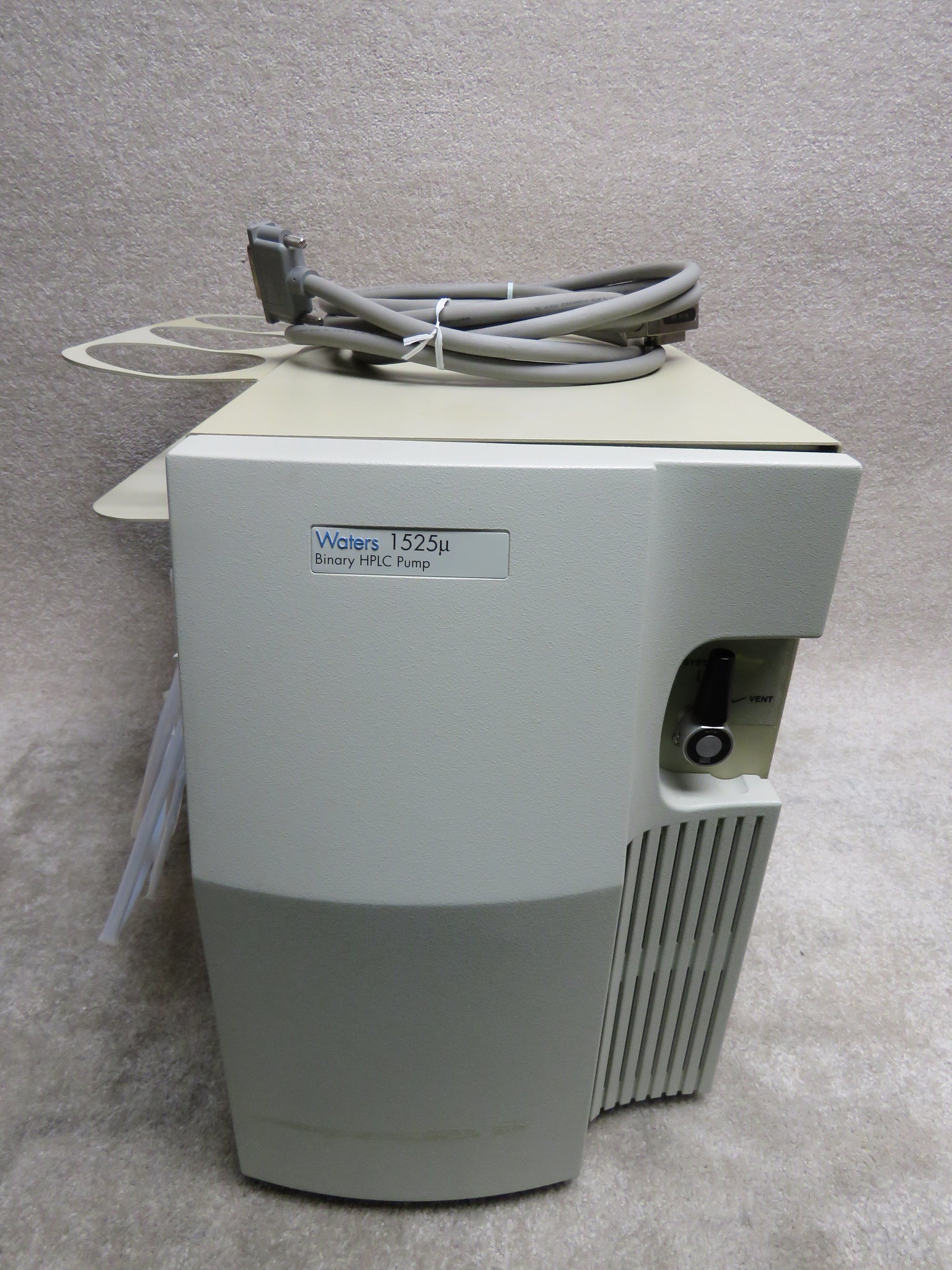

- Waters 1525u binary HPLC pump

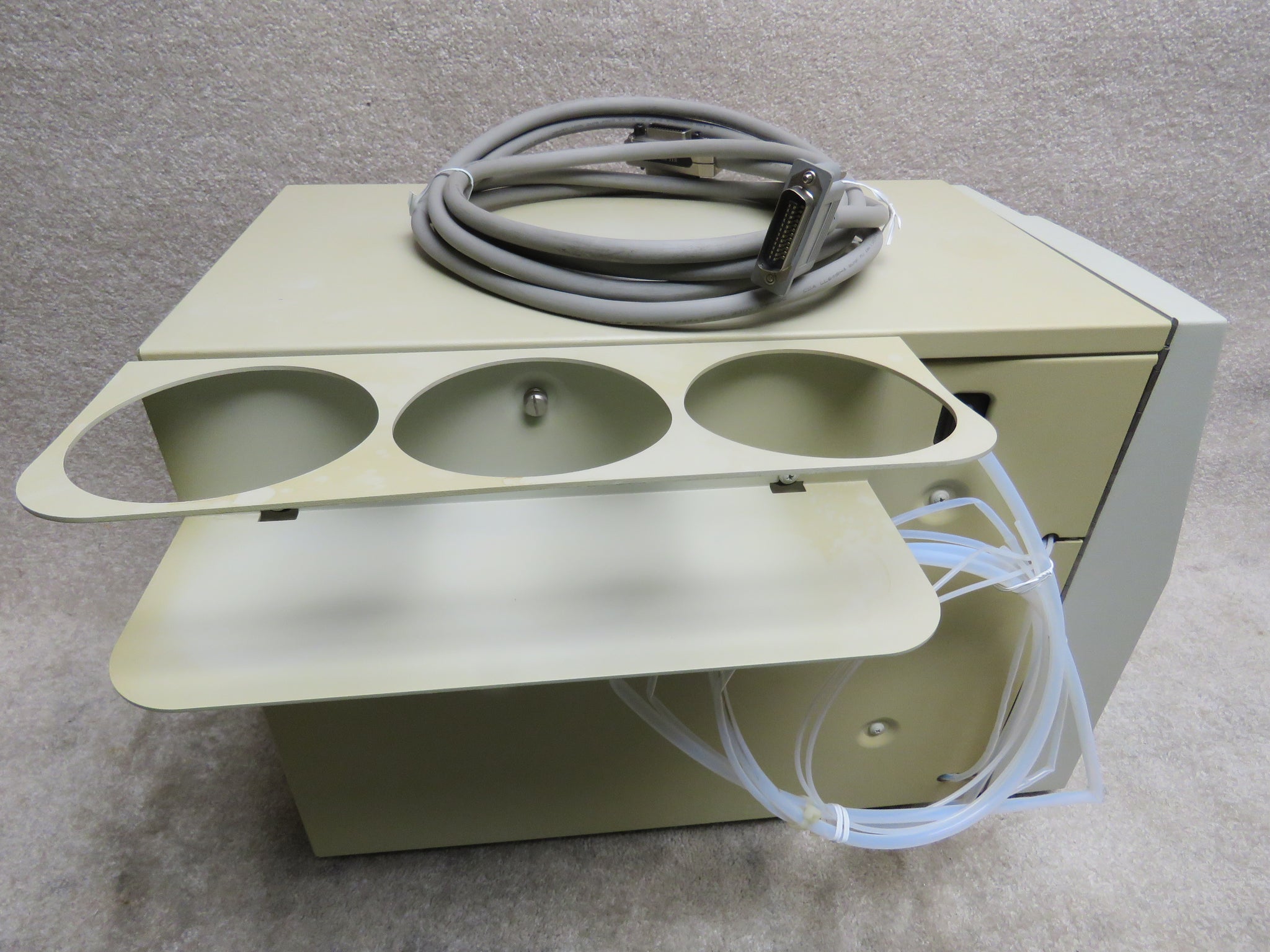

- Solvent holder tray
- GPIB cable
- Power cord
Warranty
30 Day warranty. We pledge to offer the best service and warranty to all of our customers! We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.
Certification
This is a genuine product from this manufacturer.
