Unfors RaySafe 8201021-H Xi Radiation Meter Base Unit w/mAs Platinum W/Detectors

Web Information

The RaySafe Xi is intended for measurements in medical X-ray imaging applications. The RaySafe Xi is not intended for use during patient examination.
The RaySafe Xi consists of a base unit and several different external detectors measuring: Radiography/ Fluoroscopy (R/F), mammography (MAM), on AEC or ABC systems (Transparent), Computed Tomography (CT), ambient and emitted light (Light) and scattered or low level radiation (Survey).

Communication between detector and base unit is purely digital, thereby minimizing sensitivity to mechanical or electrical stress. The base unit may also be equipped with an optional integrated tube current meter (mA/mAs).

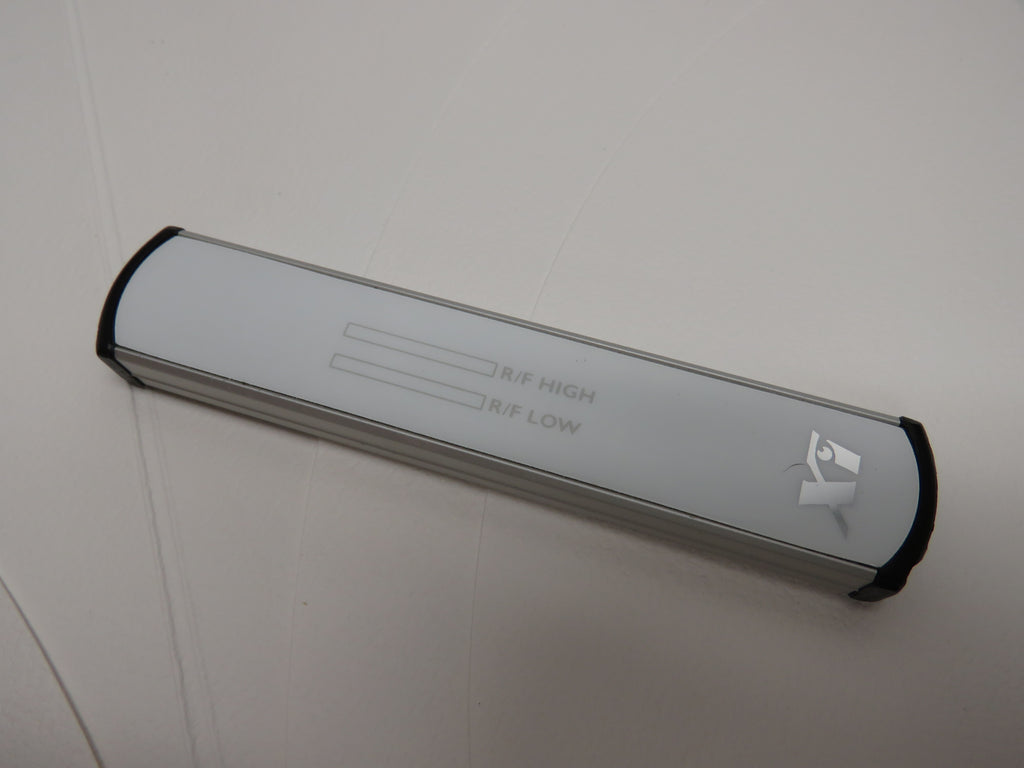

• The R/F detector has two sensors: R/F high is designed for conventional, high dose rate measurements normally generated without a phantom between the detector and the X-ray source. R/F low is designed for low dose rate measurements normally generated with a phantom between the detector and the X-ray source.
• The mammography sensor is used for both low and high dose rates generated in mammography applications.
• The transparent detector is a solid-state detector with a very small radiologically visible footprint. It is intended to be used for applications where the R/F detector would influence the automatic exposure control on X-ray equipment and serves as a complement to the R/F detector. The transparent detector is designed to mimic the response of a pancake ion chamber detector and therefore it has no backscatter
protection.
• The CT detector is an ionization chamber, designed to measure CT dose for applications such as Dose Length Product (DLP) and Computed Tomography Dose Index (CTDI).
• The light detector is designed to measure luminance on LCD and CRT monitors, as well as light boxes, and illuminance for diagnostic X-ray applications.
• The survey detector is designed for measuring leakage or scattered radiation from X-ray tubes or in examination rooms and leakage radiation from γ-emitting isotopes

There are two versions of the RaySafe Xi base unit: one with and one without mA/mAs capabilities. Both versions are fully compatible and interchangeable with the RaySafe Xi detectors as long as the firmware supports the detector (see Specifications). In this  manual all information refers to both versions unless otherwise specified

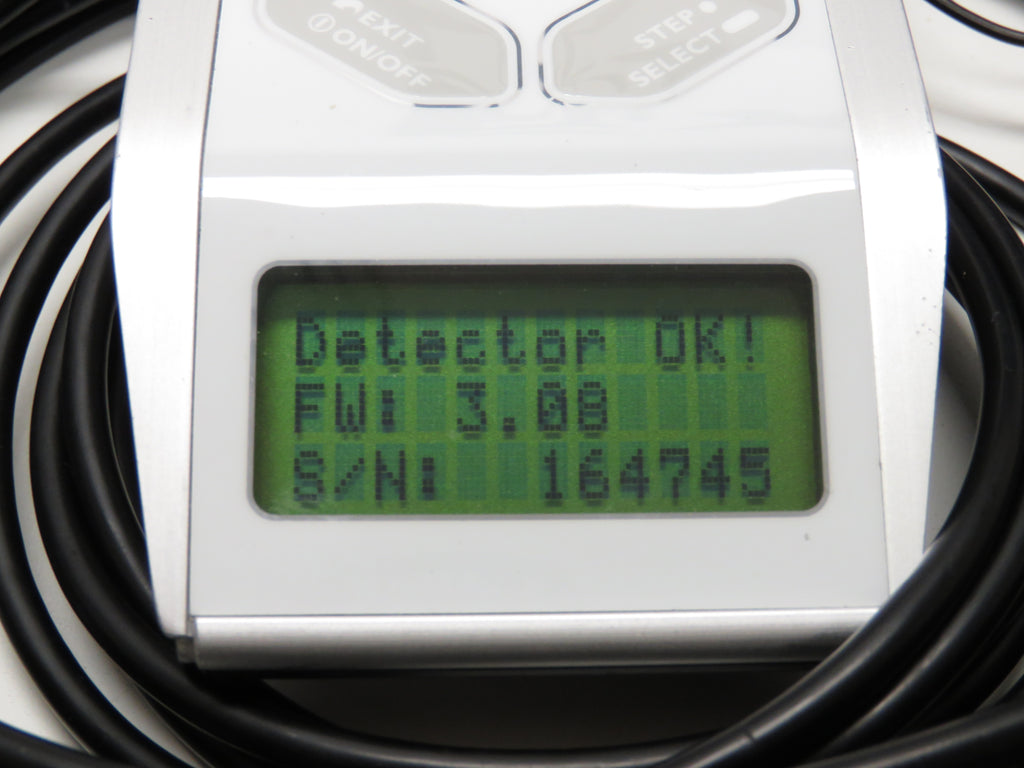

The RaySafe Xi base unit automatically identifies the connected detector and displays the settings and parameters available for that detector.
The built-in active compensation automatically applies corrections for different beam qualities, filtrations and temperatures. During fluoroscopy, survey or light measurements the displayed values are continuously updated. Data is sent on the serial port, and RaySafe Xi view, the program included with your RaySafe Xi, shows
numerical data as well as waveforms on a PC.

Condition

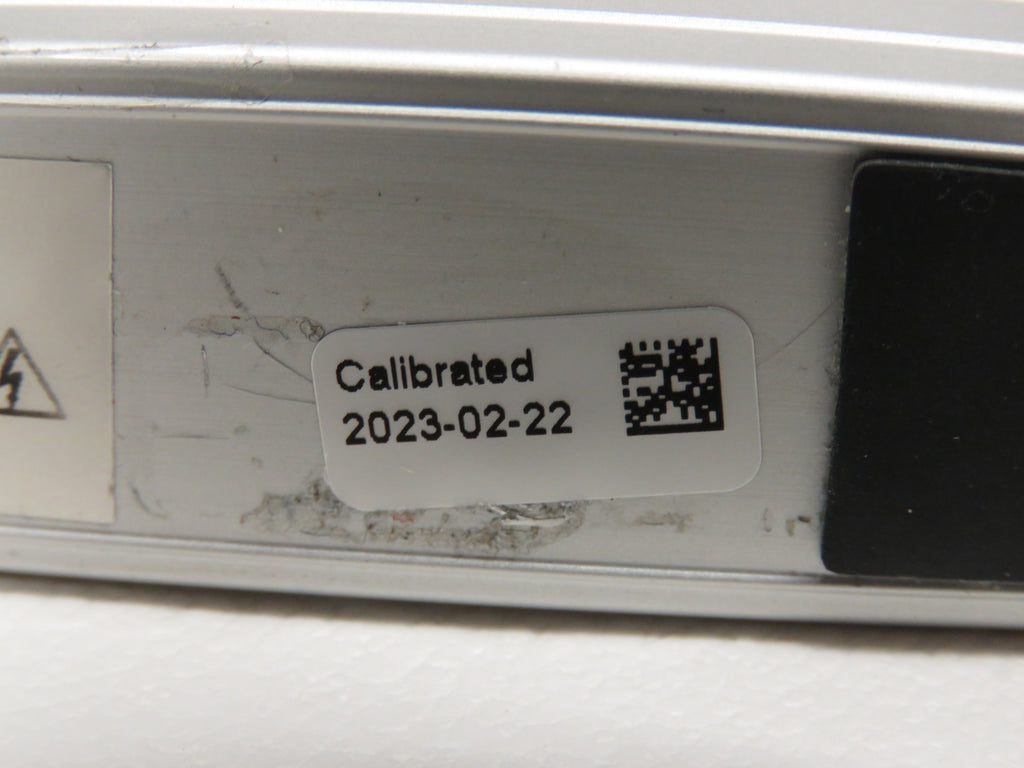

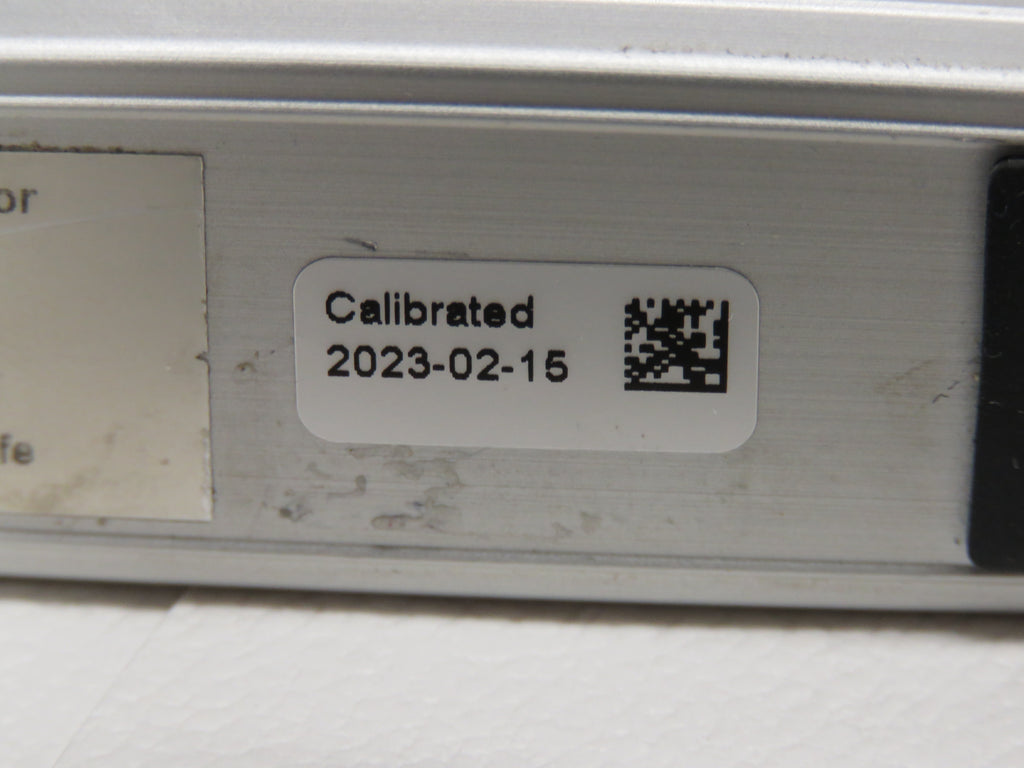

Excellent condition.  Always under service with last calibration performed in 2023.

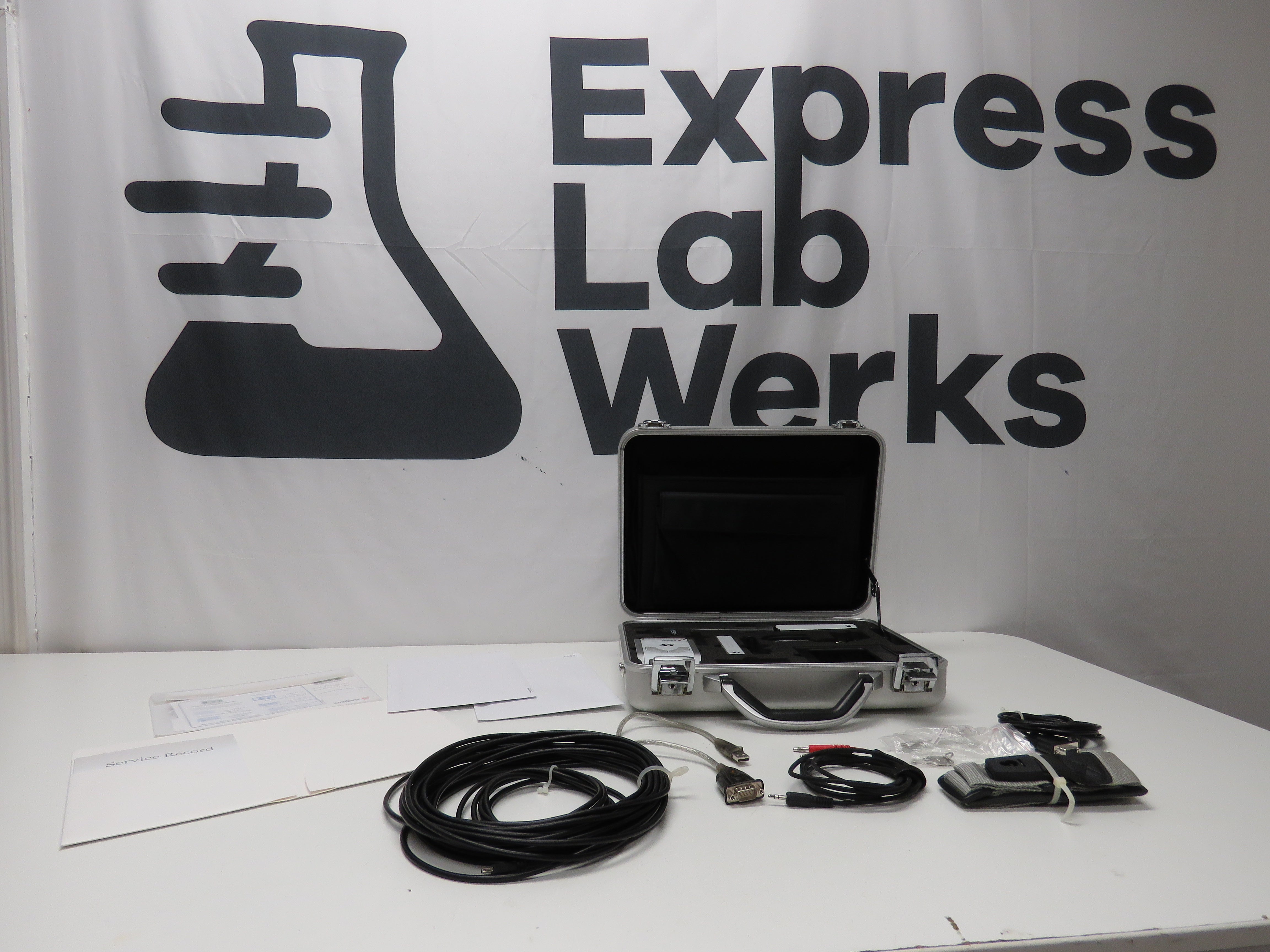

Includes

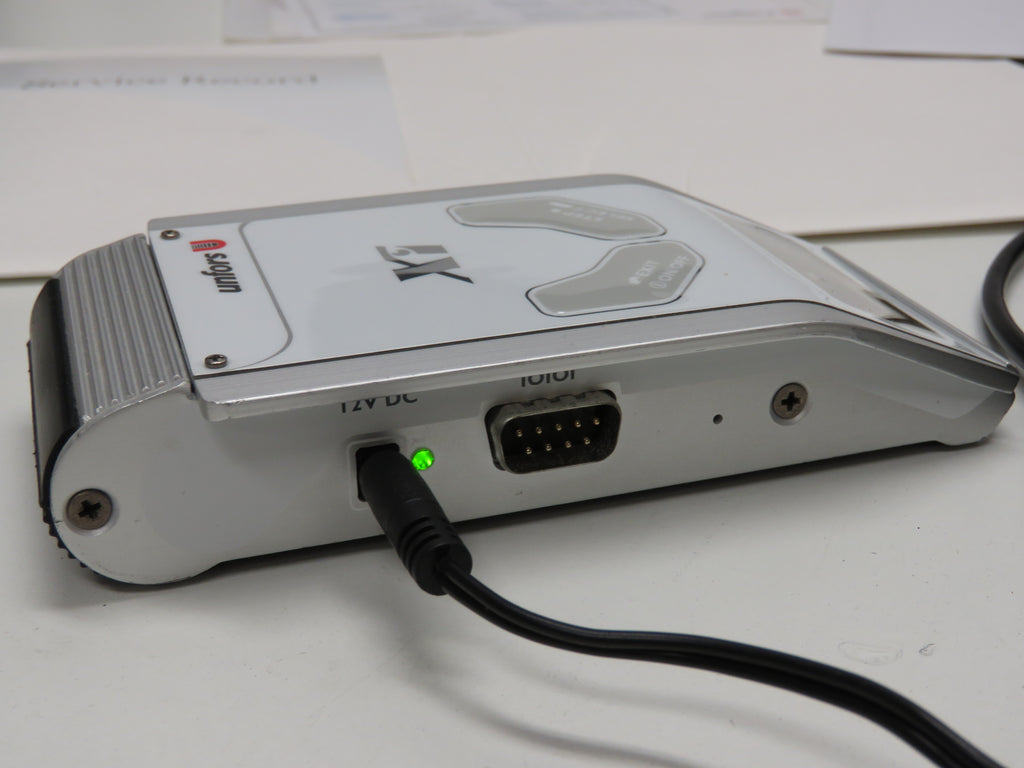

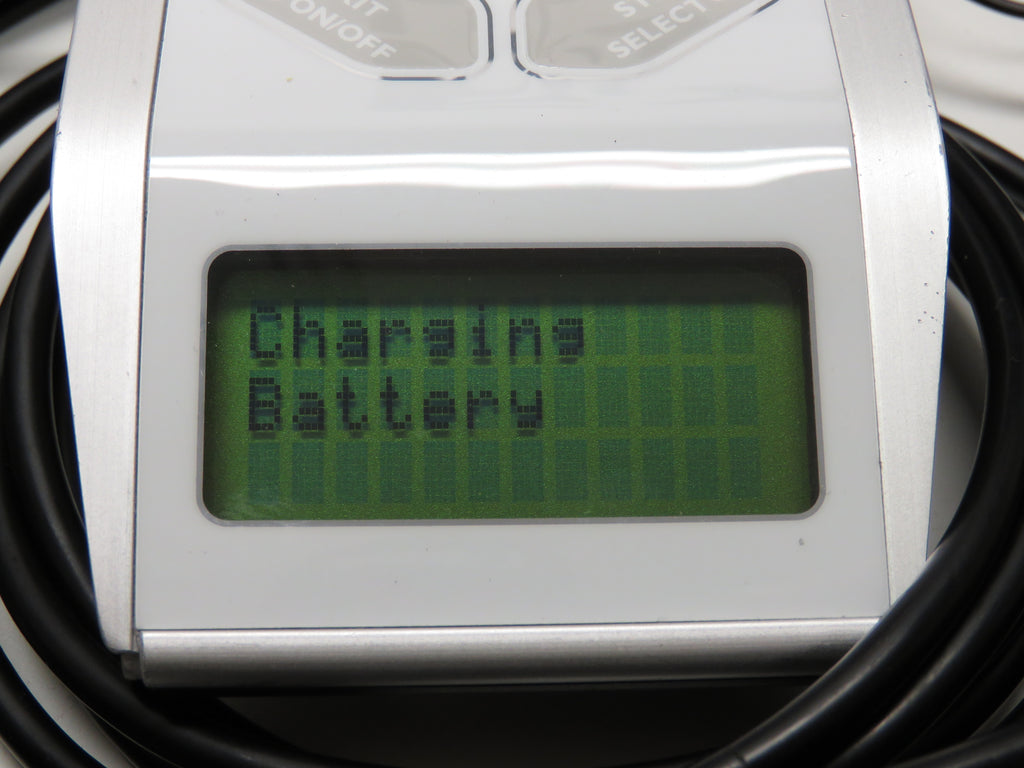

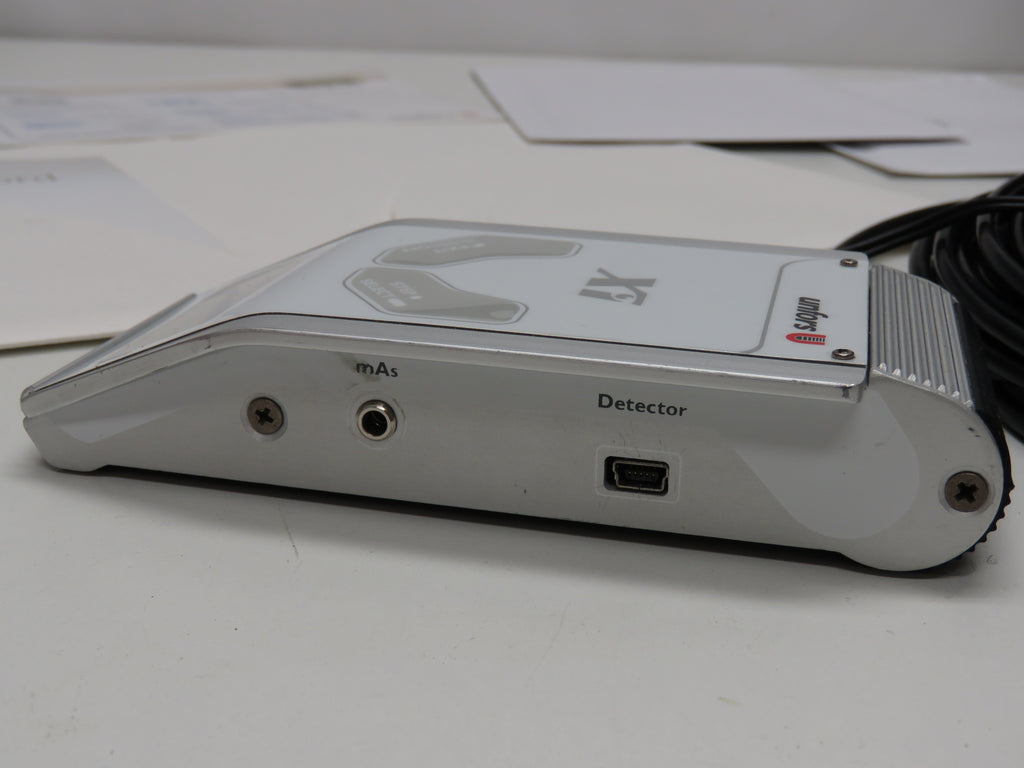

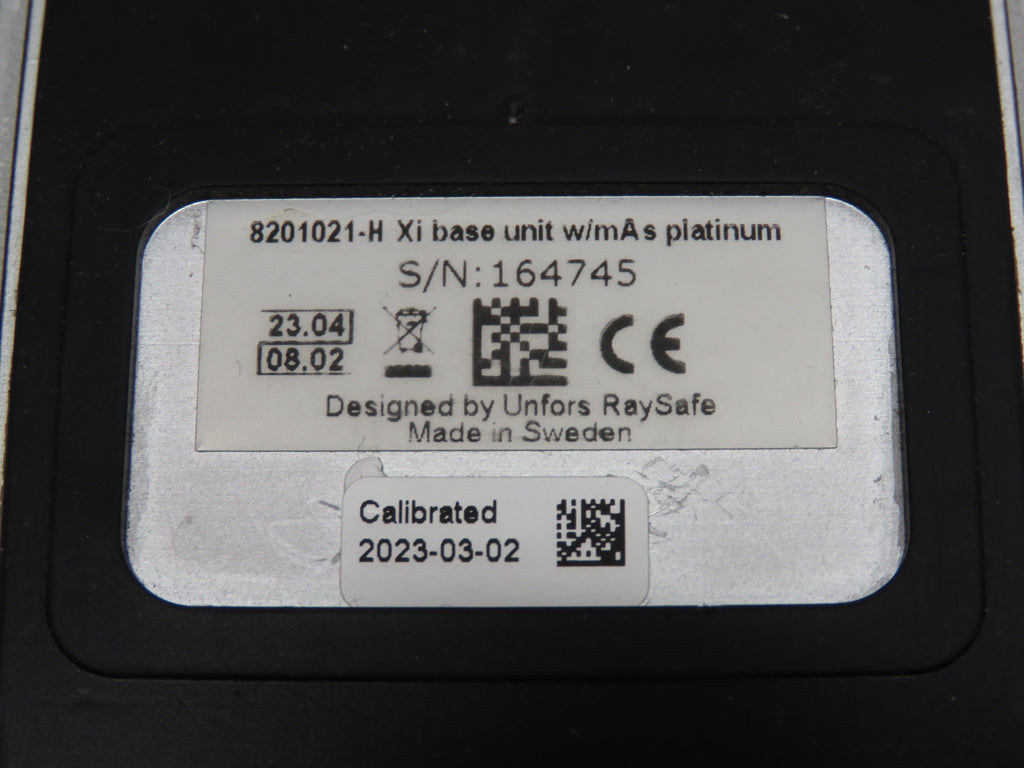

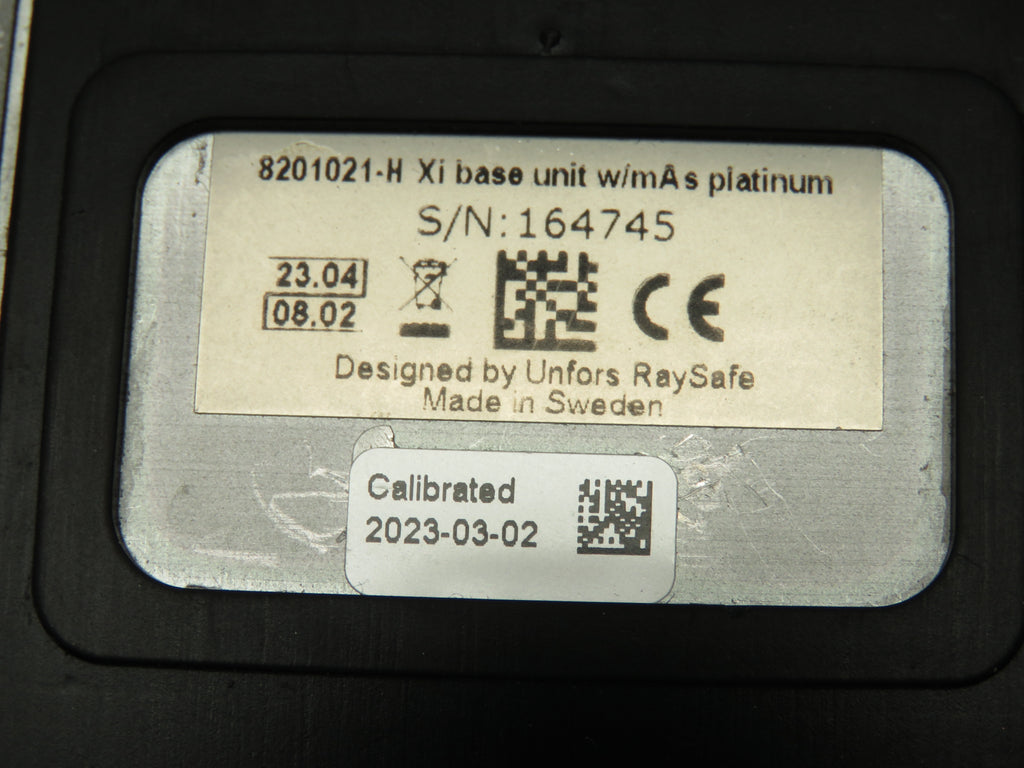

• Unfors RaySafe 8201021-H Xi Radiation Meter Base Unit w/mAs Platinum

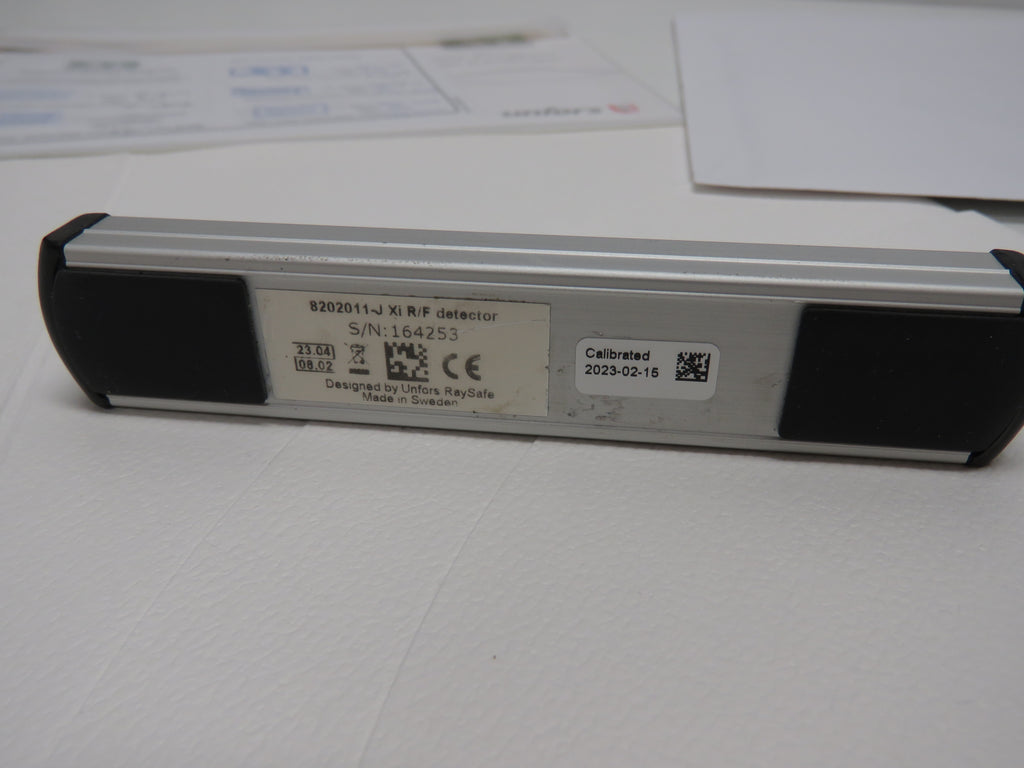

• Xi R/F detector Model 8202011-J

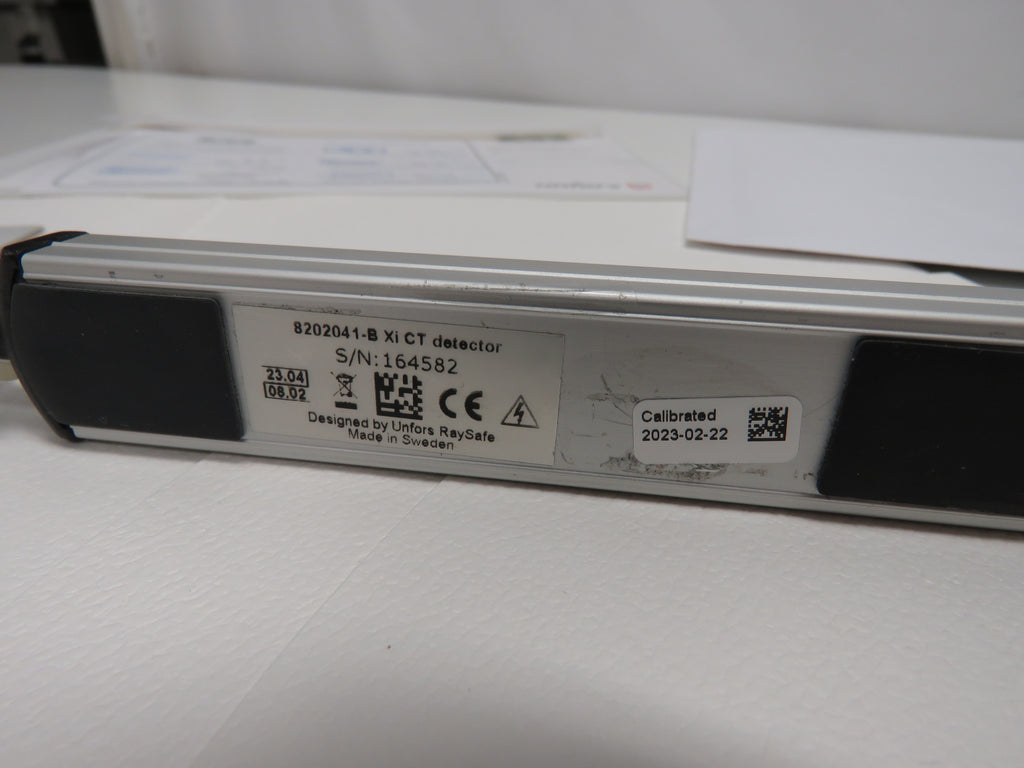

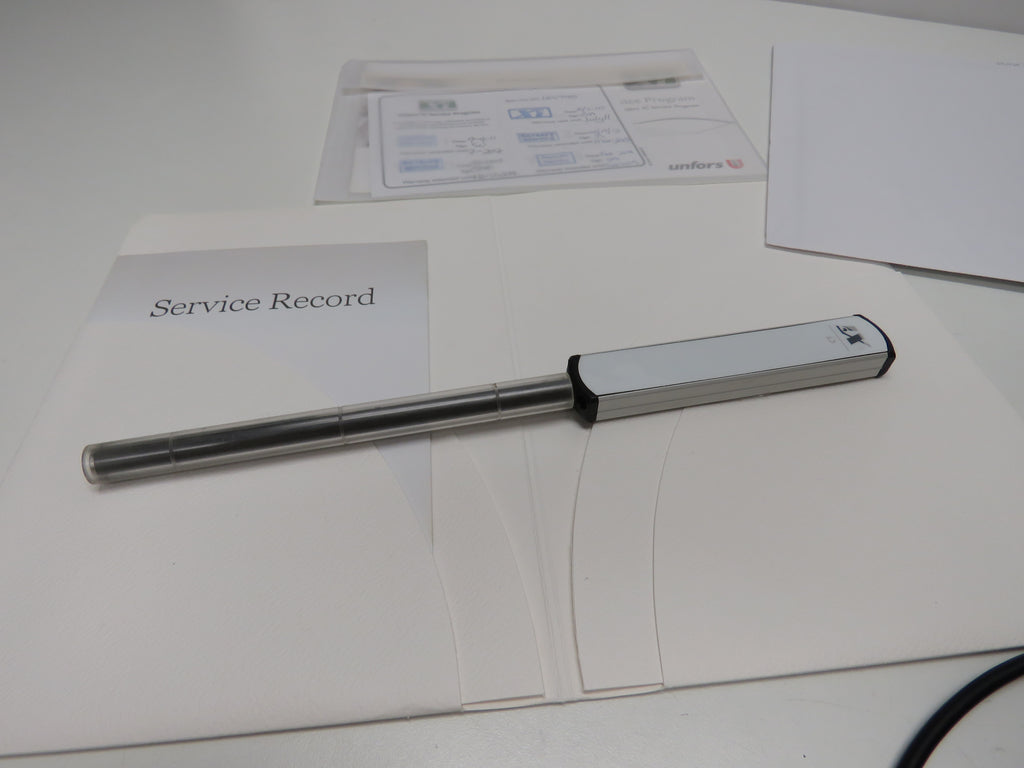

• Xi CT Detector Model 8202041-B

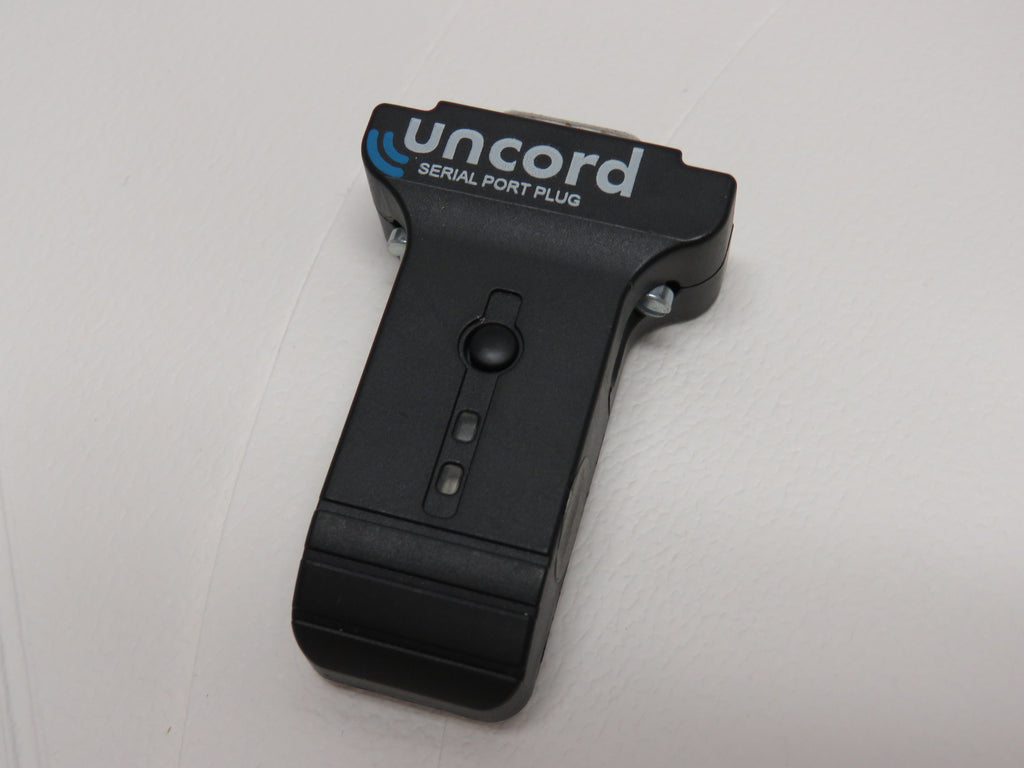

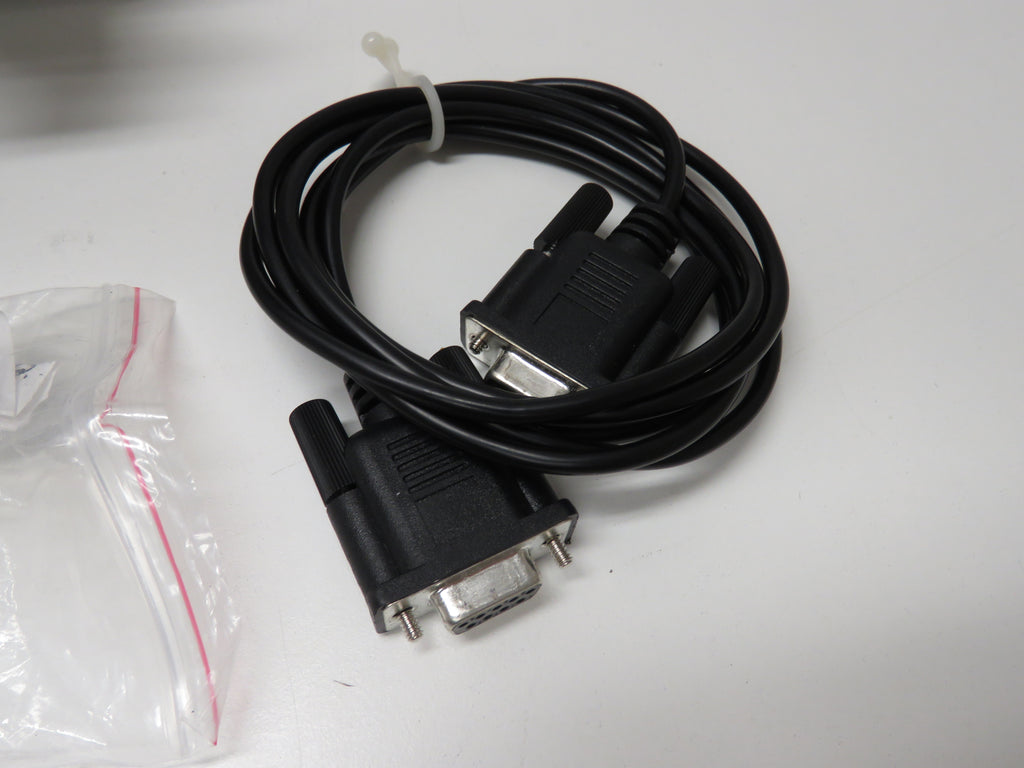

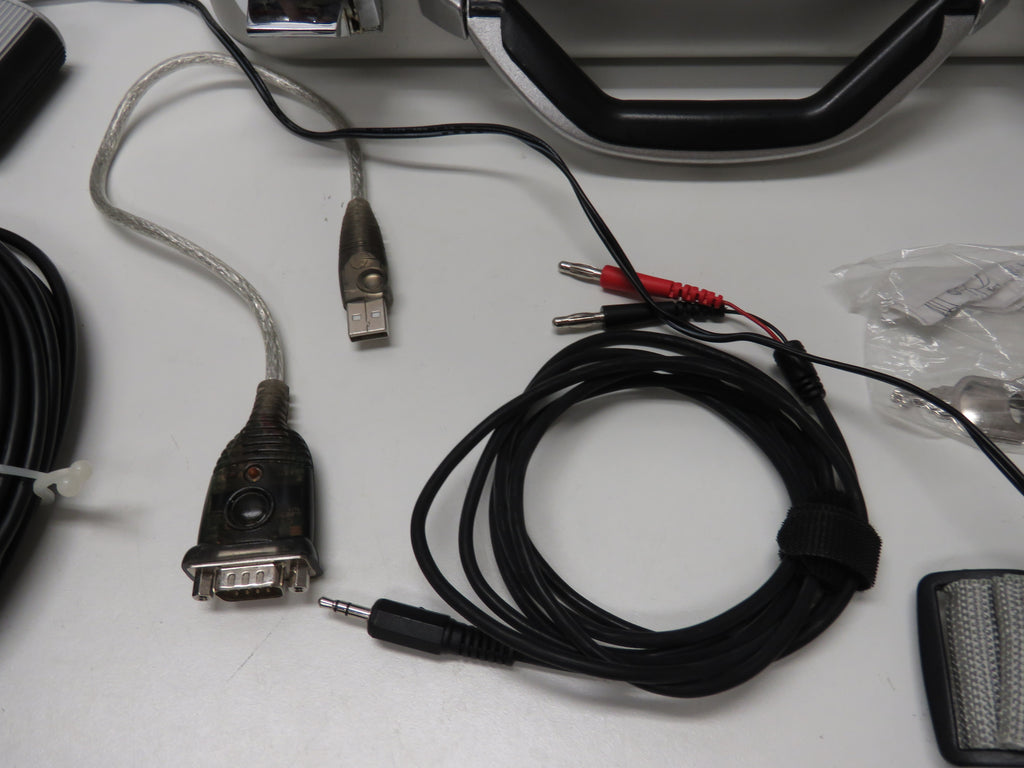

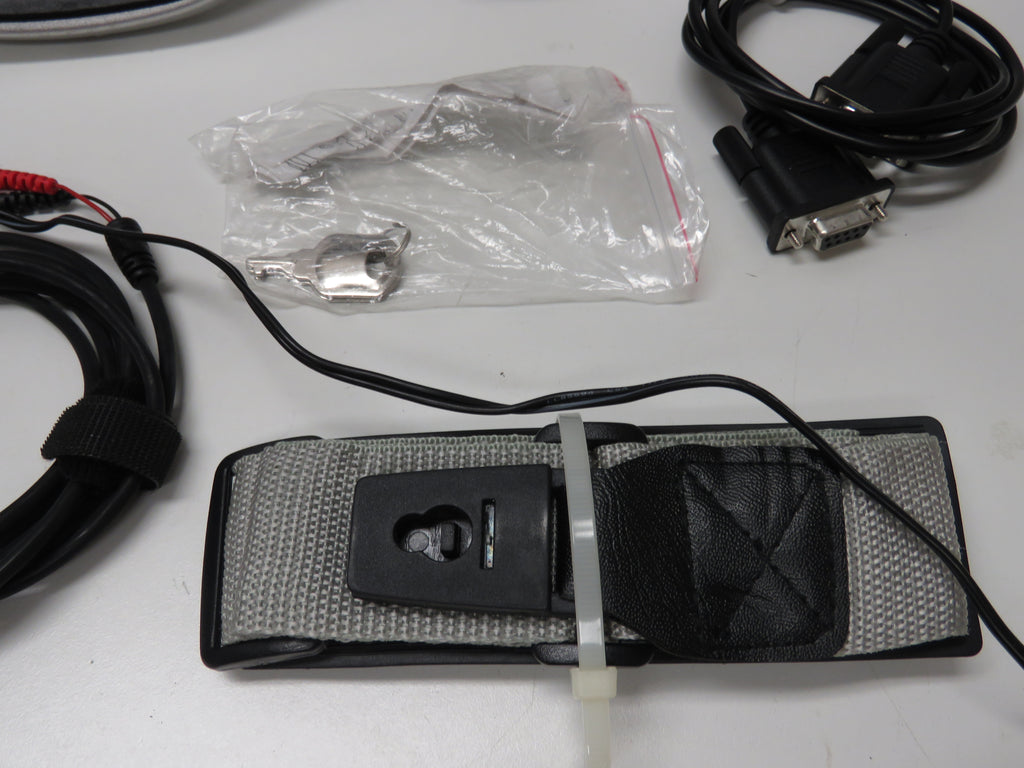

• Instrument adapters / accessories as shown
• Power supply

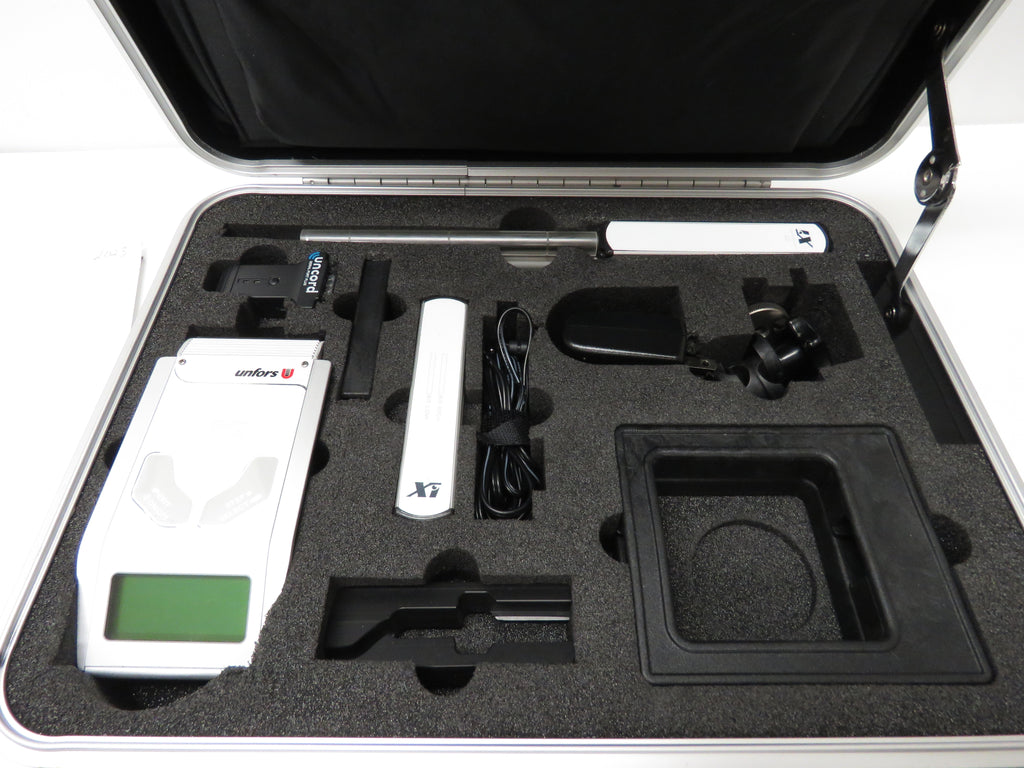

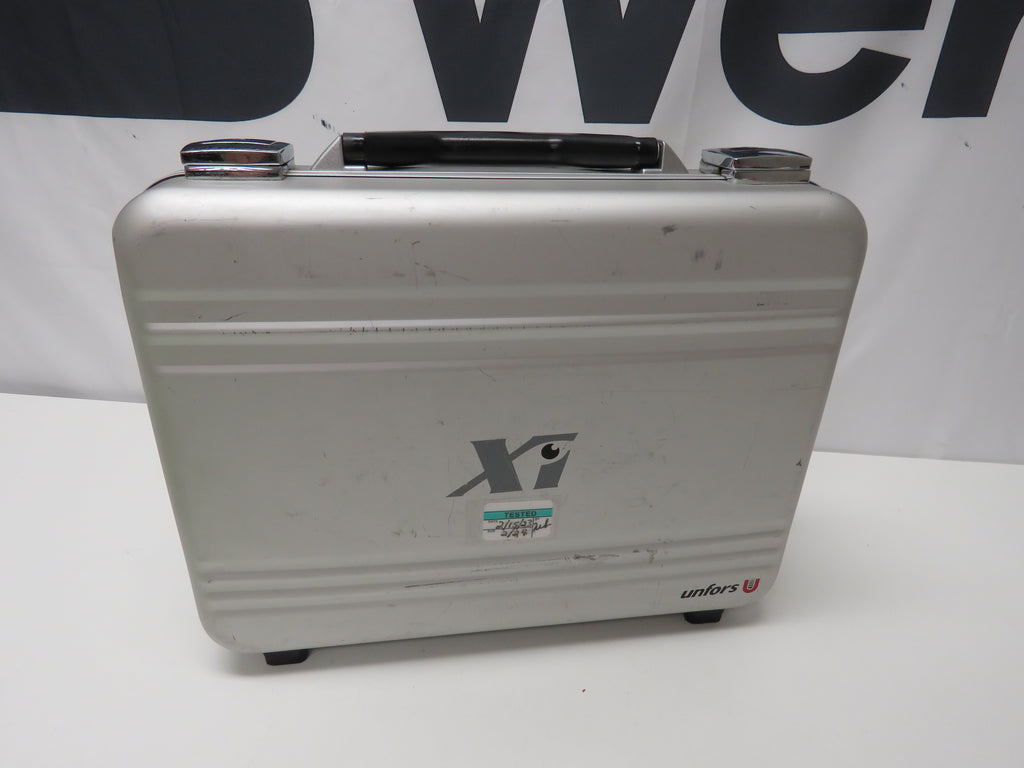

• Factory hard case

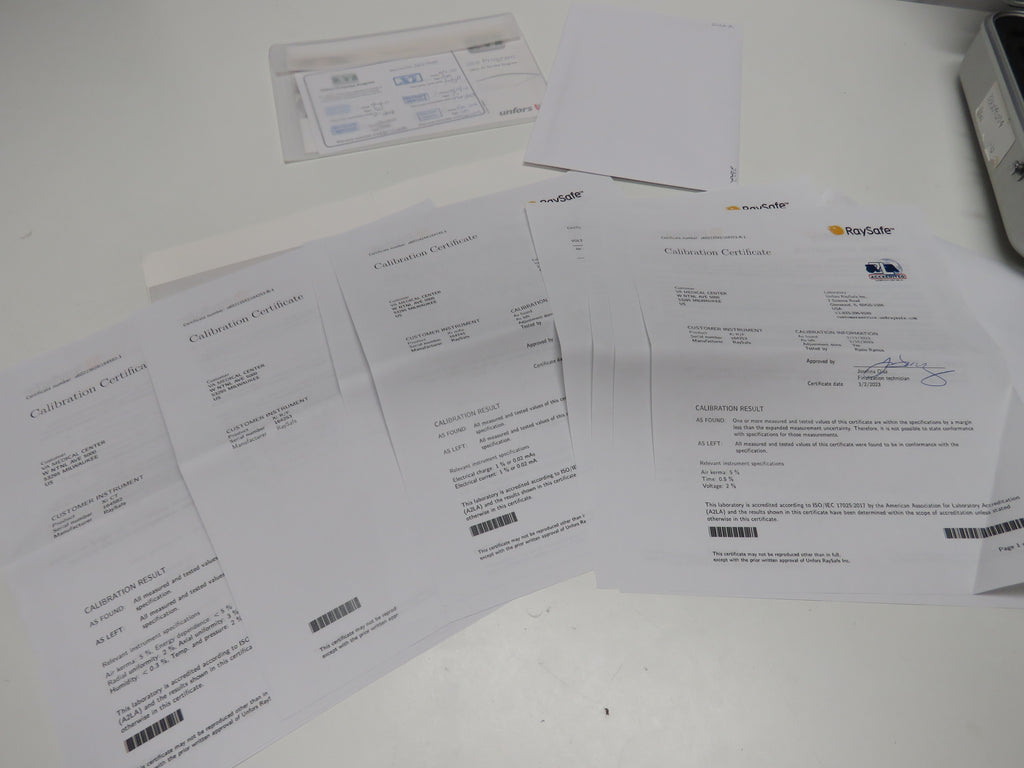

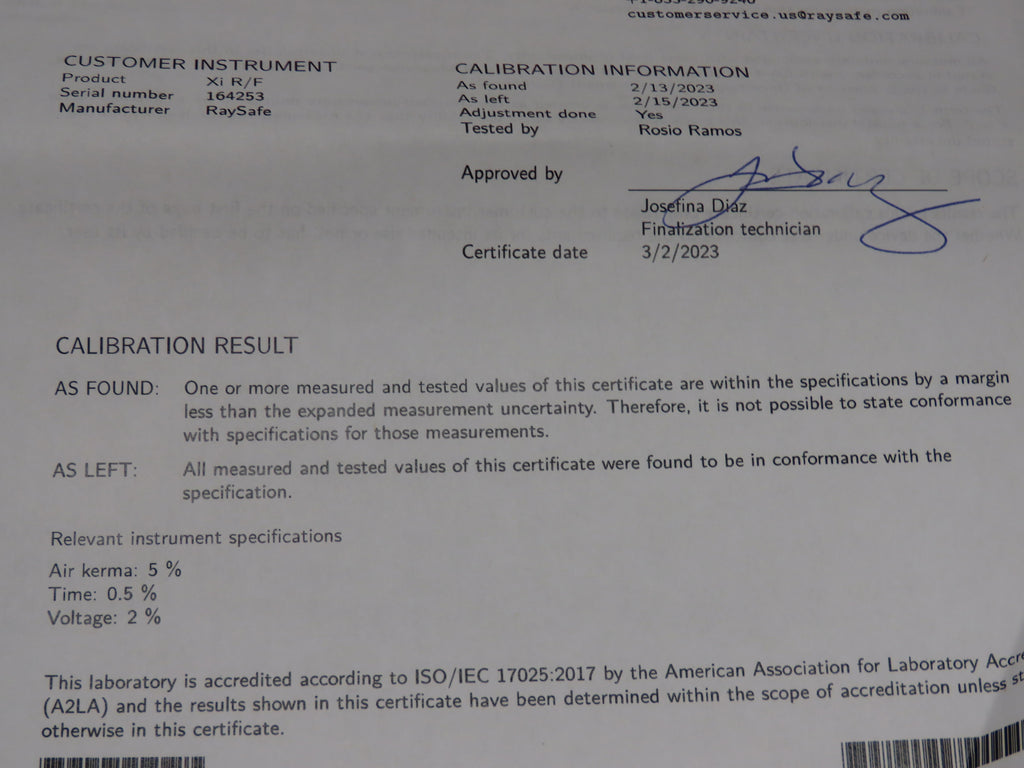

• Service and calibration records

MBCA

Warranty

30 Day warranty. We pledge to offer the best service and warranty to all of our customers!  We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.

Certification

This is a genuine product from this manufacturer.

Disclaimer

The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping of the item."

Regardless of the origin of the equipment, documentation provided or identification appearing upon the equipment, the equipment described and offered here is in no way certified for, recommended for, or offered for any specific use. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. The purchaser, by bidding on this equipment, indicates their acknowledgment of, and agreement to the terms of this disclaimer. it is the purchaser's responsibility to have the item inspected and certified by a qualified professional before use!
