2022 Nabertherm 1200°C Tube Furnace R50/250/12 w/ Gas Reg Exceptional Condition!
Web Information
Nabertherm 1200°C Tube Furnace R50/250/12
1200°C Tube Furnace R50/250/12 with integrated control systems can be used universally for many processes. Equipped with a standard working tube of C 530 ceramic and two fiber plugs, these tube furnaces have a very good price/performance ratio.
Nabertherm is one of the world's leading manufacturers of laboratory furnaces based in Germany. Nabertherm offers a wide range of muffle furnaces, drying ovens, high-temperature or tube furnaces.

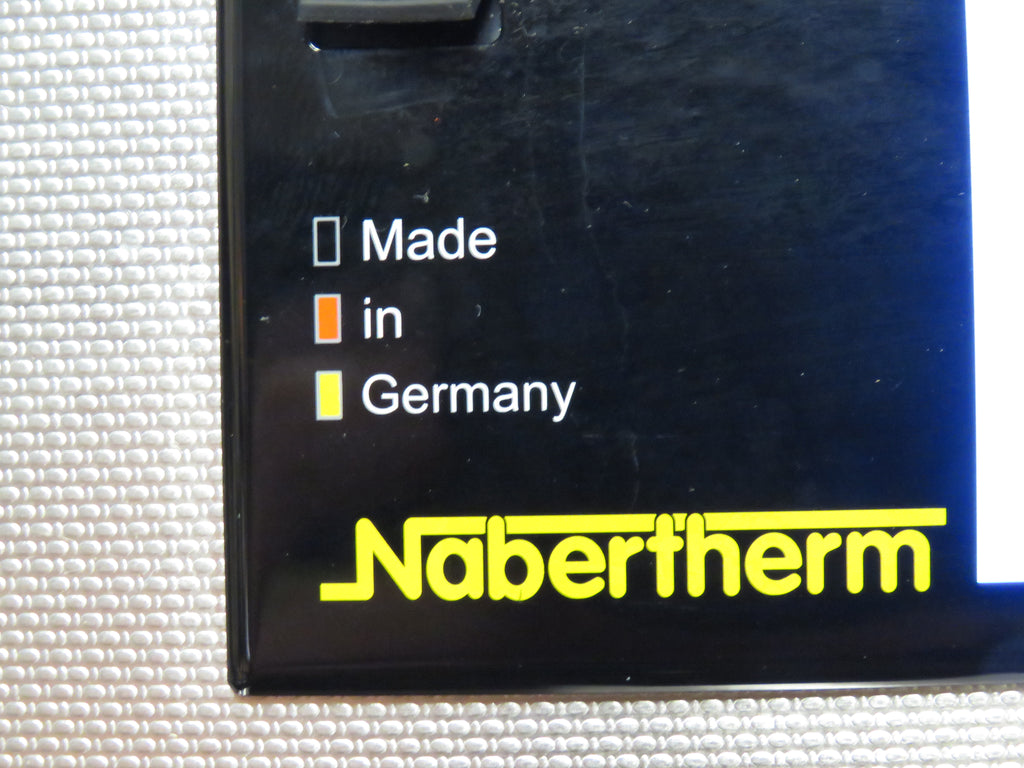

Country of Origin: Made in Germany
Manufacturer: Nabertherm GmbH
Main Features:
- Tmax 1200 °C or 1300 °C
- Single-zoned design
- Dual shell ventilated housing made of textured stainless steel sheets for low surface temperature and high stability
- Exclusive use of insulation materials without categorization according to EC Regulation No 1272/2008 (CLP). This explicitly means that alumino silicate wool, also known as “refractory ceramic fiber” (RCF), which is classified and possibly carcinogenic, is not used.
- Outer tube diameter of 50 mm to 170 mm, heated length from 250 mm to 1000 mm
- Ceramic working tube C 530 including two fiber plugs for operation under air
- Thermocouple type N (1200 °C) or type S (1300 °C)
- Solid state relays provide for lownoise operation
- Heating elements on support tubes provide for free radiation
- Defined application within the constraints of the operating instructions

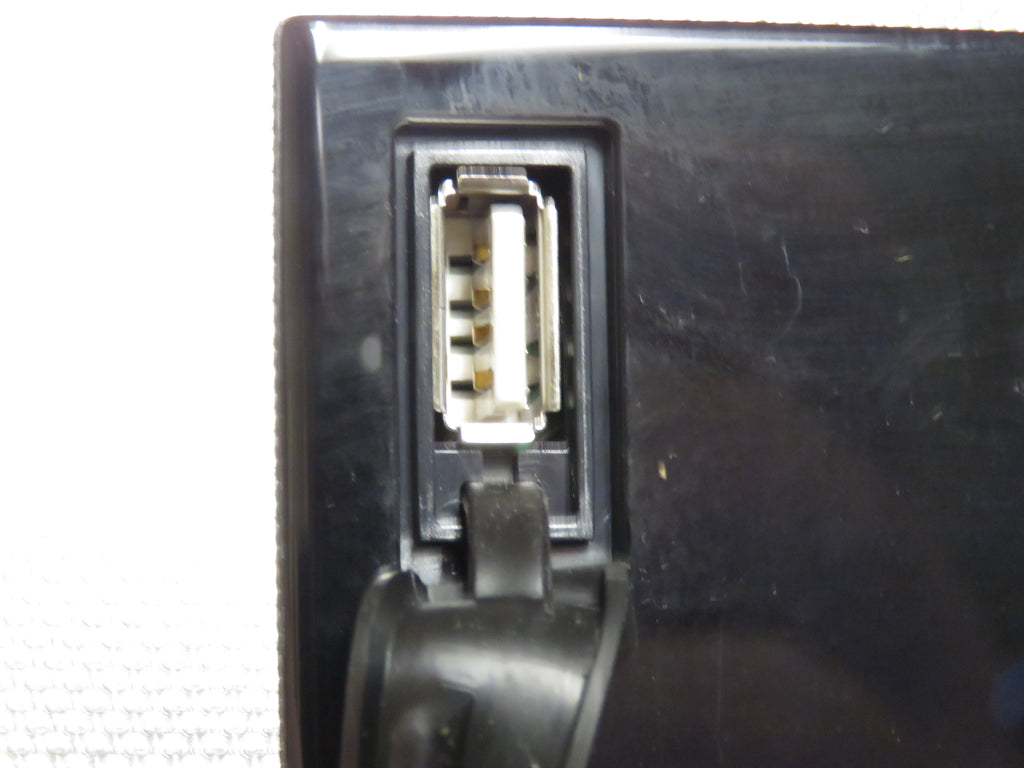

- NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive

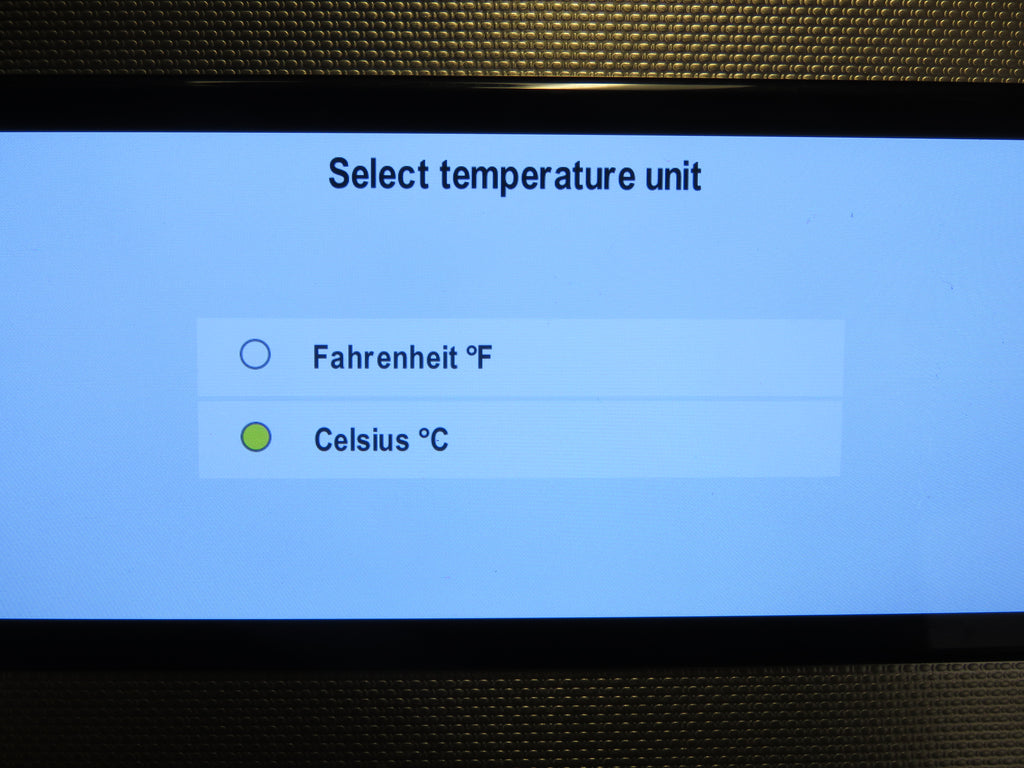

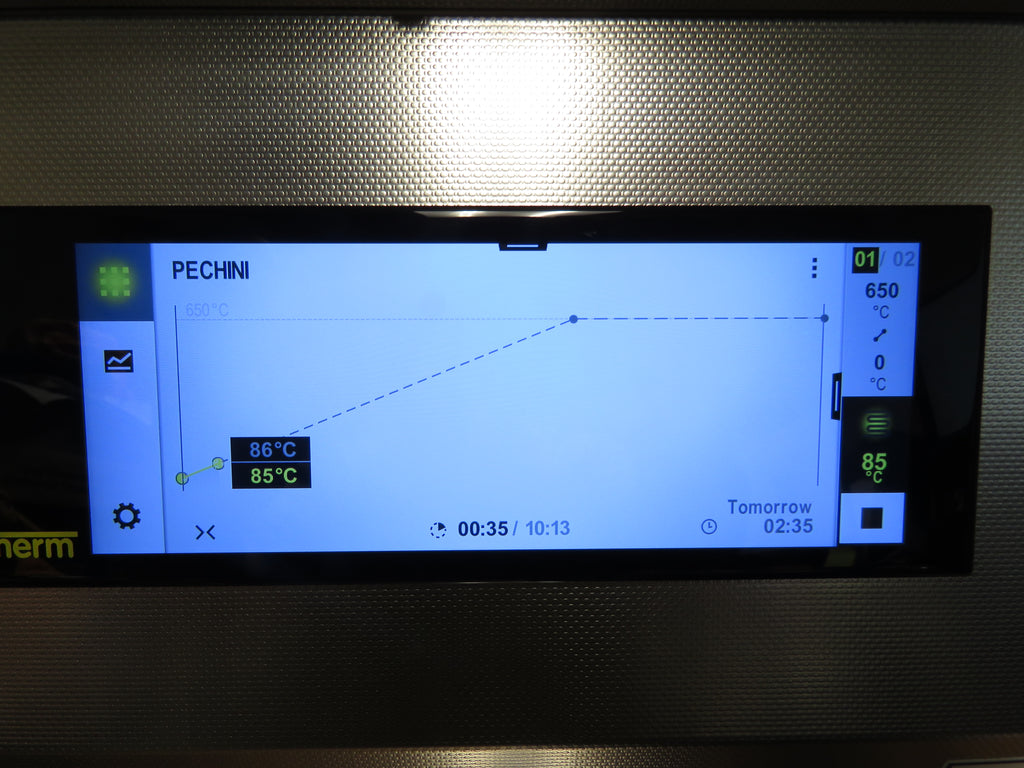

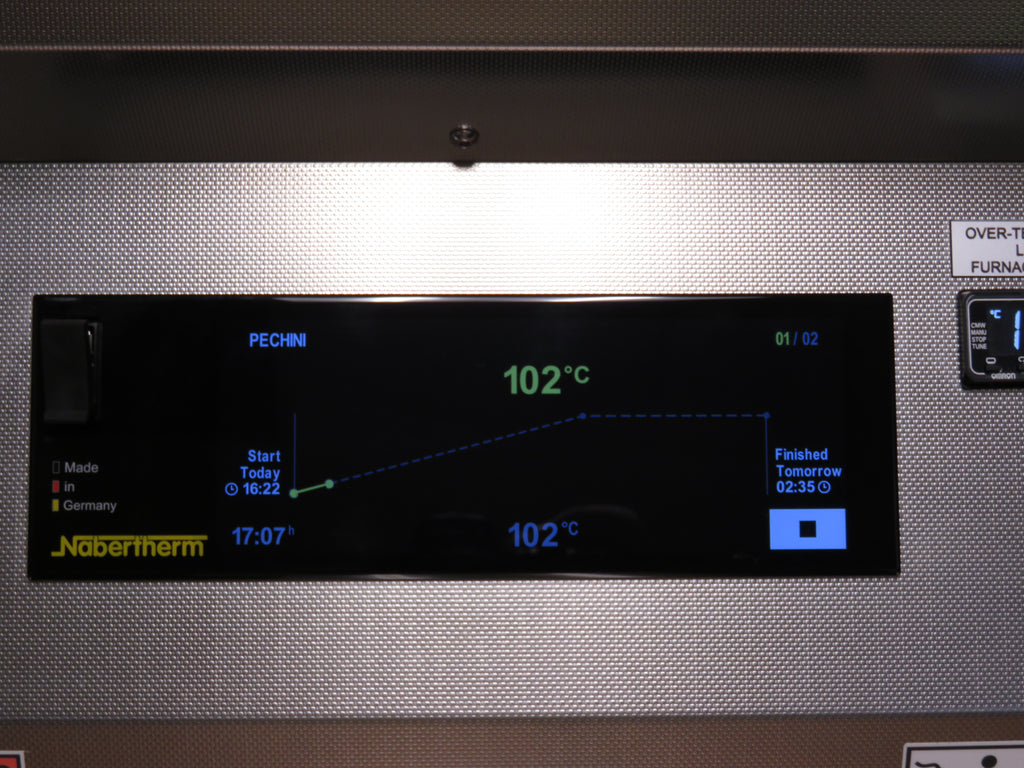

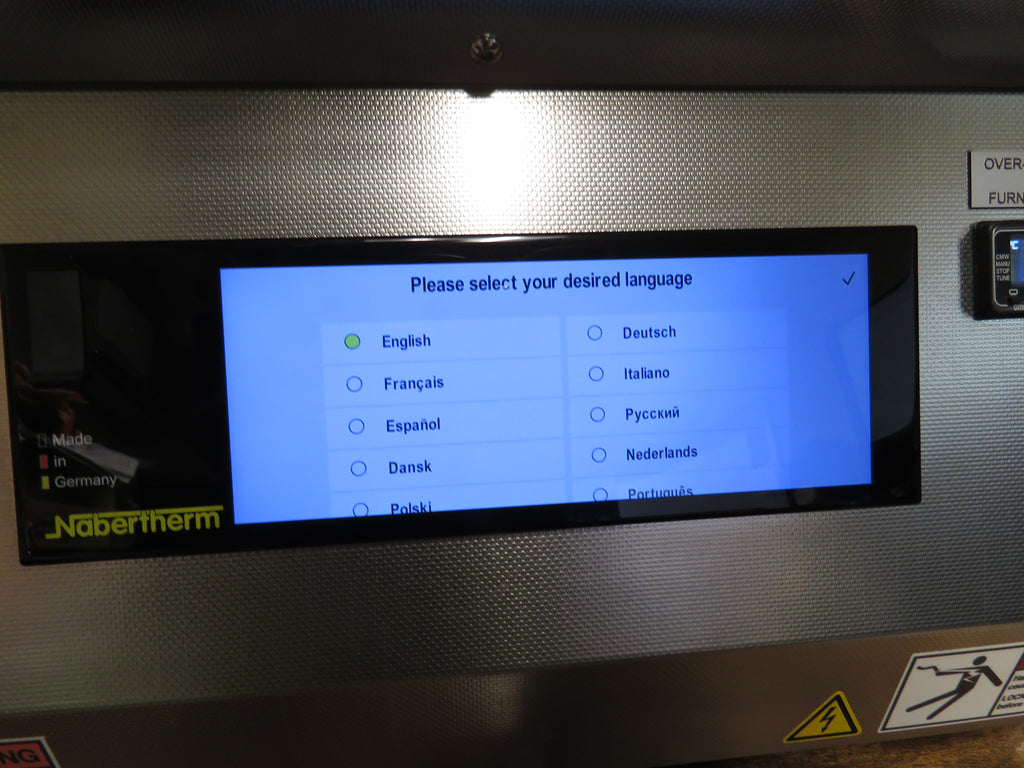

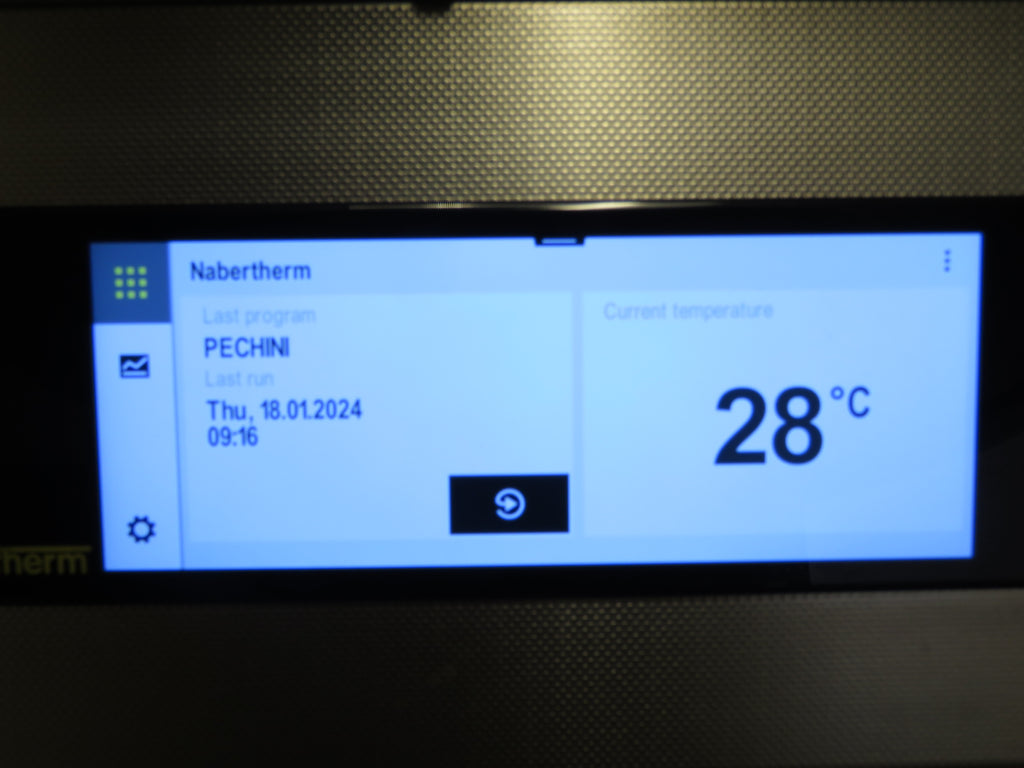

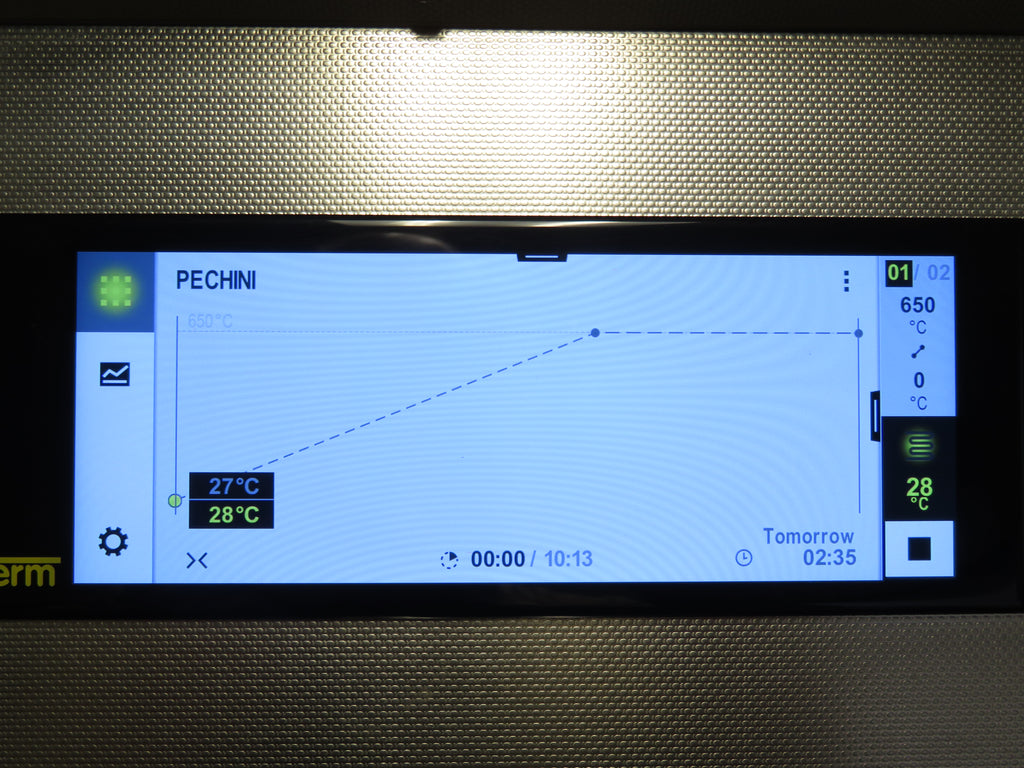

- Controller with touch operation B510 (5 programs with each 4 segments)

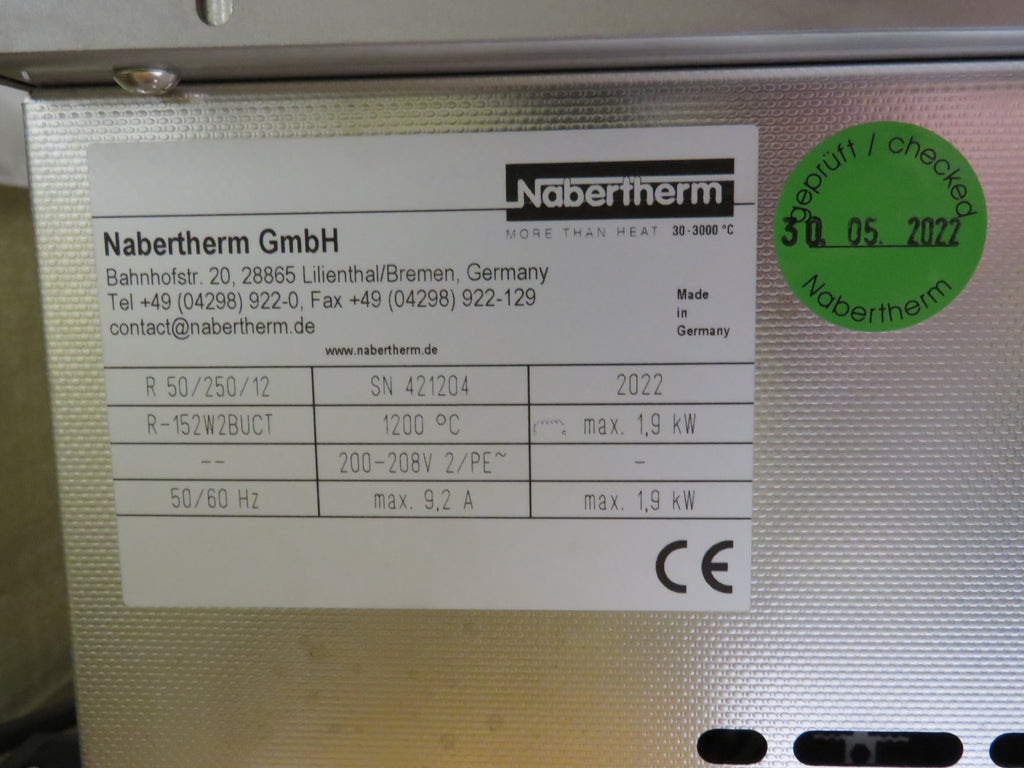

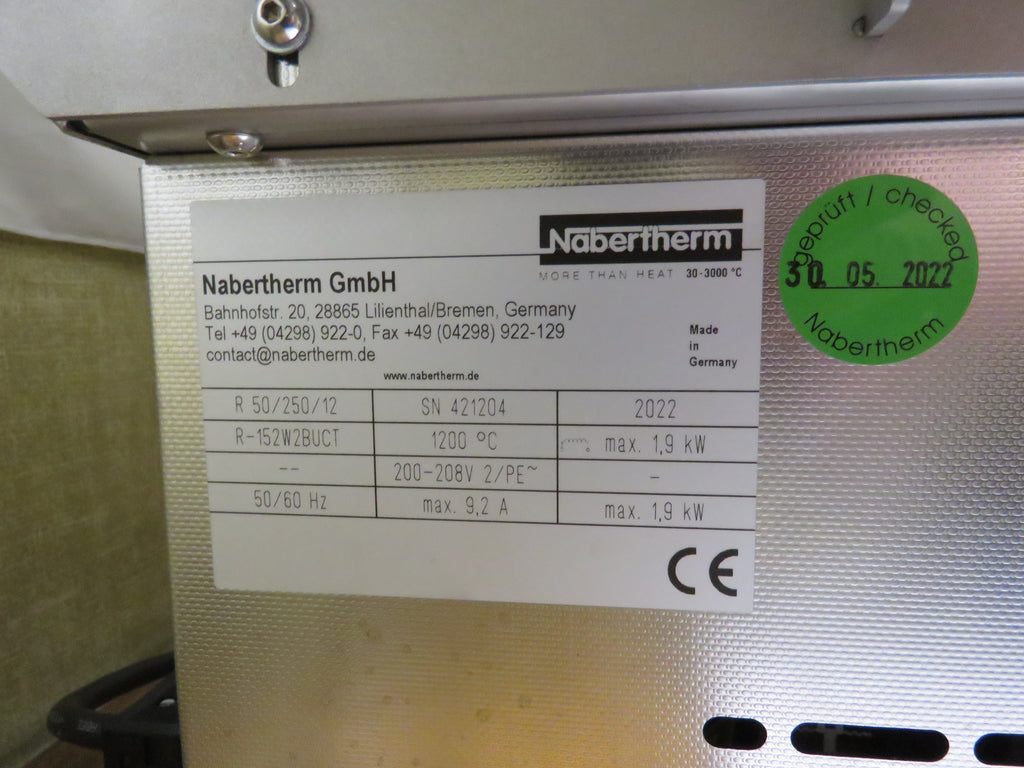

Technical Data
| Model | R50/250/12 |
| Tmax (°C) | 1200°C |
| Inner Dimensions (mm) | 434x340x508 |
| Outer tube (mm) | 50 |
| Heated length (mm) | 250 |
| Tube length (mm) | 450 |
| Temperature Uniformity | +/- 5°C in empty work space above 800°C |
| Power Supply (kW) | 1.9 |
| Electrical Connection |
Single phase 208V |
| Weight (kg) | 22 |
| Compliance | The furnace is ready to pass UL (USA) or CSA (Canada) certification at extra cost |
Condition
2022 Model Year - Exceptional Condition!
BBR6
Includes
-

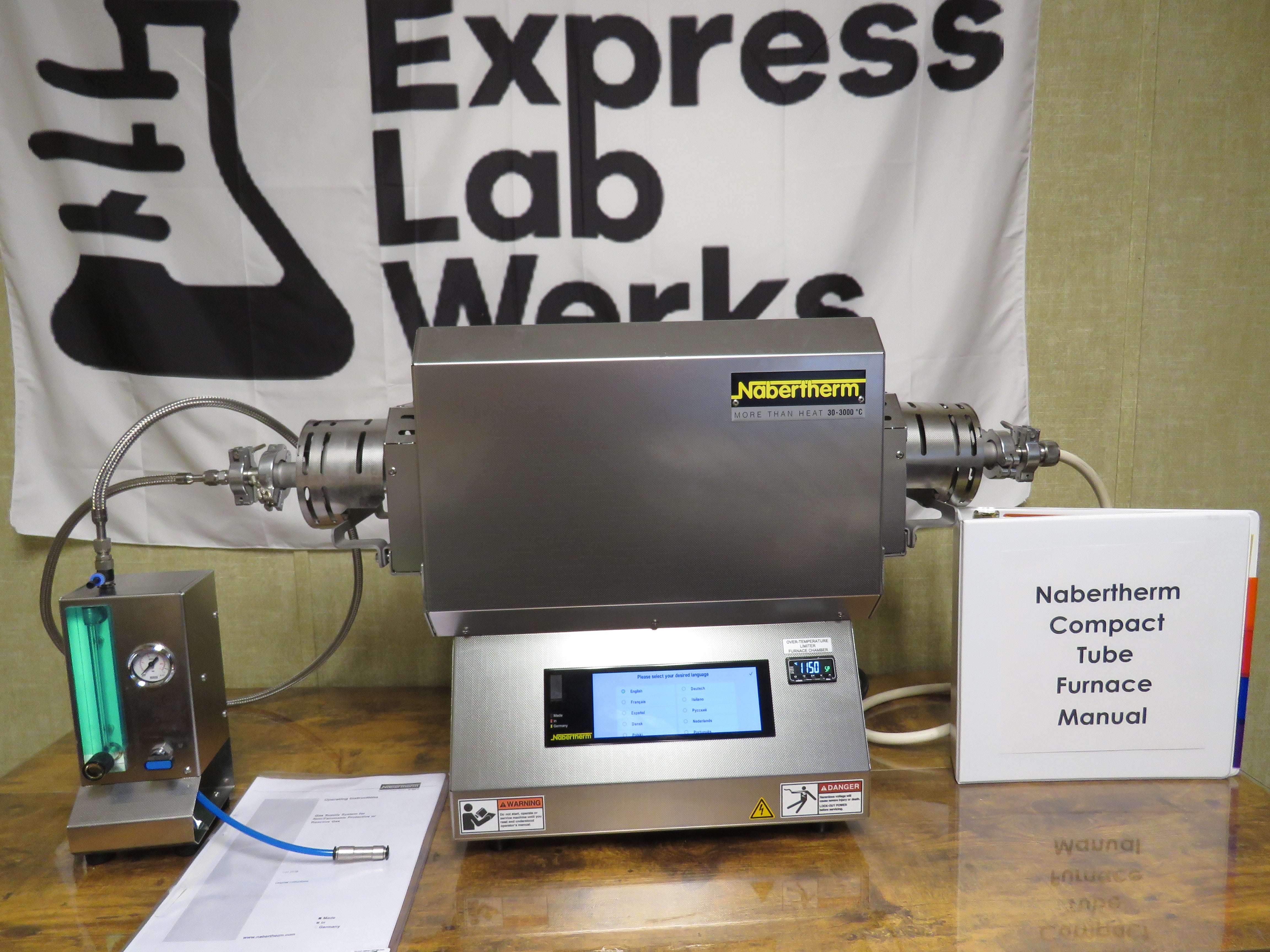

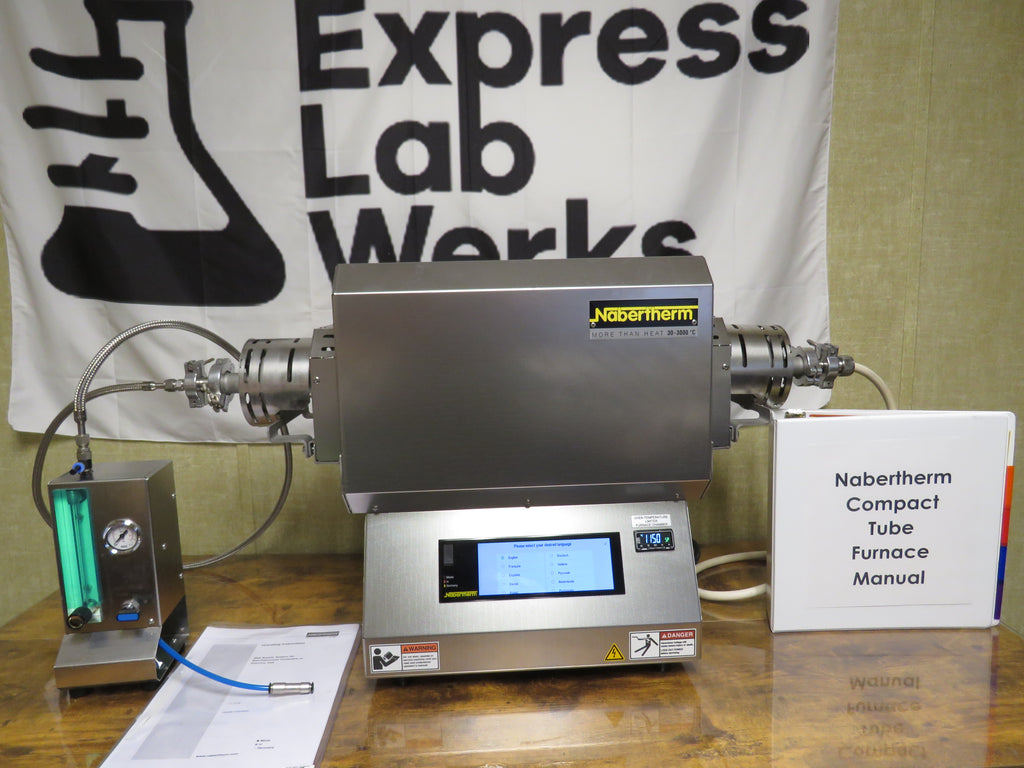

2022 Nabertherm 1200°C Tube Furnace R50/250/12

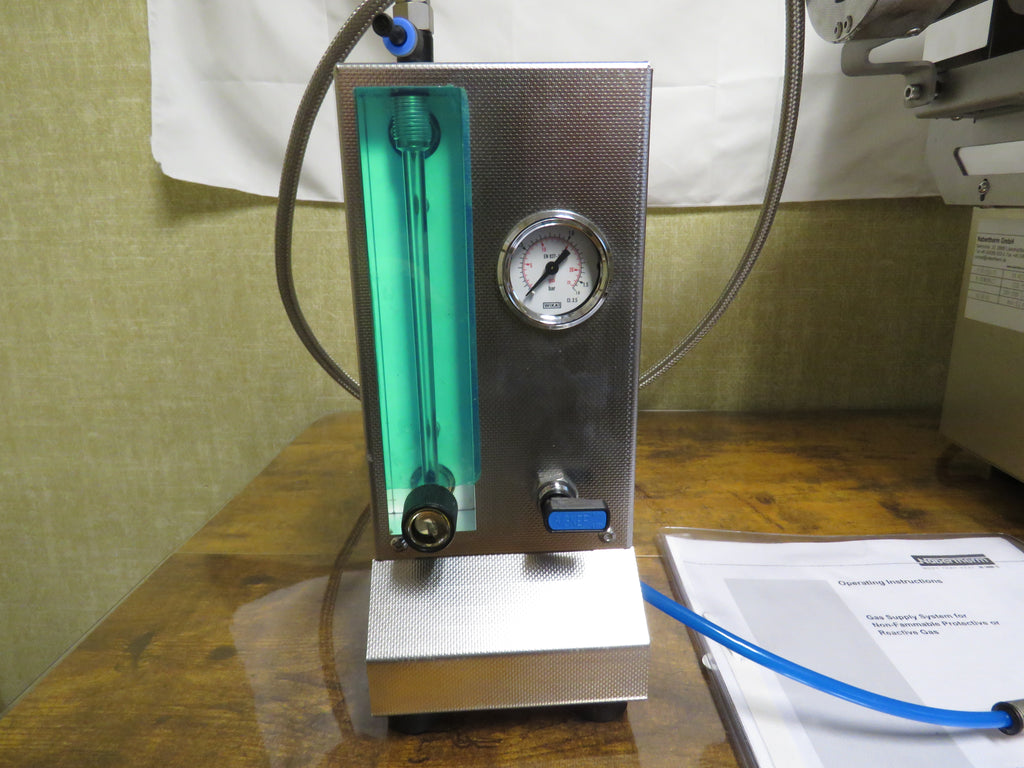

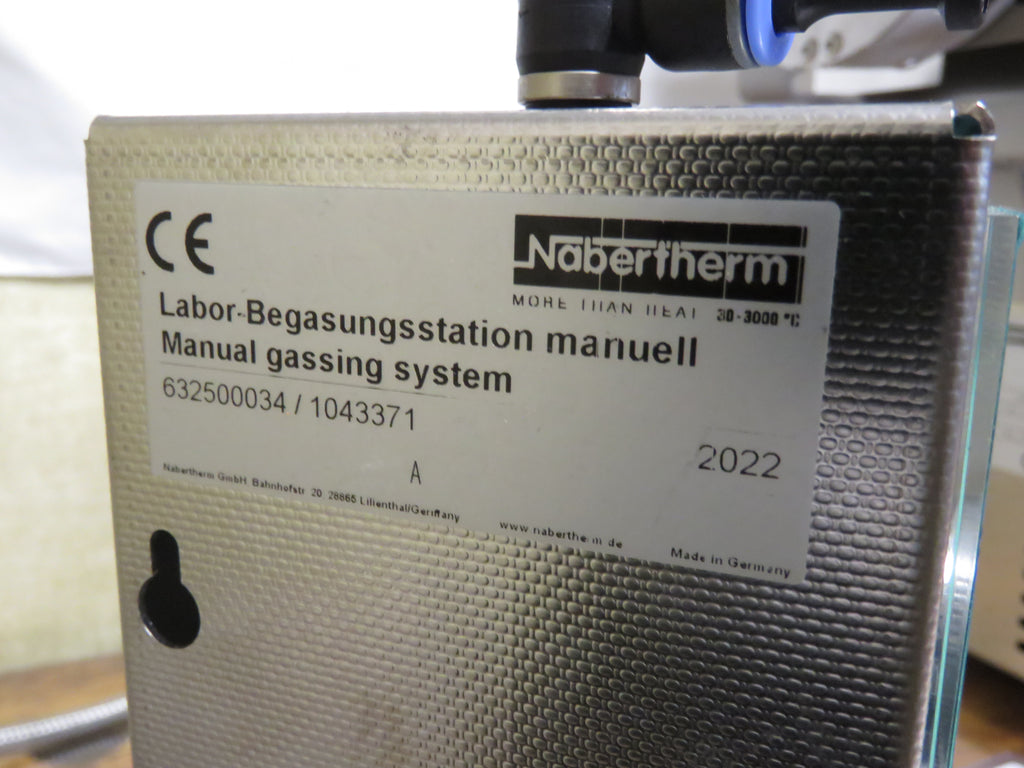

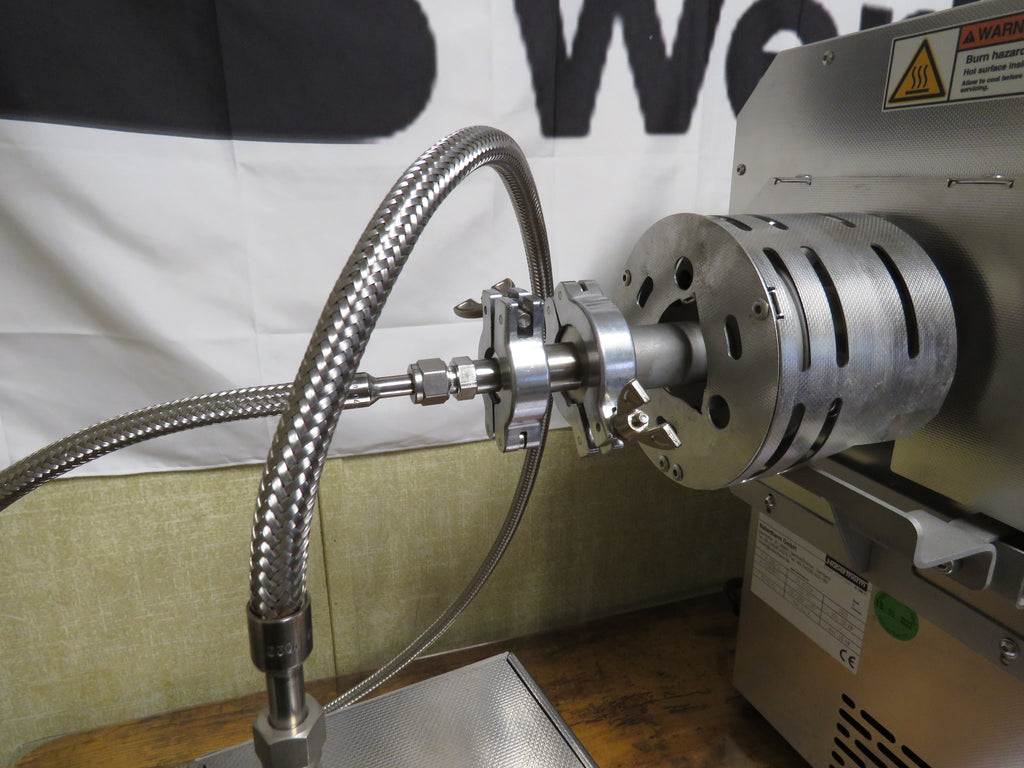

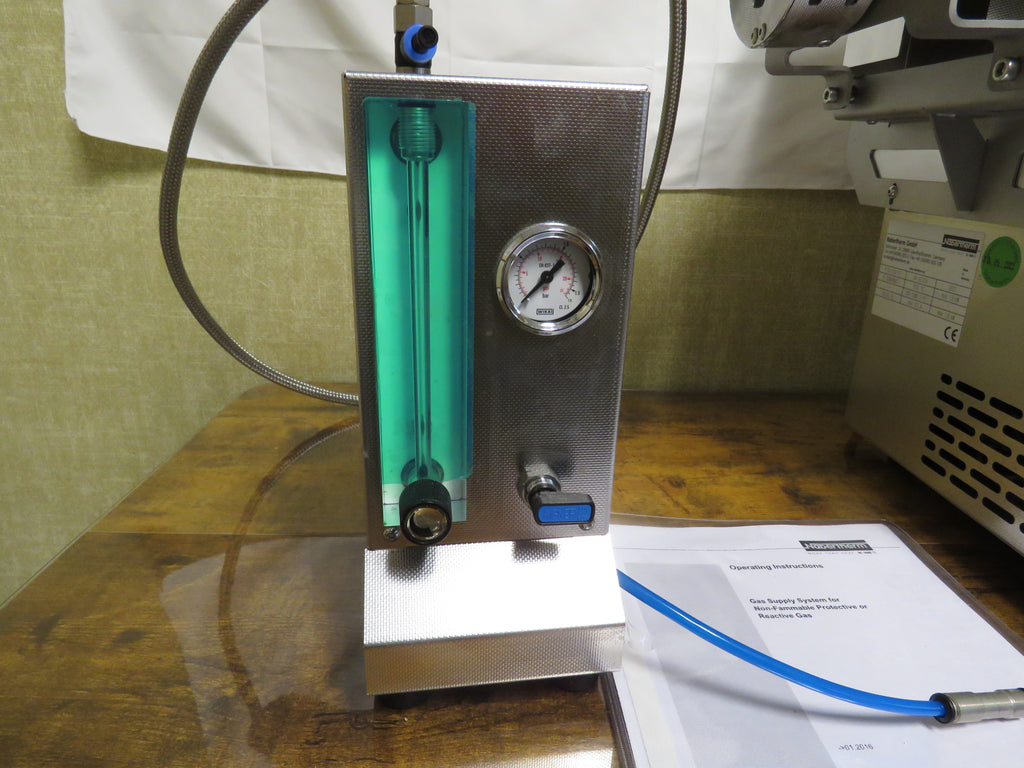

- 2022 Nabertherm Manual Gassing System

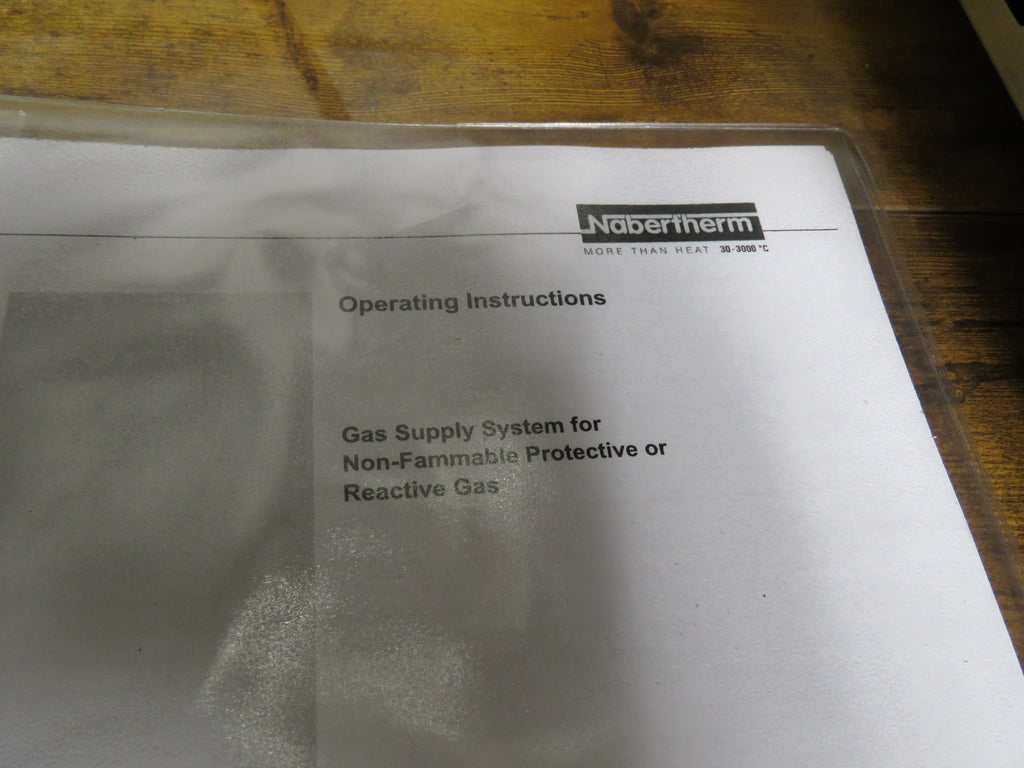

- Operator manuals
Warranty
30 Day warranty. We pledge to offer the best service and warranty to all of our customers! We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.
Certification
This is a genuine product from this manufacturer.
Disclaimer
Regardless of the origin of the equipment, documentation provided or identification appearing upon the equipment, the equipment described and offered here is in no way certified for, recommended for, or offered for any specific use. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. The purchaser, by bidding on this equipment, indicates their acknowledgment of, and agreement to the terms of this disclaimer. it is the purchaser's responsibility to have the item inspected and certified by a qualified professional before use!
