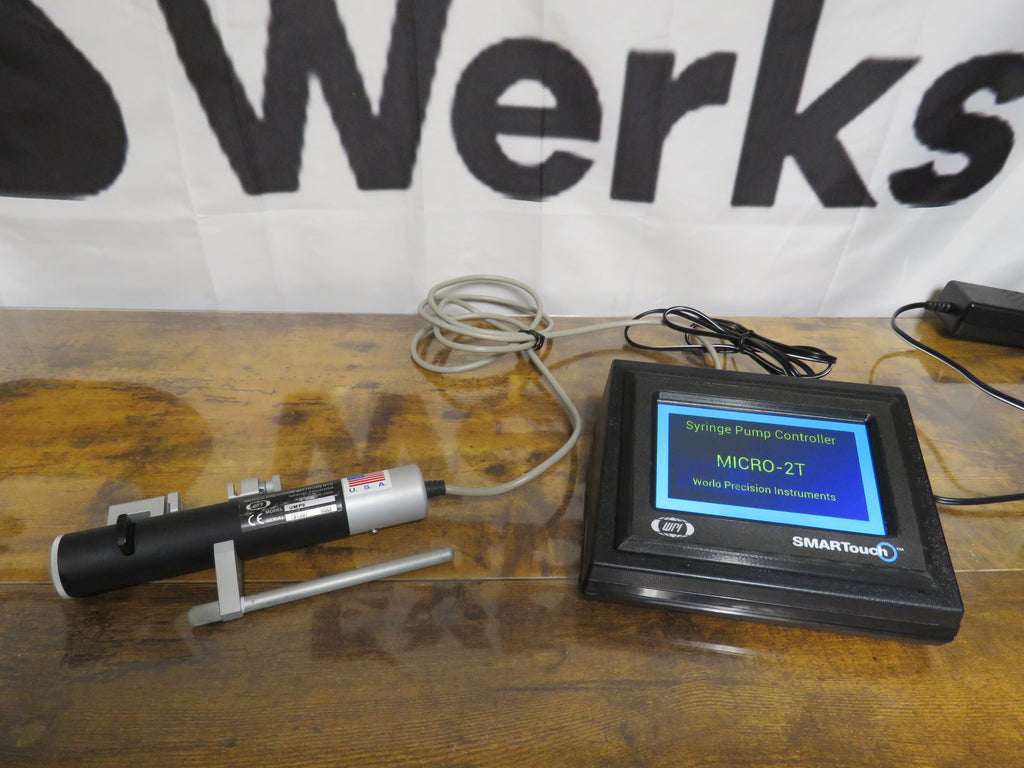

WORLD PRECISION INSTRUMENTS Syringe Pump Controller MICRO-2T with UMP3 Pump
Web Information

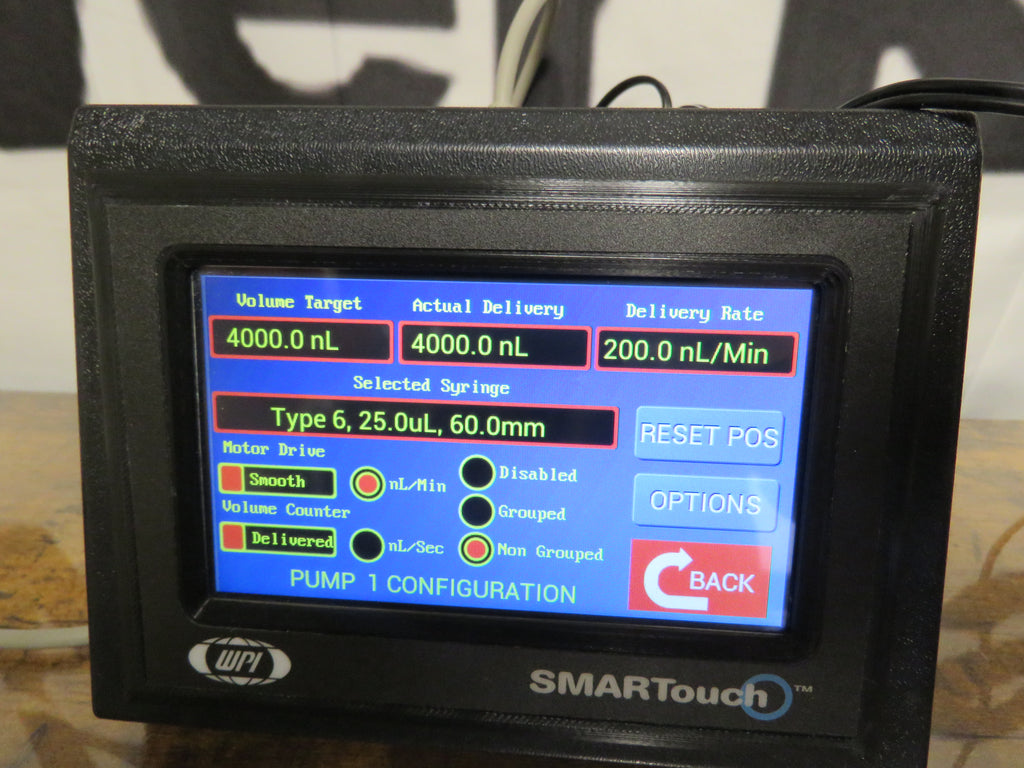

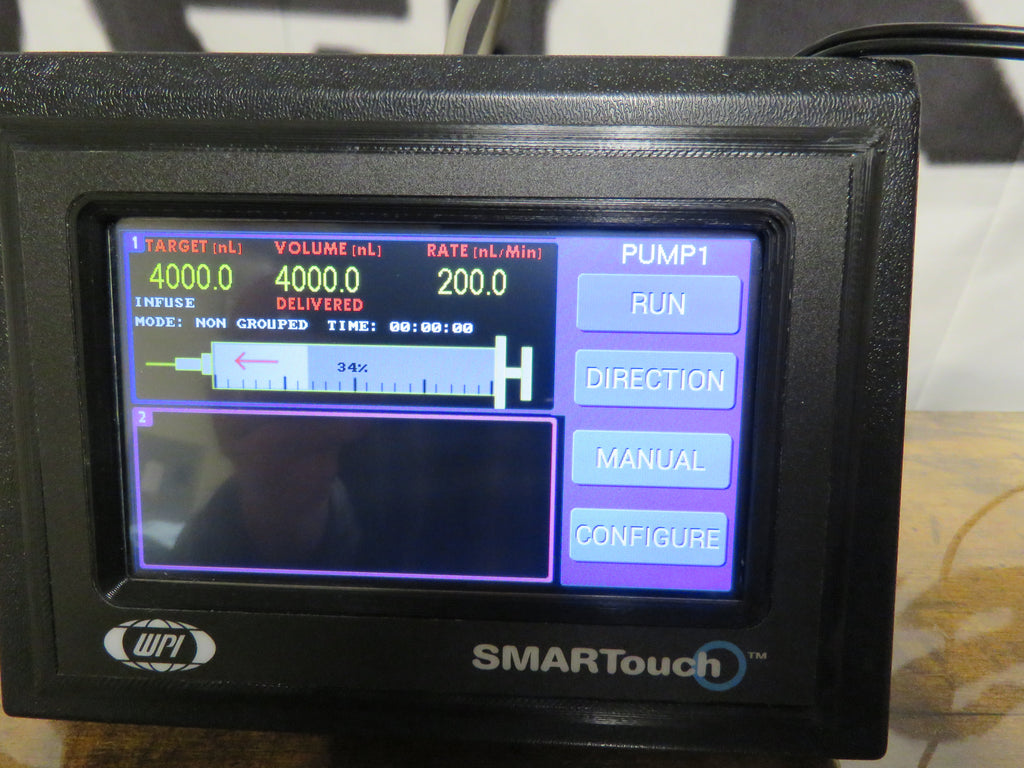

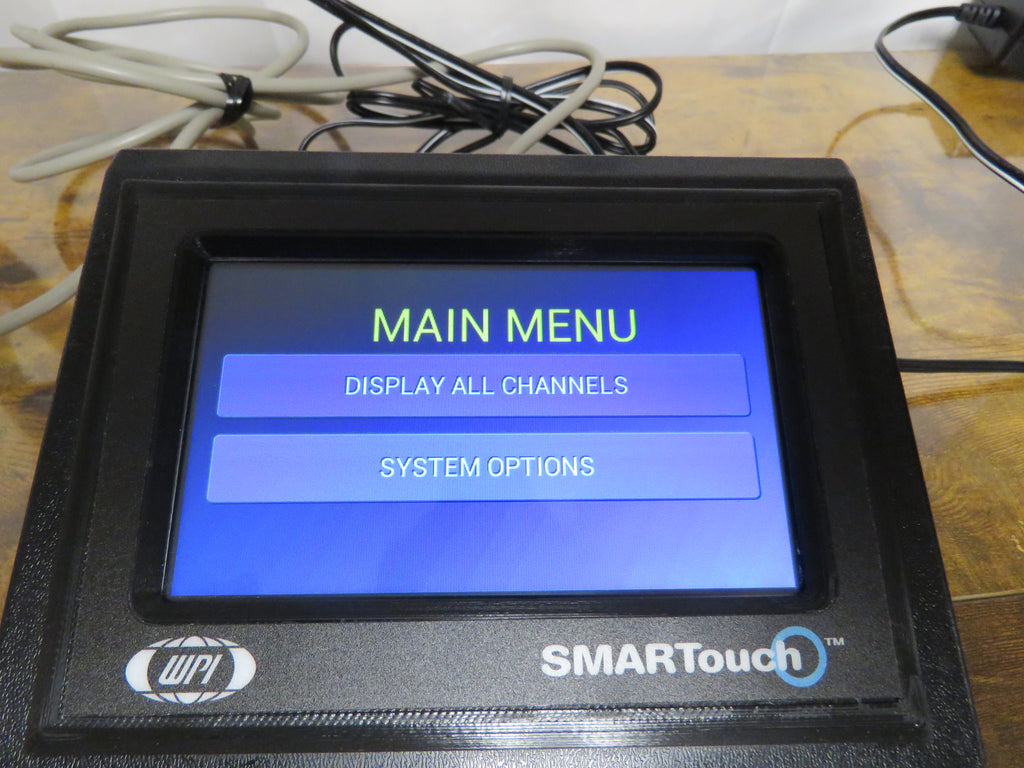

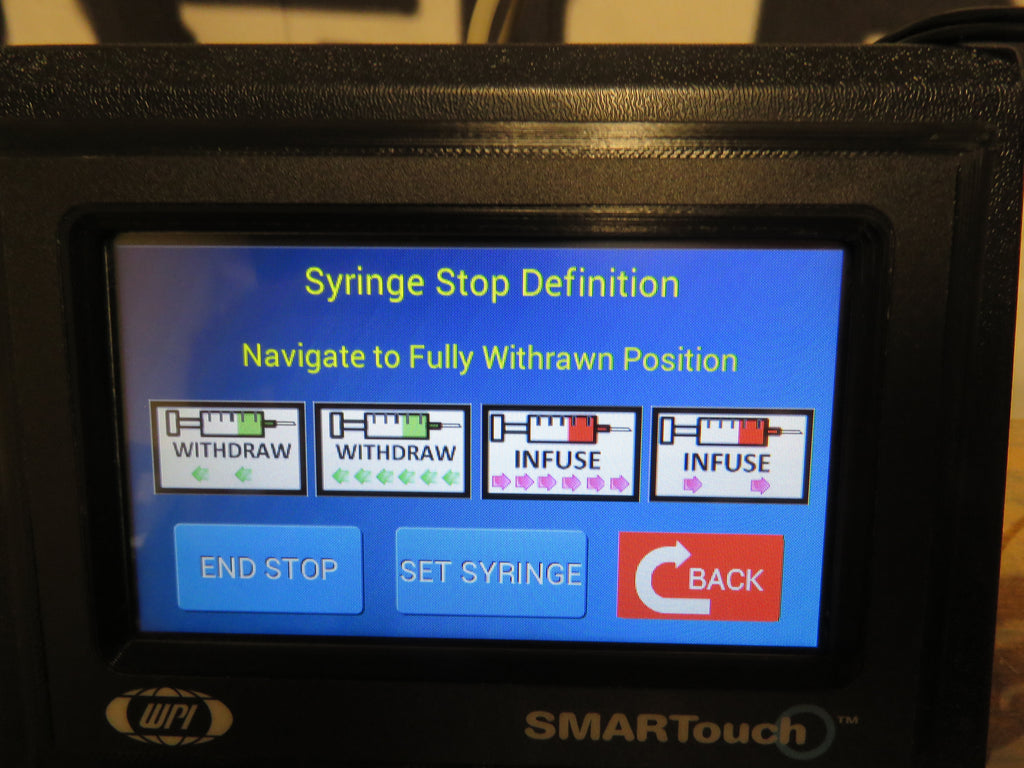

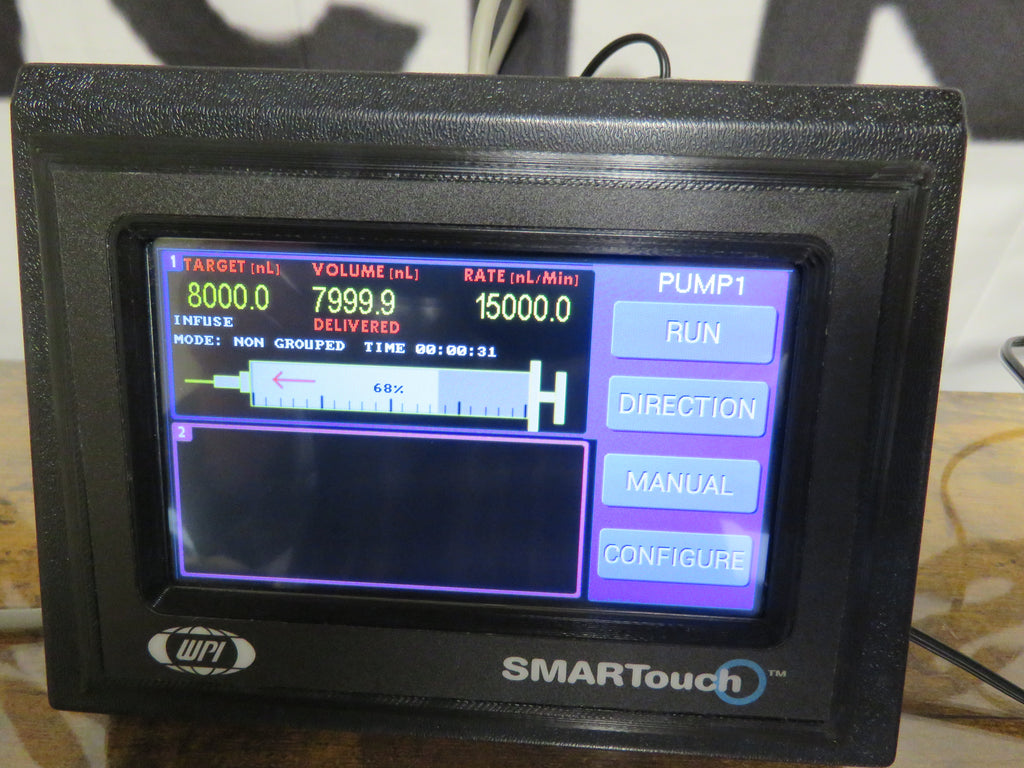

With WPI's MICRO2T SMARTouch™ controller the UMP3 offers an intuitive, user-friendly interface . The UMP3 may be mounted to either a stereotaxic frame or a micro manipulator via its built-in mounting bar. An optional foot switch is available.

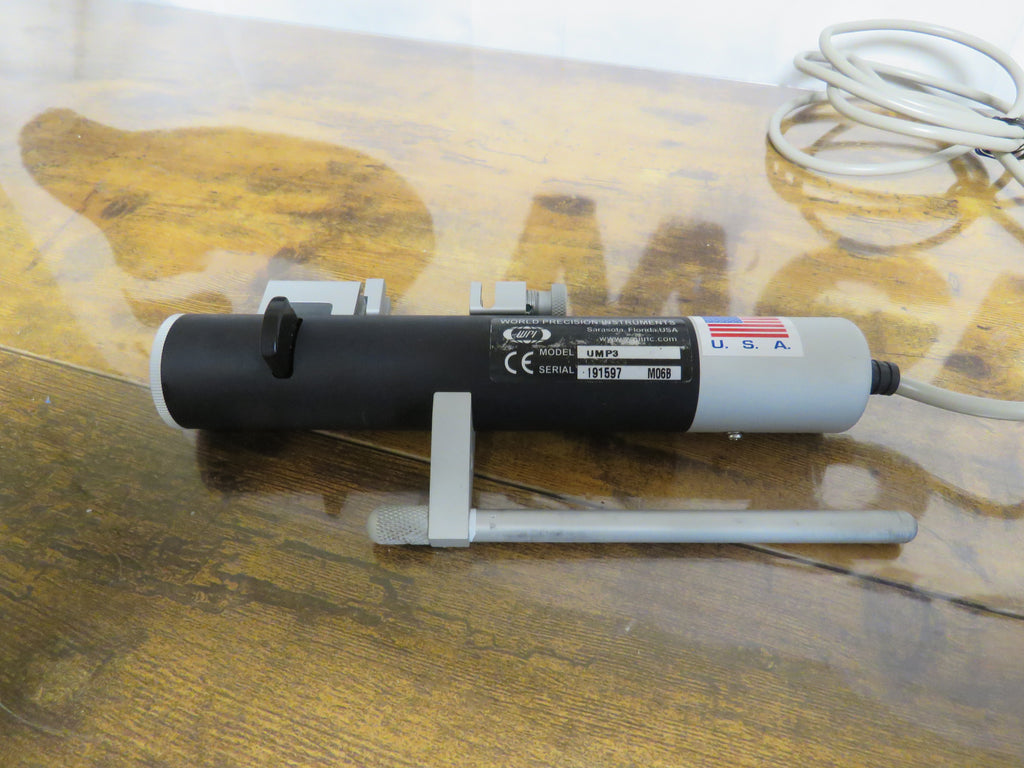

Versatile injector uses microsyringes to deliver picoliter volumes

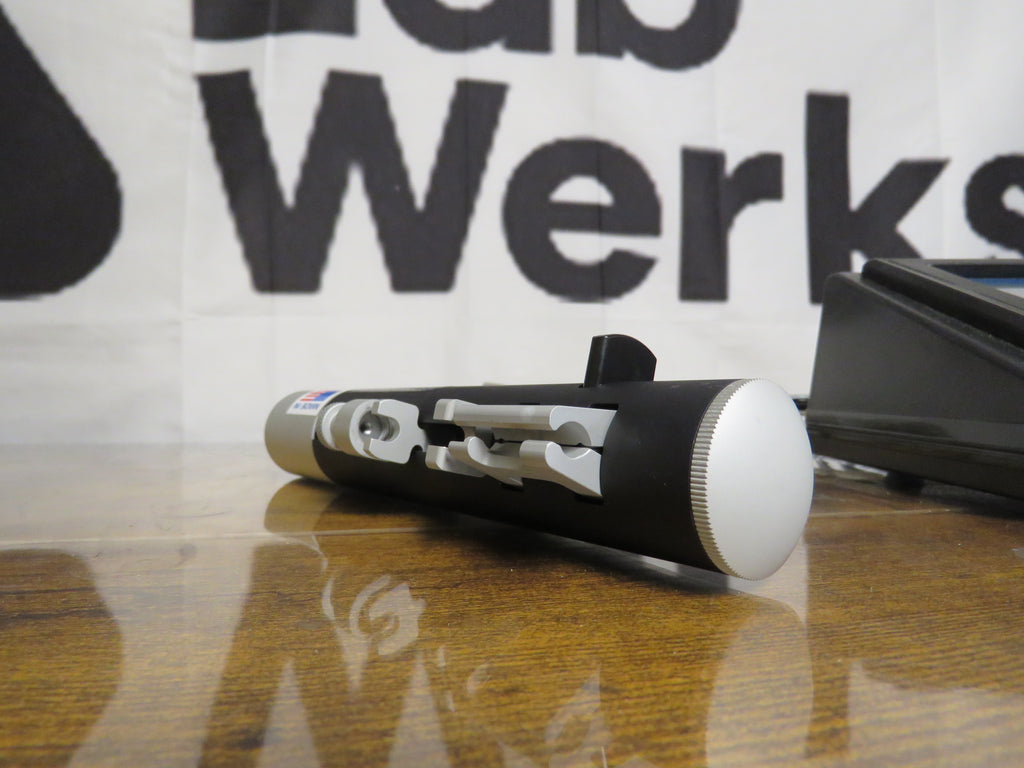

Syringes are easily installed, just snap the barrel into the clamps
Threaded shaft drives syringe plunger allowing smooth and accurate movement
UMP3 includes the pump head only. For complete system with controller see UMP3T-1.
Picoliter volumes
With its digital controller, UltraMicroPump III can dispense as little as 600 picoliters per incremental advance of the syringe piston (using a 0.5μL syringe). Syringes may be filled externally and then inserted into the pump or filled while mounted in the pump. Fluids injected or withdrawn are held entirely within the micro syringe to maintain a low fluid dead volume.
Positioning
For positioning, the UltraMicroPump III may be attached to any of several WPI micropositioners such as the M3301 (manual) or any stereotaxic manipulator.
The UMP3 requires either the Micro2T Smart Touch Controller or the Micro4 Controller to operate.
NORMAL MODE
| Total # of Steps | 20,000(63mm travel) |
| Minimum Dispensing Volume | 0.58nL/step (10μL syringe) |
| Linear Motion per Step | 3.175μm |
| Weight | 325g (11.5 oz.) |
| Mounting Rod Diameter | 7.9mm (0.31 in.) |
| Controller Power Requirements |
2A, 12VDC |
| Dimensions | Ø32mm x 190mm (1.3 in. x 7.5 in.) |
MICROSTEPPING MODE
Precision is increased eight fold.
Condition
Exceptional condition.
Please watch a video of this instrument in operation below:
Watch Video
Video will open in a new window
Using the eBay App? Paste link into a browser window:
Includes

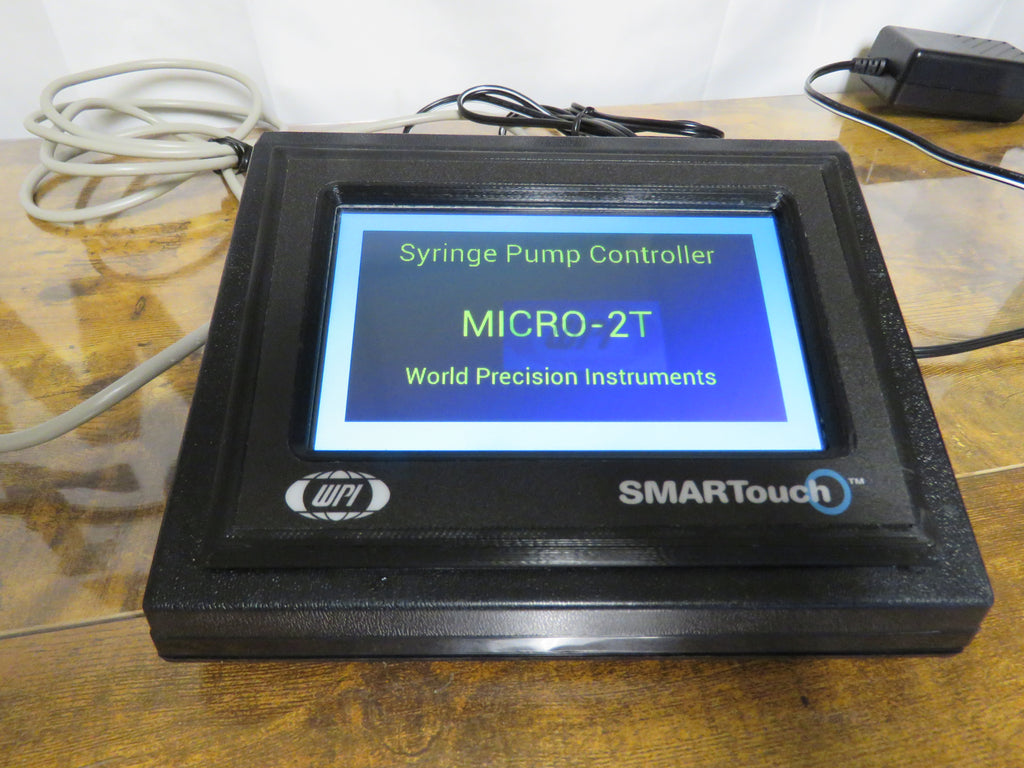

- WORLD PRECISION INSTRUMENTS WPI Syringe Pump Controller MICRO-2T

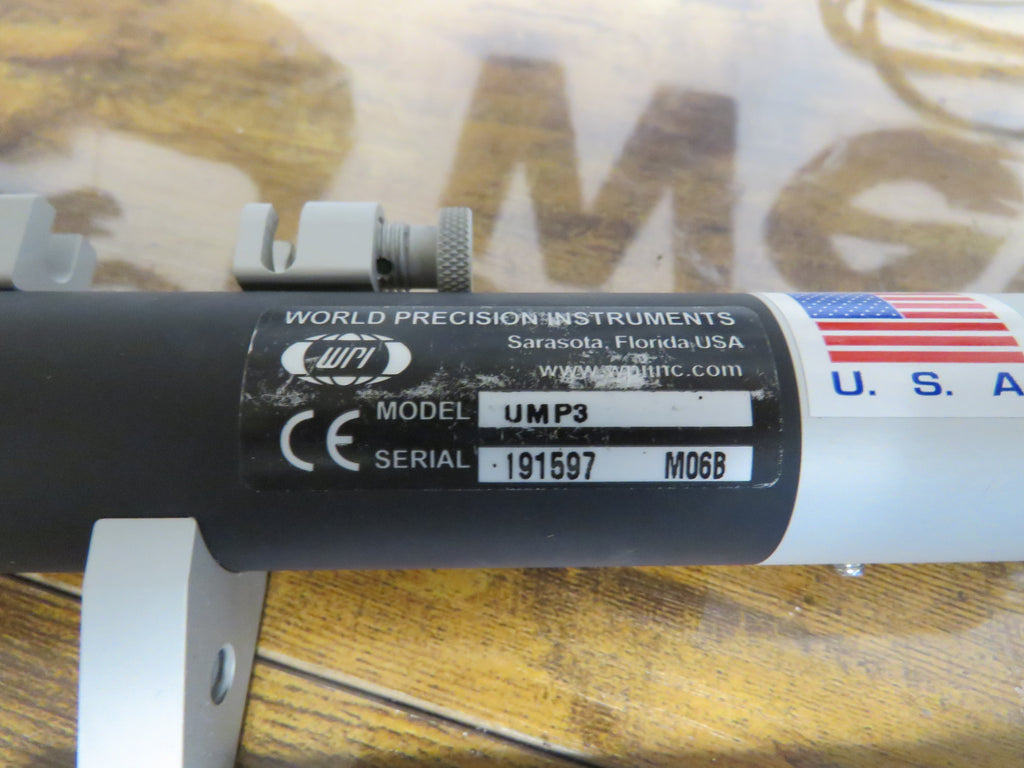

- Syringe PUMP UMP3
MBCA
Delivery
We will professional package this instrument to ensure safe delivery to your location.
Warranty
30 Day warranty. We pledge to offer the best service and warranty to all of our customers! We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.
Certification
This is a genuine product from this manufacturer.
