Ismatec REGLO ICC Digital Peristaltic Pump 4-Channels ISM4408 - Excpetional!

Ismatec

$2,500.00
SKU: Ismatec REGLO ICC

← Previous Product Next Product →

Web Information

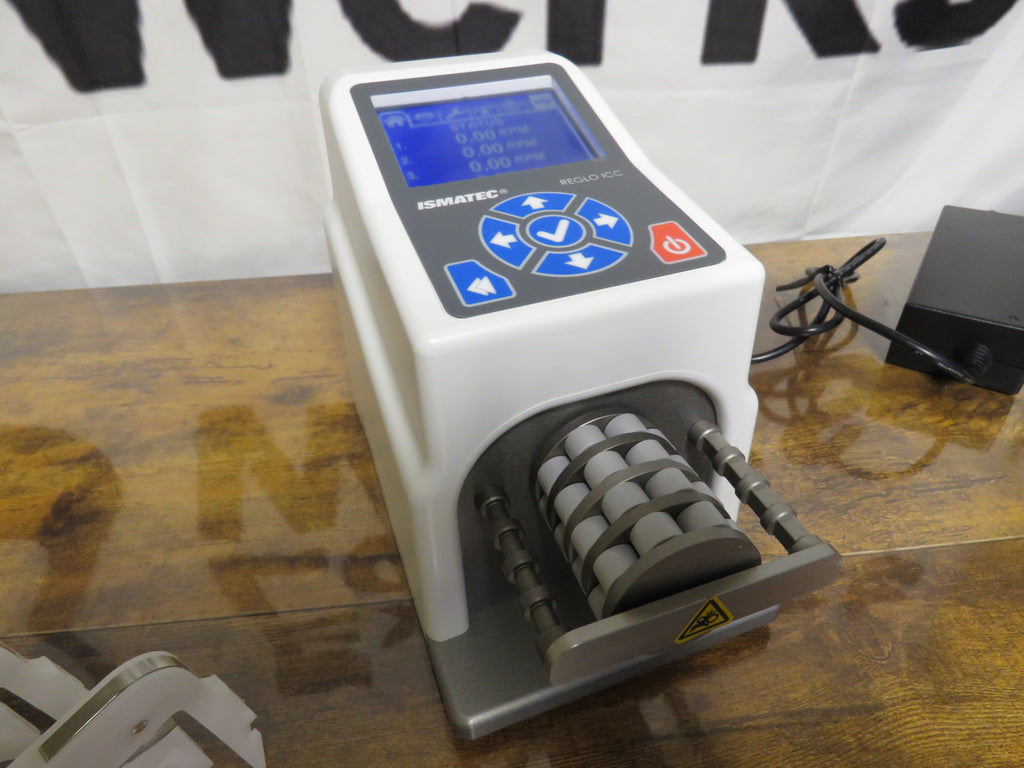

Reglo ICC (Independent Channel Control) Pump
Control independently the direction and speed of up to four independent channels using the Reglo ICC peristaltic pump, each with its own program: start, stop, dispense, reverse, aspirate, and calibrate. The independent channel calibration ensures high accuracy and reproducibility by minimizing the tube-to-tube difference.
Using the keypad or your PC via USB, you can create complex pumping or precision dispensing sequences while working within a flow range of 0.001 to 35 mL/min per channel. Control up to eight pumps at once by daisy-chaining the RS-232 connectors.

Ismatec, established in 1964, is now a leading reference in peristaltic pumps thanks to its offer of high-precision pumps.

The Reglo ICC is an innovative and easy-to-use advantageous peristaltic pump, embedding the latest technologies to provide a reliable and accurate flow:

  • 1 up to 4 independent channels: each channel can be individually set to a different flow rate and/or rotational direction.
  • Independent channel calibration minimizes the tube-to-tube differences resulting in the best calibration accuracy possible in a multichannel peristaltic pump.
  • Choose between 6, 8, or 12 rollers to adjust the level of pulsation and flow range of the pump: more rollers means less pulsatility, and a lower flow rate. Choose 12 rollers for very low pulsatility!

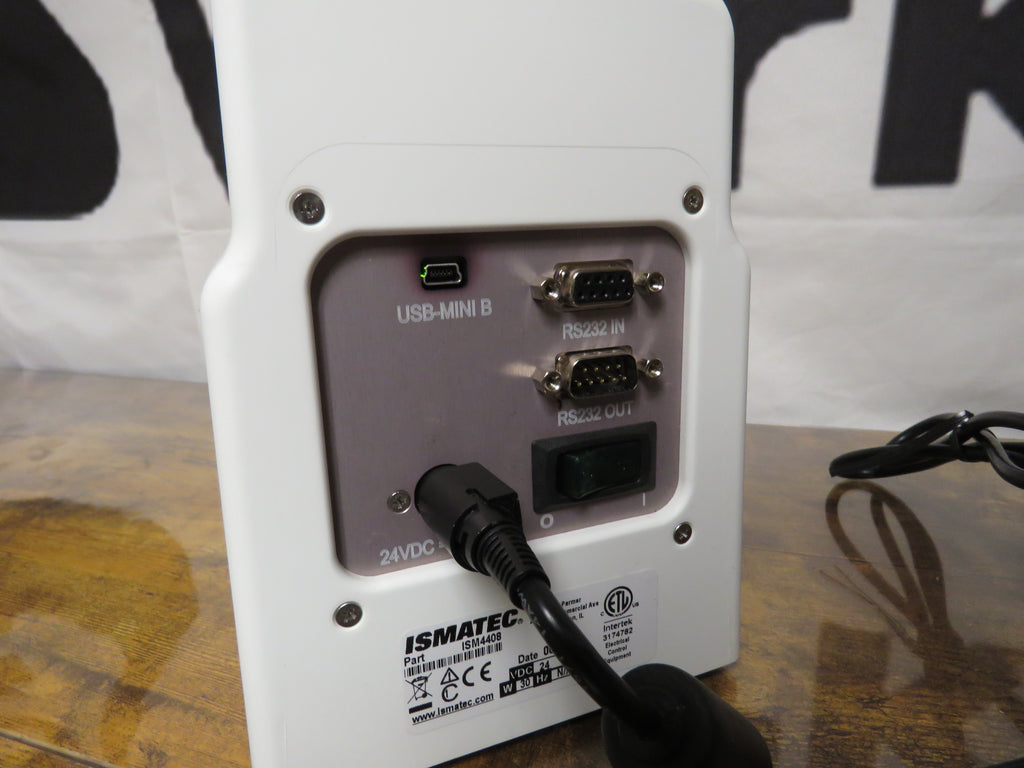

Controlling your pump has never been so easy, using either the digital interface on the pump or through RS-232 connection with your computer. It is even possible to control up to 8 pumps at the same time!

Operating modes

Use the pre-programmed operating modes to create complex time-based experiments:

  • Flow rate: continuous operation at a set rate and direction
  • Volume over time: dispensing a desired volume over a desired time
  • Volume: dispensing a desired volume at a set flow rate
  • Time mode: dispensing for a set time duration with a set flow rate
  • Volume with pause: dispensing a set volume over multiple cycles with a defined pause time in between
  • Time with pause: dispensing for a set time duration over multiple cycles with a defined pause time in between
  • Calibration: allows each channel to be calibrated for dispensed fluid volume accuracy

Tubing & Flow range

You should always use Ismatec three-stop tubing with this pump.



  Flow range (mL/min per channel)
Tubing ID (mm) 6 rollers 8 rollers 12 rollers
0.13 0.0002 to 0.14 0.0002 to 0.11 0.0001 to 0.093
0.51 0.0019 to 1.9 0.0017 to 1.7 0.0016 to 1.6
0.57 0.0024 to 2.4 0.0021 to 2.1 0.0019 to 1.9
0.64 0.0030 to 3.0 0.0026 to 2.6 0.0024 to 2.4
0.95 0.0064 to 6.4 0.0056 to 5.6 0.0050 to 5.0
1.02 0.0073 to 7.3 0.0063 to 6.3 0.0056 to 5.6
1.42 0.013 to 13 0.011 to 11 0.0094 to 9.4
1.75 0.019 to 19 0.016 to 16 0.013 to 13
1.85 0.021 to 21 0.017 to 17 0.014 to 14
2.54 0.033 to 33 0.027 to 27 0.019 to 19
2.79 0.036 to 36 0.031 to 31 0.021 to 21
3.17 0.043 to 43 0.035 to 35 0.024 to 24

Condition

Excellent functional condition.

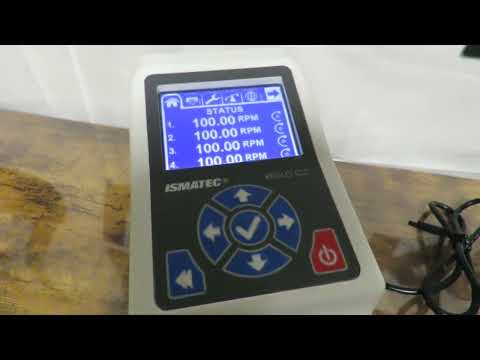

Watch a video of this pump below:

Watch Video

Video will open in a new window
Using the eBay App? Paste link into a browser window:

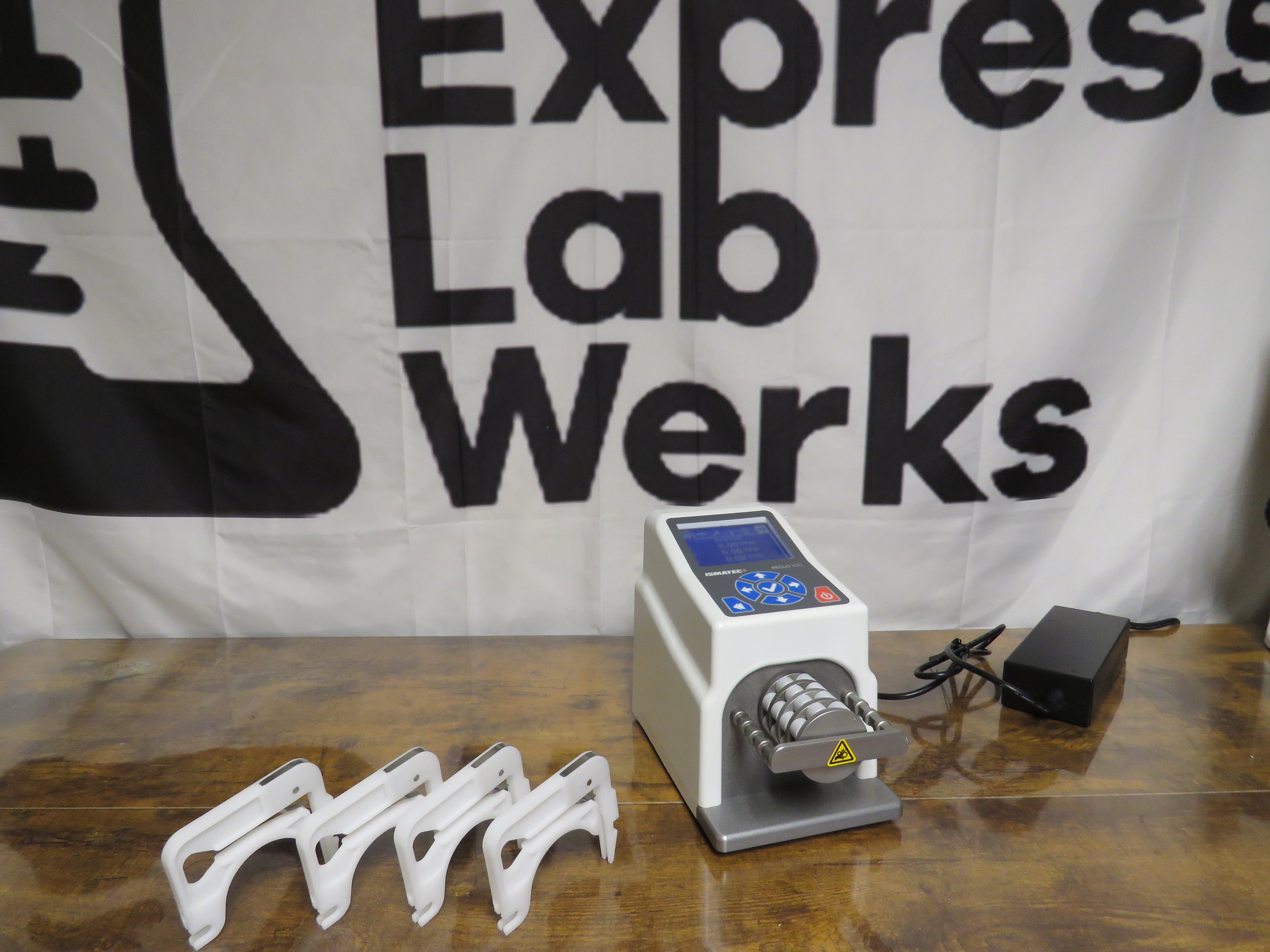

Includes

  • Ismatec REGLO ICC Digital Peristaltic Pump 4-Channels ISM4408
  • Serial Communications cable

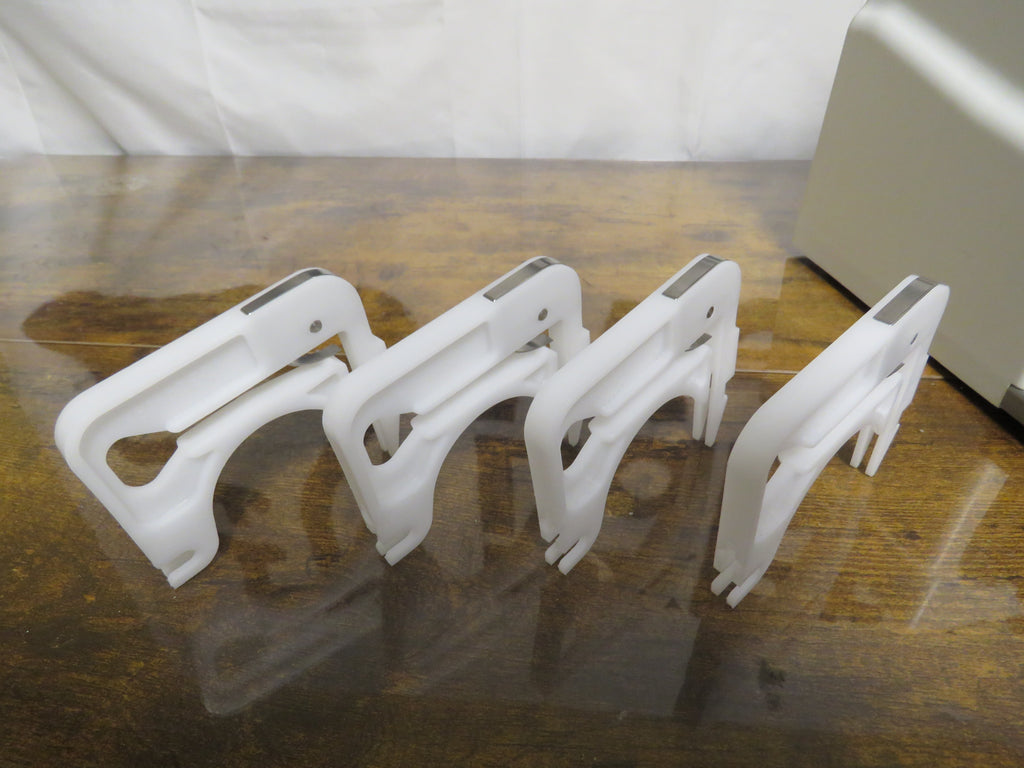

  • (4) Cassettes

BBR3

    Warranty

    30 Day warranty. We pledge to offer the best service and warranty to all of our customers!  We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.

    Certification

    This is a genuine product from this manufacturer.

    Disclaimer

    The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping of the item."

    Regardless of the origin of the equipment, documentation provided or identification appearing upon the equipment, the equipment described and offered here is in no way certified for, recommended for, or offered for any specific use. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. The purchaser, by bidding on this equipment, indicates their acknowledgment of, and agreement to the terms of this disclaimer. it is the purchaser's responsibility to have the item inspected and certified by a qualified professional before use!
