2014 Hach DR 2800 Portable Spectrophotometer with Power Supply


SKU: dr2800

Sorry, this item is out of stock

Web Information

More than 240 Analytical Methods and Chemistries

The Hach DR 2800 Portable Spectrophotometer can be used for more than 240 analytical methods. (Test parameters are listed on page 3.) These methods include more than 30 TNTplus™ reagent vial tests that provide innovative barcode labeling for reliable, automatic method detection. All of the chemistries and supplies needed for these tests are available from Hach. The spectrophotometer can store up to 50 user programs and 500 data points, including sample and operator ID.

Use a USB Memory Stick to Update the Instrument or Transfer Data

Easily update DR 2800 spectrophotometer systems and transfer measurement data with a USB memory stick. Use it to stay current as Hach releases new test methods and chemistries. Two USB ports on the instrument allow for a computer to be connected in one port, when used with an upcoming software package, while the other is used to connect the spectrophotometer to a memory device or hand-held bar code scanner.

Small Footprint and Large Touch Screen Interface

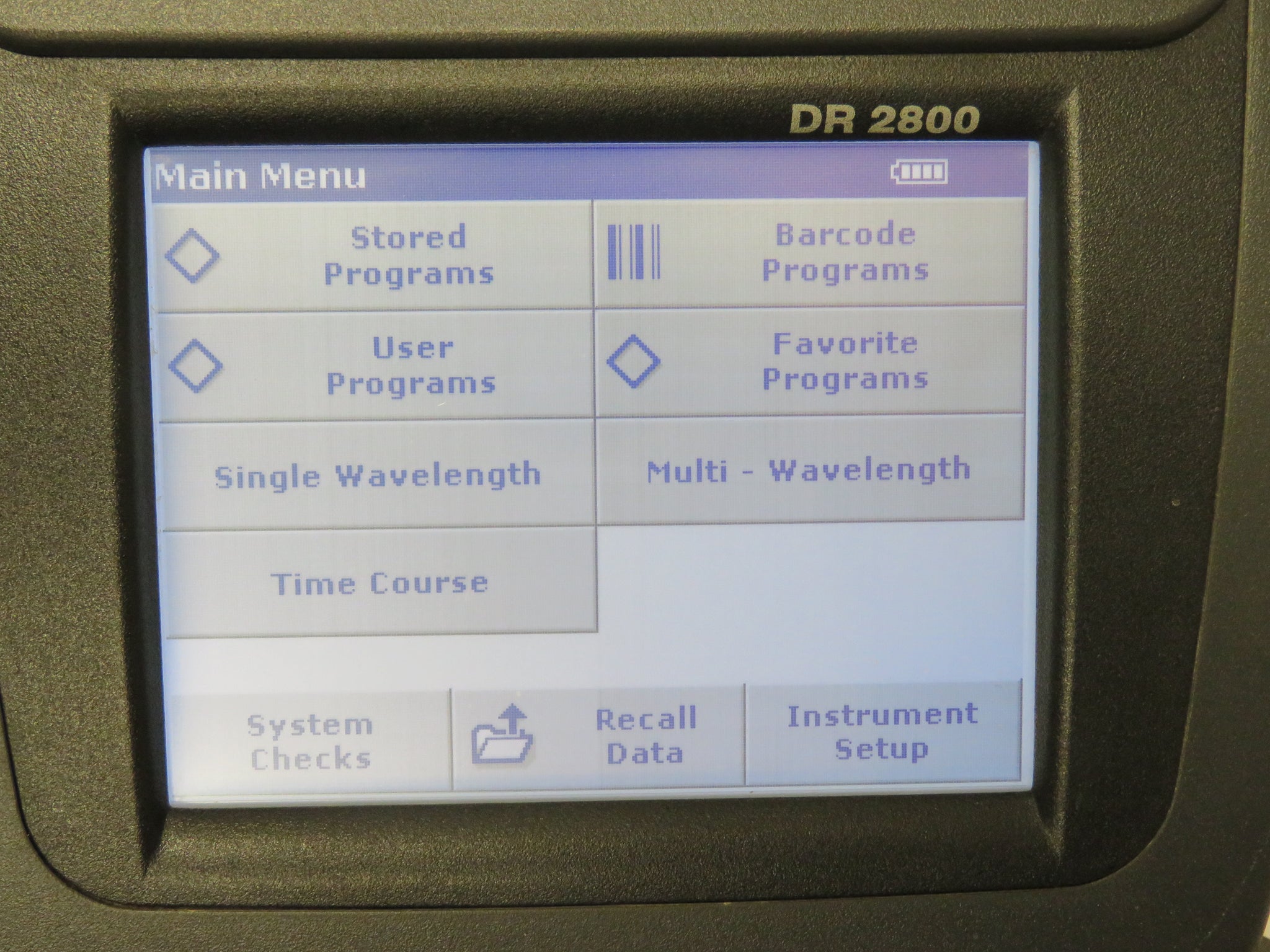

The small footprint of the DR 2800 spectrophotometer—only 8.7 by 13.1 inches—lets it easily fit into any lab as well as being completely portable. The touch screen display is intuitive to use and ergonomic in design.

Runs on Either Line Power or Battery Power

Use the DR 2800 spectrophotometer in the lab with regular line power or in the field with the optional lithium-ion battery

Accommodates Multiple Cell Sizes and Sample Delivery Methods

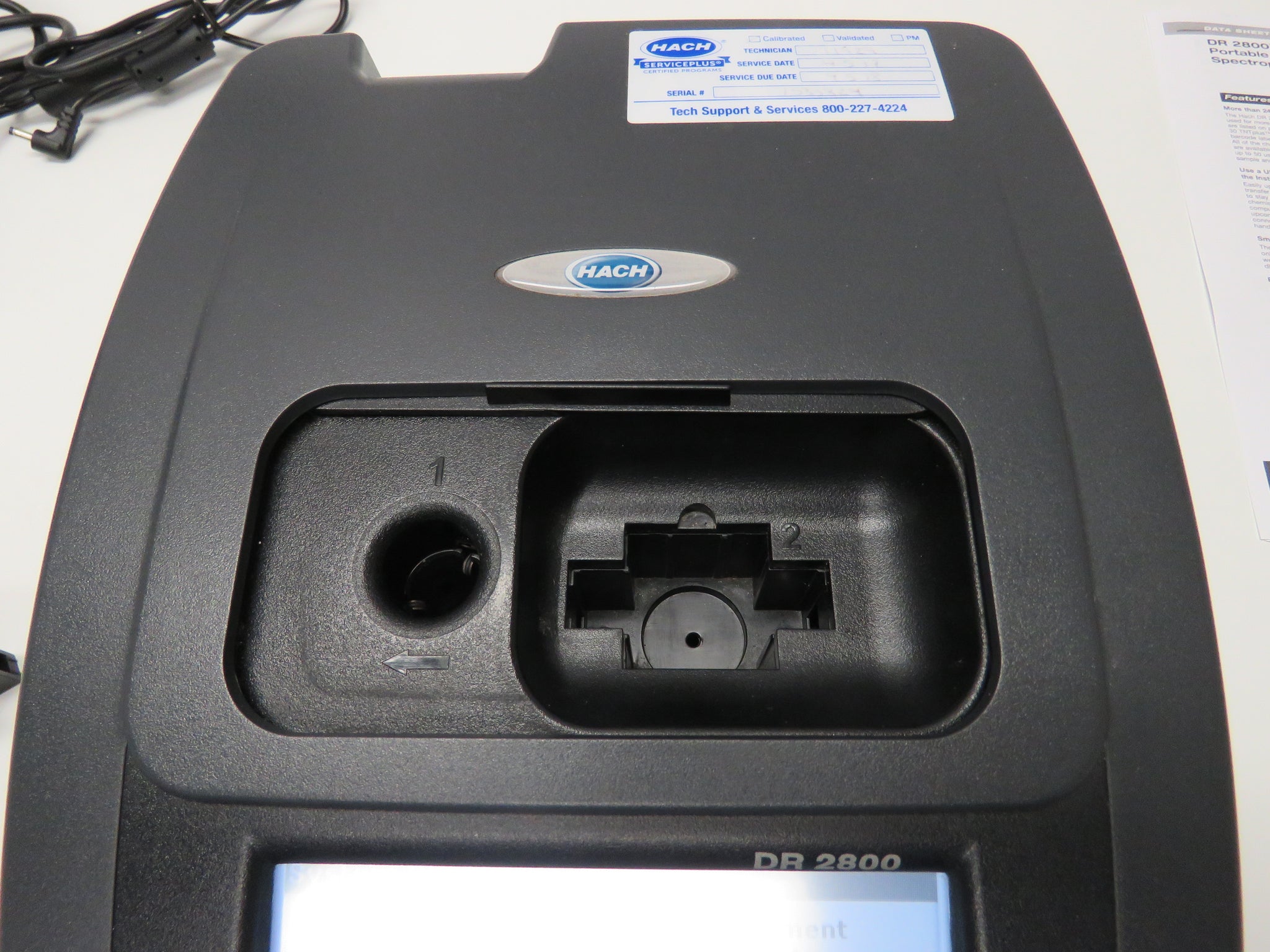

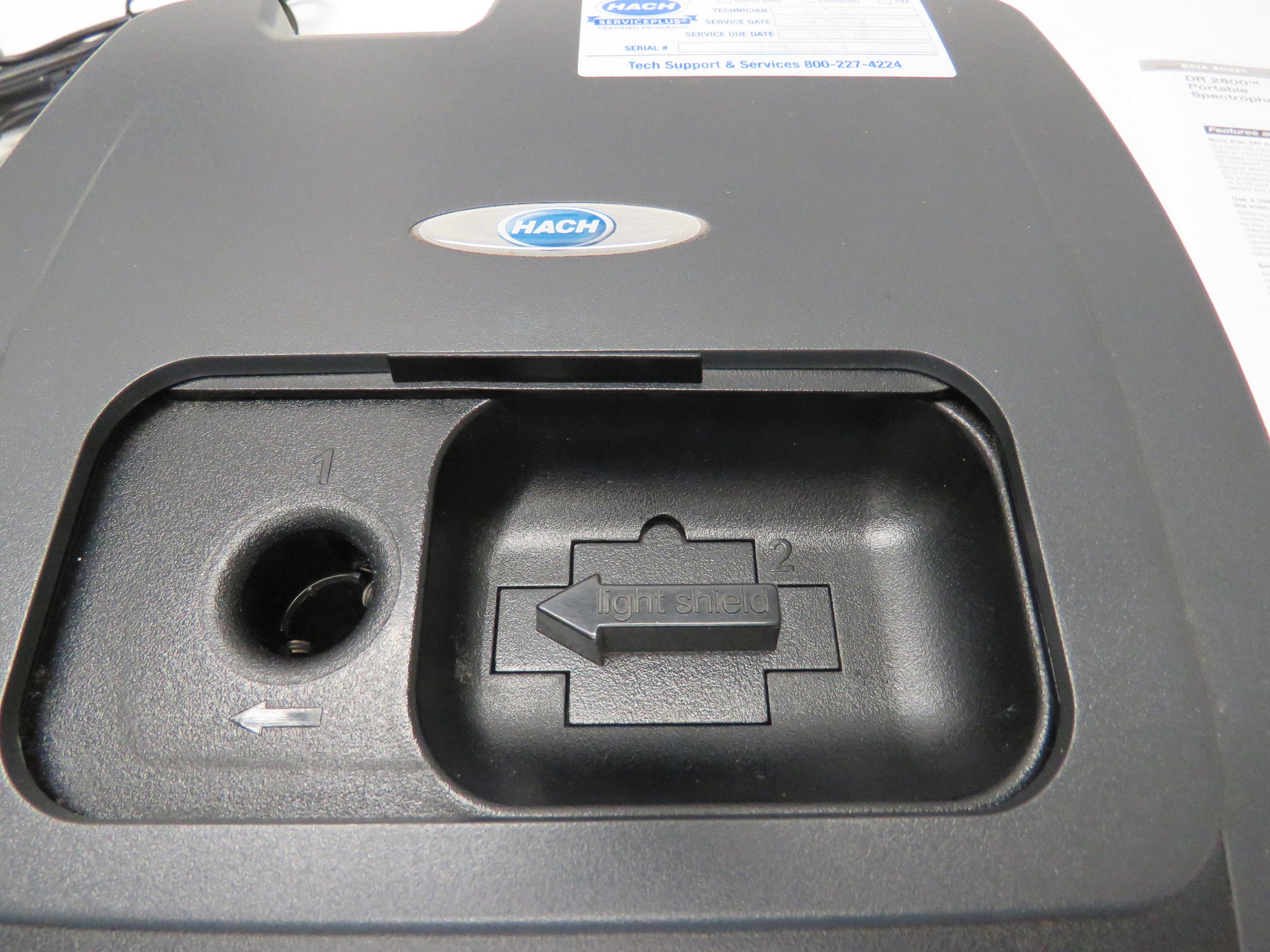

The DR 2800 spectrophotometer holds eight types of Hach cells—including 1-in. square cells, 1x5-cm cells, 13-mm round vials (TNTplus), and 16-mm round vials. Three adapters are included with the spectrophotometer for other vial types such as 1-in. round/AccuVac® cells, multi-path 1-in./1-cm cells, 1x1-cm square cells, and Pour-Thru™ cells. The optional Pour-Thru cell kit is ideal for rapid liquid methods when high throughput of analysis is needed.

Optional Accessories: Rechargeable lithium battery LZV551
Tungsten Lamp LZV565
Cuvette/ Sample cell adapter 10 mm (A) LZV583
Cuvette/ Sample cell adapter 1 inch (C) LZV584

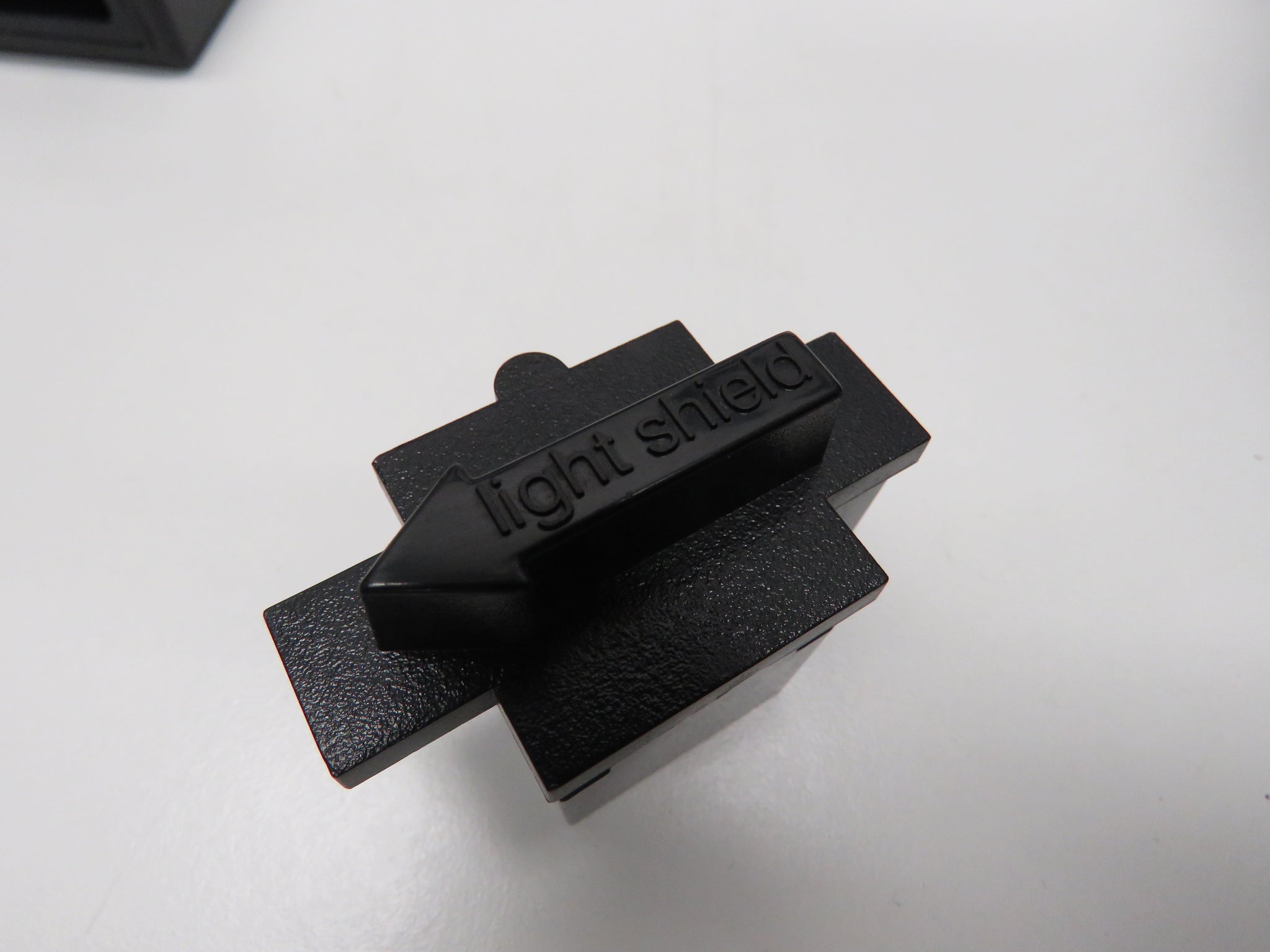

Light Shield LZV646
Cell adapter for Pour-Thru Cell (B) LZV585
Cell adapter set (cuvette adapters A, B, and C) LZV647
Wall power supply LZV610
Protective Cover and adapter holder LZV642
Dust cover HYH019
USB-Memory Stick LZV568
USB-Interface Cable (1 m) LZV567
USB-Keyboard (keyboard layout: US) LZV582
USB-Barcode Scanner (handset scanner) LZV566
Pour-Thru Kit 5940400
Cuvette/ Sample cell set (1-inch square cuvettes/cells, matched pair in OS grade (10 mL) 2495402
HACH LANGE DataTrans (PC software for data transfer) LZY274
Certified test filter set for self-checks (6 precision glass filters with target values) LZV537
Automatic Method Recognition: N/A
Data Logger: DR2800: 500 Points
Data Storage: 500 points
Display: Backlit Grayscale LCD Touch Screen
Enclosure Rating: IP42
Interfaces: 1 x USB type A; 1 x USB type B (10 ft (3 m) cable, maximum)
Length: 333 mm
Manual Languages: Bulgarian, Chinese, Czech, Danish,
Dutch, English, English, French,
French-Canadian, German, Greek,
Hungarian, Italian, Japanese, Korean,
Polish, Portuguese, Portuguese-Brasilian,
Romanian, Russian, Serbian, Slovenian,
Spanish, Spanish-South America, Swedish, Turkish
Max. operating humidity: 80 %
Max. Storage Humidity: 80 %
Operating Conditions: 10 - 40 °C (50 - 104 °F); 80% relative humidity, non-condensing, maximum
Operating Mode: Transmittance (%), Absorbance, and Concentration
Optical System: Reference beam, spectral
Photometric Accuracy: 5 mAbs @ 0.0 - 0.5 Abs
Photometric Accuracy 2: 1 % at 0.50 - 2.0 Abs
Photometric Linearity: < 0.5 % up to 2 Abs
Photometric Linearity 2: ≤ 1 % at> 2 Abs
Photometric Measuring Range: ± 3 Abs in the wavelength range 340 - 900 nm
Power requirements (Hz): 50/60 Hz
Power requirements (Voltage): 110 - 240 V AC
Power Supply: Line/Battery (optional)

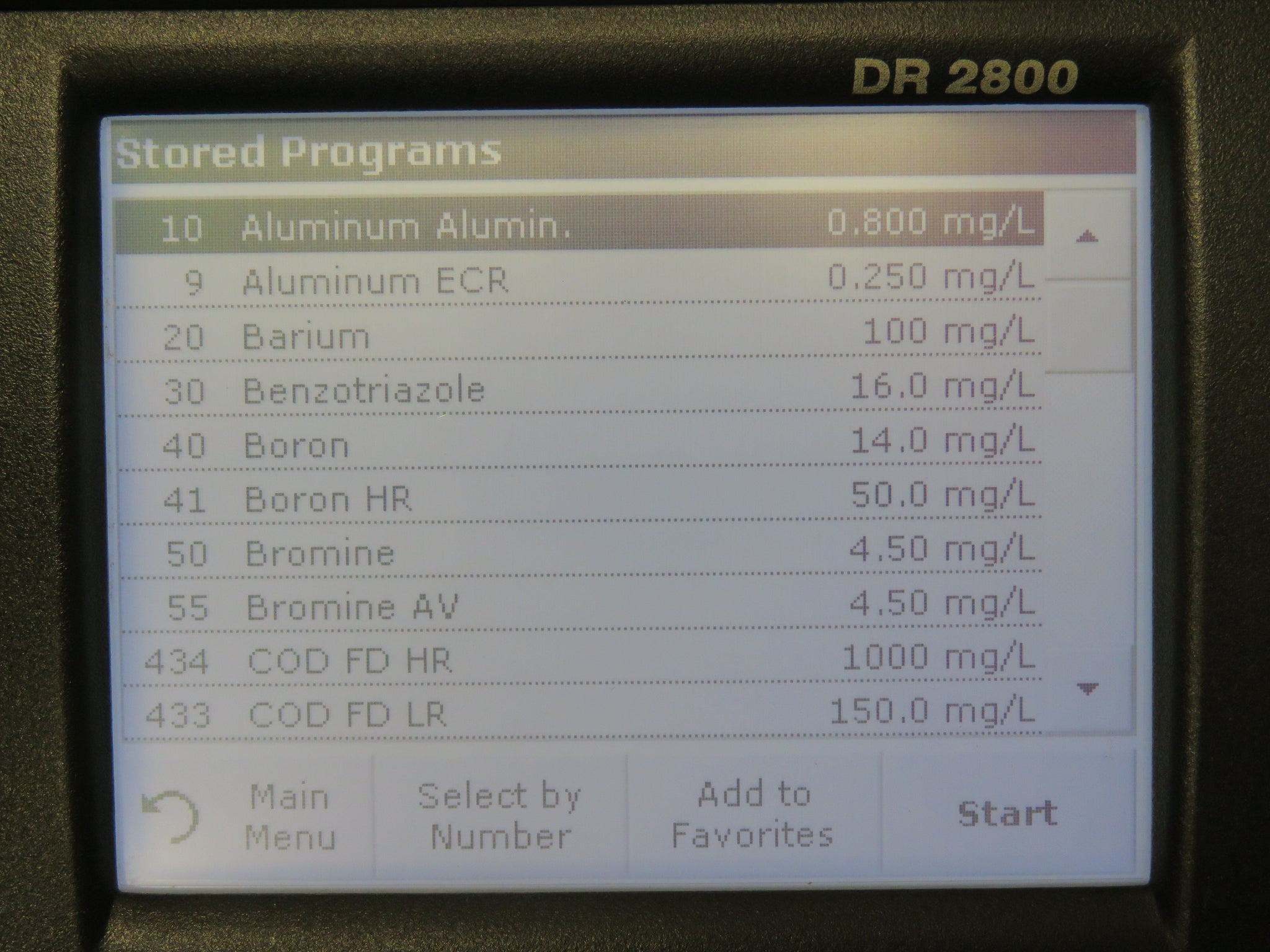

Preprogrammed Methods: DR 2800: > 240 Pre-programmed Water Analysis Methods
Sample cell compatibility: 1-in. square; 1-in. round; 1 cm square; 5x1 cm rectangular; 13 mm round; 16 mm round; multipath 1-in./1 cm; Pour-Thru with 1-in./1 cm pathlengths; AccuVac Ampules
Sample Cell Compatibility: 1-in. square; 1-in. round; 1 cm square; 5x1 cm rectangular; 13 mm round; 16 mm round; multipath 1-in./1 cm; Pour-Thru with 1-in./1 cm pathlengths; AccuVac Ampules
Source Lamp: Tungsten
Storage conditions: -40 °C to 60 °C ; 80% relative humidity
Stray Light: < 0.2 %T at 340 nm with KV450/3; <0.1 %T at 340 nm with NaNO2
User Interface Languages: Chinese, English, French, Japanese, Korean, Brazilian Portuguese, Spanish (Please contact your Hach representative for availability of additional languages.)
User Programs: DR 2800: 50
Warranty: 12 months
Wavelength Accuracy: ± 1.5 nm
Wavelength Calibration: Automatic
Wavelength Range: DR 2800: 340 - 900 nm
Wavelength Resolution: 1 nm
Wavelength Selection: Automatic: based on selected program method
Automatic: based on barcode printed on TNTplus™ reagent vials (DR 2800 only)
Manual: in all modes except stored programs
Weight: DR 2800: 4.38 kg with battery


Excellent functional condition.  Sold with warranty

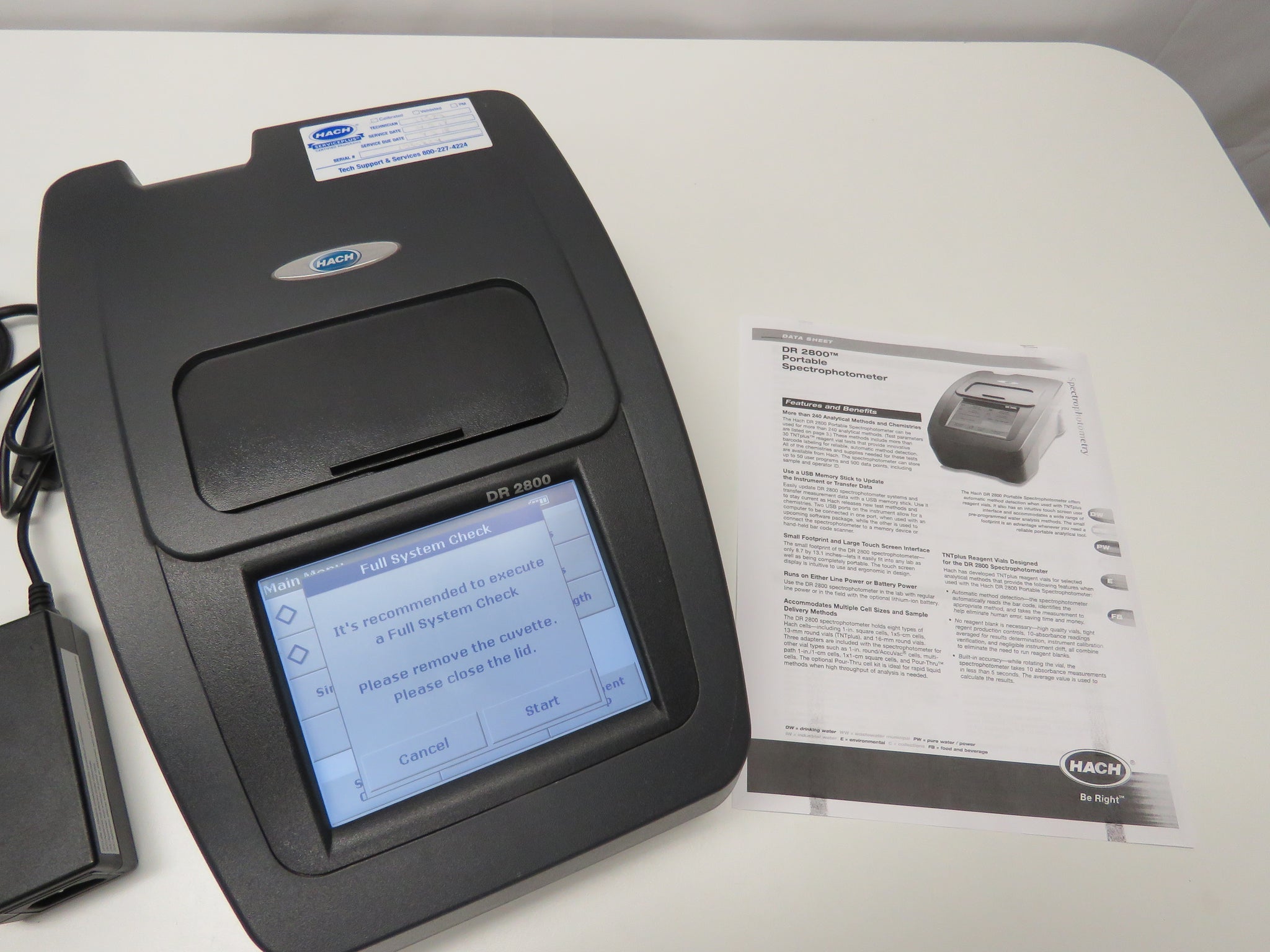

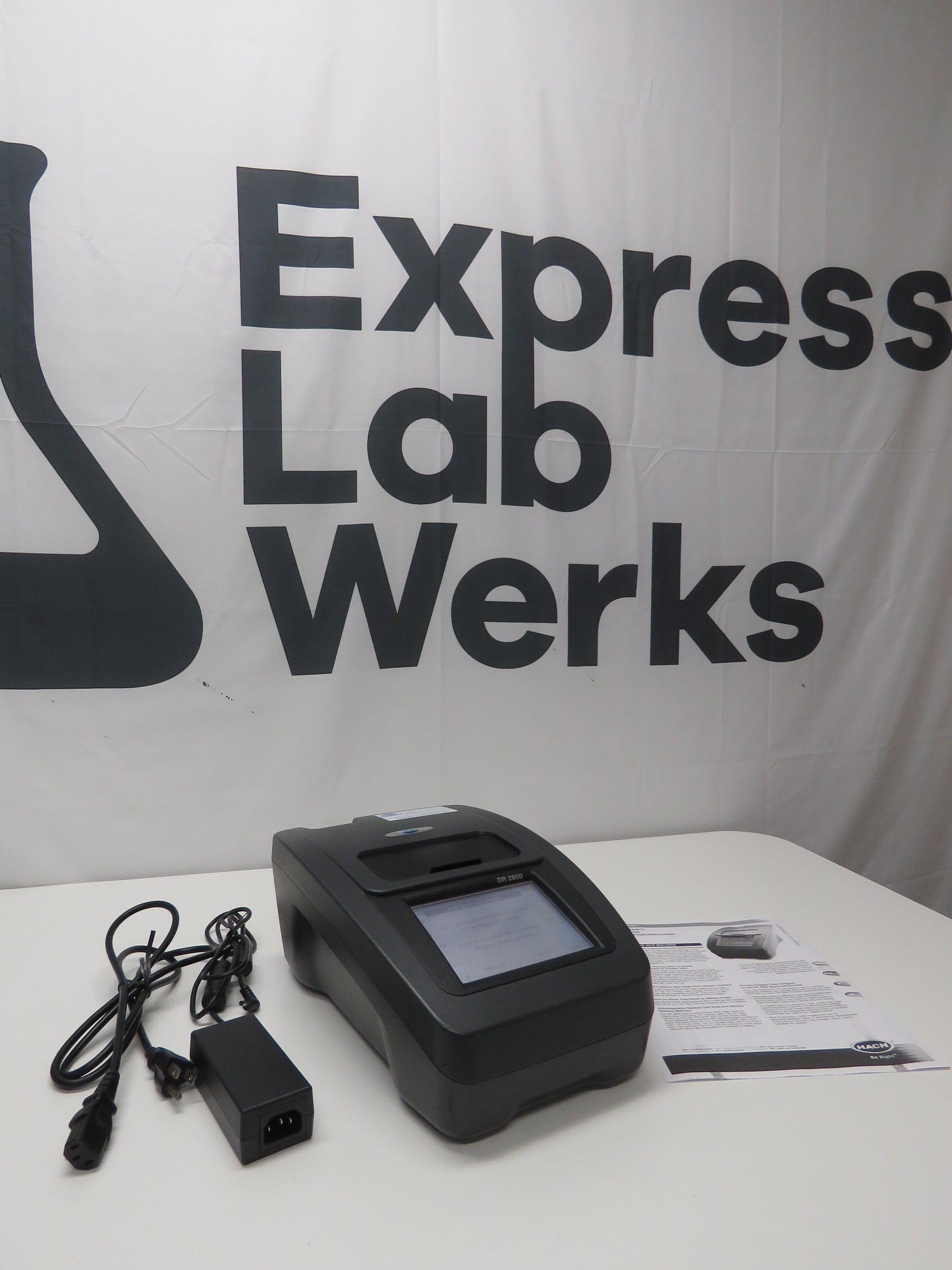

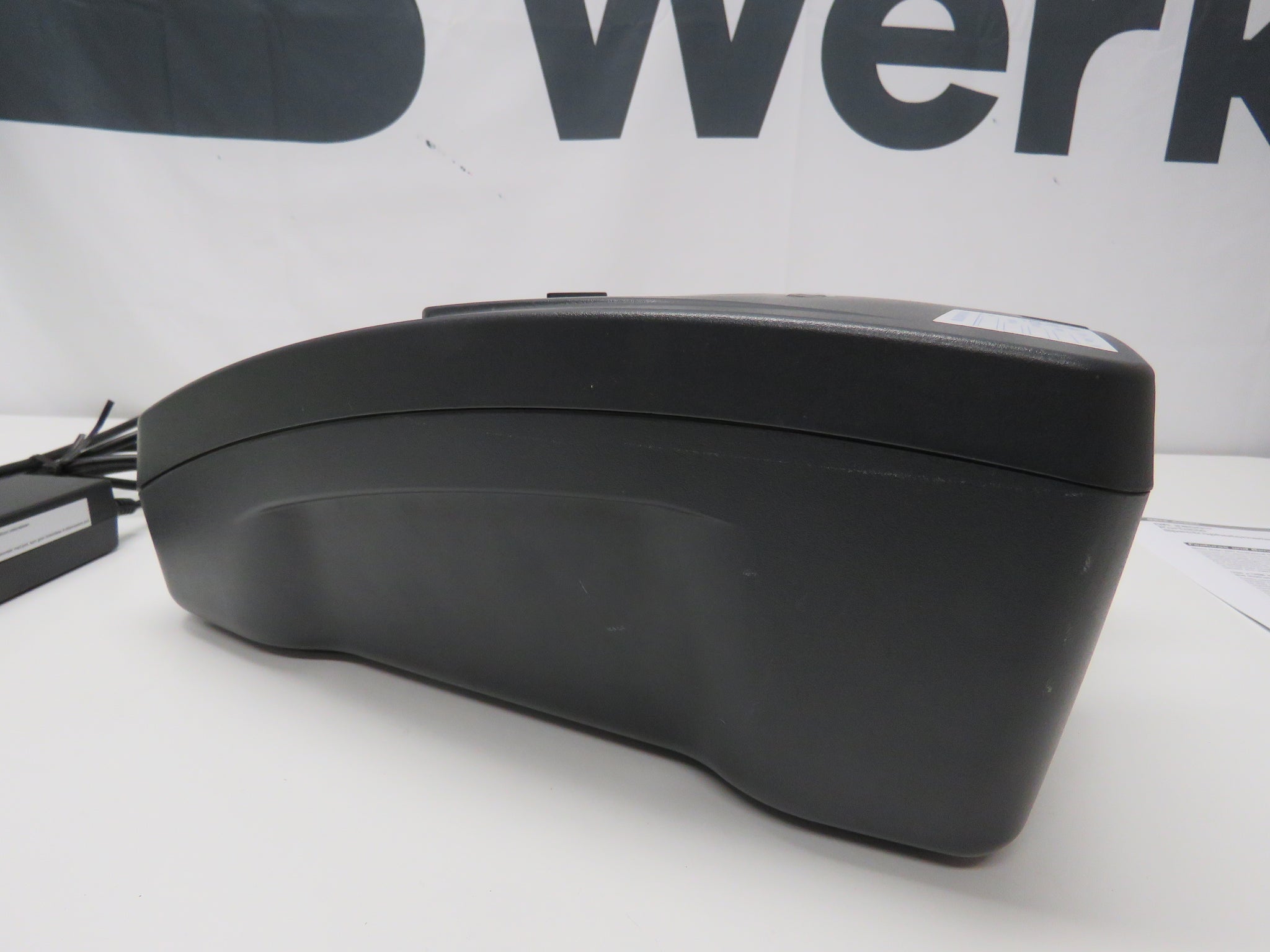

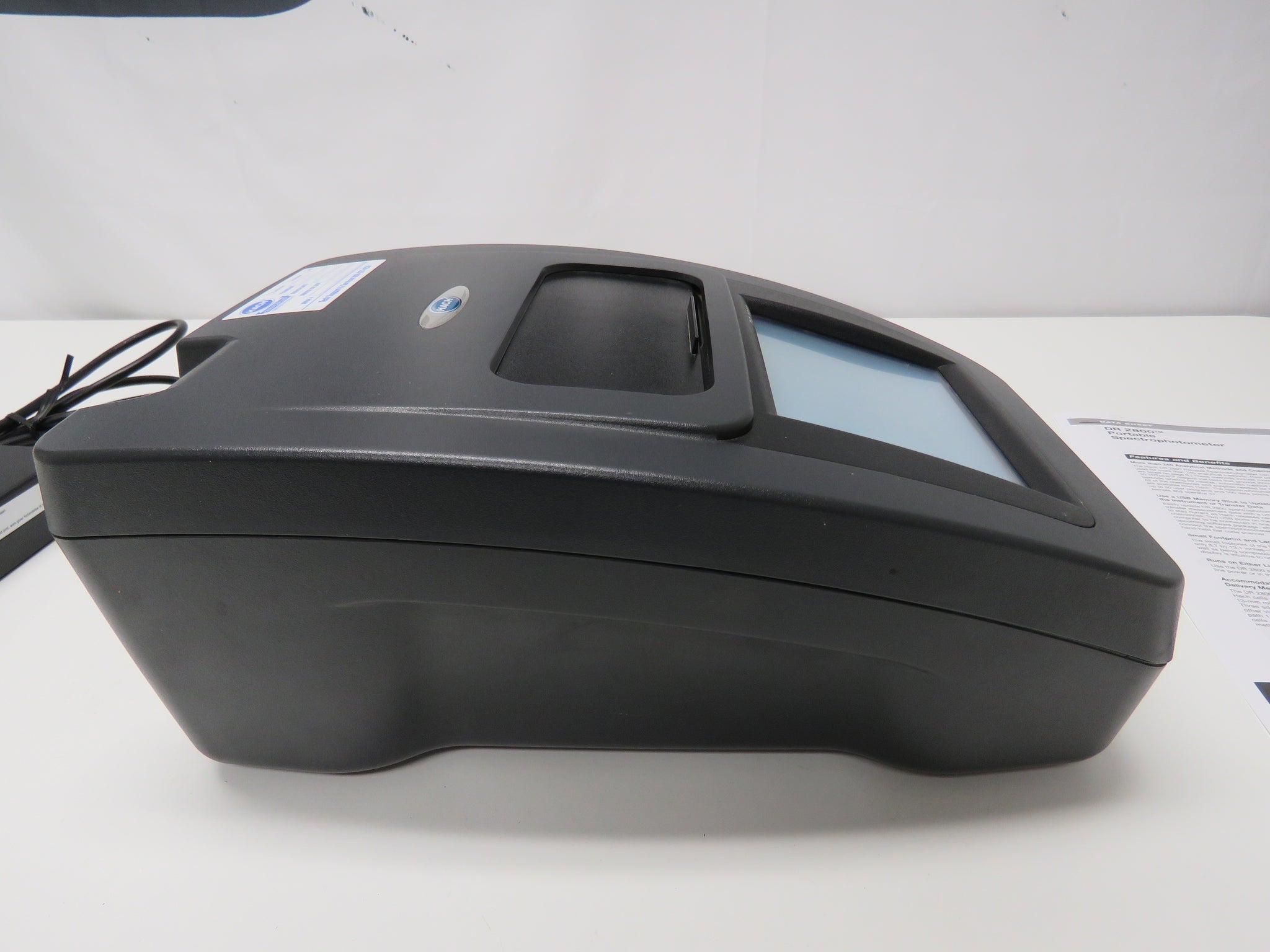

    • Hach DR 2800 Portable Spectrophotometer
    • Power supply



        30 Day warranty. We pledge to offer the best service and warranty to all of our customers!  We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you


        This is a genuine product from this manufacturer.


        The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item."

        Regardless of the origin of the equipment, documentation provided or identification appearing upon the equipment, the equipment described and offered here is in no way certified for, recommended for, or offered for any specific use. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. The purchaser, by bidding on this equipment, indicates their acknowledgment of, and agreement to the terms of this disclaimer. it is the purchaser's responsibility to have the item inspected and certified by a qualified professional before use.!!
