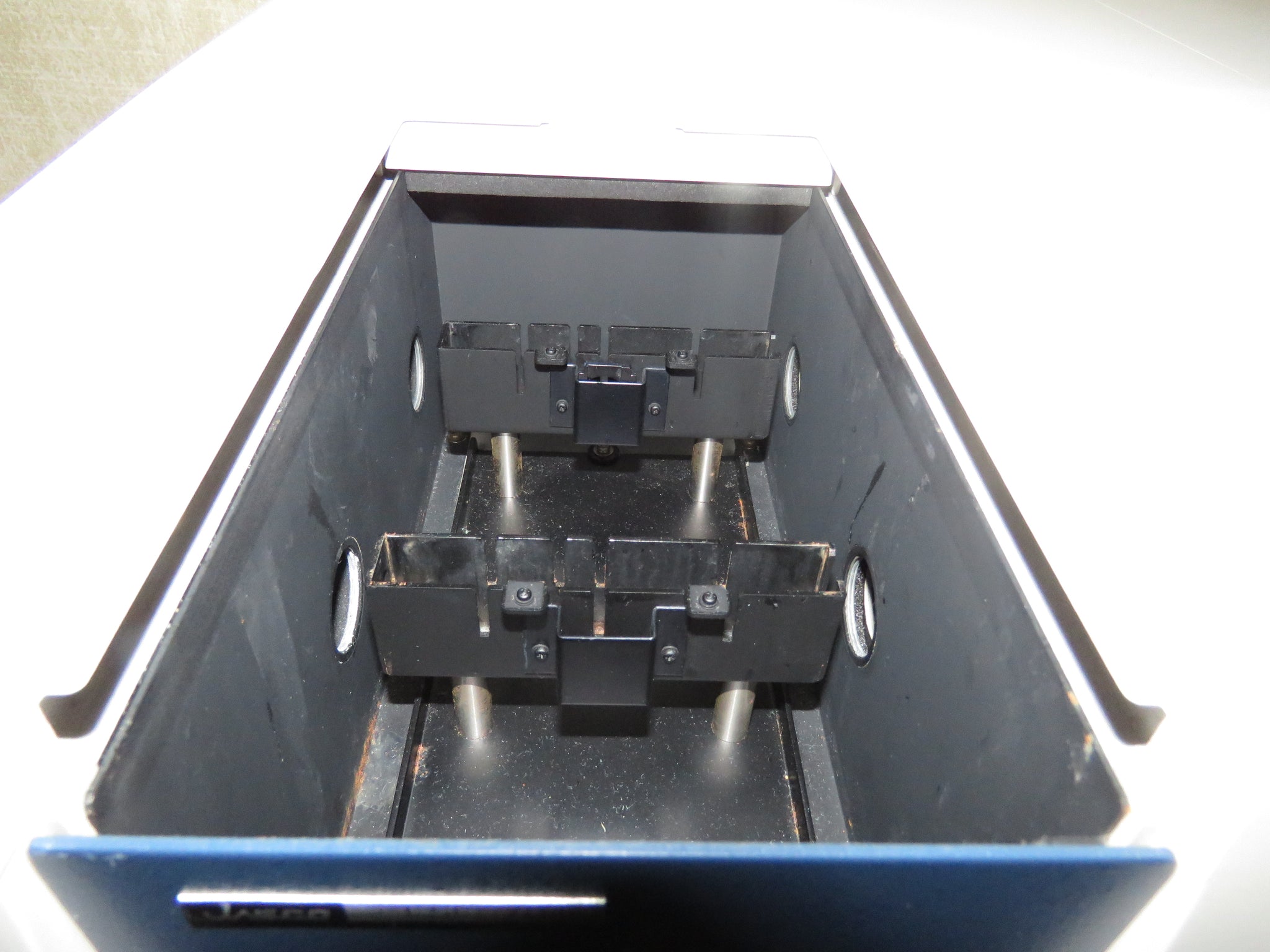

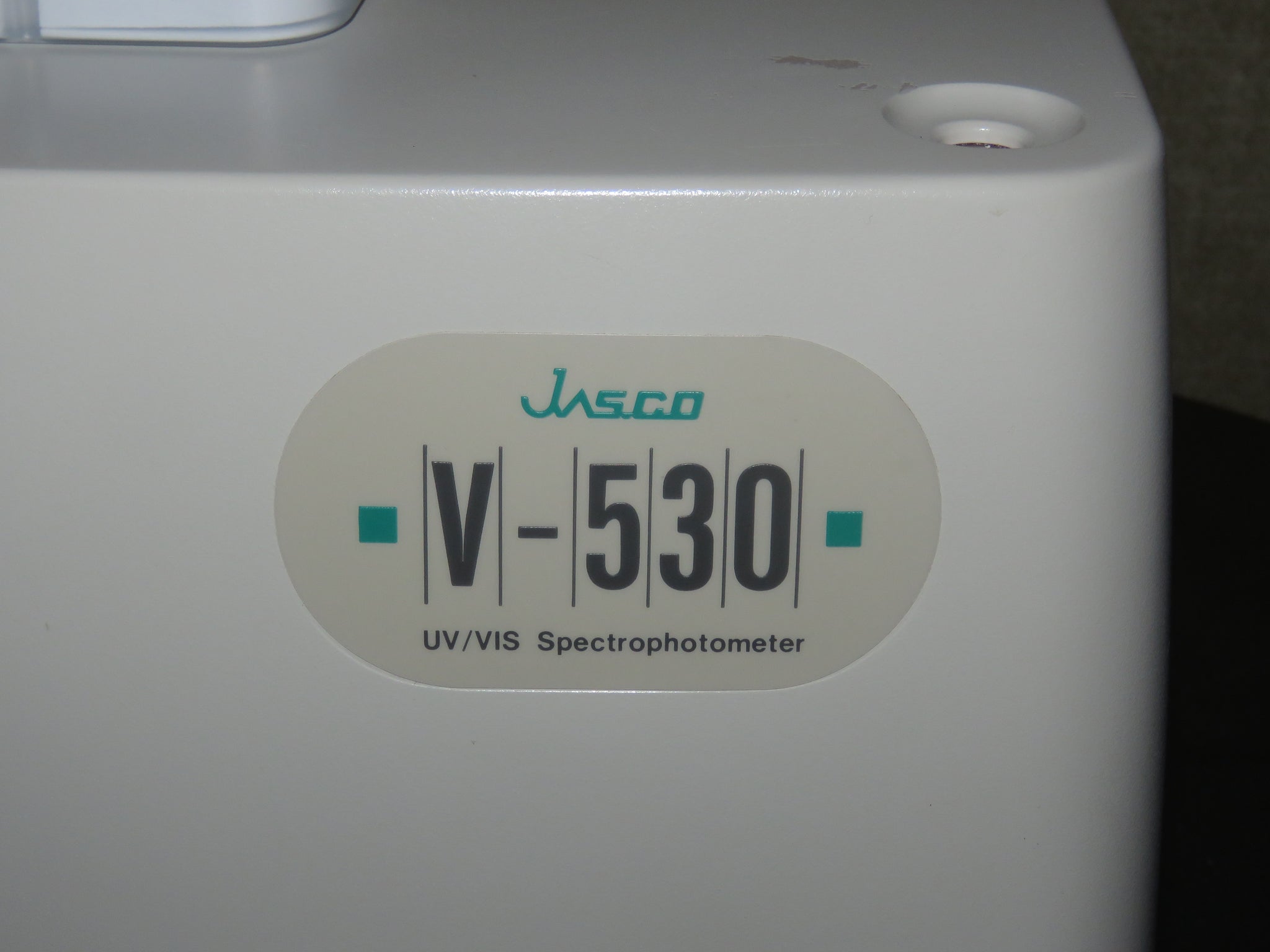

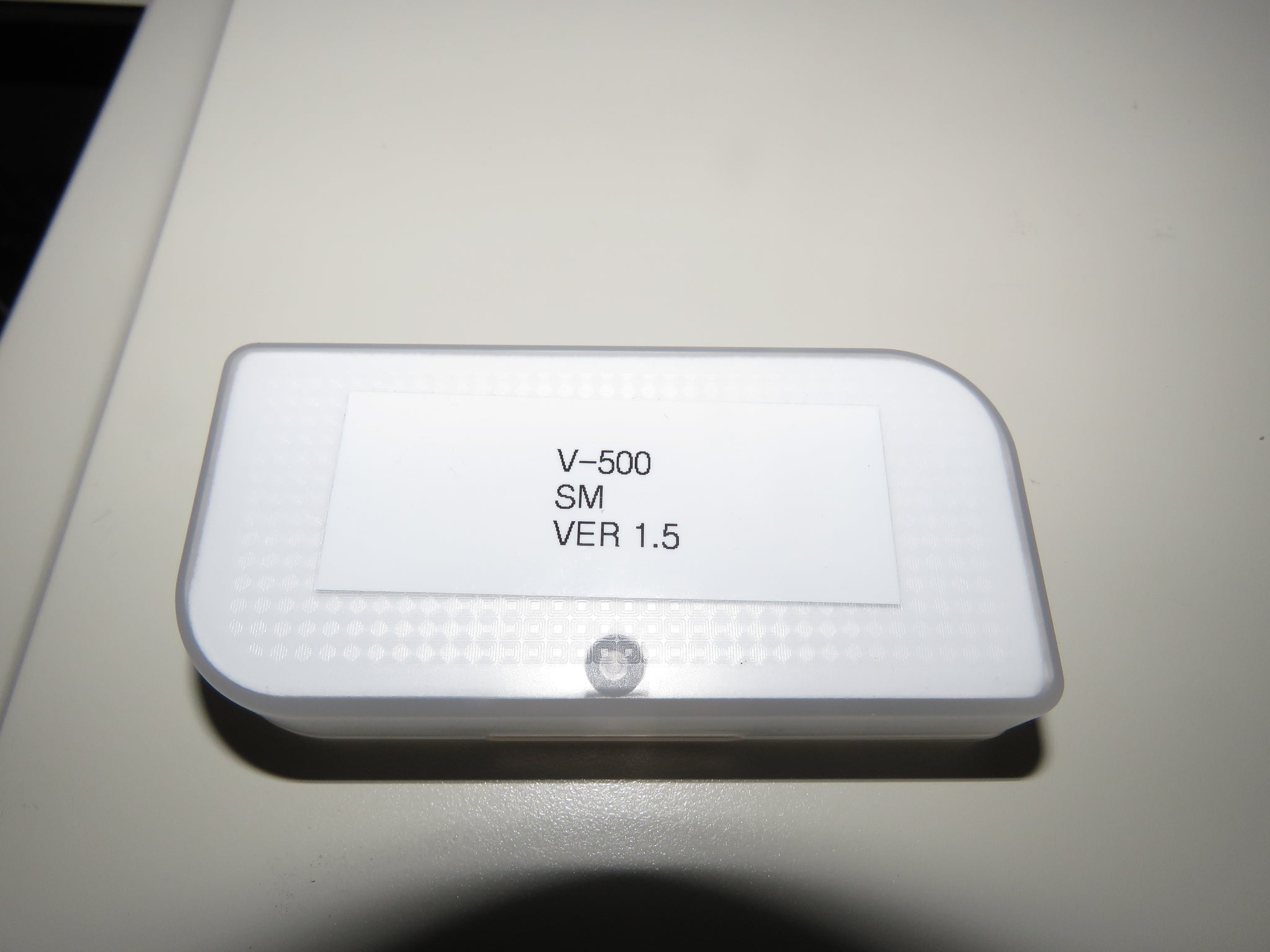

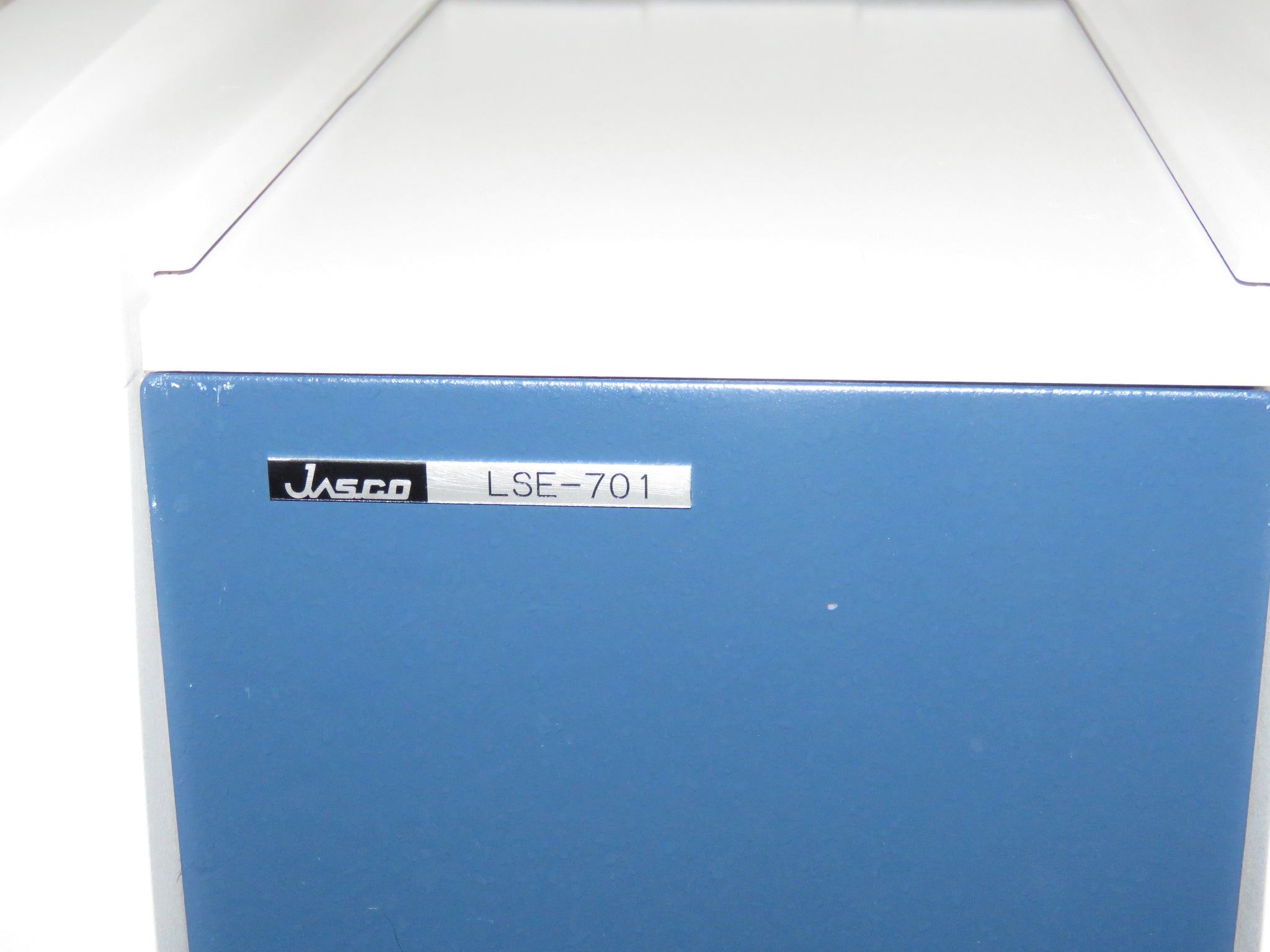

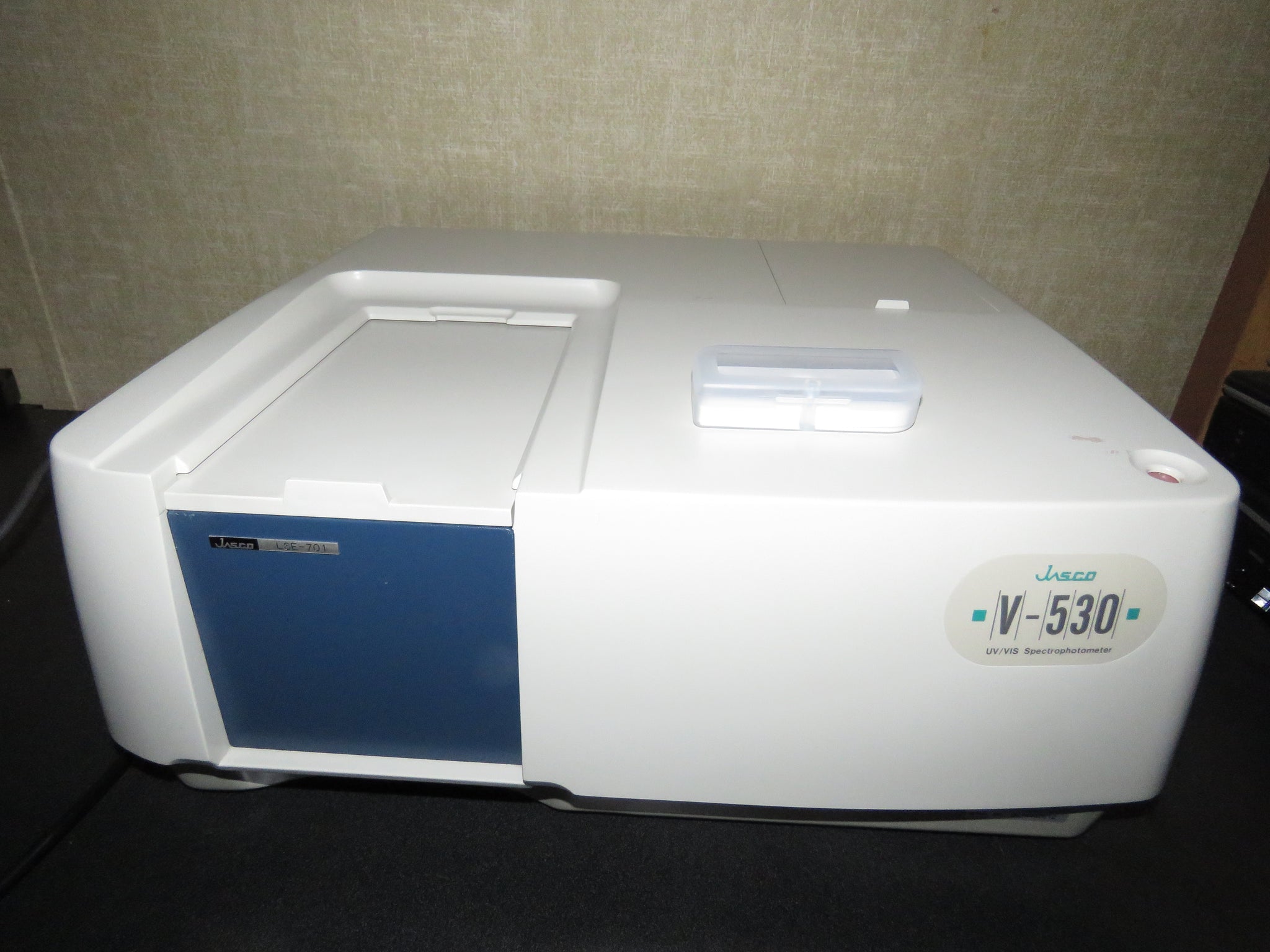

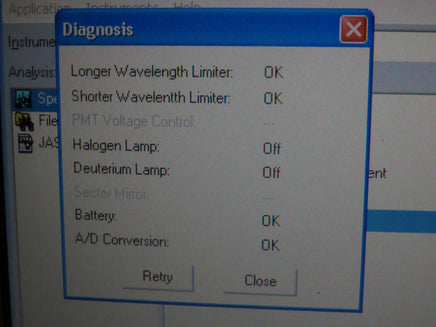

Jasco V-530 UV/VIS Spectrophotometer w Control Software & LSE-701 Long Path Cell Holder

Web Information

The Jasco V-530 UV/VIS Spectrophotometer is designed to measure the absorption spectrum of a sample at wavelengths in the range 190 to 1100 nm. The light sources used in the V-530 are a deuterium(D2) lamp (190 to 350 nm) for the UV region and a halogen (WI) lamp (340 to 1100 nm) for the VIS/NIR region. The light from the light source is converged and enters the monochromator. The light is dispersed by the grating in the monochromator and converges onto the exit slit. The light that has passed through the exit slit is monochromated. This light is split into two beams, one going to the sample to be measured and the other to the reference sample such as a solvent. The light that has passed through the sample and the reference sample is alternately incident upon the silicon photodiode.

Optical system:
Double beam, single monochromator with a 1200 grooves/mm concave grating and modified Rowland mount
Spectral bandwidth: 2 nm
Wavelength range: 190 - 1100 nm
Light sources: Deuterium lamp for UV range (190 - 350 nm),
Halogen lamp for VIS range (330 - 1100 nm)

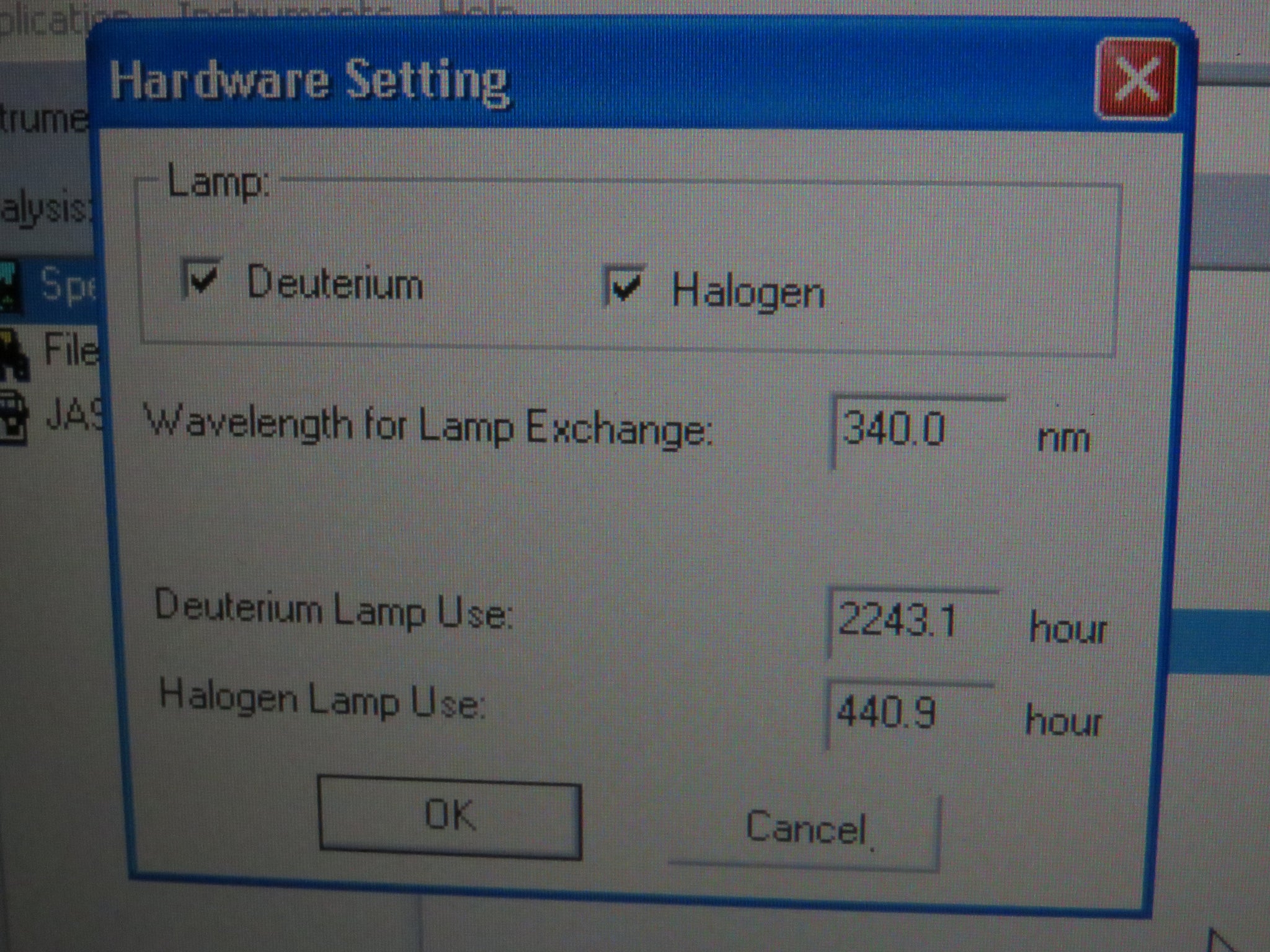

Light source switching: Selectable within a range of 330 to 350 nm
Wavelength repeatability:± 0.1 nm
wavelength accuracy: ± 0.5 nm
Photometric modes: Abs, %T, %R
Photometiric range: -2 - 3 Abs
Photometric reproducibility:
± 0.001 Abs (0 - 0.5 Abs)
± 0.002 Abs (0.5 - 1 Abs)
± 0.15 %T
Photometric accuracy:
± 0.002 Abs (0 - 0.5 Abs)
± 0.004 Abs (0.5 - 1 Abs)
± 0.3 %T
(Above figures obtained using NIST SRM 930D)
Stray light: 0.04 %T both at 220 nm with NaI 10 g/l solution and at 340 nm with NaNO2
50 g/l solution
Wavelength scan speed: 4000, 2000, 1000, 400, 200, 100, 40 nm/min
Wavelength slew speed: 8000 nm/min
Sampling interval: 0.1, 0.2, 0.5, 1, 2 nm/data (spectral scan mode)
0.05, 0.1, 0.2, 0.5, 1, 2, 5, 10 sec/data (time scan mode)
Baseline stability:
± 0.001 Abs/hour
Response: Slow (250 nm, lamp on longer than 60 min, temperature variation
± 5° C)
Baseline flatness:
± 0.001 Abs within 200 - 1000 nm range after baseline correction
Response: Medium
Scan speed: 100 nm/min
Response: Quick, Fast, Medium, Slow
Detector: Silicon photo-diode (S1337)

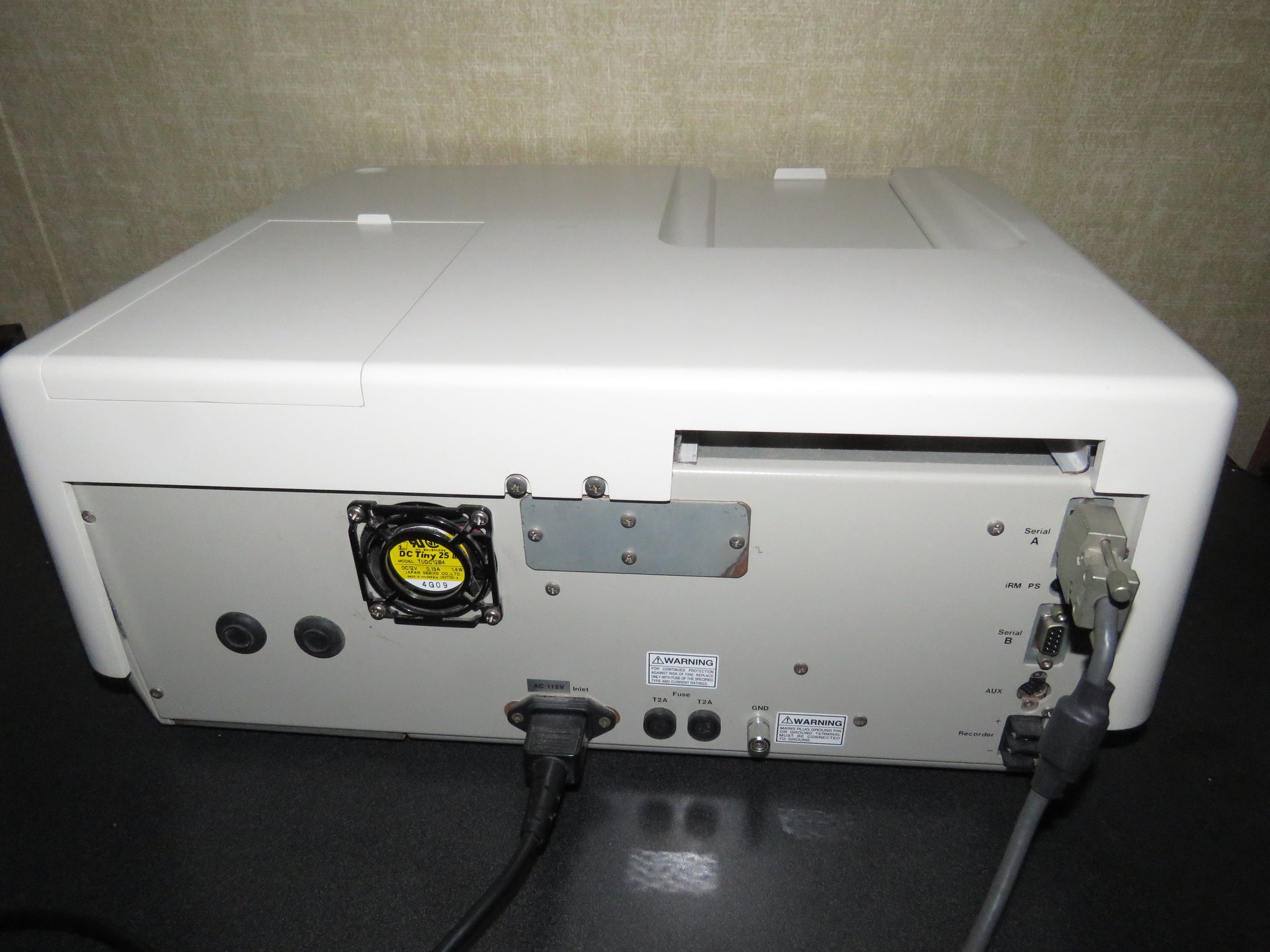

output port: RS-232C interface

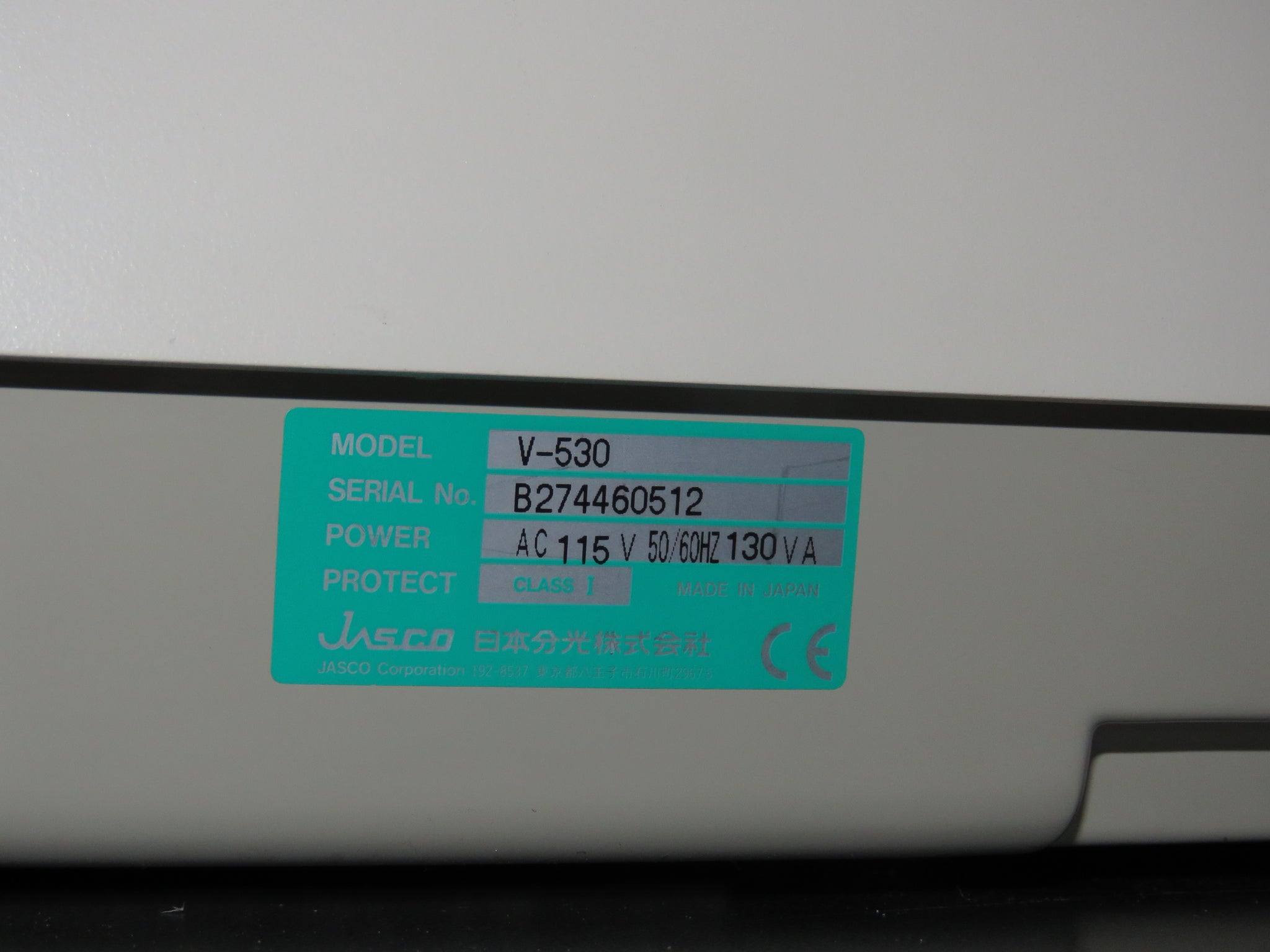

Power requirement: 130W
Dimensions: 484 (W) x 477 (D) x 205 (H) mm
Net weight: approx. 16 kg
