Monarch Examiner 1000 VIBRATION METER w/ Accelerometer and Case

Monarch

$850.00
SKU: monarch1000

Web Information

Our EXAMINER 1000 Vibration Meter is ideal for condition-based maintenance. This handheld device measures acceleration, velocity, and acceleration enveloping.

The EXAMINER Kit includes the 1000 Vibration Meter and electronic stethoscope, accelerometer with cable, batteries, magnetic base, stinger probe, and more. The kit is the perfect tool for trending overall vibration readings in process equipment. It's an essential predictive maintenance tool. The EXAMINER 1000 Vibration Meter can also be purchased as a single unit.

Description

The EXAMINER 1000 Vibration Meter is designed for ease of use in condition-based maintenance programs. It is the ideal tool to begin a predictive maintenance program or to add to an existing world-class maintenance program with FFT data collectors and analysis software.

Examiner measures vibration in:

  •  Acceleration
  •  Velocity
  •  Acceleration Enveloping
Features Benefits
One-Button Operation

Ease of use
No training is required though interactive vibration training is available

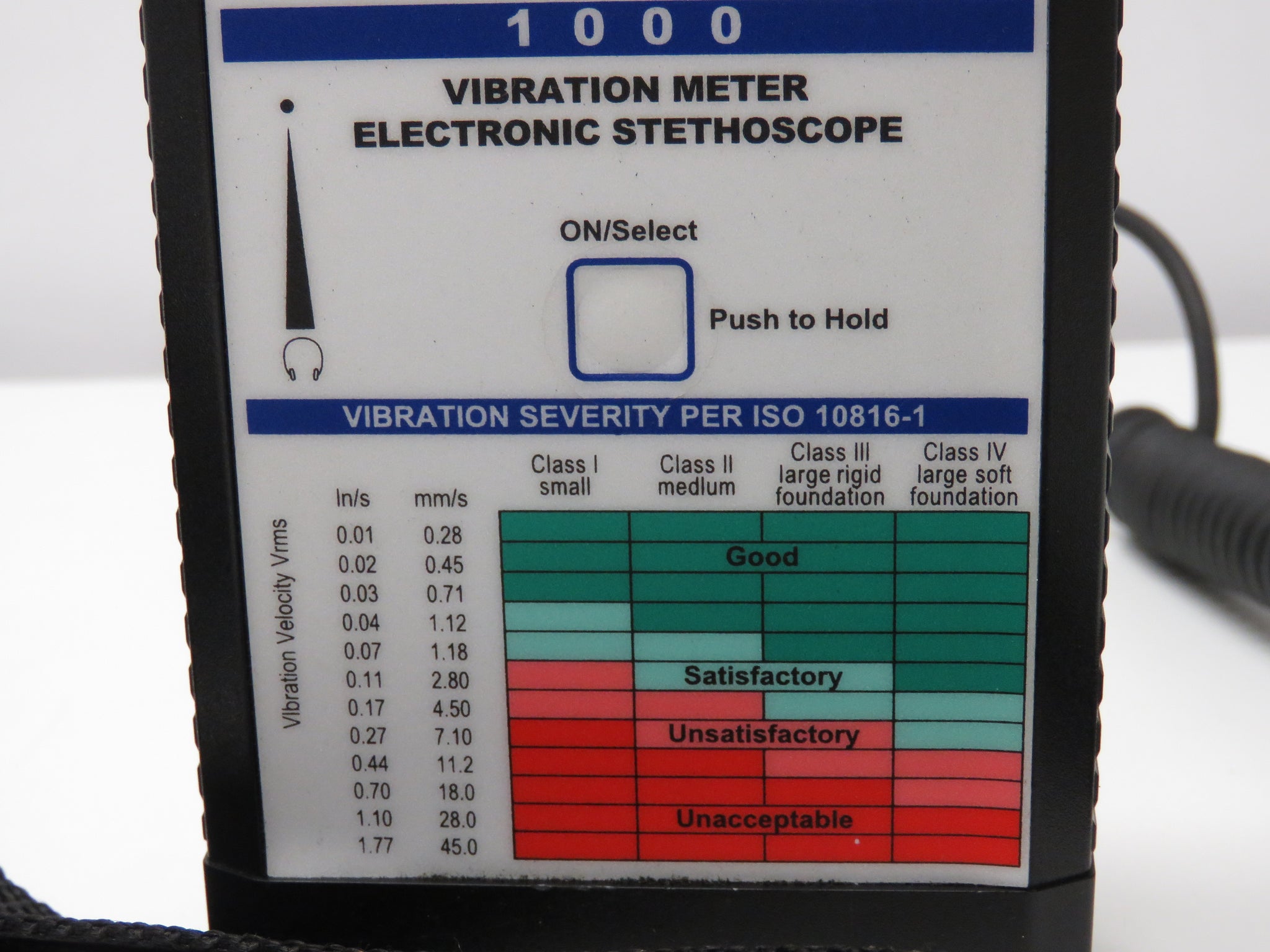

Front Panel Severity Chart Instant assessment of vibration so you can plan repairs
Multiparameter Readings Power to trend defects and eliminate unplanned repairs
Electronic Stethoscope Hear what you see in the digital display! You do not have to give up the proven troubleshooting technique of listening.
Made by Monarch Reliable, accurate, and affordable


Specifications* EXAMINER 1000 Vibration Meter

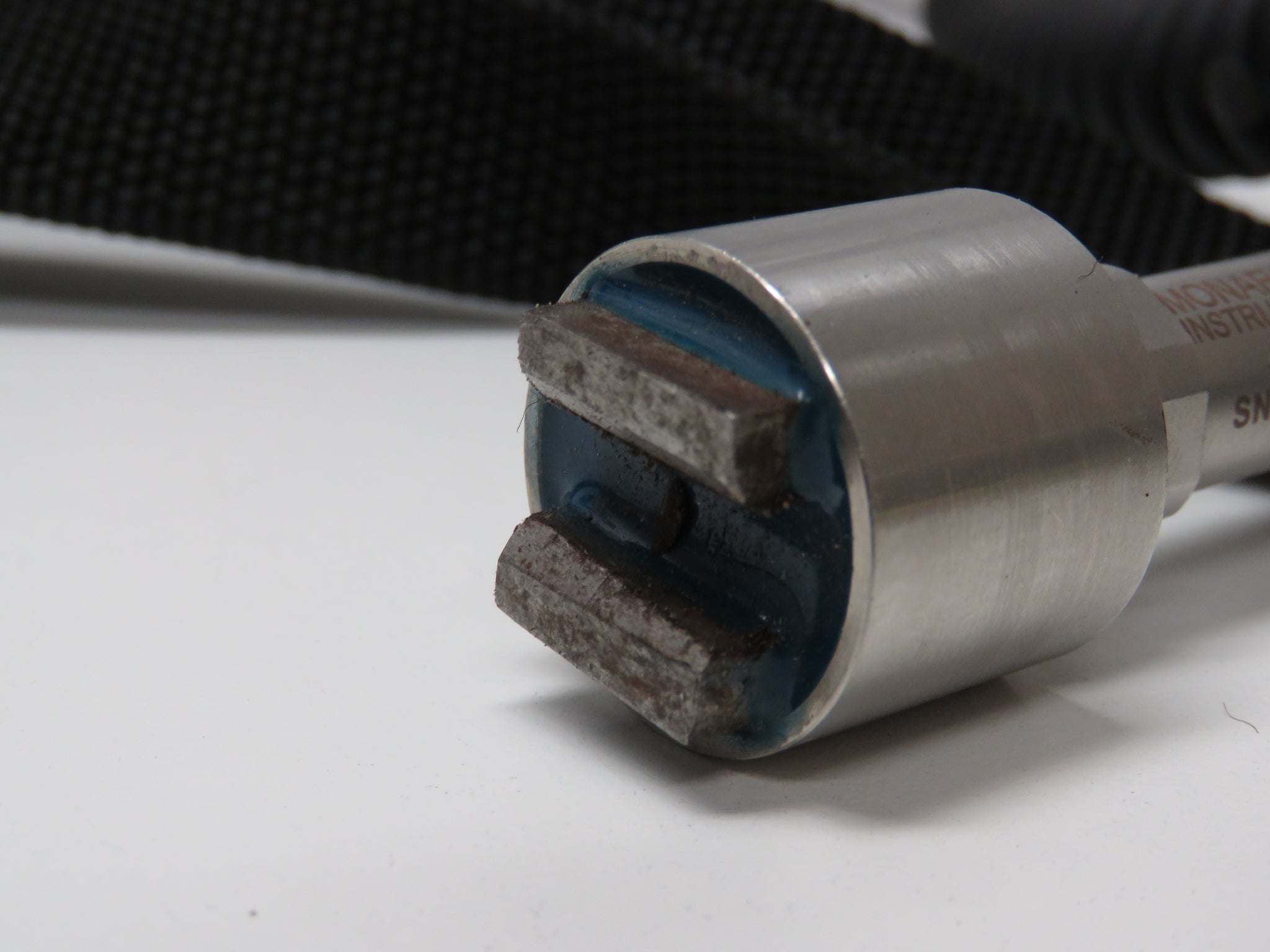

Vibration Sensor Piezoelectric accelerometer 100 mV/g with magnetic base, probe and 5 ft. cable to BNC

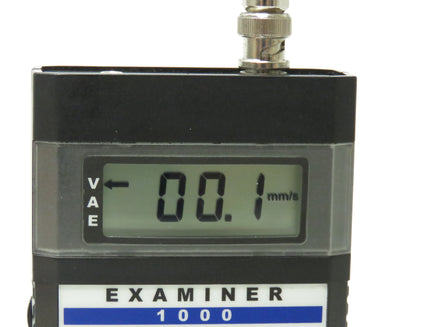

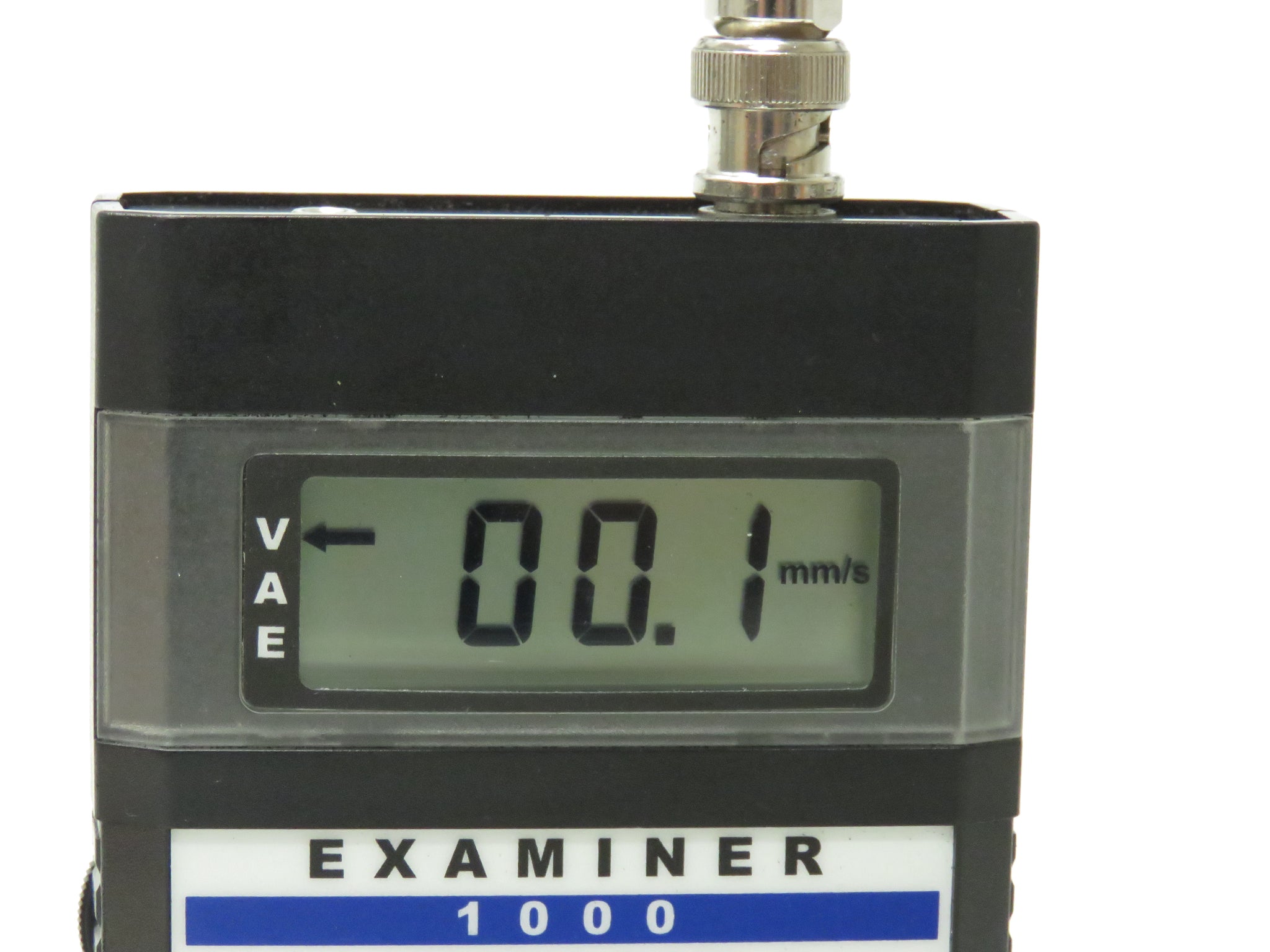

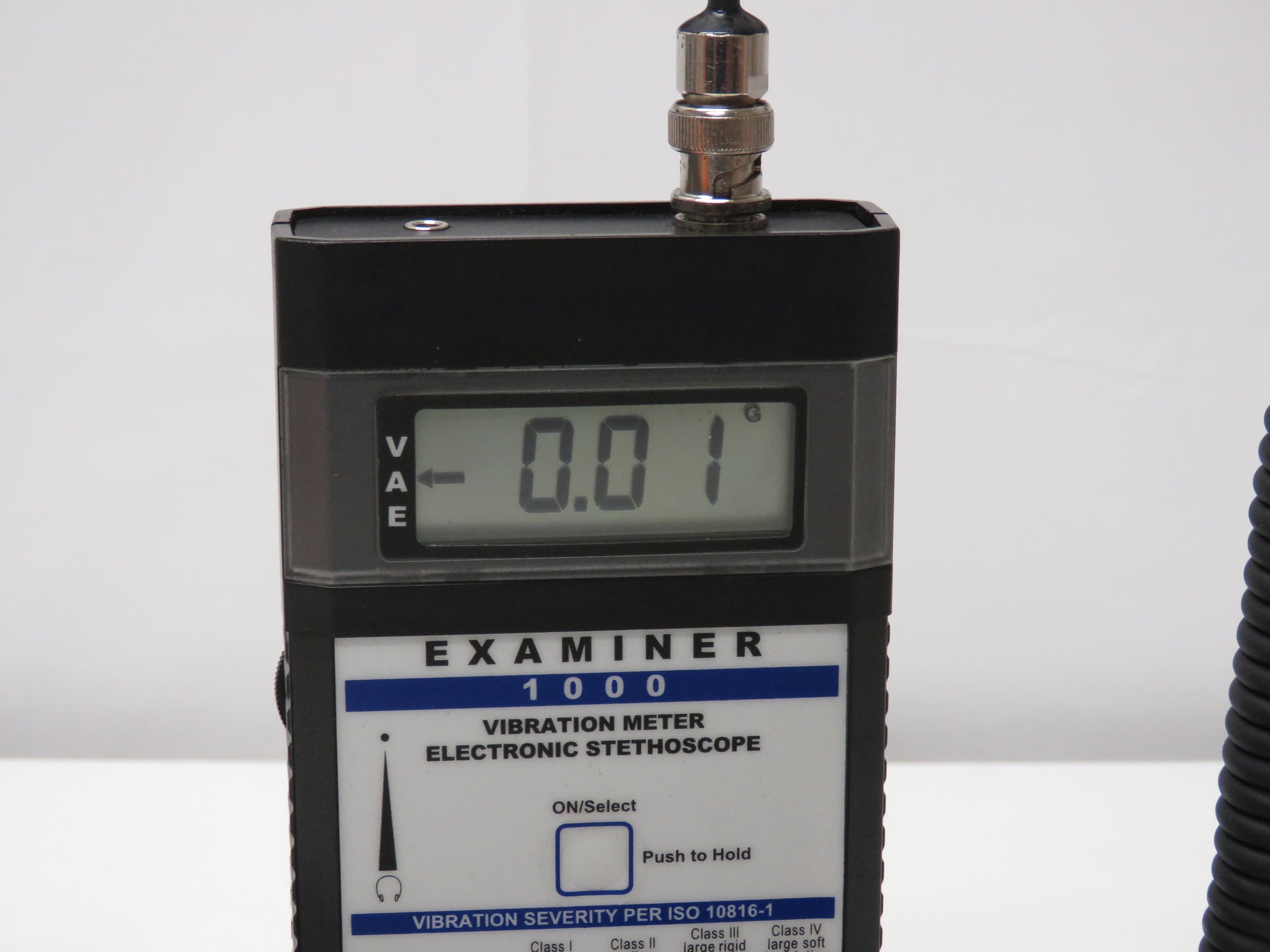

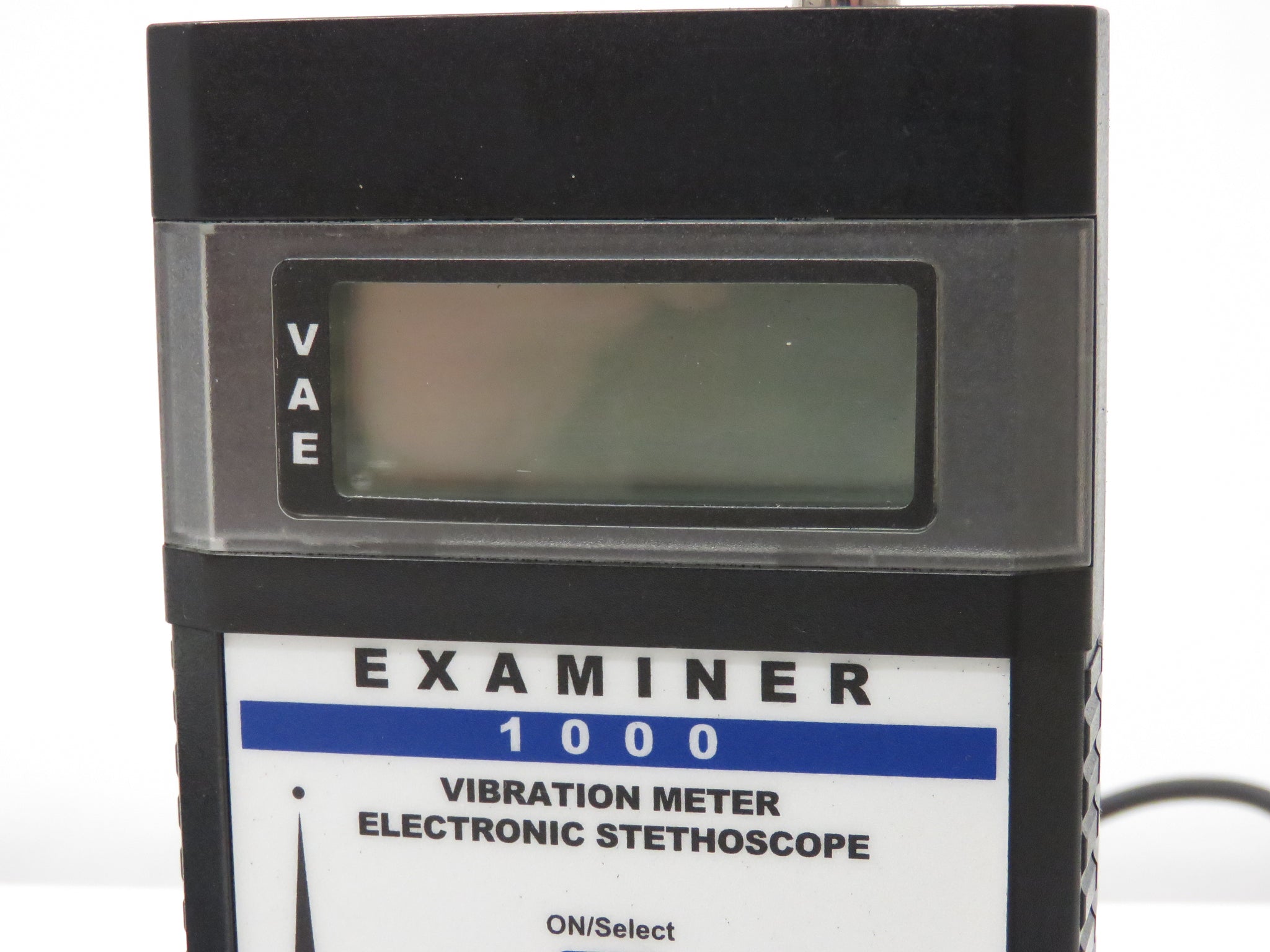

Display LCD 3.5 digits
Indicators: Measurement, Hold, Low Battery,
Units of Measure
Measurement Range Acceleration: 0.01-19.99 g (RMS)
Velocity: 0.01-19.99 in/sec, 0.1-199.9 mm/sec (RMS)
Envelope: 0.01-19.99 gE (peak)
Frequency Range Overall: 10 Hz - 10 kHz
Envelope: 0.5 kHz - 10 kHz

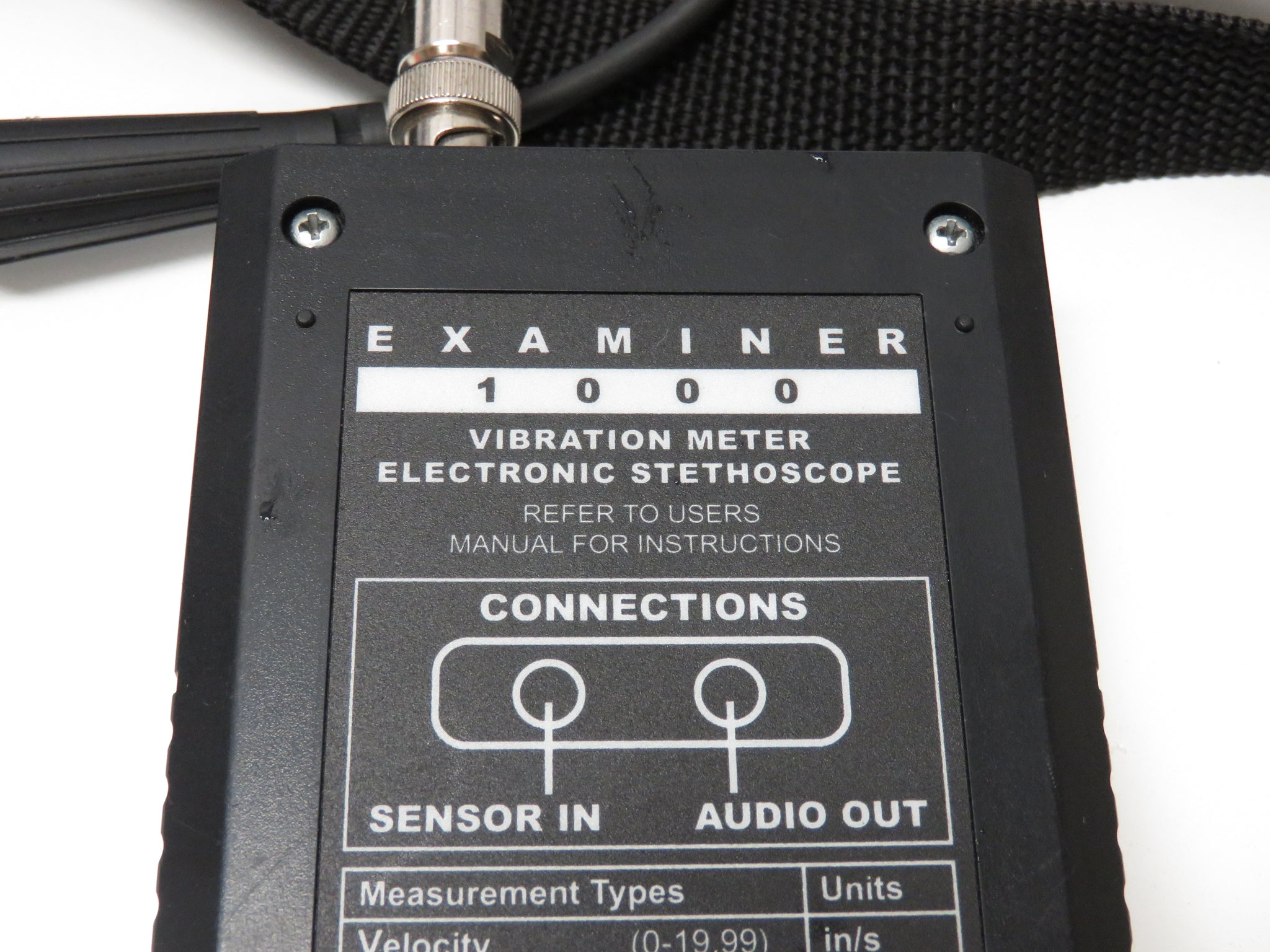

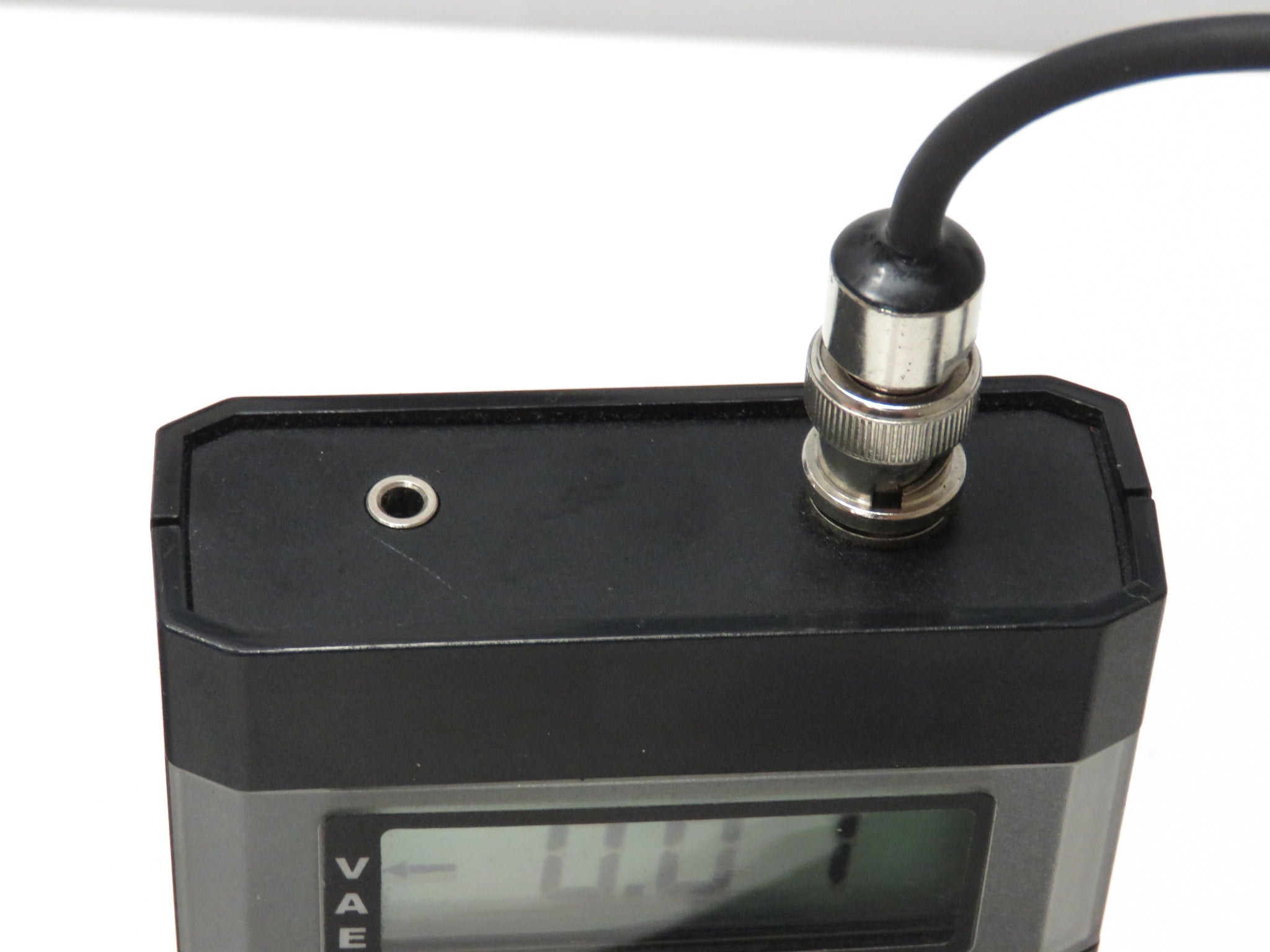

Output Sensor excitation: 18 V dc@ 2 mA (BNC)
Audio output: 3.5 mm mini plug; 250 mW into 8 ohms, 150 mW into 32 ohms;
adjustable volume control with off position

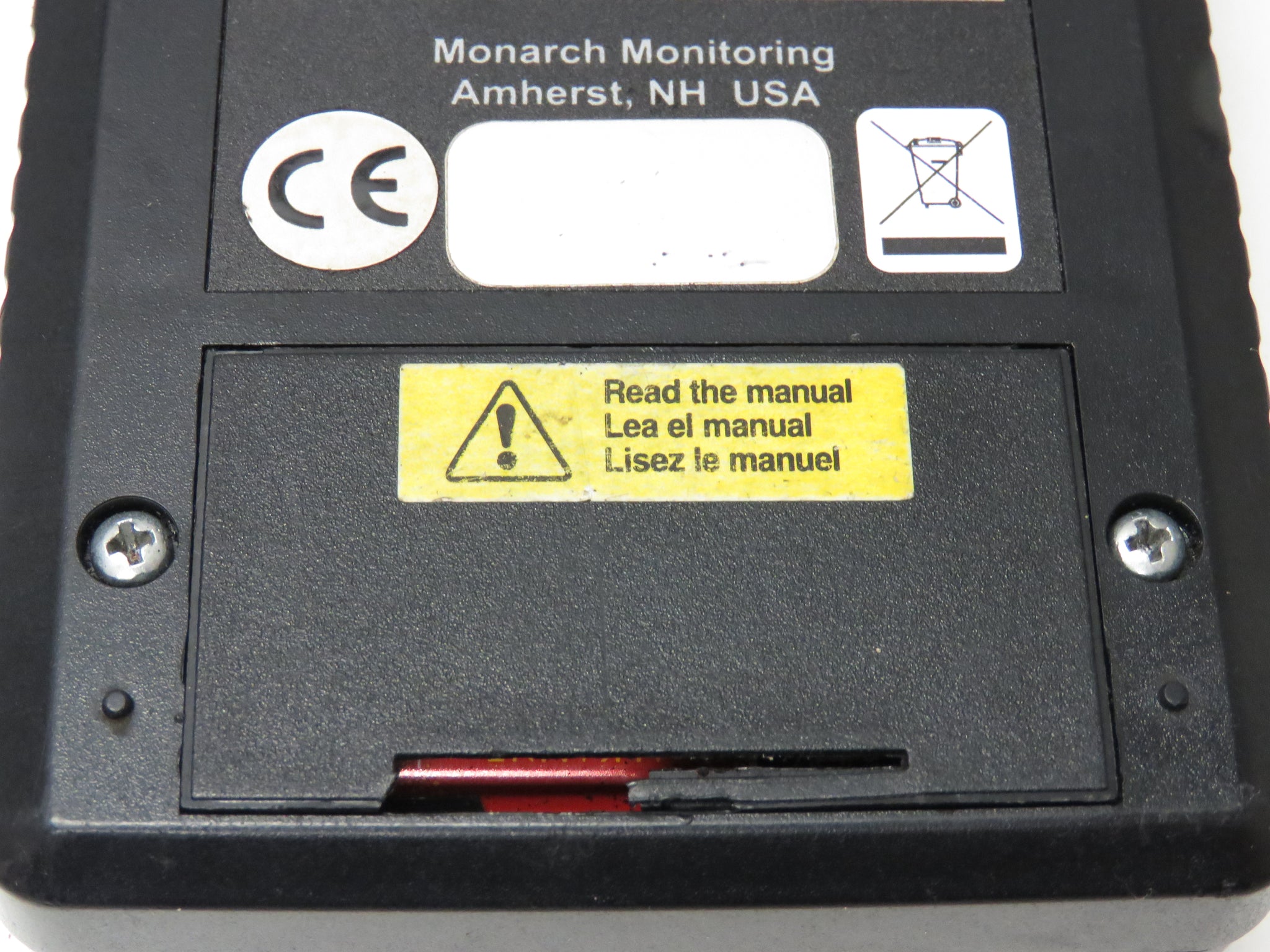

Power Two (2) AA cells
Operating Time 20 hours continuous without headphones
Weight Instrument: 7 oz. [0.19 kg]
Complete kit: 2.85 lbs. [130 kg]
Dimensions 6.3 x 3.3 x 1.25 in. / 152 x 83 x32 mm
Operating Conditions -14 °F to 122 °F / -10 °C to 50 °C



Condition

Excellent functional condition.

Includes

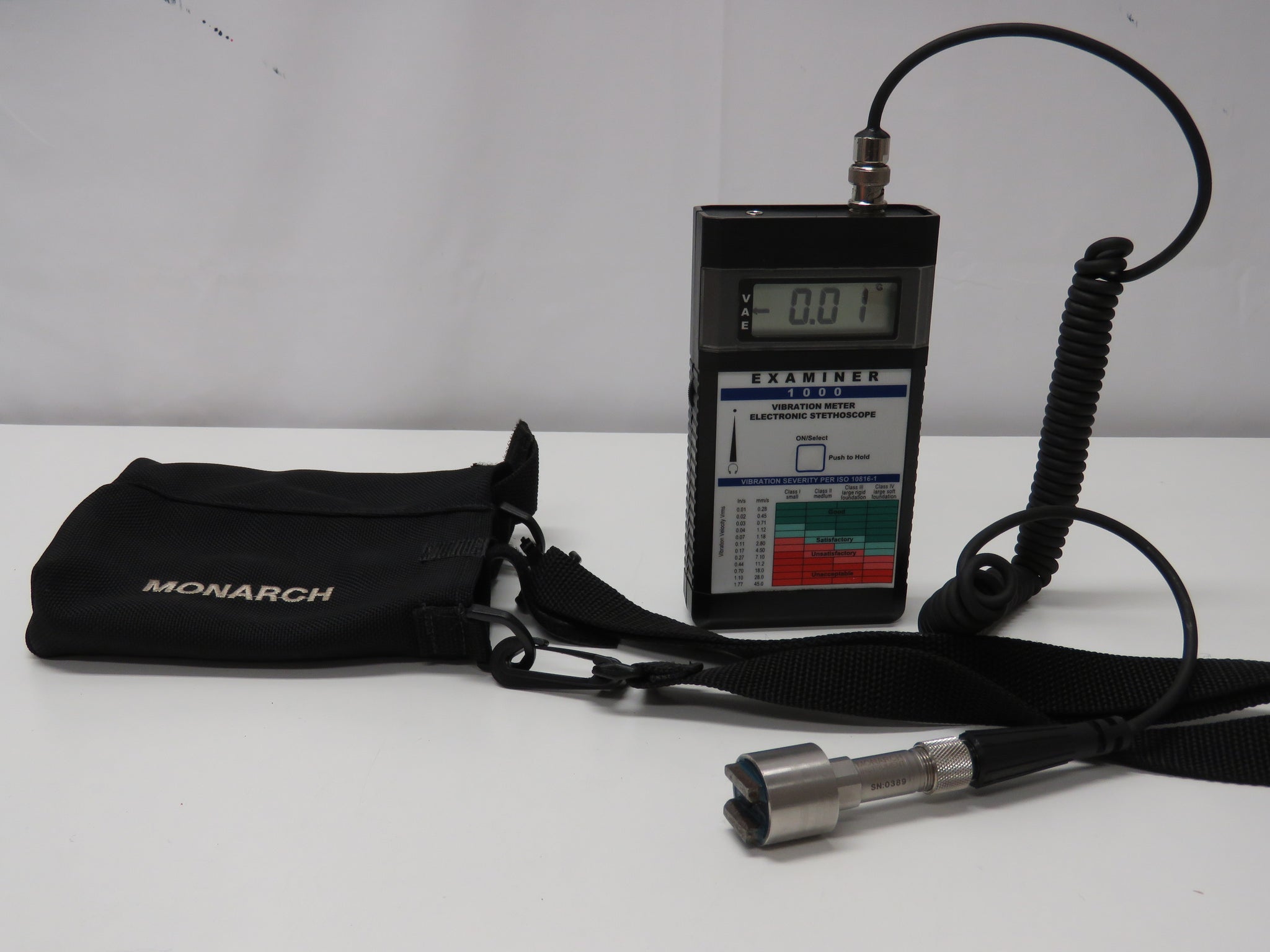

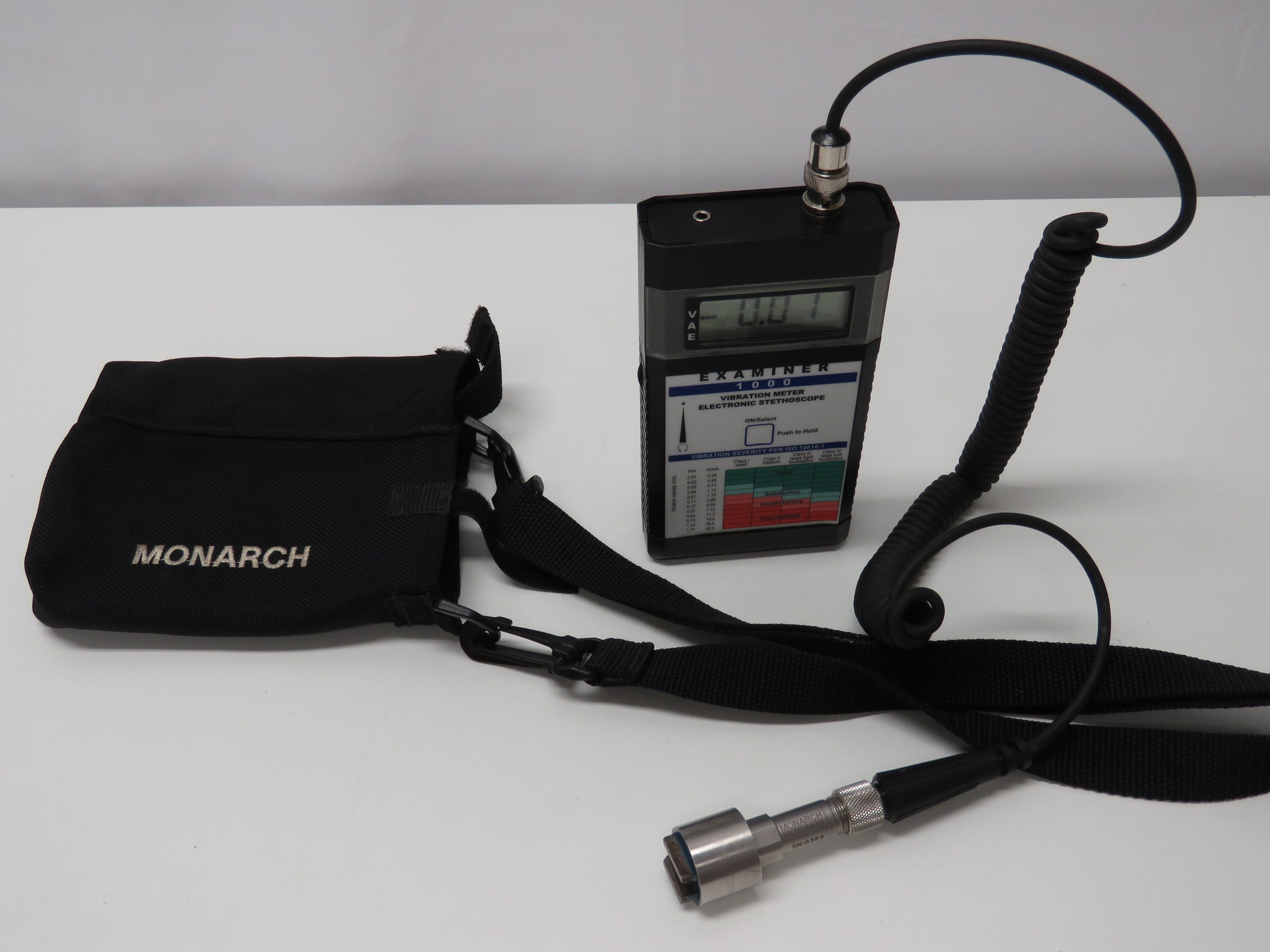

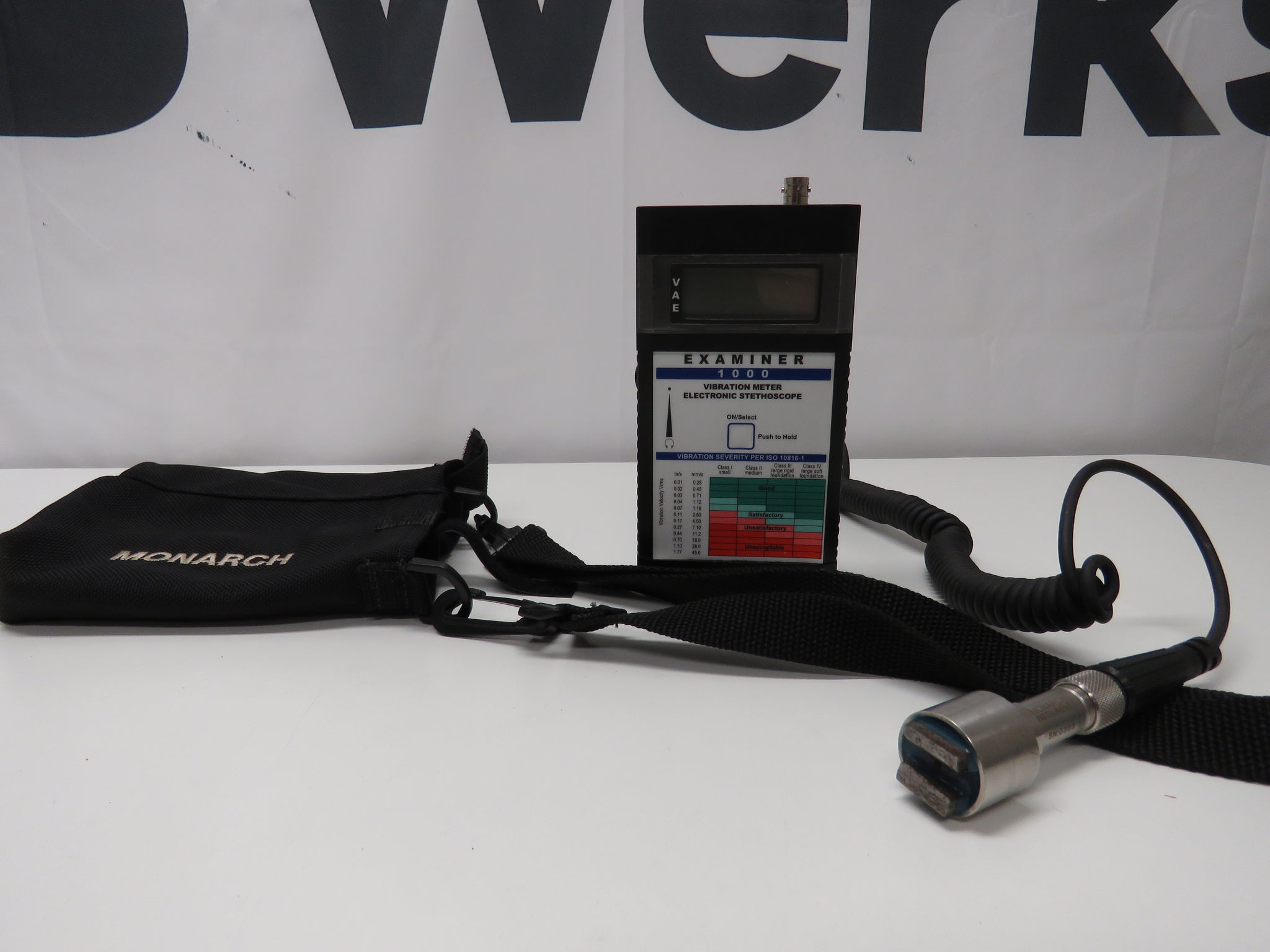

  • Monarch Examiner 1000 VIBRATION METER

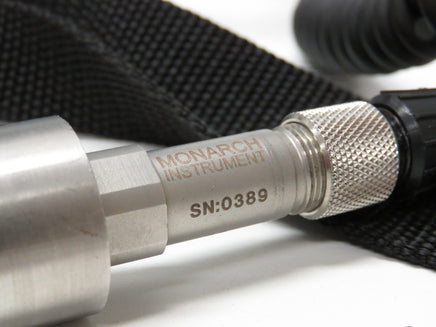

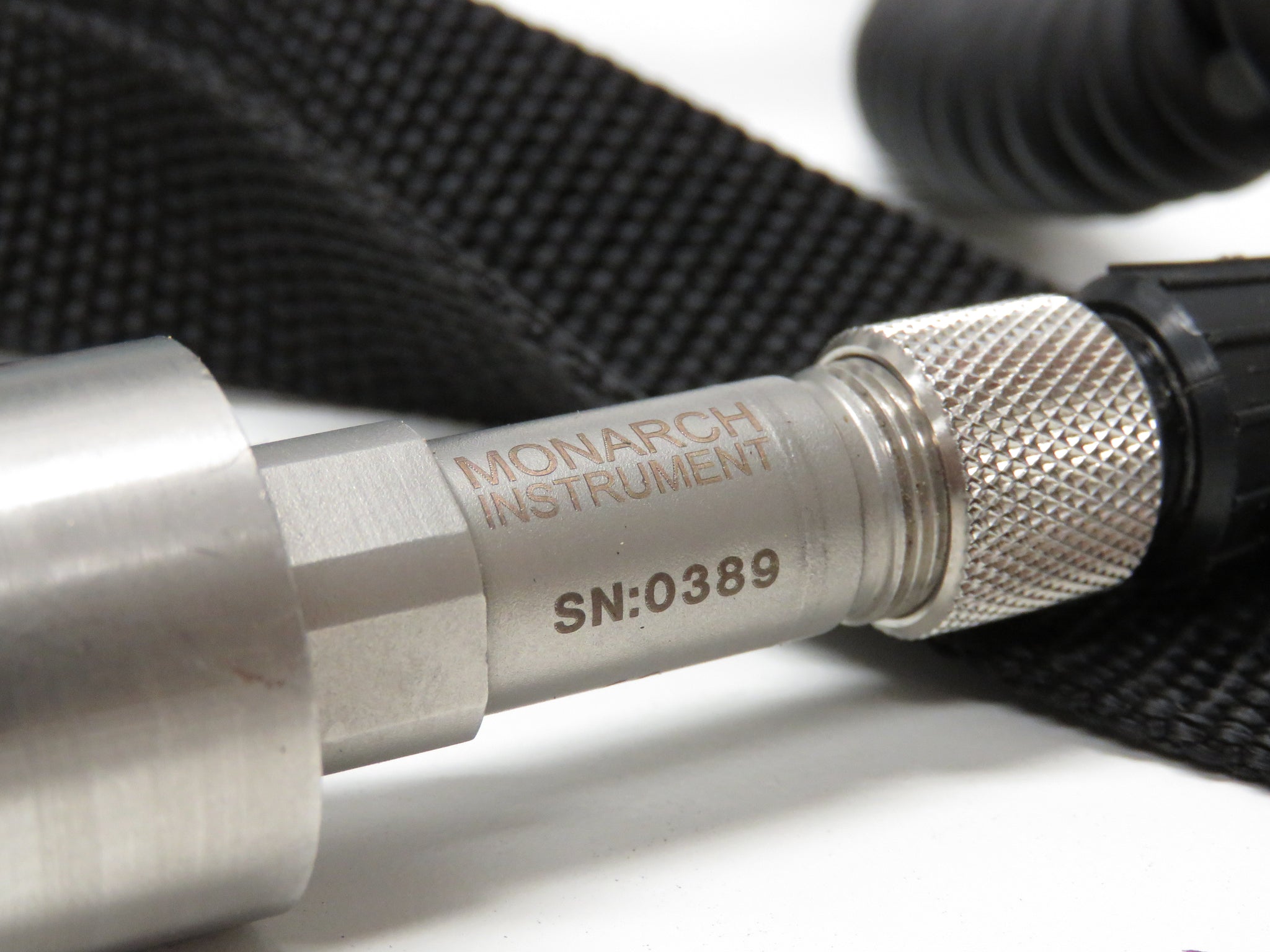

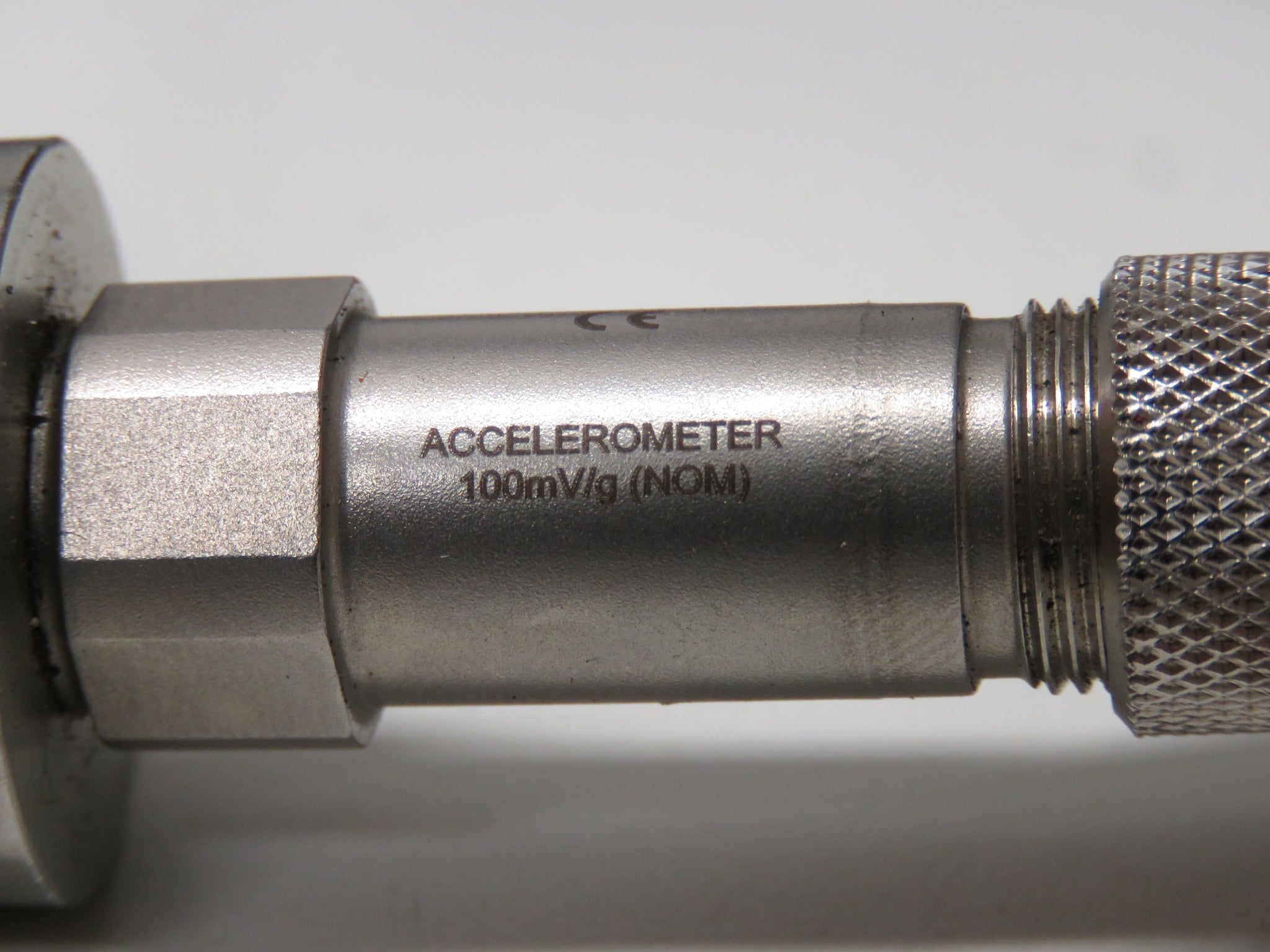

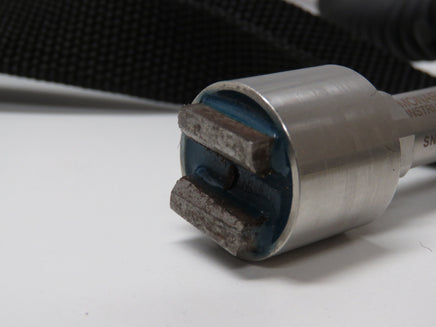

  • Accelerometer 100mV/g (NOM)
  • Carry case

BBR3

      Warranty

      30 Day warranty. We pledge to offer the best service and warranty to all of our customers!  We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.

      Certification

      This is a genuine product from this manufacturer.
