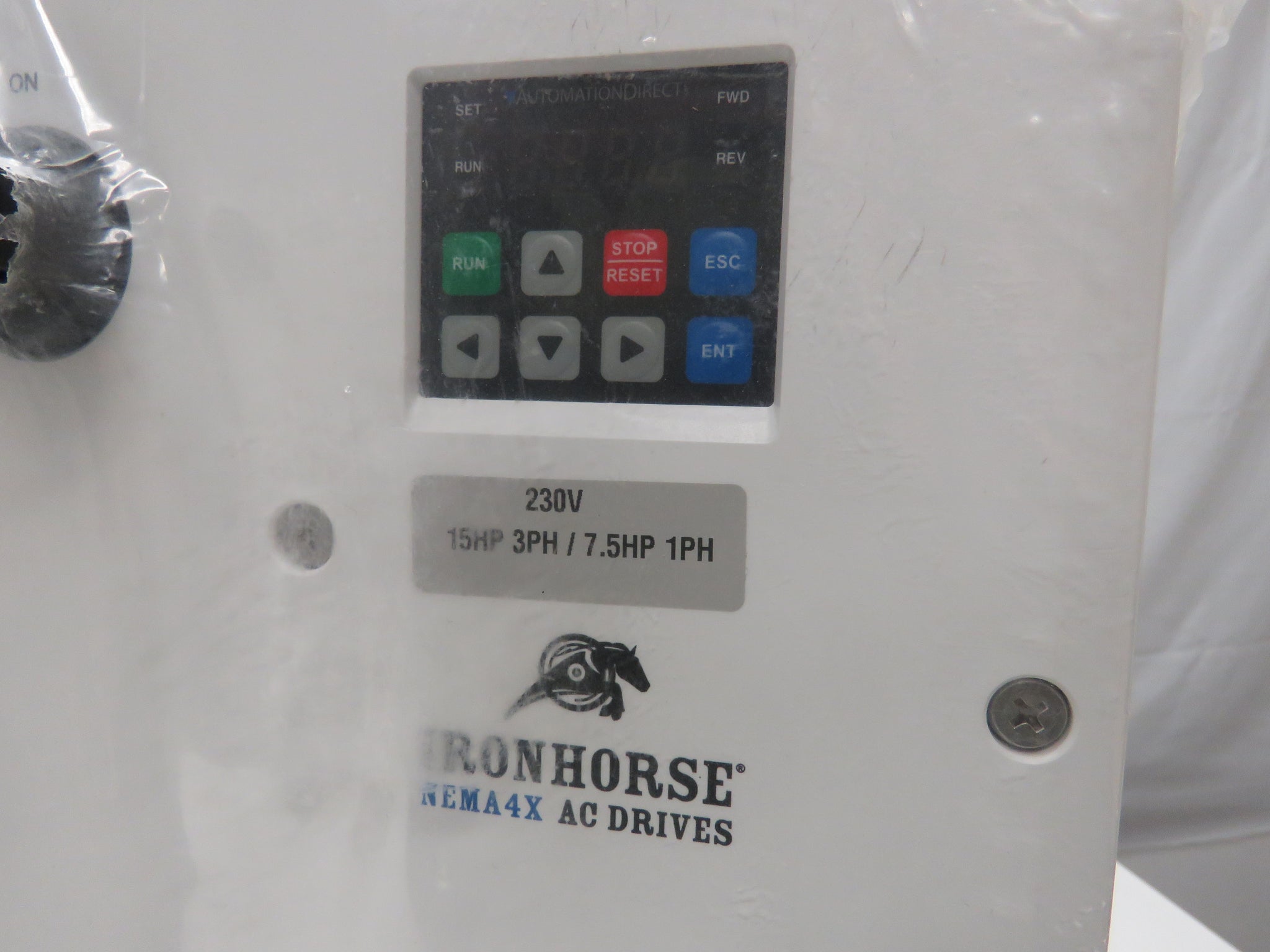

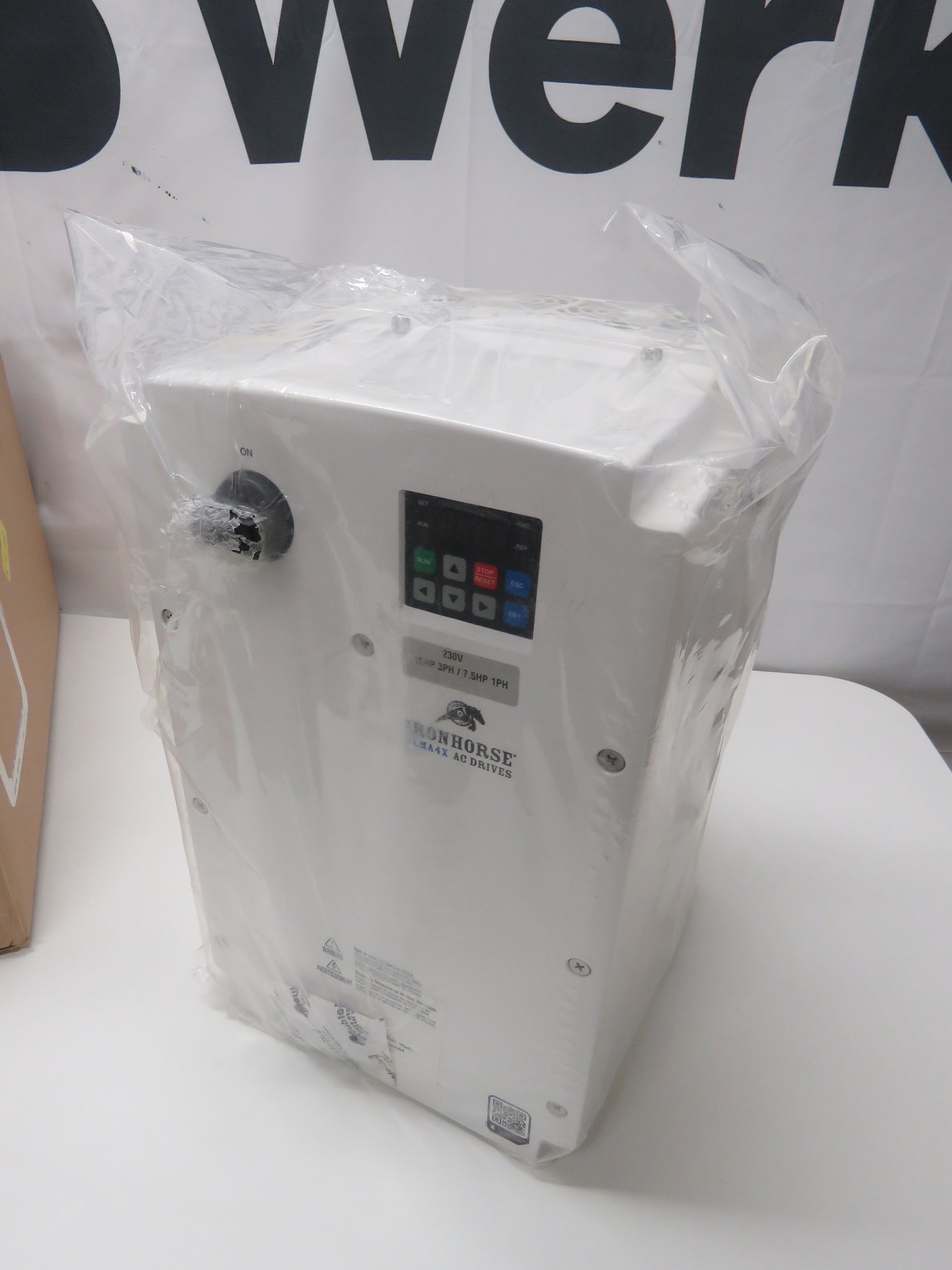

NEW IronHorse ACN-2015 ACN Series AC General Purpose Drive 15HP 3PH / 7.5HP 1PH
Web Information
IronHorse ACN series AC general purpose drive with disconnect, NEMA 4X, 230 VAC, 15hp with 3-phase input, 7-1/2hp with 1-phase input, SVC, V/Hz or torque mode, 4 frame, RS-485, Modbus, 100kA SCCR. Optional EtherNet/IP and Modbus TCP card available.
| Brand | IronHorse | |
| Item | Drive with disconnect | |
| Controller Type | General purpose | |
| Series | ACN | |
| Voltage Type | AC | |

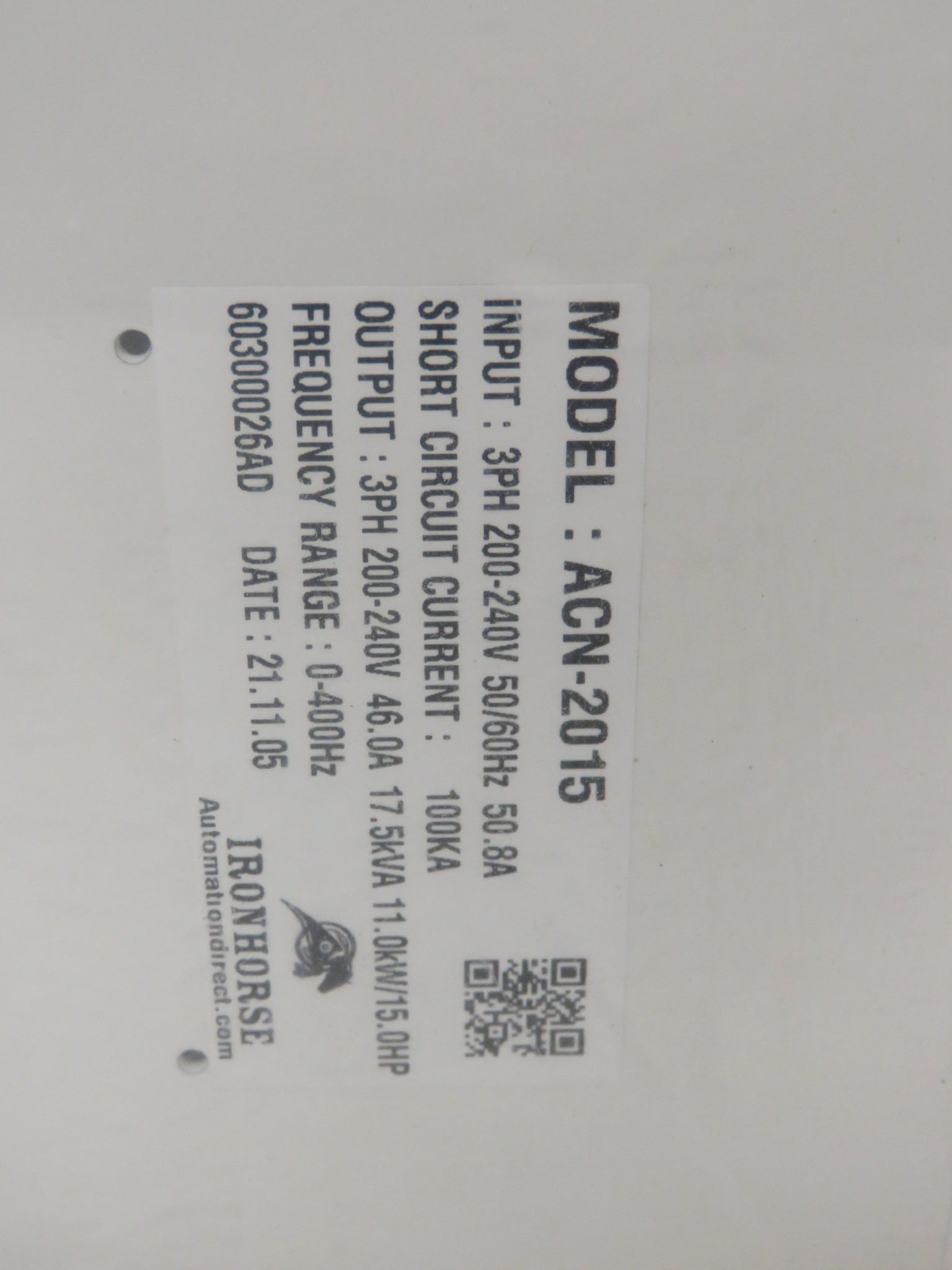

| Nominal Drive Input Voltage | 230 VAC | |
| Nominal Drive Output Voltage | 230 VAC | |
| Number of Input Phases | 3 and 1 | |
| Number of Output Phases | 3 | |
| Horsepower By Input Phase | 15hp with 3-phase input, 7-1/2hp with 1-phase input | |
| Amperage Rating | 46A with 3-phase input and 26A with 1-phase input | |
| Control Mode | SVC, V/Hz or torque | |
| Safe Torque Off (STO) | Yes | |
| Temperature Rating | -10 to 40 deg C | |

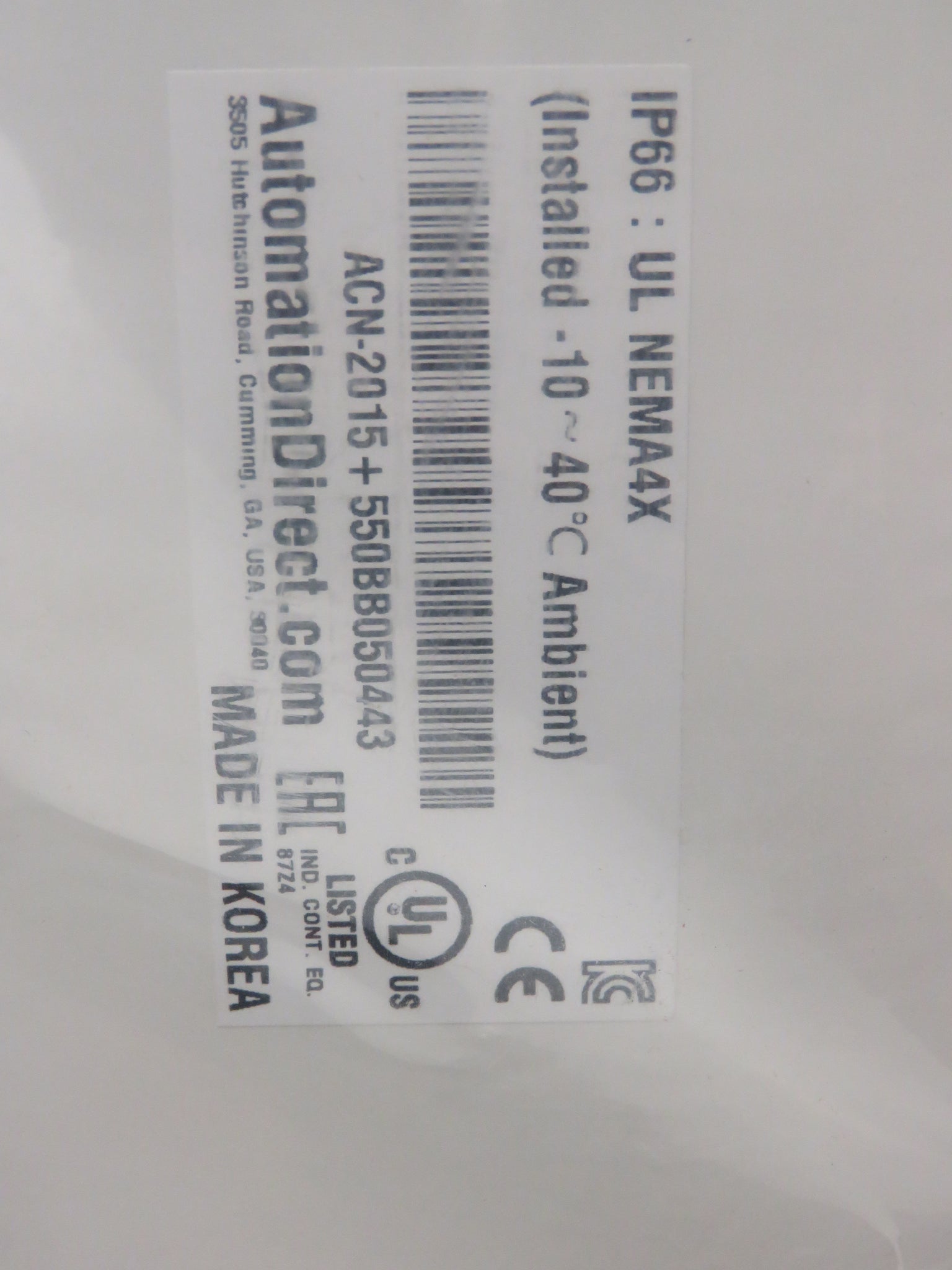

| Enclosure Type | NEMA 4X | |
| IP Rating | IP66 | |
| Mounting | Panel or wall | |
| Frame Size | 4 | |
| Dynamic Braking | Integrated dynamic braking unit | |
| Communication Port and Connection Type(s) | (1) RS-485 (twisted pair) | |
| Port Protocol(s) |
|
|
| Port Speed(s) |
|
|
| Input Signal | 4-20 mA, voltage, potentiometer or pulse train input | |
| Output Type | PWM output | |
| Reverse Capability | Built-in | |
| Internally Bypassed | No | |
| Carrier Frequency Range | 1-15 kHz | |
| Output Frequency Range | 0.1-400 Hz | |
| Number of Analog Input Channels | 2 | |
| Number Of Input Channels | 2 | |
| Analog Input Signal Type | Current/voltage | |
| Number of Non-Isolated Analog Input Commons | 1 | |
| Number of Points per Analog Input Common | 2 | |
| Input Resolution | 12-bit | |
| Input Current Signal Range | 4-20 mA | |
| Input Voltage Signal Range | +/- 10 VDC | |
| Number of Analog Output Channels | 1 | |
| Number Of Output Channels | 1 | |
| Analog Output Signal Type | Current/voltage | |
| Number of Non-Isolated Analog Output Commons | 1 | |
| Number of Points per Analog Output Common | 1 | |
| Output Resolution | 12-bit | |
| Output Current Signal Range | 0-20 mA and 4-20 mA | |
| Output Voltage Signal Range | 0-10 VDC | |
| Number of Discrete Input Points | 5 | |
| Nominal Discrete Input Voltage | 24 VDC | |
| Discrete Input Type | Sinking/sourcing | |
| Number of Non-Isolated Discrete Input Commons | 1 | |
| Number of Points per Discrete Input Common | 5 | |
| Number of Discrete Output Points | 2 | |
| Nominal Discrete Output Voltage | 240 VAC and 24 VDC | |
| Discrete Output Type | Relay/sinking/sourcing | |
| Relay Configuration | (1) Form C (SPDT) relay | |
| Number of Non-Isolated Discrete Output Commons | 1 | |
| Number of Isolated Discrete Output Commons | 1 | |
| Number of Points per Discrete Output Common | 1 | |
| Load Current | 1A/point relay, 150 mA/point discrete | |
| Fuse Type | User-supplied external fuse | |
| Programming Language | Function block | |
| SCCR Rating | 100kA SCCR | |
| Connector Type | Screw terminals | |
| For Use With | 3-phase induction and permanent magnet motors | |
| Additional Information | Optional EtherNet/IP and Modbus TCP card available |
Condition

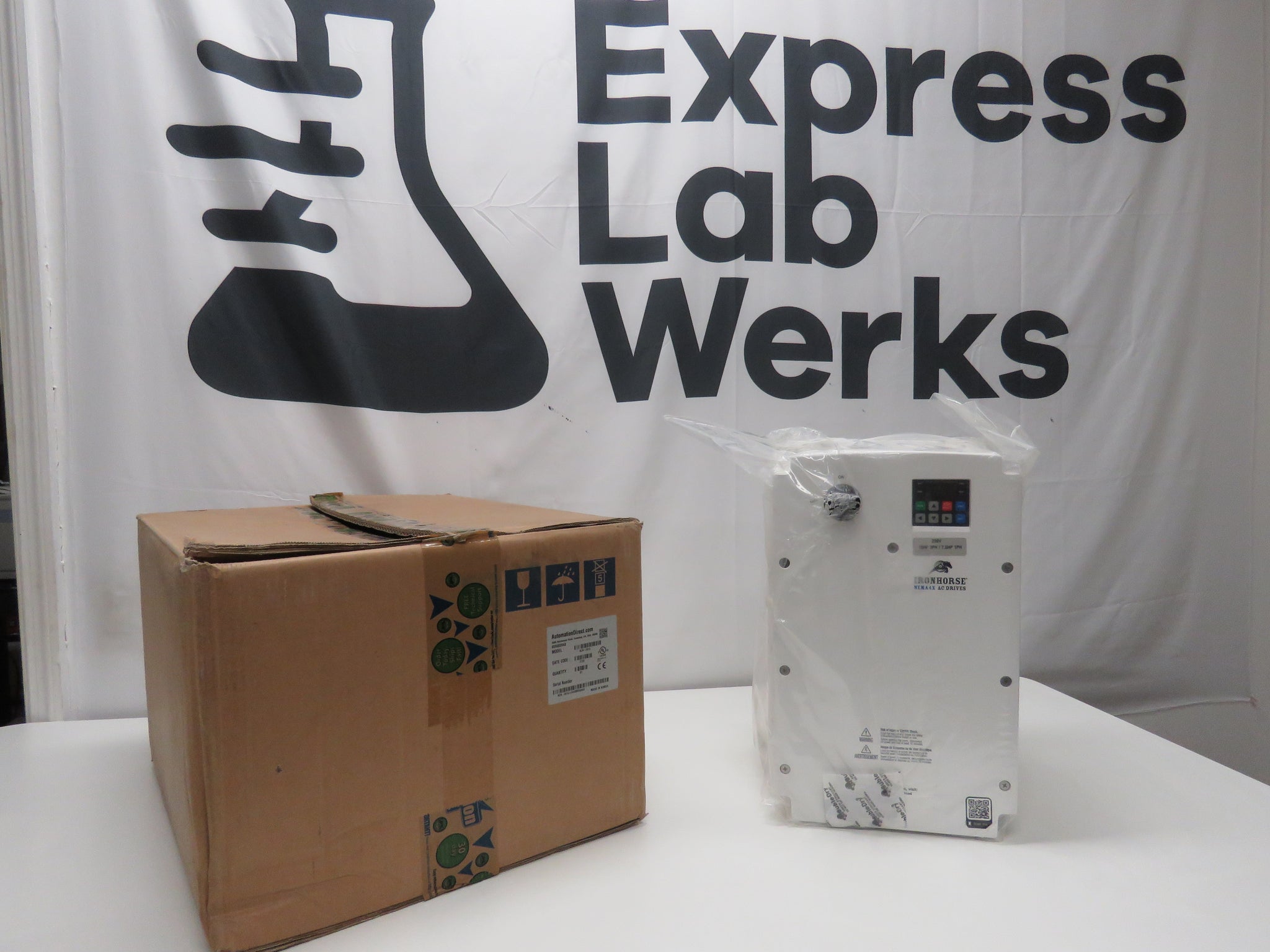

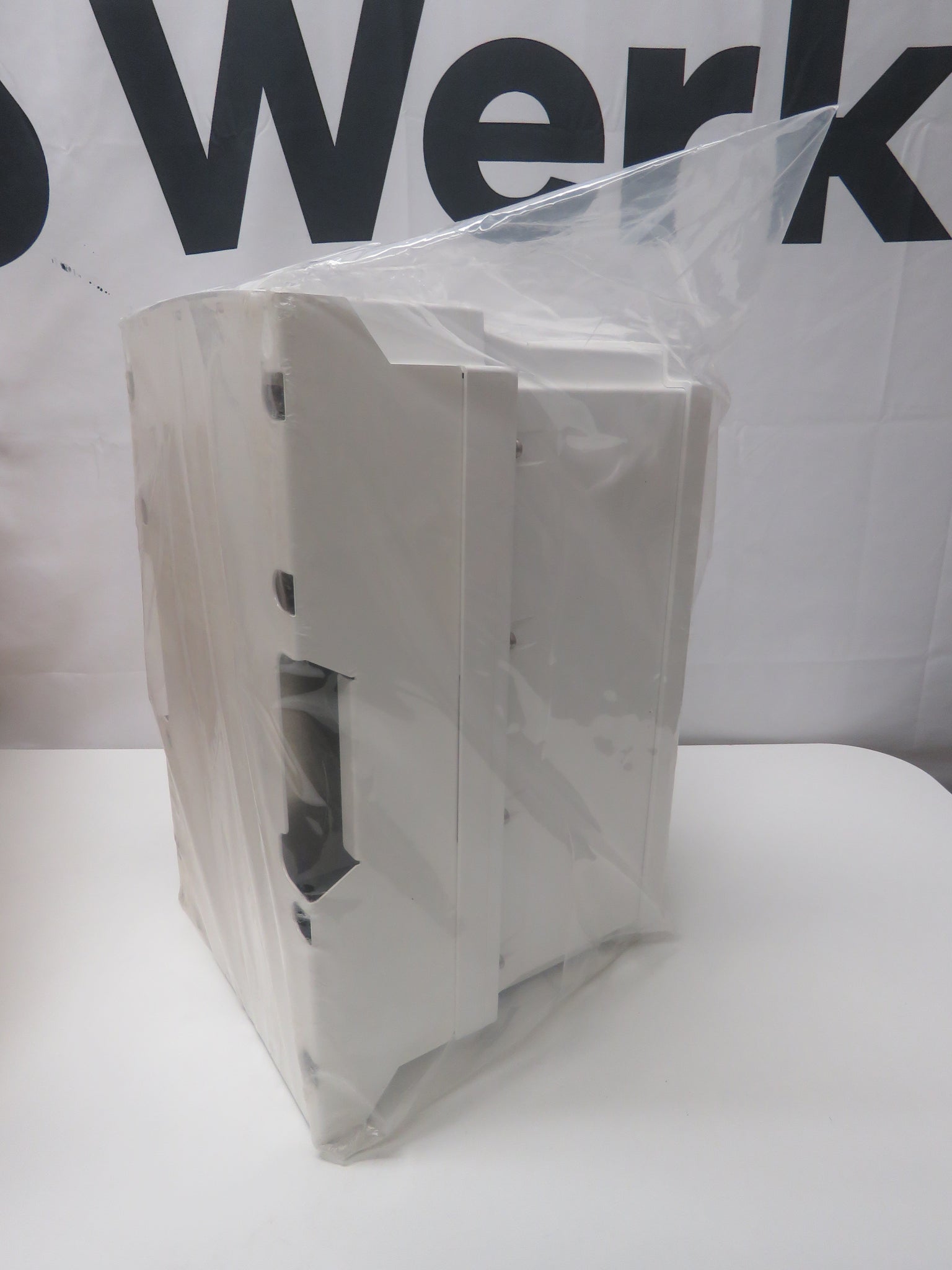

Brand new open box. Never put into service.
Includes
- IronHorse ACN-2015 ACN Series AC General Purpose Drive with Disconnect
