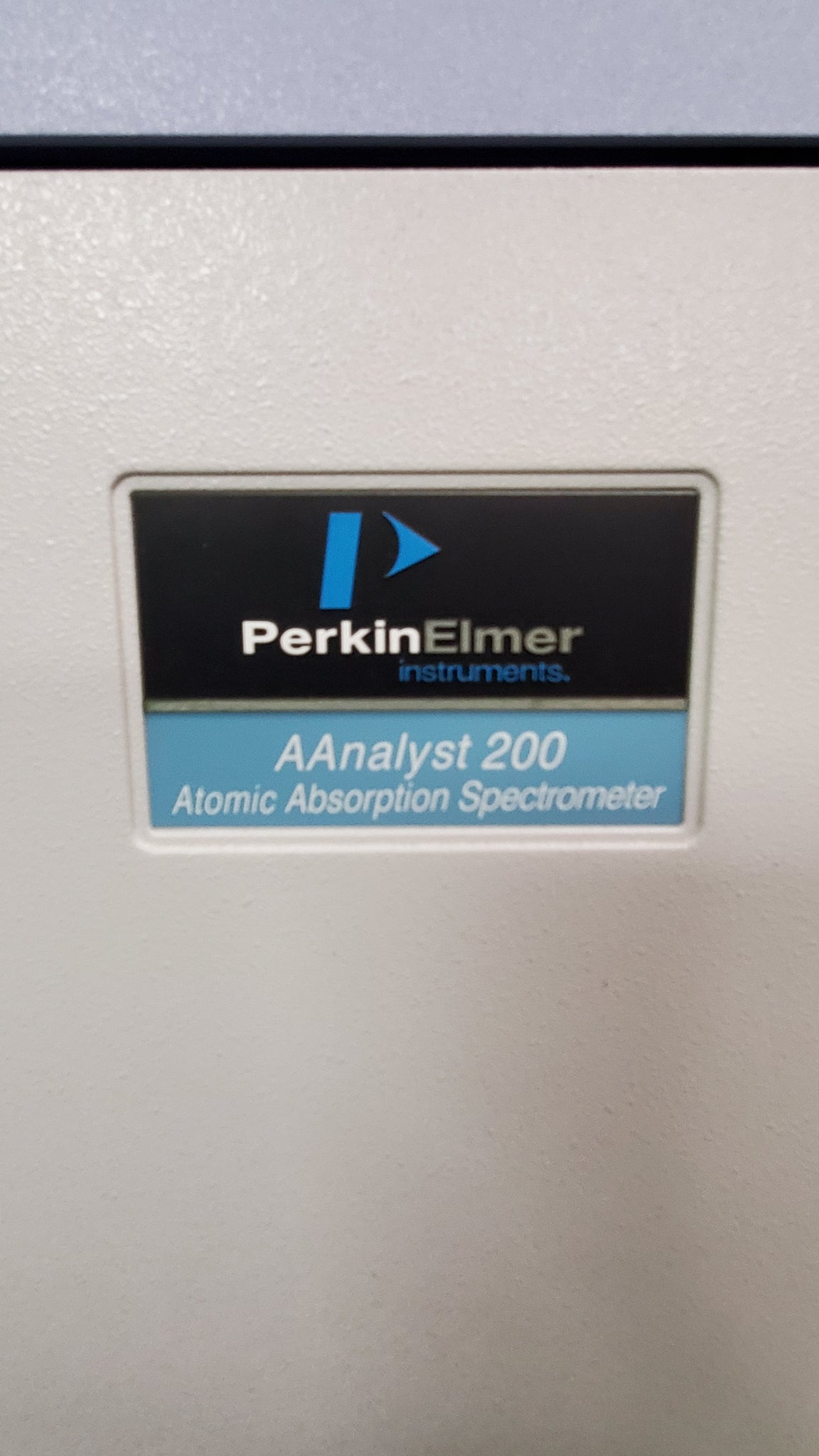

Perkin Elmer AAnalyst 200 Atomic Absorption Spectrometer

Perkin Elmer


Sorry, this item is out of stock

Web Information

Control and Data System

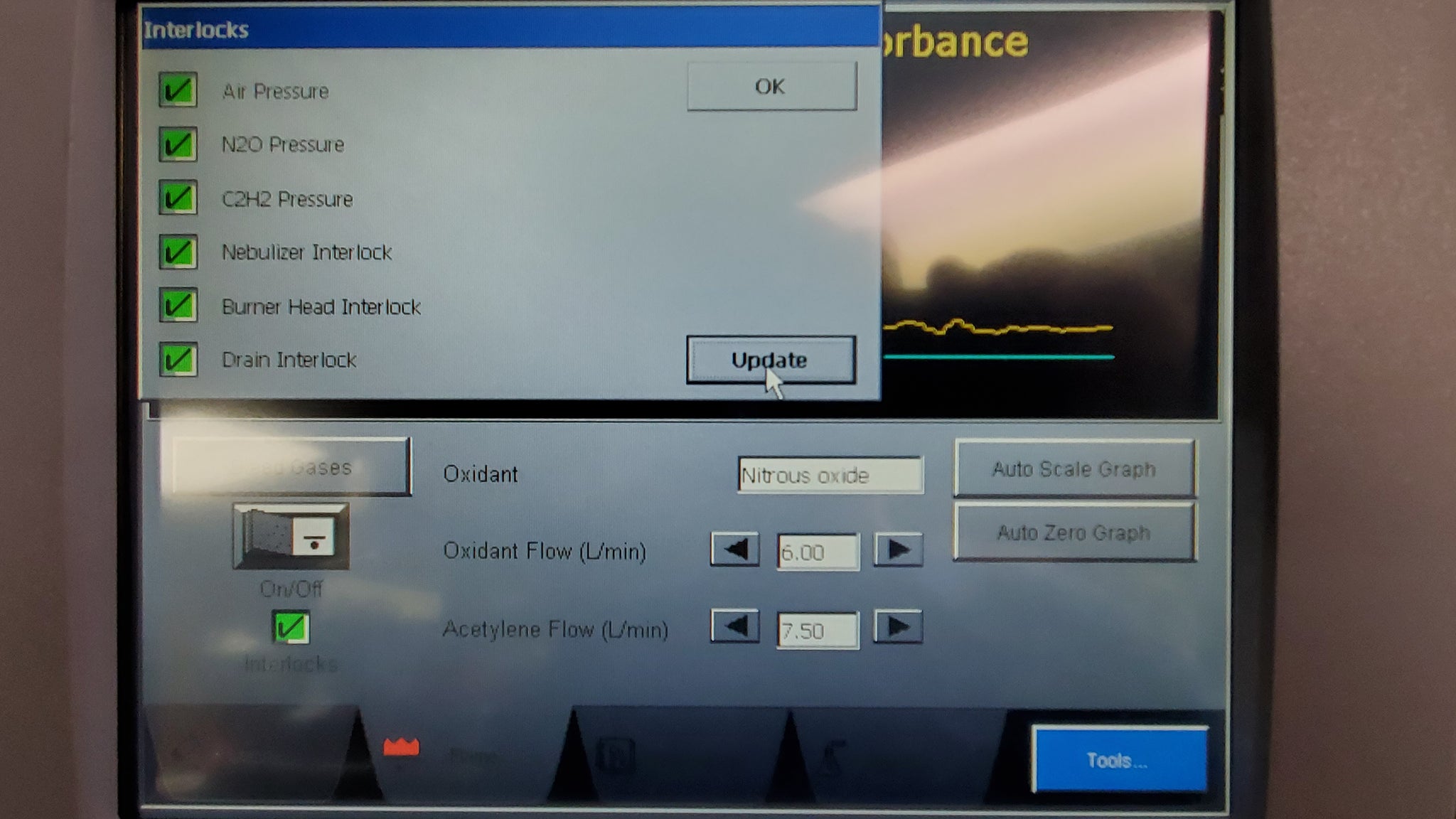

User Interface

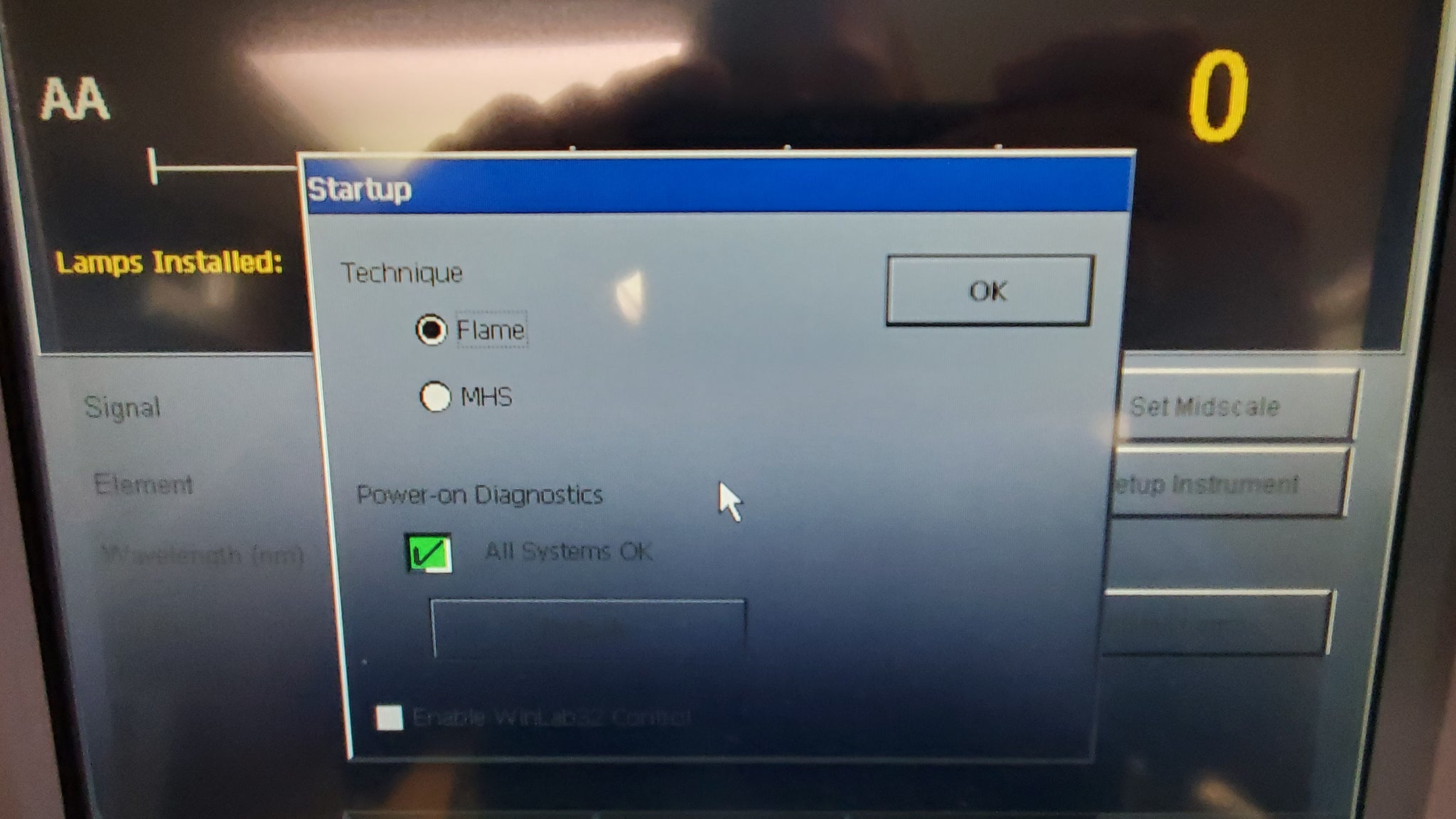

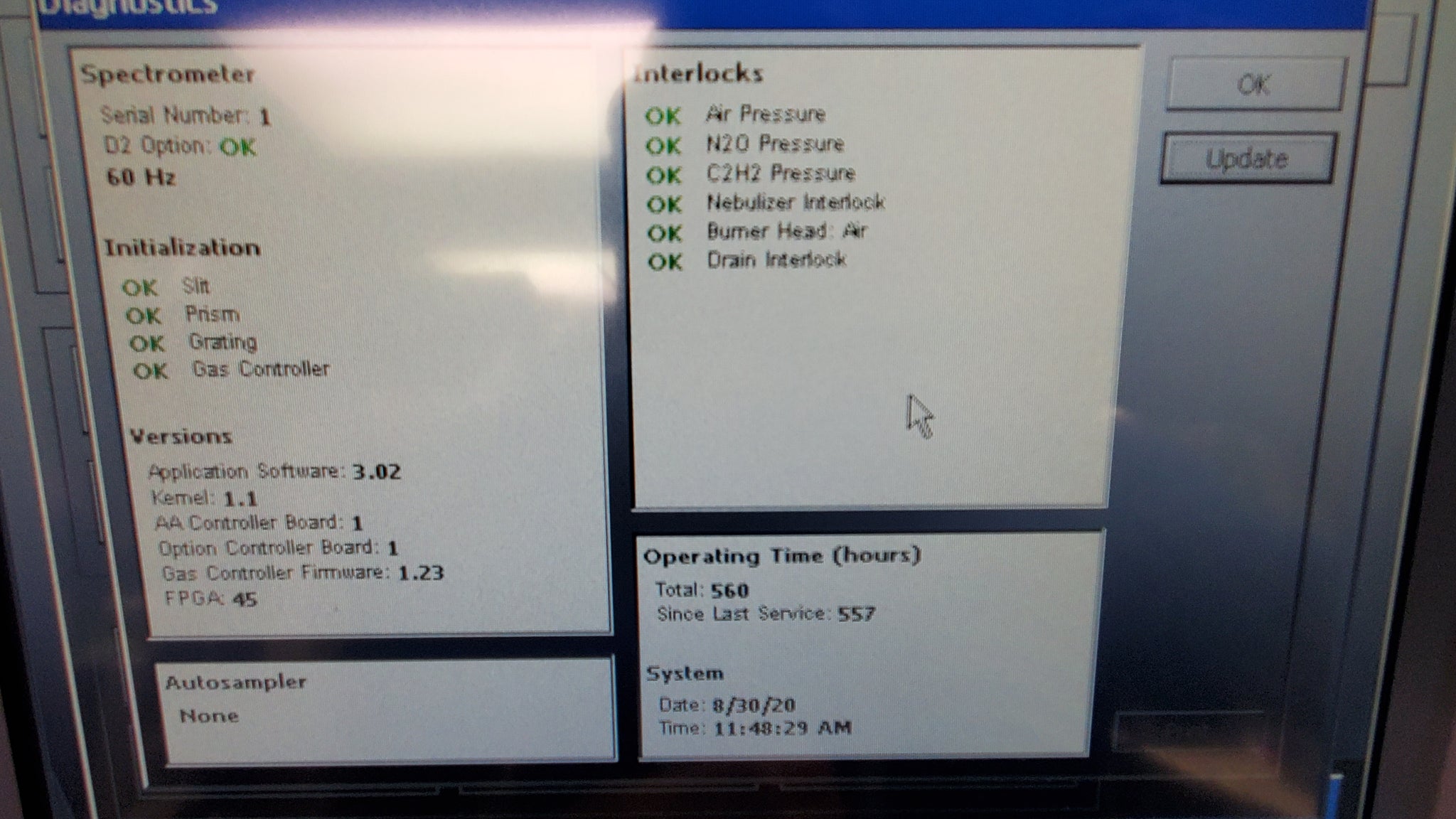

Complete control of the AAnalyst™ 200 through an innovative touch-screen interface. Flexible software for lamp setup, flame control, parameter selection and sample analysis. The tools menu provides access to recommended conditions, sample information, method storage and recall, data transfer and service diagnostics screens. The AAnalyst 200 supports multiple languages, including Spanish, English, French, Russian, Japanese, German, Italian, Portuguese (Brazilian), Polish, Greek and Chinese.


Full-color 10.4” LCD touch screen. VGA resolution (640 x 480 pixels). Coated for maximum durability and lifetime.

Data Handling

The parameters page is used for setting up the analysis. Users can select up to eight calibration standards or a reslope standard and choose from seven different calibration algorithms. Integration times are operator-selectable from 0.1 to 60 sec. Print choices include method, replicates and calibration curve. Signal measurement modes include time-averaged integration, manual continuous graphics and peak-height measurement. An optional footswitch to trigger a read is also available.

Sample Analysis

The sample-analysis page is used for manual or automated analysis. All results are displayed on the screen. Separate buttons for blank, standards and samples allow for easy analysis. Sample ID and dilution factor are available on this page as entered in the tools/sample information menus. The calibration curve can be displayed and printed with correlation coefficient, slope and intercept. Peaks can be displayed and printed when using the MHS-15 accessory.


Automated analysis can be performed with a PerkinElmer® autosampler and the sample information tool. The MHS-15 can be used for the determination of hydride-forming elements and mercury.



True double-beam echelle optical system. Front surfaced, reflecting optics with protective coating. Deuterium background corrector and built-in EDL power supply available on some models.

Optical System

Echelle monochromator. Focal length: 300 mm. Grating: 36 x 185 mm area, 79 lines/mm, blaze angle 76˚. Fused-quartz prism: 95 x 40 mm, 60˚. Wavelength range: 189-900 nm. Spectral bandpass: 0.15 nm at 200 nm. Reciprocal linear dispersion: 2.4 nm/mm. The photometer optics are covered to protect against dust and corrosive vapors. For maximum protection, the optical system can be purged with an inert gas.


High-efficiency, segmented solid-state detector.

Light Sources

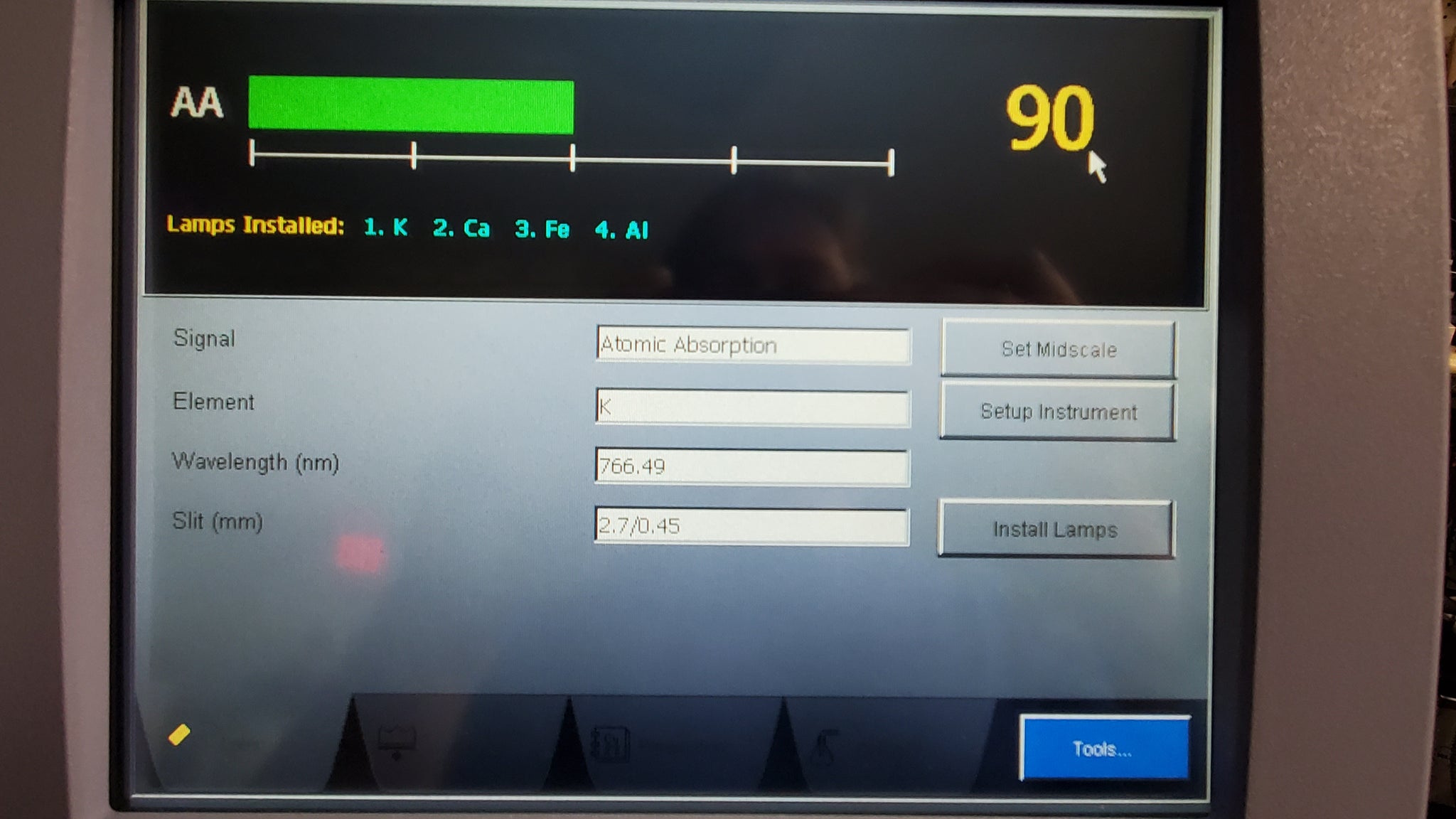

Hollow cathode lamps (HCLs) and electrodeless discharge lamps (EDLs). EDLs provide much higher light output and longer lifetime when compared to conventional HCLs. Lamp elements, recommended operating currents and slit selection are automatically recognized and set when using PerkinElmer Lumina™ series AA lamps. Lamp alignment is completely automatic in models with a four-lamp turret.


Used. Good functional condition.

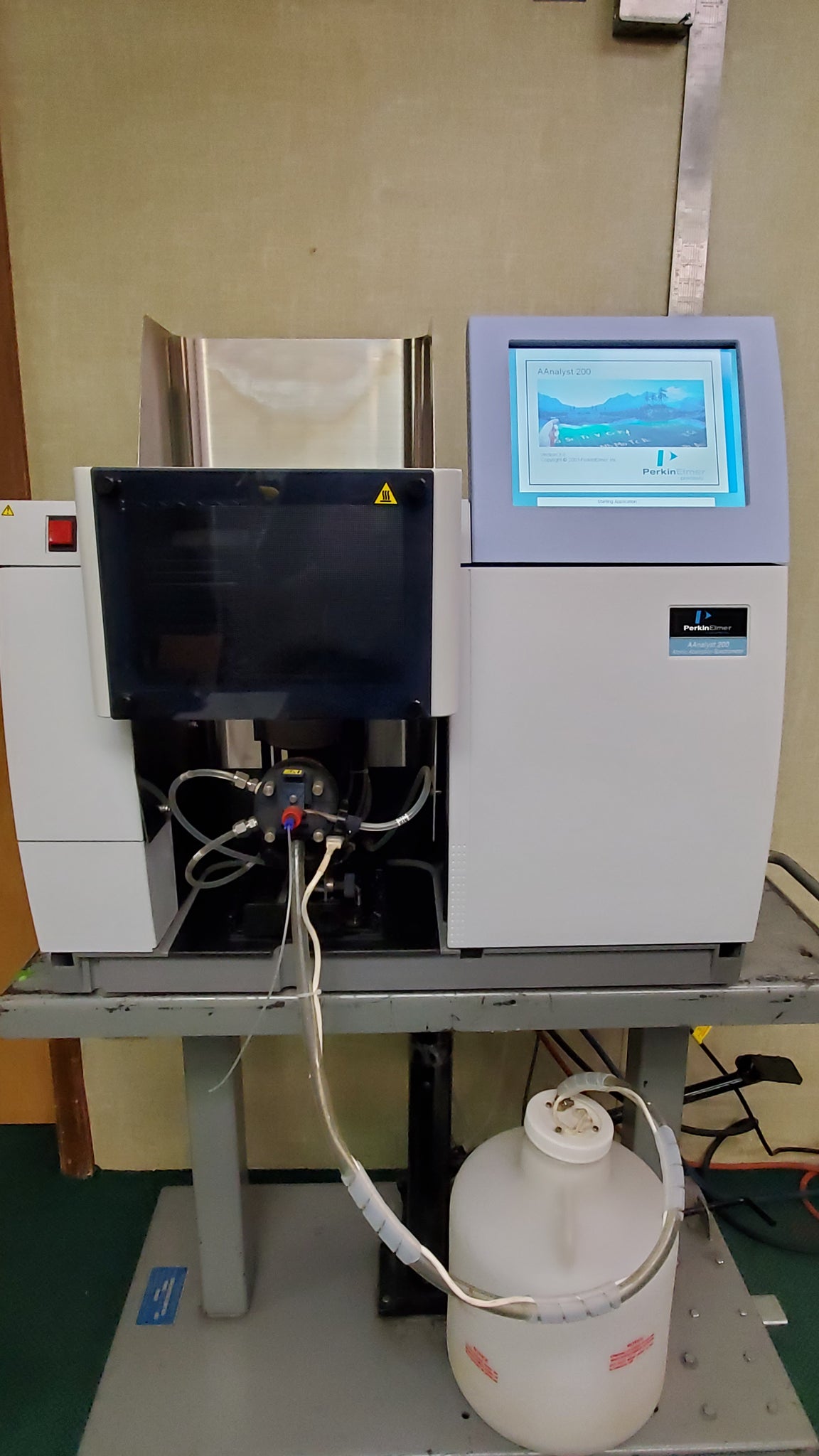

  • Perkin Elmer Aanalyst 200 Atomic Absorption Spectrometer w/ waste bottle

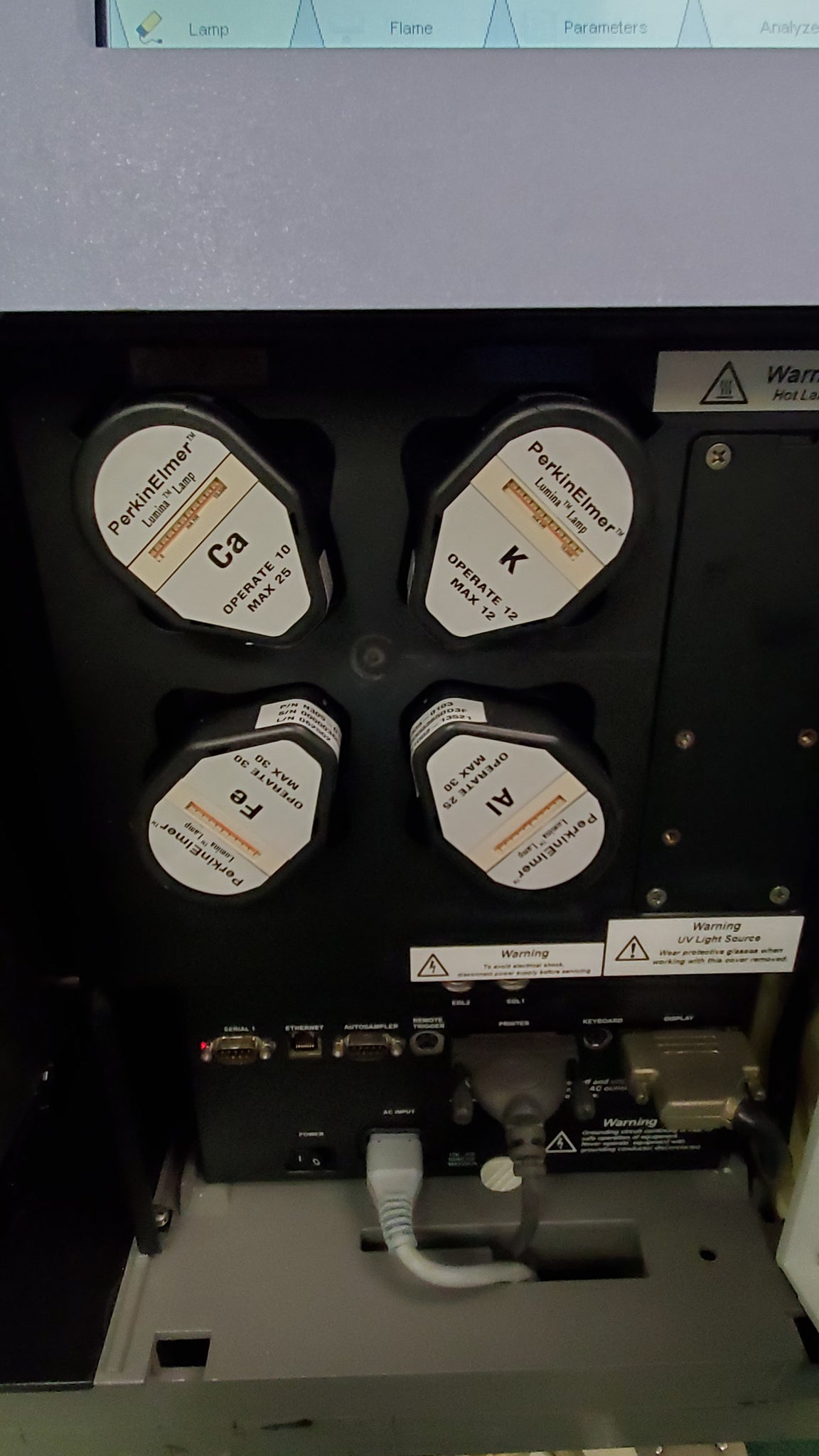

  • Lamps as shown are included as we received them. The functionality of the lamps were not fully evaluated and are included as a courtesy.


30 Day warranty. We pledge to offer the best service and warranty to all of our customers!  We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.


This is a genuine product from this manufacturer.


The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping of the item."

Regardless of the origin of the equipment, documentation provided or identification appearing upon the equipment, the equipment described and offered here is in no way certified for, recommended for, or offered for any specific use. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. The purchaser, by bidding on this equipment, indicates their acknowledgment of, and agreement to the terms of this disclaimer. it is the purchaser's responsibility to have the item inspected and certified by a qualified professional before use!
