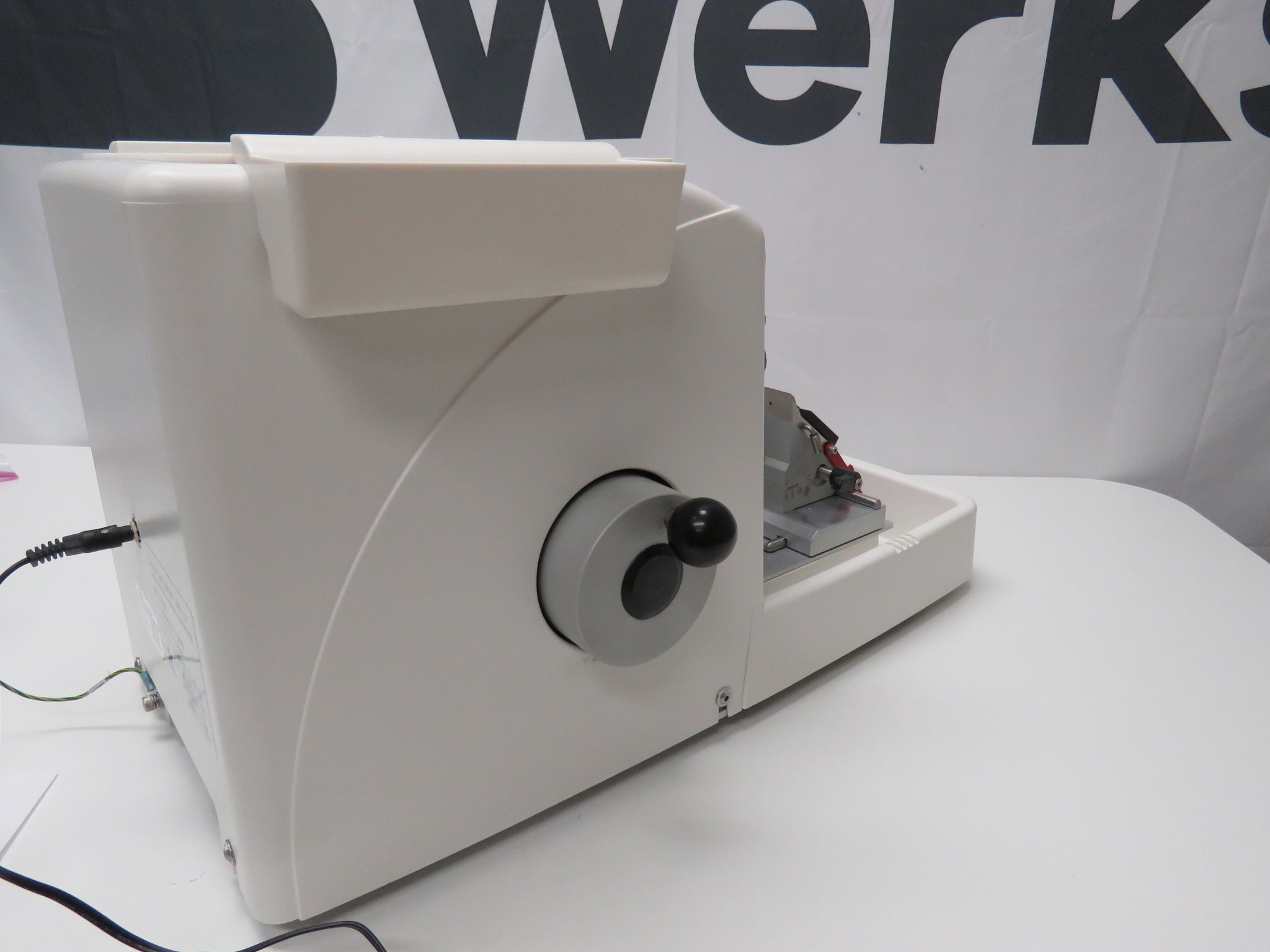

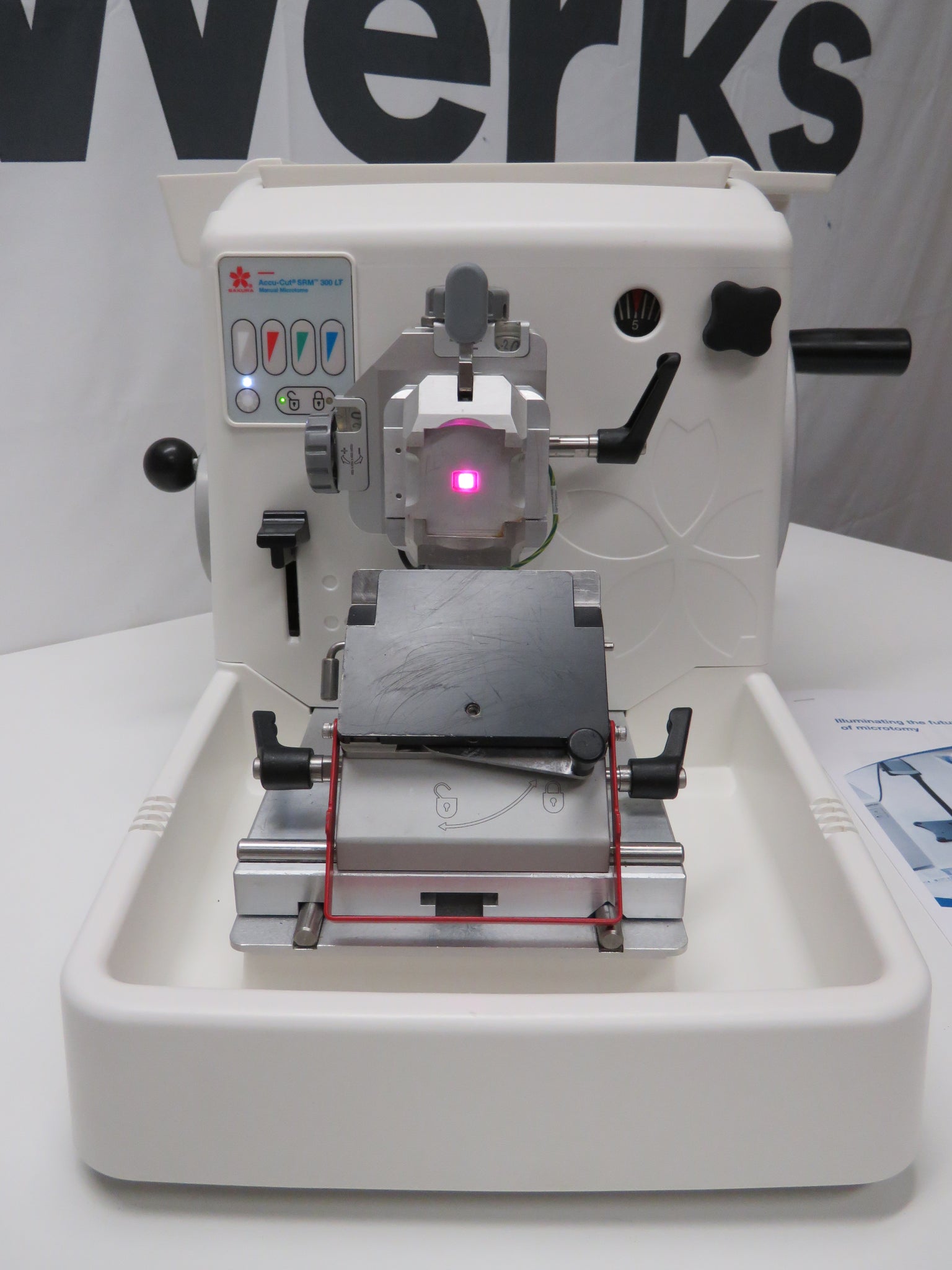

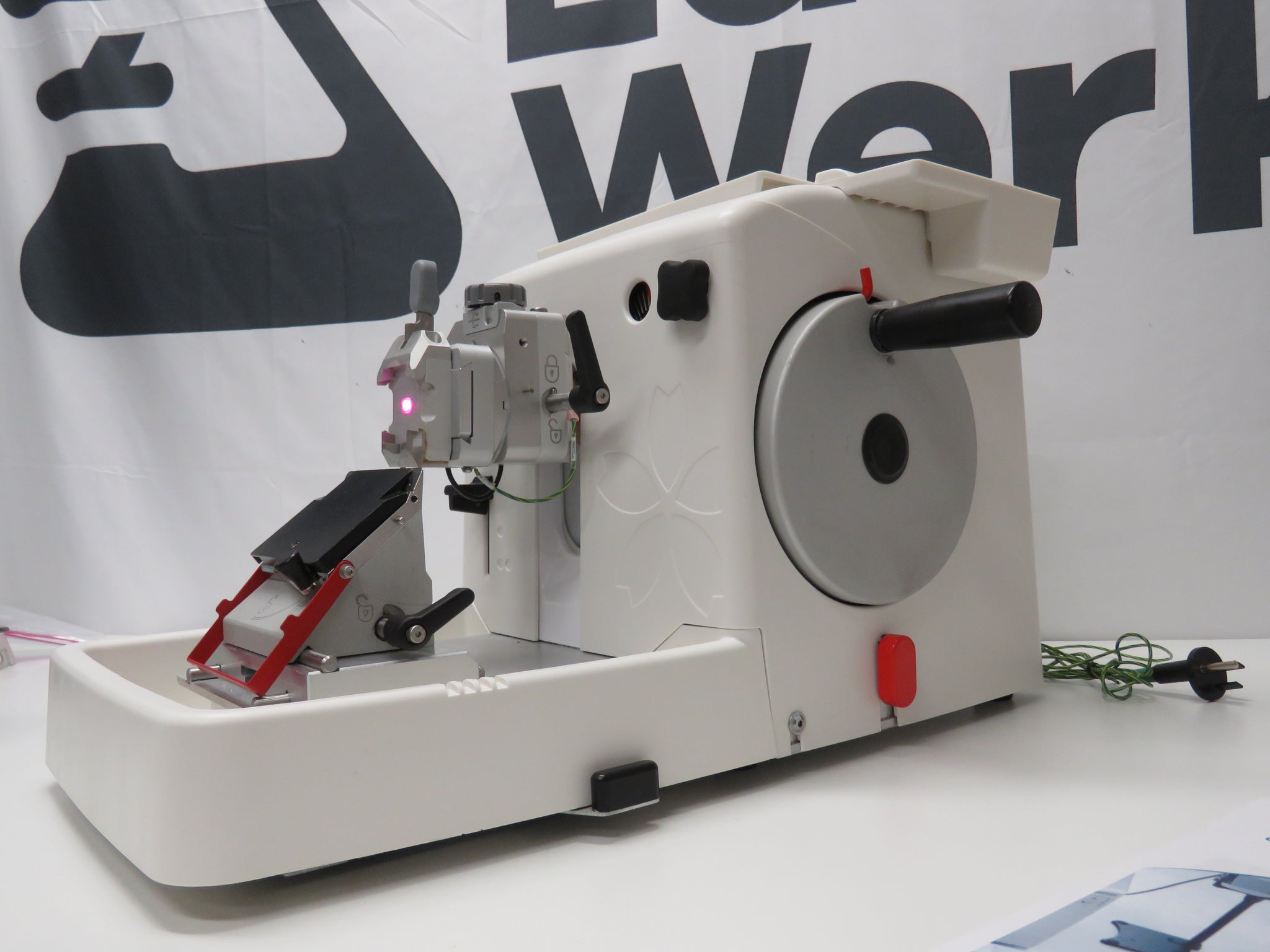

2020 Sakura Accu-Cut SRM 300 LT 1300N Manual LED Lighted Microtome - Exceptional
Web Information
Enlightening the block
Tissue sectioning on microtomes is now illuminated.
The Accu-Cut® SRM™ 300 LT Manual Microtome is the first and only American made manual microtome with a patented multi-colored LED backlit chuck to illuminate paraffin embedded tissue samples making them much easier to see and safer to section.

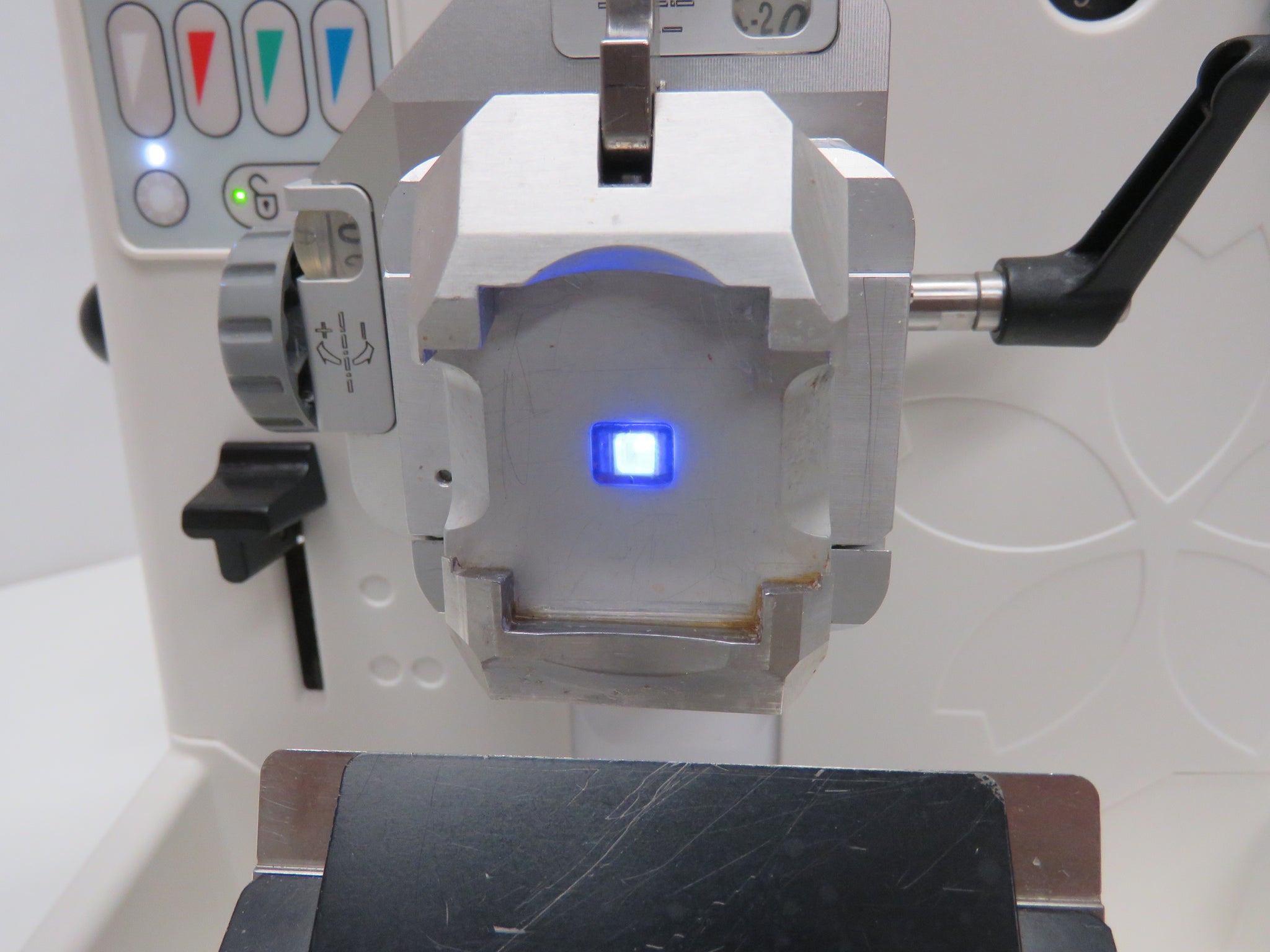

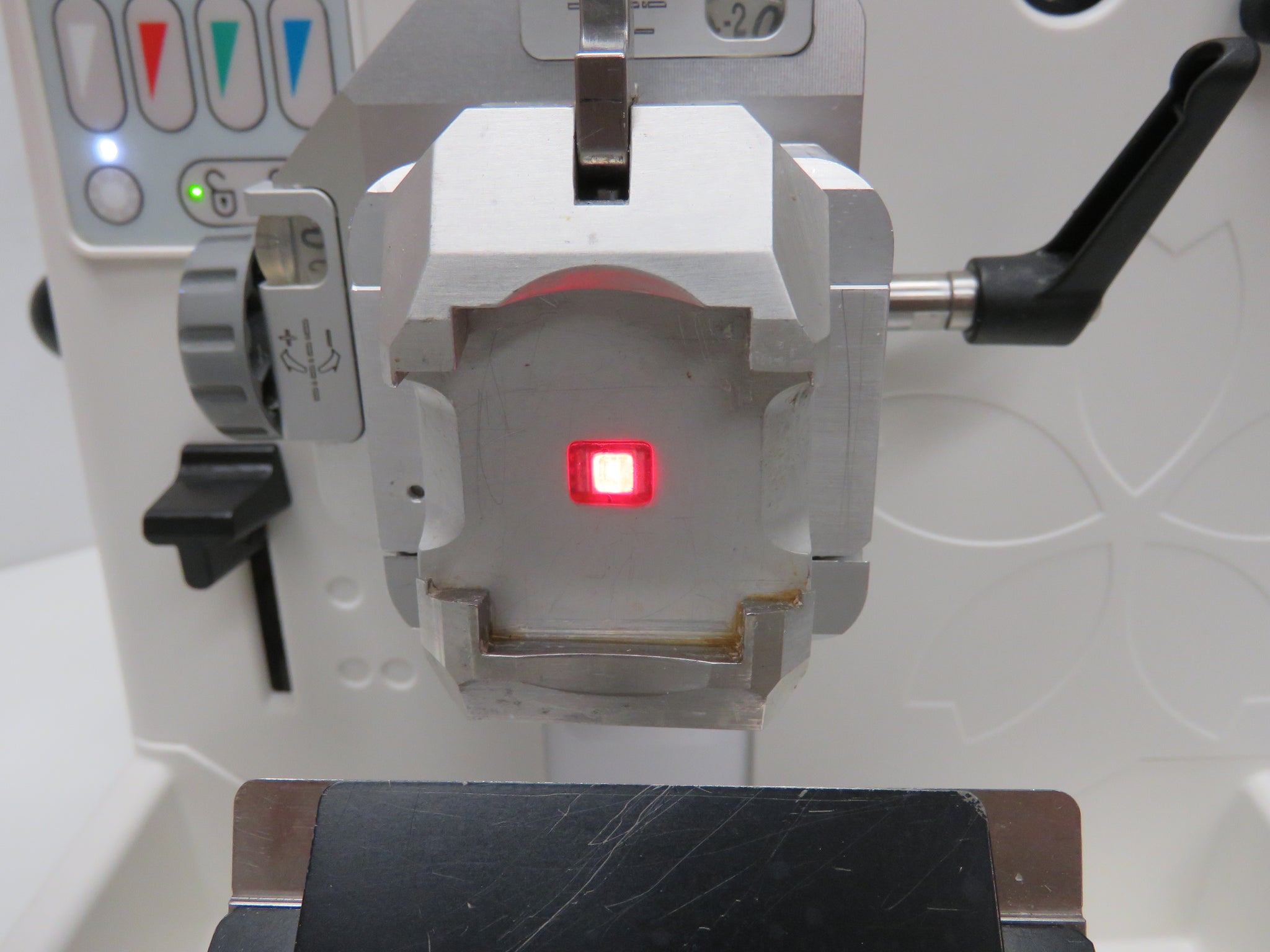

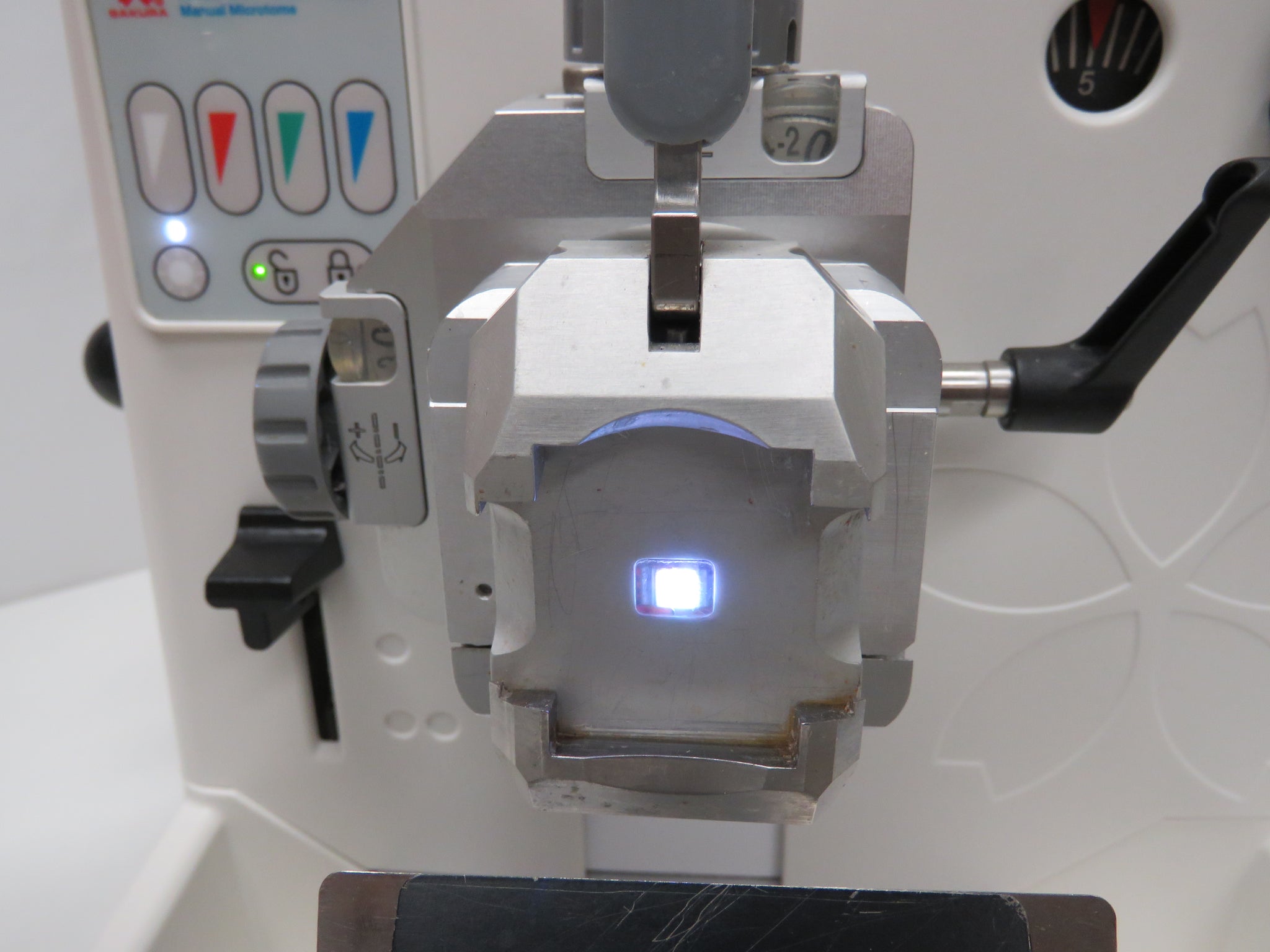

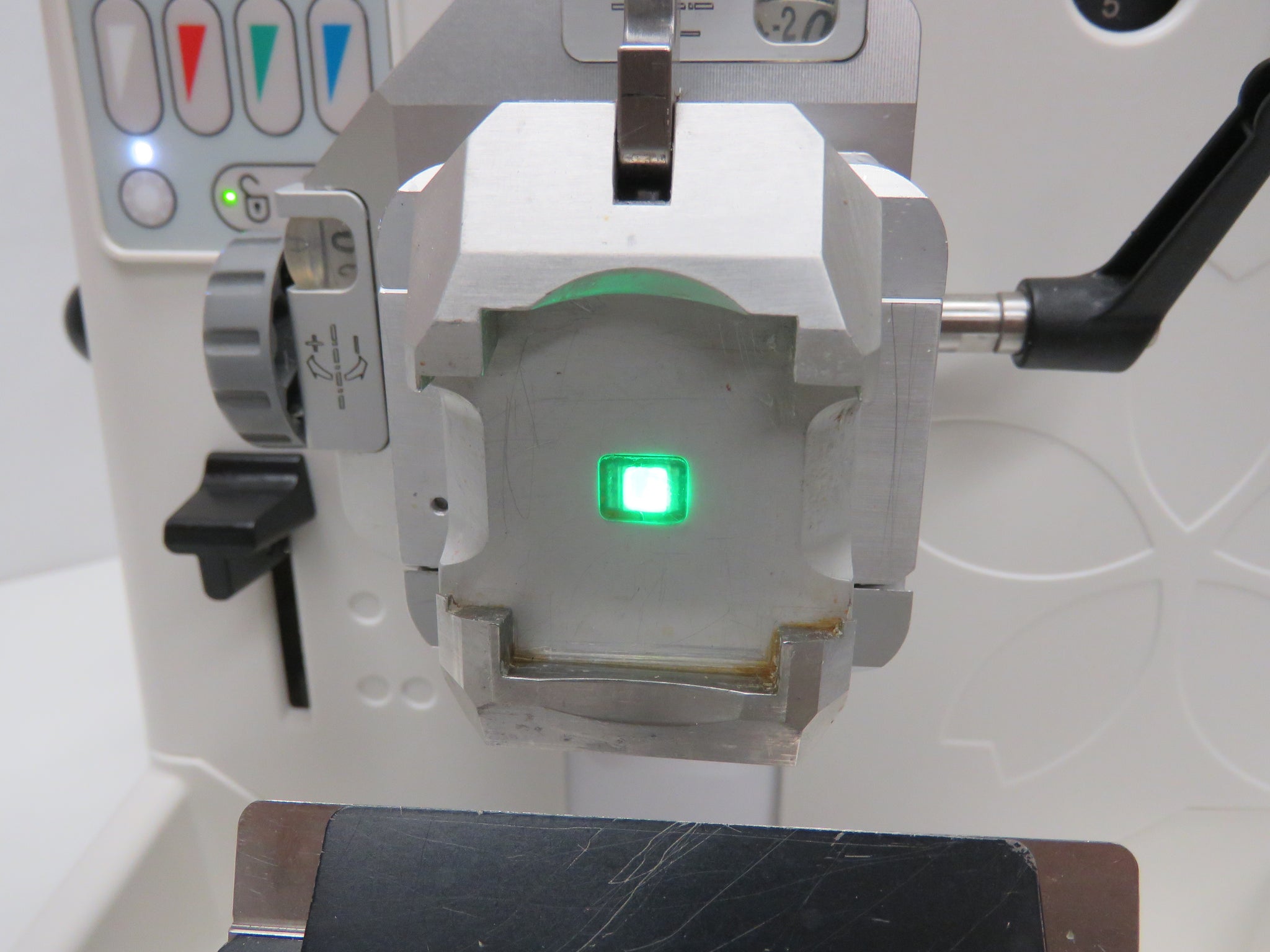

The microtome chuck backlight increases contrast between specimens and paraffin so users can see exactly where the tissue is located to prevent cutting through a small biopsy or previously sectioned block.

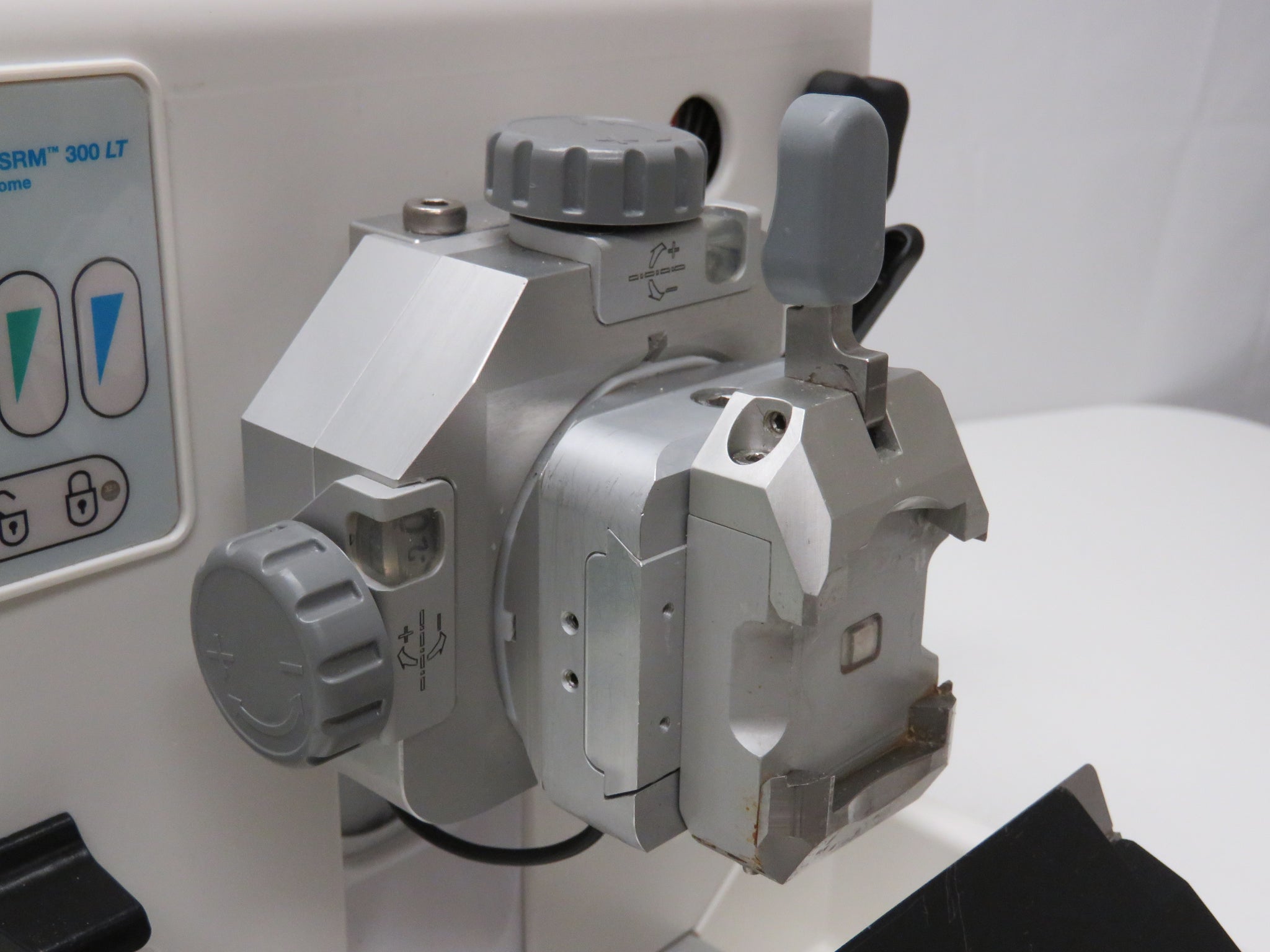

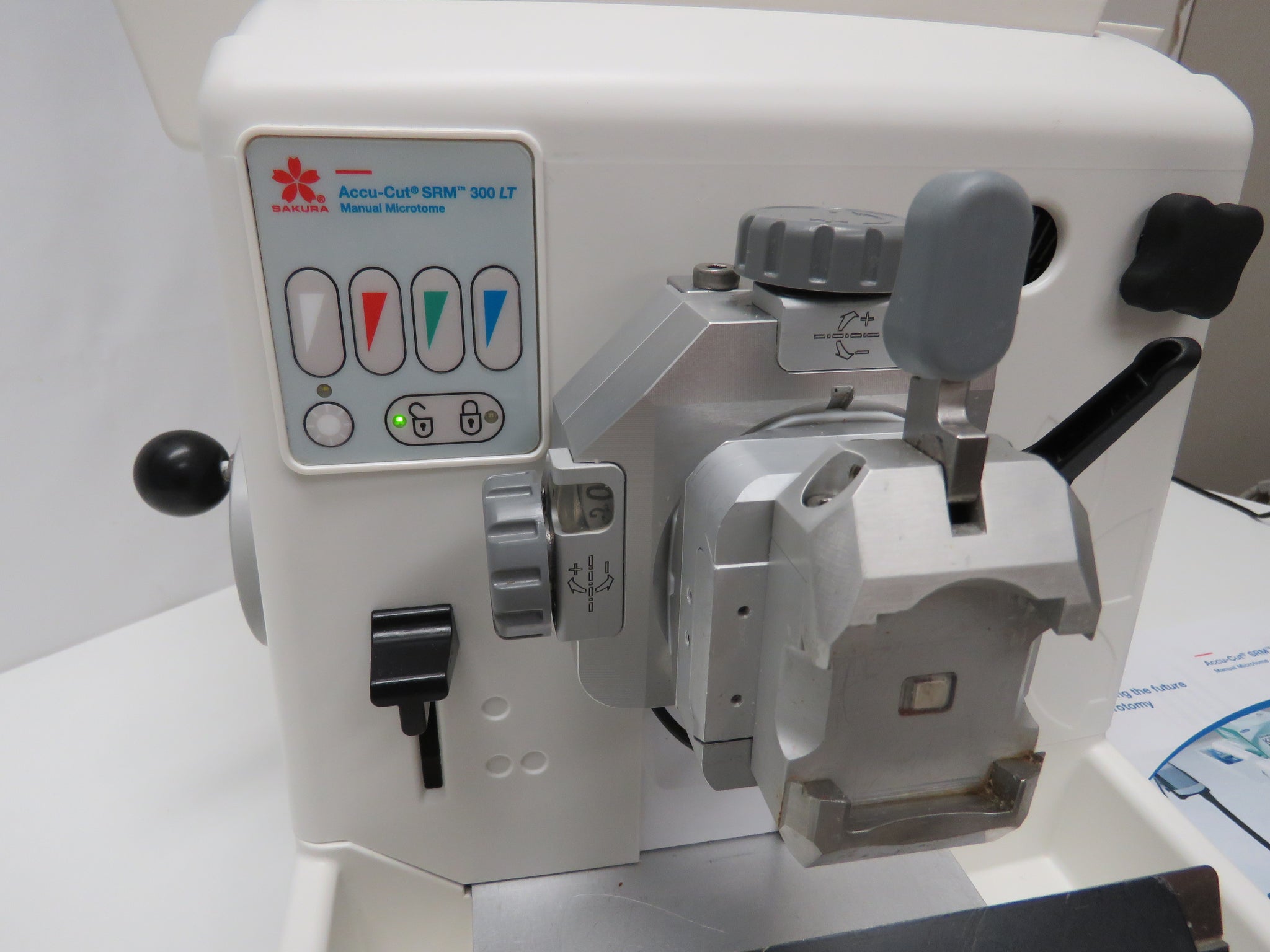

The SRM 300 LT features a 3D Precision Chuck for accurate alignment of the block face to the blade on all three axes (XYZ), which is crucial for recuts. The sturdy microtome chuck retains its position when locked and unlocked, eliminating any time and effort spent realigning the cutting angle. The 3D Precision Chuck can quickly and accurately be returned to a zero position with the dial indicators.

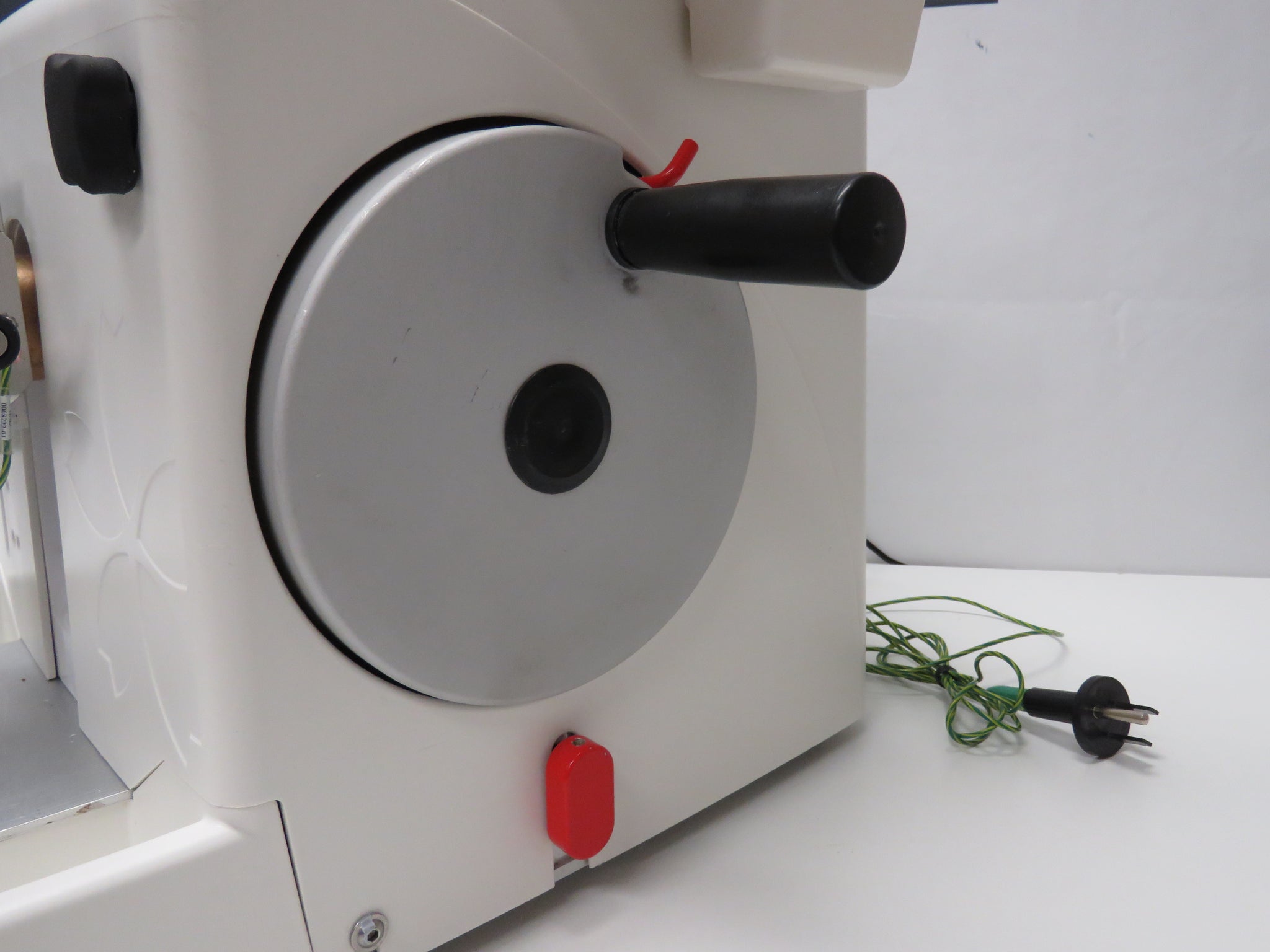

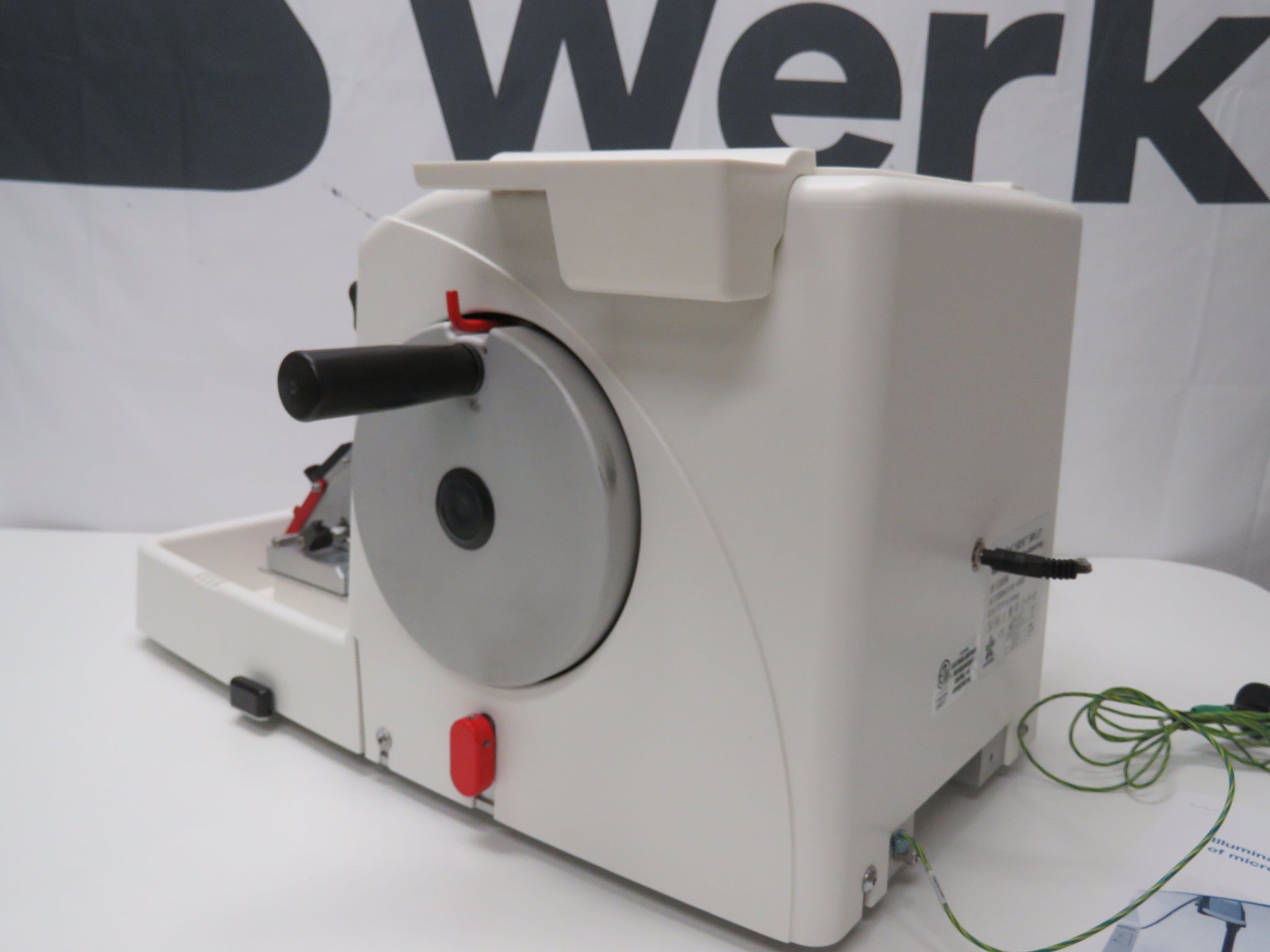

The compact and ergonomic design helps to minimize cumulative stress on the user and increases both efficiency and productivity. The course hand wheel is optimally sized and positioned for comfortable trimming in either clockwise or counterclockwise rotation and is switchable by the user.
- The first and only Brake Lock Indicator that displays that the chuck is locked and will not move while the user interacts with the microtome, providing users with peace-of-mind.

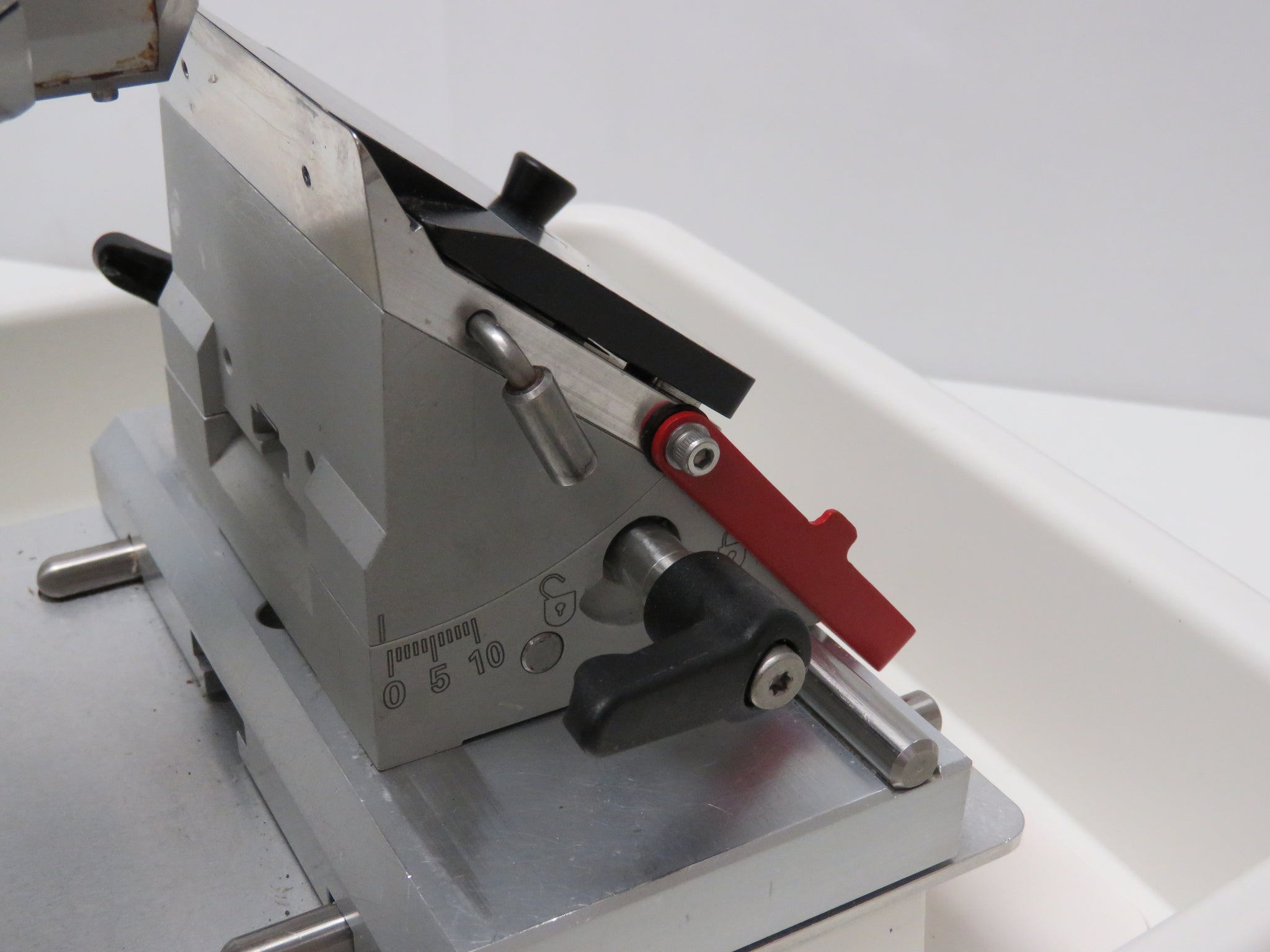

- The Red Blade Guard can be set in the UP position to protect the user from accidental exposure to the blade edge while sectioning.

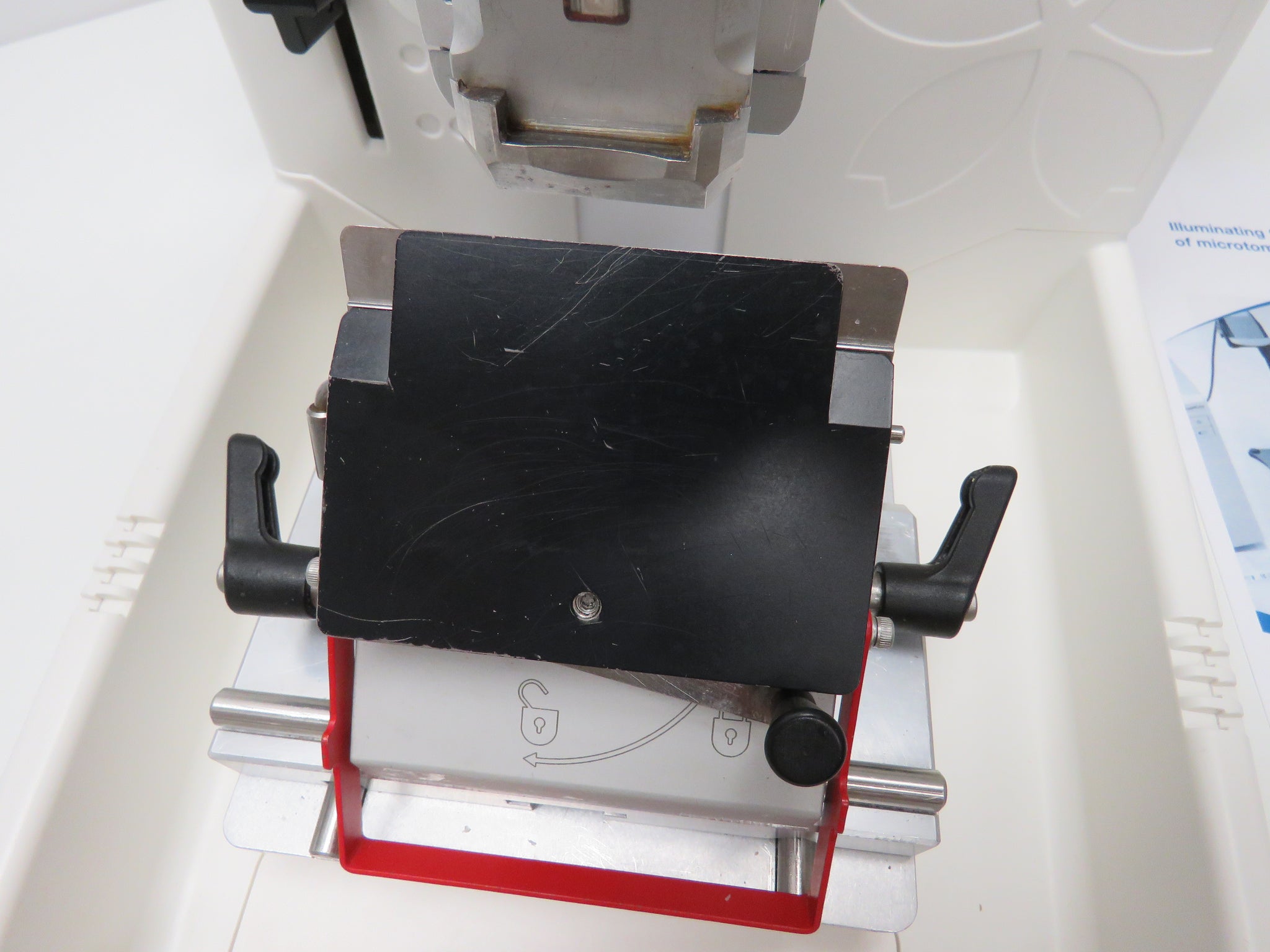

- A Universal Blade Holder base, featuring lateral displacement, allows operators to use the full length of the microtome blade without releasing the blade clamping mechanism or direct blade manipulation.

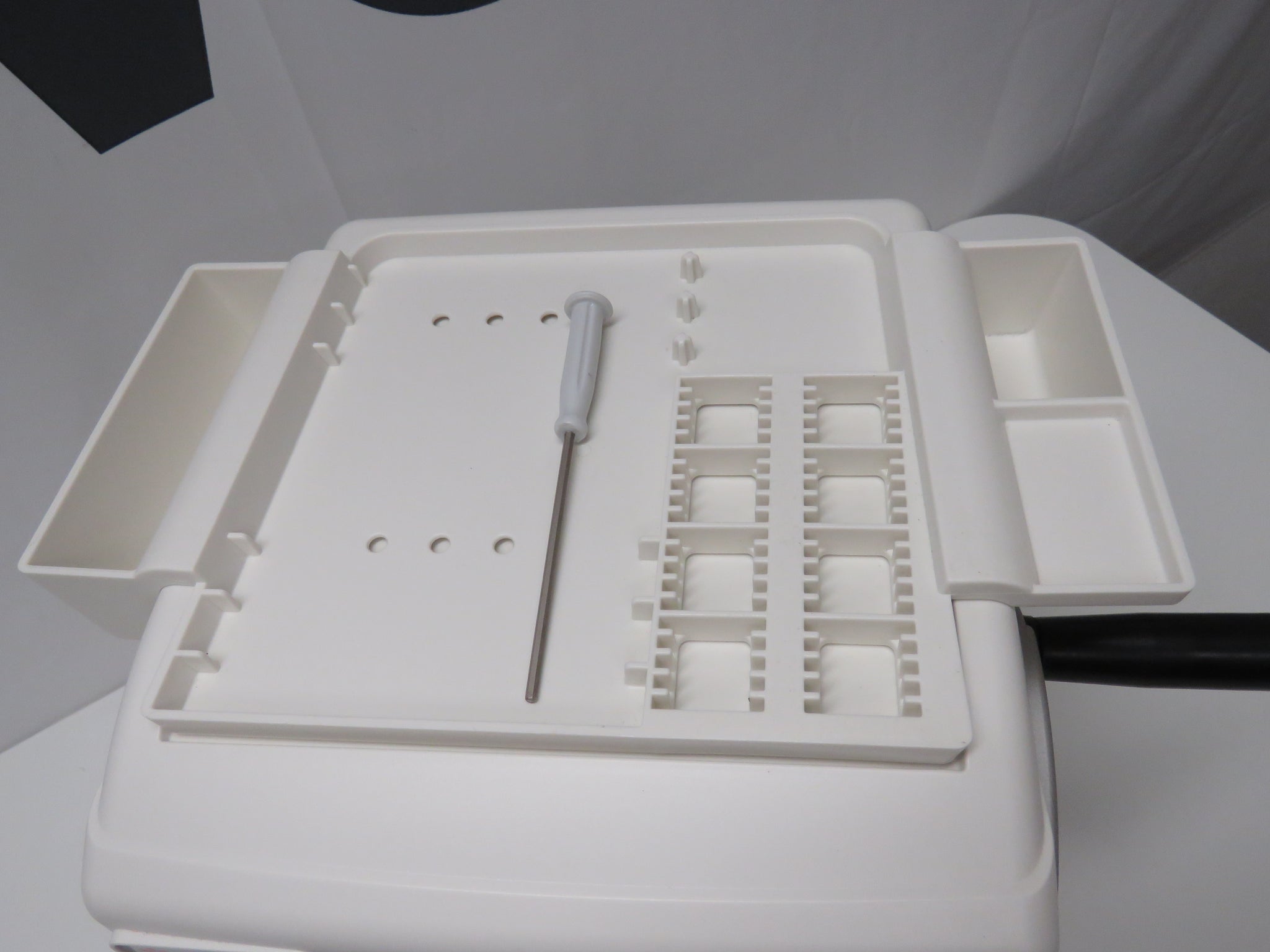

- The SRM 300 LT is the first and only microtome to offer a space-saving Tool Organizer giving back precious bench space.
Compatible with Accu-Edge® Disposable Blades, the Accu-Cut SRM 300 LT ensures superior microtome tissue sectioning in the precise art of cutting quality tissue samples section after section, time after time.
Features |
Benefits |
| Multi-color LED Backlit Chuck |
|
| 3D Precision Chuck |
|
| User selectable Course Advance Wheel |
|
| Adjustable Trimming Lever |
|
| Hand Wheel |
|
| Brake Lock Indicator |
|
| Universal Blade Holder Base |
|
| Red Blade Guard |
|
| Waste Tray |
|
| Application | Sectioning of paraffin-embedded specimens blocks for routine and research histology |
| Dimensions | 16.5 (W) x 20.7 (D) x 11.8 (H) inches 41.9 (W) x 52.5 (D) x 30.0 (H) cm |
| Weight | 68.0 lbs (30.8 kg) |
| Section thickness | 1 to 40 microns 1 to 10 microns in 1 micron increments 10 to 20 microns in 2 micron increments 20 to 40 microns in 5 micron increments |
| Trimming Lever | 10 or 40 microns |
| Retraction distance | No retraction or 20 microns (factory set) |
| Vertical stroke | 64 mm |
| Horizontal stroke | 26.9 mm |
| Coarse Advance Hand Wheel | User switchable: clockwise or counter clockwise |

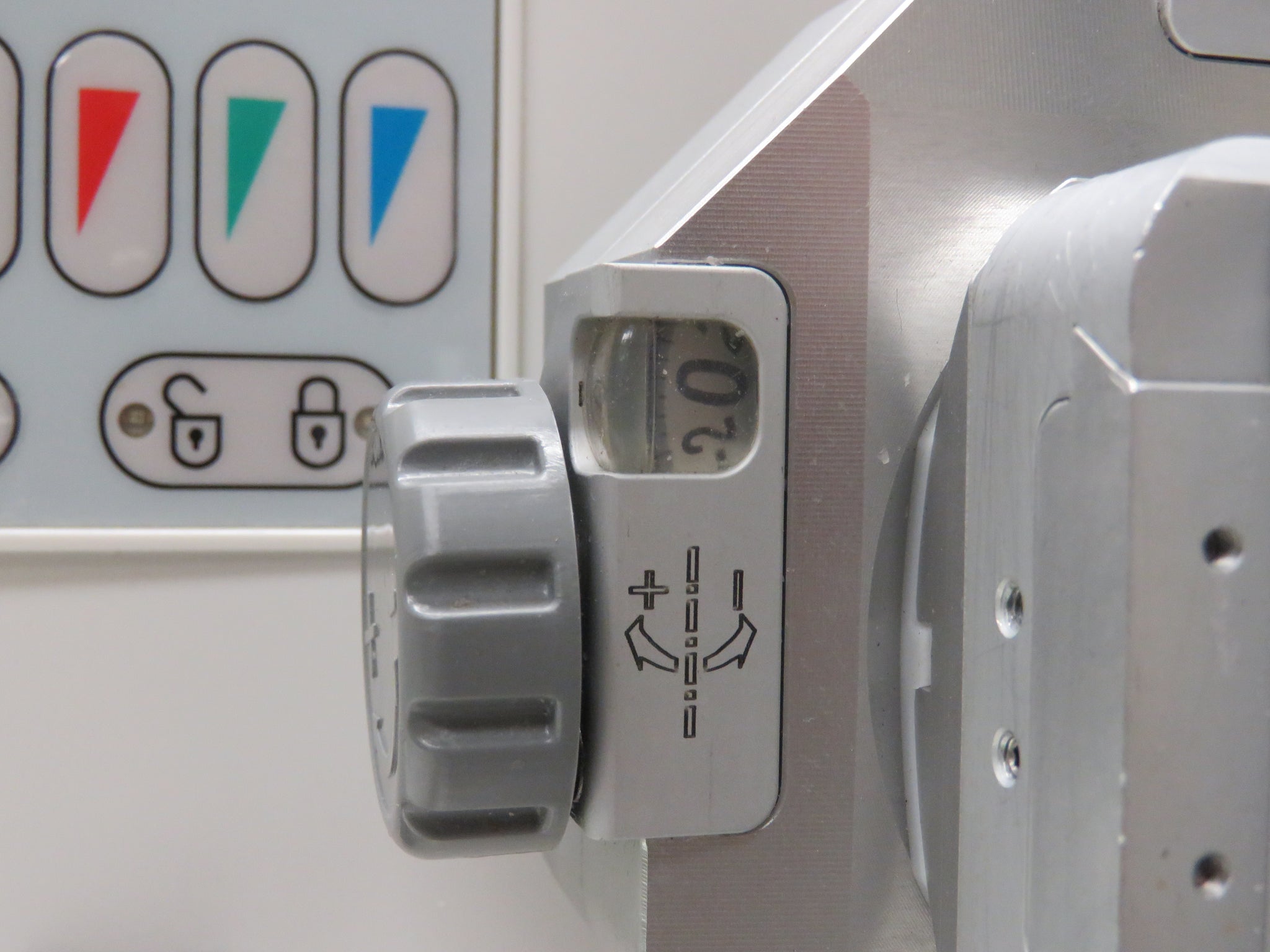

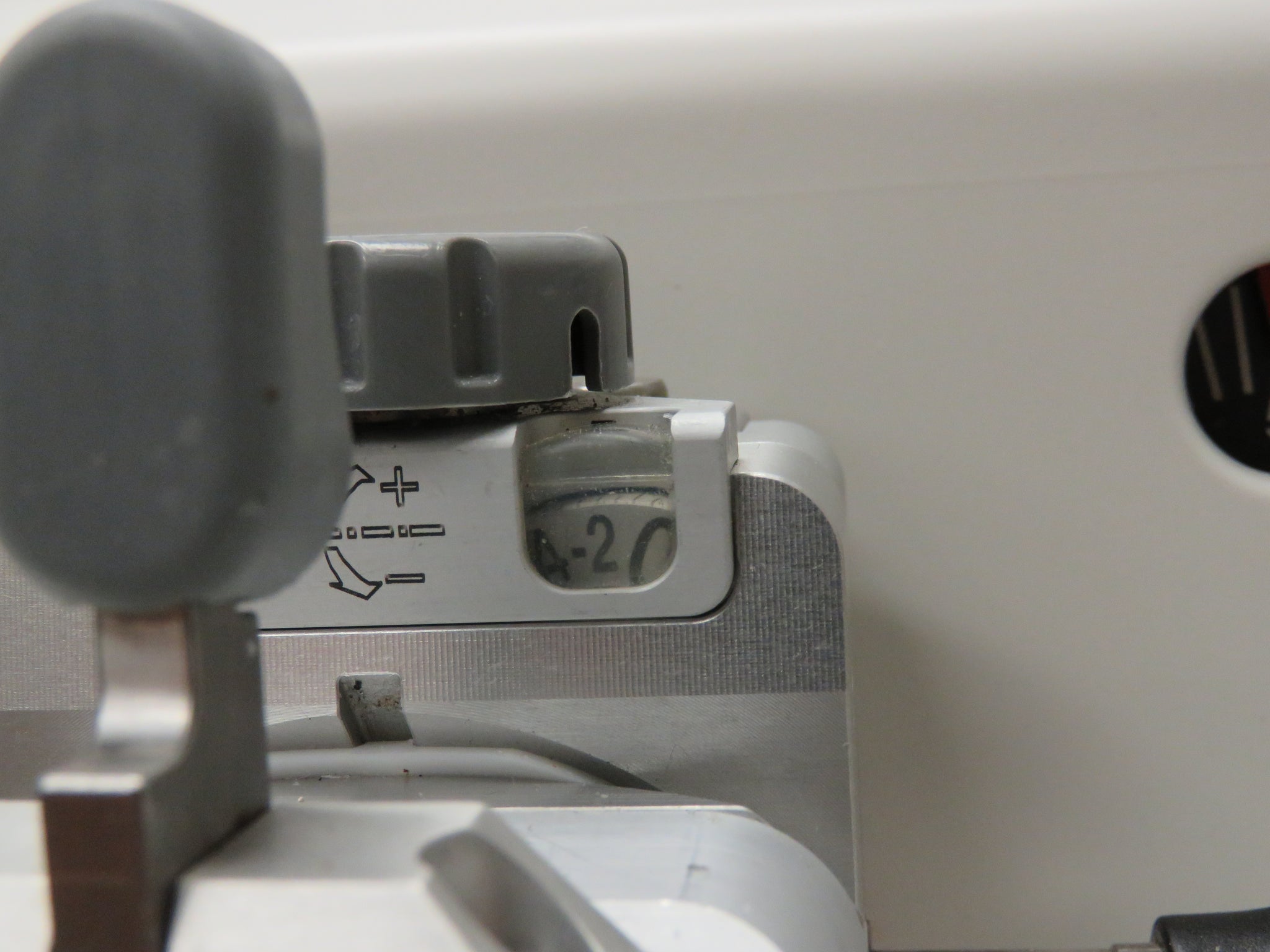

| Specimen orientation using the 3D Precision Chuck | ±8° (XYZ axes) Dial indicators show the exact angle of the chuck |
| LED backlit chuck | 4 color LED backlight (white, red, green and blue) with user-adjustable intensity for each color, on-off option |

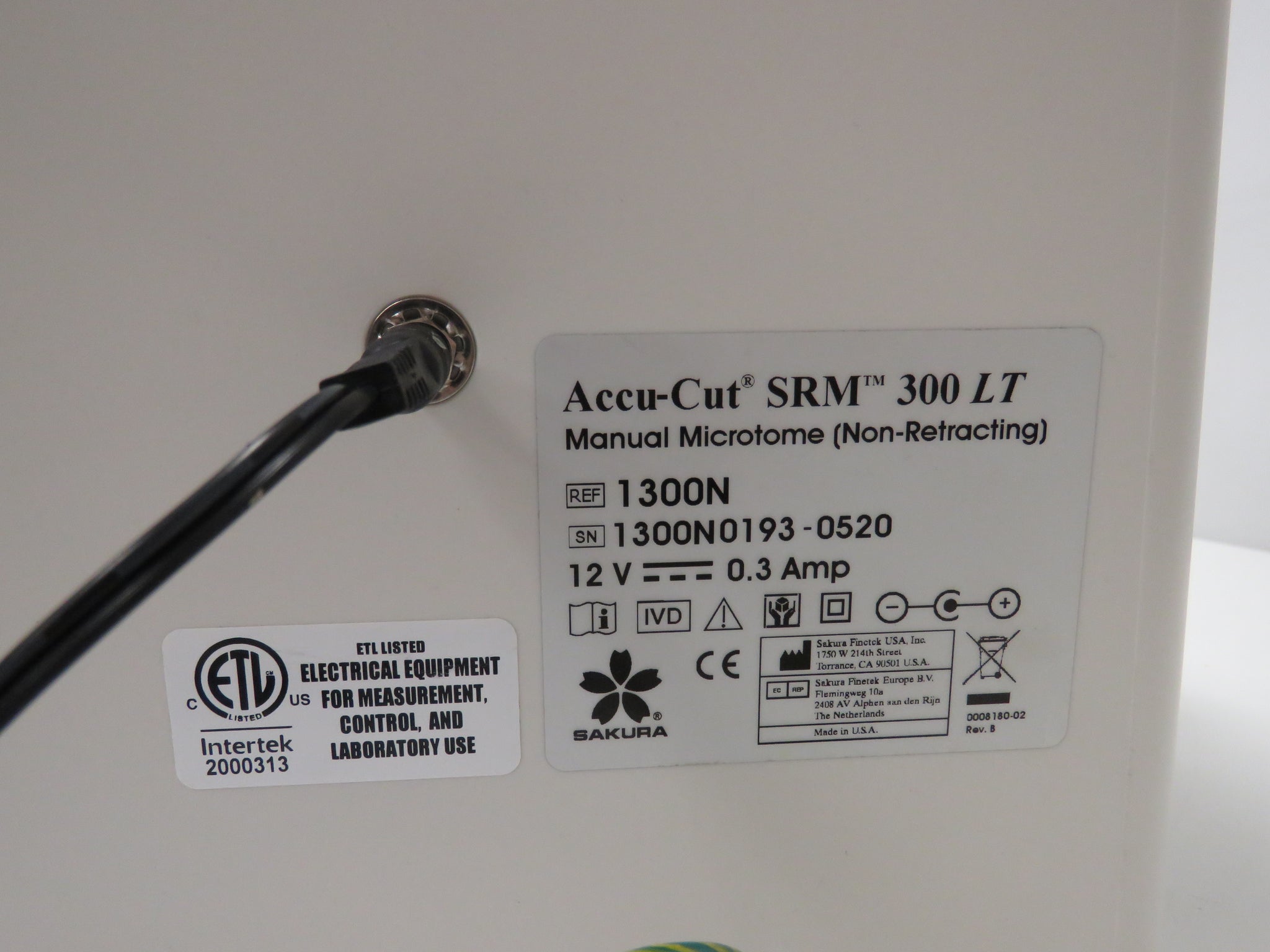

| Rated voltage and current for LED light | External AC/DC power supply: 100-240 VAC, 50/60 Hz, 0.5 A Instrument: 12 VDC 0.3 A |
| Blade angle | 0 to 10° |
| Blade Holder Base: north/south (vertical direction) east/west (horizontal direction) | 25 mm 60 mm |
| User interface display | Key pad to control the LED backlight Brake light indicator |
| Certifications | UL61010-1:2012 Ed. 3, UL61010-2-101:2015 Ed. 2, CSA C22.2 61010-1:2012 Ed. 3,CSA C22.2 61010-2-101:2015 Ed. 2, IEC61010-1:2012 Ed. 3, IEC61010-2-101:2015 Ed. 2, IEC 61326-1, IEC61326-2-6 |
| Regulatory status | IVD, FDA Class I |
Condition
Excellent working and cosmetic condition.
Includes

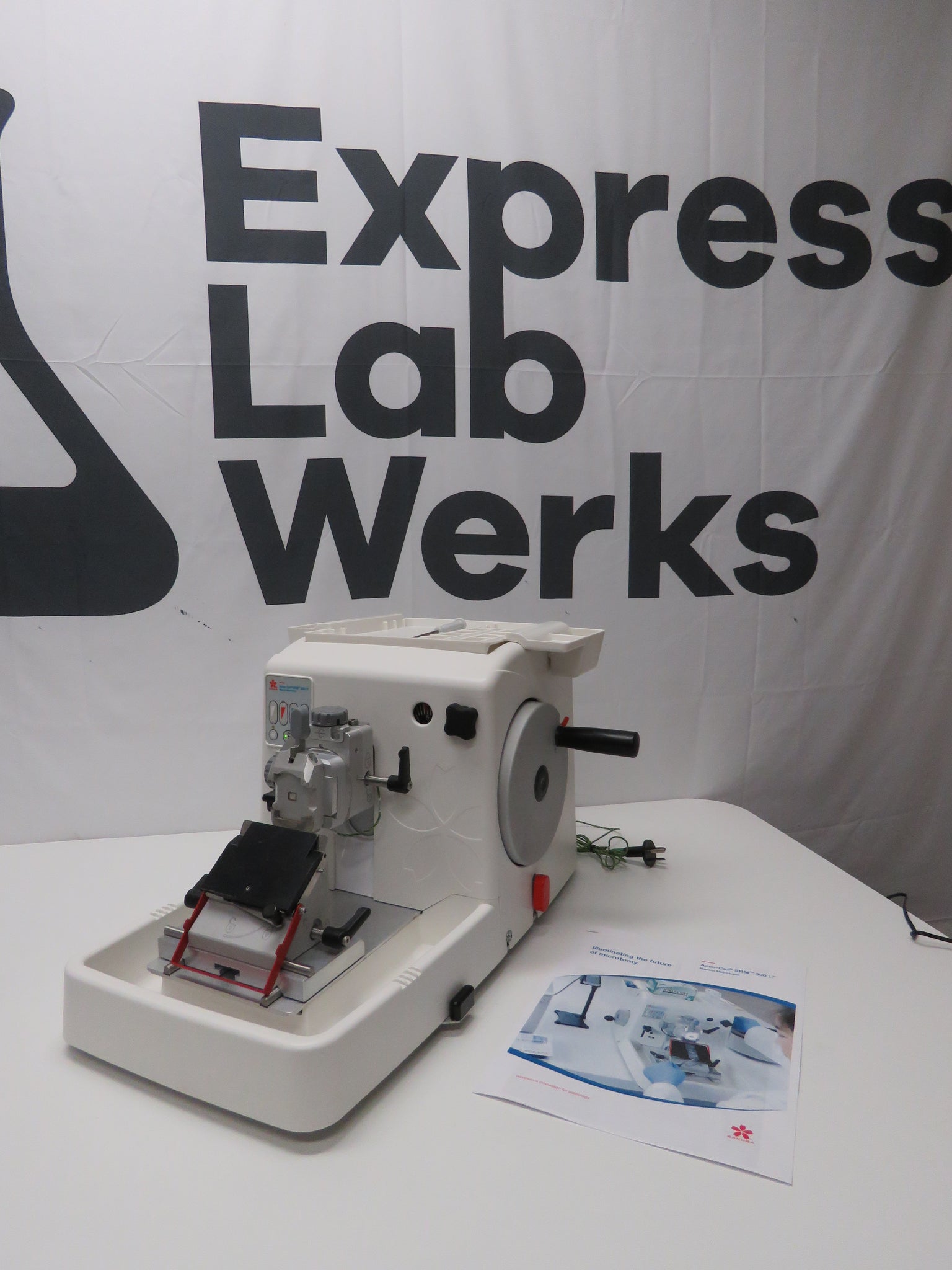

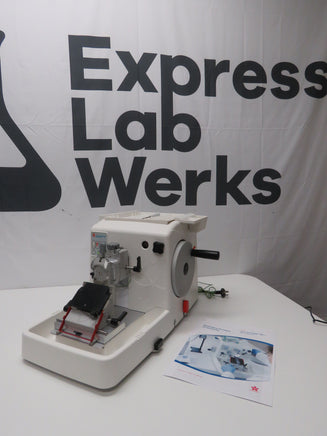

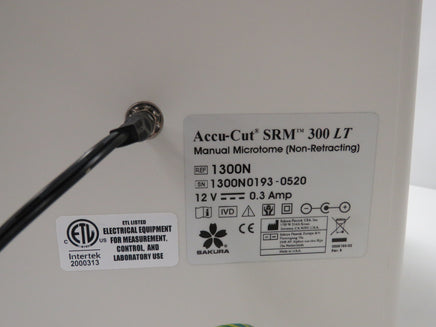

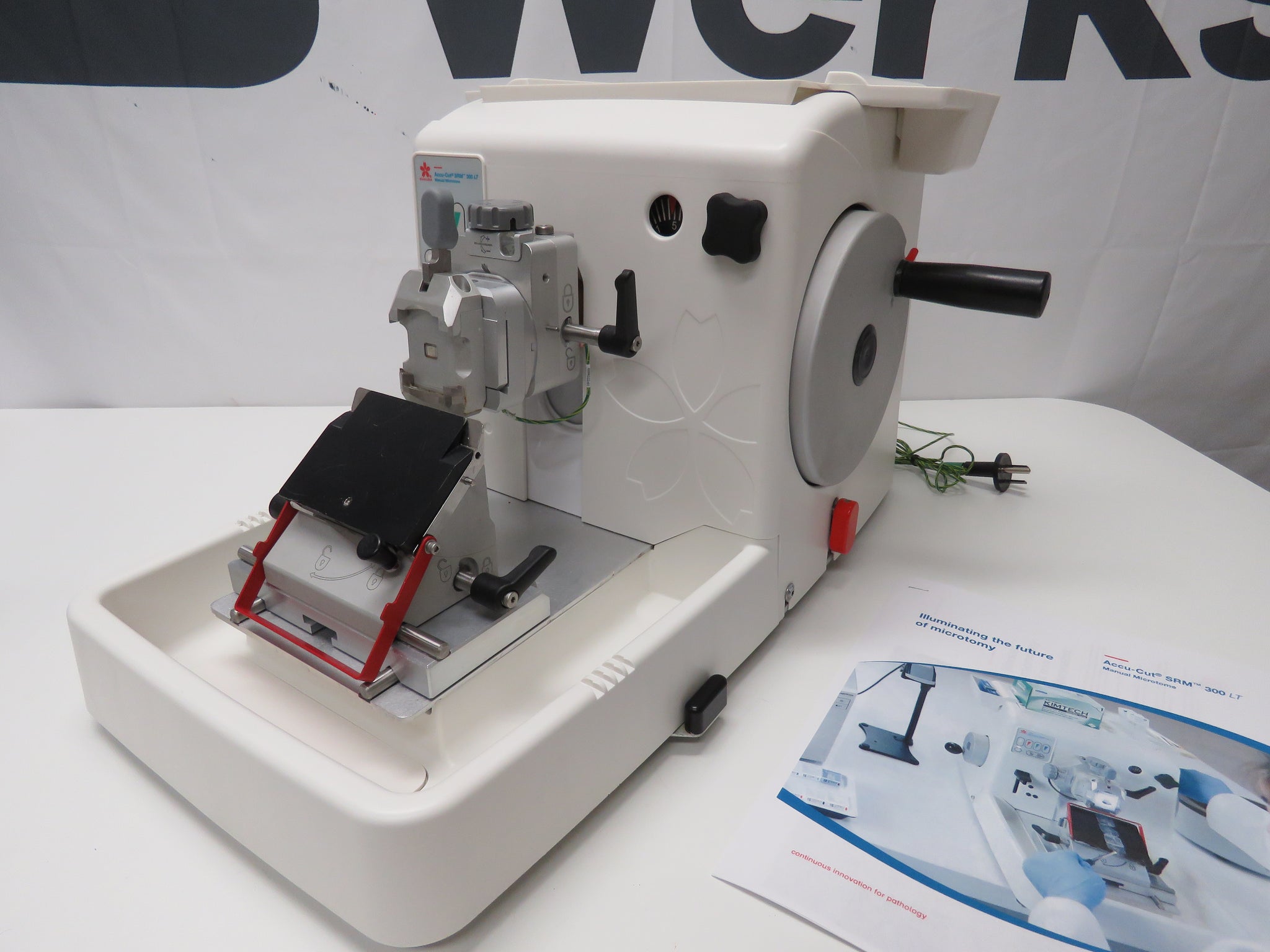

- Sakura Accu-Cut SRM 300 LT Manual Microtome 1300N (non retracting)
- Sakura LED Lighted Specimen block
- Knife holder assembly

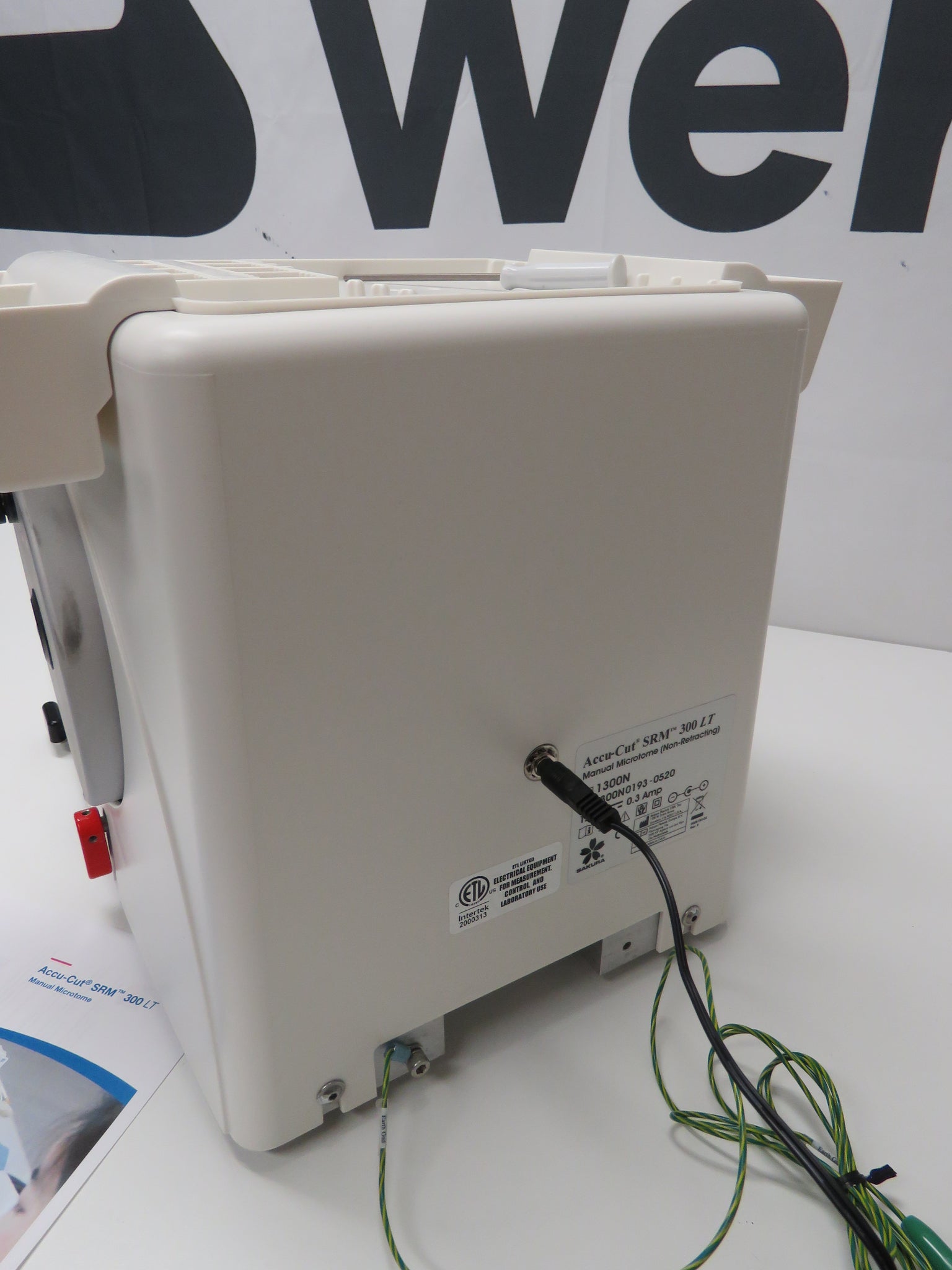

- Power supply for illumination

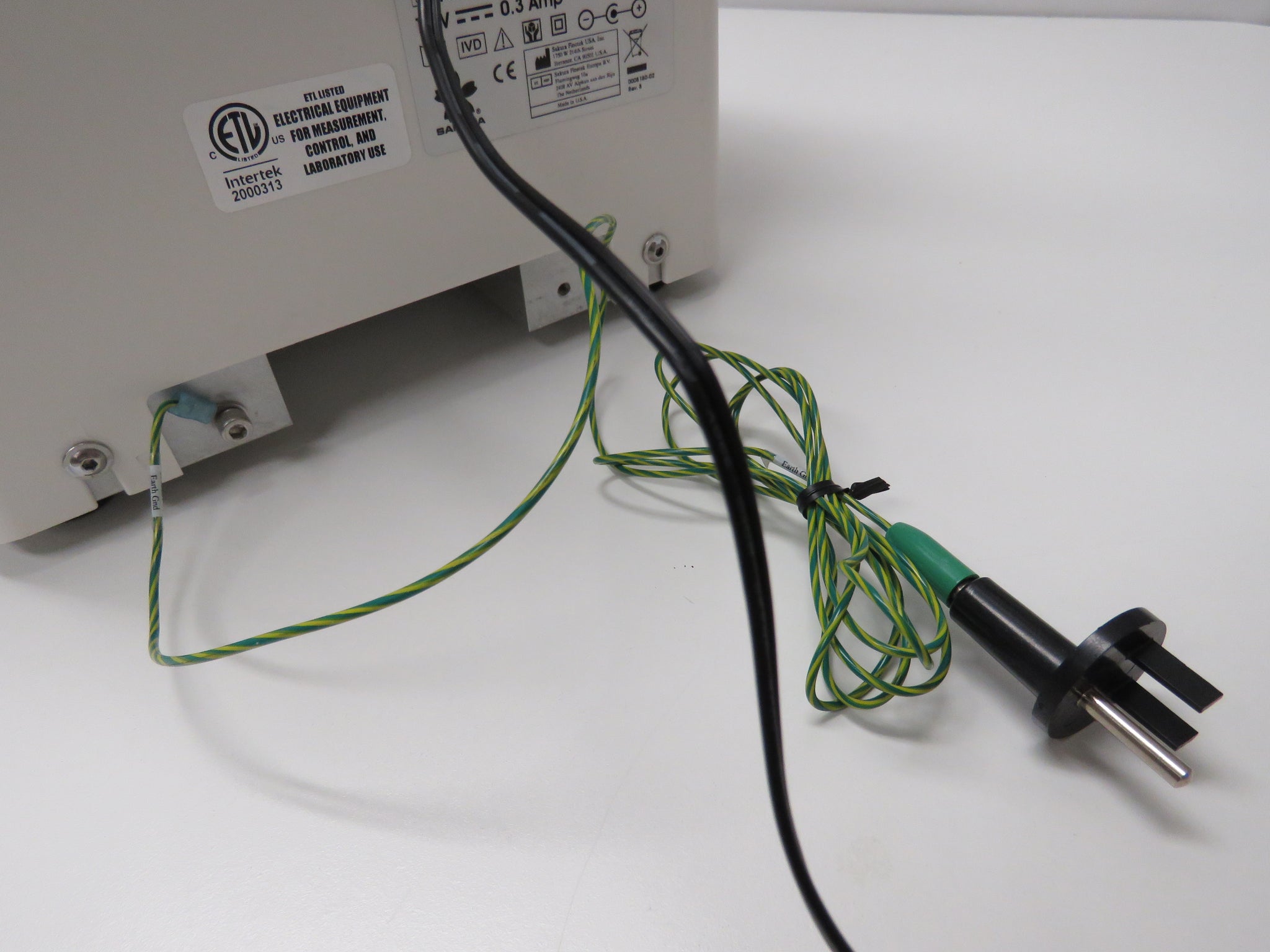

- Earth ground cable with plug

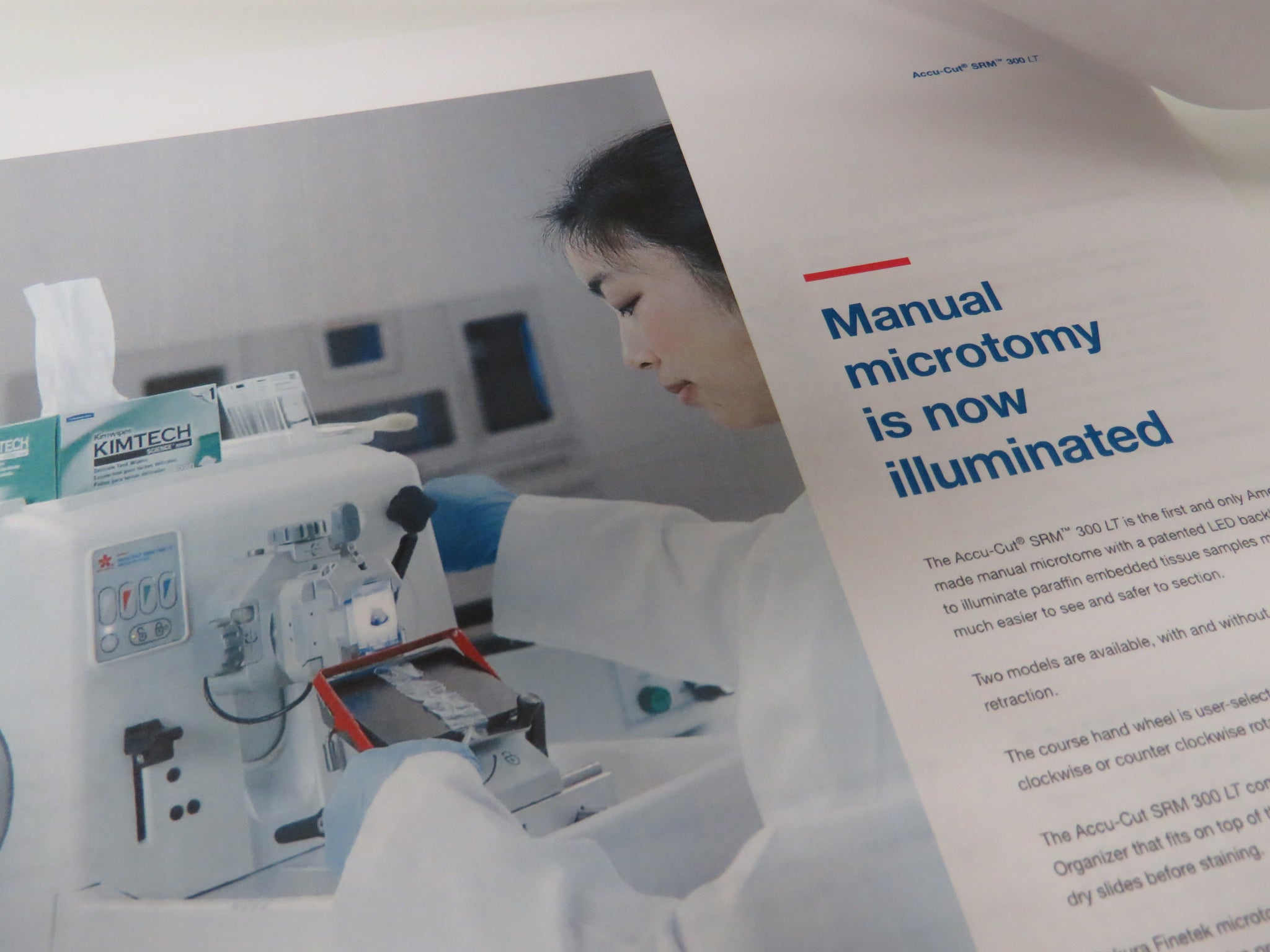

- Product brochure
BBR1
Warranty
30 Day warranty. We pledge to offer the best service and warranty to all of our customers! We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.
Certification
This is a genuine product from this manufacturer.
Disclaimer
The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping of the item."
Regardless of the origin of the equipment, documentation provided or identification appearing upon the equipment, the equipment described and offered here is in no way certified for, recommended for, or offered for any specific use. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. The purchaser, by bidding on this equipment, indicates their acknowledgment of, and agreement to the terms of this disclaimer. it is the purchaser's responsibility to have the item inspected and certified by a qualified professional before use!
