SHIMADZU RF-1501 Spectrofluorophotometer Version 2.0 - Mint Shape
Web Information
MANUFACTURER
| Shimadzu Scientific Instruments, Inc. | |
| MODEL |
RF-1501 Fluorescence Spectrophotometer |
| FEATURES | Compact High sensitivity bright optical system noise suppression digital filter Scanning speed is selectable in 4 steps Easy-to-insert Program Packs Store experimental parameters on convenient Data Packs (IC RAM card) Backlit liquid crystal |
| Wavelength | 220 nm ~ 900 nm |
| Product description (Power Requirements) | The unique RF-1501 optical design provides exceptional sensitivity in an incredibly compact instrument. |
| Light source: (FLUOROMETRIC SPECIFICATIONS:) | Xenon lamp, 150W, Ozone resolving type lamp housing |
| Excitation/emission monochromators: | Concave, non-aberration, blazed holographic grating, F/2.4, 900 grooves/mm |
| Wavelength scale: | 220 ~ 900 nm and 0 order |
| Measuring wavelength range: | 220 ~ 750nm and 0 order as standard |
| Spectral bandwidth: | Choice of 10nm and 20nm in both excitation and emission sides |
| Wavelength accuracy: | ±5 nm |
| Light source compensation: | Dynode feedback system with monochromatic light monitoring function |
| Sensitivity: | The S/N ratio is 300 or higher for the Raman lines of distilled water (350 nm excitation wavelength, 10 nm spectral bandwidth, and 2-second response) |
| Wavelength scanning speed: | 4-step selection of SUPER, FAST, MEDIUM, and SLOW, (about 3,700 nm/min. at SUPER) |
| Wavelength slewing speed: | About 30,000 nm/min. |
| Response: | Choice of 0.02, 0.03, 0.1, 0.25, 0.5, 2, and 8 seconds for 98% of full scale |
| Sensitivity selection: | 2-step selection of HIGH and LOW (The sensitivity at HIGH is about 50 times that at LOW.) |
| Detector: (FLUOROMETRIC SPECIFICATIONS:) | Photomultiplier tube for both excitation and emission sides |
| Display: | Backlit liquid crystal display, 320 X 200 dots |
| Interface: | RS-232C interface, and interfaces for printer (Centronics type), autosampler, sipper, and IC card drive |
| Dimensions and weight: | 500W X 400D X 255H mm, 23 kg |
| Power Requirements: | 100/120/220/240 V, 400 VA |
| Operational temperature range: | 10 ~ 35°C |
| Operational humidity range: | 40~80% (Below 70% with temperature higher than 30°C.) |
Condition

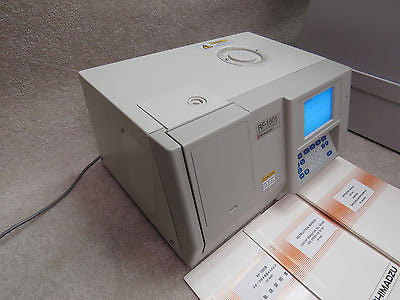

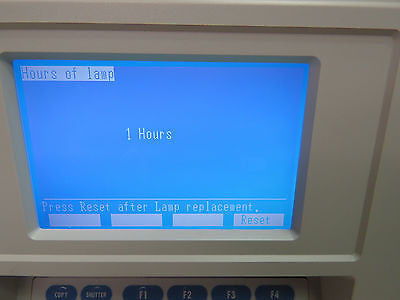

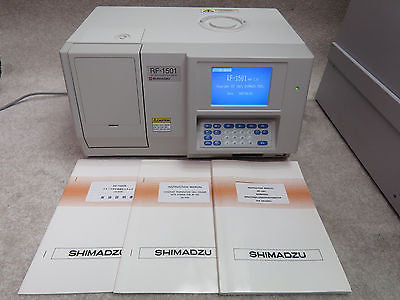

Seller refurbished. Excellent instrument with very little use. Only 1 hour on lamp. Comes complete in factory box with manuals.
Includes
- SHIMADZU RF-1501 Spectrofluorophotometer Version 2.0
- power cord
- Factory manuals
Warranty
30 Day warranty. We pledge to offer the best service and warranty to all of our customers! We are extending a 30 Day warranty on this item. This is our way of saying thank you for allowing us to serve you.
Certification
This is a genuine product from this manufacturer.
